Summit Built-in glass door kegerator for use under ADA compliant counters with dual tap kit for two 1/6 kegs, 7.61101e+011, SBC56GBIADA

Summit Commercial brings unique appliance choices to ADA compliant settings with a new line of commercial beer dispensers made in Europe.

Sized at 32 inches high, the SBC56GBIADA is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. This unit features a user-reversible double pane tempered glass door for a full display of the interior. A factory-installed lock is conveniently located towards the top of the door for added security. We include a removable two-piece stainless steel drip tray for cleaner service. The SBC56GBIADA ships with a complete Sankey American dual tap kit complete with a draft tower, regulator, 5 lb. CO2 tank, and all the equipment you need to serve beer on tap.

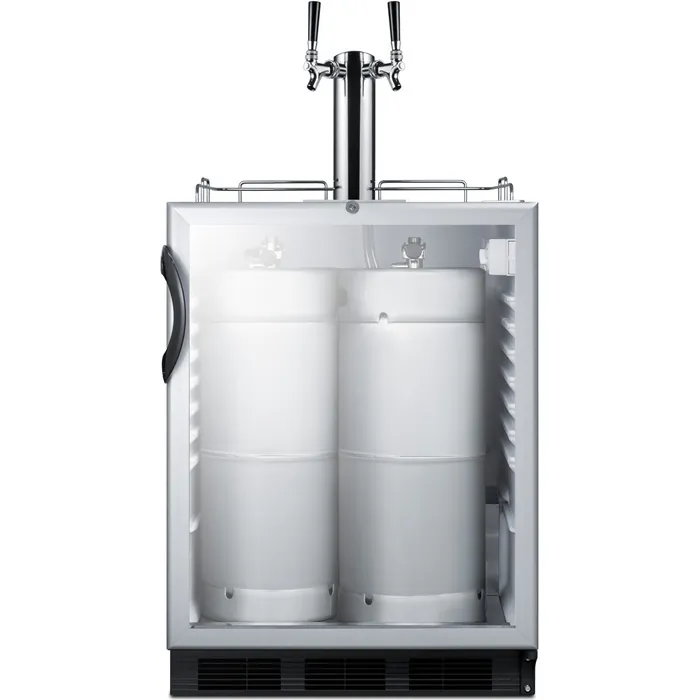

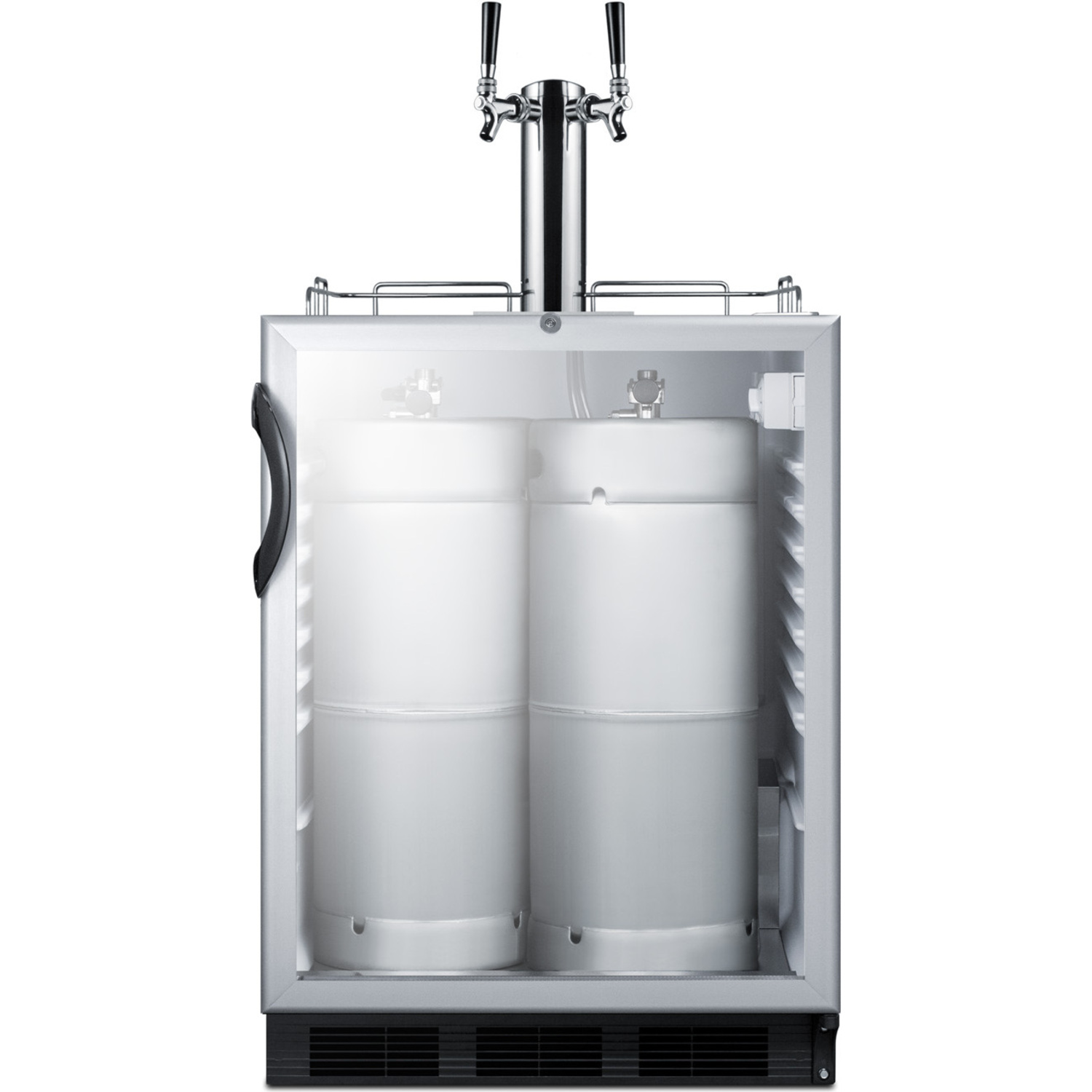

Inside, the SBC56GBIADA is designed to hold two 1/6 (sixtel) kegs (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. A CO2 tank bracket is located inside, allowing you to keep the tank inside and save on exterior depth.

The SBC56GBIADA is ETL-S listed to NSF-7 commercial standards. Additional ADA compliant kegerator choices are available with panel-ready or glass doors. Browse our complete line for more choices.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Height to Hinge Cap 32.25" (82 cm)

Nominal Width 24.0" (61 cm)

Width 23.38" (59 cm)

Nominal Depth 23.0" (58 cm)

Depth 23.0" (58 cm)

Depth with Handle 24.88" (63 cm)

Depth with door at 90° 44.5" (113 cm)

Capacity 5.5 cu.ft. (156 L)

Defrost Type Automatic

Door Glass

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.8

Voltage/Frequency 115 V AC/60 Hz

Weight 110.0 lbs. (50 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101062846

Kegerator

Door Swing RHD

Reversible Yes

Tap Kit Yes

Height with Tap 47.5" (121 cm)

Number of Taps 2

Thermostat Type Dial

Interior Light Yes

Fan Type Exterior

Refrigerant R600a

Refrigerant Amount 0.67 oz.

High Side PSI 124.0

Low Side PSI 30.0

Inter Height 26.0" (66 cm)

Interior Width 21.0" (53 cm)

Interior Depth 18.0" (46 cm)

Compressor Step Height 7.0" (18 cm)

Compressor Step Width 21.0" (53 cm)

Compressor Step Depth 5.5" (14 cm)

Temperature Range 34º to 43ºF

FEATURES

ADA compliant height Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters

Commercially approved ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings

Built-in capable Front-breathing design allows fully recessed installation under counters

Complete tap kit Includes a 5 lb. CO2 tank and regulator, dual tap draft arm, Sankey American tap, and connection hardware

Dual tap system Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs

Double pane tempered glass door Heat resistant design provides clear view to promote impulse buys

Factory-installed lock Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Adjustable thermostat Interior dial thermostat ensures easy temperature management

Automatic defrost No-frost operation for minimum user maintenance

Reversible door User-reversible door swing allows you to easily adjust to better accommodate your setting

Stainless steel drip tray Removable two-piece drip tray included for added convenience

Interior light Turn the light on when you need it and off when you're done with a convenient rocker switch

Interior CO2 holder Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs

Stainless steel floor cover Interior includes steel cover to protect the floor when loading kegs

One piece interior liner Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Hidden evaporator Cold wall design with hidden evaporator and seamless interior

Fully finished cabinet Allows the unit to be used freestanding

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SBC56GBIADA.pdf)

TECHNICAL DRAWING (.dwg) (SBC56GBIADA_BEER_DISP.__A-C_2010_.dwg)

REVIT MODEL (Qf_Summit_SBC56GBIADA_24_inches_Wide_Built-In_Beer_Dispenser__ADA_Compliant.rfa)

USE & CARE (SBC56GBIADA-User-Manual.pdf)
