Summit 27 inch wide built-in undercounter all-refrigerator for commercial or residential use with caster set included, 7.61101e+011, FF27BSSCAS

Summit is expanding its popular lineup of commercial refrigeration with new 27" wide portable choices for use in indoor or outdoor kitchen spaces.

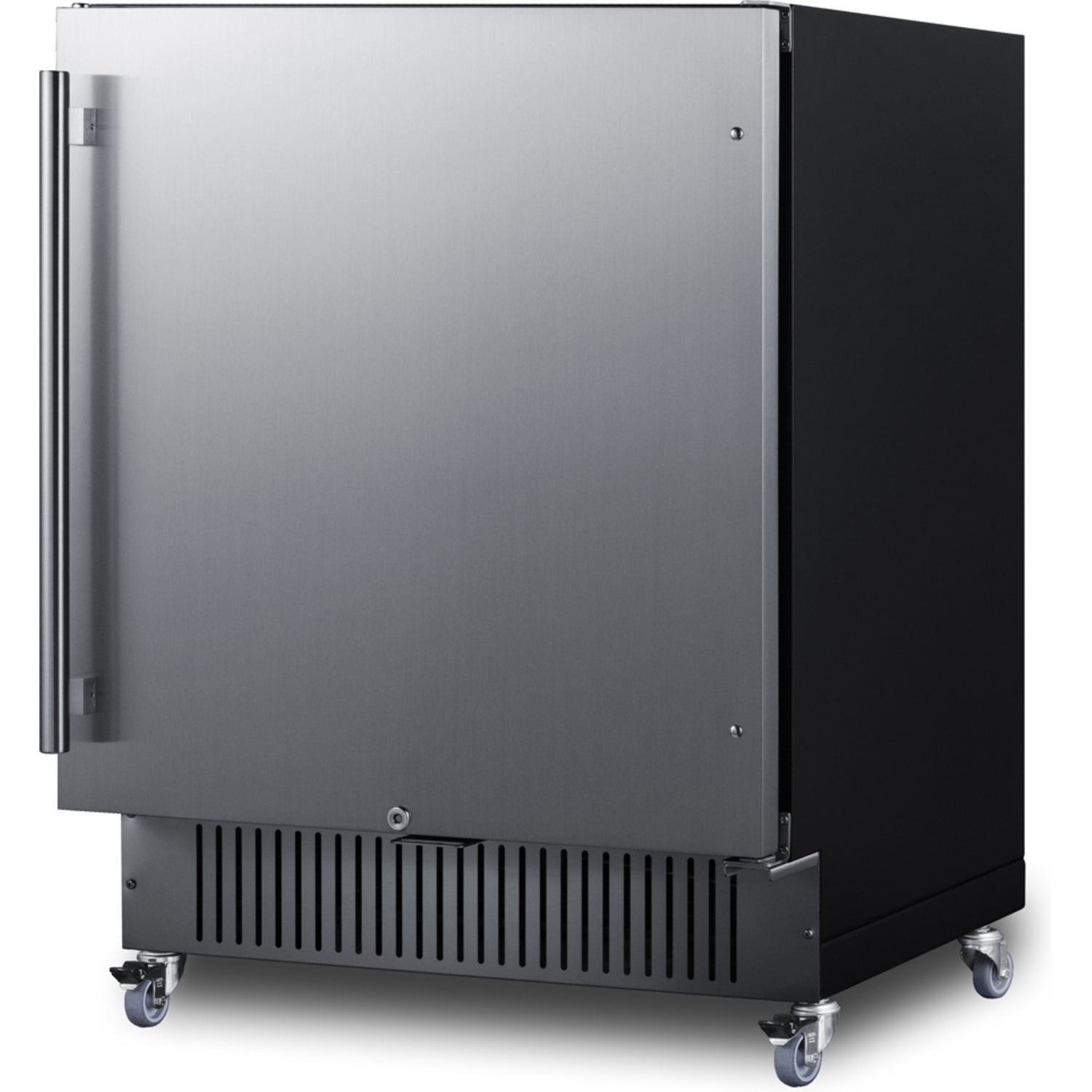

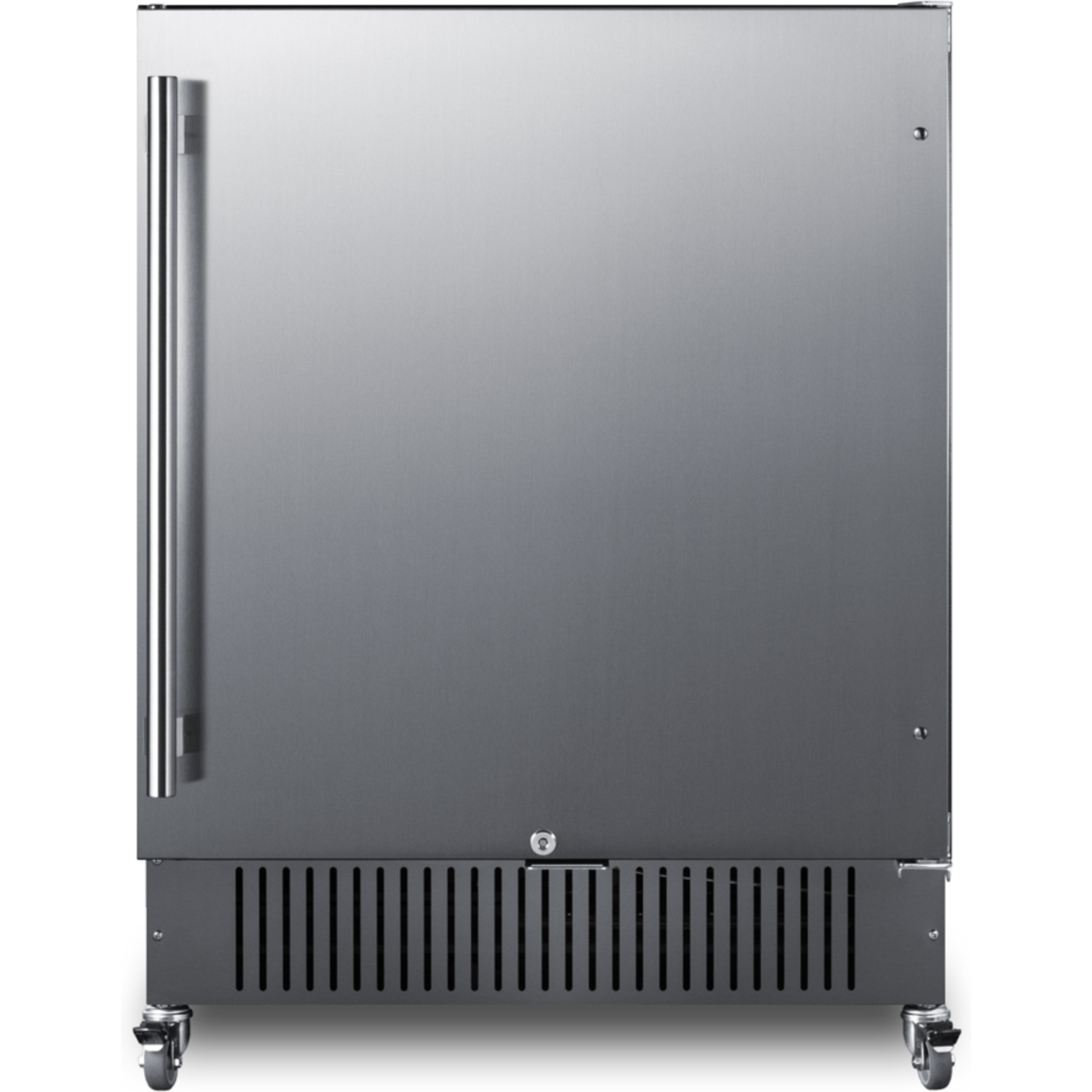

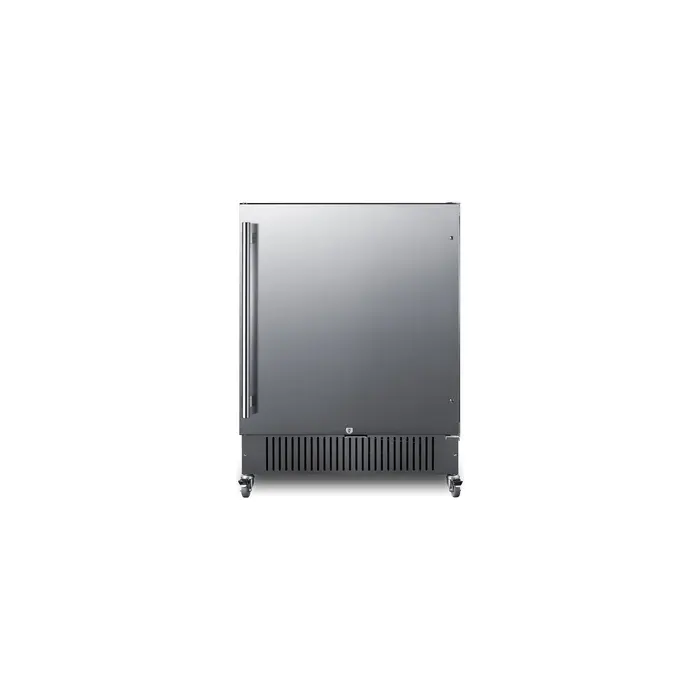

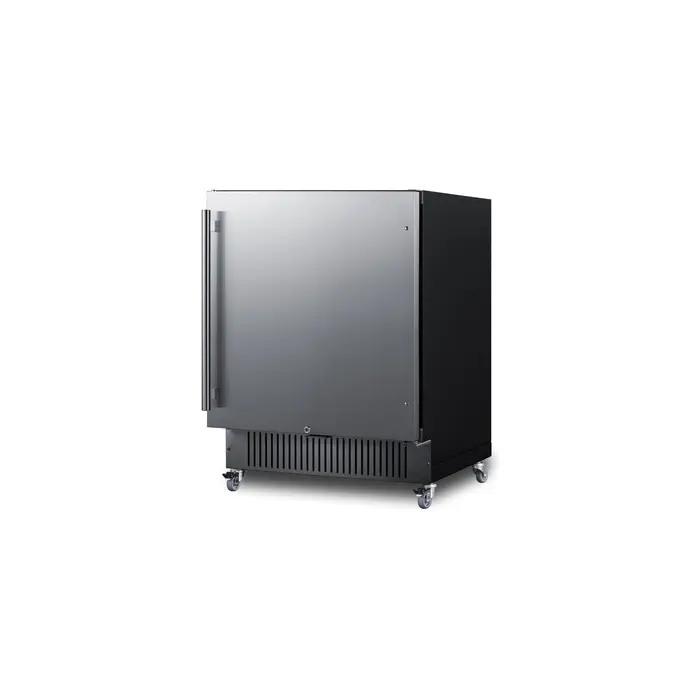

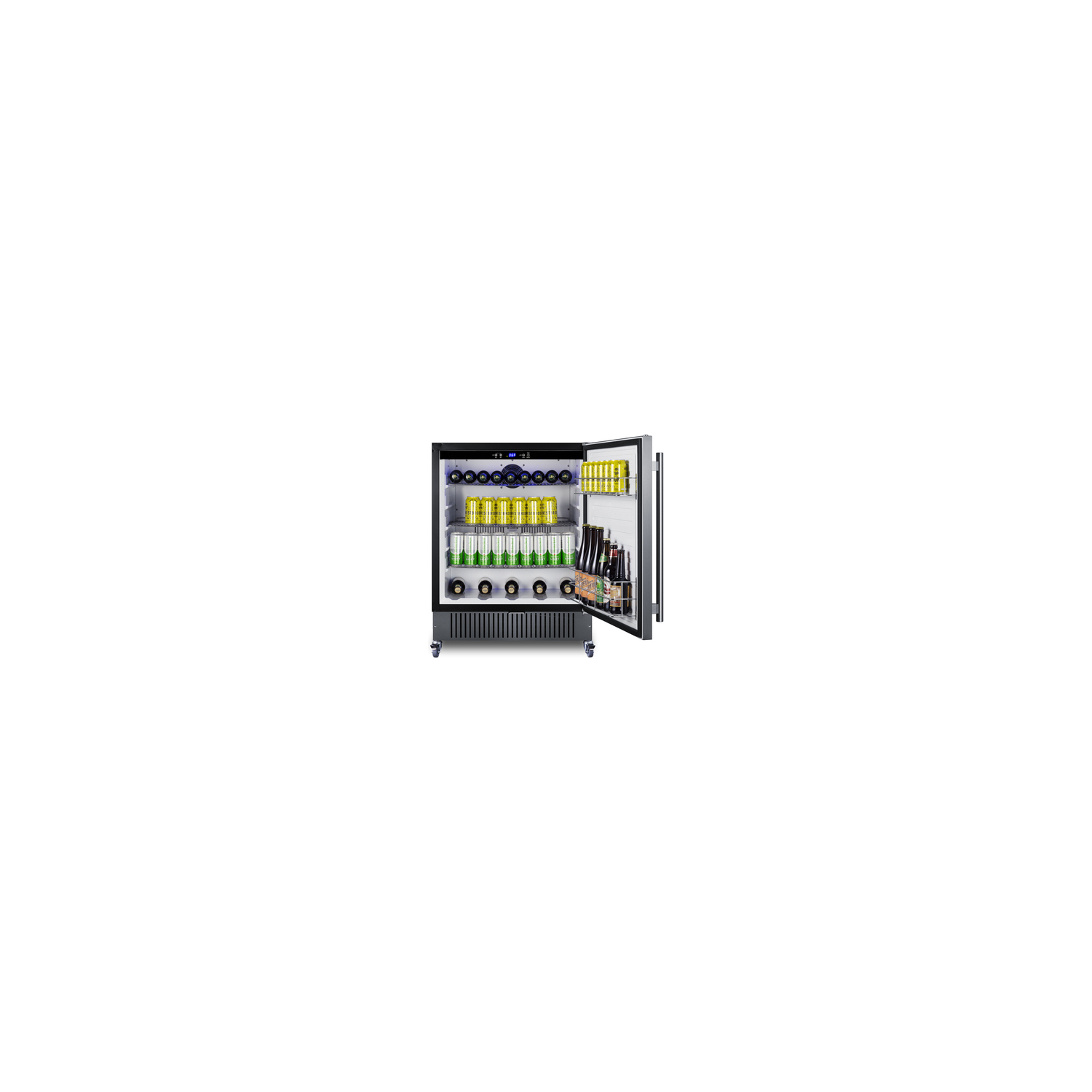

Model FF27BSSCAS is an all-refrigerator sized just under 27" wide and under 24" deep. We include a set of four casters (two locking), making it easy to smoothly move the refrigerator around any setting. This unit also features a front-breathing system that allows alternate built-in installation under counters. The weatherproof construction ensures safe use in the outdoors, with a stainless steel wrapped door and fully finished black cabinet with a sealed rear. We include a pro style handle and two keys to secure the front lock as needed.

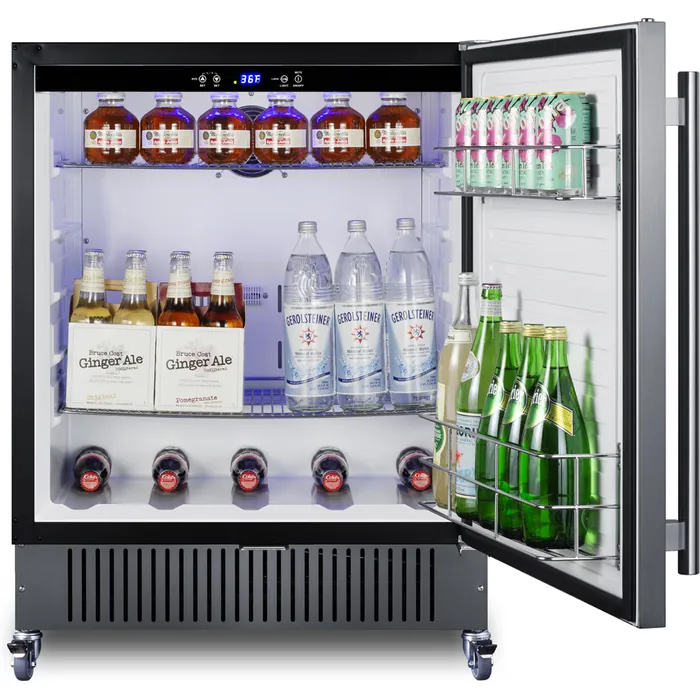

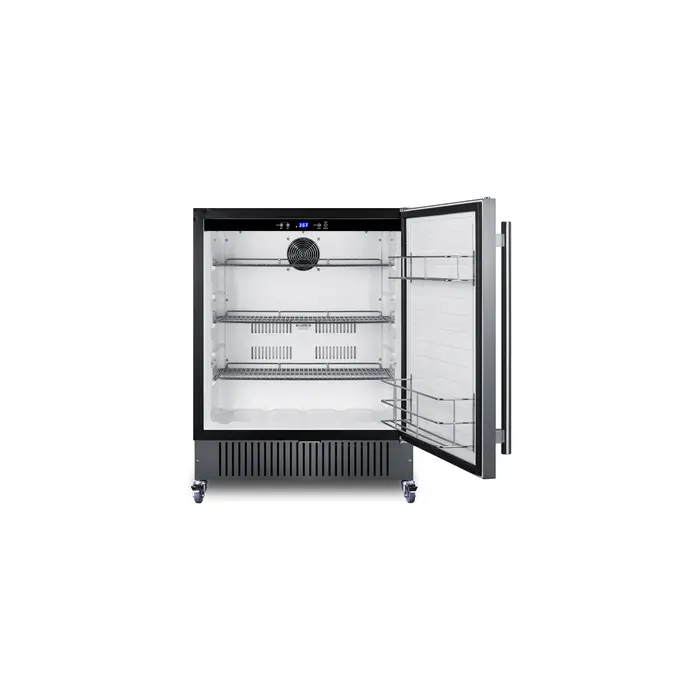

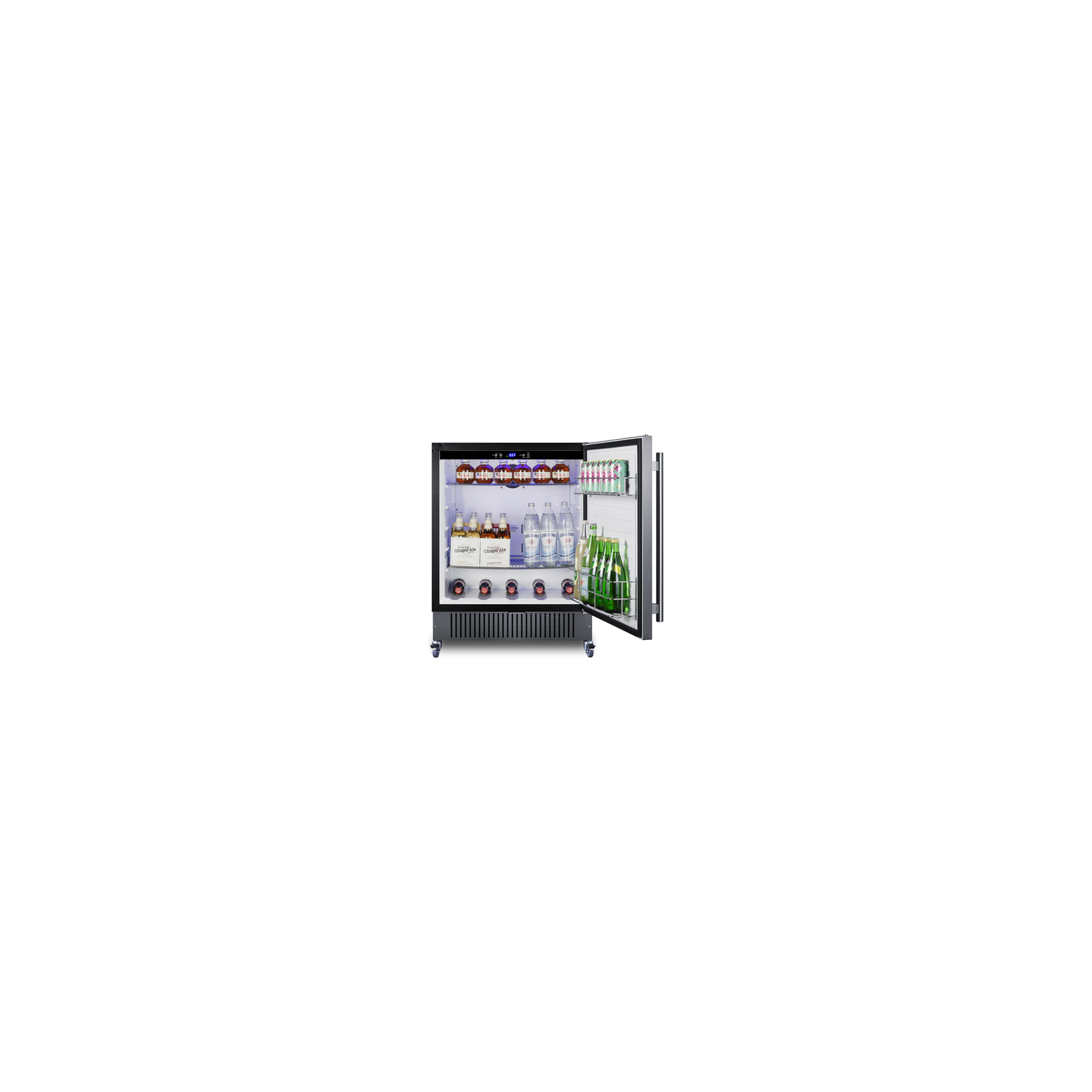

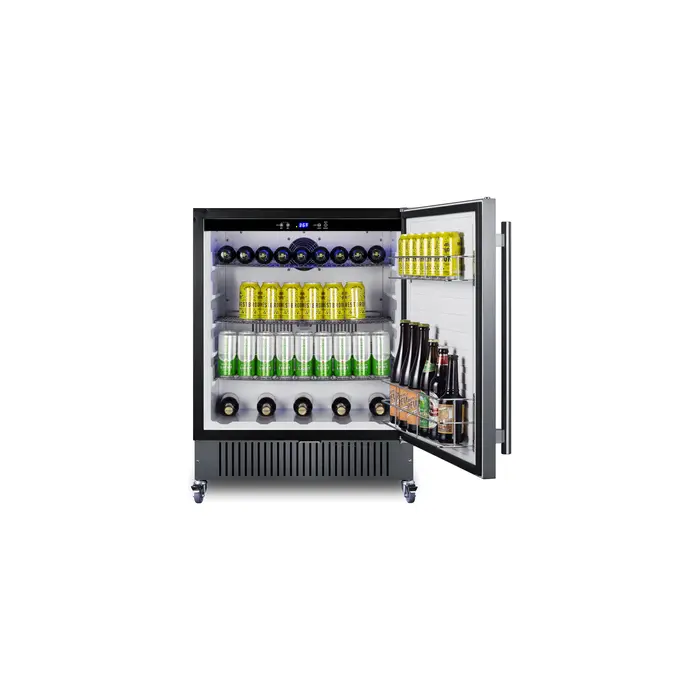

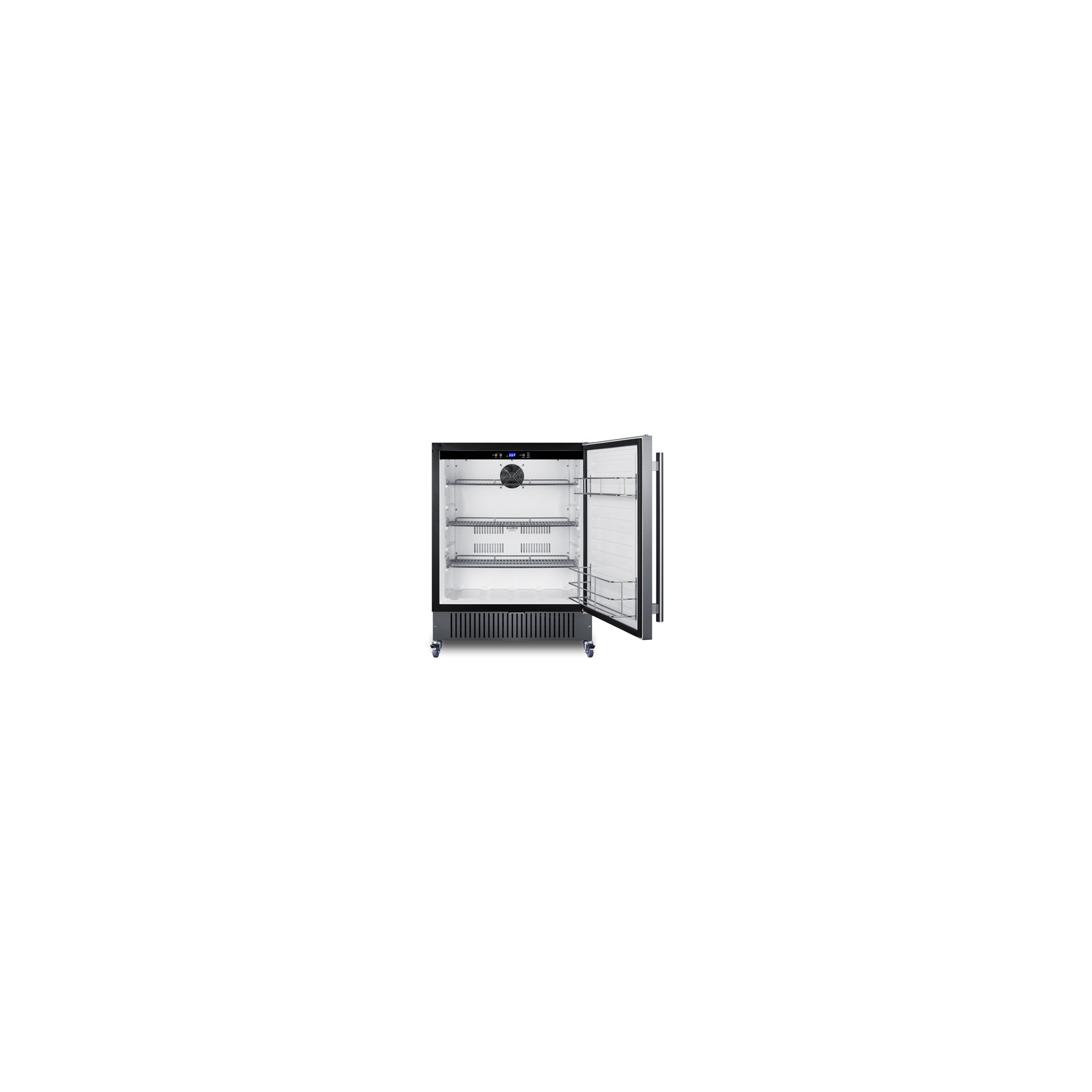

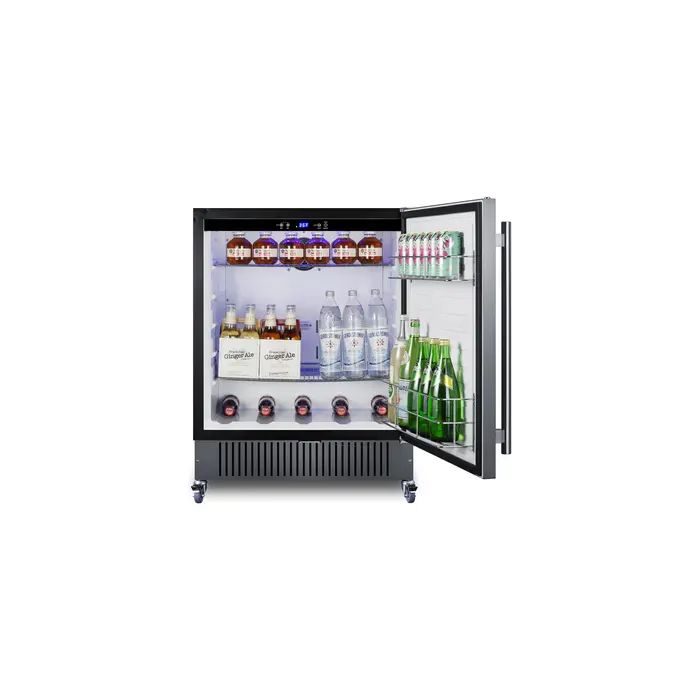

The refrigerator interior comes in a clean white finish, perfect for providing full visibility. The blue LED lighting can be adjusted between three levels of brightness to best suit your preferences. Additional features include a 96-hour Sabbath mode setting, high/low temperature alarm, and a child lock to secure the digital control panel. Adjustable chrome shelves make it easy to rearrange the interior as needed for the optimum storage. The door includes two racks ideal for holding condiments and the floor is slotted to keep bottles in place.

The FF27BSSCAS is ETL-S listed to NSF-7 commercial standards and is also approved for residential use. Additional 27" wide choices are available in drawer style (SPR275OS2D) and ADA height (FF27BSSADA), with more options available soon. Browse the full Summit line for additional commercial grade refrigeration choices.

SPECIFICATIONS

Overview

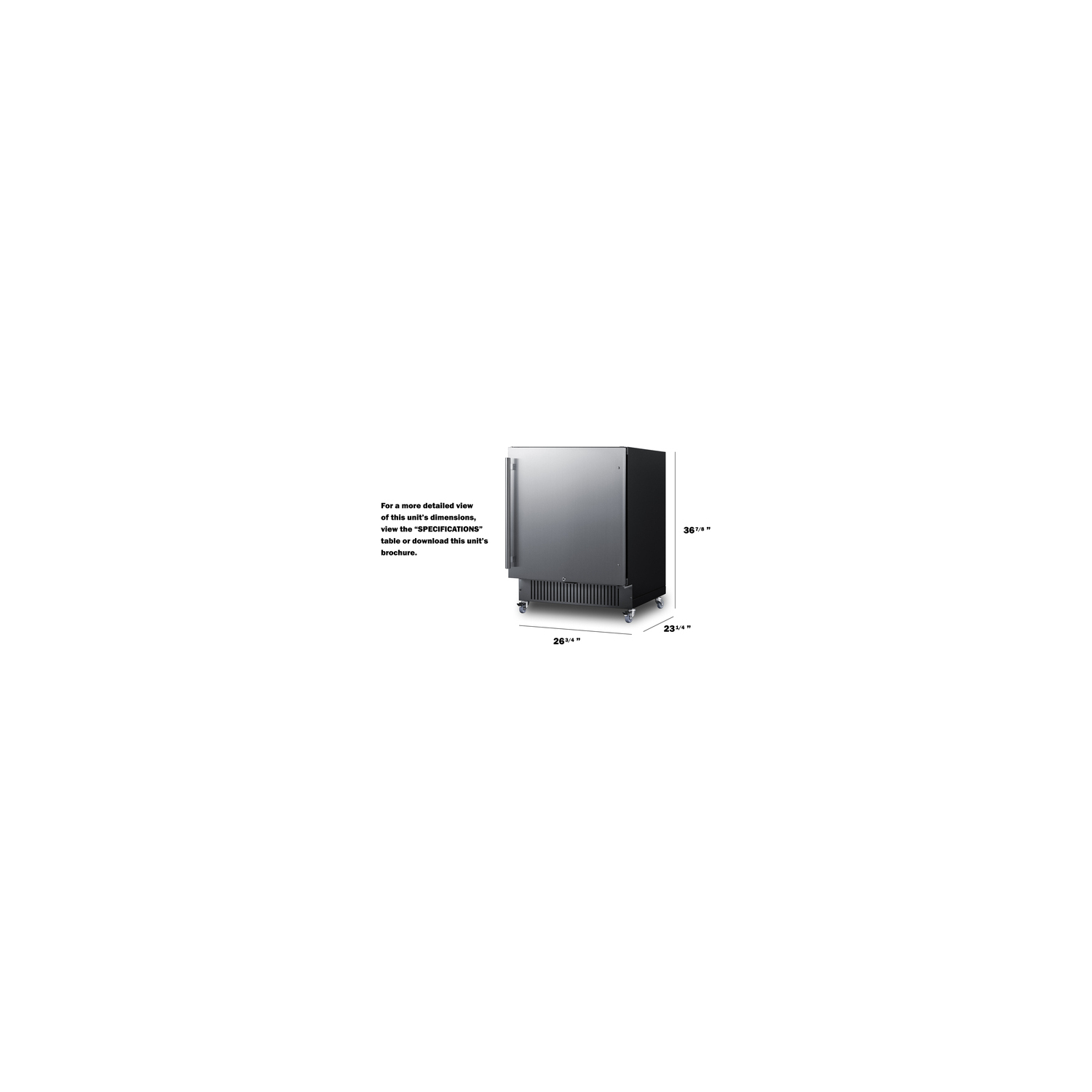

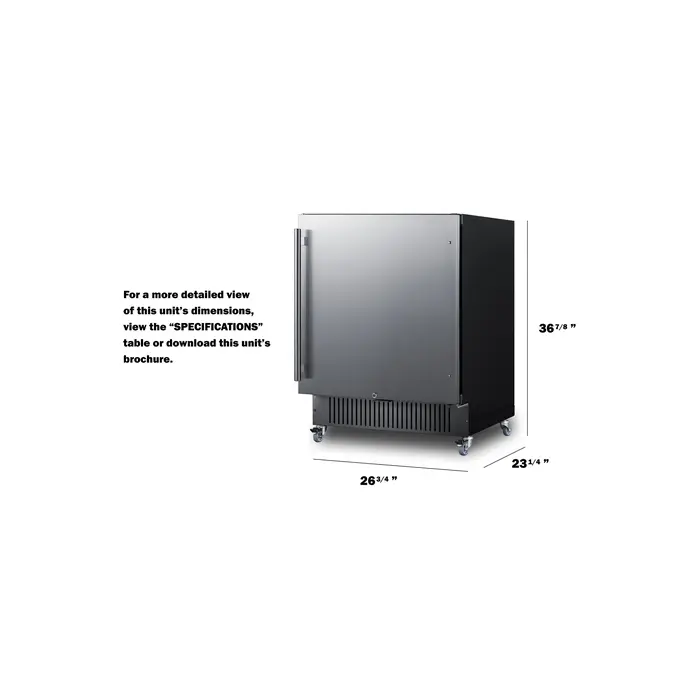

Nominal Height 37.0" (94 cm)

Height of Cabinet 36.88" (94 cm)

Nominal Width 27.0" (69 cm)

Width 26.75" (68 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.25" (59 cm)

Depth with Handle 25.25" (64 cm)

Depth with door at 90° 48.5" (123 cm)

Capacity 4.98 cu.ft. (141 L)

Defrost Type Automatic

Door Stainless Steel

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 235.0kWh/year

Amps 1.25

Voltage/Frequency 115 V AC/60 Hz

Weight 101.0 lbs. (46 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101090122

Refrigerator Features

Sabbath Mode Yes

Door Swing RHD

Reversible Yes

Shelf Type Chrome

Shelf Qty 3

Full Door Shelf Qty 2

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.23oz.

High Side PSI 150.0

Low Side PSI 50.0

Level Legs Qty 4

Wheel Qty 4

Interior Light Yes

Temperature Range 36 to 46ºF

Dimensions

Interior Height 23.25" (59 cm)

Interior Width 22.5" (57 cm)

Interior Depth 16.88" (43 cm)

Compressor Step Height 4.25" (11 cm)

Compressor Step Width 22.5" (57 cm)

Compressor Step Depth 4.5" (11 cm)

FEATURES

27" wide undercounter all-refrigerator Uniquely sized for built-in installation under counters in residential or commercial kitchen settings

Commercially approved ETL-S listed to NSF-7 commercial standards

Less than 24" deep Shallower fit than many similar units in this size class, allowing an easier fit in tight commercial or residential kitchen spaces

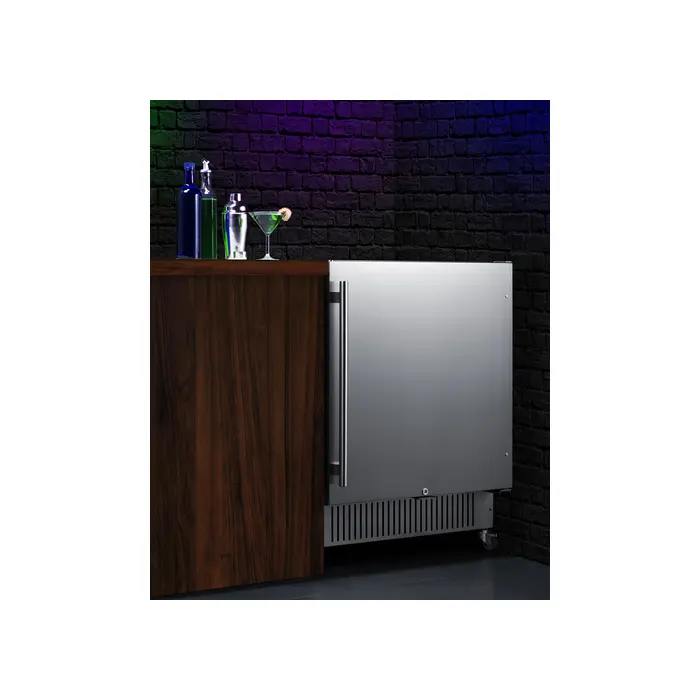

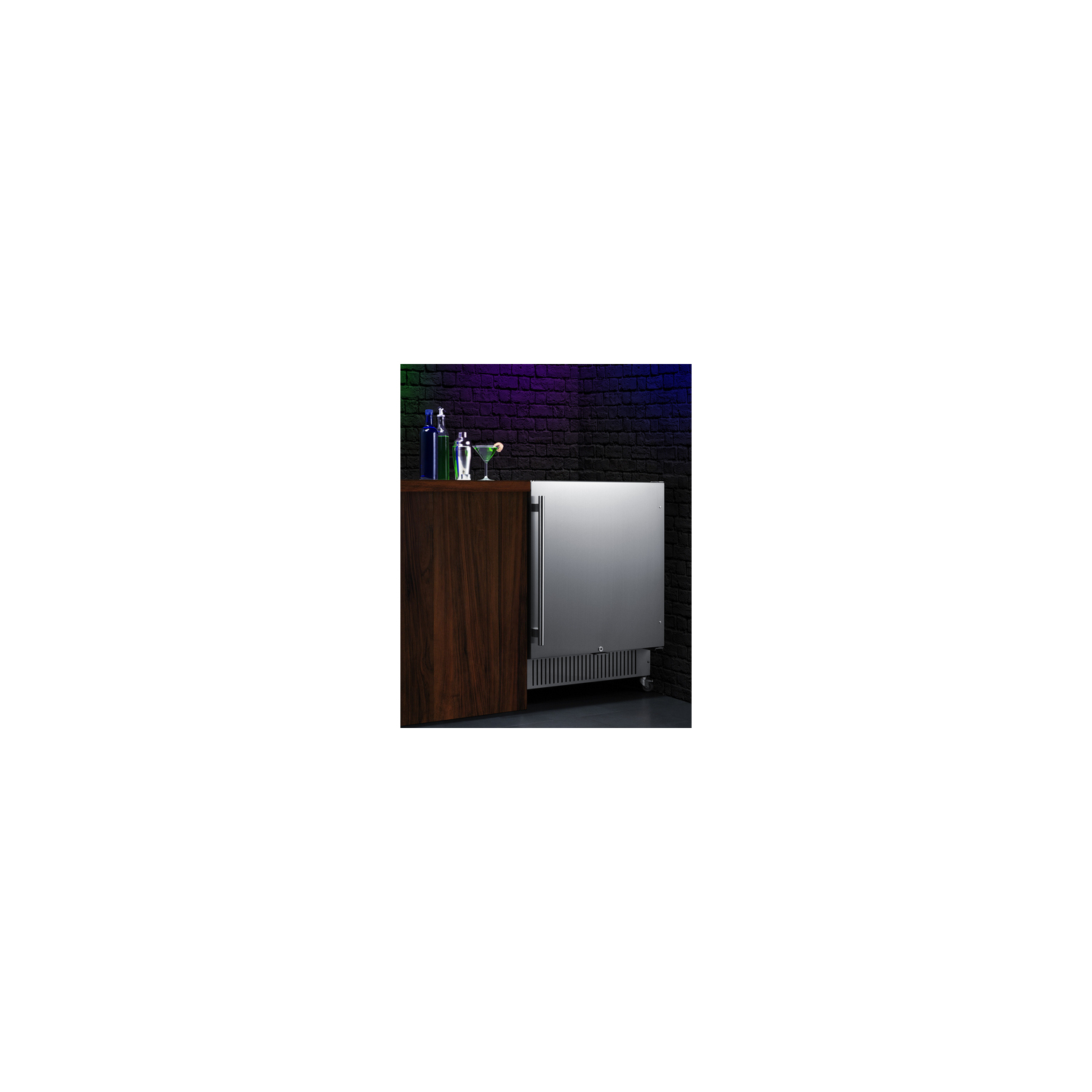

Built-in capable Front-breathing design allows the unit to be built-in under counters

Digital control panel Easy and intuitive digital controls located inside the refrigerator

Factory installed lock Keyed lock for a secure interior (2 keys included)

Stainless steel door Durable construction with a stylish look

White interior Bright interior finish offers maximum visibility, especially helpful in restaurants and other dimmer settings

Adjustable shelving Durable commercial shelving lets you rearrange the interior as needed to accommodate a variety of sizes

Door storage Two racks offer the perfect storage solution for tall bottles and condiments

Slotted floor Floor features bottle slots that help to keep them in place as needed

Automatic defrost Reduced maintenance with auto defrost system

Internal fan Fan-forced cooling ensures the unit is evenly cooled from top to bottom

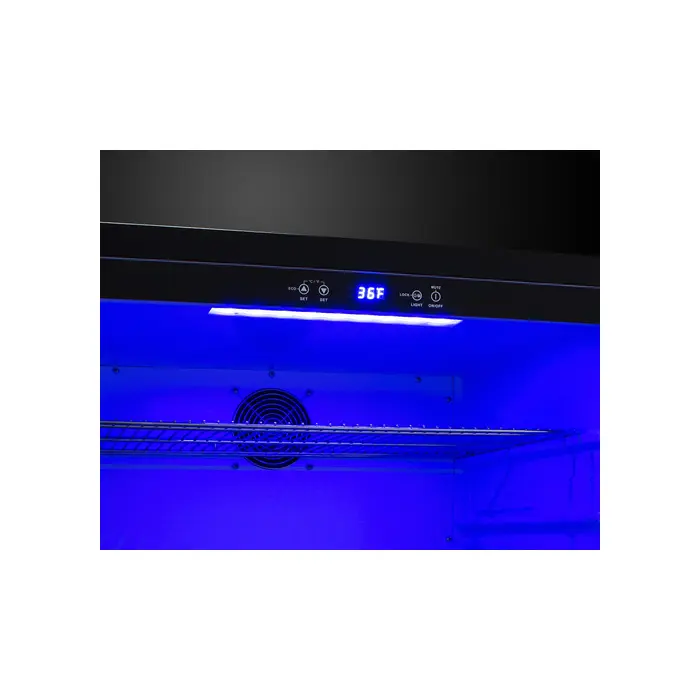

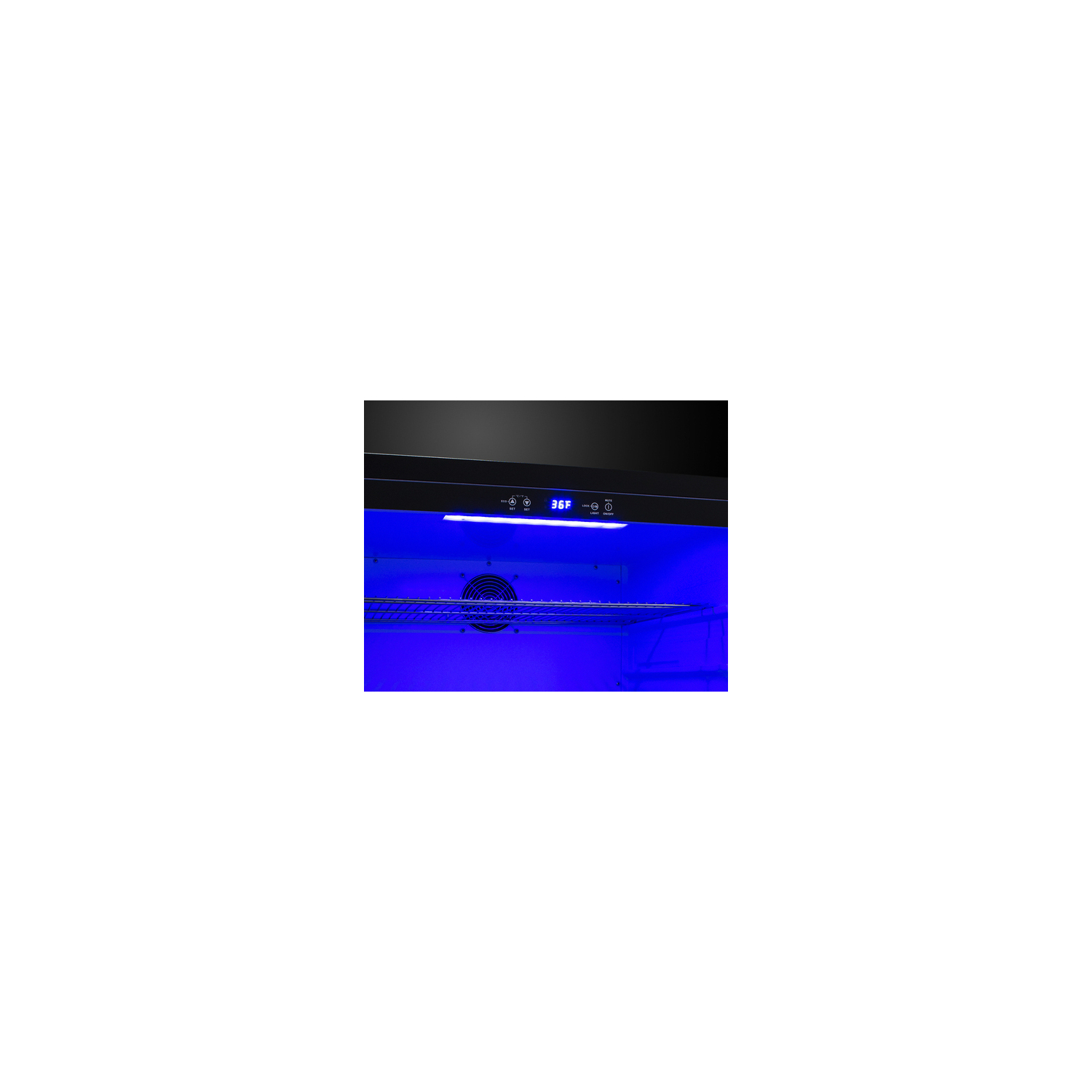

Interior lighting Dimmable LED lighting (with 3 brightness settings) in an attractive blue hue

Professional handle Stainless steel handle adds style to any setting

Temperature alarm Alarm sounds if temperature goes out of recommended range after 2 hours

Sabbath mode Optional feature disables alarms, interior light, and displays for up to 96 hours

Reversible door User-reversible door swing makes it easy to best accommodate your setting

Integrated hinge Flat stainless steel hinge ensures no added height is needed when installing under a counter

Sealed back Space-saving design with no exposed coils for easier cleanability

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Fully finished black cabinet Allows unit to be used freestanding

Indoor/Outdoor compatible Weatherproof construction allows safe use in outdoor settings

Additional choices Also available in a lower ADA compliant height (FF27BSSADA), with commercial casters for mobile use (FF27BSSCAS), or for outdoor kitchens (SPR2700SS)

100% CFC free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
