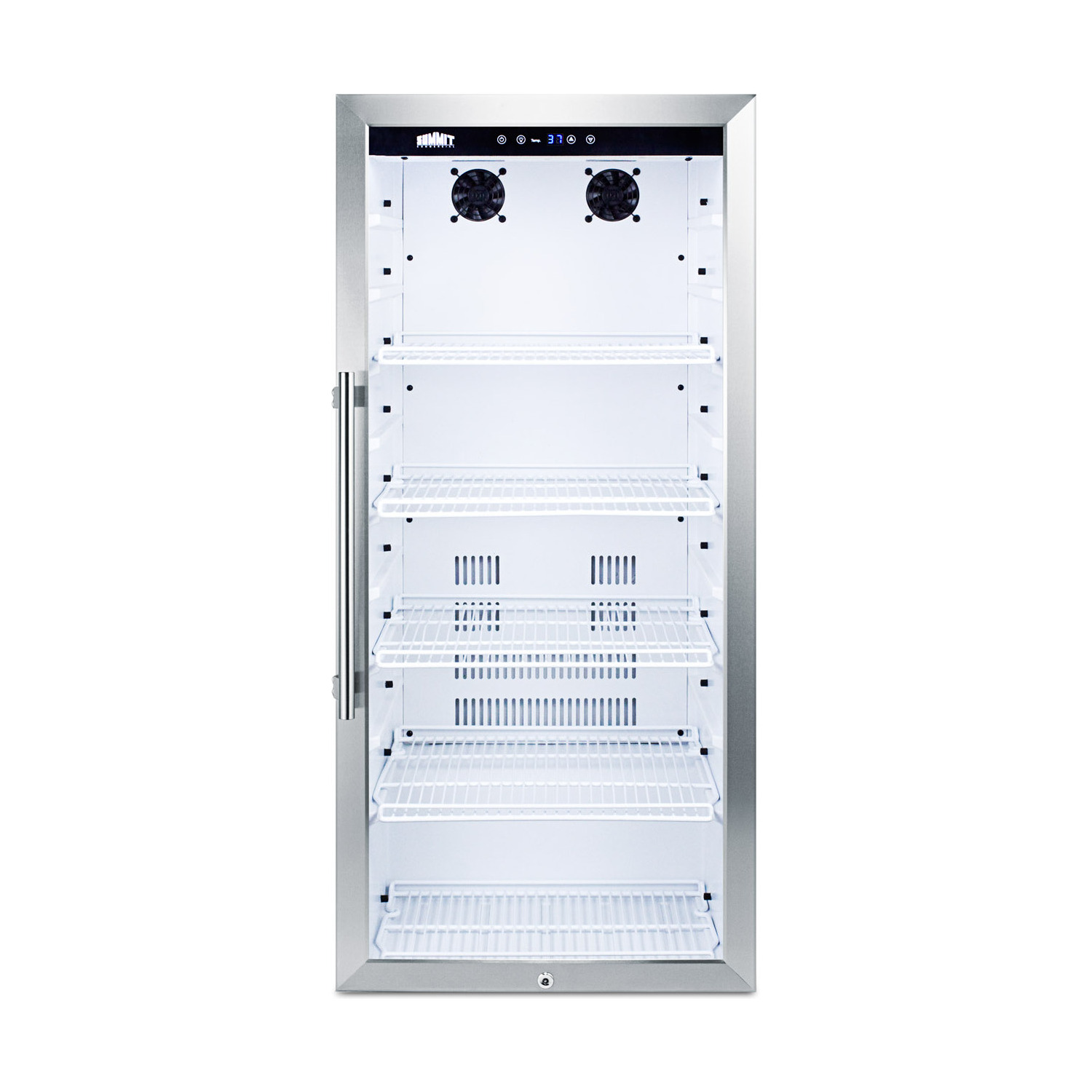

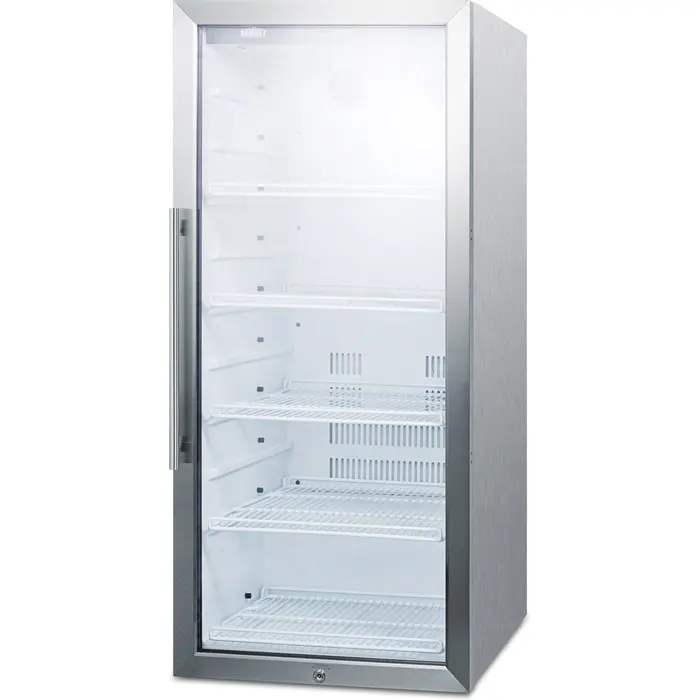

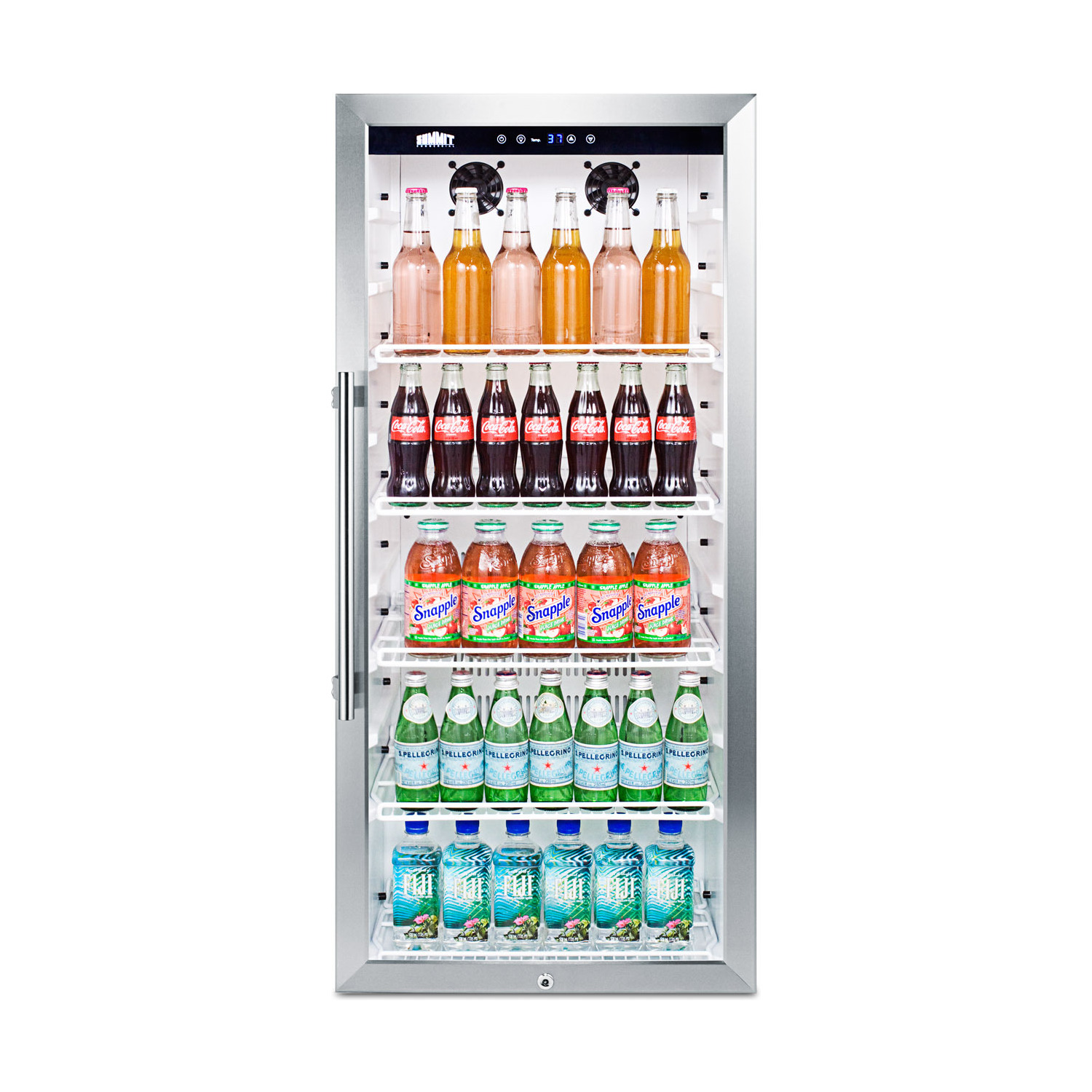

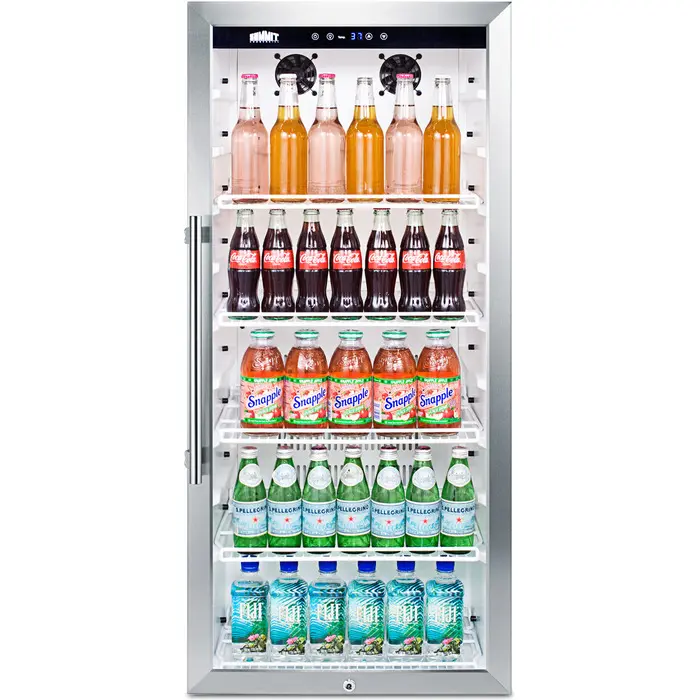

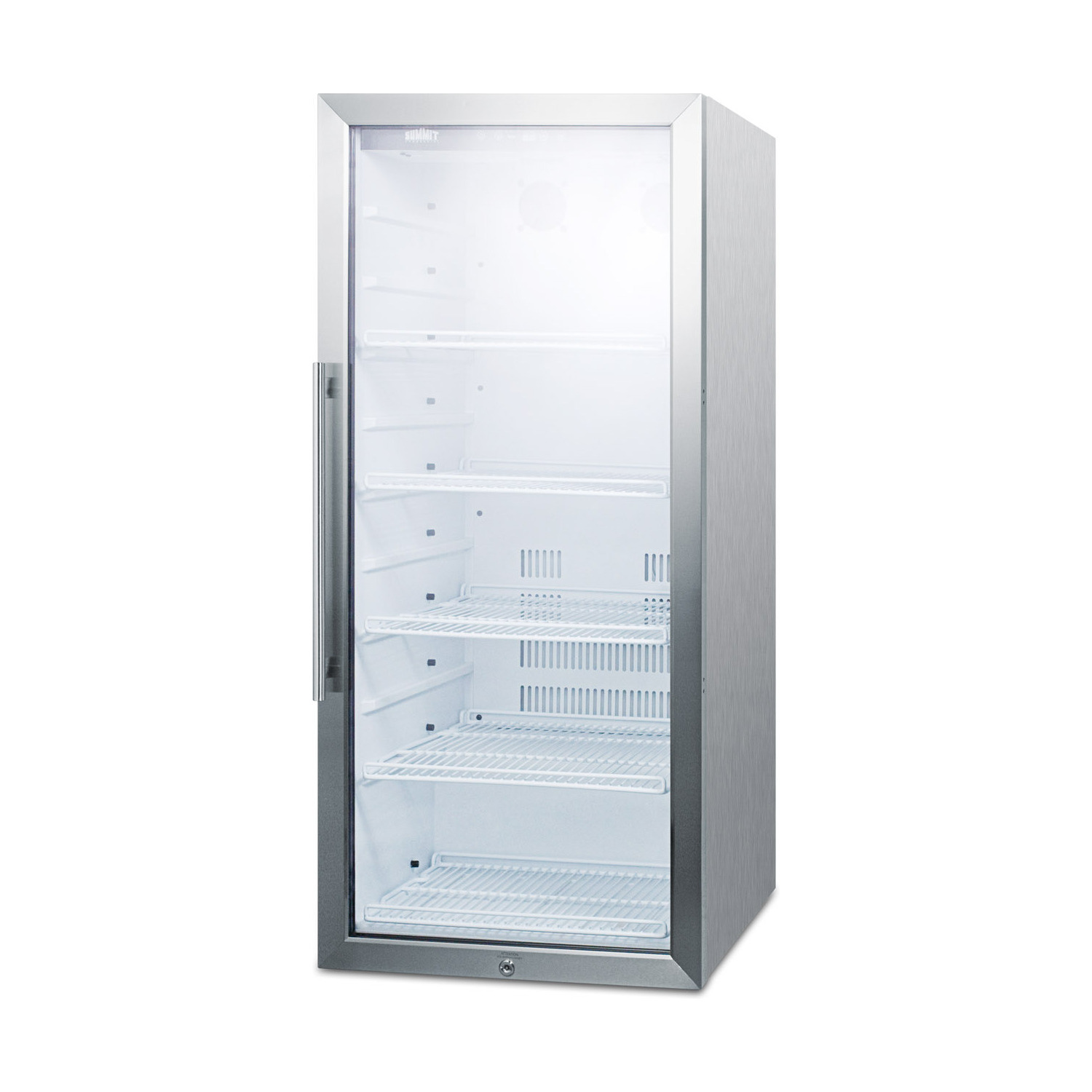

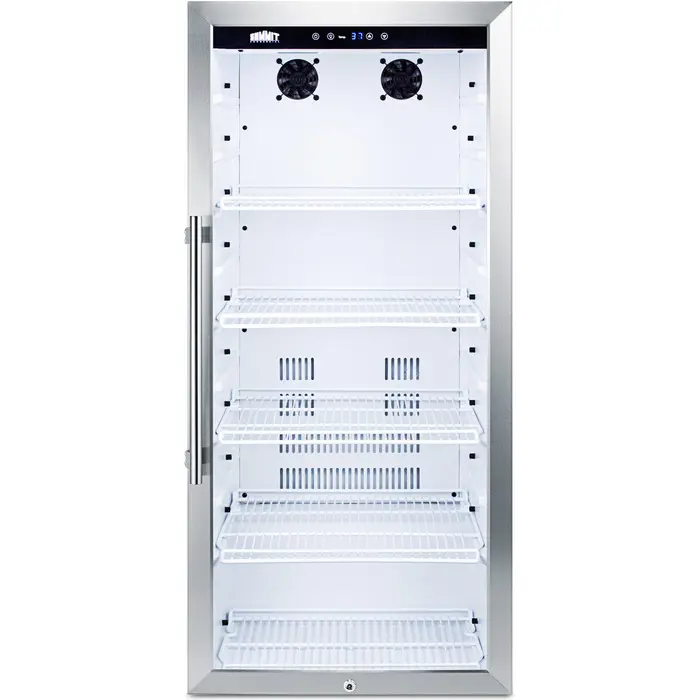

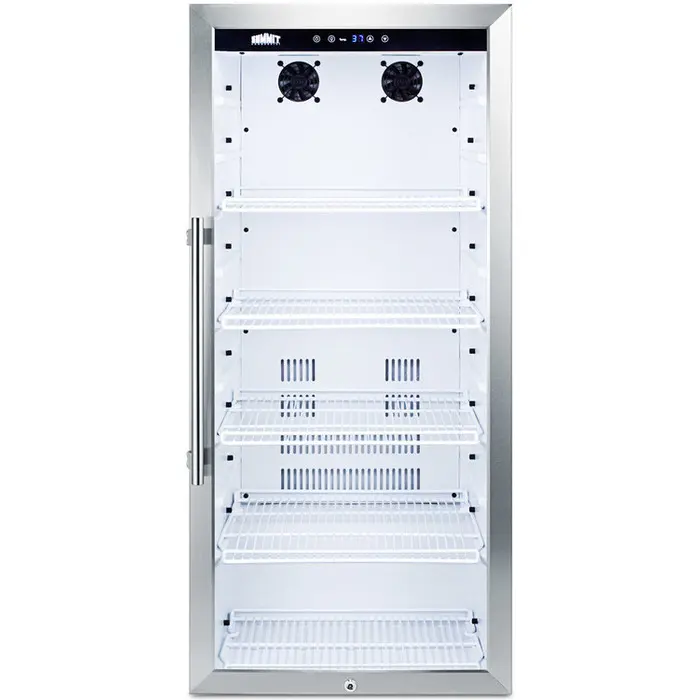

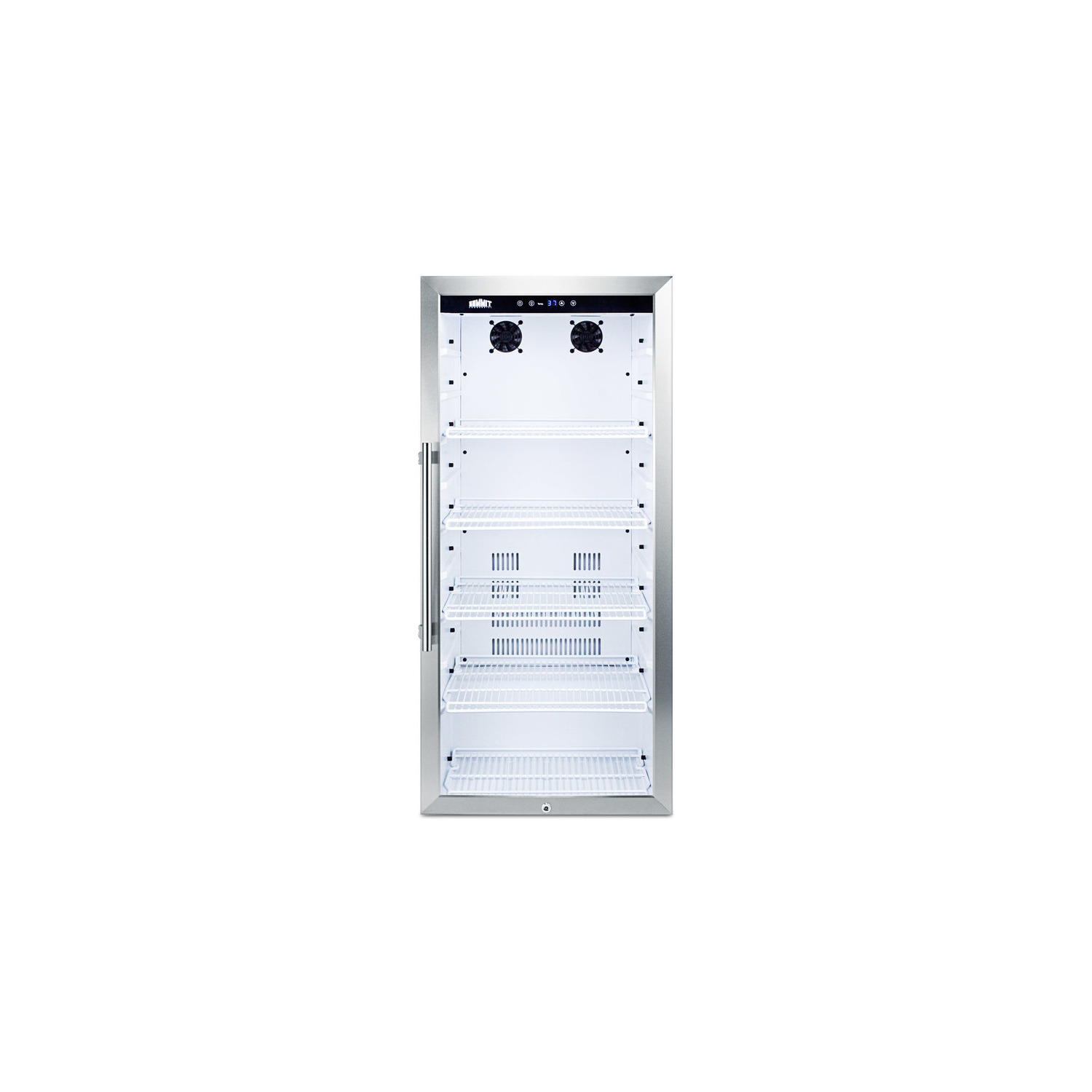

Summit 9 cu.ft. commercial glass door beverage merchandiser with digital controls, LED lighting, full interior display, and stainless steel cabinet, 7.61101e+011, SCR1006CSS

Summit Commercial offers a quality line of slim-fitting beverage merchandisers designed for long-lasting use in busy commercial settings.

Sized with a unique 21 1/4" W x 22 1/2" D footprint, the SCR1006CSS offers a full 9 cu.ft. storage capacity with a full display from top to bottom. The user-reversible double pane tempered glass door includes a factory installed lock and attractive stainless steel trim. This unit has a fully wrapped stainless steel cabinet for a professional look with lasting

Inside, the SCR1006CSS utilizes automatic defrost for easy maintenance, with fan-forced cooling that ensures the temperature is evenly distributed from top to bottom. A digital thermostat allows for precise temperature control and offers a readout in Celsius or Fahrenheit. Interior LED lighting keeps all items in view and includes an on/off button on the exterior control panel for added convenience. Five adjustable wire shelves allow users to store a variety of bottles and cans, with nine glide positions to adjust the size as needed.

With its slim dimensions and user-friendly, features, the SCR1006CSS is a great choice for commercial establishments looking to maximize sales of stored beverages. This unit is ETL-S listed to NSF-7 commercial standards.

SPECIFICATIONS

Overview

Nominal Height 48.0" (122 cm)

Height of Cabinet 48.0" (122 cm)

Height to Hinge Cap 48.5" (123 cm)

Nominal Width 22.0" (56 cm)

Width 21.25" (54 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.5" (57 cm)

Depth with Handle 24.5" (62 cm)

Depth with door at 90° 42.0" (107 cm)

Capacity 9.0 cu.ft. (255 L)

Defrost Type Automatic

Door Glass

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 2.0

Voltage/Frequency 115 V AC/60 Hz

Weight 115.0 lbs. (52 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101061474

Refrigerator Features

Door Swing RHD

Reversible Yes

Shelf Type Wire

Shelf Qty 5

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 1.24oz.

High Side PSI 270.0

Low Side PSI 103.0

Level Legs Qty 4

Interior Light Yes

Temperature Range 34°F to 43°F

Dimensions

Interior Height 42.0" (107 cm)

Interior Width 18.0" (46 cm)

Interior Depth 16.25" (41 cm)

Compressor Step Height 8.0" (20 cm)

Compressor Step Width 18.0" (46 cm)

Compressor Step Depth 4.0" (10 cm)

FEATURES

Commercially listed ETL-S listed to NSF standards for commercial use

Digital thermostat Electronic controls allow precise temperature management; Digital readout can be viewed in Celsius or Fahrenheit

Automatic defrost Reduced maintenance with auto defrost system

Factory installed lock Keyed lock offers added security, with two keys included

LED lighting Provides an attractive display of stored contents

Double pane tempered glass door Heat-safe design offers full display, with a stainless steel trim for an added touch of style

Fan-forced cooling Internal fan ensures evenly cooled interior

Adjustable shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Professional handle Sturdy chrome handles add a professional look

Reversible door User reversible door swing

Stainless steel wrapped cabinet Durable exterior with a fully finished design for freestanding use

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SCR1006CSS.pdf)

TECHNICAL DRAWING (.dwg) (SCR1005BEVERAGEREFRIGERATORA-C2000_2.dwg)

REVIT MODEL (QF_Summit_SCR1006_Commercial_Glass_Door_Beverage_Merchandiser_2.rfa)

MSDS INFORMATION (MSDS_R600a_C.pdf)

USE & CARE (SCR1006CSS-User-Manual.pdf)
