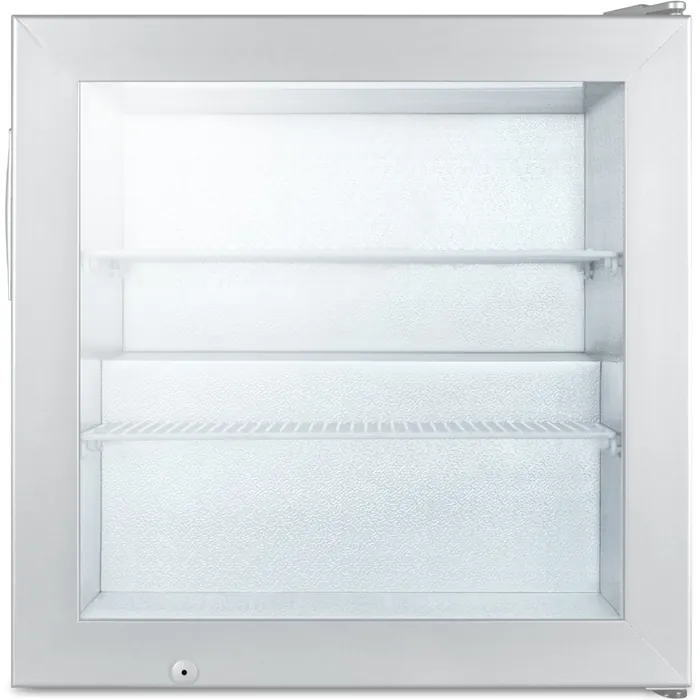

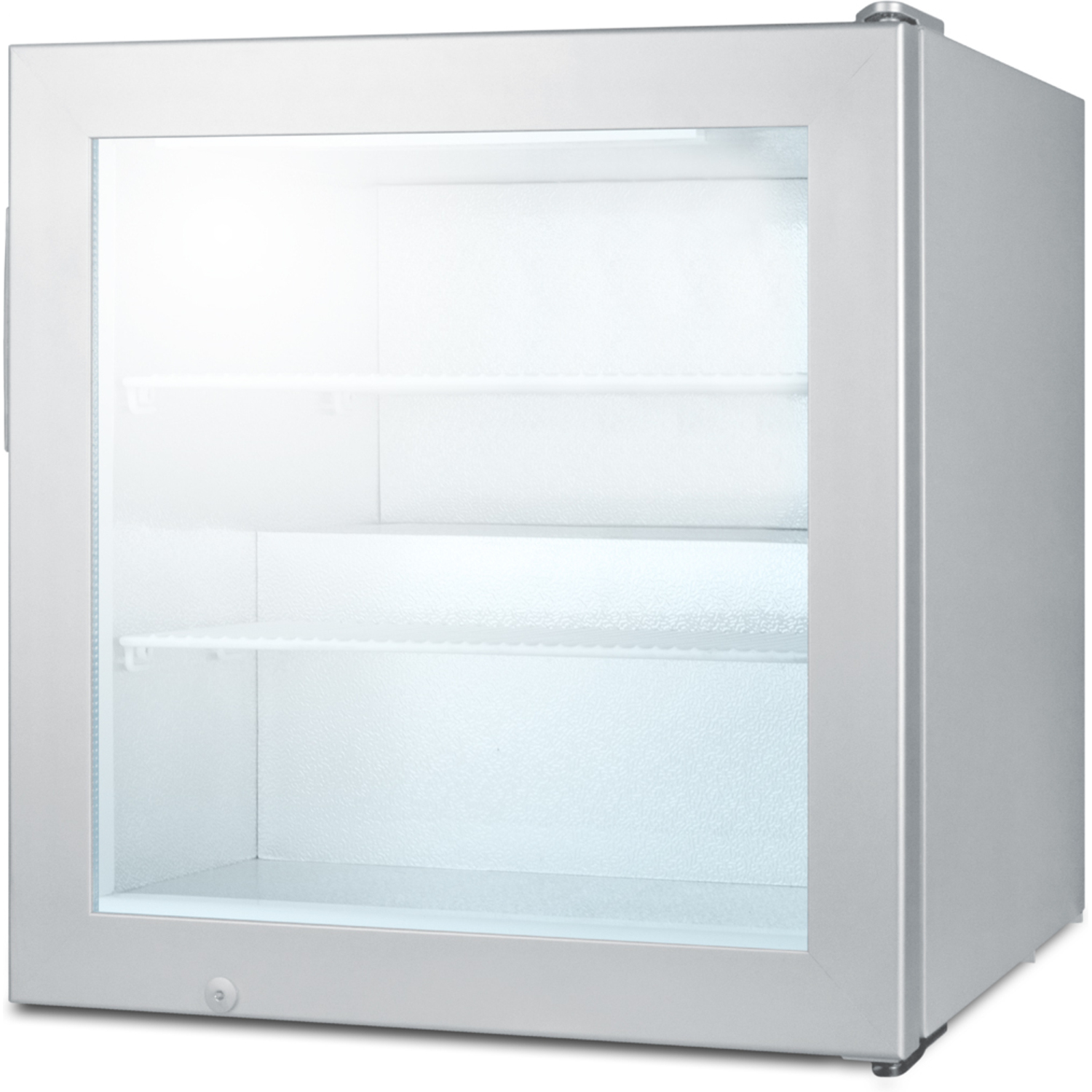

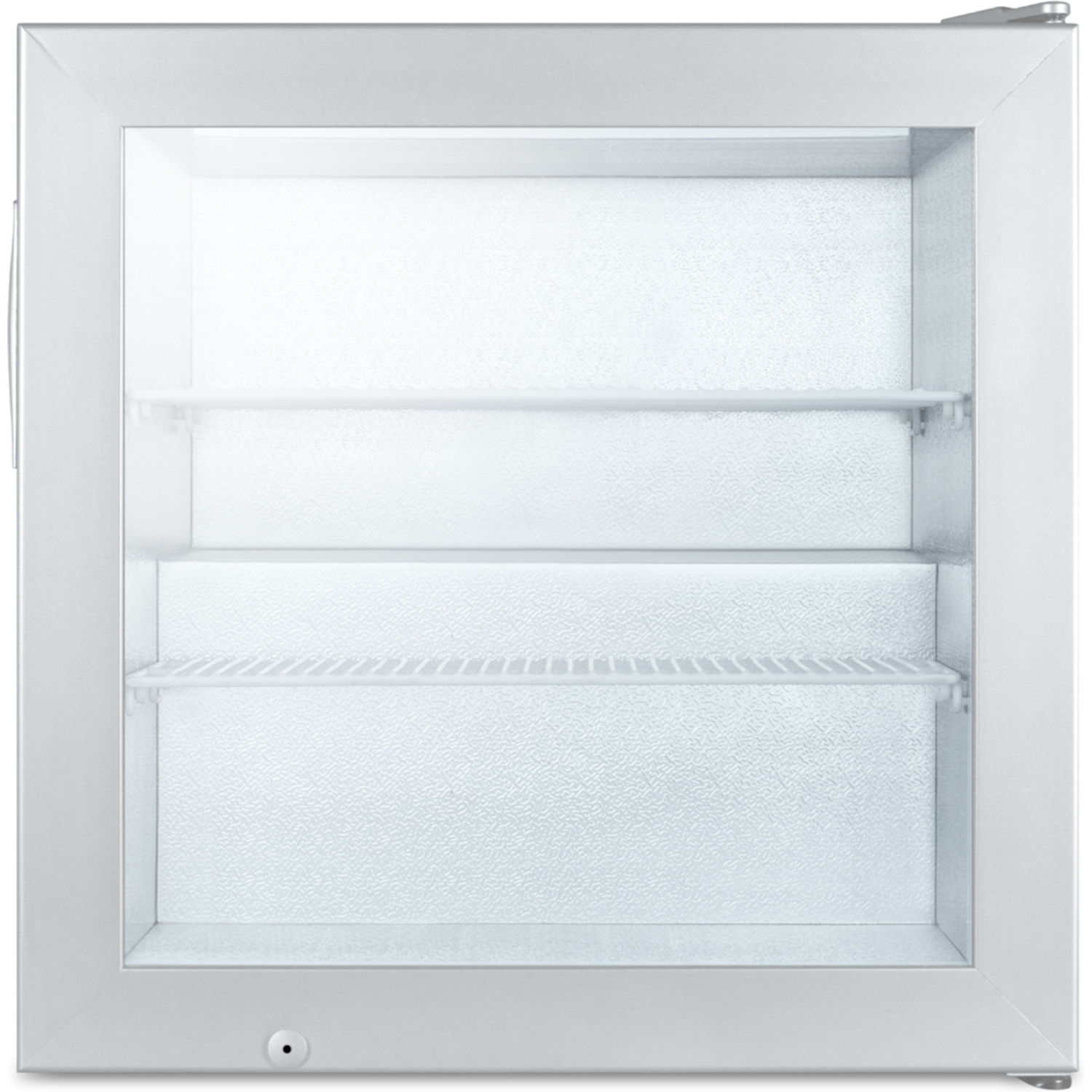

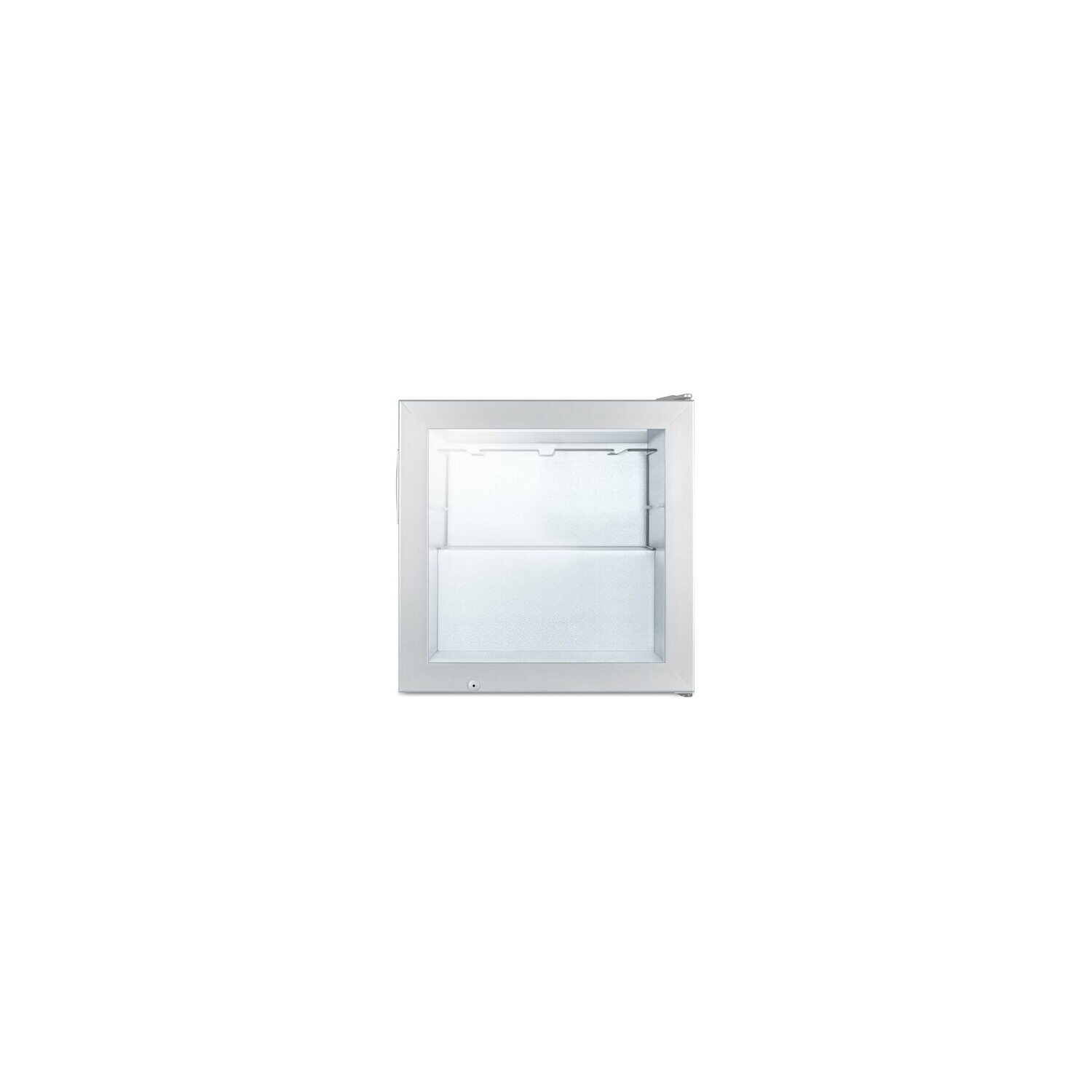

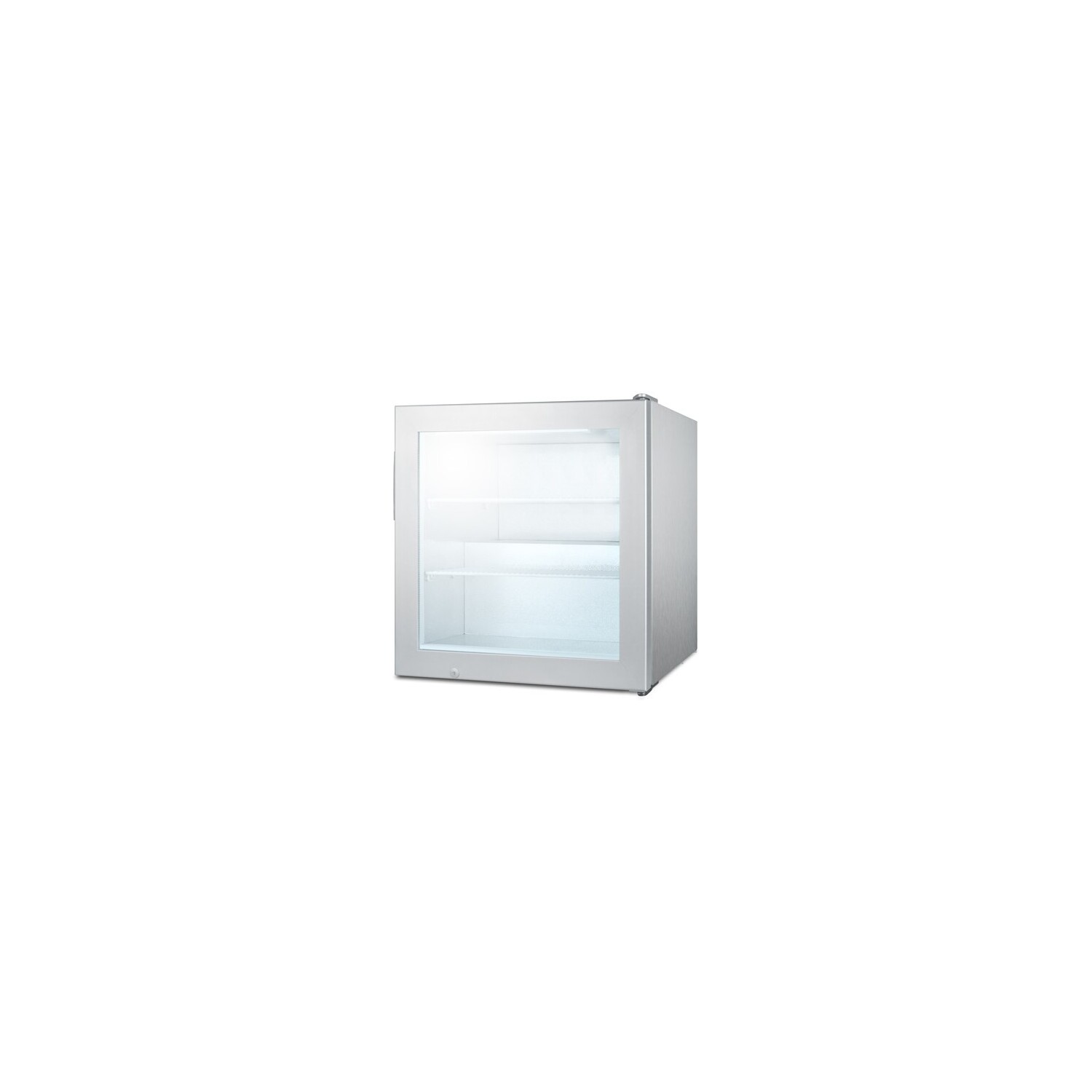

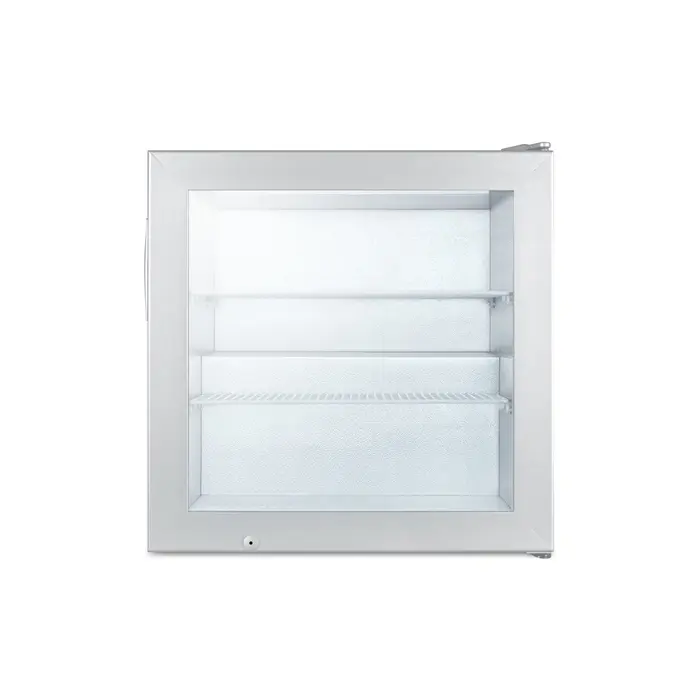

Summit Countertop commercial freezer with self-closing door, 7.61101e+011, SCFU386

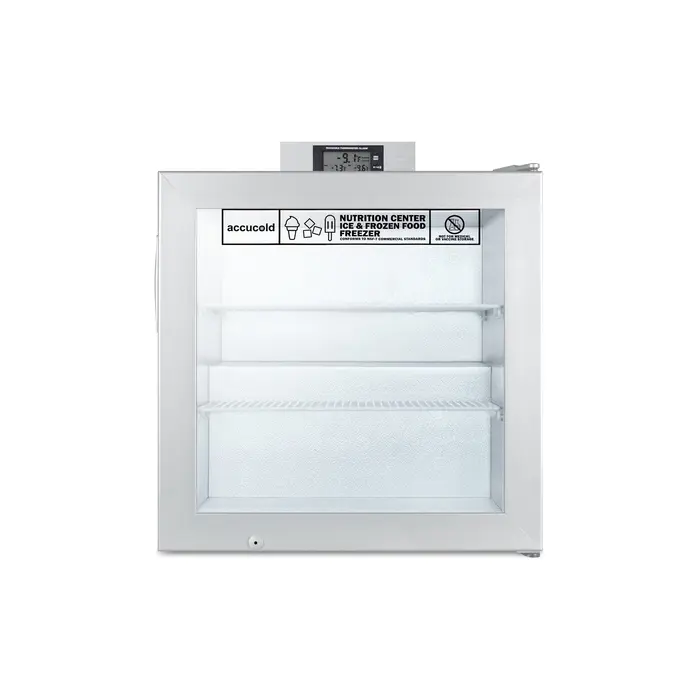

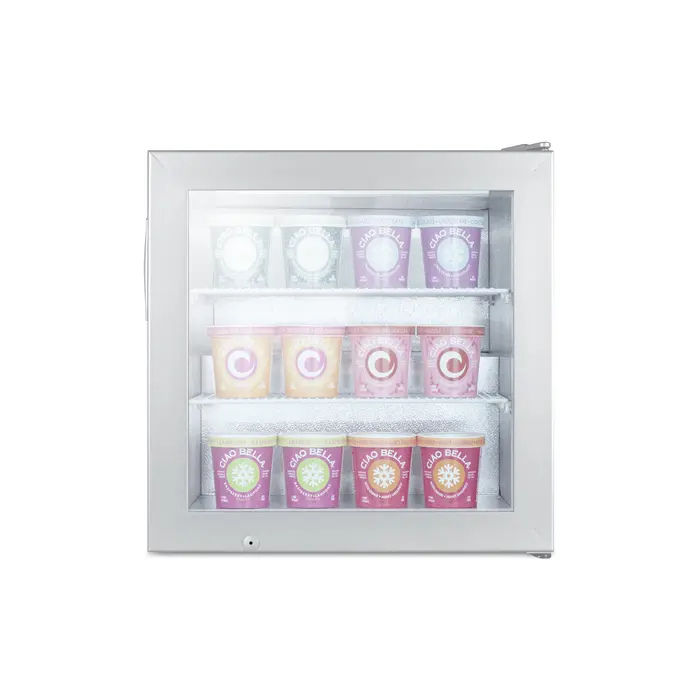

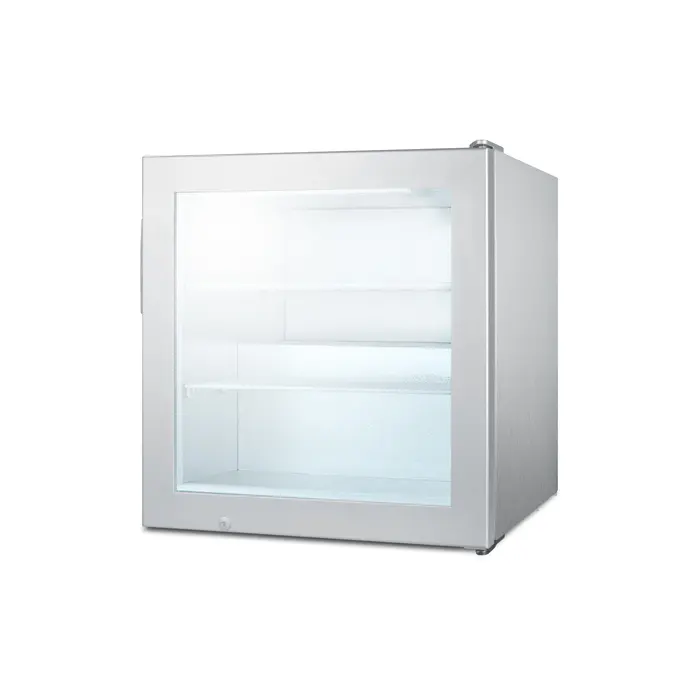

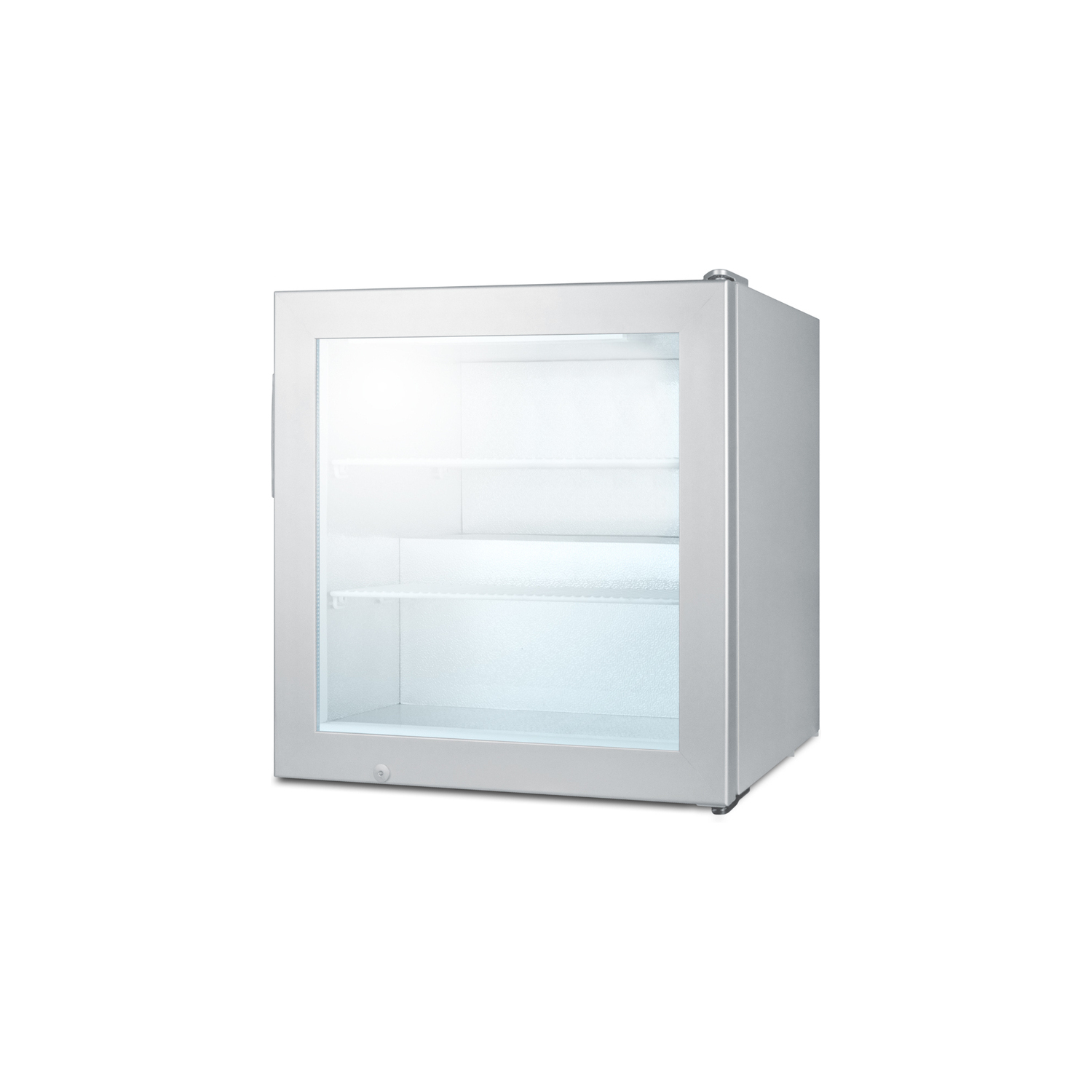

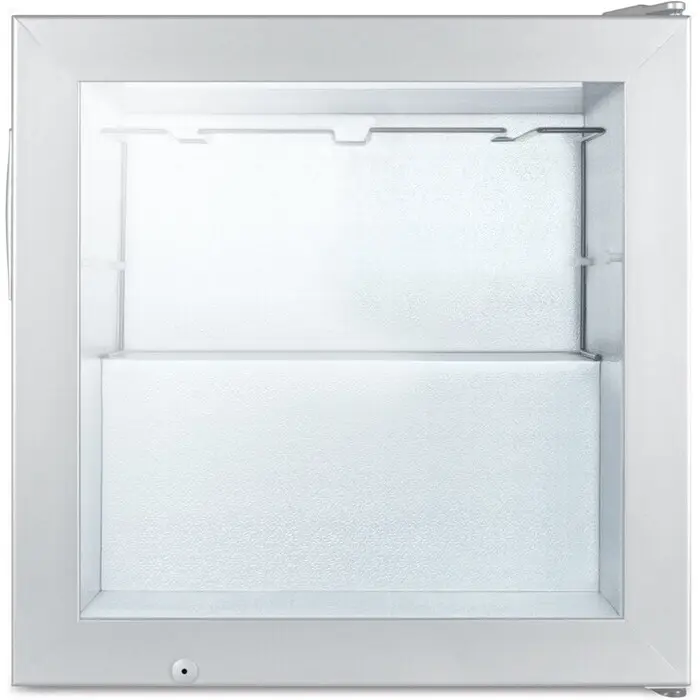

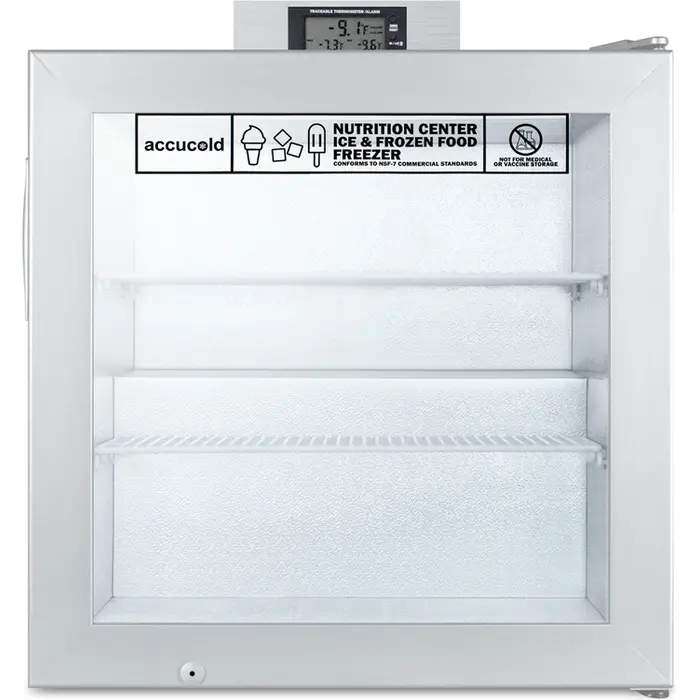

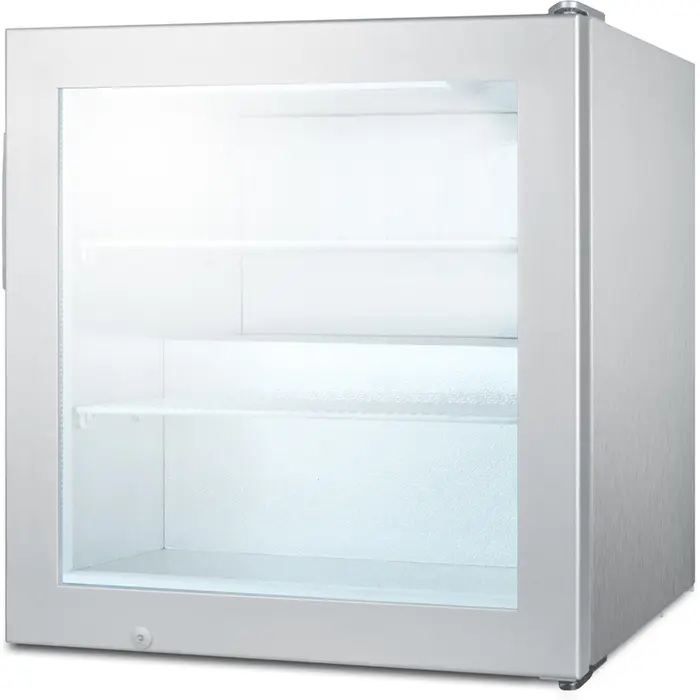

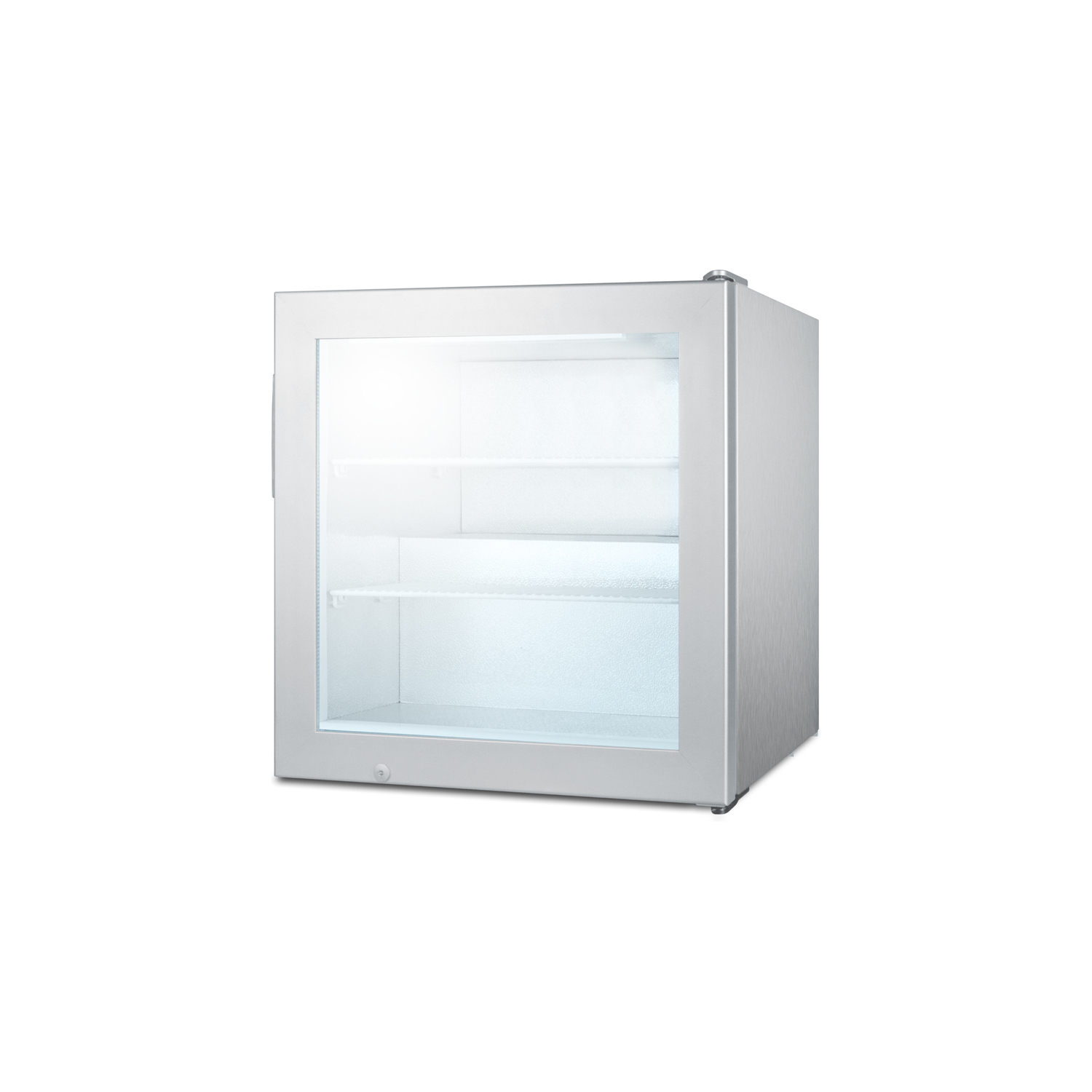

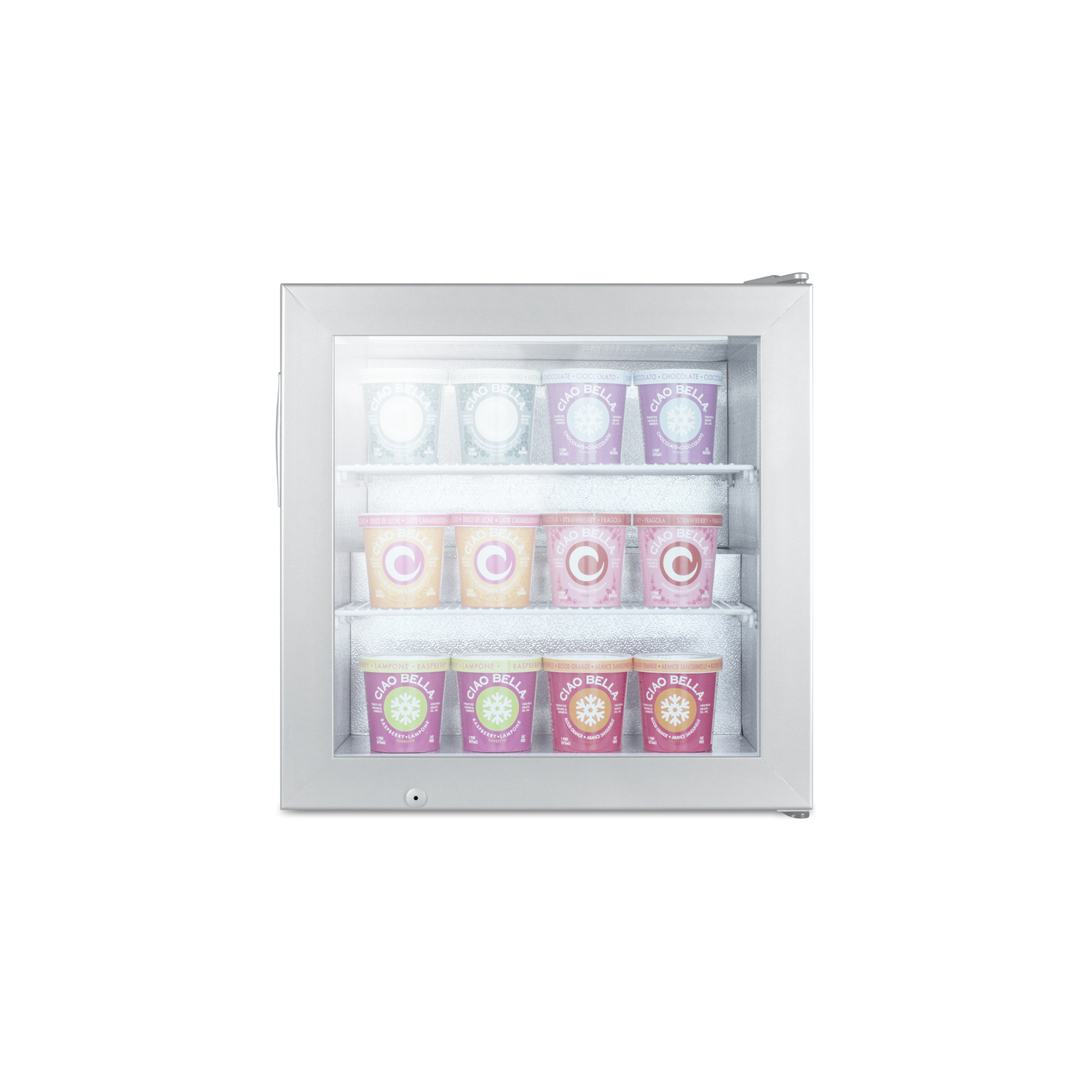

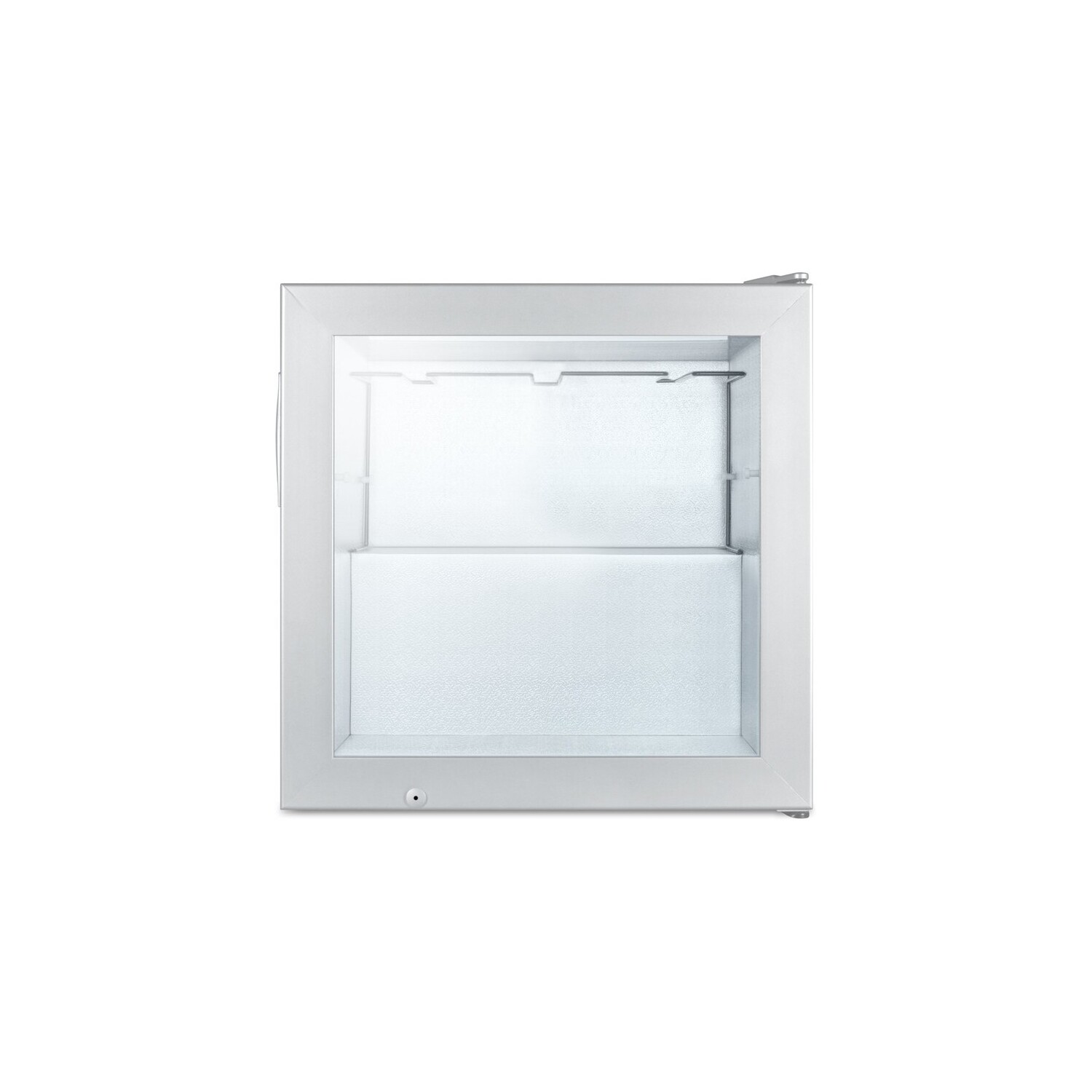

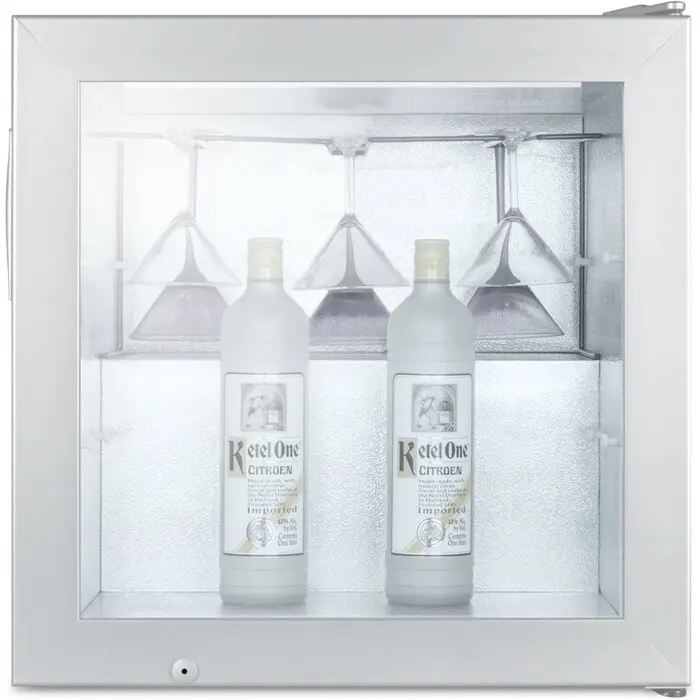

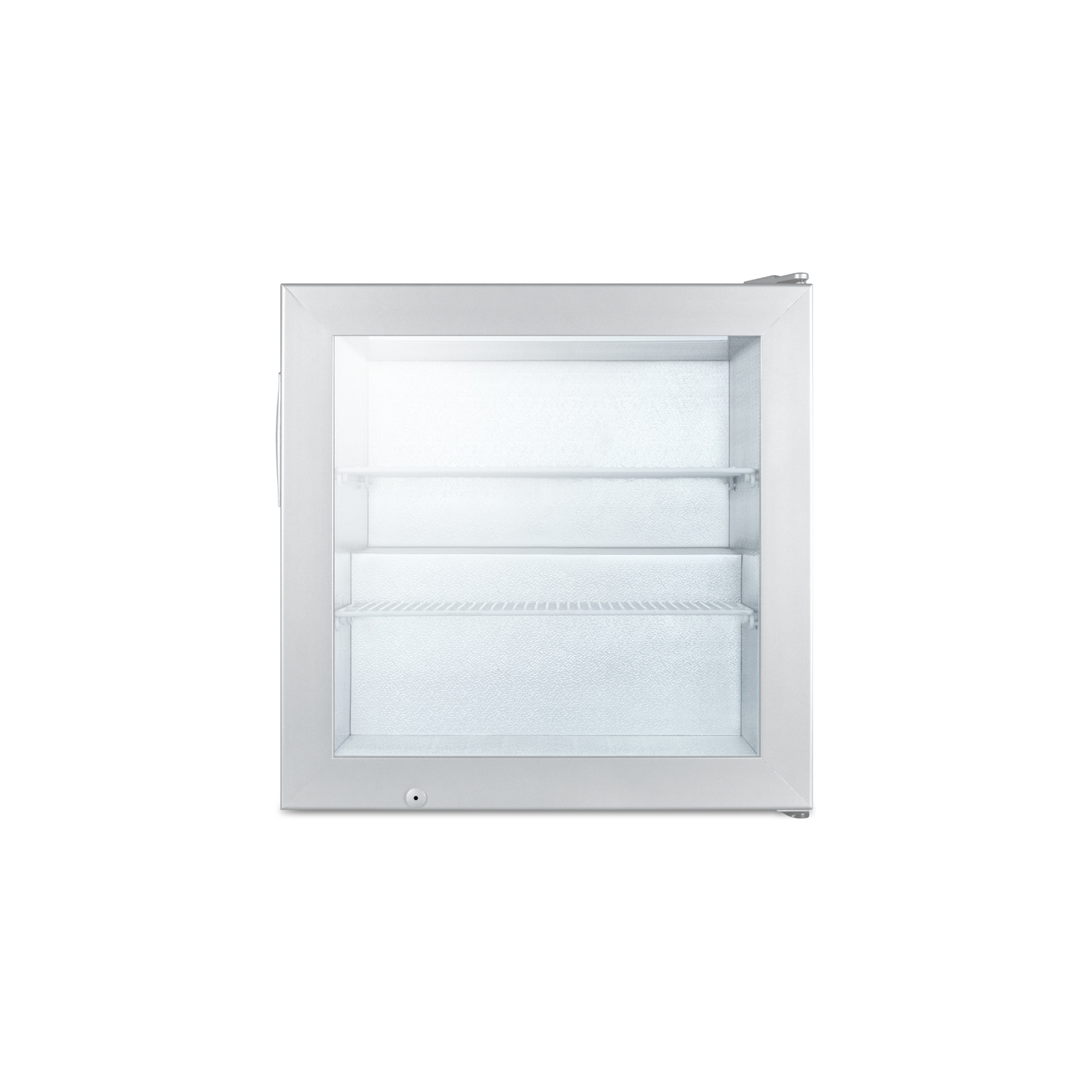

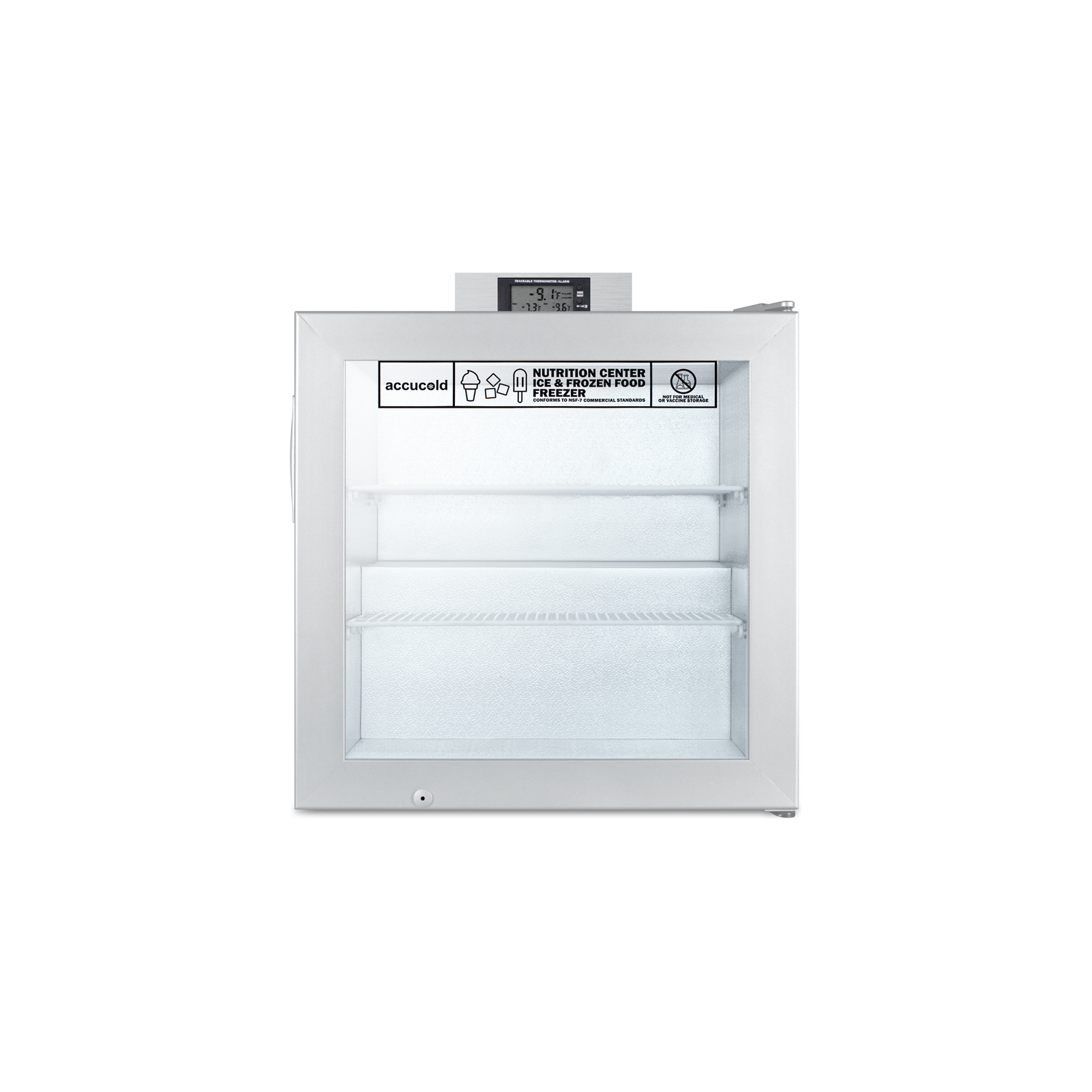

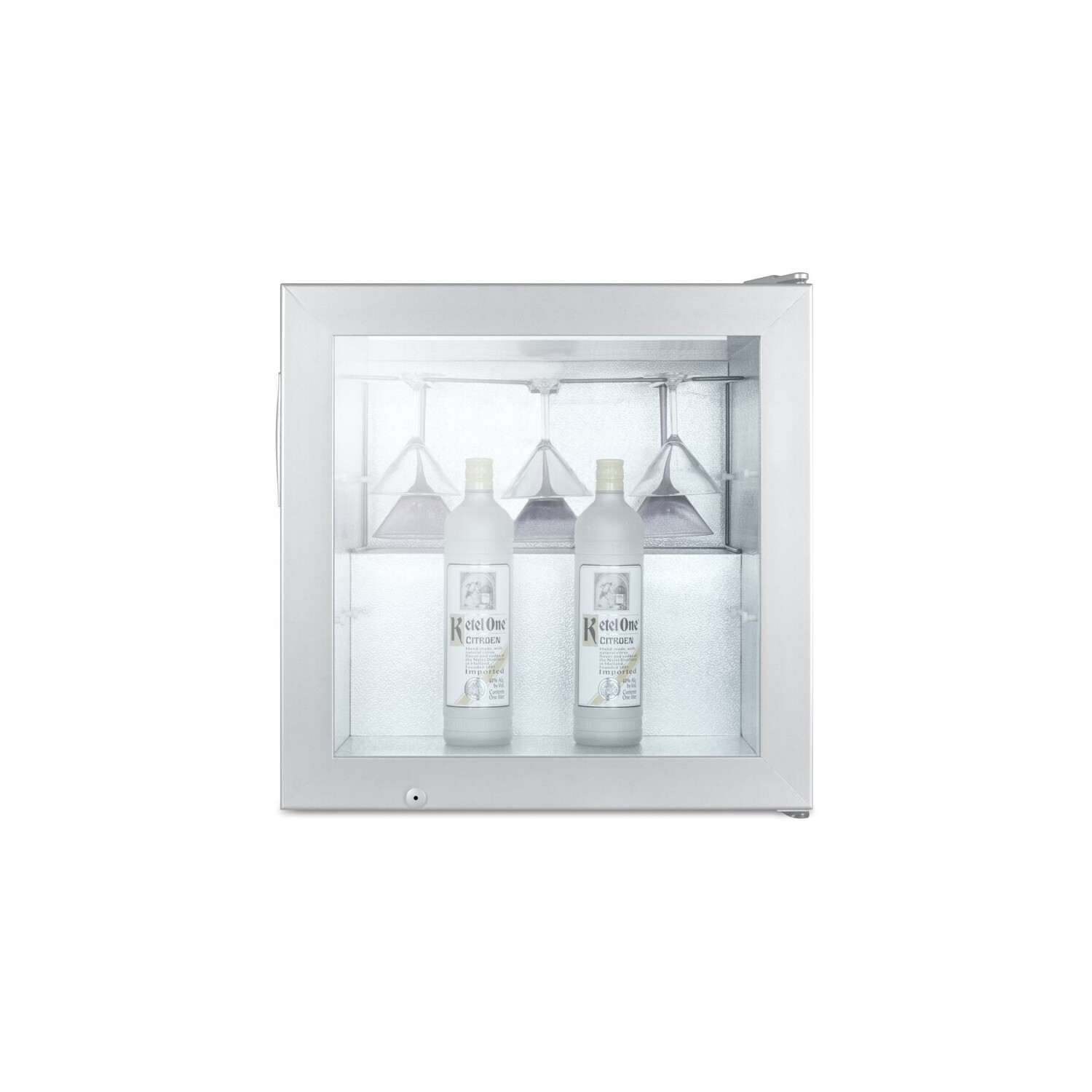

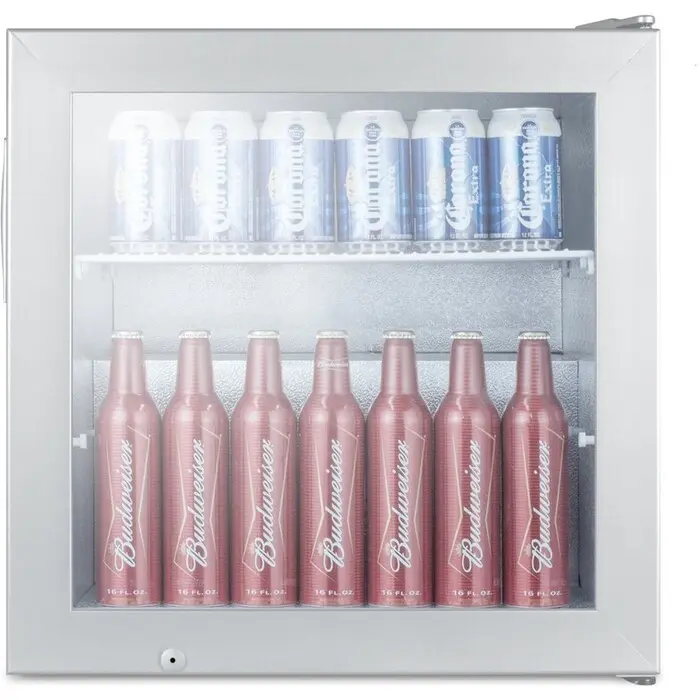

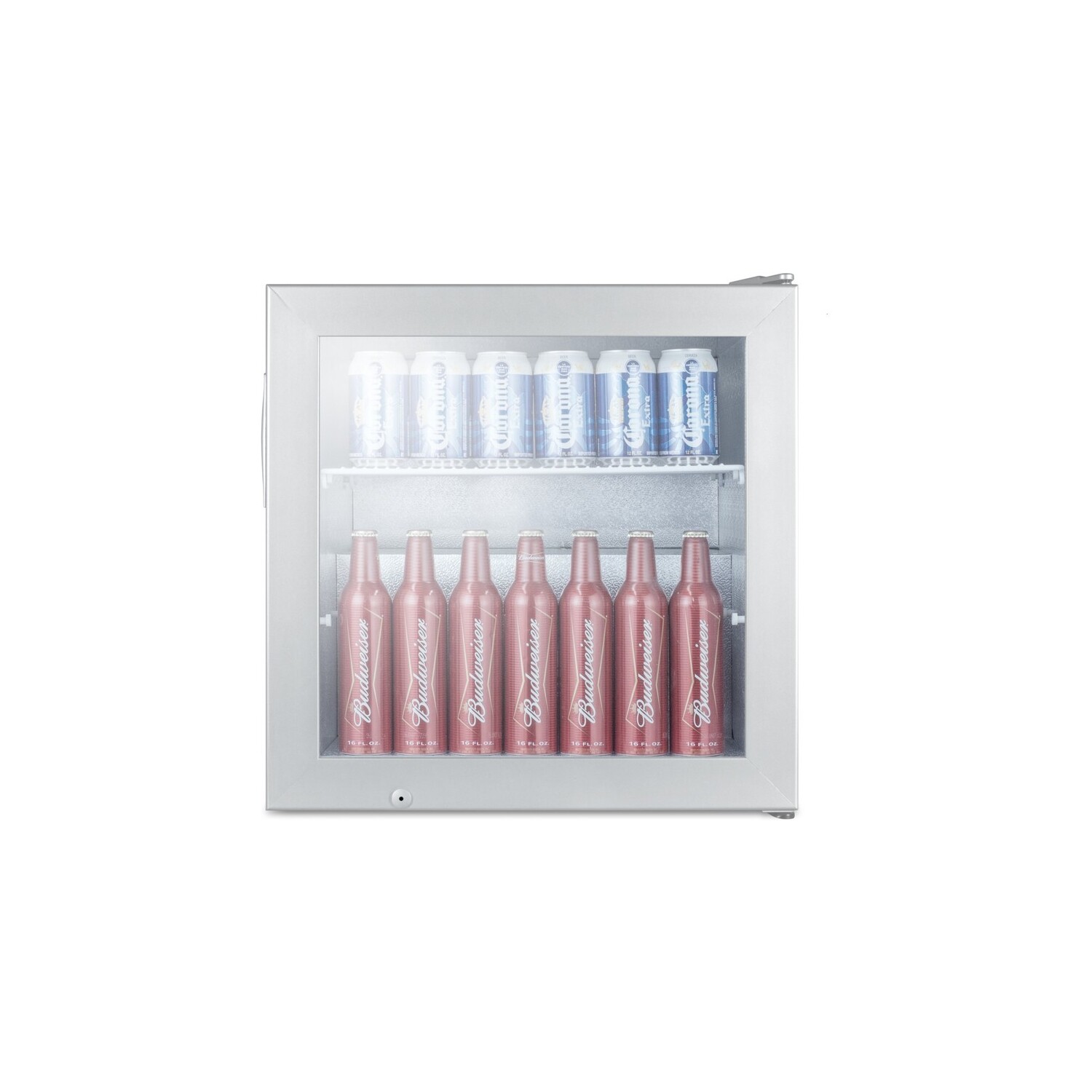

SUMMIT SCFU386 is a compact display freezer specially designed to promote impulse sales of select frozen goods.

This manual defrost unit comes fully featured for convenient use in commercial settings. A self-closing glass door helps to protect items from accidents, with an LED light providing an attractive presentation. Two wire shelves offer flexible storage and a factory installed lock offers security when needed.

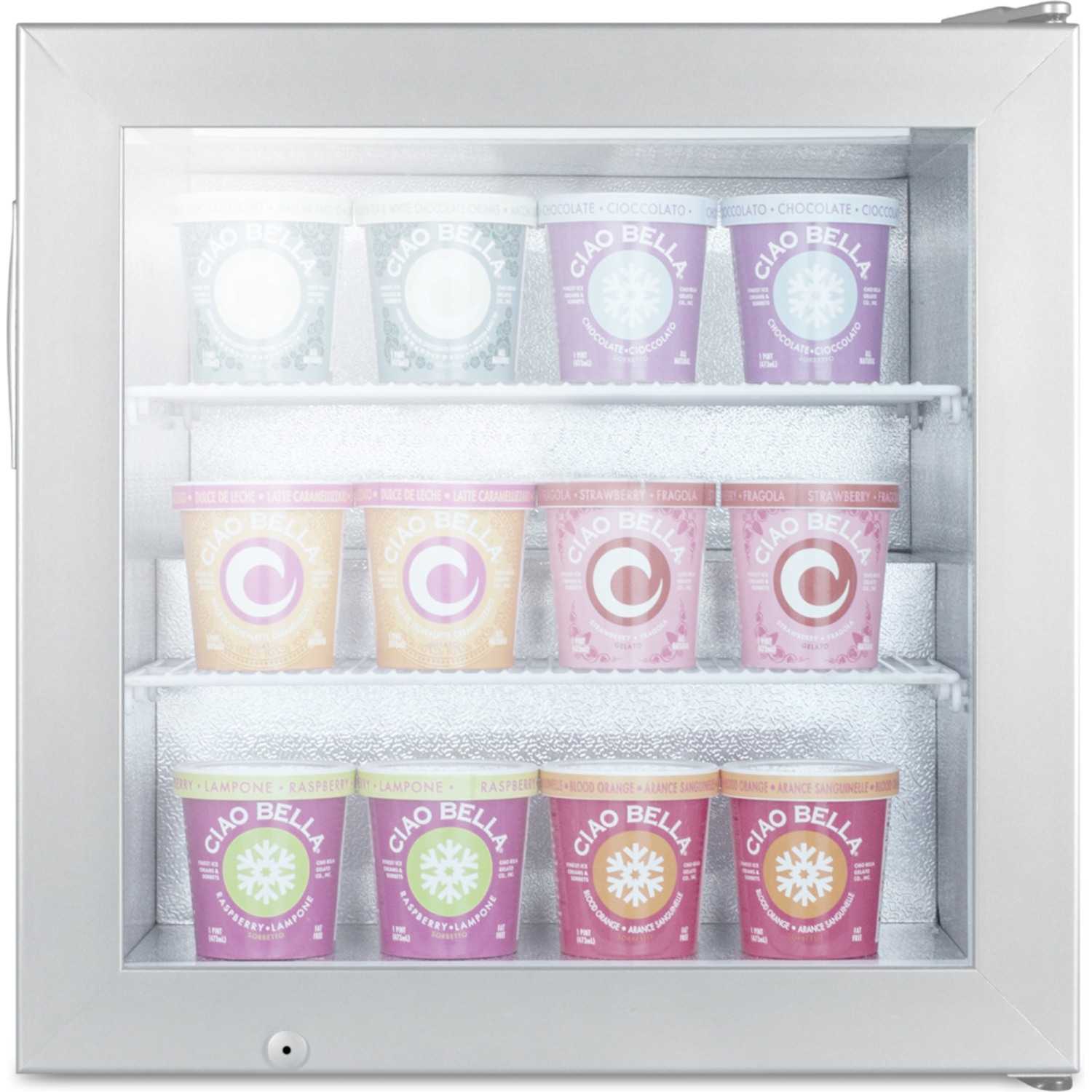

The SCFU386 is ETL-S listed to NSF standards for use in commercial settings. With its compact size and special display features, this model is ideal for storing and displaying sorbet, water ice, and other frozen treats ideally served at 0ºF. For this unit with a stainless steel cabinet, see the SCFU386CSS.

SPECIFICATIONS

Overview

Nominal Height 24.0" (61 cm)

Height of Cabinet 24.0" (61 cm)

Height to Hinge Cap 24.5" (62 cm)

Nominal Width 24.0" (61 cm)

Width 23.38" (59 cm)

Nominal Depth 21.0" (53 cm)

Depth 20.63" (52 cm)

Depth with door at 90° 42.0" (107 cm)

Capacity 2.0 cu.ft. (57 L)

Defrost Type Manual

Door Glass

Cabinet Gray

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 4.0

Voltage/Frequency 115 V AC/60 Hz

Weight 83.0 lbs. (38 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101022062

Freezer

Door Swing RHD

Reversible No

Interior Height 18.0" (46 cm)

Interior Width 18.75" (48 cm)

Interior Depth 15.38" (39 cm)

Shelf Type Wire

Shelf Qty 2

Adjustable Shelves Yes

Thermostat Type Dial

Interior Light Yes

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 1.4 oz.

High Side PSI 280.0

Low Side PSI 90.0

Compressor Step Height 8.25" (21 cm)

Compressor Step Width 18.75" (48 cm)

Compressor Step Depth 7.0" (18 cm)

Temperature Range -4 to 5°F

FEATURES

Commercially approved ETL-S listed to NSF standards for commercial use

Factory installed lock Keyed security for a secure interior

Self-closing door Ideal for busy commercial settings, where customers and staff don't always have the chance to ensure the door is closed

LED lighting Switchable light illuminates whole interior

Glass door Provides a full display of stored contents

Removable shelves Two wire shelves included

Adjustable thermostat Rear mounted to prevent accidental adjustments

Manual defrost Static cooling system for improved temperature stability

Designed to operate at 0ºF Temperature range: -4 to 5ºF

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

DOWNLOADS

BROCHURE w/ DRAWINGS (SCFU386.pdf)

TECHNICAL DRAWING (.dwg) (SCFU386__FREEZER__A-C_2000_.dwg)

REVIT MODEL (QF_Summit_SCFU386_Countertop_Commercial_Freezer.rfa)

USE & CARE (SCFU386-User-Manual.pdf)
