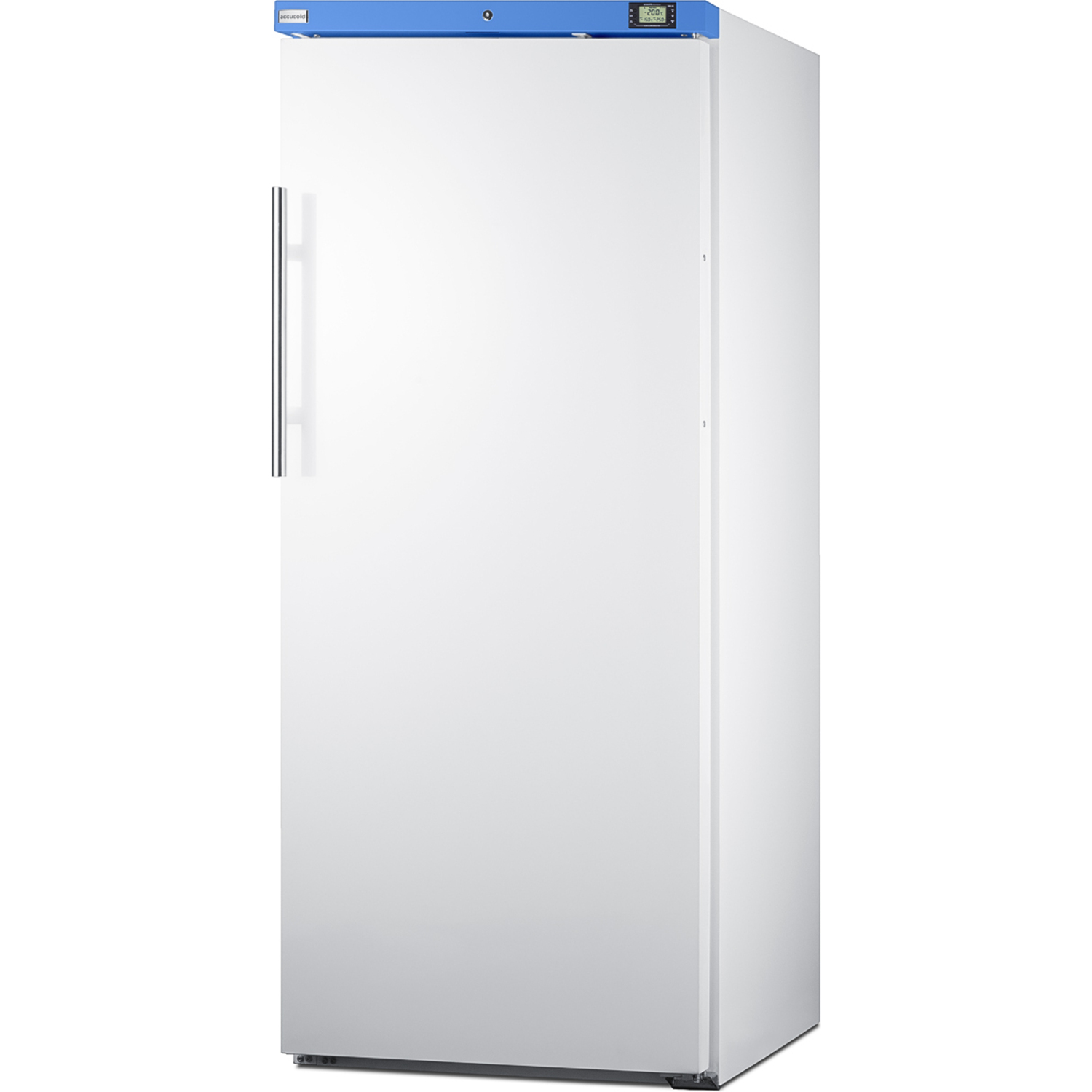

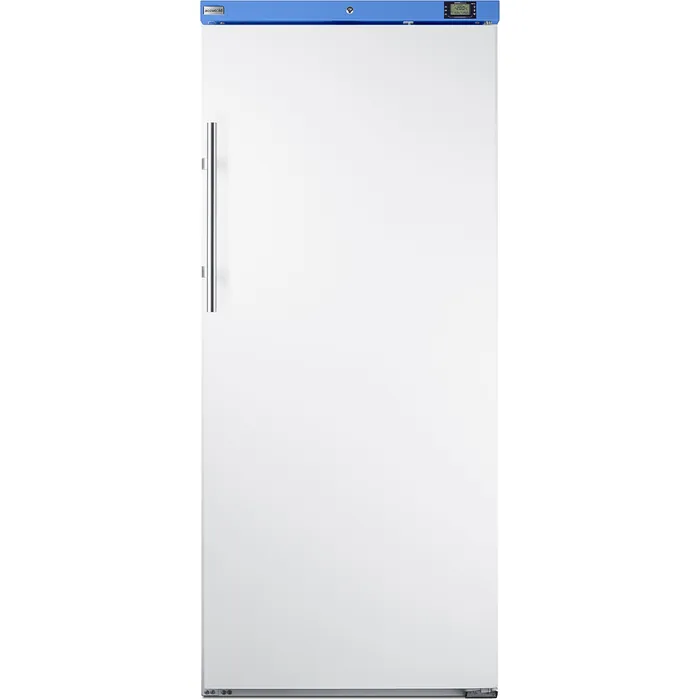

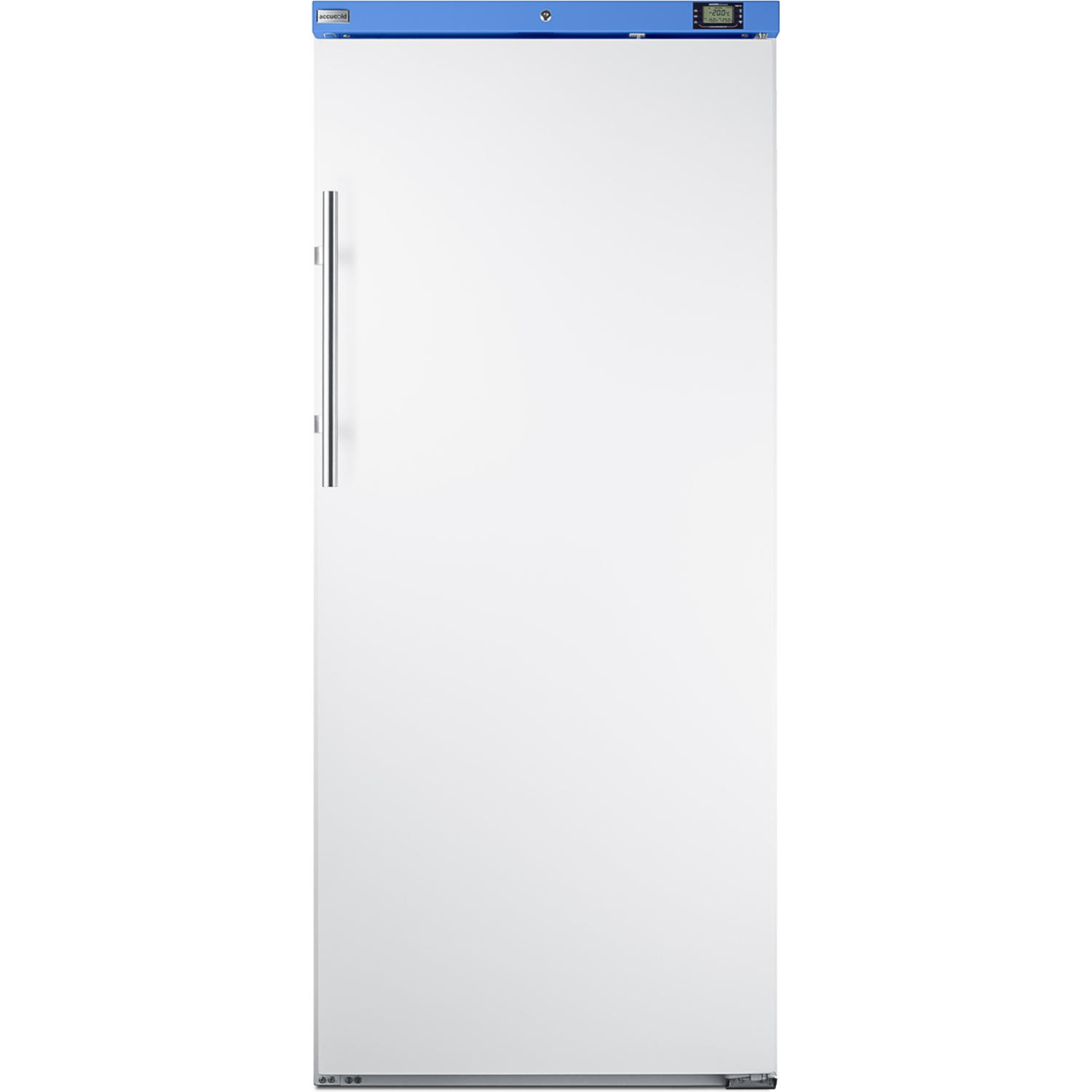

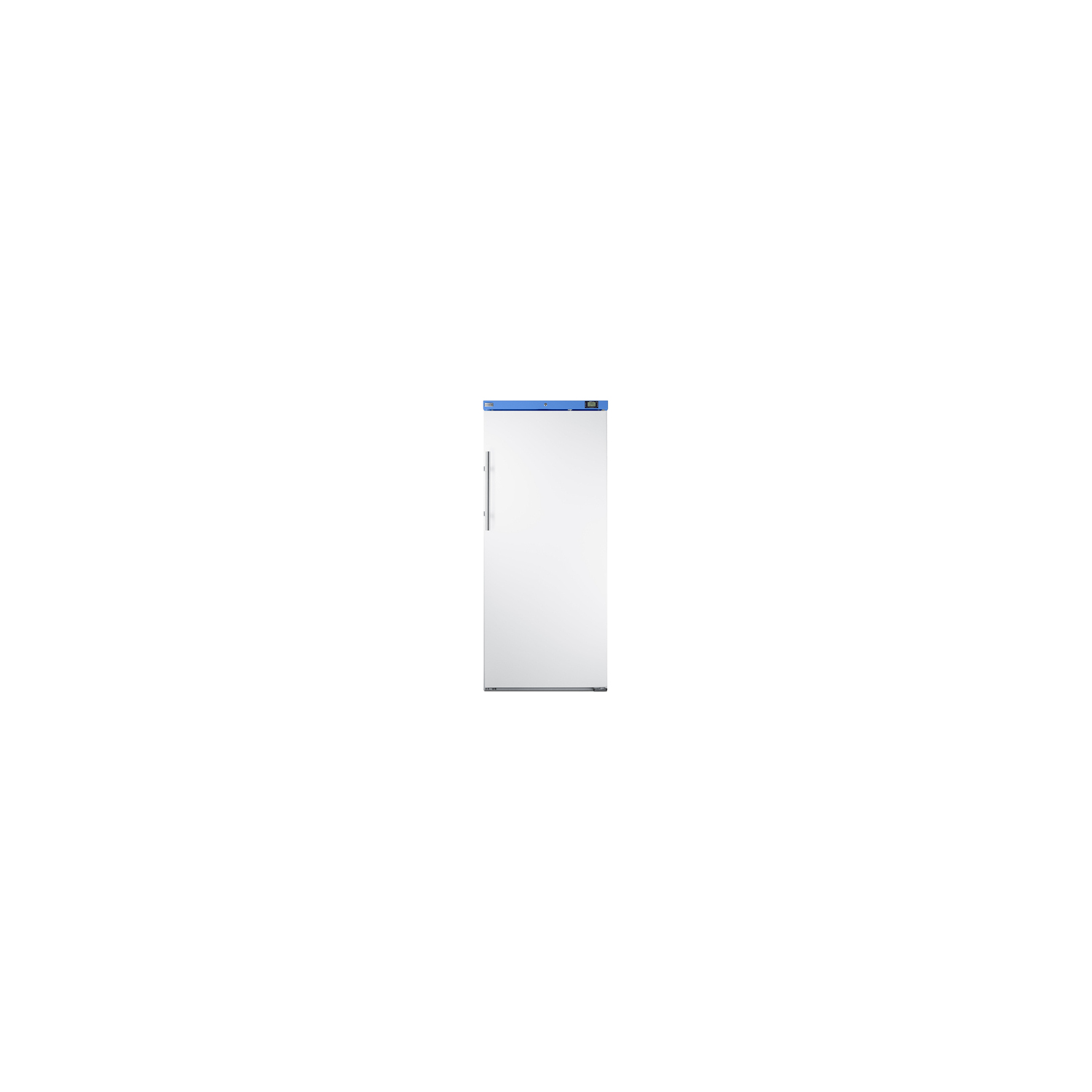

Summit Upright 18 cu.ft. manual defrost commercial all-freezer with lock, 7.61101e+011, AFM19W

Summit Commercial manufactures a wide range of full-sized refrigeration choices approved to NSF-7 standards, including upright freezers.

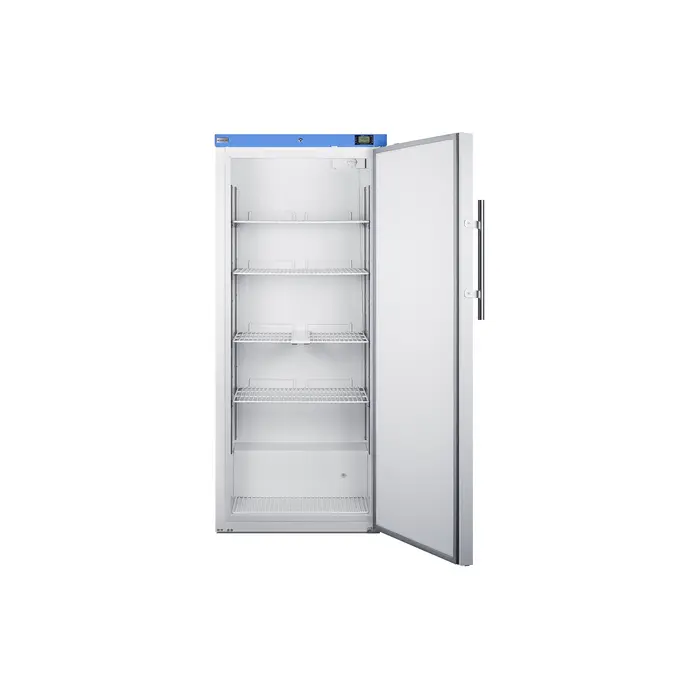

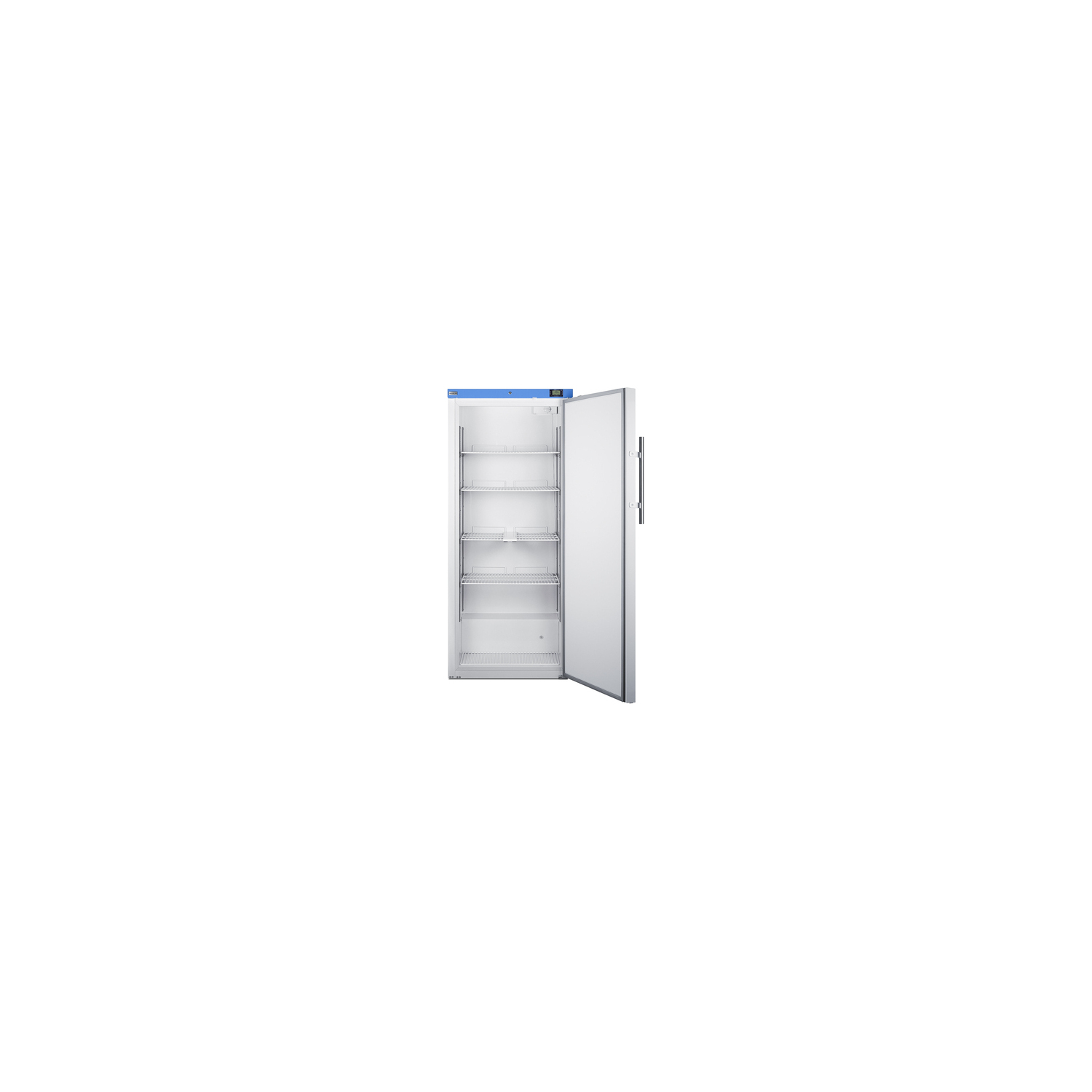

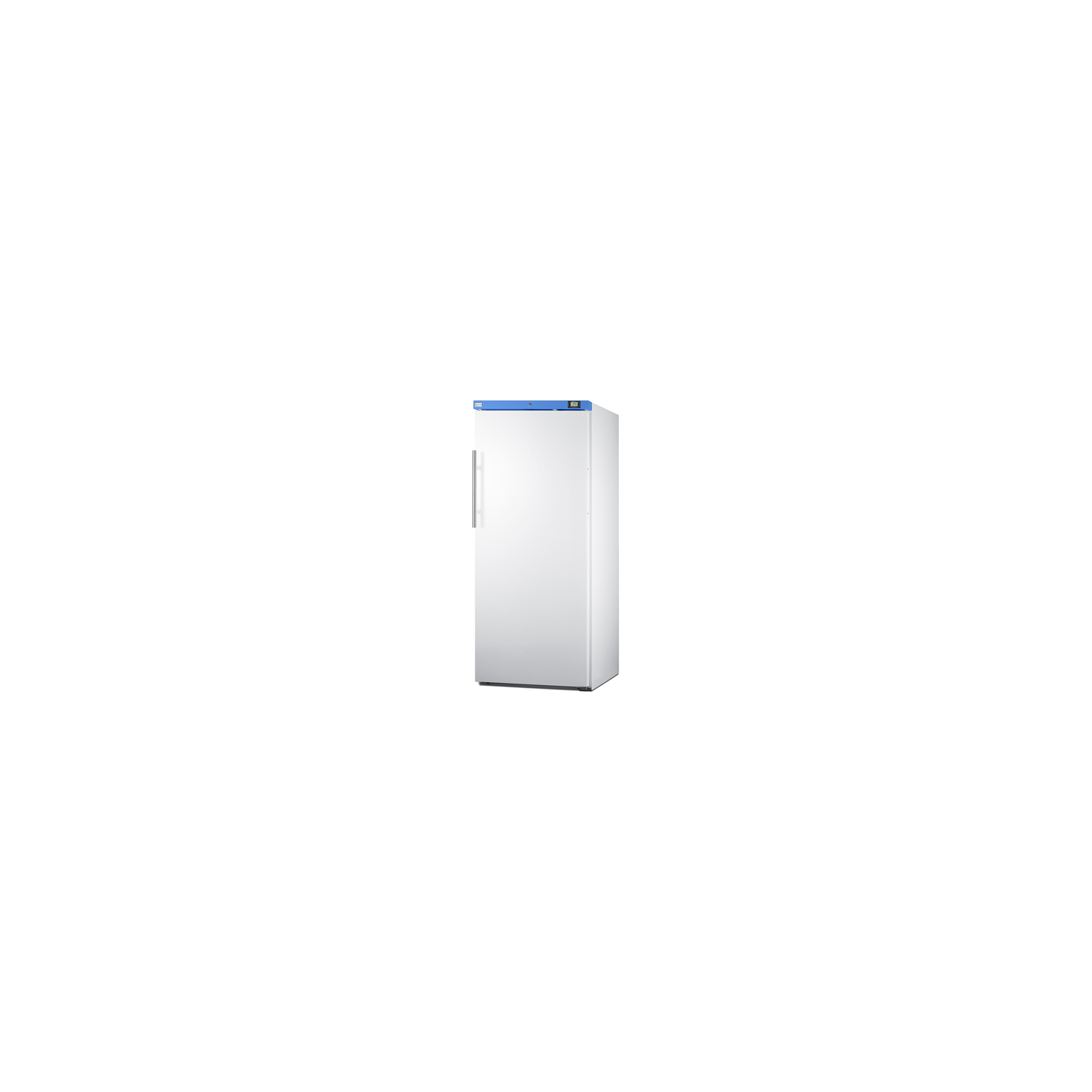

Model AFM19W is a large capacity front-opening freezer with an 18.3 cu.ft. interior. It is ETL-S listed to NSF-7 for commercial storage applications. This freezer utilizes a static manual defrost cooling system that offers more stabilized temperature than traditional no-frost units. The dial thermostat is located inside to prevent accidental temperature adjustments. Cantilevered shelving with epoxy-coated wire shelves allows you to adjust the interior to best accommodate a variety of sizes, while the flat door liner helps to fit deeper trays than units equipped with door racks. An automatic LED light makes it easy to see the full interior.

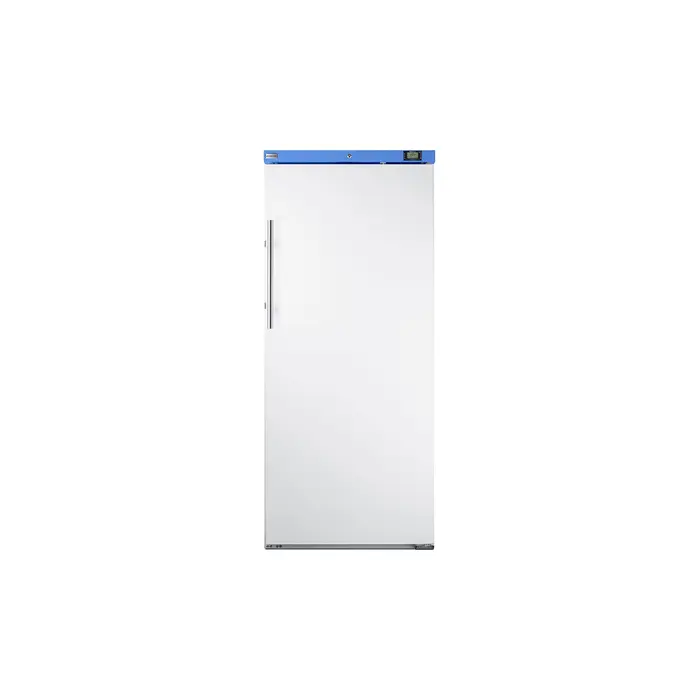

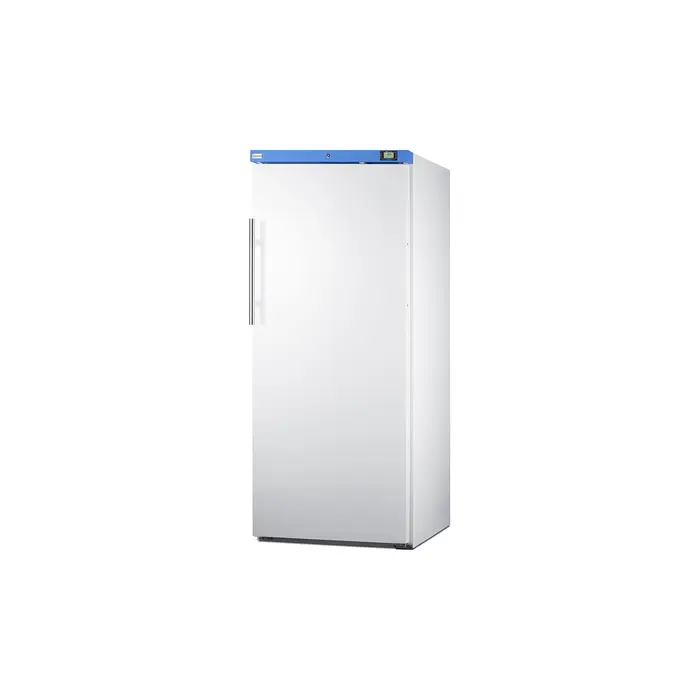

This freezer comes in a white exterior finish. The keyed lock is conveniently located towards the top of the unit for easier user access. The reversible door includes an easy-grip handle in a brushed aluminum finish. This unit includes a 9'5" long power cord with a hospital grade 'green dot' plug for a more secure connection, ideal for high traffic commercial environments. The cooling system utilizes hydrocarbon refrigerant for a greener footprint that meets CARB regulations. For advanced insulation, the door features a vacuum seal that keeps all cold air inside.

In addition to this freezer, Summit Commercial manufactures a full lineup of full-sized commercial refrigerators and freezers, including reach-in style and frost-free options. Browse the full lineup to explore our catalog.

SPECIFICATIONS

Overview

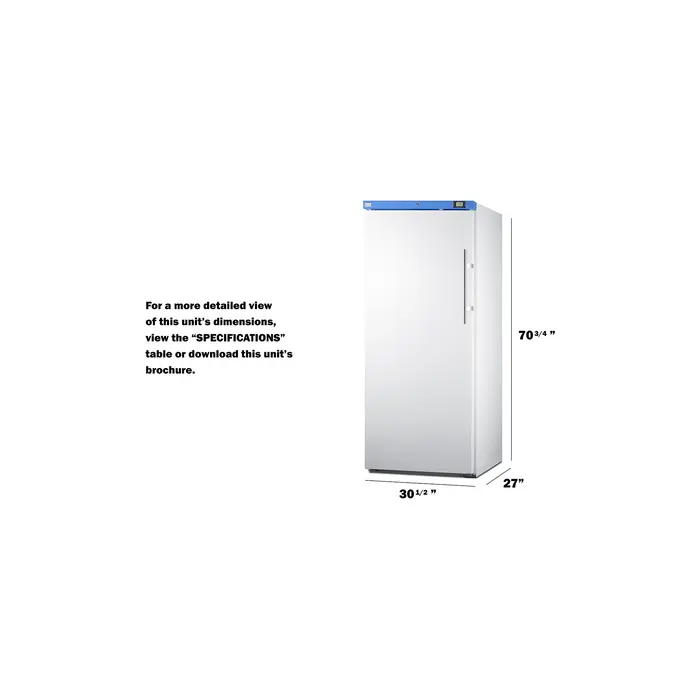

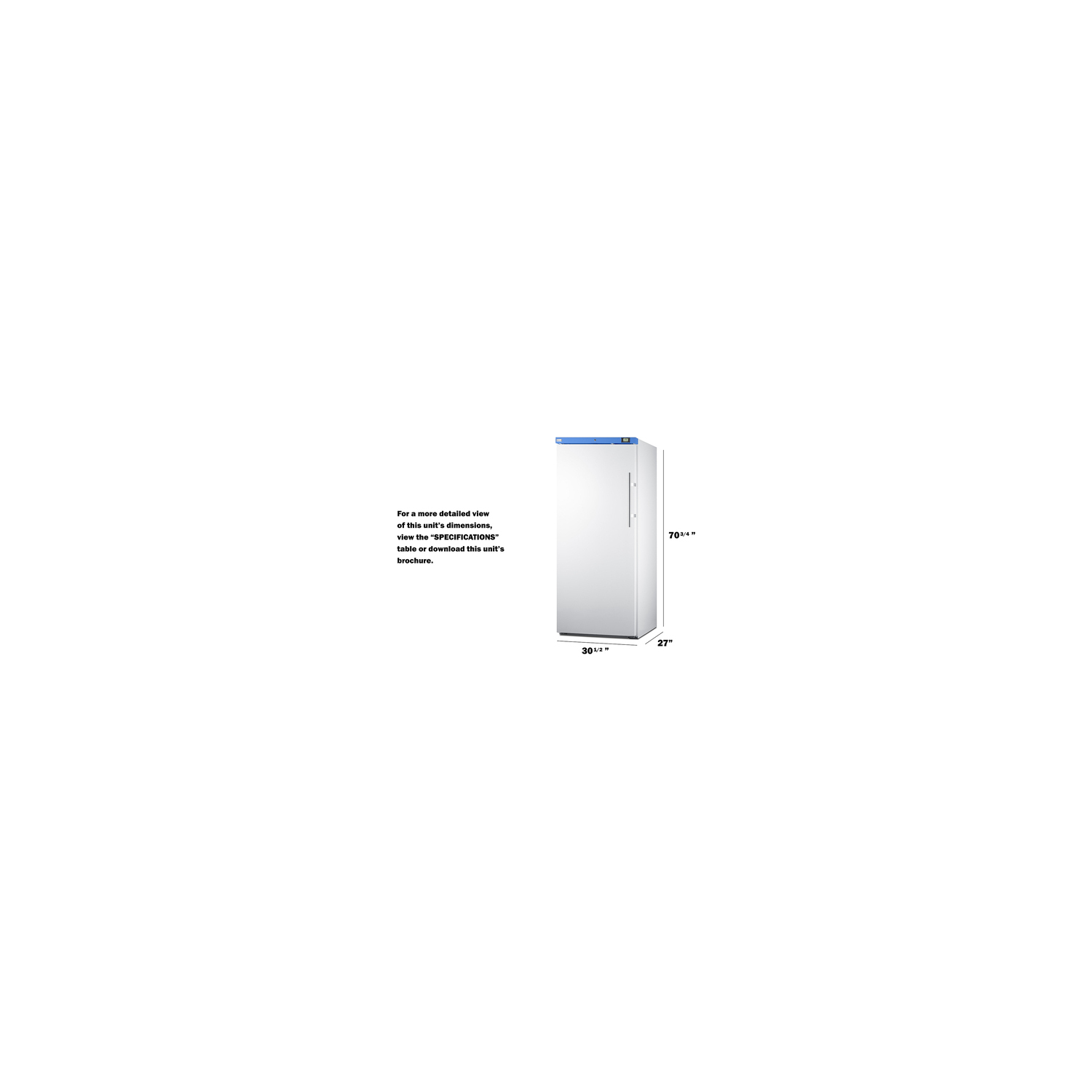

Nominal Height 72.0" (183 cm)

Height of Cabinet 72.0" (183 cm)

Nominal Width 31.0" (79 cm)

Width 30.5" (77 cm)

Nominal Depth 28.0" (71 cm)

Depth 27.63" (70 cm)

Depth with Handle 30.25" (77 cm)

Depth with door at 90° 55.38" (141 cm)

Capacity 18.3 cu.ft. (518 L)

Defrost Type Manual

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 2.7

Voltage/Frequency 115 V AC/60 Hz

Weight 215.0 lbs. (98 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101077314

Freezer

Door Swing RHD

Reversible Factory Reversible

Interior Height 64.0" (163 cm)

Interior Width 25.0" (64 cm)

Interior Depth 20.88" (53 cm)

Shelf Type Wire

Shelf Qty 4

Adjustable Shelves Yes

Thermostat Type Dial

Interior Light Yes

Refrigerant Type R290

Refrigerant Amount 3.88 oz.

High Side PSI 280.0

Low Side PSI 145.0

Level Legs 2

Compressor Step Height 9.38" (24 cm)

Compressor Step Width 25.0" (64 cm)

Compressor Step Depth 7.25" (18 cm)

Temperature Range -18 to -24ºC (Preset to -20ºC)

FEATURES

Commercially listed ETL-S listed to ANSI-NSF Standard 7 for commercial use

Upright manual defrost all-freezer Front-opening commercial freezer

Large capacity Over 18 cu.ft. of storage inside

Manual defrost operation Static cooling system with no fans or warming cycles

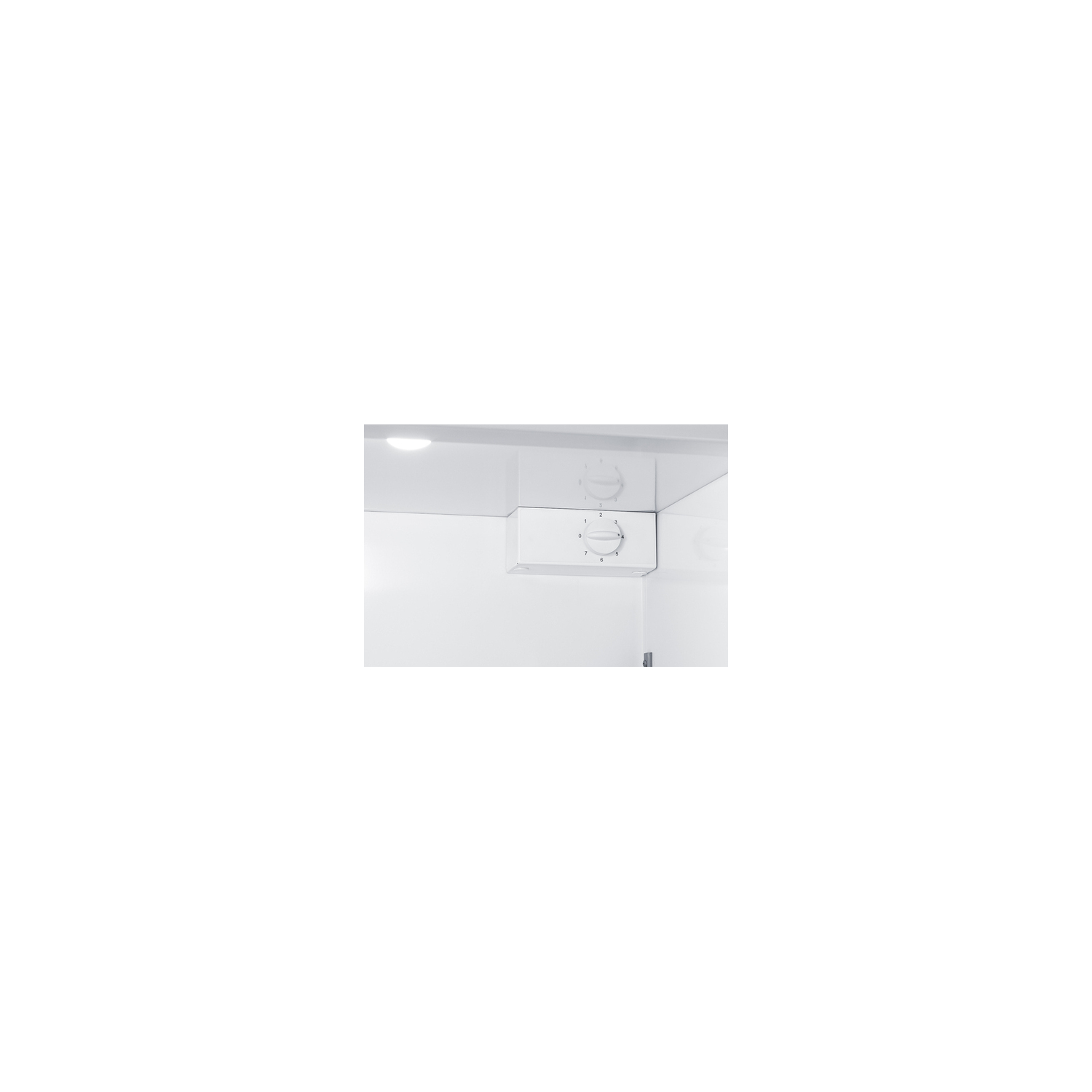

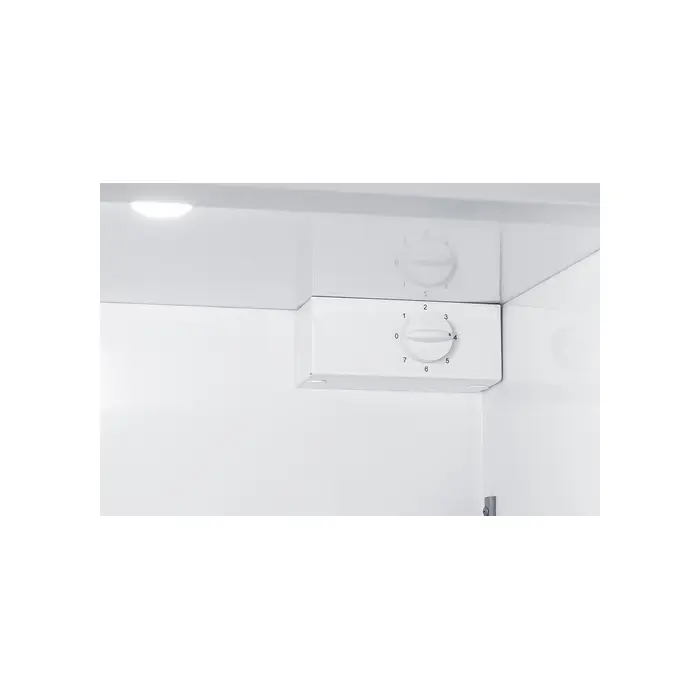

Dial thermostat Intuitive and reliable mechanical thermostat located inside the unit to prevent unnecessary adjustments

-20ºC operation Preset to -20ºC with a temperature range of -18 to -24ºC

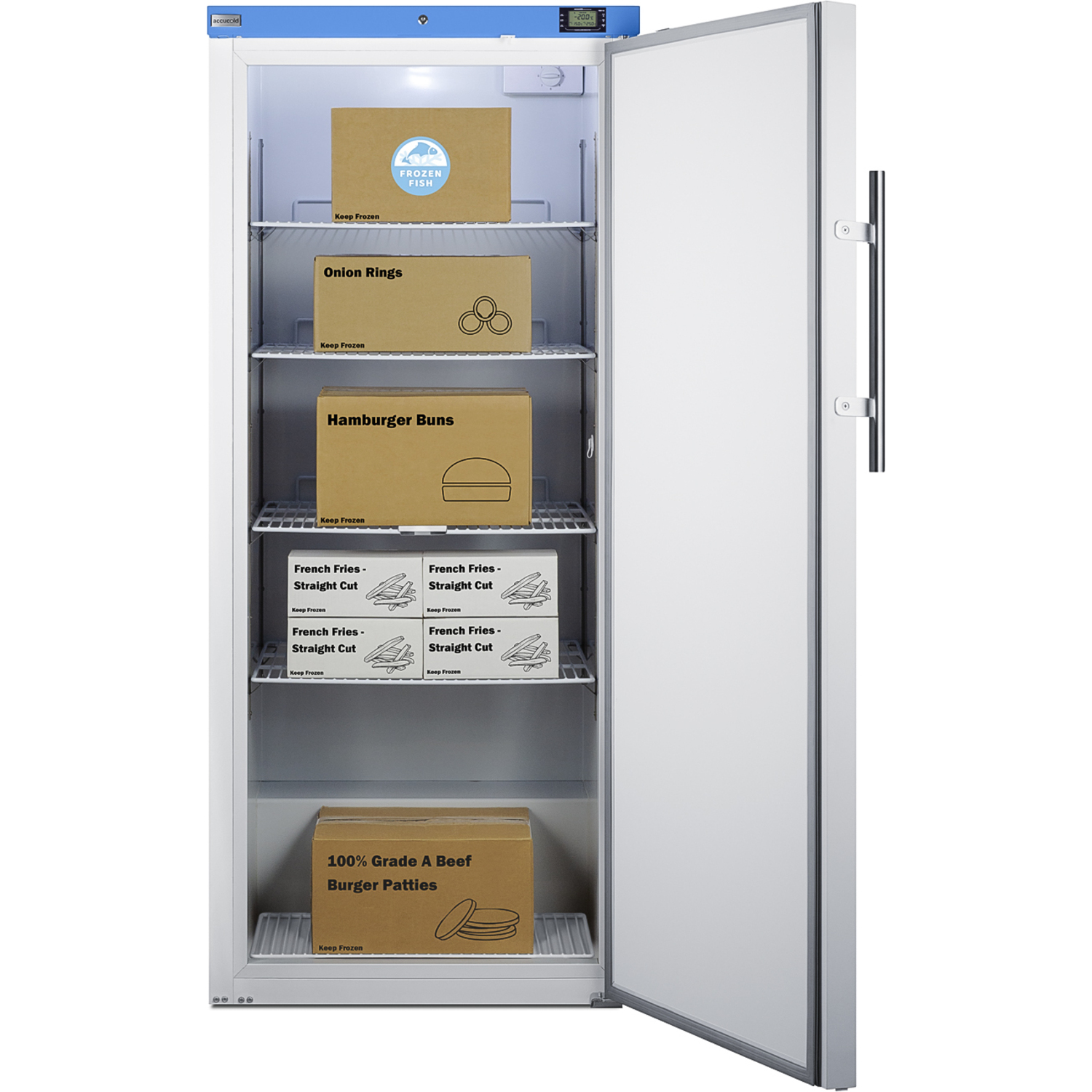

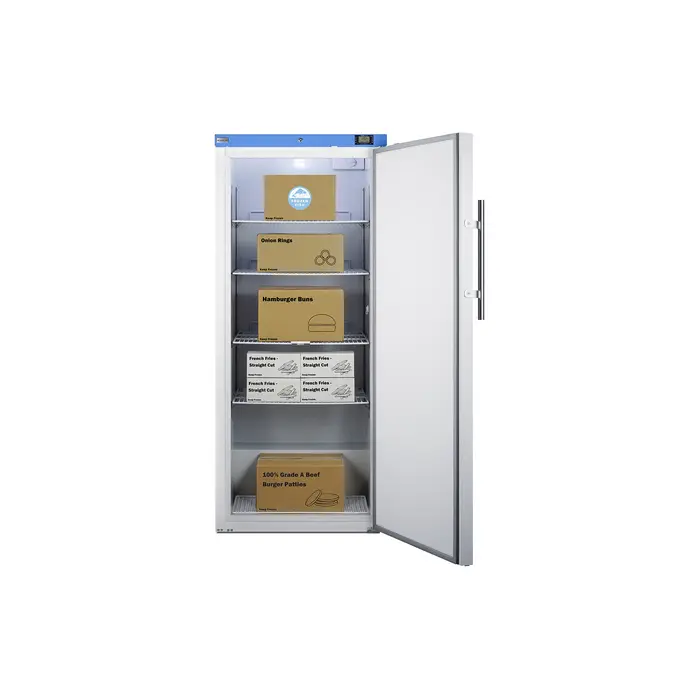

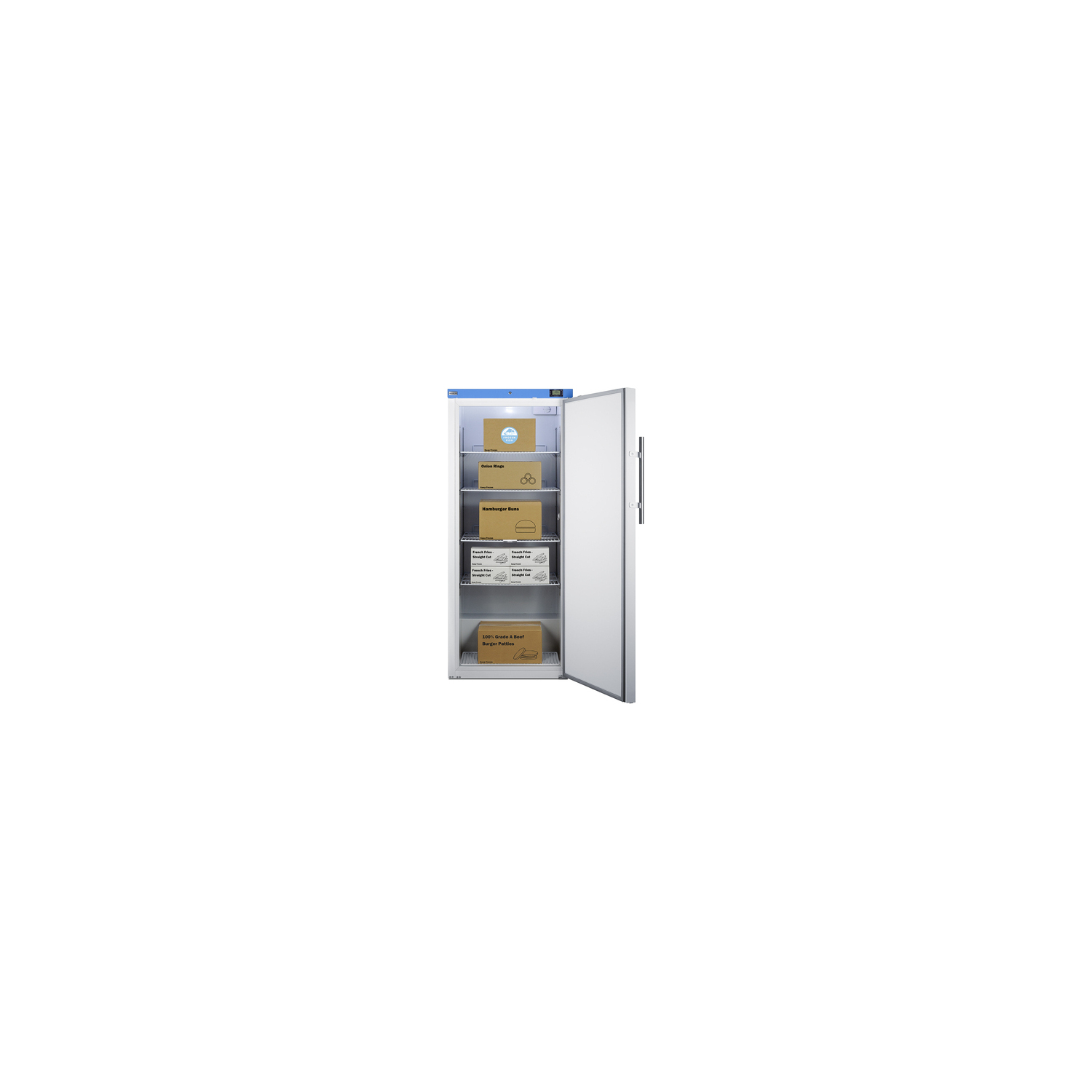

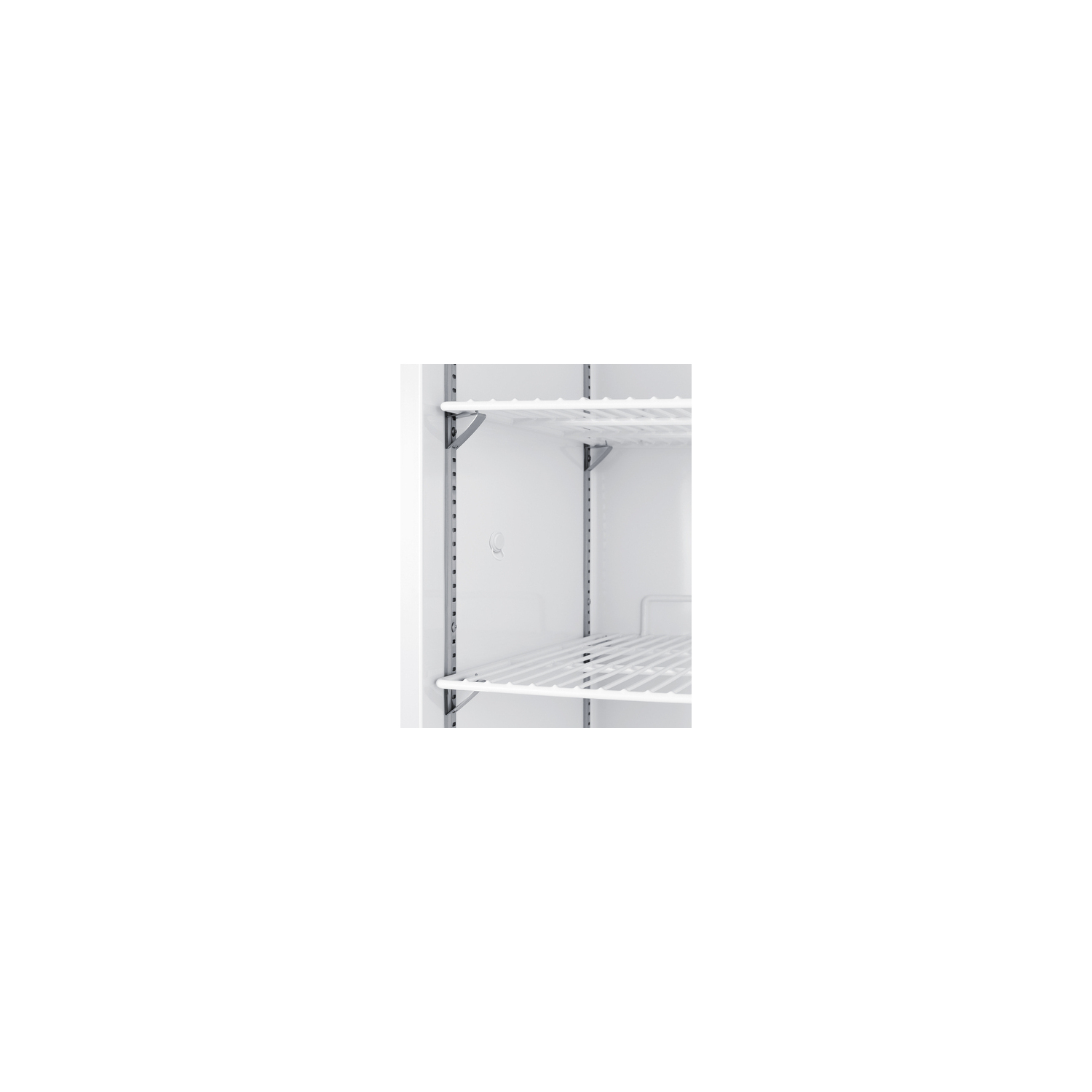

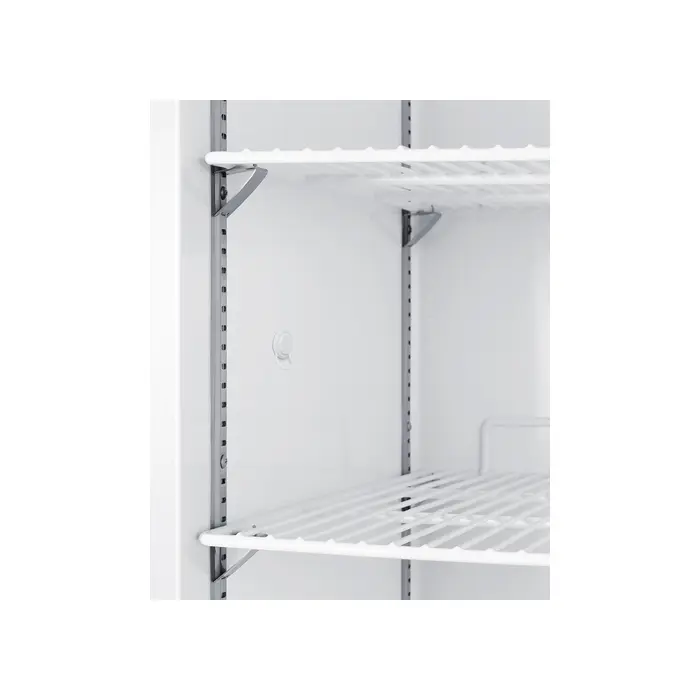

Cantilevered shelving Tight pilaster spacing throughout the interior allows you to adjust the shelf positions to meet your exact storage needs

Epoxy-coated wire shelves Four heavy duty shelves included

Factory-installed lock Conveniently located towards the top of the door for easier user access (2 keys included)

Flat door liner No door storage to allow for the interior to accommodate deeper trays

Reversible door User-reversible door swing for added flexibility to best accommodate your setting

LED lighting Automatic interior lighting for an efficient presentation

9' long cord with hospital grade plug Extra long power cord with hospital grade 'green dot' plug for a more secure connection

External handle Easy-grip handle in brushed aluminum

Leveling legs Adjustable front legs allow you to ensure a straight fit, even on uneven surfaces

Advanced vacuum seal insulation Vacuum seal gasket design ensures no cold air escapes (NOTE: seal activates when door is closed, so you must allow a few minutes to pass before re-opening)

100% CFC free Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
