Summit 24 inch wide 115V front-loading washer, 7.61101e+011, LW2427

Summit's selection of slim-fitting laundry options brings efficiency and convenience to apartments, tiny houses, and other homes with limited floor space.

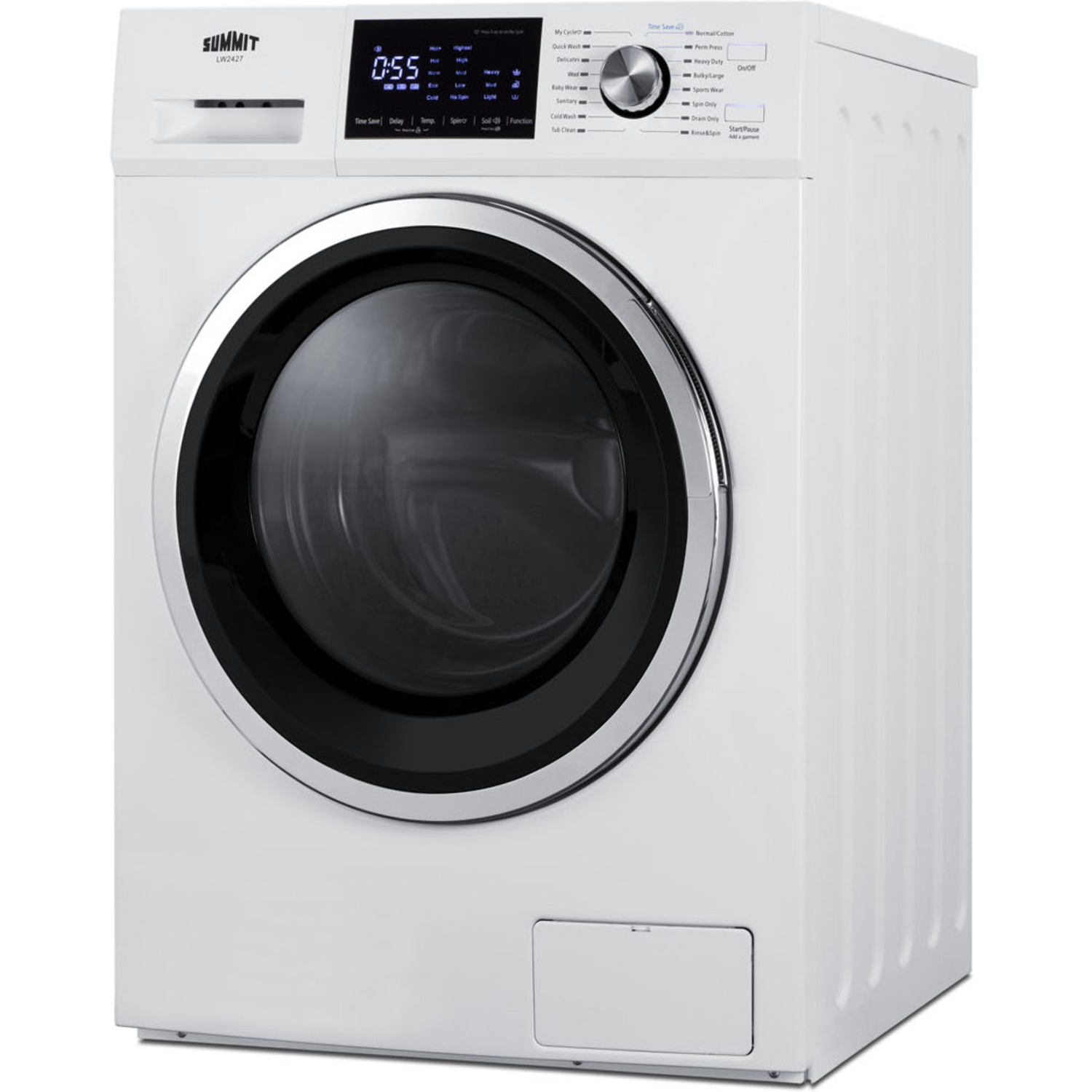

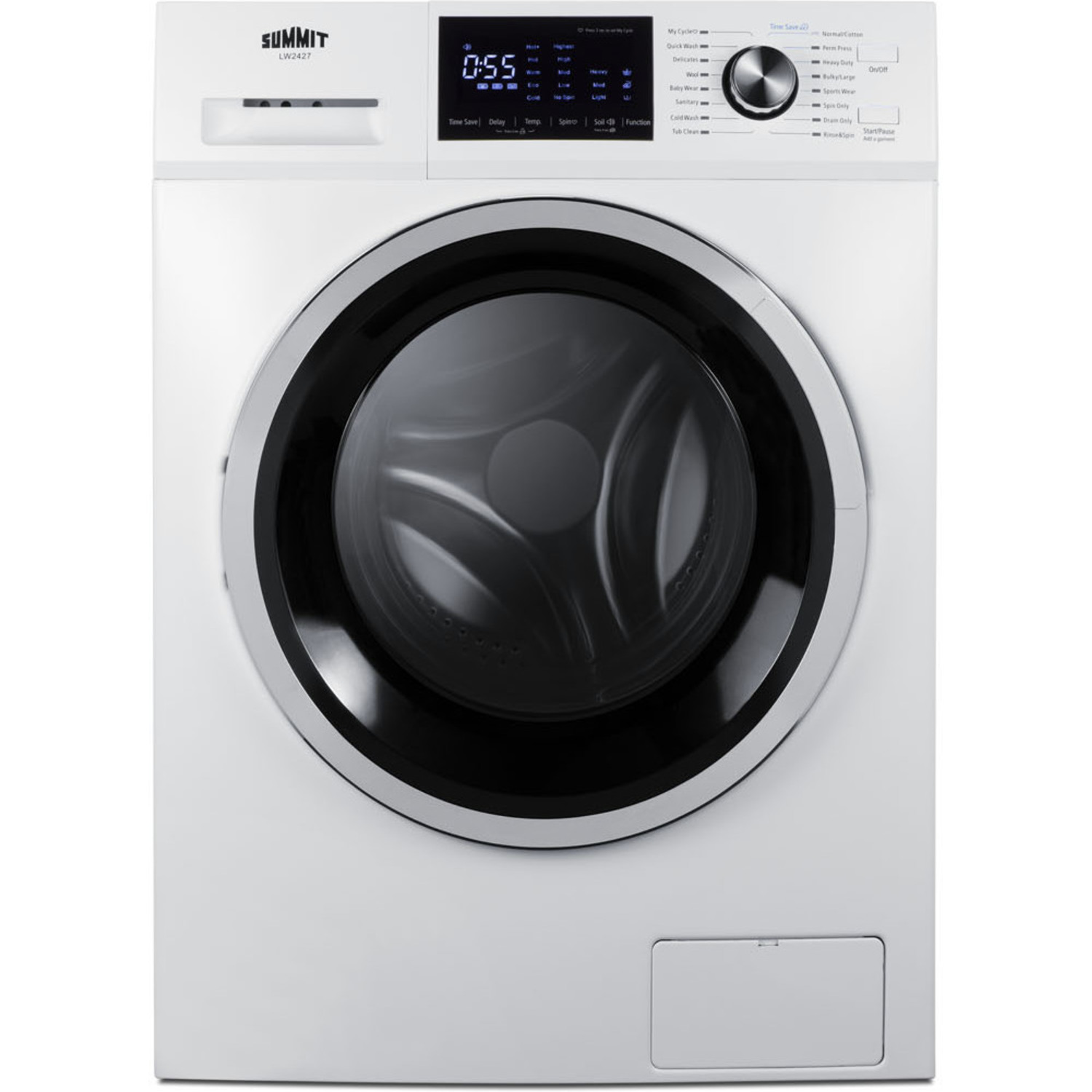

The ENERGY STAR certified LW2427 is a 115V front-loading washer with a generous 2.7 cu.ft./26.4 lb. wash capacity in a slim 24 inch fit. It comes in a clean white finish with a ridged stainless steel interior tub to ensure a thorough wash with lasting durability. The wide glass door ensures convenient loading. This unit includes a pre-installed 3-prong cord. For added space savings in small homes, this washer can be placed in closets or alcoves for recessed installation (minimum clearance: 1" on each side, 2" at the top, rear, and front).

The LW2427 uses a combination of dial and digital controls for easy and intuitive use with a large LED readout to keep track of your progress. Choose from 15 wash programs including cottons, heavy duty, permanent press for wrinkle reduction, sportswear, sanitary, babywear, delicates, wool, and more. A tub clean setting lets you run a high temperature wash cycle to help sterilize the interior and remove any residue left from previous washes. Additional features include a child lock, 24 hour delay start, and add garment function. The pull-out detergent compartment makes it easy to load.

This washer can be paired with the matching 220V LD2444 heat pump dryer to create a complete set. A stacking kit with a slide-out rack will be available later this summer. Additional laundry options are available, including all-in-one 115V combination washer/dryers. Browse the complete Summit line to explore your options.

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.5" (85 cm)

Nominal Width 24.0" (61 cm)

Width 23.75" (60 cm)

Nominal Depth 25.0" (64 cm)

Depth 24.75" (63 cm)

Depth with door at 90° 43.75" (111 cm)

Capacity 2.7 cu.ft. (76 L)

Door Glass

Cabinet White

US Electrical Safety UL

Canadian Electrical Safety ULC

Energy Usage/Year 75.0kWh/year

Amps 15.0

Voltage/Frequency 115 V AC/60 Hz

Weight 161.0 lbs. (73 kg)

Parts & Labor Warranty 1 Year

UPC 761101084794

Washer

Loading Style Front Loading

Door Window Yes

Door Swing LHD

Reversible No

Maximum Wash Weight 26.4 lbs. (12 kg)

Control Type Digital & Dial

Dispenser Compartment Yes

Wash Cycles 15

Maximum Drum Speed 1400.0

Delayed Start Yes

Delicate Cycle Yes

Permanent Press Cycle Yes

Level Legs 4

FEATURES

ENERGY STAR certified Uses less energy and water than national standards require to ensure more efficiency and lower utility bills

110-120V Operation Versatile non-vented washer for use with standard 15 amp circuits

Cord included Pre-installed 6' long 3-prong cord for fast setup

Slim-fitting design Just under 24" wide for an easy fit

Built-in capable Unit can be built-in for recessed installation with minimal clearance (Note: for built-in use the unit requires 2" of clearance at the rear and 1" of clearance on both sides and the top)

Front-loading design Easy to load, with a glass door for a clear view inside

Stainless steel tub Durable interior holds up load after load

15 wash settings Get the proper fabric care with settings for cottons, quick wash, activewear, babywear, delicates, wool, and more

Permanent press Popular function to help reduce wrinkles

Tub clean setting Allows you to run an empty wash cycle at high temperatures to help sterilize the interior drum and remove lingering residue

Easy iron function Helpful setting can be added to most wash cycles as needed

Touchscreen display Digital touchscreen controls ensure easy operation of speciality programs

Washing cycle selector knob Allows users to easily cycle through the 15 wash programs

Delay start option Allows you to pre-set your laundry for the ideal finish time

Add garment function Lets you pause the wash cycle to add or remove fabric

Detergent dispenser Pull-out compartment for prewash, regular detergent, and fabric softener

Child lock Allows you to lock the settings to prevent children from adjusting the operation

DOWNLOADS

BROCHURE w/ DRAWINGS (LW2427.pdf)

TECHNICAL DRAWING (.dwg) (LW2427_WASHER__A-C_2022_.dwg)

ASSEMBLY DRAWING (LW2427_WASHER_ASS_Y.pdf)

REVIT MODEL (Qf_Summit_LW2427_24_inches_Wide_110-120V_Washer.rfa)

USE & CARE (LW2427-User-Manual.pdf)

Energy Guide
