Summit Barrier-free all-in-one kitchenette with refrigerator, sink, and cooktop, CK72ADALBF

Summit brings true convenience and accessibility to smaller spaces with our collection of barrier-free, all-in-one combination kitchenettes. Available in a variety of sizes and finishes, these units come fully featured with everything you need for the ultimate home foodservice experience, including a 2-burner smooth-top cooktop, sink, storage cabinets, refrigerator with a freezer compartment, and a design that thoughtfully considers movement/flow, force needs, and mobility limitations.

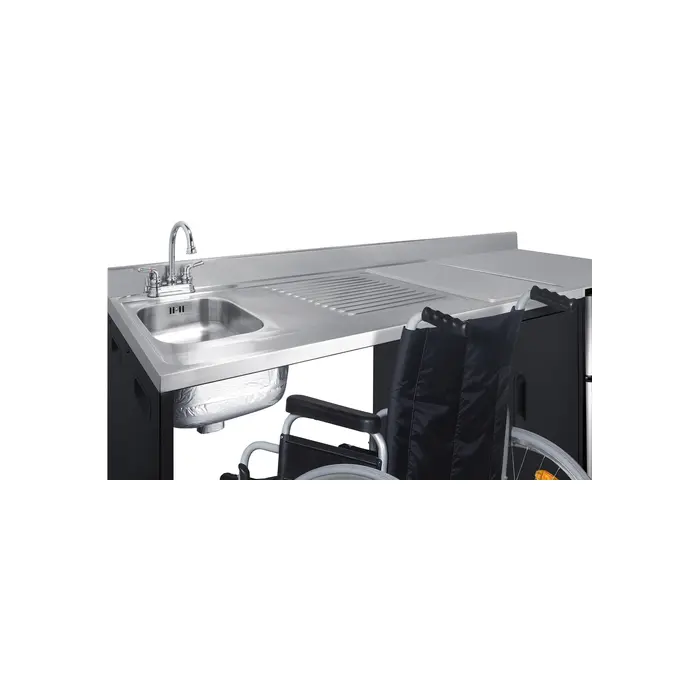

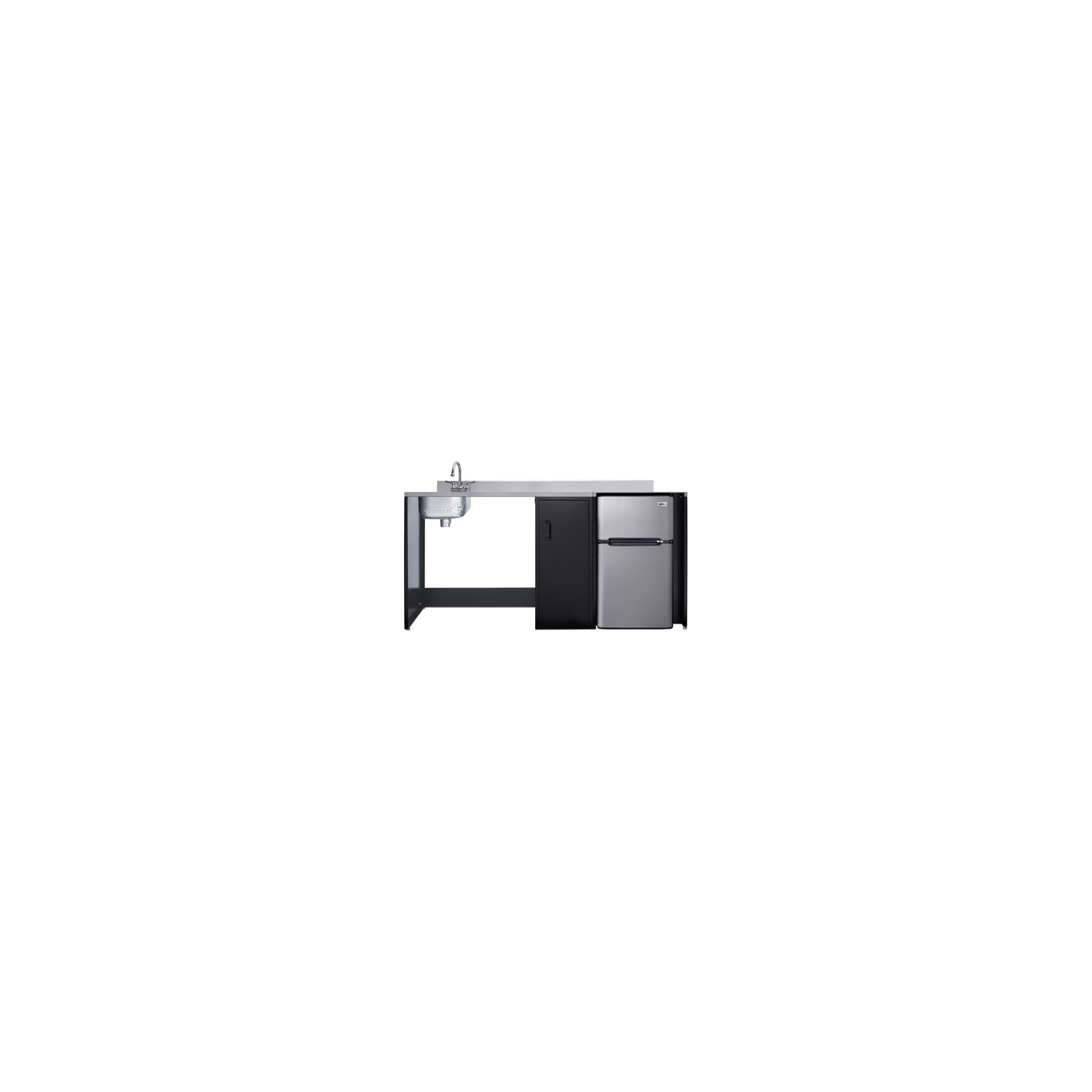

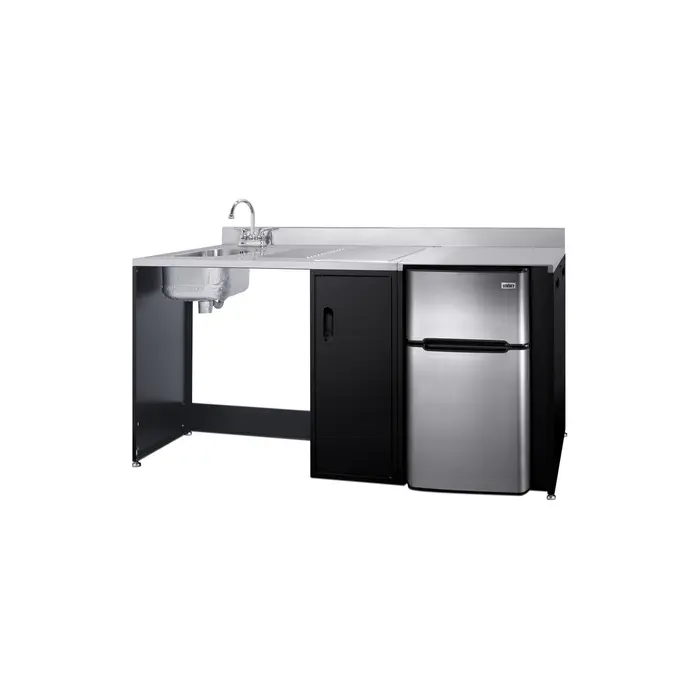

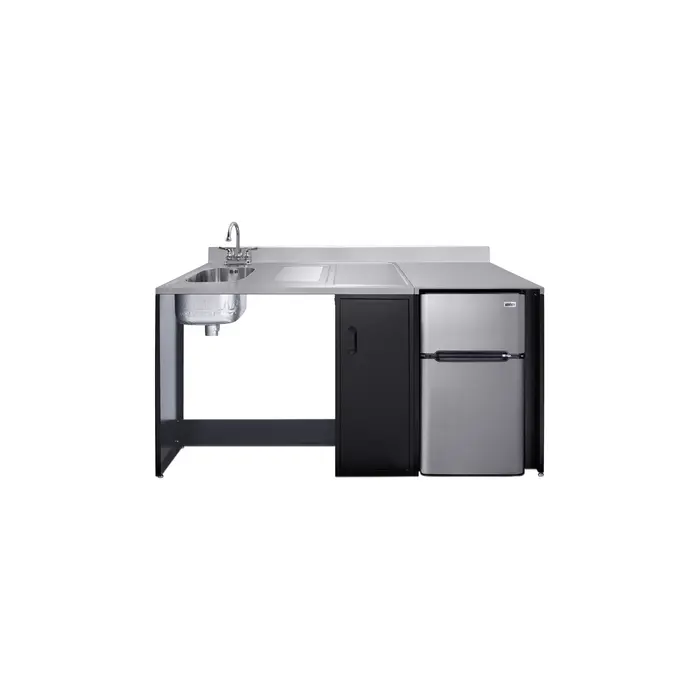

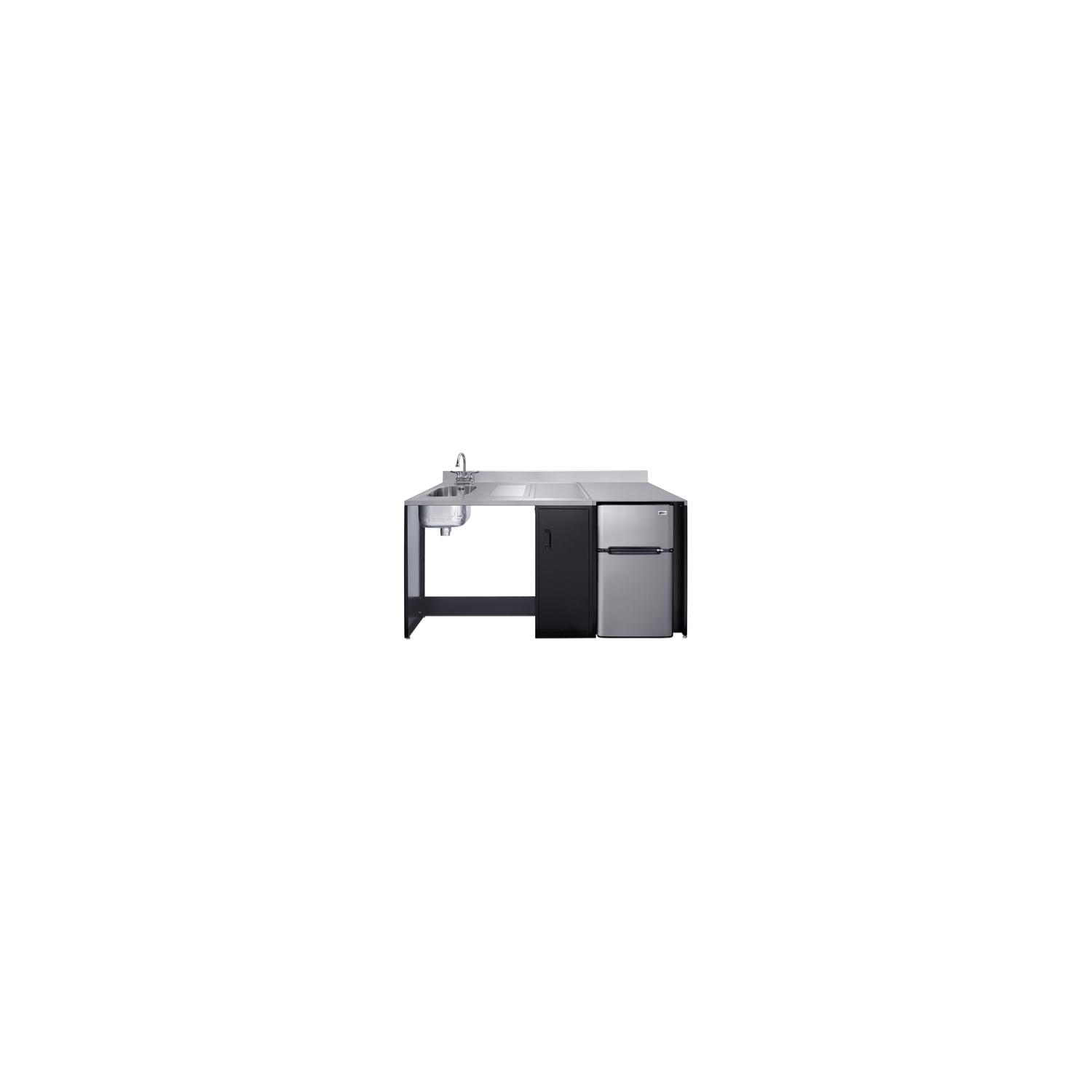

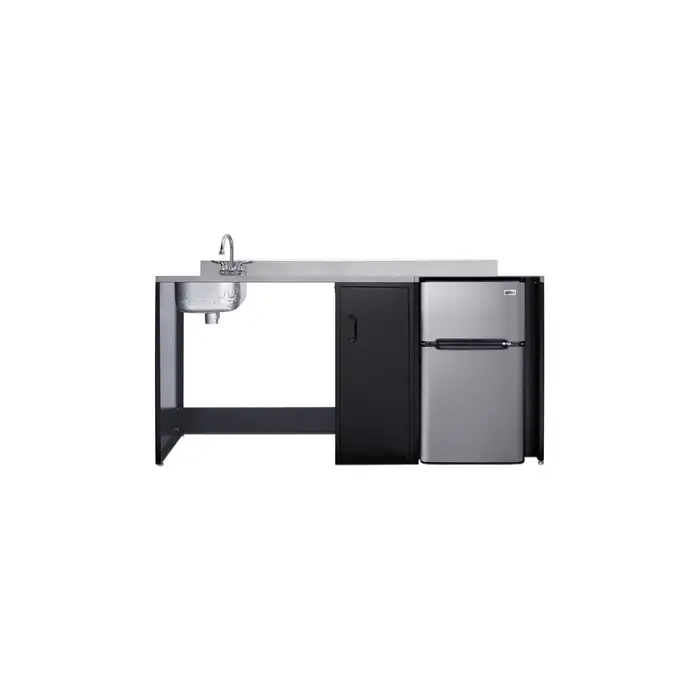

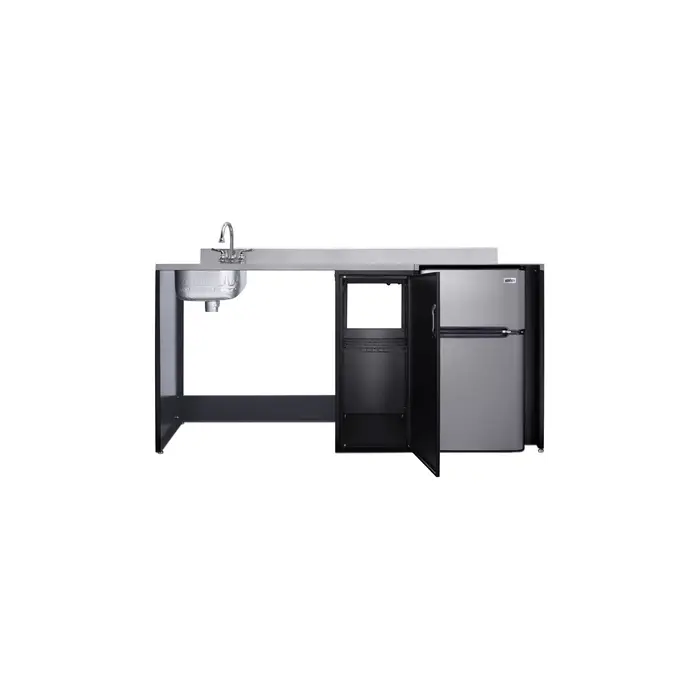

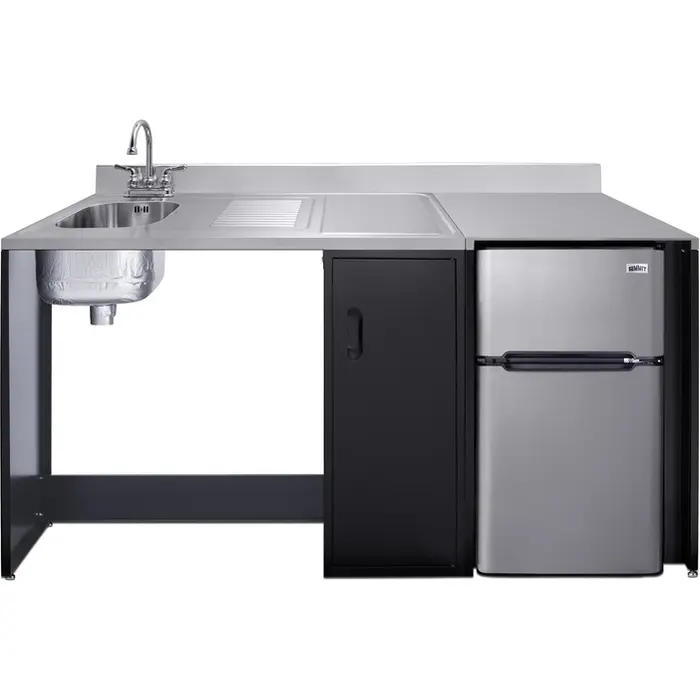

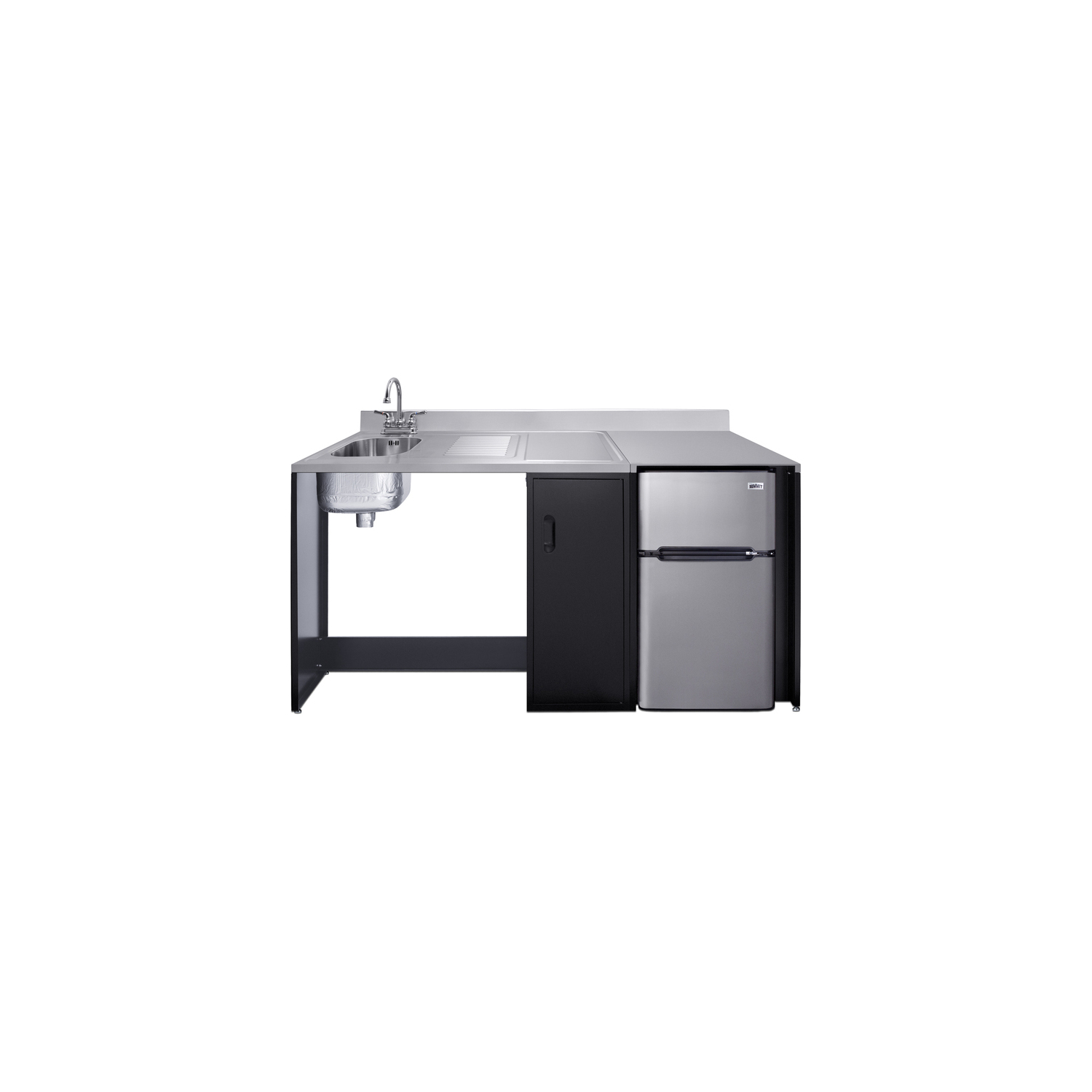

The CK72ADALBF is a 72" wide all-in-one compact kitchenette with a 34" ADA-compliant counter height and a barrier-free design for added wheelchair accessibility. It has a 31.88" wide open area under the sink to ensure adequate space for wheelchairs. This unit is designed, but not limited to, users with mobility impairments, such as those who use wheelchairs, users who are temporarily impaired, or recovering from a procedure, and can benefit from increased accessibility and enhanced ease of use when accessing the unit’s sink, cooktop, and storage cabinet.

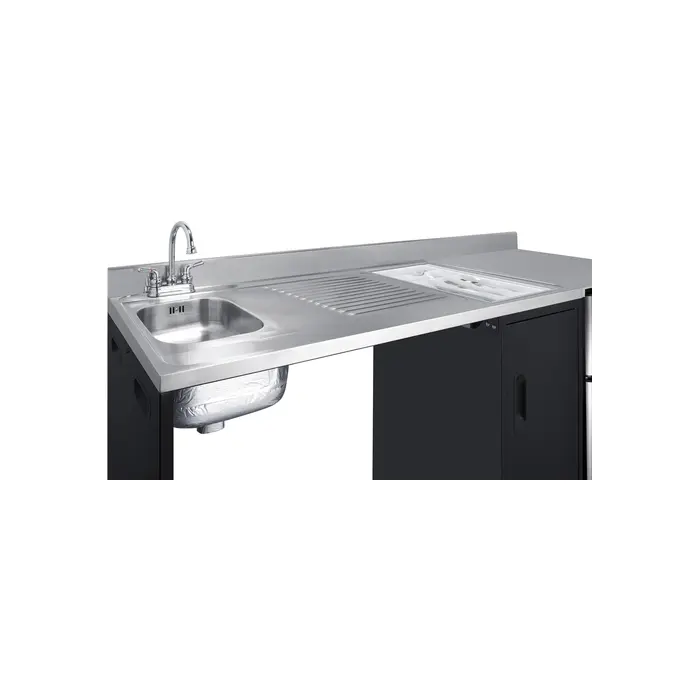

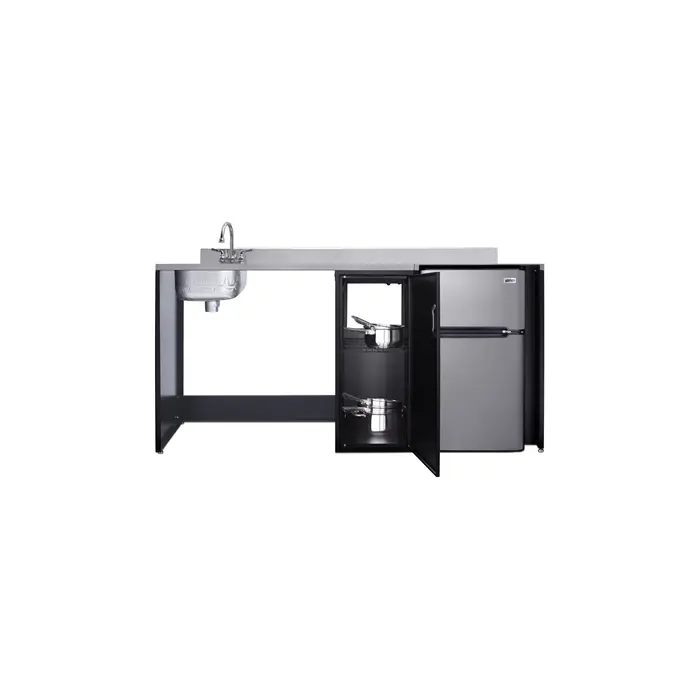

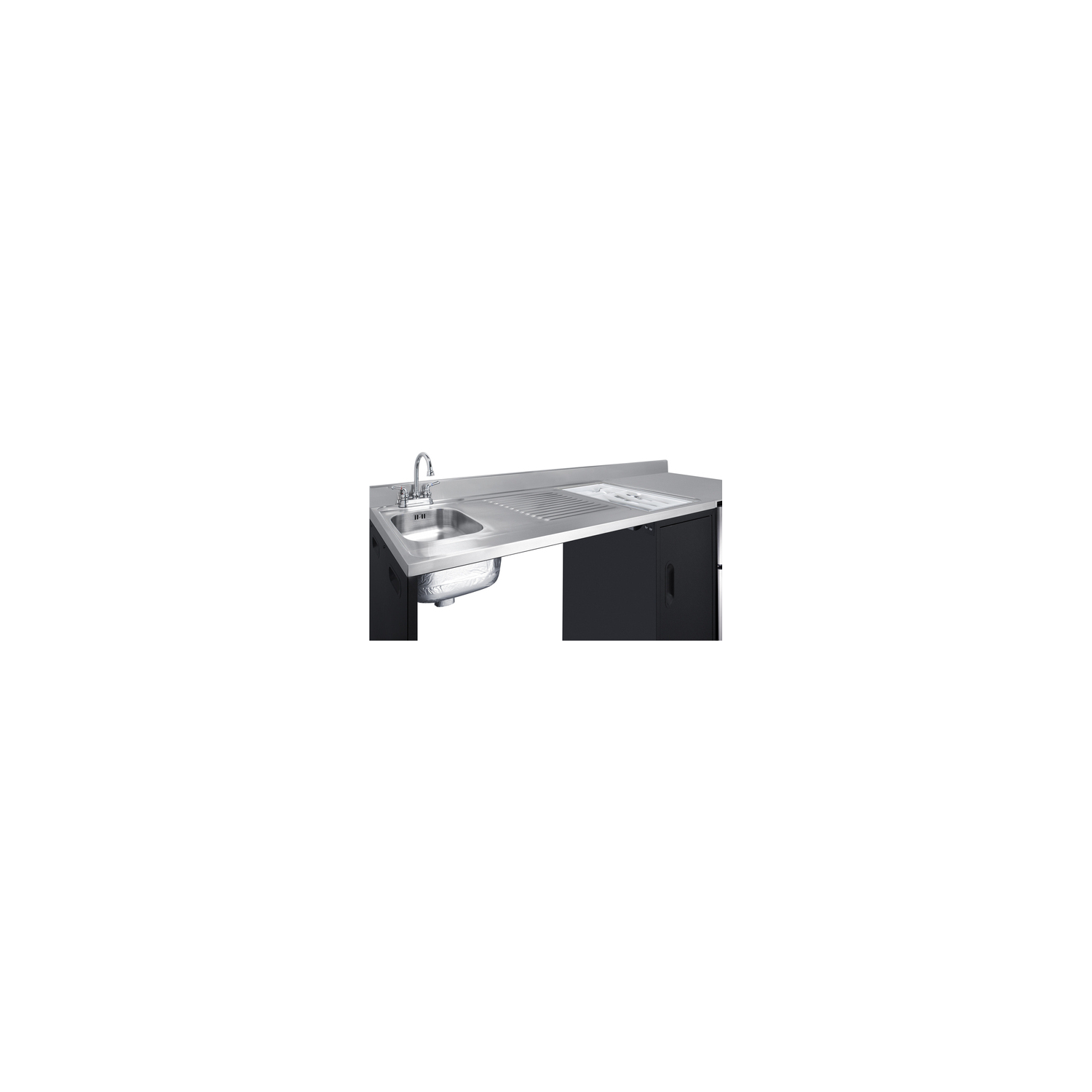

Located on the left side of the CK72ADALBF is the stainless steel sink, complete with a gooseneck faucet. Next to the sink is a stainless steel counter area for food prep. On the right of the prep area is a built-in, 115V smooth-top cooktop with a rear 7" 900W and a front 5½" 500W heating element. This cooktop features upfront, ADA-compliant controls and helpful indicator lights. The standard 3-prong power cord comes pre-installed for easy setup. In the middle of the unit are two single-door cabinets that include removable wire shelves, perfect for storing cleaning supplies.

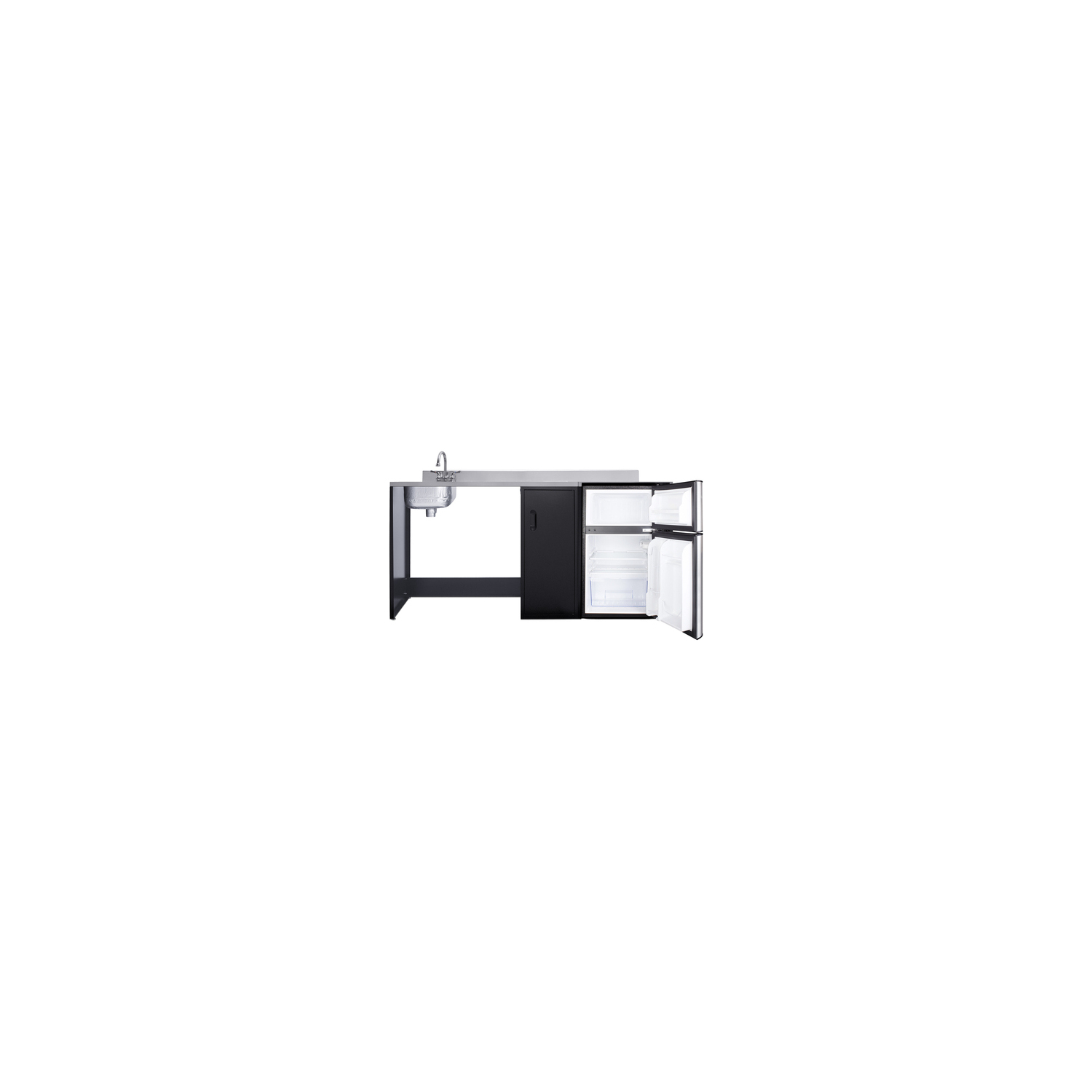

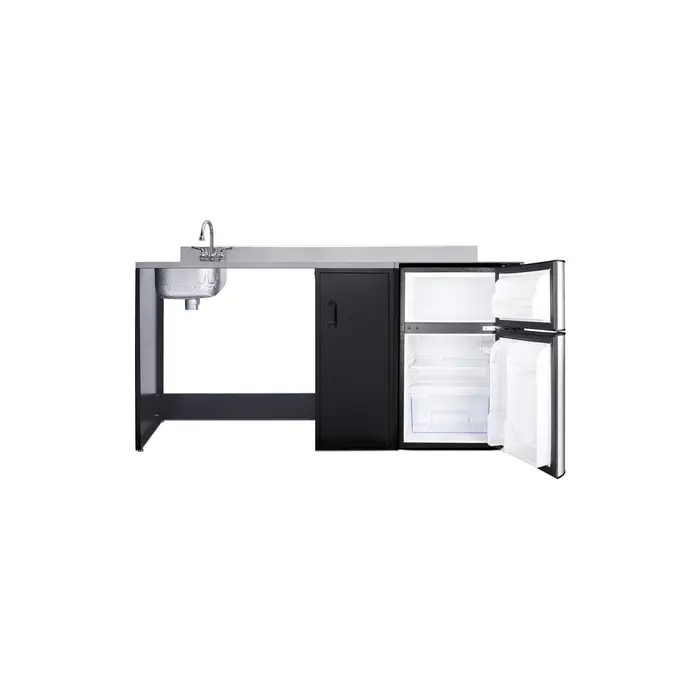

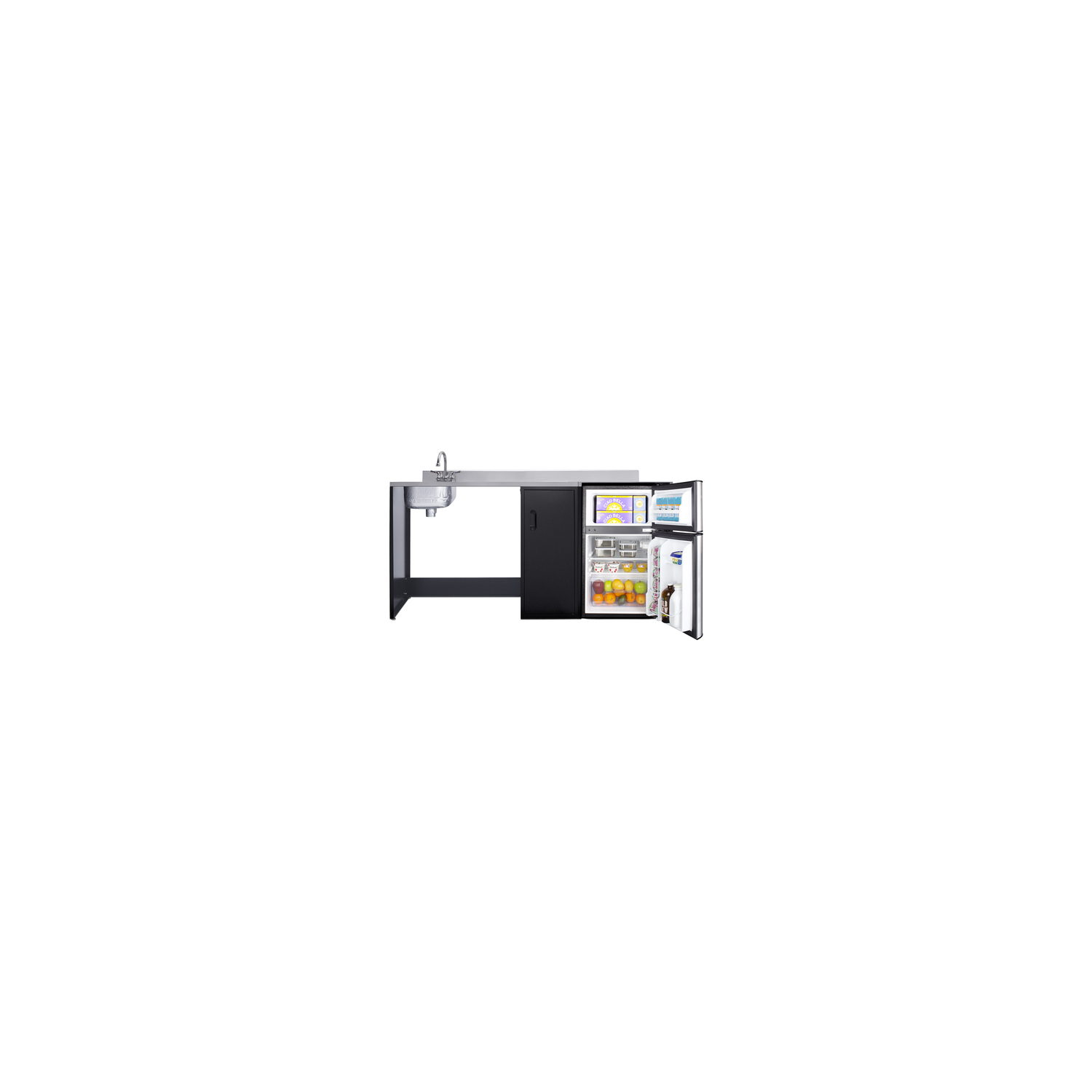

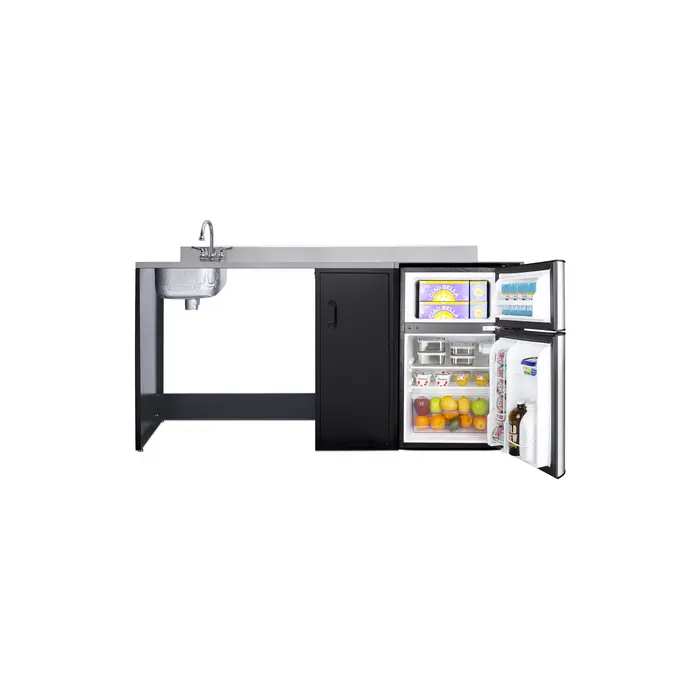

Unlike many other brands' kitchenettes, all Summit units include a refrigerator with a freezer compartment to cover all of your cold storage needs. The CK72ADALBF includes the two-door, ENERGY STAR certified CP34BSS, with 3.2 cu.ft. of storage space. A dual evaporator system separately cools the auto defrost refrigerator section and manual defrost freezer compartment for improved overall performance. This refrigerator-freezer also includes an adjustable glass shelf, door storage, and a crisper.

The CK72ADALBF ships fully assembled in one box. Two grooved handles on each side allow for easy movement of the unit. Perfect for studio apartments, hotel rooms, dormitories, assisted living facilities, temporary kitchen facilities, and any other location in need of a fully-featured compact kitchenette featuring wheelchair accessibility.

For this unit with a sink located on the right of the kitchenette, see the CK72ADARBF. For this unit without the barrier-free design, see the CK72ADASINKL. Additional choices with premium wood construction will be available soon. Browse the full Summit lineup to explore your options.

SPECIFICATIONS

Overview

Height of Cabinet 34.0" (86 cm)

Width 71.75" (182 cm)

Depth 22.75" (58 cm)

Depth with door at 90° 41.0" (104 cm)

Capacity 3.2 cu.ft. (91 L)

Defrost Type Cycle

Door Black/SS

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 322.0kWh/year

Amps 21.1

Voltage/Frequency 115 V AC/60 Hz

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101155340

Kitchenette

Refrigerator Included CP34BSS

Refrigerator Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Shelf Type Glass

Shelf Qty 1

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Full Door Shelves 2

Can Storage Yes

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 1.16 oz.

High Side PSI 250.0

Low Side PSI 88.0

Cooking Type Smooth-Top Cooktop

Number of Burners 2

Cooktop Controls Dial

Sink Height 7.0" (18 cm)

Sink Width 12.25" (31 cm)

Sink Depth 13.75" (35 cm)

FEATURES

72" Wide Barrier-Free All-In-One Kitchenette All-in-one kitchen is built with a barrier-free design and virtually everything you need for meal preparation

Barrier-free design Designed for, but not limited to, users with mobility impairments, temporarily impaired, or recovering from a procedure, and can benefit from increased accessibility

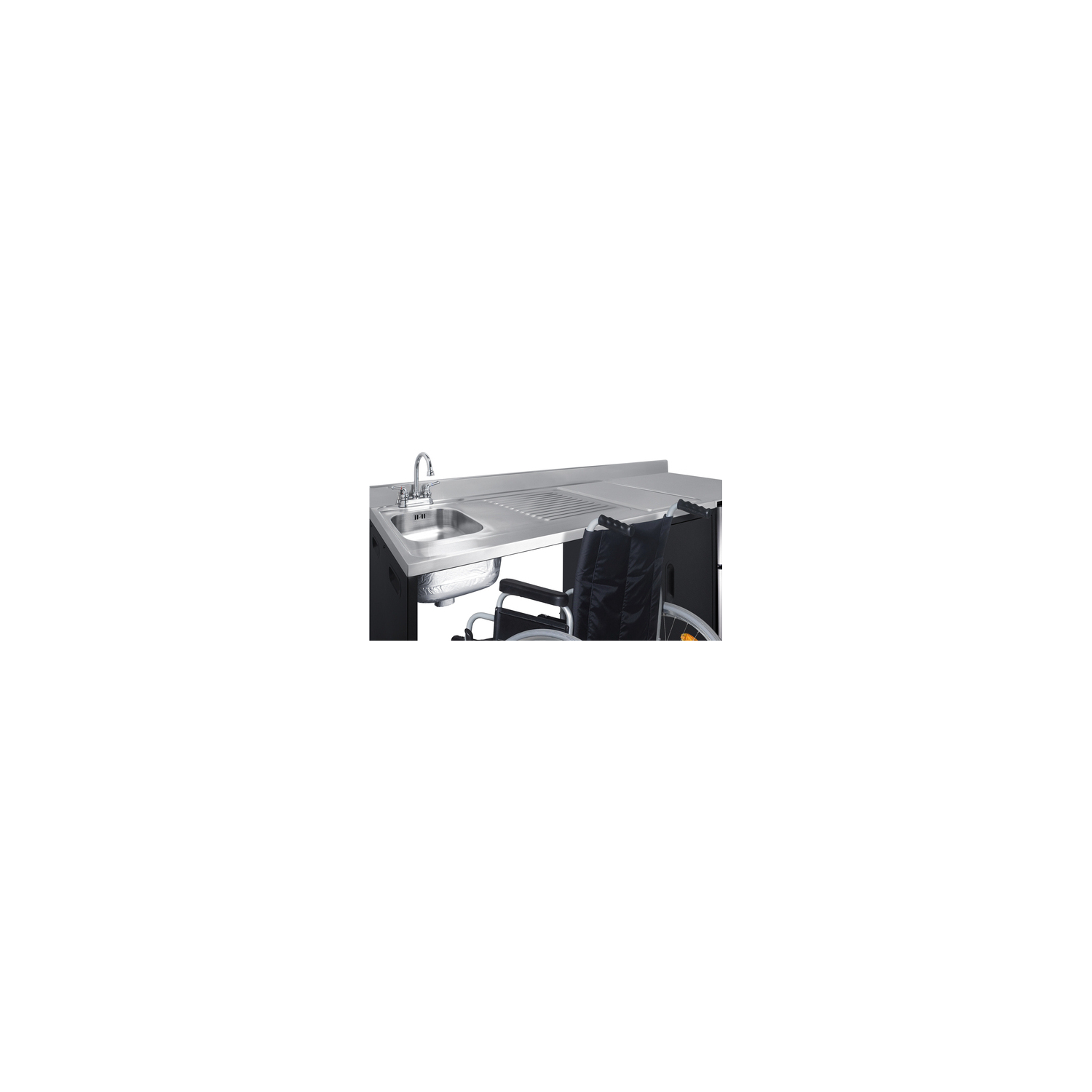

Wheelchair accessible Barrier-free design allows for wheelchair accommodation allowing for enhanced accessibility to the sink

ADA-compliant height 34" counter height helps to comply with the guidelines set by the Americans with Disabilities Act (ADA) for improved accessibility

Refrigerator-freezer This unit includes model CP34BSS, a cycle-defrost refrigerator-freezer

ENERGY STAR certified (refrigerator-freezer ) Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

115V operation with pre-installed cords Both the cooktop (20 amps) and refrigerator (1.1 amps) include 3-pronged cords for easy setup

2-burner smooth-top cooktop Includes a 5½" 500W front element and a 7" 900W rear element in a smooth black finish for easier cleanup and safer cooking

ADA-compliant cooktop design Cooktop features upfront knobs to comply with ADA guidelines

Push-to-turn controls Cooktop knobs require a small amount of force to turn the elements on, helping to prevent accidents

Indicator lights Operating indicators light up to show which burner is in use

Stainless steel sink and faucet Stainless steel sink with ready-to-use gooseneck faucet included

Black and stainless steel exterior finish Modern design with a jet black powder-coated metal cabinet, stainless steel surface, and stainless steel refrigerator doors

One piece stainless steel countertop Easy-to-clean surface with a professional look

Ships fully assembled Kitchenette is shipped in one piece, with reinforced packaging for added protection

Reversible door User-reversible door swings on the refrigerator-freezer for added flexibility

Grooved handles Side indents afford easy movement of the unit for added portability

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
