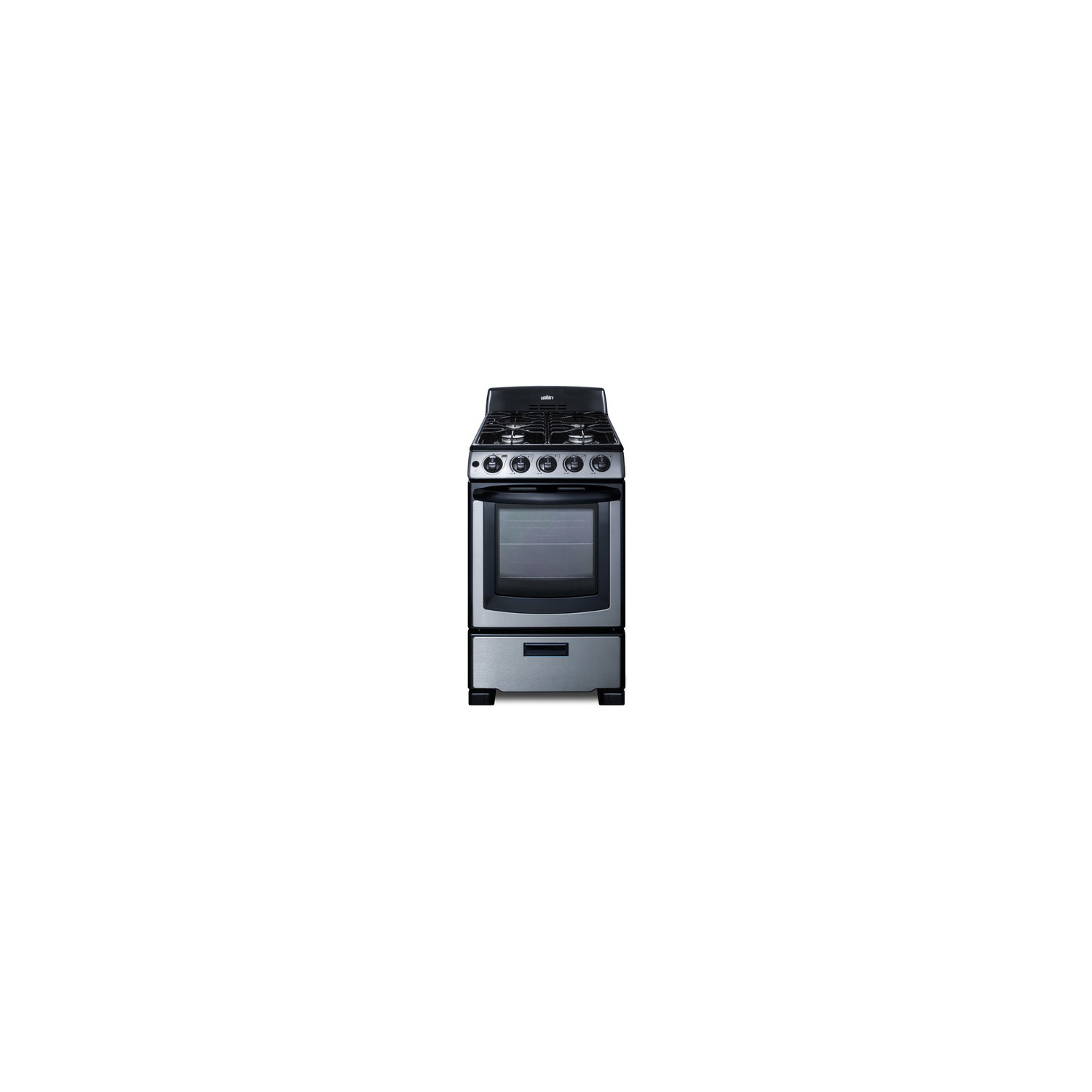

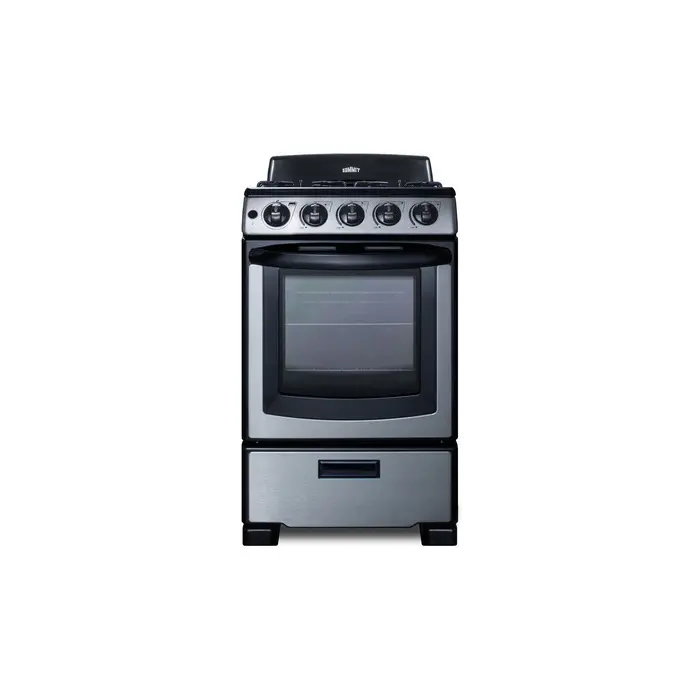

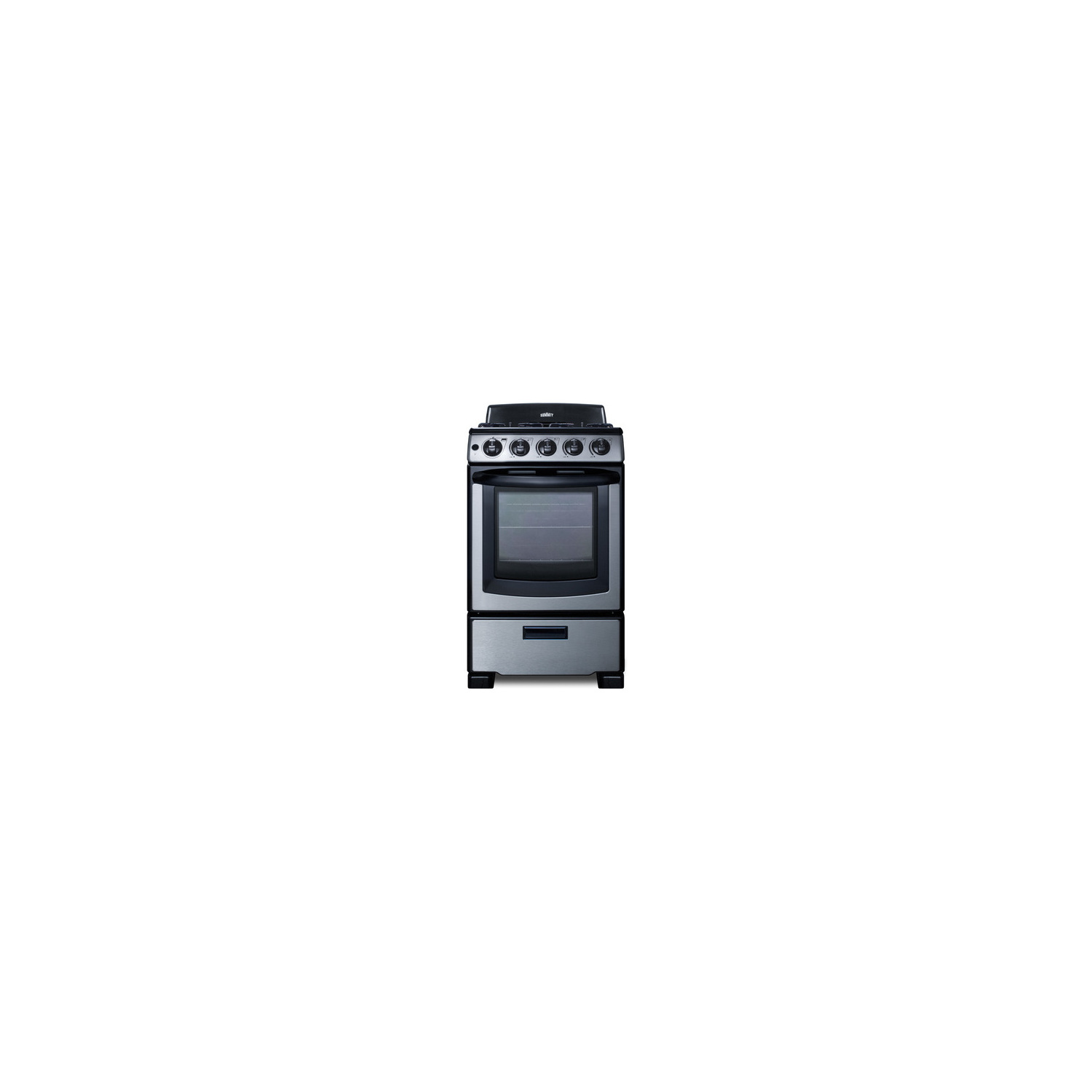

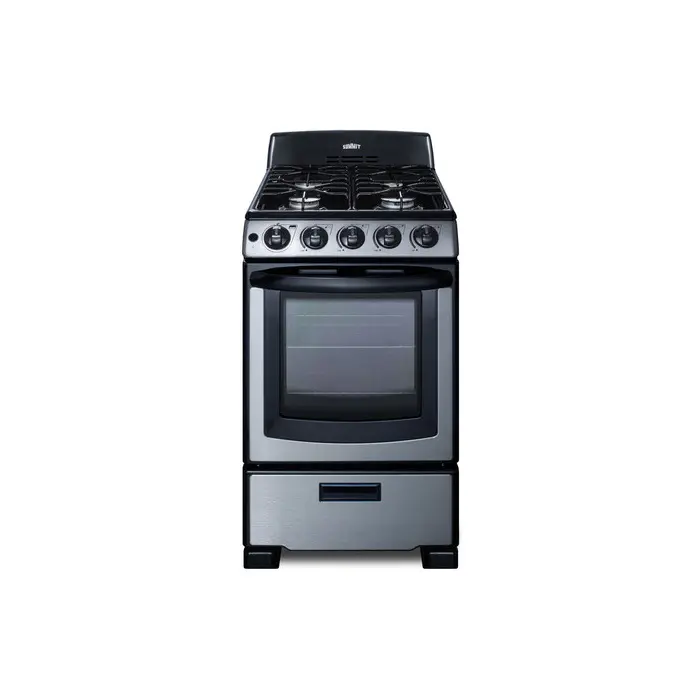

Summit 20 inch wide gas range in stainless steel with electronic ignition, oven window, and sealed burners, 7.61101e+011, PRO201SS

SUMMIT's line of slim-fitting gas ranges made in North America brings quality and value to space-challenged kitchens.

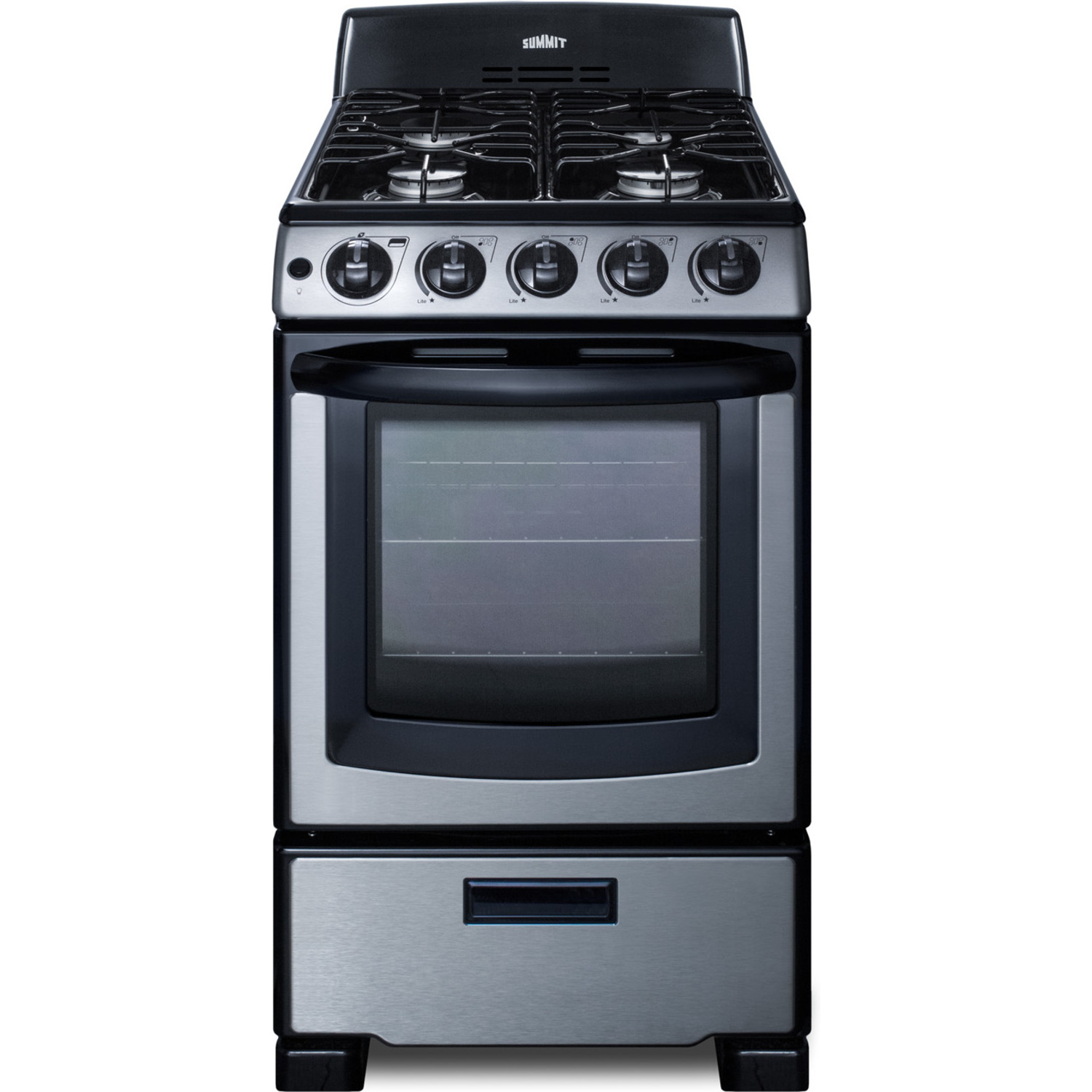

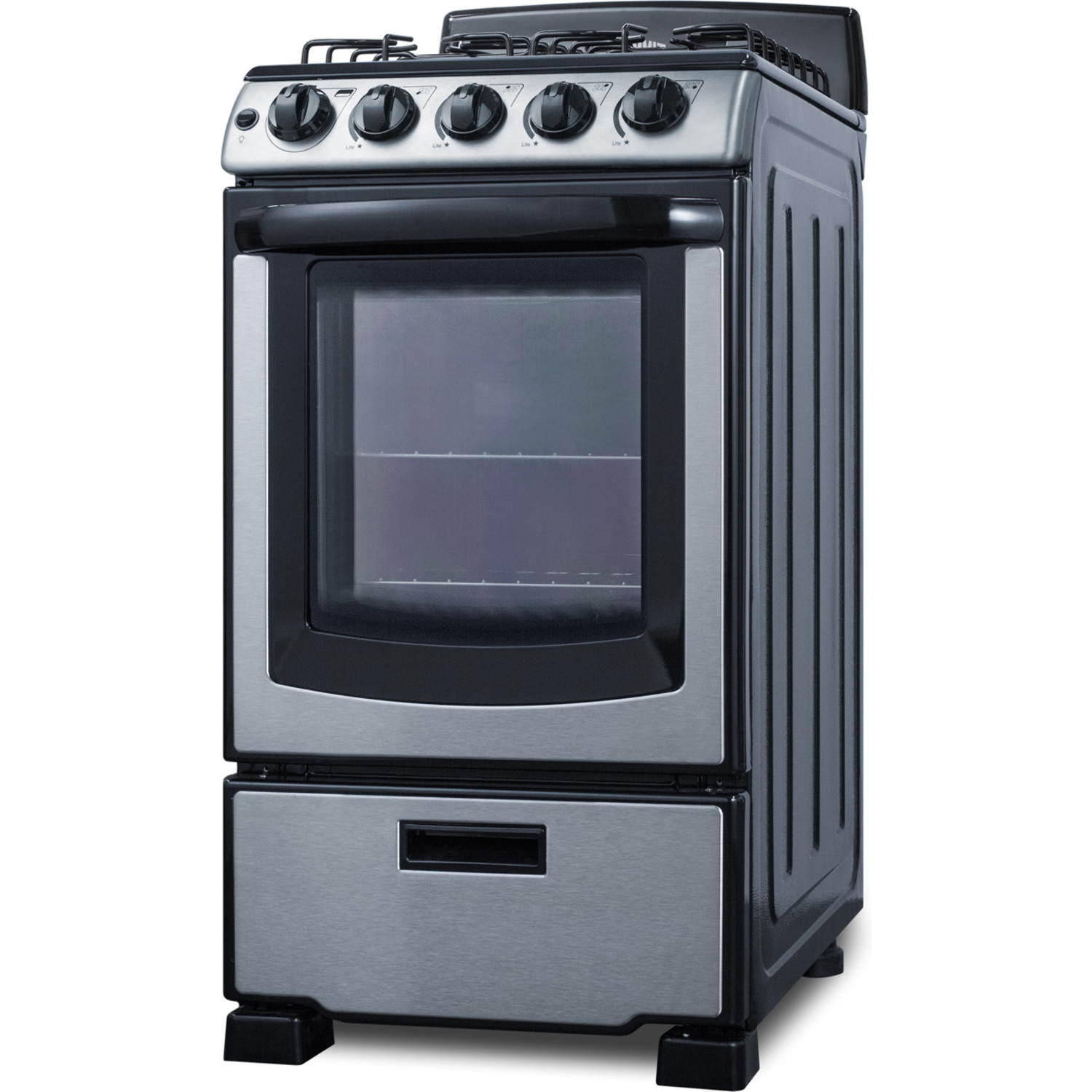

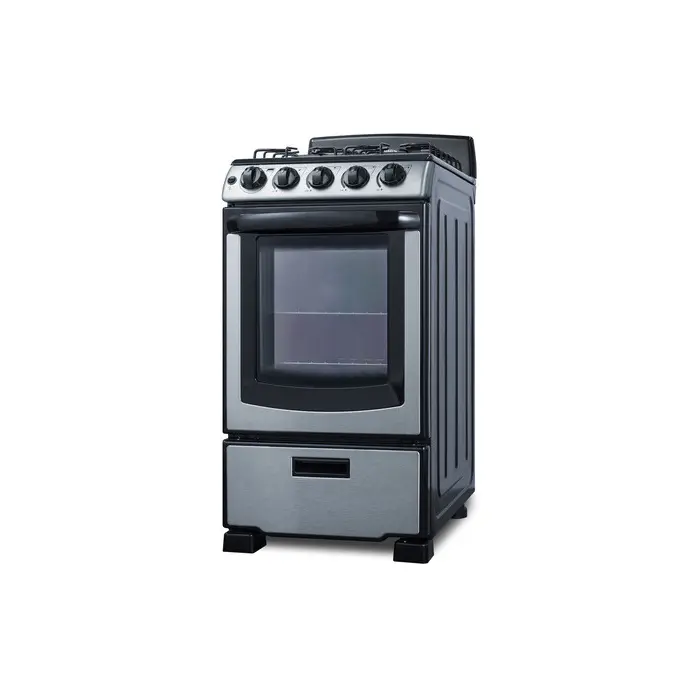

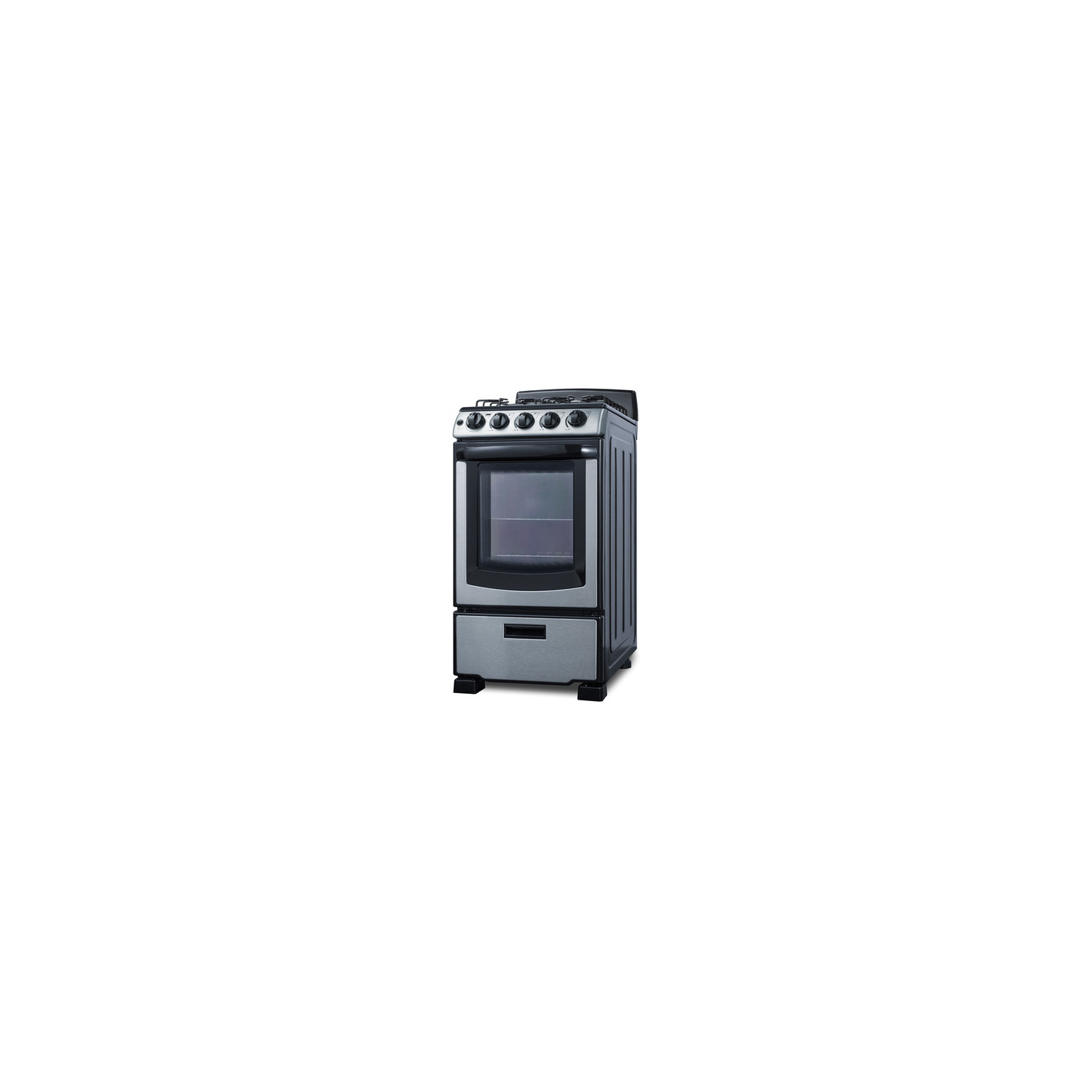

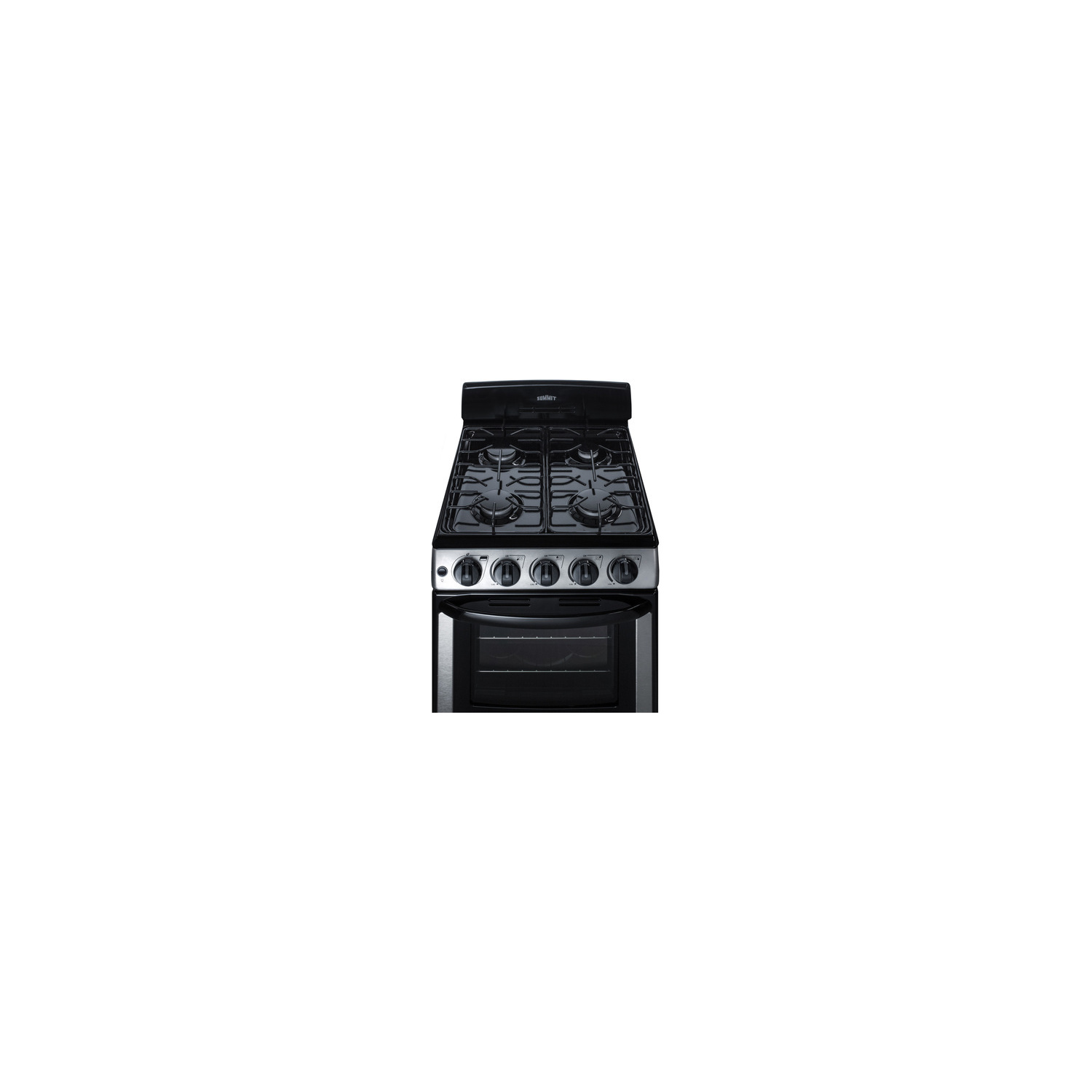

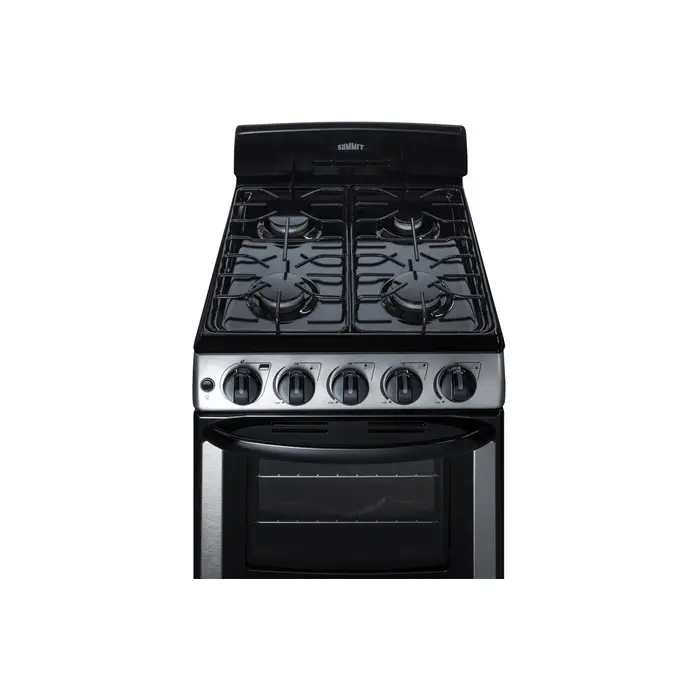

The PRO201SS is sized at just 20" wide for an easy fit in smaller kitchen spaces. It comes in a stainless steel and black finish for a professional look to match a variety of styles. The stainless steel oven door includes a large window and easy-grip handle for cooking convenience.This model utilizes electronic spark ignition and features four sealed burners for safer, cleaner cooking. One 12,000 BTU burner offers faster cooking for larger vessels, with two standard 9,500 BTU burners and a smaller 5,000 BTU burner for lower heating needs. The high backguard helps to protect your walls from spills, with enamel grates for lasting durability. The control panel includes upfront push-to-turn burner knobs for added safety.

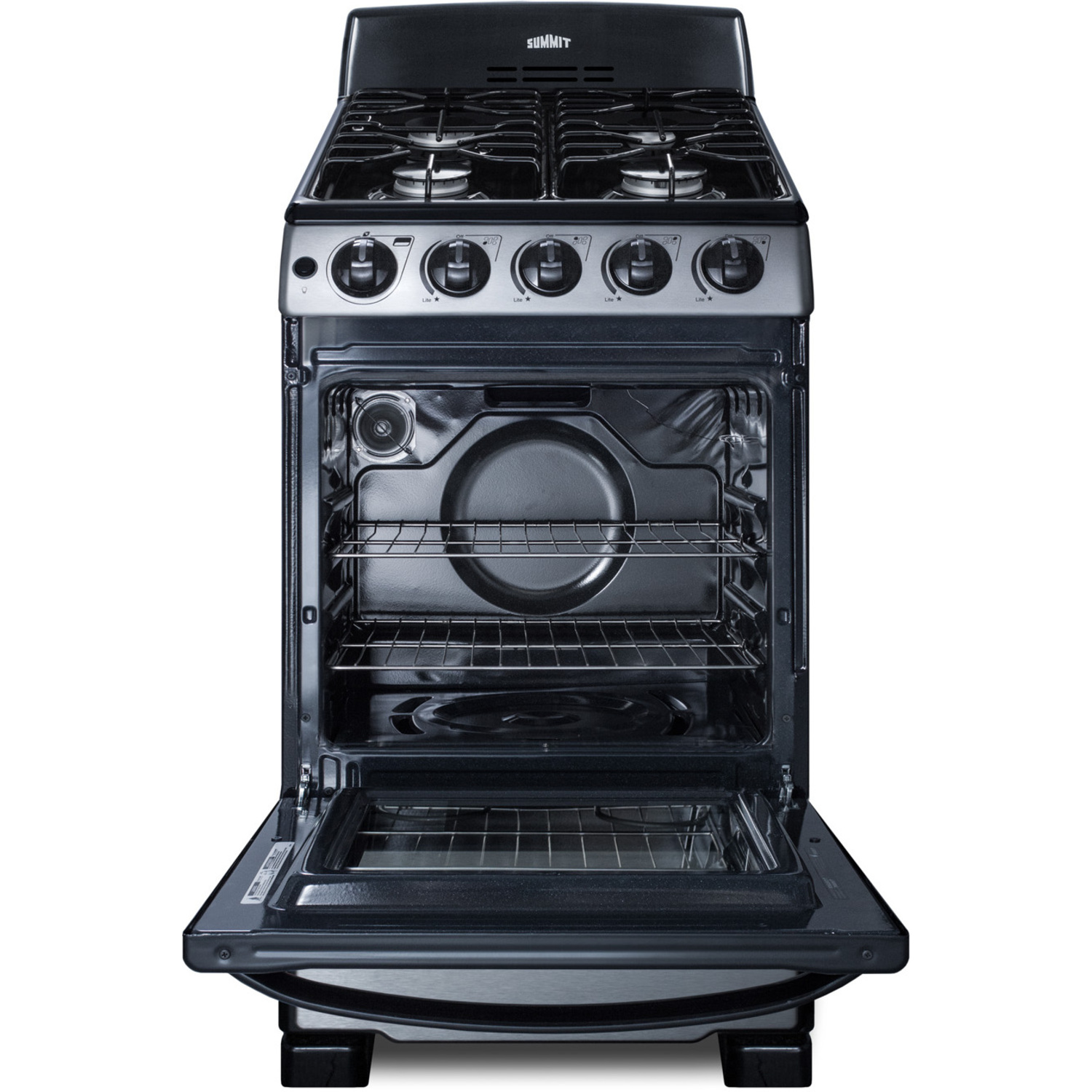

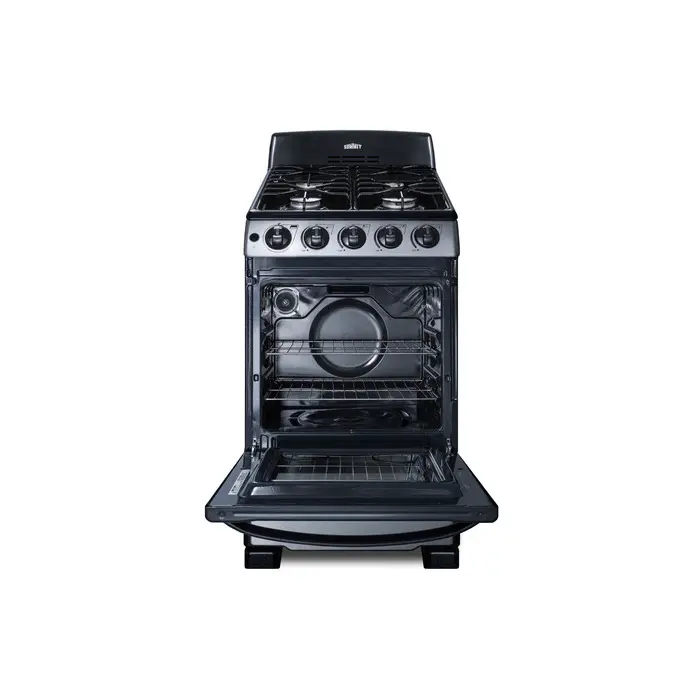

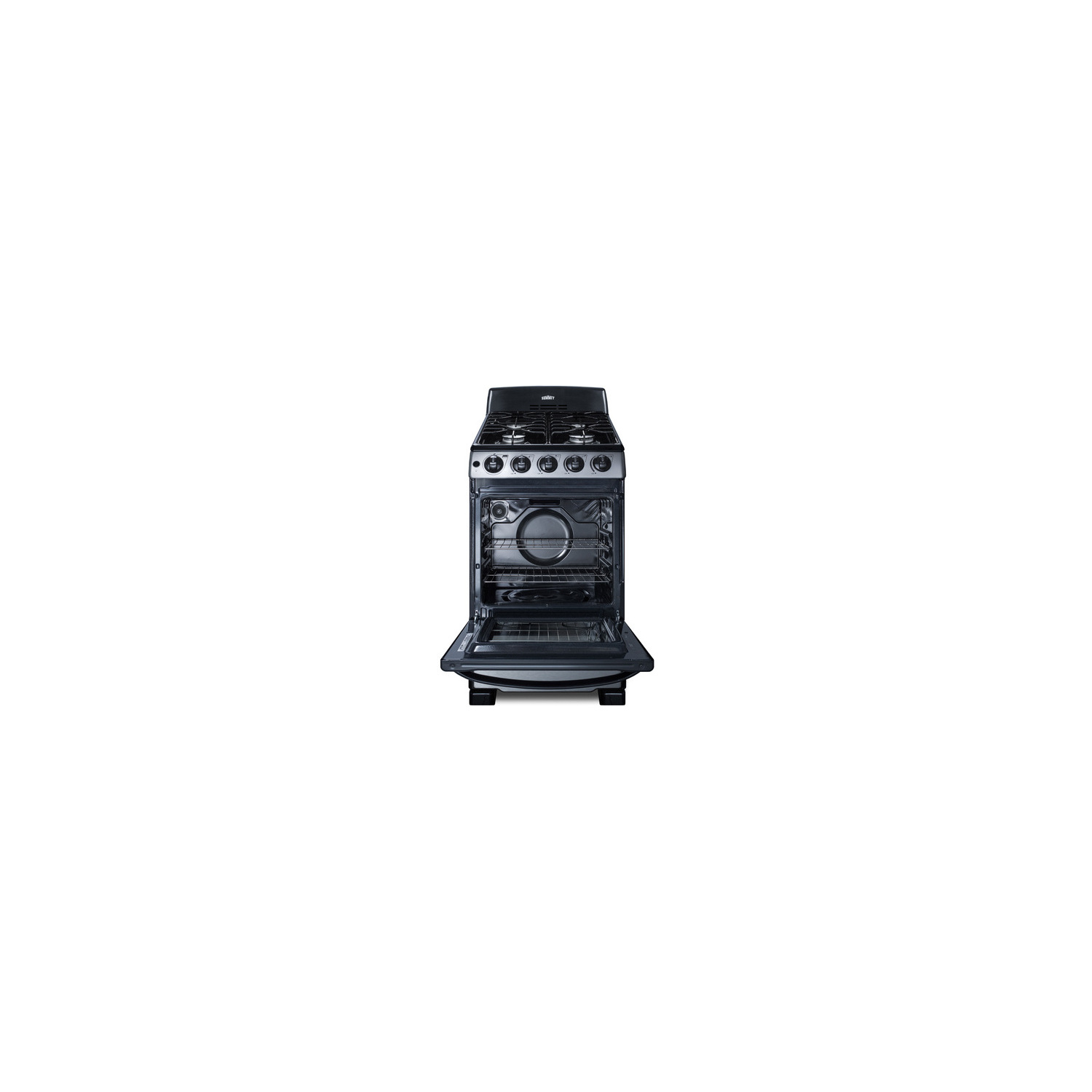

Inside, the PRO201SS features a 2.3 cu.ft. porcelain oven. Two slide-out racks include a safety brake system, with four position options to let you accommodate all sizes and shapes. The broiler is located in a lower drop-down compartment. We include a two-piece broiler pan with lid. The unit ships set for natural gas but includes its own LP kit for aftermarket conversion.

With its clean look and unique size, the PRO201SS is the ideal gas range for apartment and small home kitchens.

NOTE: This unit replaces model PRO200SS but features an upgraded sealed burner design.

SPECIFICATIONS

Overview

Nominal Height 42.0" (107 cm)

Height of Cabinet 42.0" (107 cm)

Nominal Width 20.0" (51 cm)

Width 19.5" (50 cm)

Nominal Depth 25.0" (64 cm)

Depth 24.25" (62 cm)

Depth with Handle 26.5" (67 cm)

Depth with door at 90° 44.0" (112 cm)

Door Stainless Steel

Cabinet Black

US Electrical Safety CSA

Canadian Electrical Safety CSA-C

Voltage/Frequency 115 V AC/60 Hz

Weight 97.0 lbs. (44 kg)

Parts & Labor Warranty 1 Year

UPC 761101058368

Gas Range

Ignition Spark

LP Convertible Yes

Oven Capacity 2.3 cu.ft

Cooktop Surface Porcelain

Burner Type Sealed

Number of Burners 4

Grate Material Porcelain Enamel

Burner #1 BTU 12000.0

Burner #2 BTU 9500.0

Burner #3 BTU 5000.0

Burner #4 BTU 9500.0

Burner Controls Dial

Oven Controls Dial

Oven Light Yes

Backguard Yes

Cleaning Type Manual

Oven Rack Qty 2

Oven Window Yes

Oven Interior Height 15.25" (39 cm)

Oven Interior Width 14.5" (37 cm)

Oven Interior Depth 17.5" (44 cm)

Broiler Location Below Oven

FEATURES

Sealed burners Four sealed burners with removable cast iron tops ensure safer, cleaner cooking

20" Width Perfectly sized for apartments and smaller kitchens

LP Convertible Includes a kit that allows the unit to be converted from natural to LP gas after purchase

Stainless steel finish Door, broiler, and control panel, and handle feature a stainless steel finish for a professional look

Oven window with light Easier monitoring of your cooking with an oven window and on/off light

Continuous enamel grates Two sets of grates are removable for easy cleaning, with solid construction to support large pots and pans

High output burner Front right burner features 12,500 BTU output for powerful cooking

Two semi-rapid burners Two left burners operate at 9,500 BTU to handle most heating needs

Low output burner Rear right burner reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items

Upfront controls Control panel is conveniently located to prevent users from reaching over hot cooktop surface for adjustments

Backguard High backing prevents stovetop contents from splashing up or boiling over and staining walls

Porcelain construction Oven interior features high quality porcelain construction for long-lasting durability

Slide-out oven racks Two racks with four glide positions for flexible cooking

Drop-down broiler compartment Broil food in a separate bottom section with heat that spreads evenly from the top down

Push-to-turn controls Burner knobs require a small amount of force to turn on for added protection against accidents

Electronic ignition Spark ignition for added safety

ADA compliant design Upfront controls and easy-to-operate knobs offer easier accessibility

Power cord included Standard 3-pronged 115V cord included for the electronic ignition

DOWNLOADS

BROCHURE w/ DRAWINGS (PRO201SS.pdf)

TECHNICAL DRAWING (.dwg) (PRO201SS_RANGE_GAS__A-C_2010_.dwg)

REVIT MODEL (Qf_Summit_PRO201SS_20_inches_Wide_Gas_Range.rfa)

USE & CARE (PRO201SS-User-Manual.pdf)

OTHER (Summit_Anti-Tip_Bracket.pdf)
