Summit 19 inch wide 43 inch high 2-door frost-free refrigrator-freezer, ADA compliant, FF712W

Summit’s collection of mid-sized refrigerator-freezers offers efficient refrigeration solutions for every kitchen, regardless of space.

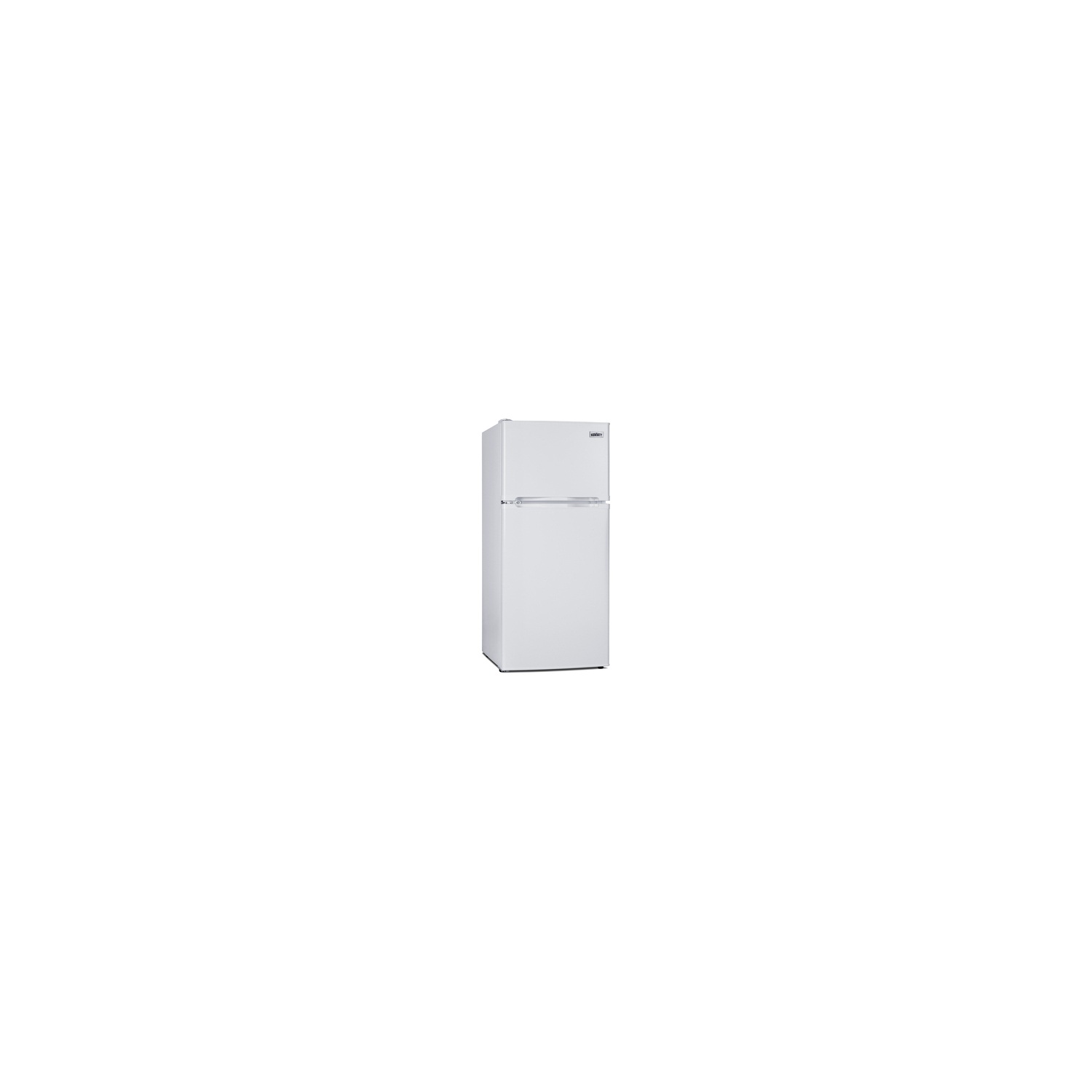

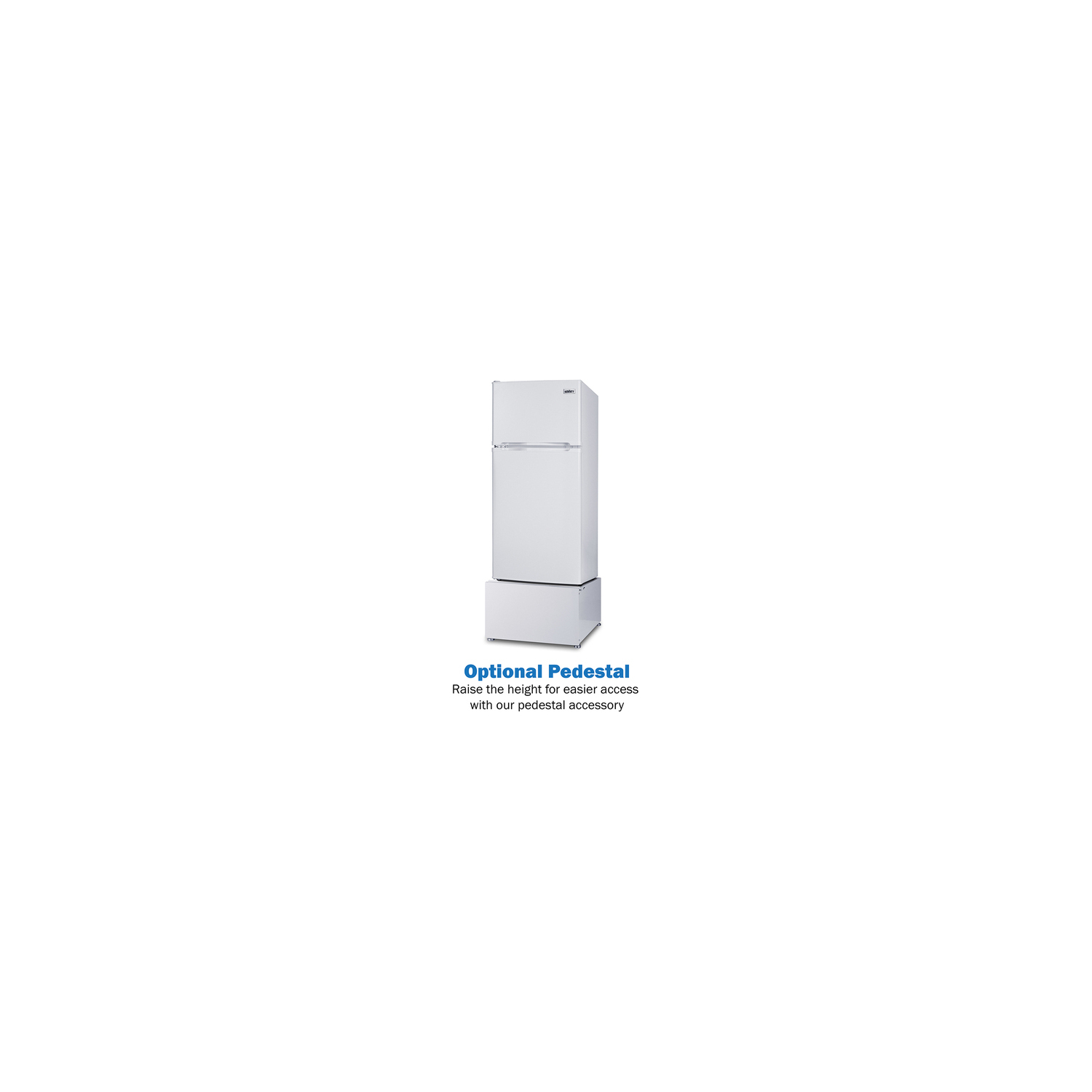

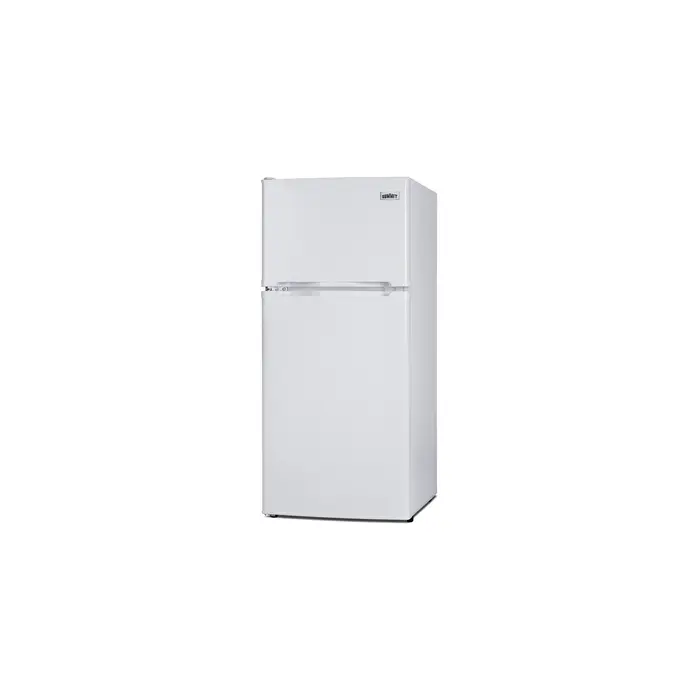

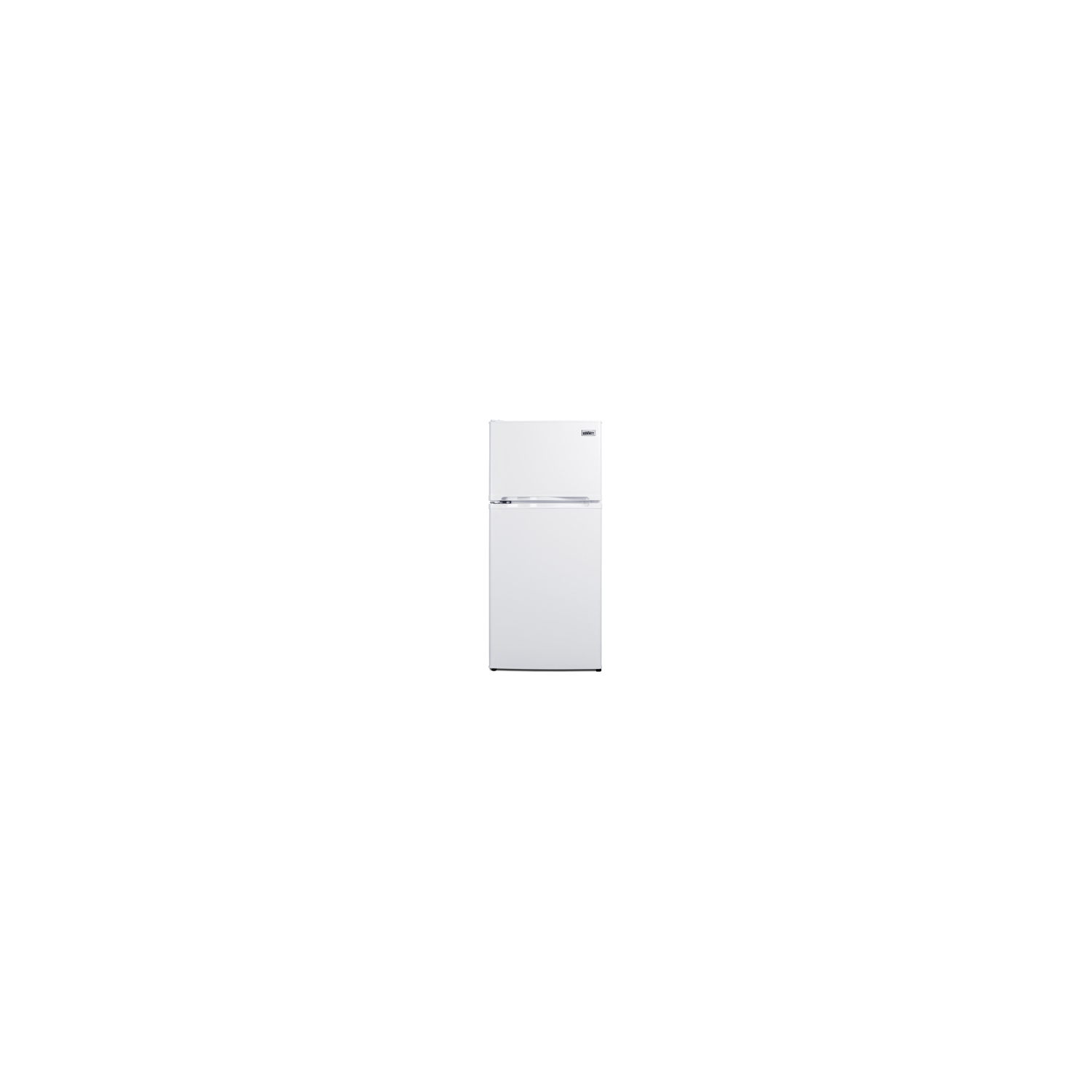

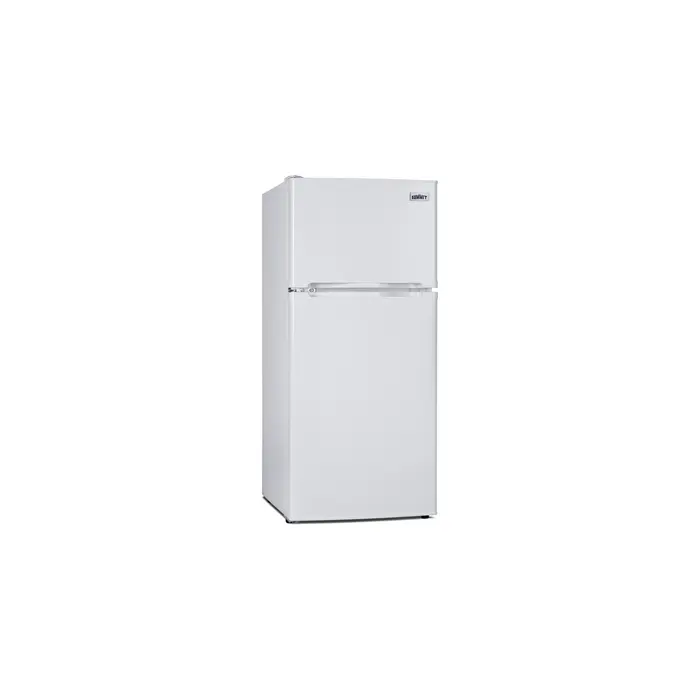

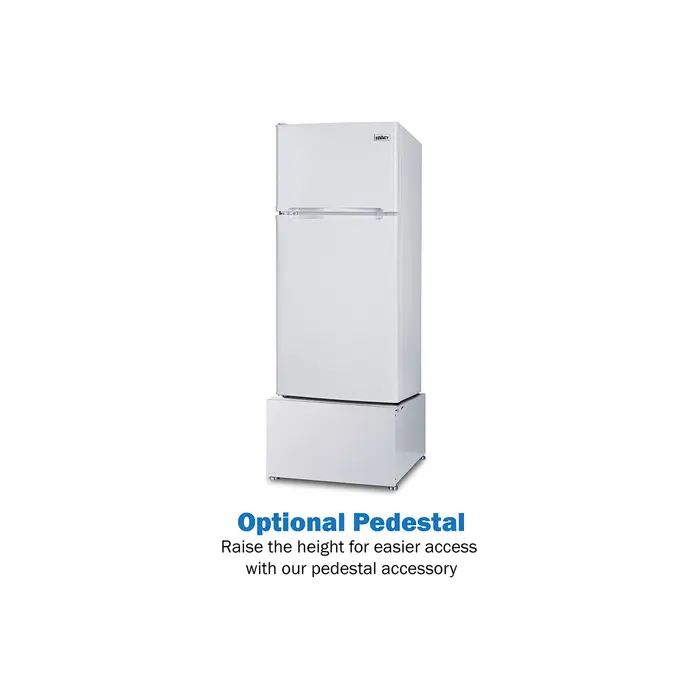

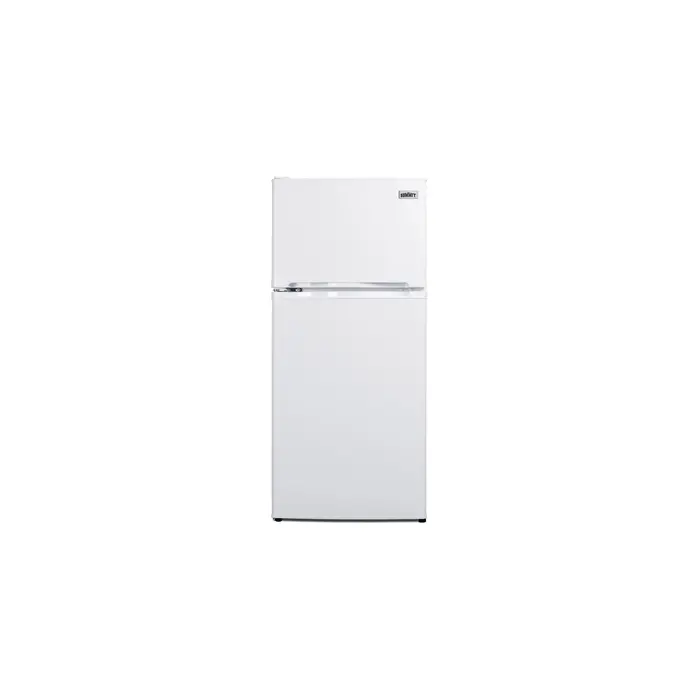

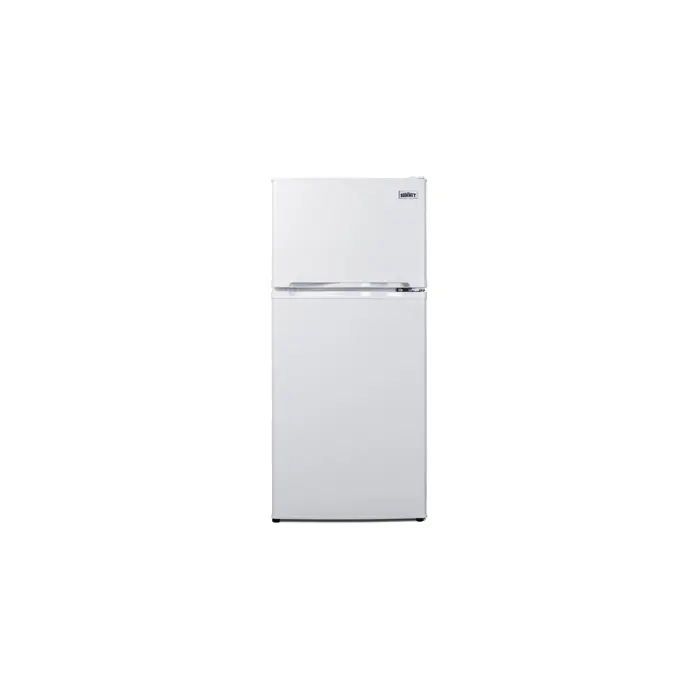

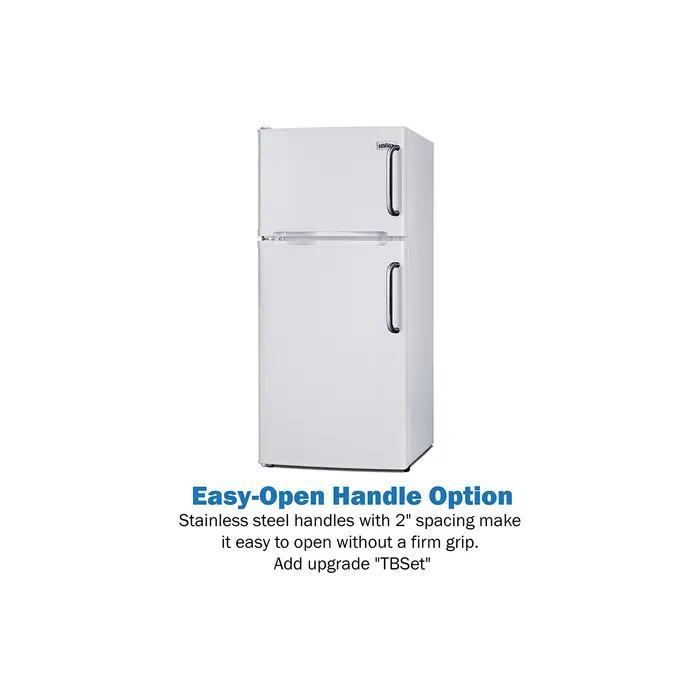

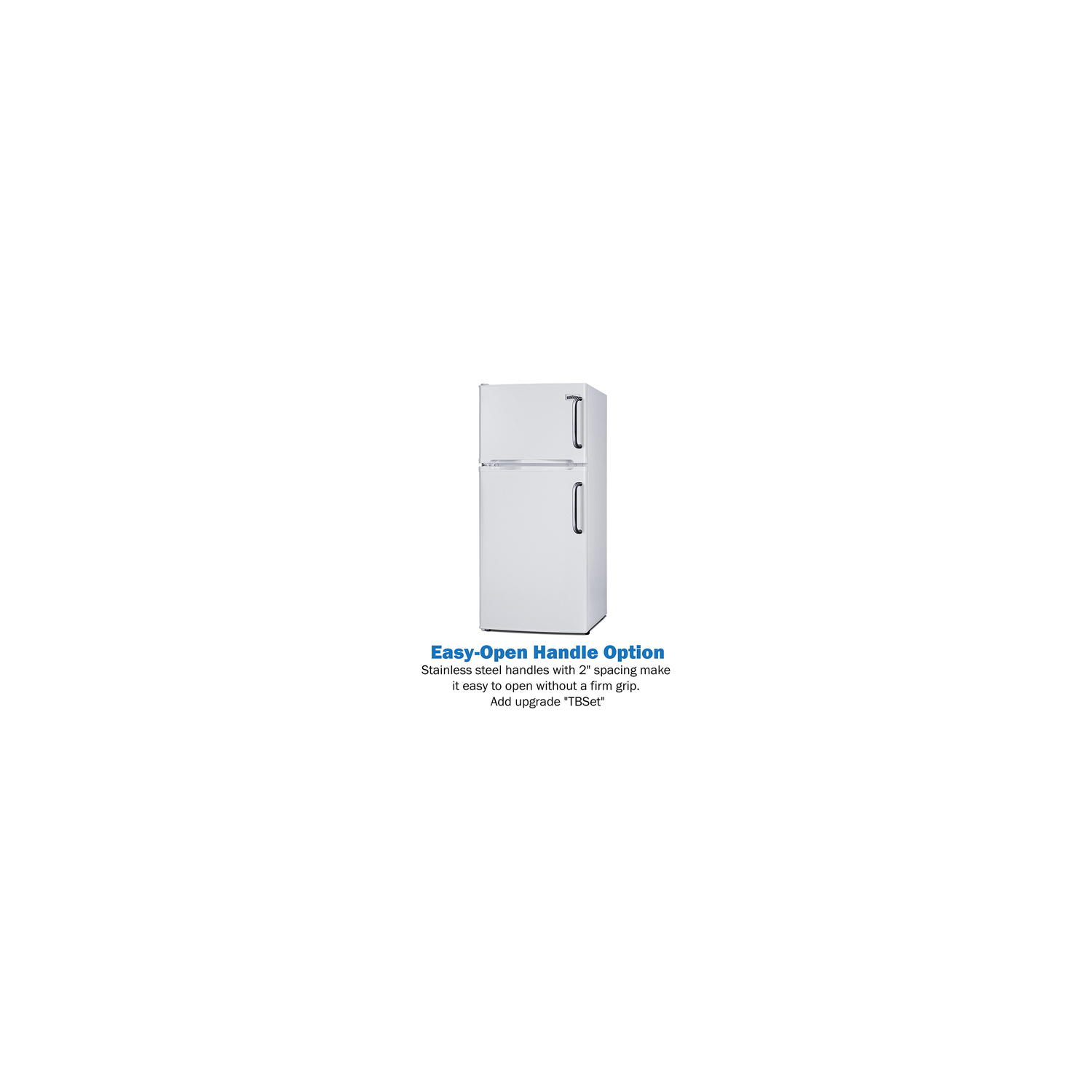

The FF712W is an ENERGY STAR certified top-mount refrigerator-freezer sized at 19” wide, with a 43" height to meet ADA guidelines for easy accessibility. It comes in a classic white finish with user-reversible doors to best accommodate any setup. To make it even more accessible, we offer a stainless steel handle upgrade ("TBSet") that allows for those with arthritis or other grip limitations to open the door more easily. We also offer compatible pedestals to raise the height and eliminate the need for users to bend down.

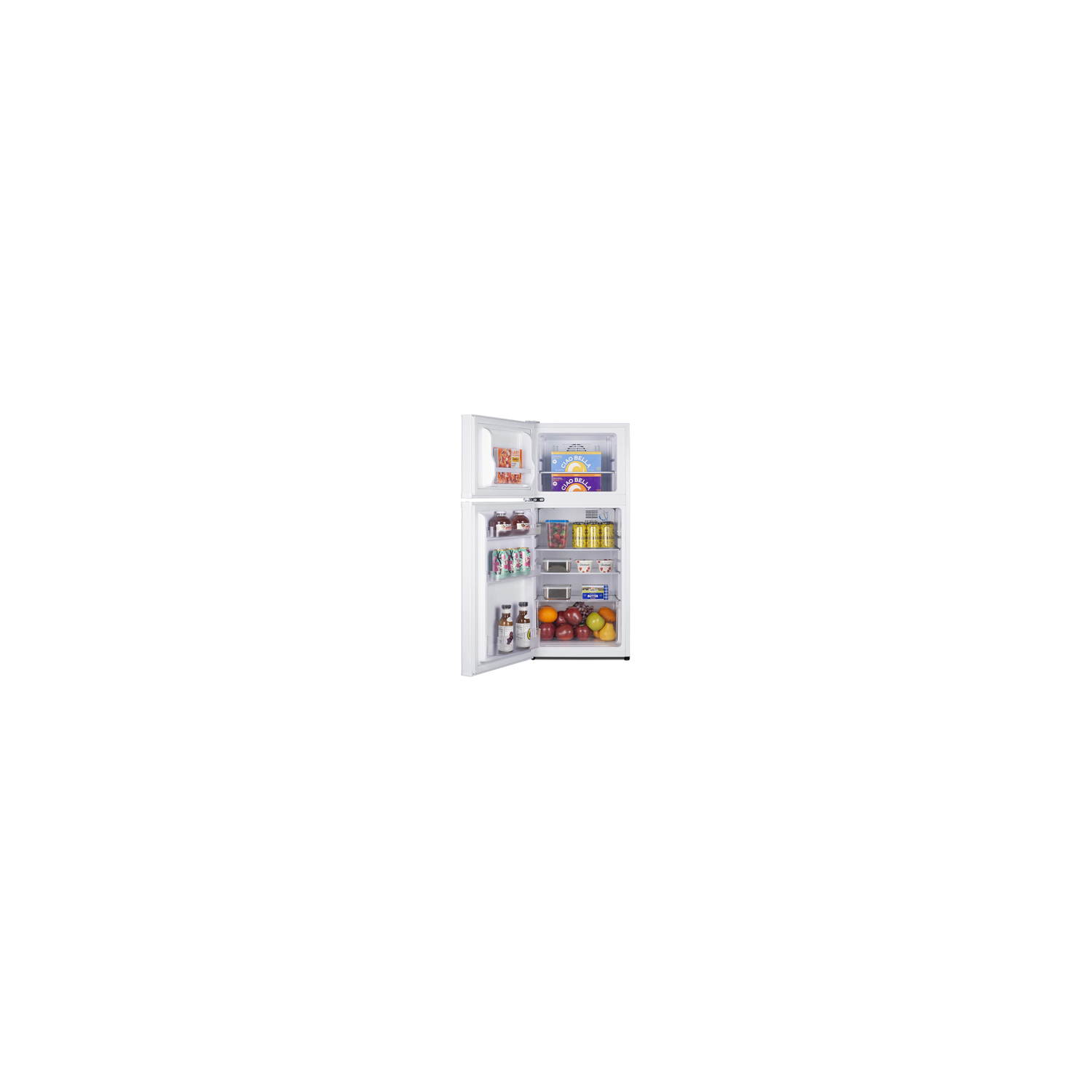

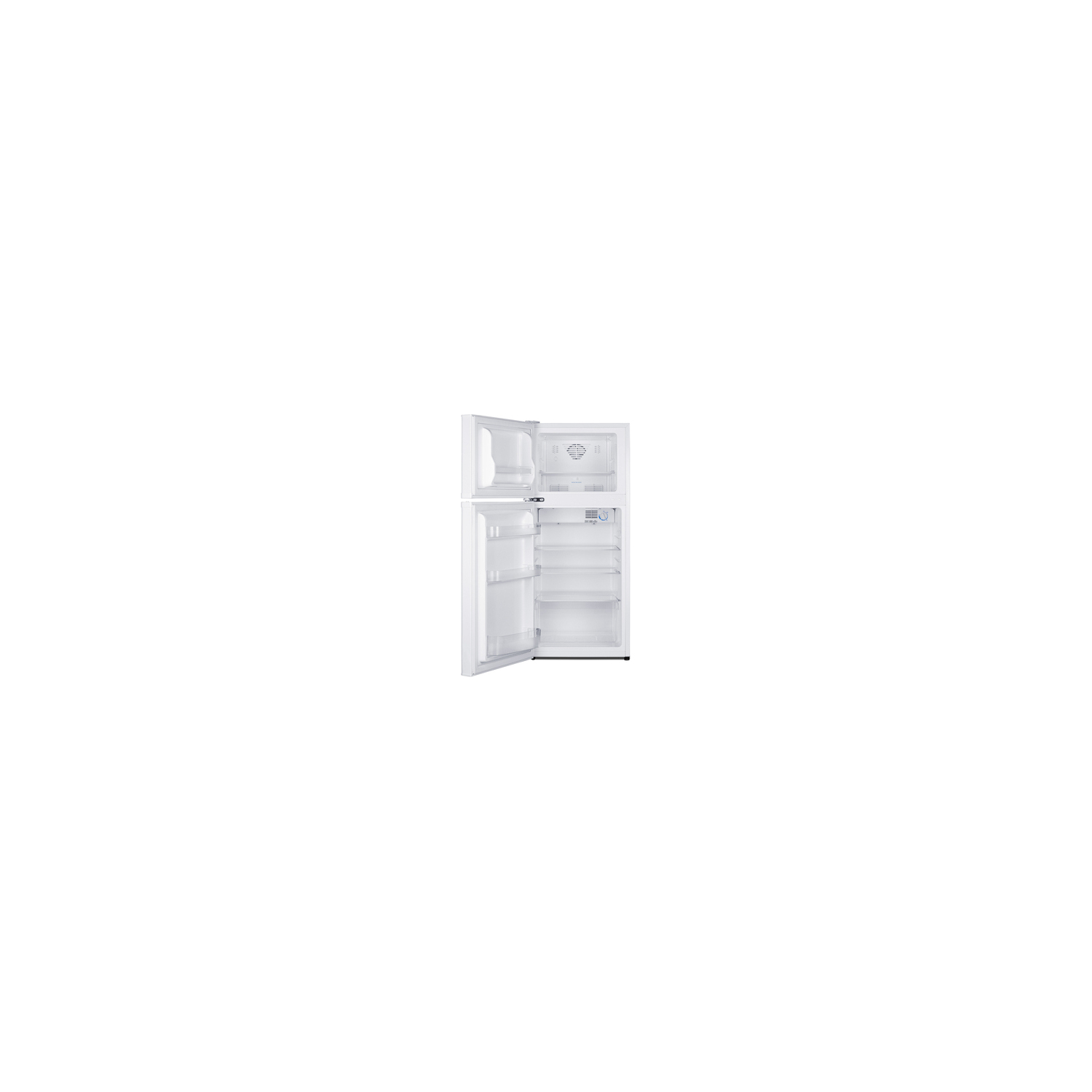

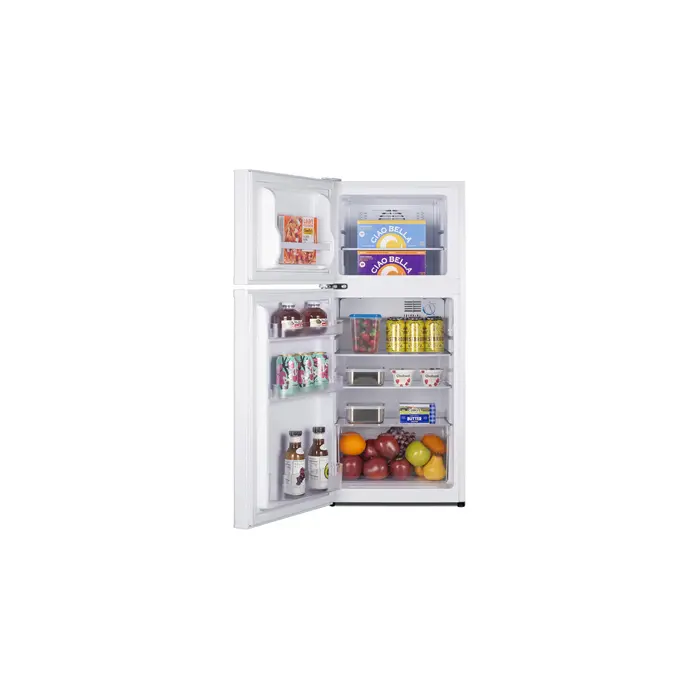

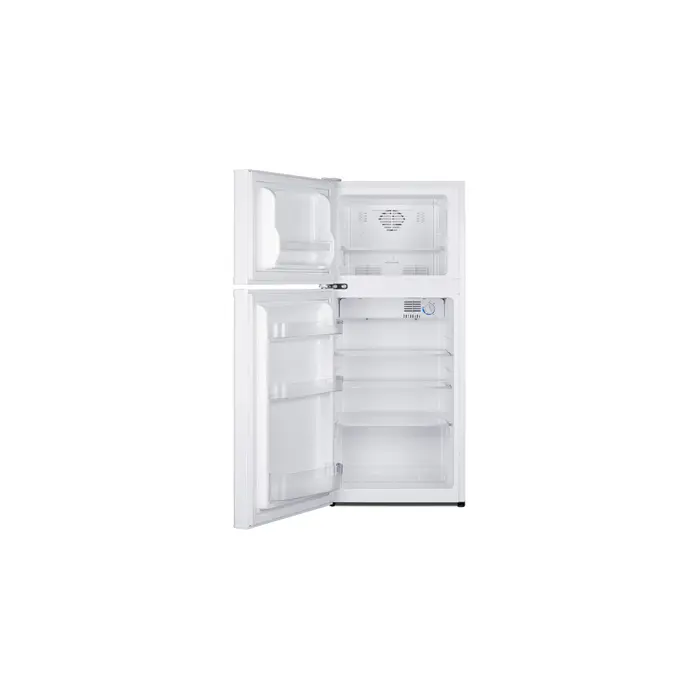

Inside, the FF712W utilizes frost-free operation to minimize user maintenance. Both the refrigerator and freezer include door racks for easy storage. The fresh food section also features a large crisper drawer, interior LED lighting, and adjustable glass shelves. The freezer features one removable shelf. An easy to use, analog control panel is located inside both sections, allowing for intuitive temperature adjustments.

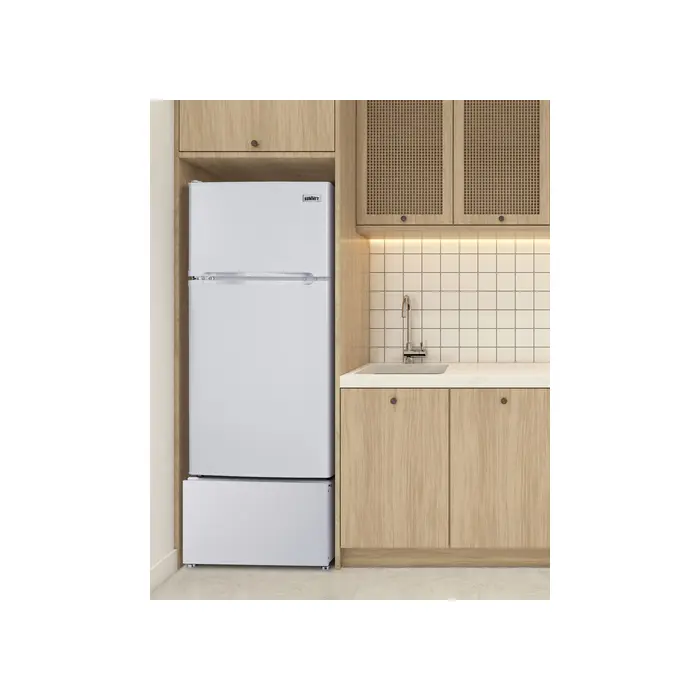

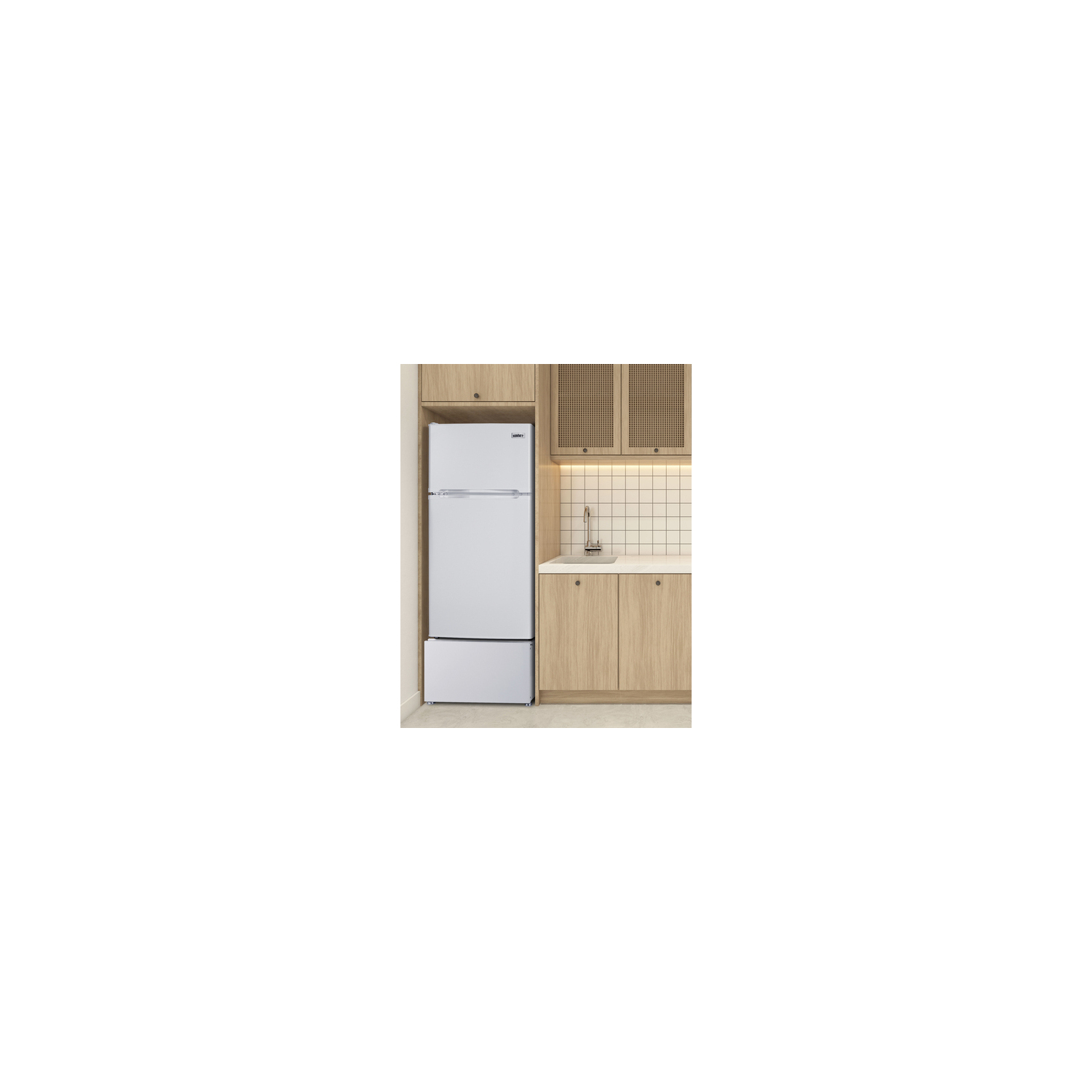

With its ENERGY STAR performance and compact fit, the FF712W is the ideal refrigerator for senior living facilities, smaller housing units, offices, dorms, and other space-restricted kitchens.

SPECIFICATIONS

Overview

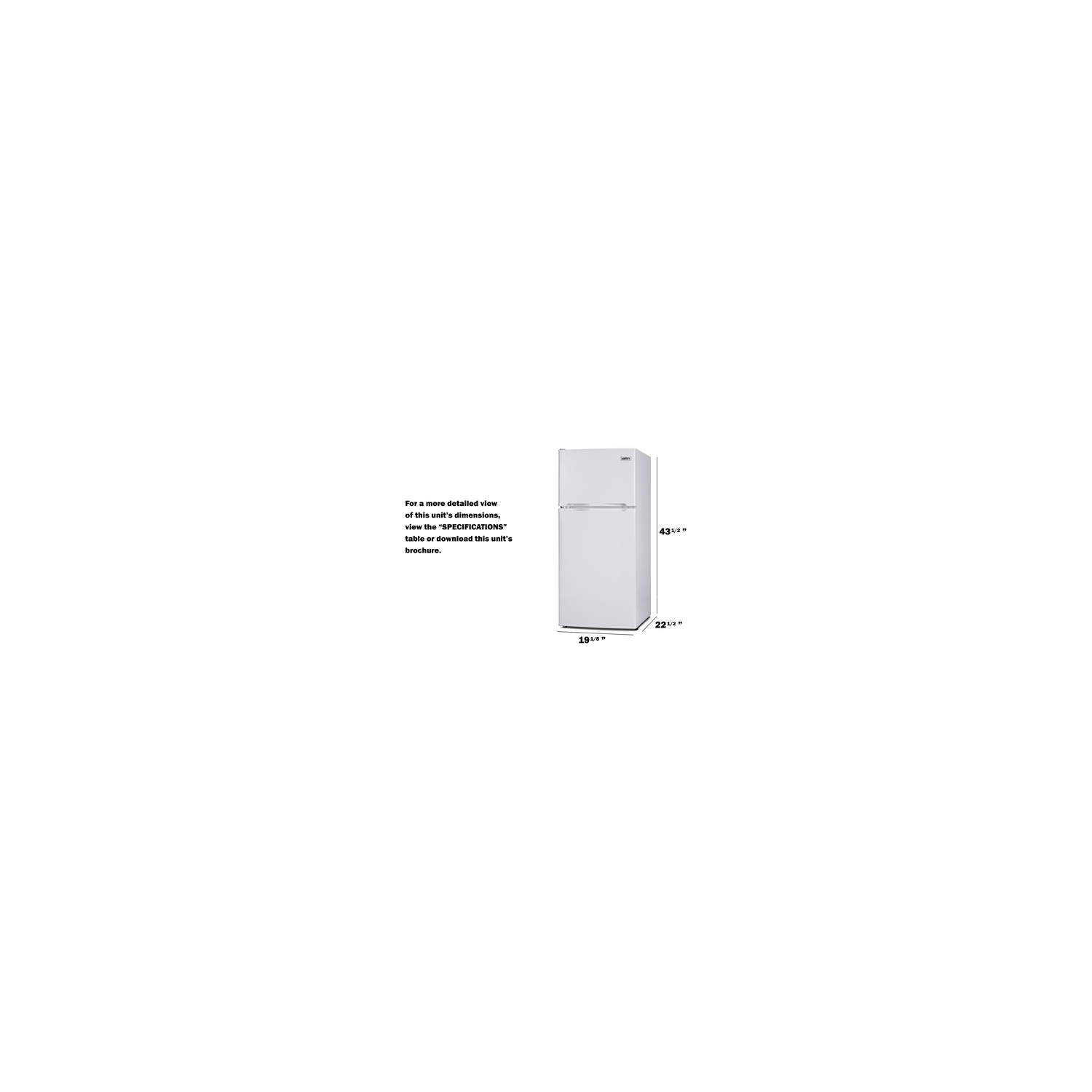

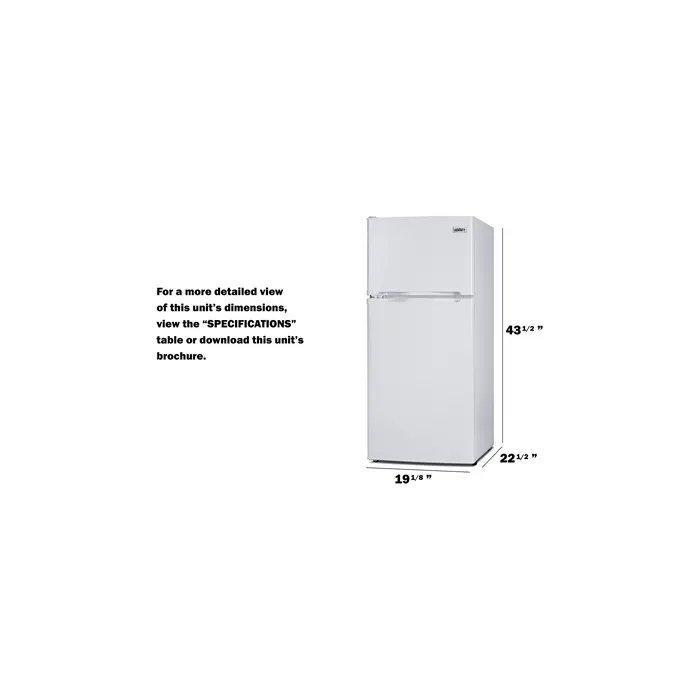

Height of Cabinet 43.0" (109 cm)

Height to Hinge Cap 43.5" (110 cm)

Width 19.13" (49 cm)

Width with Door Open 20.38" (52 cm)

Depth 22.5" (57 cm)

Depth with door at 90° 39.38" (100 cm)

Capacity 4.3 cu.ft. (122 L)

Defrost Type Frost-Free

Door White

Cabinet White

US Electrical Safety CSA

Canadian Electrical Safety CSA-C

Energy Usage/Year 350.0kWh/year

Amps 1.5

Plug Type NEMA 5-15P

Voltage/Frequency 115 V AC/60 Hz

Weight 78.0 lbs. (35 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101156996

Refrigerator-Freezer

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Interior Light Yes

Refrigerator - Interior Height 25.0" (64 cm)

Refrigerator - Interior Width 15.0" (38 cm)

Refrigerator - Interior Depth 17.25" (44 cm)

Refrigerator - Shelf Type Glass

Refrigerator - Shelf Qty 2

Refrigerator - Full Door Shelves 3

Freezer - Interior Height 10.25" (26 cm)

Freezer - Interior Width 13.0" (33 cm)

Freezer - Interior Depth 12.75" (32 cm)

Freezer - Shelf Type Glass

Freezer - Shelf Qty 1

Freezer - Full Door Shelves 1

Thermostat Type Dial

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 1.02 oz.

High Side PSI 300.0

Low Side PSI 120.0

Compressor Step Height 8.0" (20 cm)

Compressor Step Width 15.0" (38 cm)

Compressor Step Depth 5.5" (14 cm)

FEATURES

19" Wide Top-Mount Refrigerator-Freezer Compact 4.3 cu.ft refrigerator-freezer with a spacious interior to add true convenience to any kitchen space

ADA compliant 43 inch height makes both the refrigerator and freezer accessible under ADA guidelines

ENERGY STAR certified Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Frost-free operation No-frost convenience for reduced user maintenance

Reversible doors User-reversible door swing for added flexibility to best accommodate your setting

Compact design Unique dimensions offers a full 4.3 cu.ft. capacity and 2-door design in a conveniently slim fit

Adjustable glass shelves Spill-proof shelving for easy cleanup and flexible storage

Door storage Store tall bottles and condiments right on the door for convenient access

Clear crisper Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

Interior LED lighting Automatically illuminates when you open the door

Adjustable thermostat Dial controls for simple and intuitive temperature management

Full freezer shelf Organize your freezer contents with more options

Sealed rear No exposed coils for easier cleaning and a better fit

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC free Environmentally friendly design without ozone-damaging chemicals

DOWNLOADS

BROCHURE (FF712W.pdf)

TECHNICAL DRAWING (.dwg) (FF712W_FF713B.dwg)

ASSEMBLY DRAWING (FF712W_FF713B-Assembly.pdf)

USE & CARE (FF712W-User-Manual.pdf)

Energy Guide
