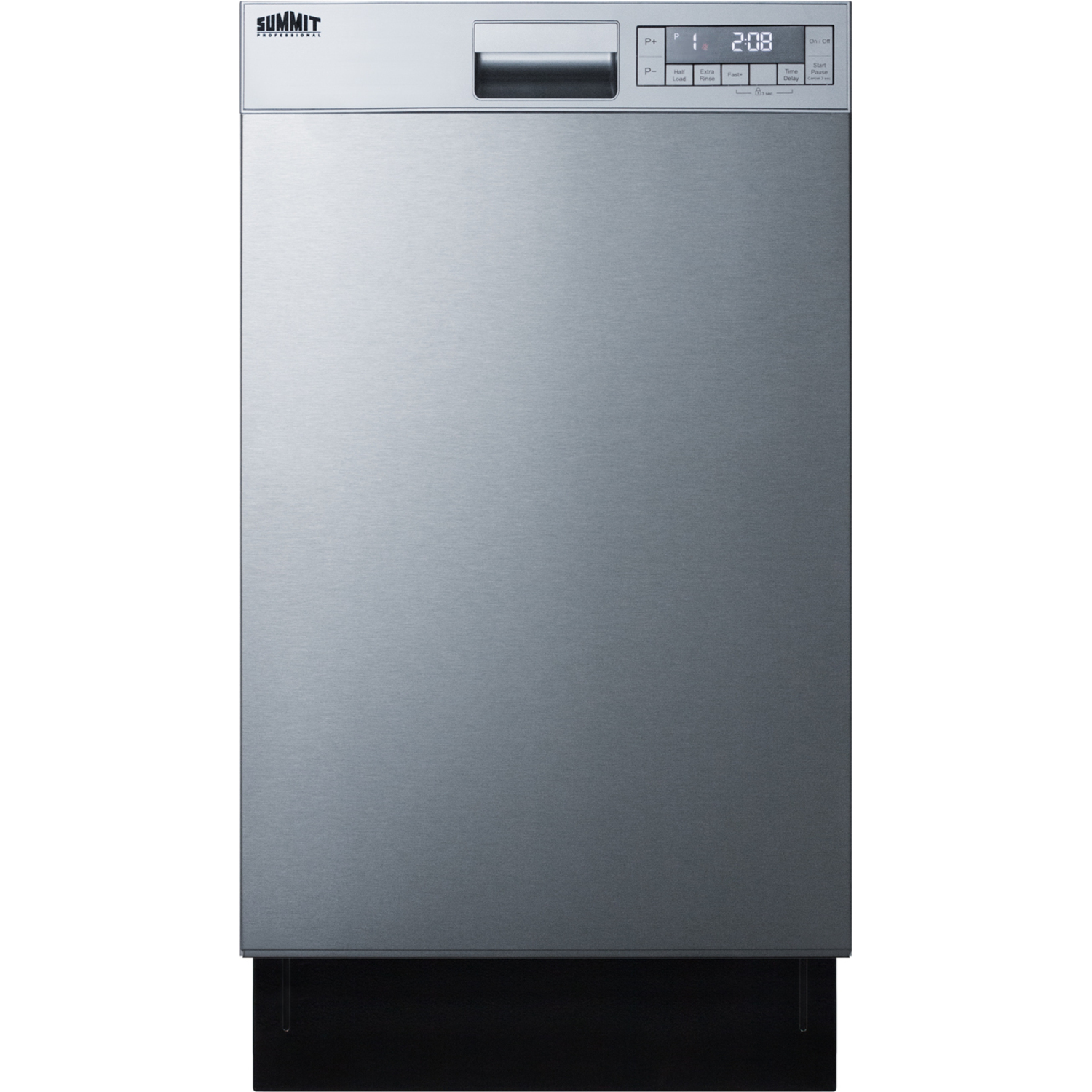

Summit 18 inch wide ADA compliant ENERGY STAR certified dishwasher in stainless steel with front controls, 7.61101e+011, DW18SS4ADA

Summit's selection of European dishwashers are carefully designed and constructed for the optimum customer experience, with ENERGY STAR certified performance and user-friendly features.

Sized at just 18 inches wide and 32.35 inches high, the DW18SS4ADA is a built-in dishwasher designed for an easy fit under lower ADA compliant counters in smaller kitchen spaces. The stainless steel door features an attractive horizontal grain. This unit includes a pre-installed power cord with a 3-pronged plug.

The front control panel ensures intuitive operation, with large touch buttons and an easy-to-read key printed on the top panel. Wash programs include a heavy duty cycle for pots and pans, a regular wash function, Rinse & Hold, self-clean cycle, a 58-minute Quick & Dry setting, and Quick Wash for smaller loads that can be cleaned in 35 minutes. You can also specify a half load, extra rinse, extra drying, or rapid cleaning. Automatic detergent detection allows the dishwasher to sense the type of detergent in use, adjusting the washing program and drying system for the best performance. A time delay function allows you to program your wash cycles up to 24 hours in advance to best suit your schedule. The screen will also display indicators for softening salt, rinse aid, water cutoff, and overflow.

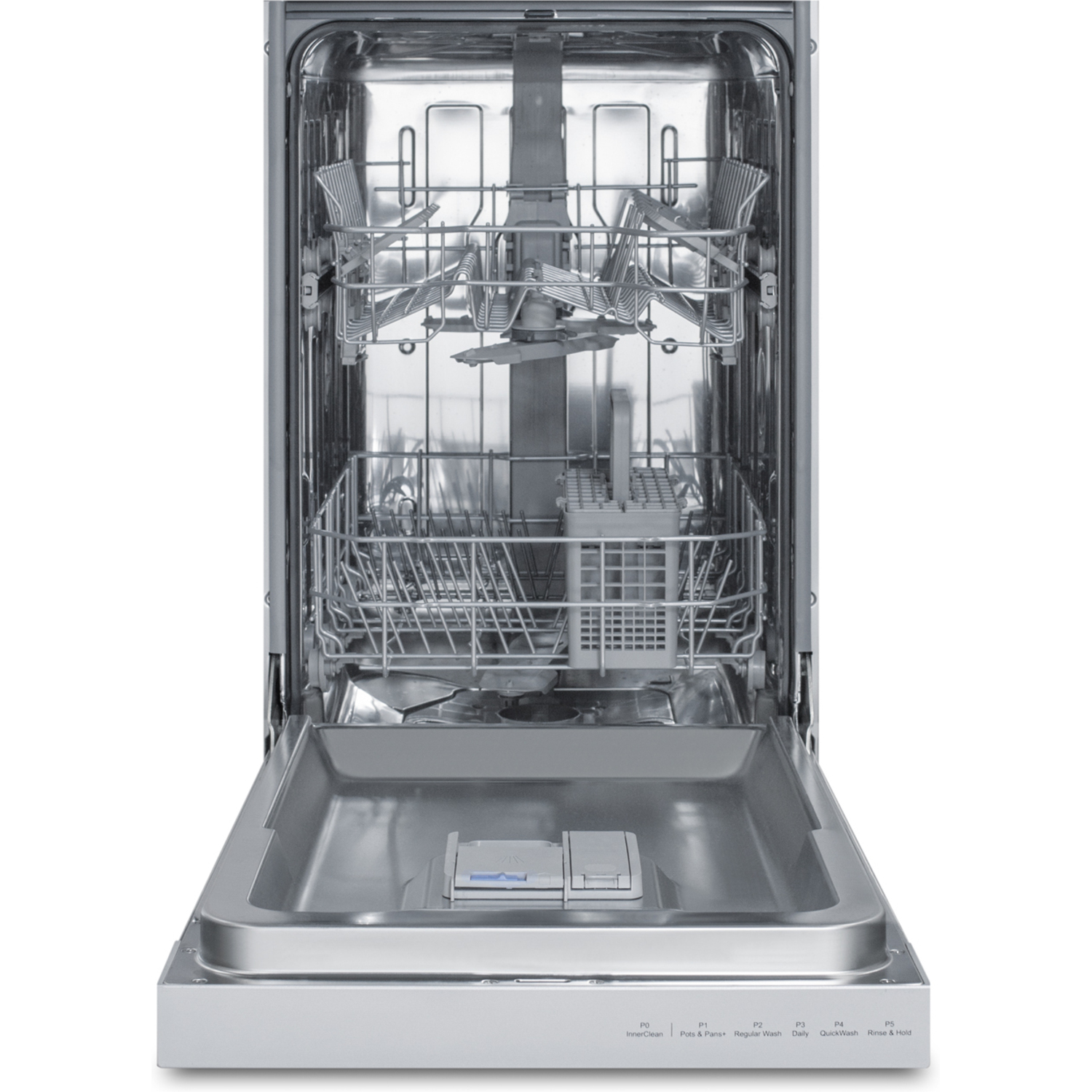

Inside, the DW18SS4ADA features a stainless steel interior for lasting durability. Quality insulation helps to ensure a quiet 49 db performance. This unit features two slide-out racks to wash up to 8 place settings. The upper rack is best suited for cups and other lighter items, with adjustable side tines that make it easier to accommodate tall glasses or to stack smaller mugs. The lower rack is ideal for plates, pots, and other heavier soiled items. A removable cutlery basket with six sections makes it easy to keep your utensils together for quicker storage after a wash.

With its convenient sizing, energy efficiency, and versatile design, the DW18SS4ADA is the ideal dishwasher for smaller kitchens with size restrictions.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.25" (82 cm)

Nominal Width 18.0" (46 cm)

Width 17.75" (45 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.38" (57 cm)

Depth with door at 90° 45.5" (116 cm)

Dishwasher Standard

Door Stainless Steel

Cabinet Unfinished

US Electrical Safety UL

Canadian Electrical Safety ULC

Energy Usage/Year 220.0kWh/year

Amps 12.0

Voltage/Frequency 115 V AC/60 Hz

Weight 95.0 lbs. (43 kg)

Parts & Labor Warranty 1 Year

UPC 761101077055

Dishwasher

Number of Cycles 5

Number of Racks 2

Rack Material Wire

Silverware Basket Yes

Delayed Start Yes

Interior Finish Stainless Steel

Interior Height 24.0" (61 cm)

Interior Width 15.25" (39 cm)

Interior Depth 20.0" (51 cm)

Decibel Rating 49.0 dBA

Number of Options 5

Leveling Legs Yes

Place Settings 8

FEATURES

18" Wide ADA Compliant Front Control Dishwasher Made in Europe and sized to fit under lower counters

ENERGY STAR certified Uses less energy and water than national standards require to ensure more efficiency and lower utility bills

ADA compliant 32 1/4 inch height is ideal for installation under lower ADA compliant counters

Digital touch controls Intuitive touch button controls and LED display screen for easy use, with a program key printed on the control panel for added convenience

Front control panel Easy access with touch control buttons

Stainless steel door Attractive finish in durable stainless steel with a horizontal grain

Height adjustable Adjustable legs allow you to size the unit for the best fit, with a height range of 33.5" to 35"

Ultra quiet performance Advanced sound absorbing construction

Large capacity Interior holds up to 8 standard place settings

Stainless steel interior Durable interior ensures long-lasting use

Slide-out nylon coated wire racks Two easy-gliding racks for easy loading and long-lasting durability

Adjustable smart fold shelf Top rack includes side pieces that help to hold tall glasses safely in place, or alternatively, allow you to maximize capacity by stacking smaller cups

Removable cutlery basket Six separate compartments make it easy to separate your silverware for a thorough clean

Two spray levels Improved design to ensure both racks are properly cleaned

Pots & Pans setting Allows you to provide a more thorough cleaning for heavy duty cookware

QuickWash function Speedy 35 minute wash cycle allows you to clean smaller loads quickly

Quick & Dry setting 58 minute cycle lets you wash and dry smaller loads in under an hour

InnerClean setting Self-cleaning program for easier maintenance

Automatic detergent detection Unit will self-adjust to the detergent type for optimum performance

Cord included Includes a pre-installed power cord with 3-pronged plug

Time delay Allows you to program a wash cycle for up to 24 hours in advance

Child lock Setting included to lock the dishwasher from changes when a wash cycle is in use

Indicator lights Display screen will show when softening salt and rinse aid need to be adjusted

Cord included Includes a pre-installed power cord with NEMA 5-15P 3-pronged plug

DOWNLOADS

BROCHURE w/ DRAWINGS (DW18SS4ADA.pdf)

TECHNICAL DRAWING (.dwg) (DW18SS31ADA_DISHWASHER__A-C_2018_.dwg)

REVIT MODEL (QF_Summit_DW18SS4ADA_Dishwasher.rfa)

SUPPORT (DW18SS4_DW18SS31ADA_Installation_Manual.pdf)

USE & CARE (DW18SS4ADA-User-Manual.pdf)

Energy Guide
