Summit 18 inch wide ADA compliant ENERGY STAR certified dishwasher in black with top controls, 7.61101e+011, DW184BADA

Summit's European dishwashers offer true efficiency for the home with ultra quiet operation and ENERGY STAR certified performances.

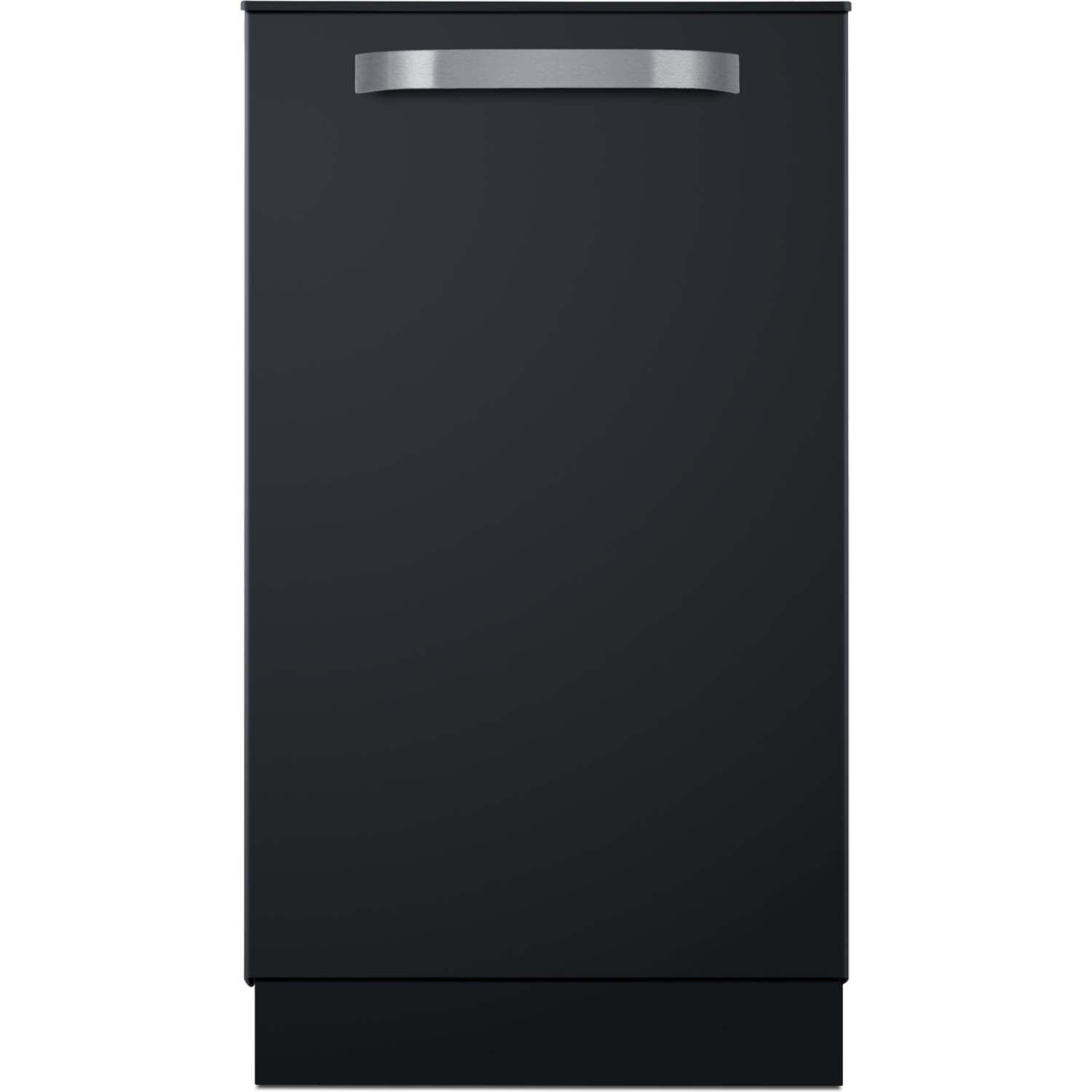

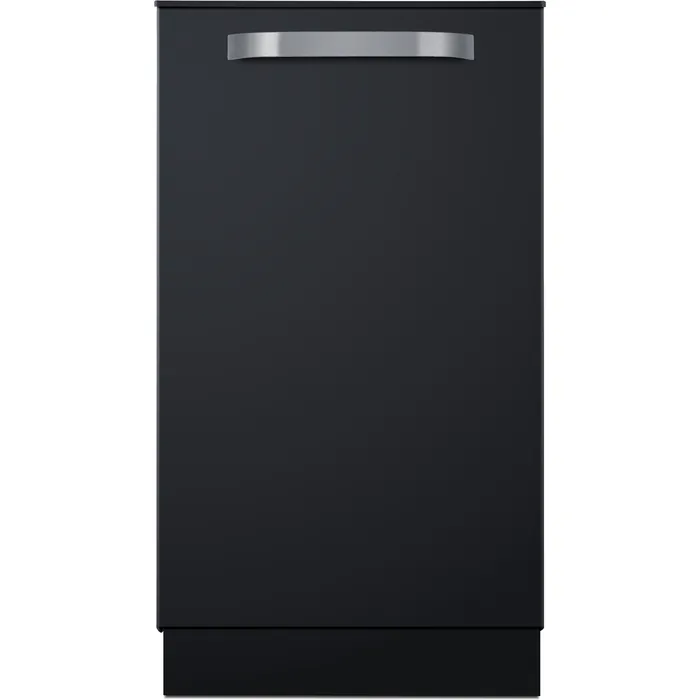

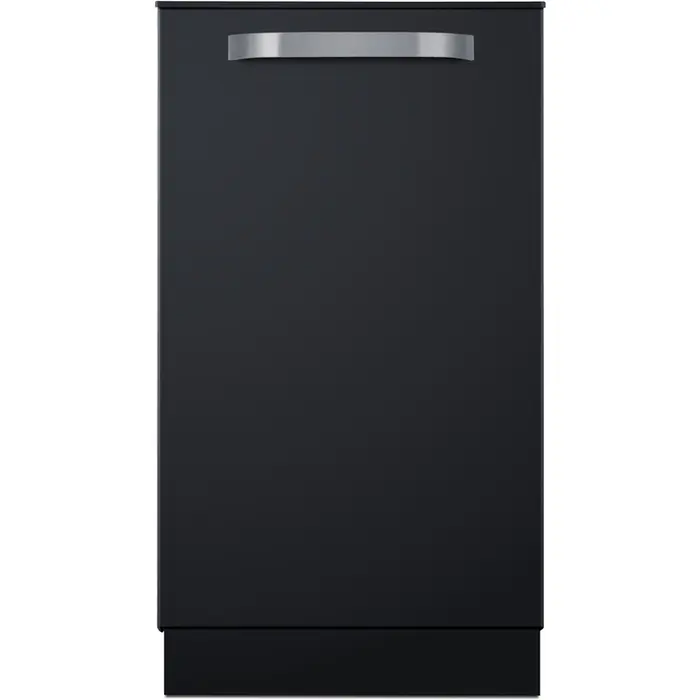

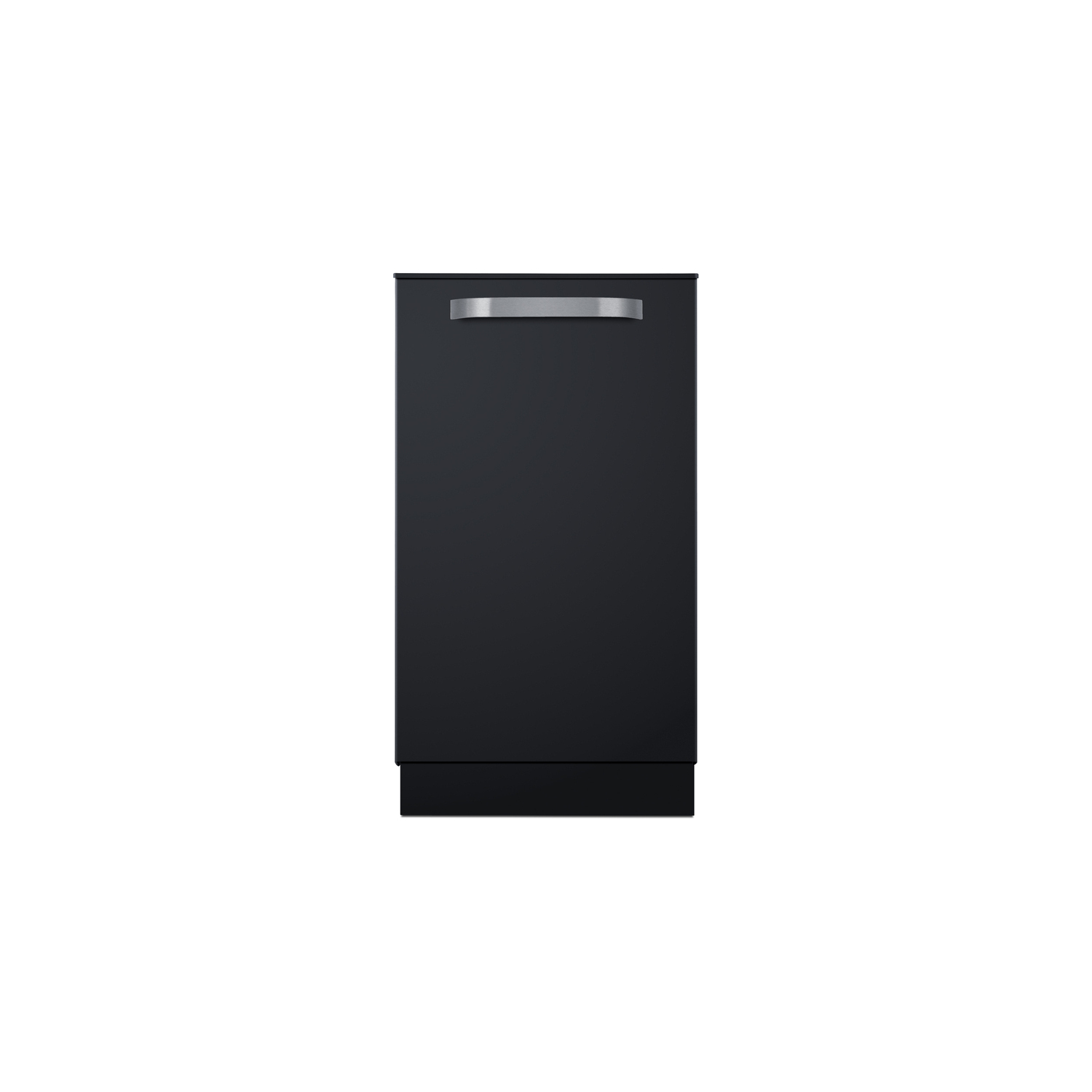

Model DW184BADA is an 18" wide dishwasher sized at 32.25" high for an easy fit under lower ADA compliant counters. The leveling legs allow you to raise the height up to 34". We include an extra kickplate that covers the front for a cleaner look and to help prevent dirt from going under the unit. This model features a modern black door with a curved handle in brushed stainless steel, bringing a modern look to the kitchen. The controls are located on top of the door, making it easier to create a more seamless look under your counters.

Advanced sound absorption ensures a quiet performance at just 47 dB. This unit offers eight wash programs to accommodate all of your cleaning needs, from an "intensive plus" setting for tough stains to a delicate function to safely handle fragile items. Five auxiliary functions let you further customize the wash and dry settings, with options that include sanitize, extra fast, extra dry, high temperature, and half load for added efficiency. The control panel features easy touch buttons and a digital display for intuitive operation. Additional features include a pause function, 19-hour delay start option, and indicators for rinse aid, water cutoff, and overflow.

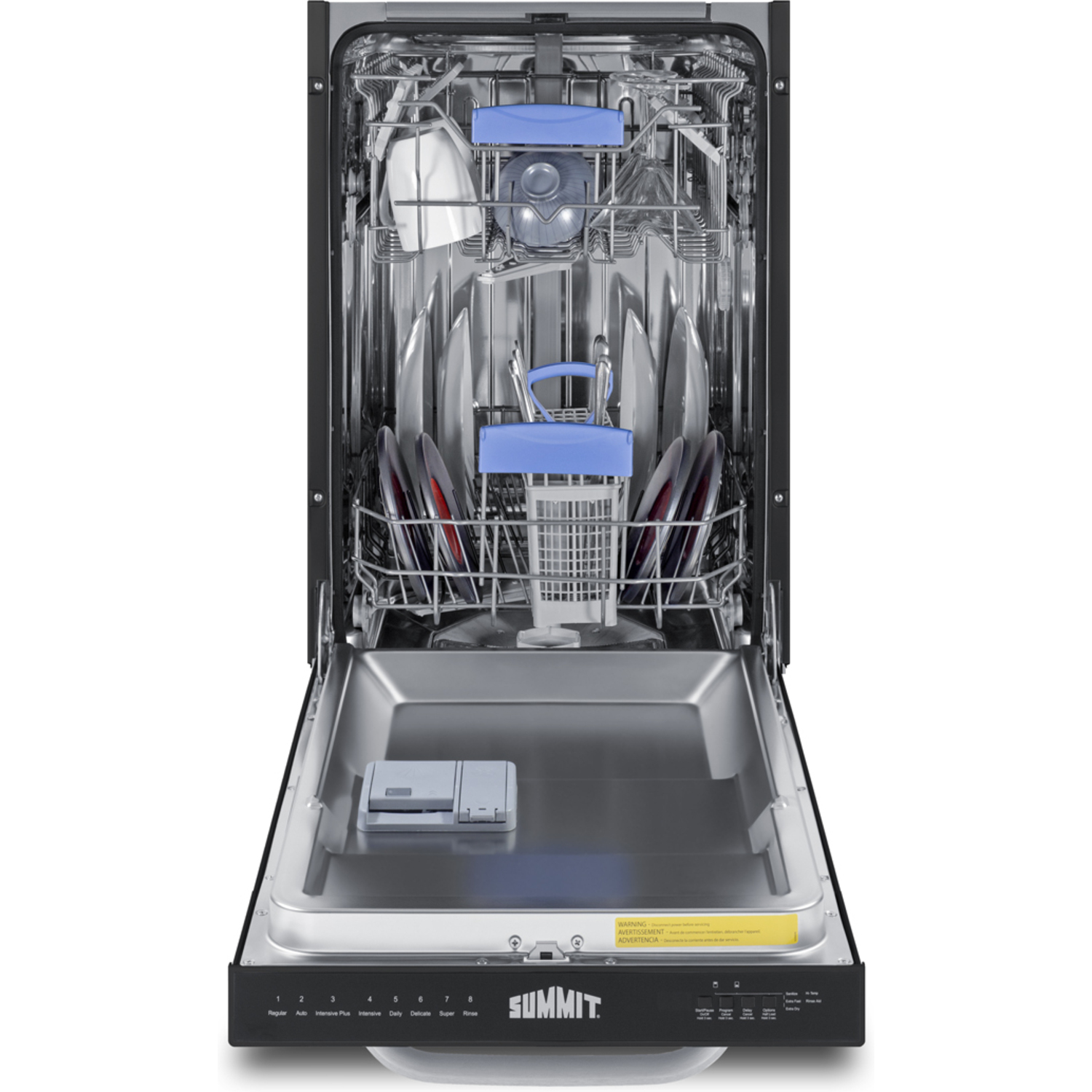

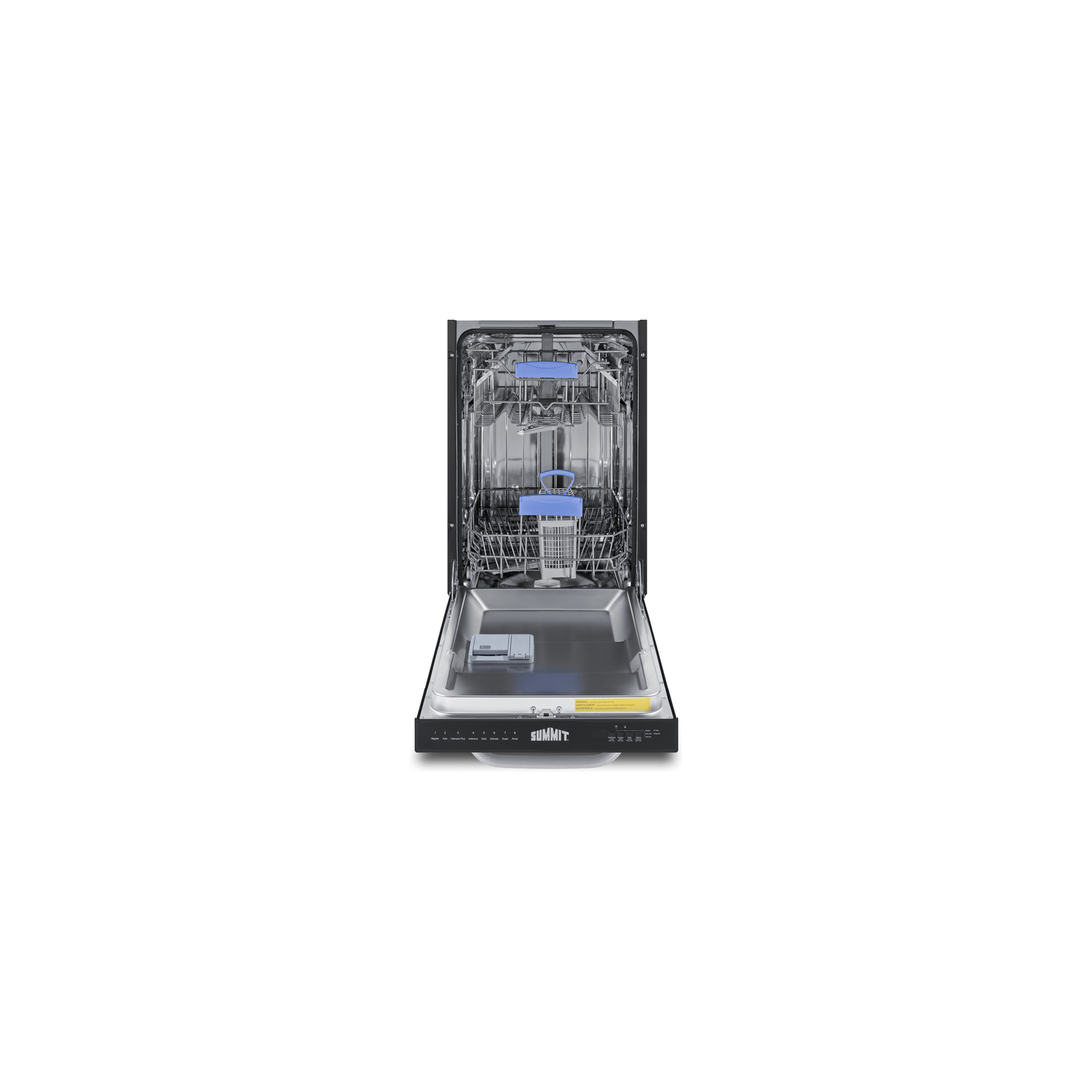

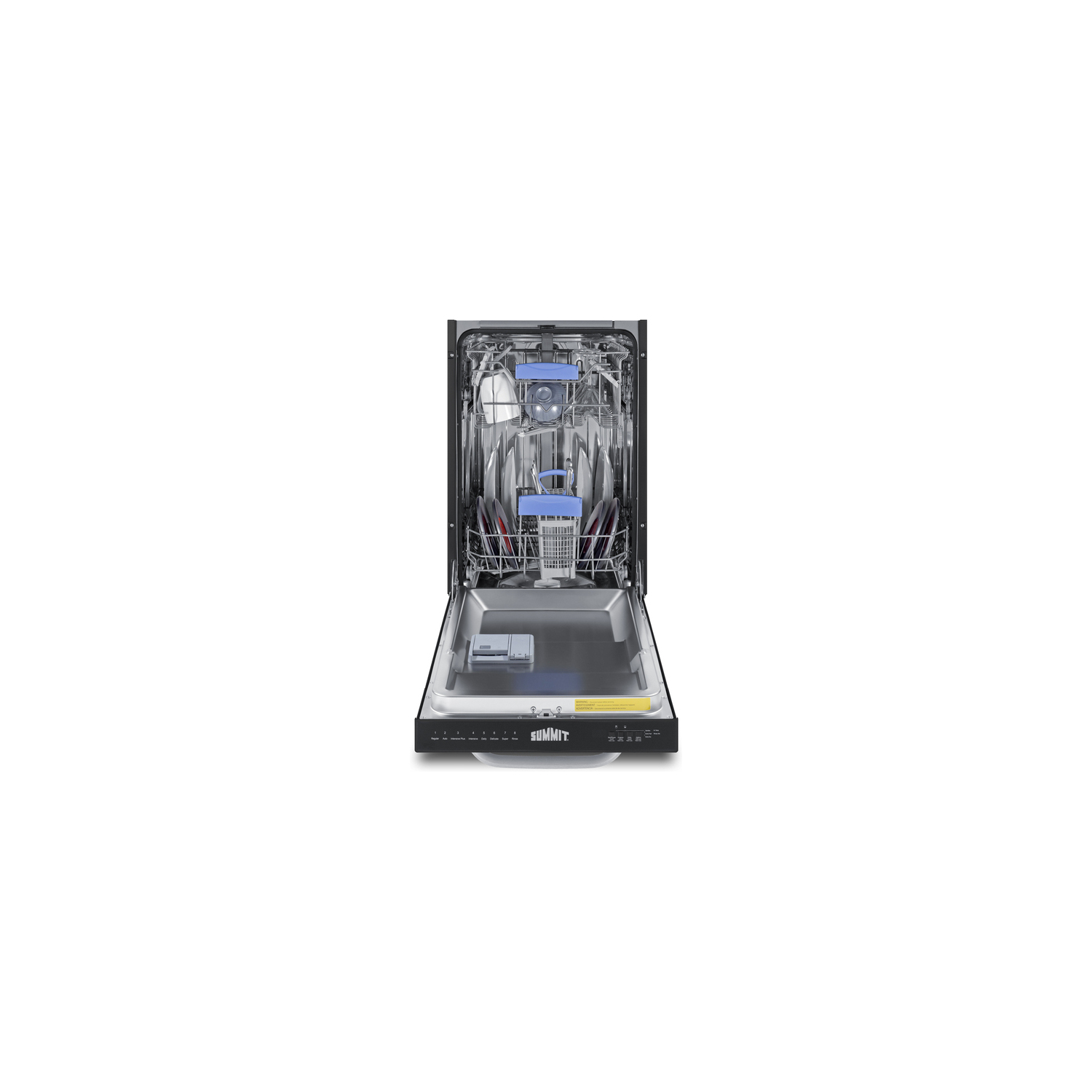

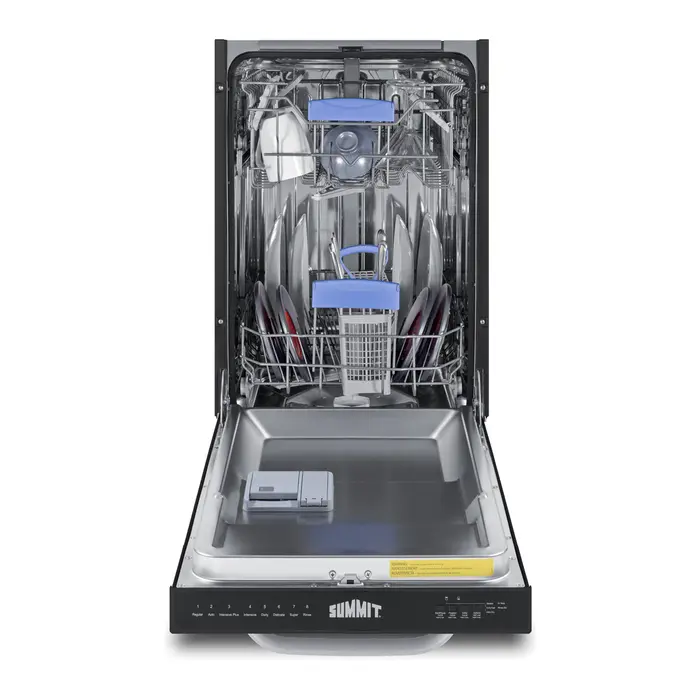

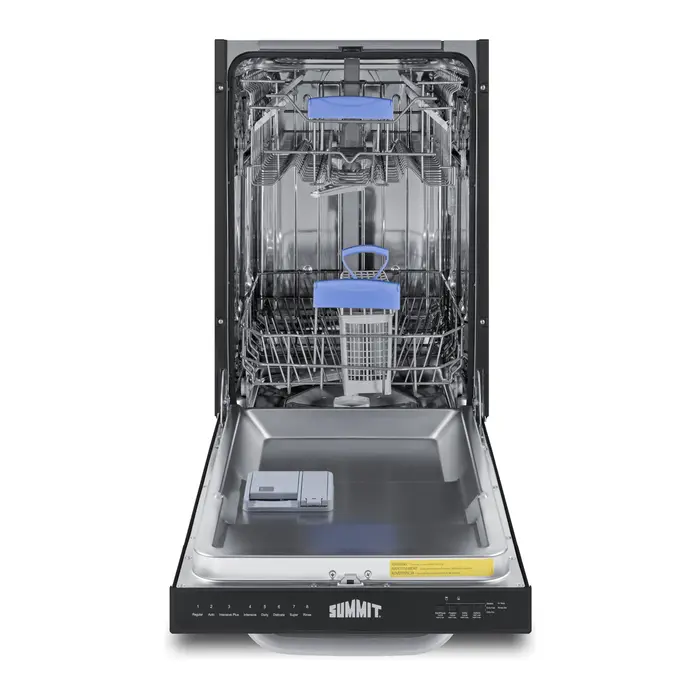

Inside, the DW184BADA features stainless steel construction for true durability. Two spray arms help to ensure your full load is thoroughly washed. The upper slide-out rack can be set in two positions, allowing you to adjust the setup if washing particularly tall items. Side flaps can be used to stack smaller cups, keep glasses in place, or hold long utensils. The lower rack includes two fold-down tines that let you better accommodate oversized pots as needed. We include a removable cutlery basket to make it easier to load and unload silverware.

This model is ENERGY STAR certified for a greener performance. In addition to this style, Summit also manufactures choices in white and stainless steel, as well as fully integrated options that accept custom panels. Browse the full line to explore our assortment.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.25" (82 cm)

Nominal Width 18.0" (46 cm)

Width 17.5" (44 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.5" (57 cm)

Depth with Handle 24.25" (62 cm)

Depth with door at 90° 45.5" (116 cm)

Dishwasher Standard

Door Black

Cabinet Black

US Electrical Safety UL

Canadian Electrical Safety ULC

Energy Usage/Year 234.0kWh/year

Amps 12.0

Voltage/Frequency 115 V AC/60 Hz

Weight 95.0 lbs. (43 kg)

Parts & Labor Warranty 1 Year

UPC 761101089522

Dishwasher

Number of Cycles 8

Number of Racks 2

Rack Material Wire

Silverware Basket Yes

Delayed Start Yes

China Setting Yes

Interior Finish Stainless Steel

Interior Height 24.75" (63 cm)

Interior Width 15.25" (39 cm)

Interior Depth 20.0" (51 cm)

Decibel Rating 47.0 dBA

Number of Options 5

Leveling Legs Yes

Place Settings 8

FEATURES

18" Wide Dishwasher Slim fit with full dishwashing capability for a great addition to any small kitchen

ENERGY STAR certified Uses less energy and water than national standards require to ensure more efficiency and lower utility bills

ADA-compliant 32.25" high to fit under lower counters following ADA guidelines

Adjustable Height Includes three leveling legs that let you raise the unit to a standard 34" counter height, with an taller kickplate included to cover extra space

Ultra quiet performance Advanced sound absorbing construction operates at 47 dB

Touch controls Intuitive button controls with a digital display to ensure you select the proper cycle

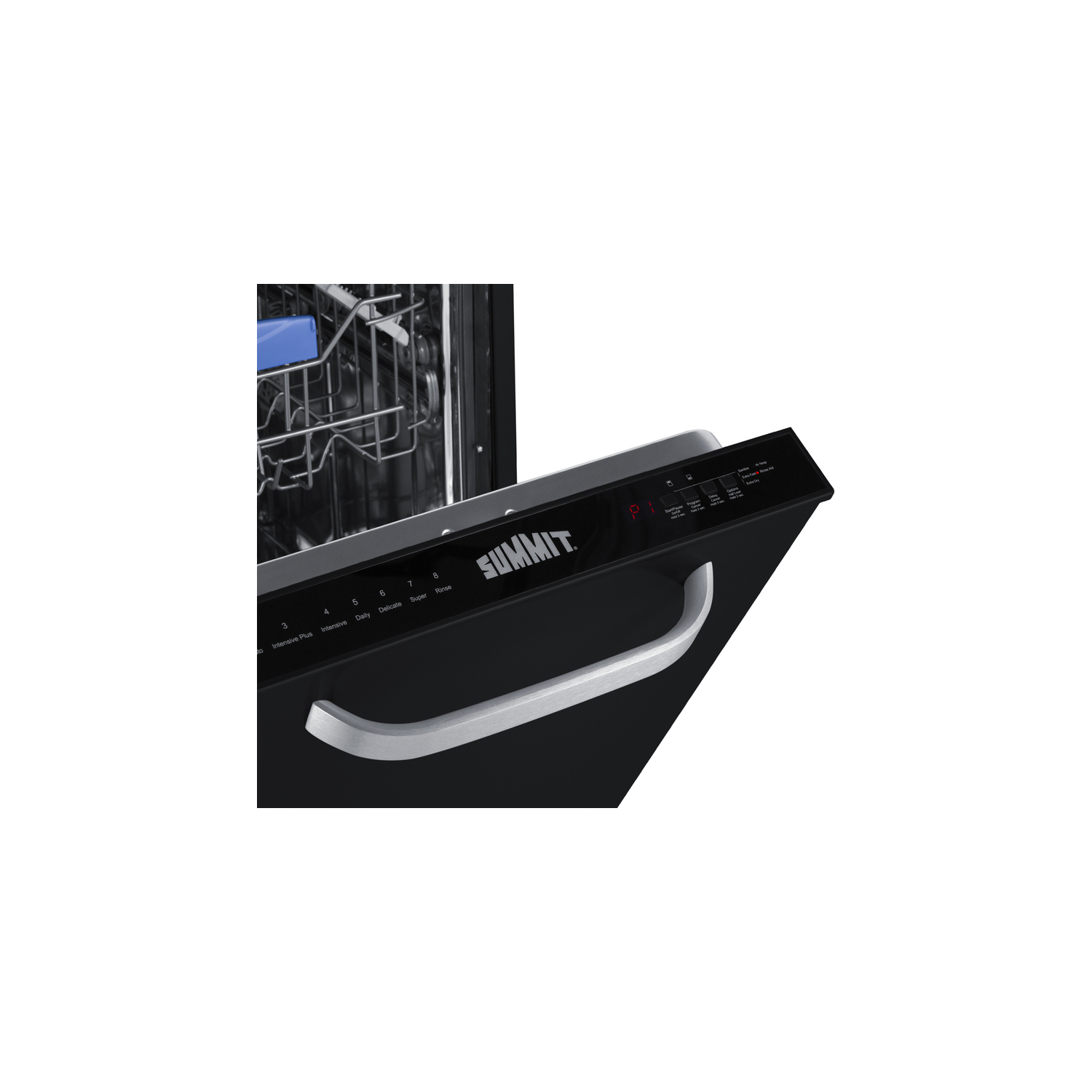

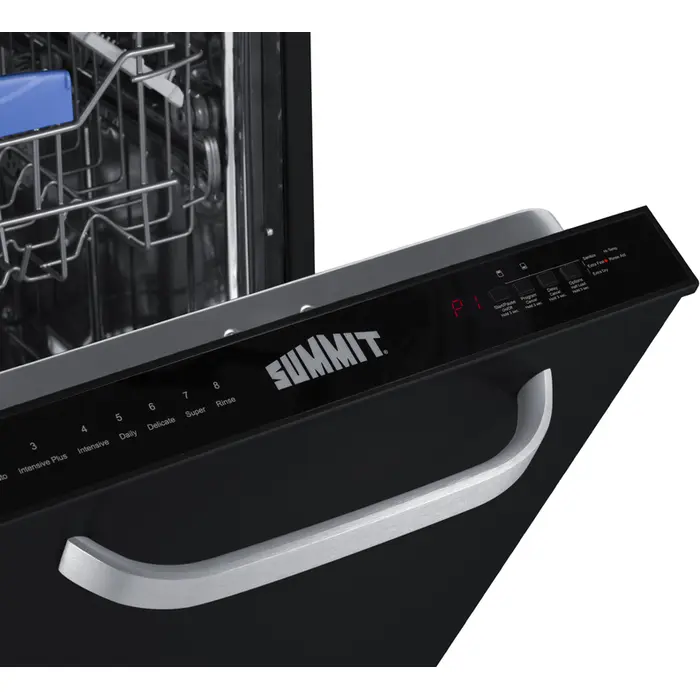

Top control panel Touch controls are located on the top of the door, providing a cleaner look to better integrate into your kitchen

Professional handle Curved handle in brushed stainless steel elevates your kitchen style

Stainless steel interior Durable interior ensures long-lasting use

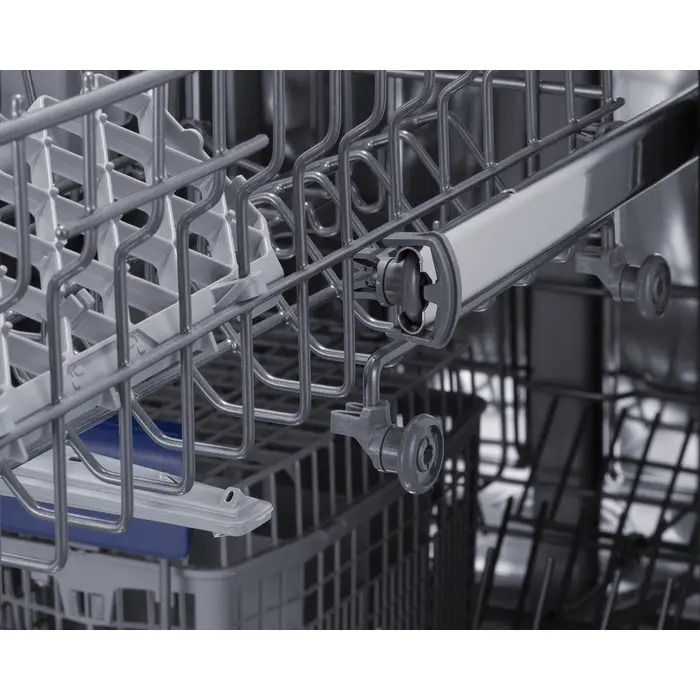

Slide-out nylon coated wire racks Two easy-gliding racks for easy loading and long-lasting durability

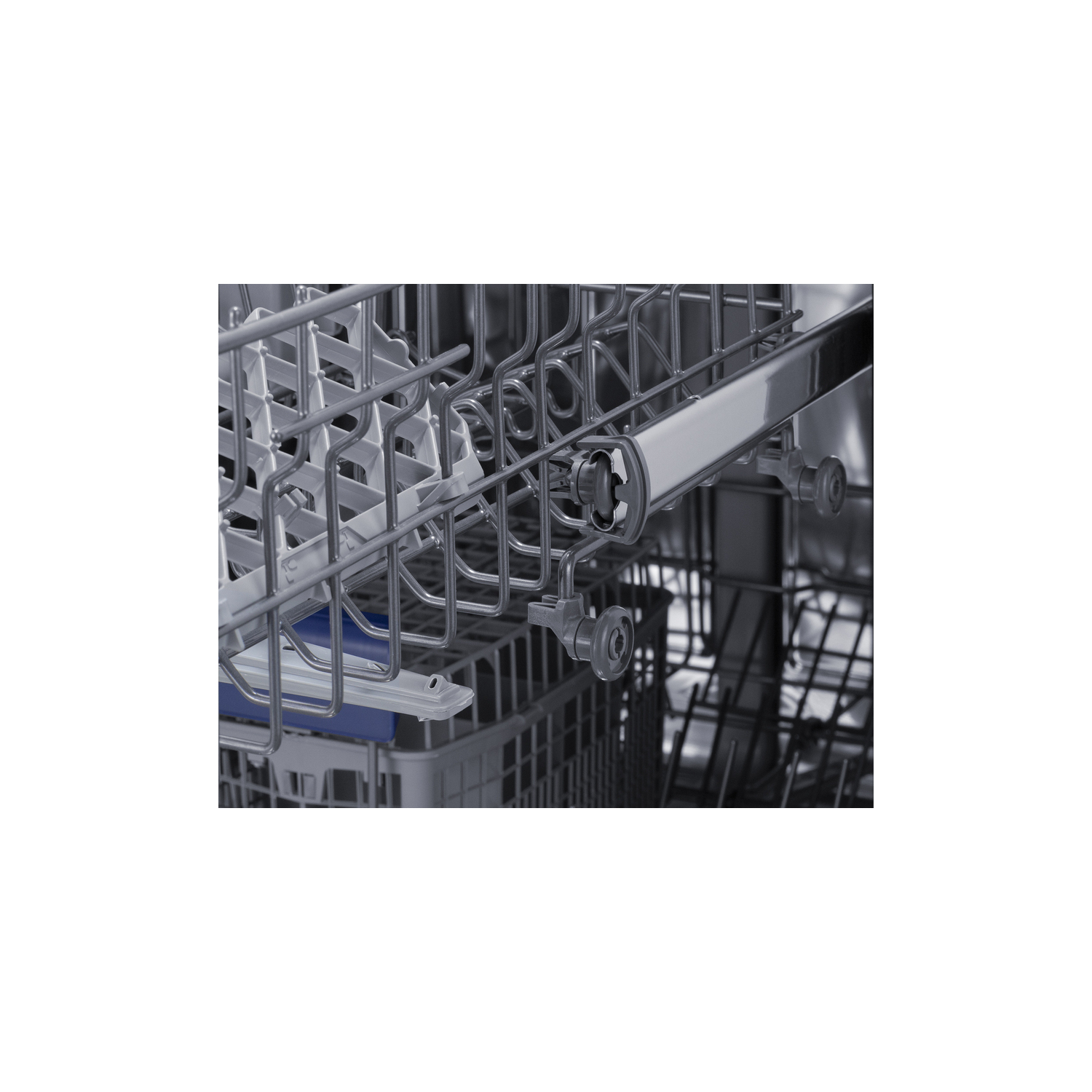

Adjustable top rack The upper rack can be repositioned to help accommodate taller items

Side rack arms Top rack includes side pieces that help to keep tall glasses safely in place, or alternatively, allow you to maximize capacity by stacking smaller cups or holding longer items

Two spray arms Improved design to ensure both racks are properly cleaned

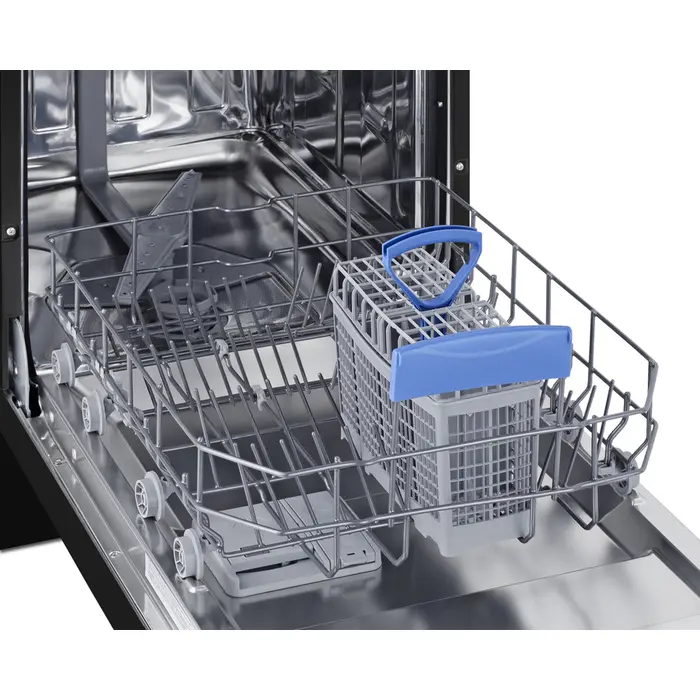

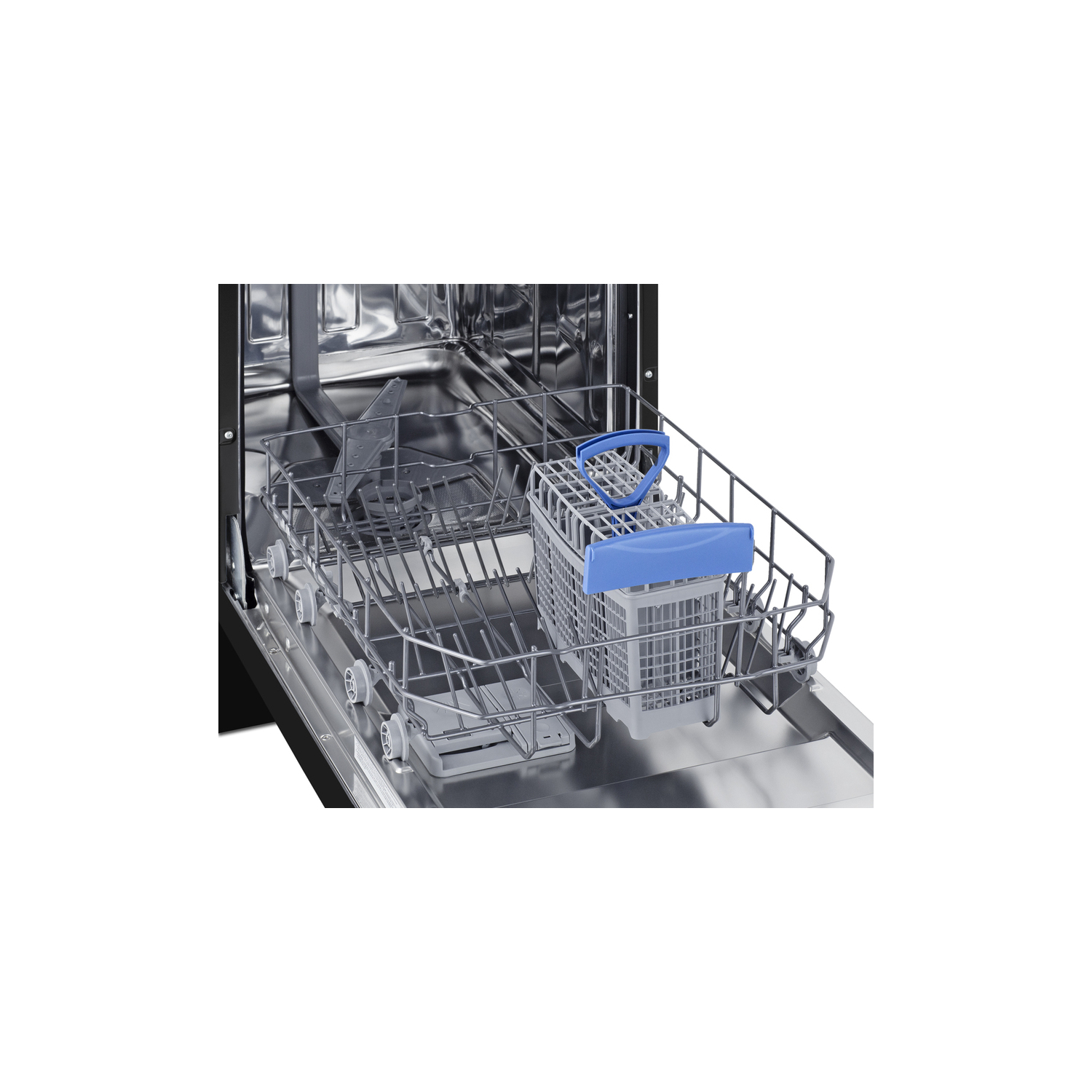

Fold-down tines Lower rack includes two tines that can be folded down to make room for larger items, or raised to hold dishes in place

Removable cutlery basket Convenient basket makes it easy to arrange your silverware, and is also removable to open up more space if washing larger pots or pans

Removable filter If food particles build up in the bottom filter, it can easily be removed and emptied as needed

8 Wash Programs Settings include Regular, Auto, Intensive, Intensive Plus, Daily, Delicate, Super, & Rinse

5 auxiliary functions Combine additional functions with your wash programs, including Sanitize, Extra Fast, Extra Dry, Hi-Temp, and Half Load

Half load function Can be combined with any wash program to operate more efficiently for smaller loads of dishes

Sanitize setting Increases the water temperature in the final rinse for a cleaner wash

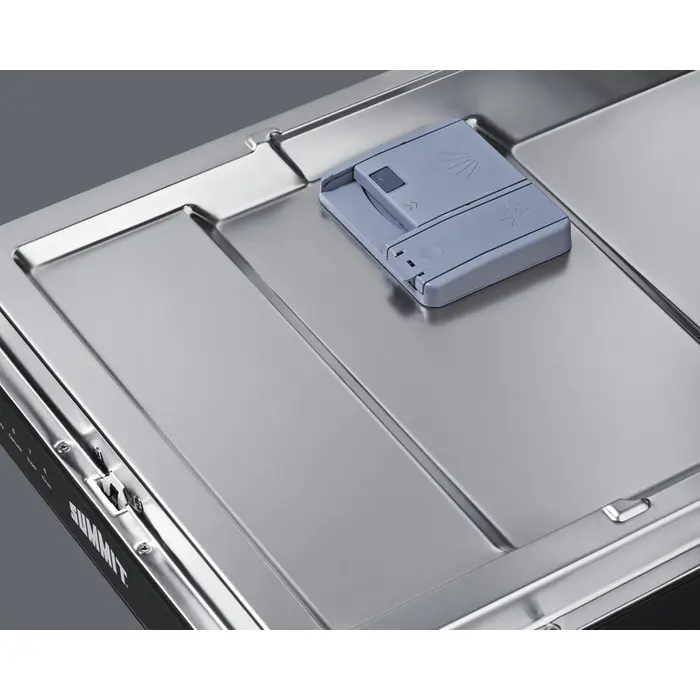

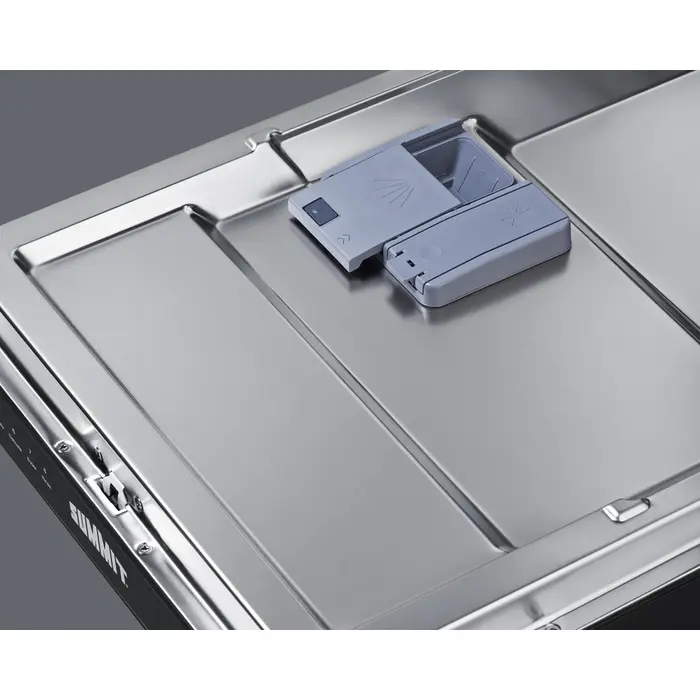

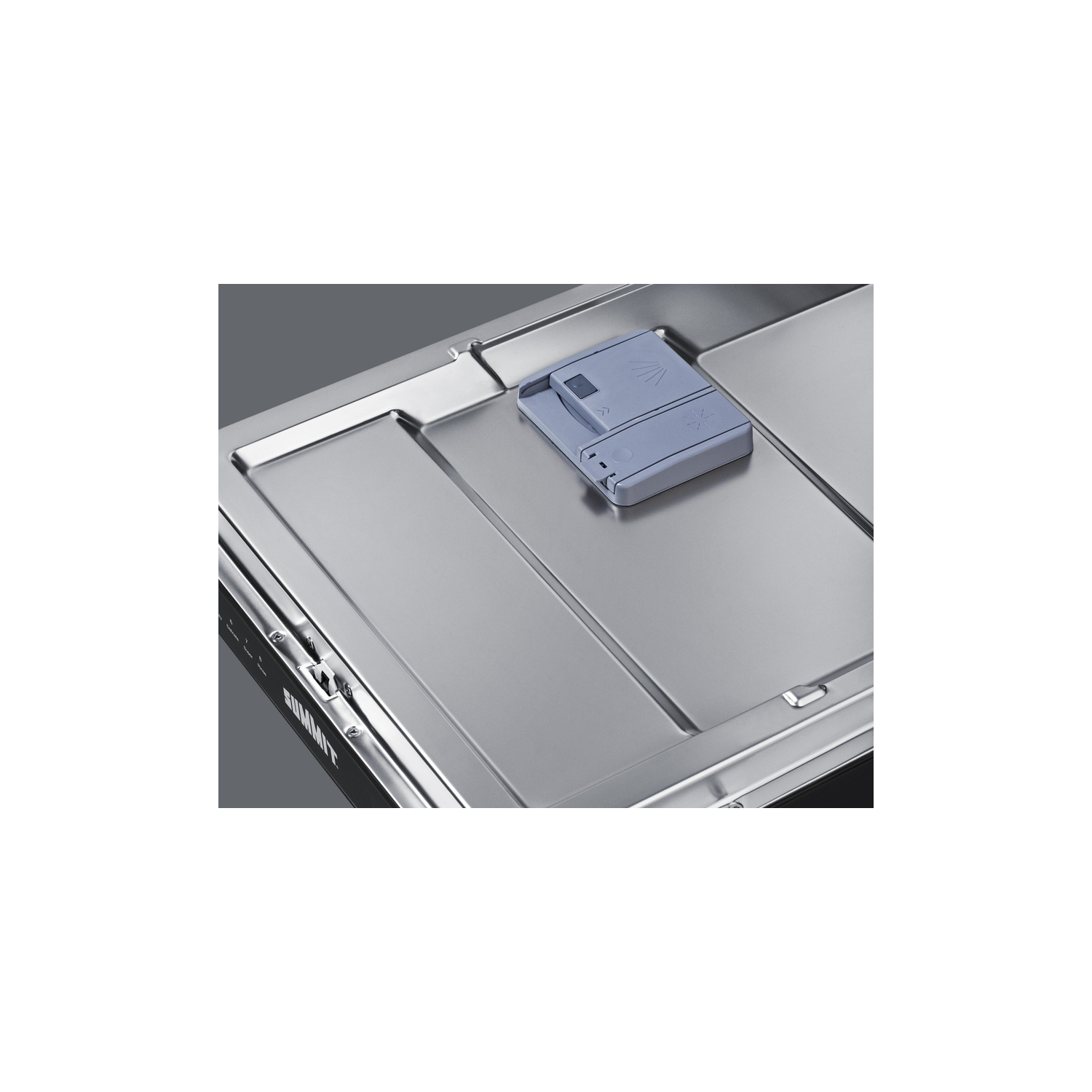

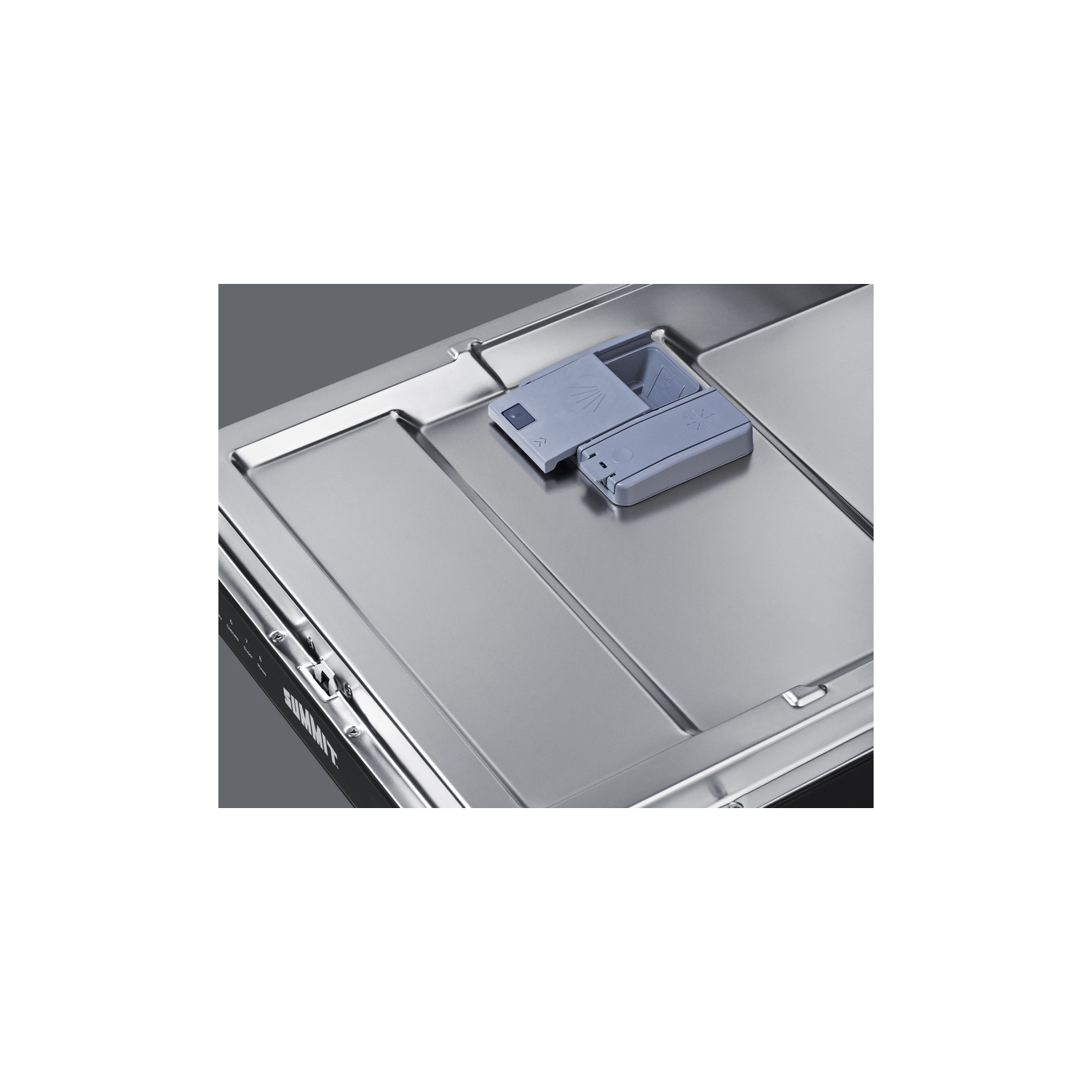

Detergent dispenser Conveniently located inside towards the top of the door, with a push button release for easy loading

Automatic detergent detection Unit will self-adjust to the detergent type for optimum performance

Delay start option Allows you to program a wash cycle for up to 19 hours in advance

Indicator lights Display screen will show when softening rinse aid needs to be adjusted

Water cutoff warning Washing will stop if the machine detects an issue with the water supply or inlet tap

Overflow warning Alert will flash if the dishwasher is taking in too much water or sensing a leak

Cord included Includes a pre-installed power cord with NEMA 5-15P 3-pronged plug
