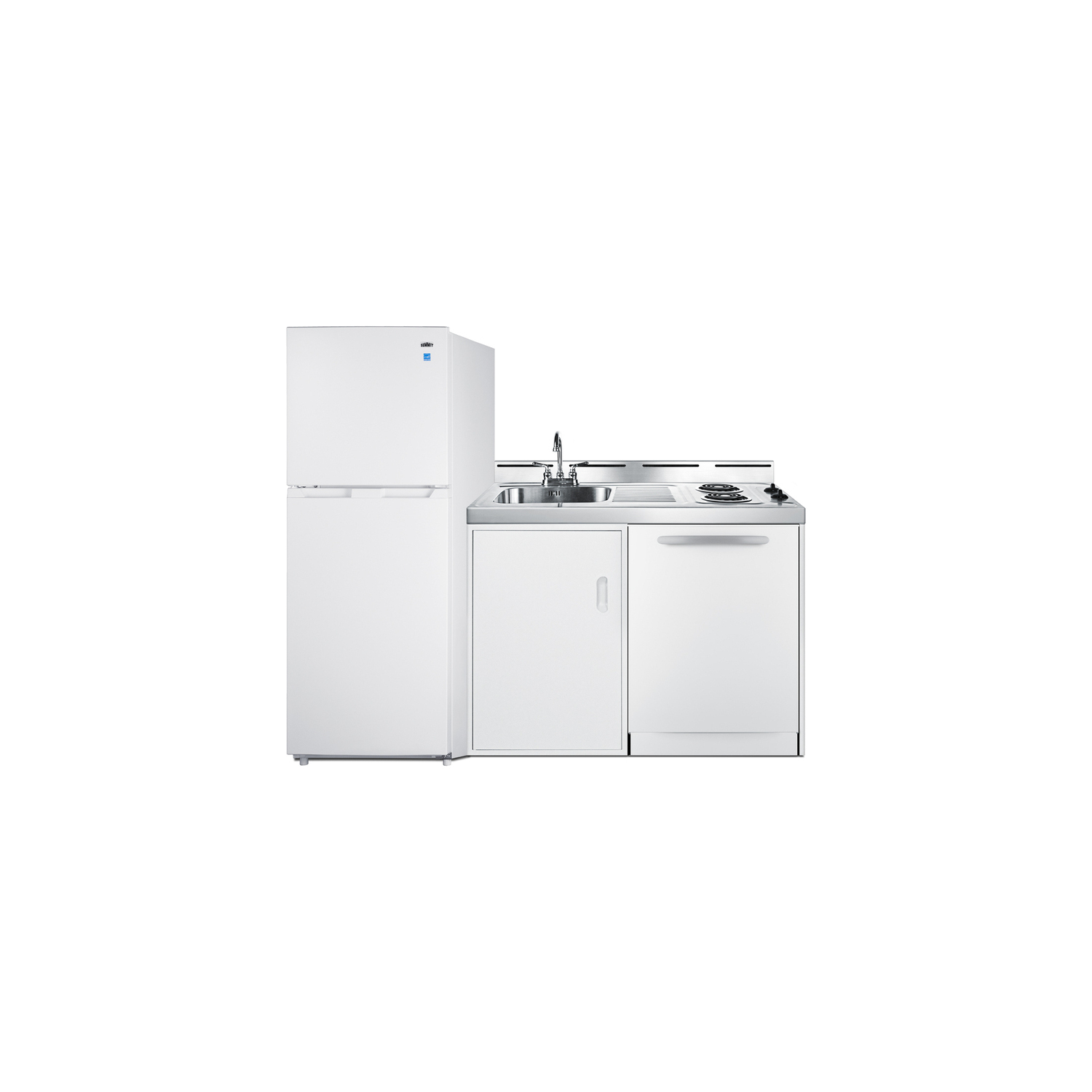

Summit All-in-one combination kitchenette with full-sized refrigerator-freezer, dishwasher, sink, storage cabinet, and 2-burner coil cooktop, 7.61101e+011, ACKDW72

SUMMIT brings innovative value into the kitchen with all-in-one combination units for full-service use. Our ACKDW series features a full-sized refrigerator-freezer, dishwasher, 2-burner cooktop, sink, and storage cabinet to create a complete one-wall kitchenette.

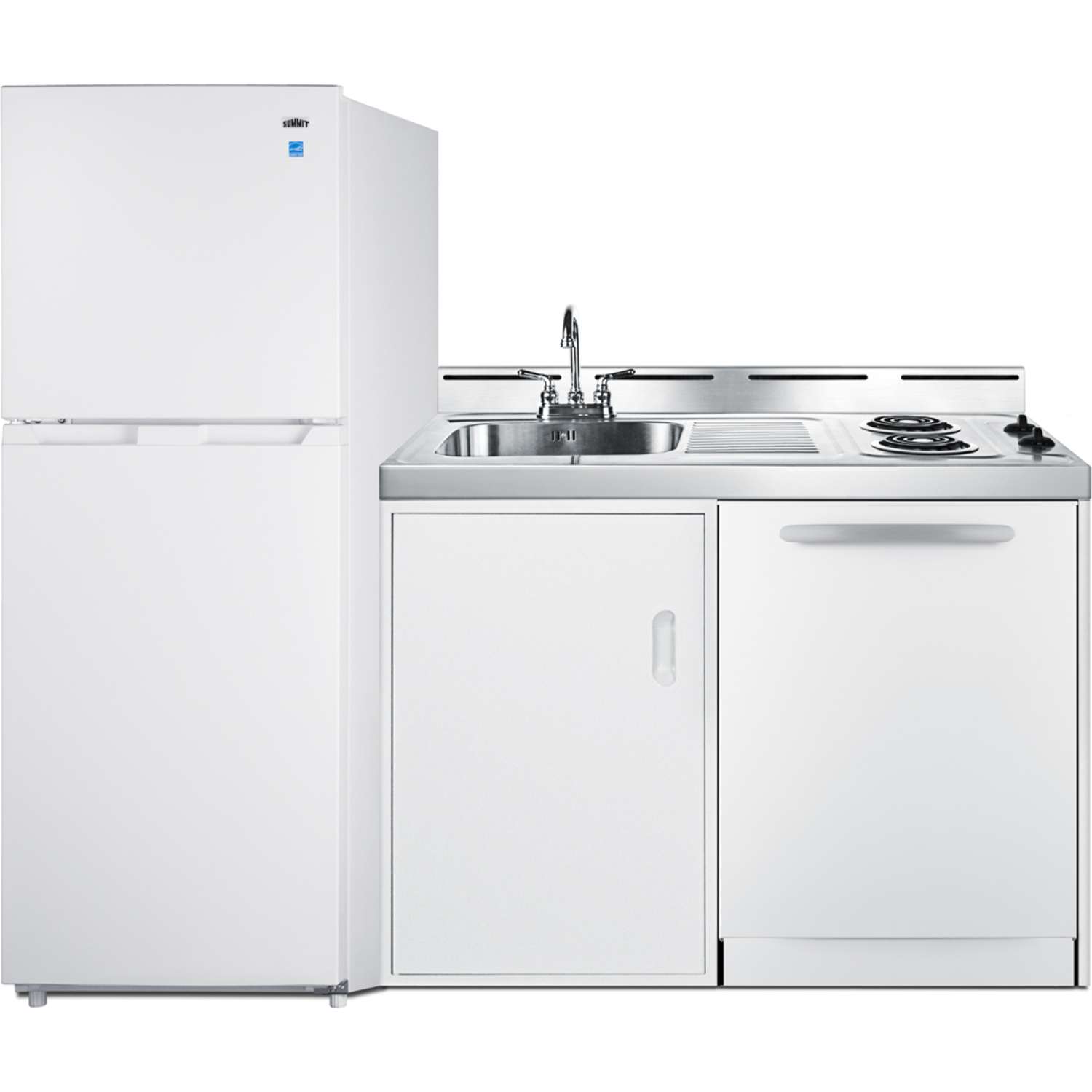

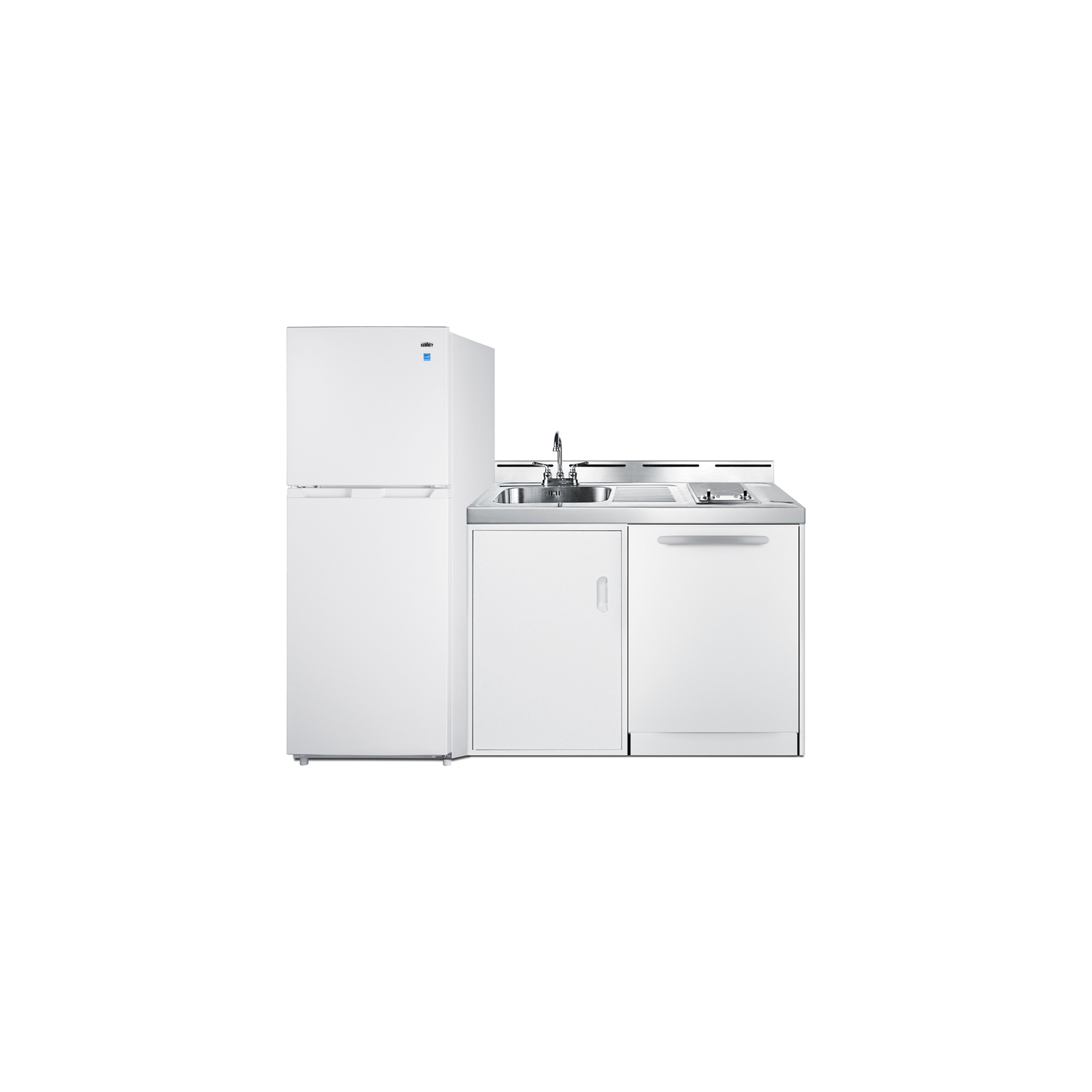

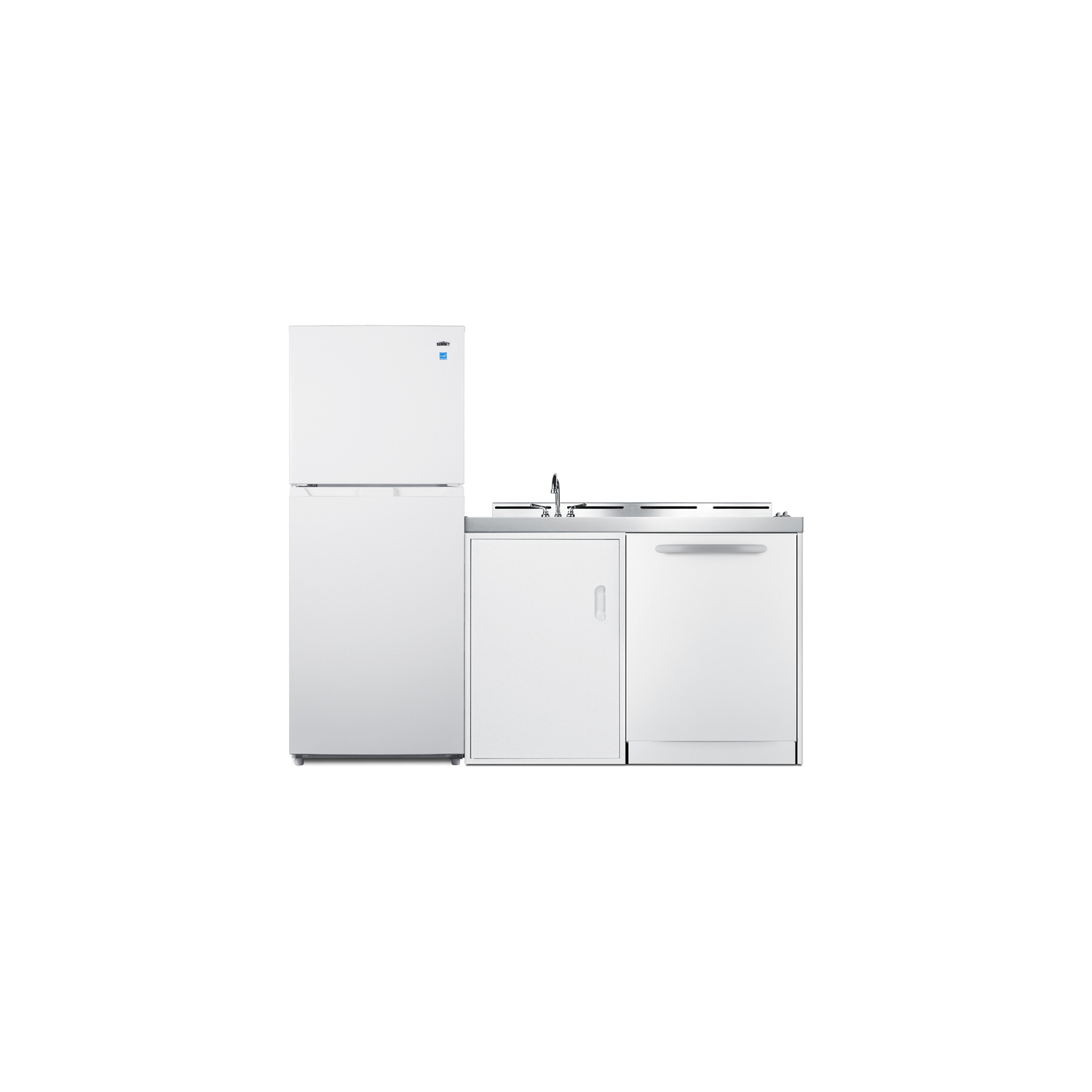

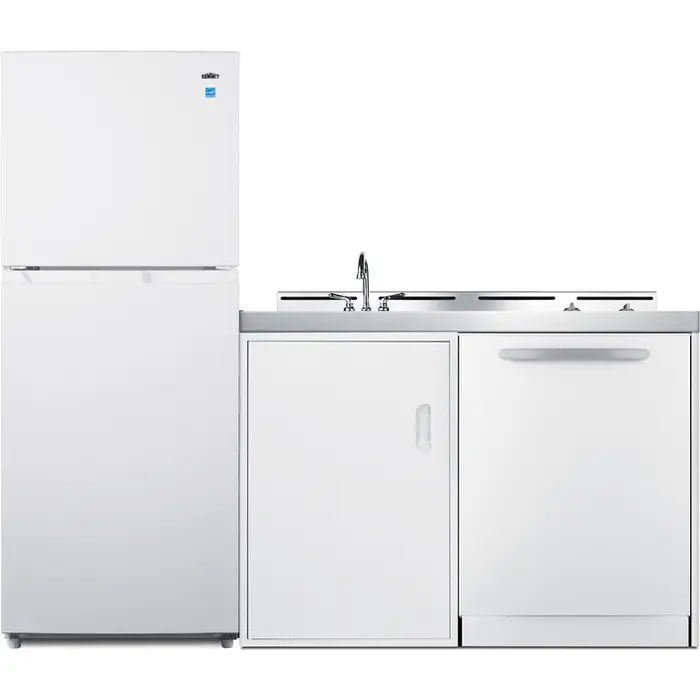

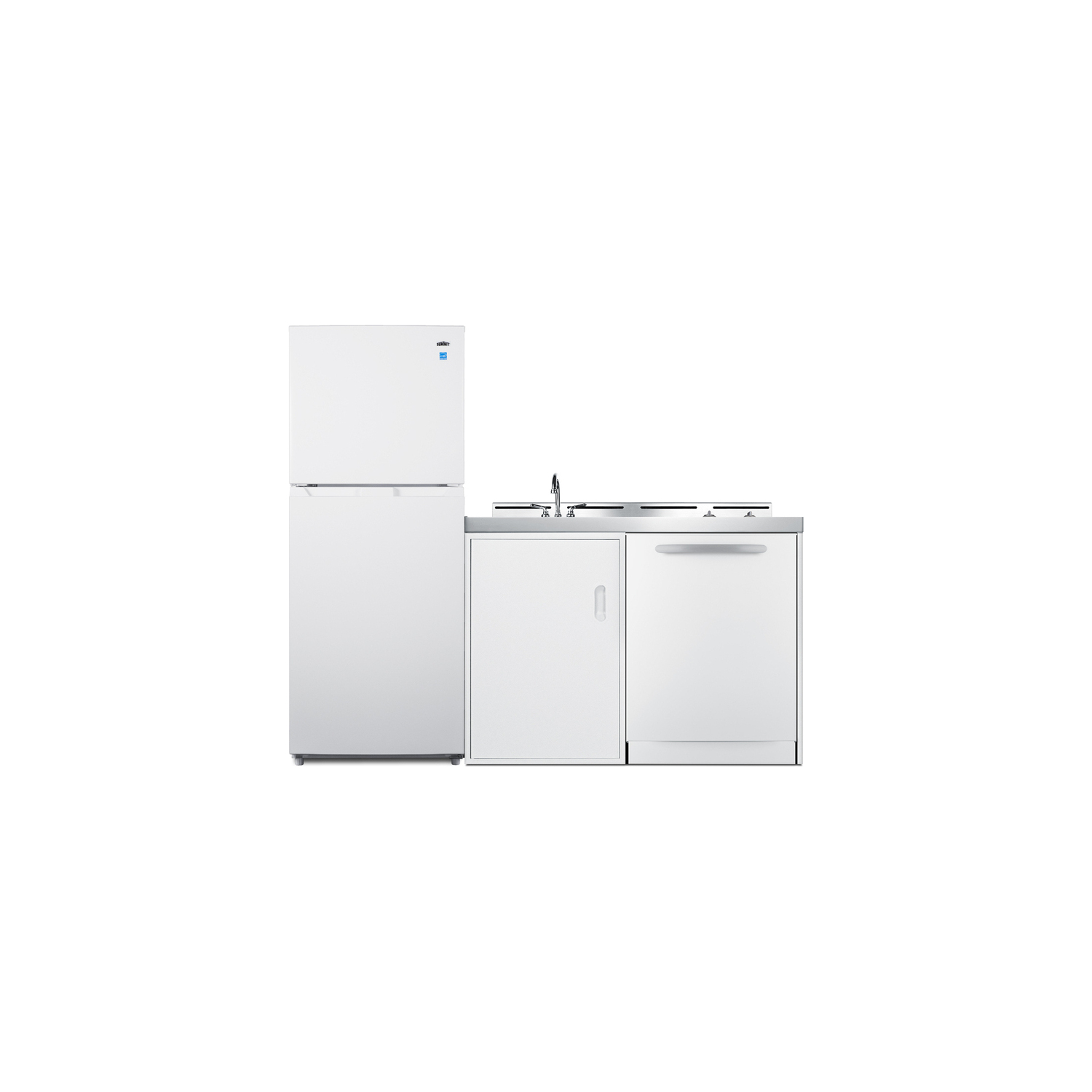

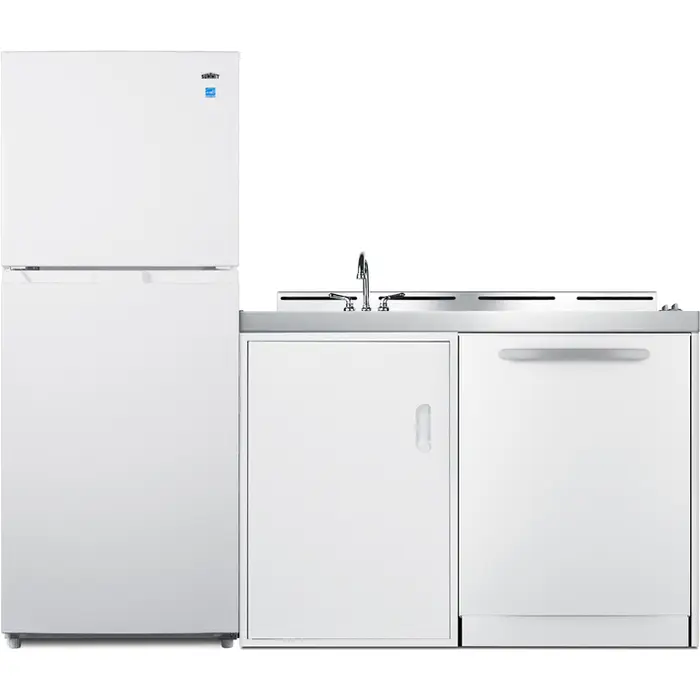

Model ACKDW72 is comprised of three pieces: our ENERGY STAR certified 10.1 cu.ft. frost-free FF1088W refrigerator-freezer; our C48EL kitchenette with sink, cabinet, and cooktop; and our DW242WADA 24" dishwasher. The exterior features a clean white finish, with stainless steel accents on the kitchenette work surface and dishwasher handle to elevate your kitchen style.

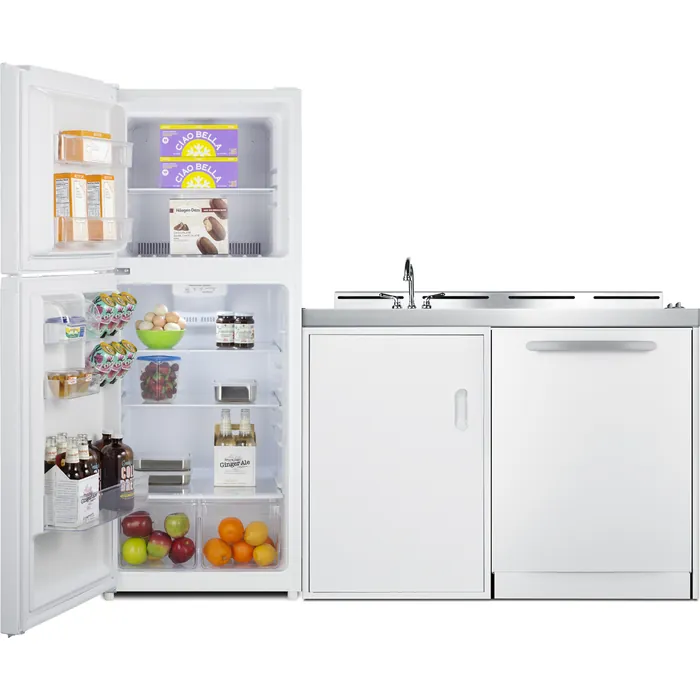

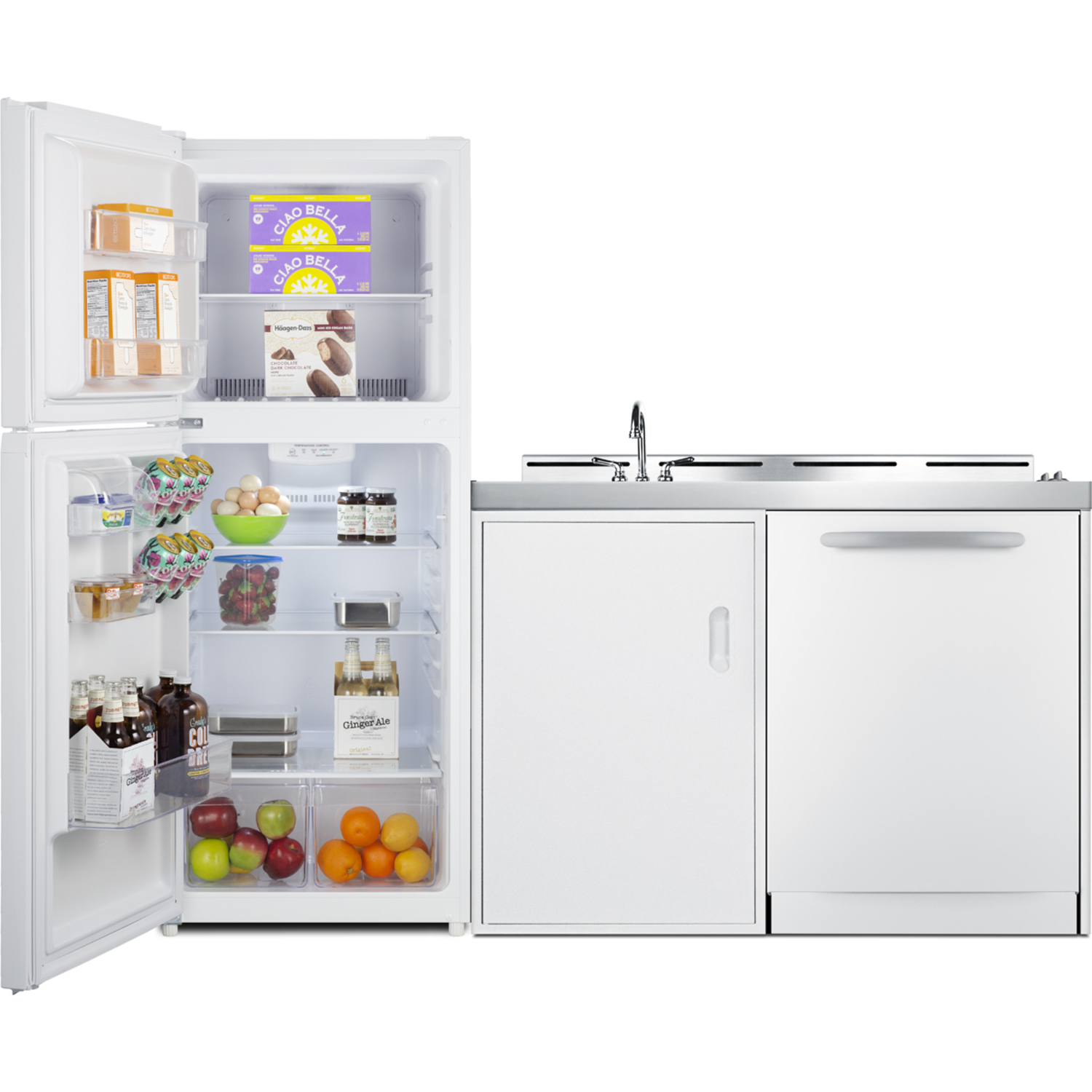

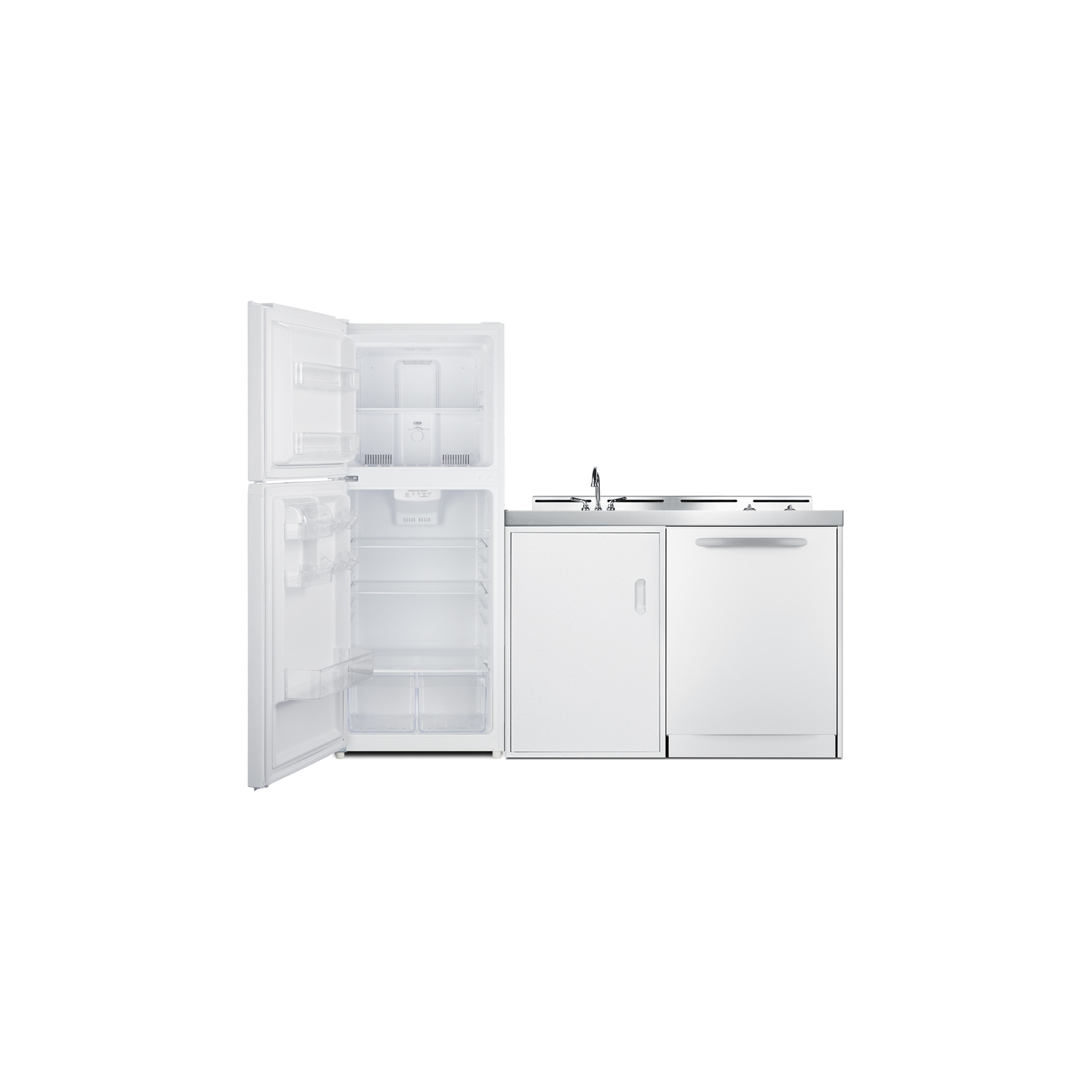

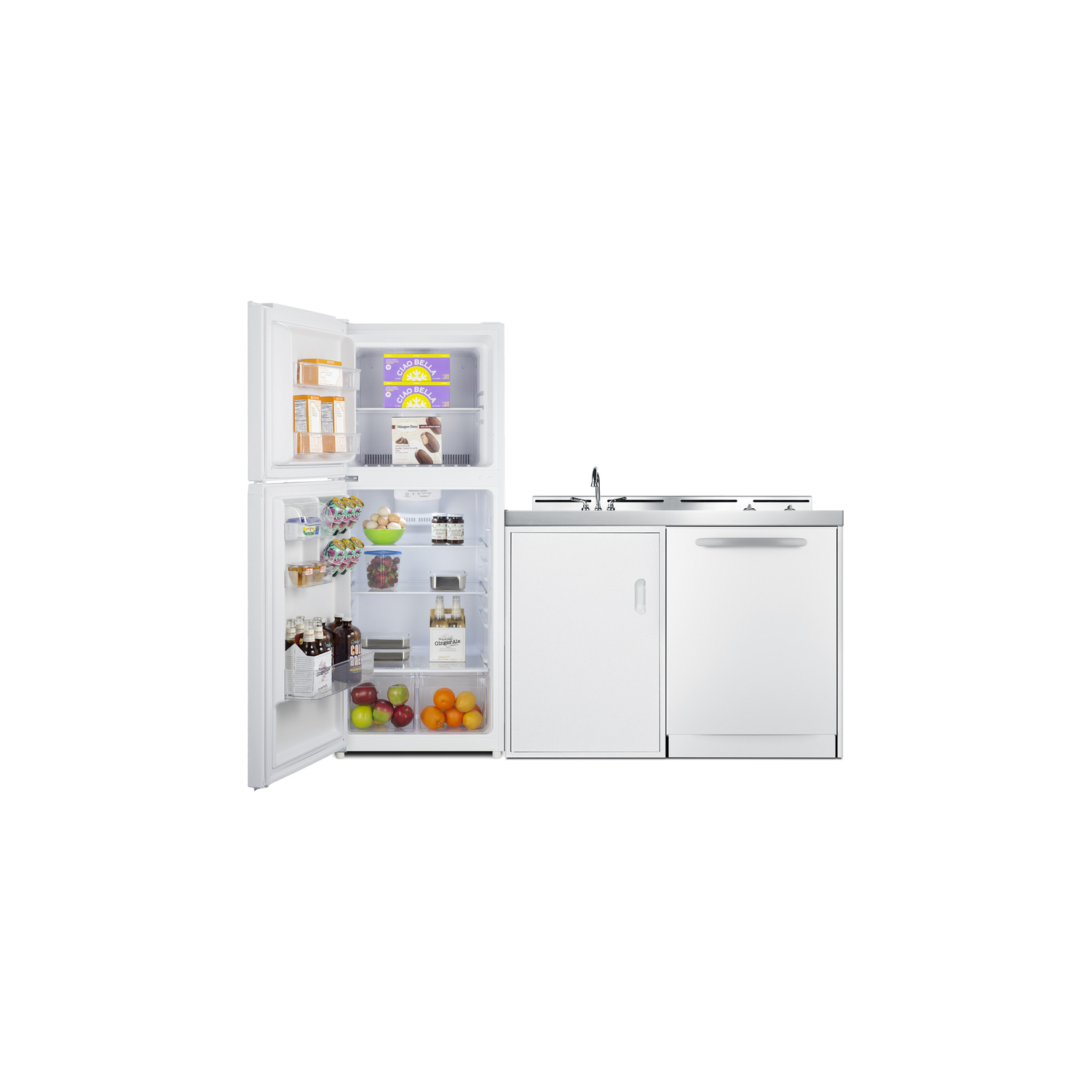

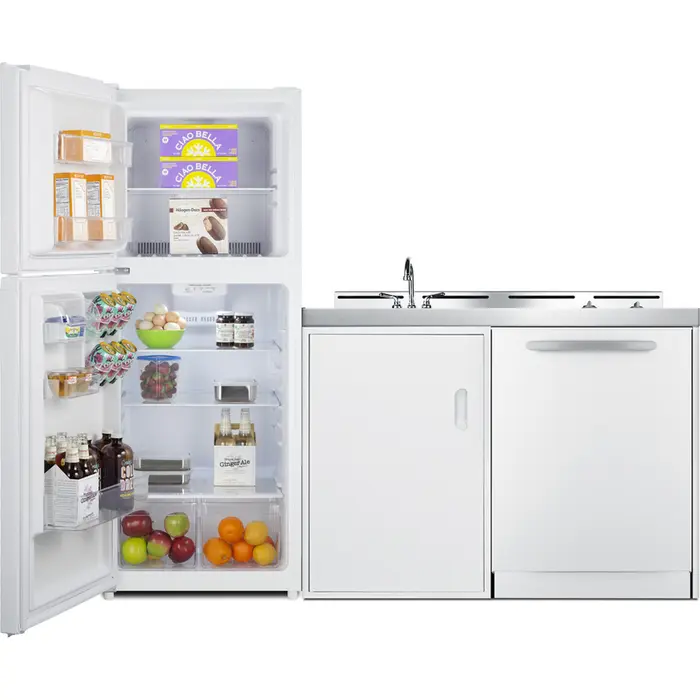

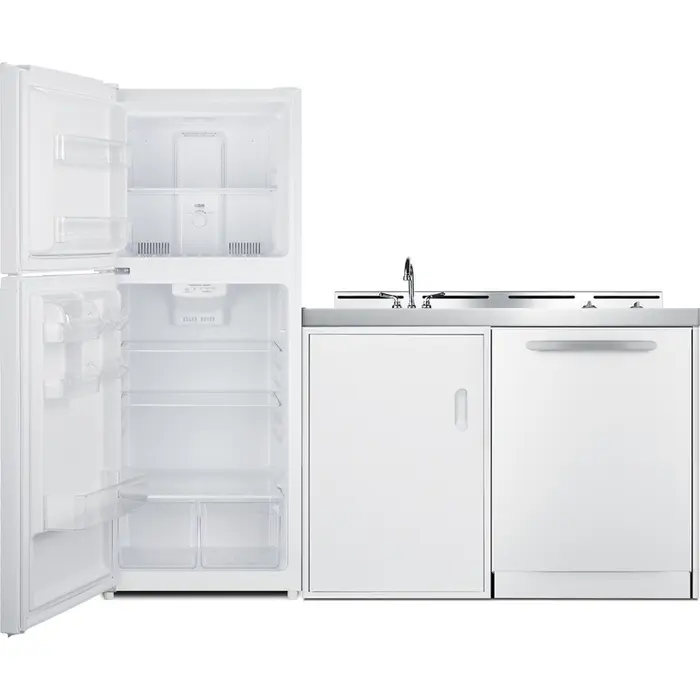

The FF1088W refrigerator offers over 10 cu.ft. of storage capacity. Frost-free operation ensures minimum user maintenance. The refrigerator section includes adjustable glass shelves, twin crispers, and door storage, including a gallon-sized rack. The large freezer includes a removable shelf and door rack. This unit has a user-reversible door swing and can be installed to the left or right of your kitchenette.

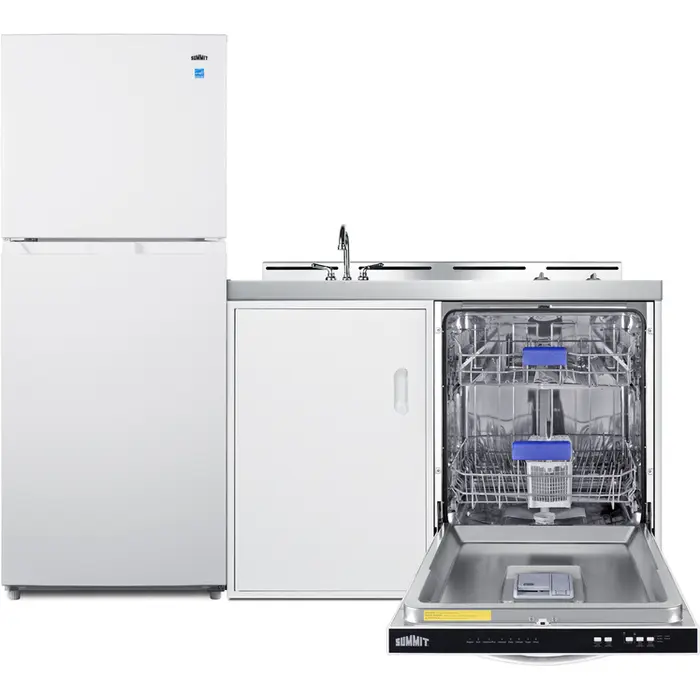

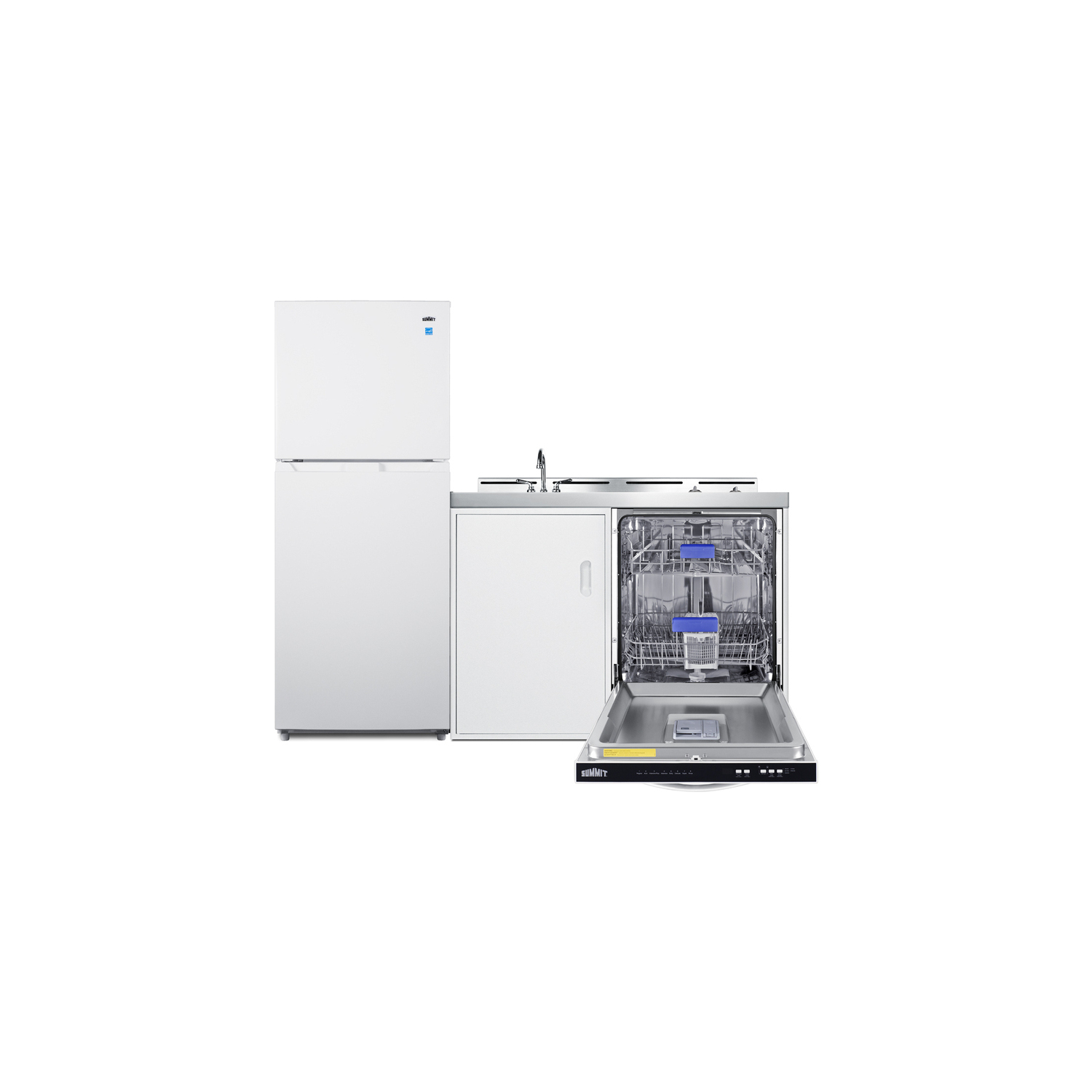

The C48EL kitchenette includes a 2-burner coil cooktop with a pre-installed 115V 3-prong power cord for easy setup. The stainless steel sink features a hot and cold water faucet. A large storage cabinet includes a removable shelf. The ACKDW72 ships with our European DW242WADA dishwasher, with an ENERGY STAR certified ultra quiet performance that runs at just 47 dB. This dishwasher is designed with a fully featured stainless steel interior for versatile loading. The intuitive top-located digital controls let you choose between 8 wash programs with 5 auxiliary functions, including a half-load setting for added water savings. The dishwasher also includes its own pre-installed 3-prong cord.

In addition to the ACKDW72, Summit's expanded selection of all-in-one kitchenettes includes choices with full-sized ranges, washer/dryer laundry combos, water pumps for no-plumbing applications, and much more. Explore the full lineup or contact our product specialists for more information.

SPECIFICATIONS

Overview

Nominal Height 40.0" (102 cm)

Height of Cabinet 40.0" (102 cm)

Nominal Width 71.0" (180 cm)

Width 71.0" (180 cm)

Nominal Depth 26.0" (66 cm)

Depth 26.0" (66 cm)

Depth with door at 90° 44.25" (112 cm)

Capacity 10.1 cu.ft. (286 L)

Dishwasher Standard

Defrost Type Frost-Free

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Voltage/Frequency 115 V AC/60 Hz

Weight 300.0 lbs. (136 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101086910

Kitchenette

Refrigerator Included FF1088W

Refrigerator Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Shelf Type Glass

Shelf Qty 2

Crisper Qty 2

Crisper Finish Transparent

Crisper Cover Glass

Full Door Shelves 1

Half Door Shelves 4

Thermostat Type Dial

Interior Light Yes

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 1.73 oz.

Cooking Type Coil Cooktop

Number of Burners 2

Cooktop Controls Dial

Sink Height 5.88" (15 cm)

Sink Width 16.75" (43 cm)

Sink Depth 14.88" (38 cm)

FEATURES

Complete all-in-one kitchenette Includes a full-sized refrigerator-freezer, 24" dishwasher, 2-burner cooktop, sink with faucet, and storage cabinet

Full-sized refrigerator-freezer included Ships with Summit's ENERGY STAR certified FF1088W, a frost-free refrigerator-freezer with a 10.1cu.ft. capacity, adjustable glass shelves, door storage, and twin crispers

Reversible doors Refrigerator and freezer door swing can be switched to best accommodate your setup

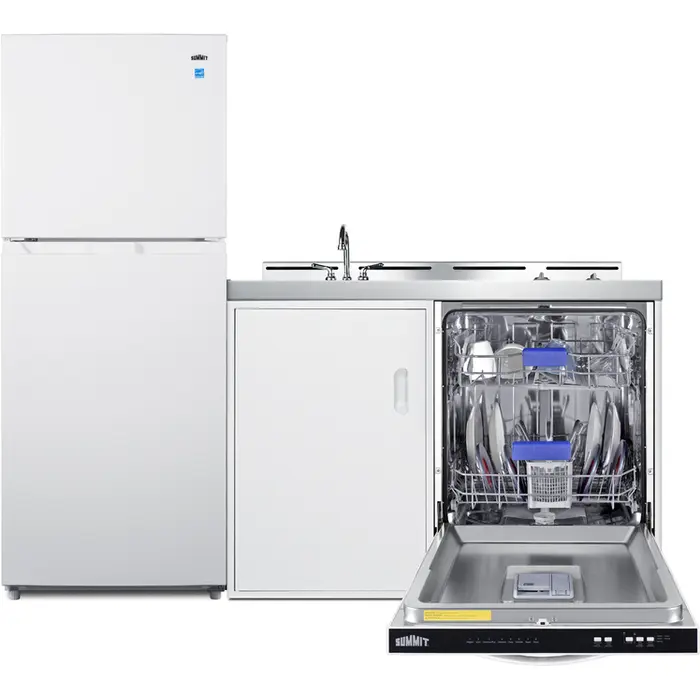

Dishwasher included Includes Summit DW242WADA, a European ENERGY STAR certified dishwasher with top-located digital controls, 8 wash programs, two slide-out racks, and an ultra quiet 47 dB performance

ENERGY STAR certified dishwasher DW242WADA features an efficient, water-saving performance, with a half-load function for added savings on water use

Two electric burners 120V coil elements for easy cooking

Sink and faucet Stainless steel sink comes ready to wash

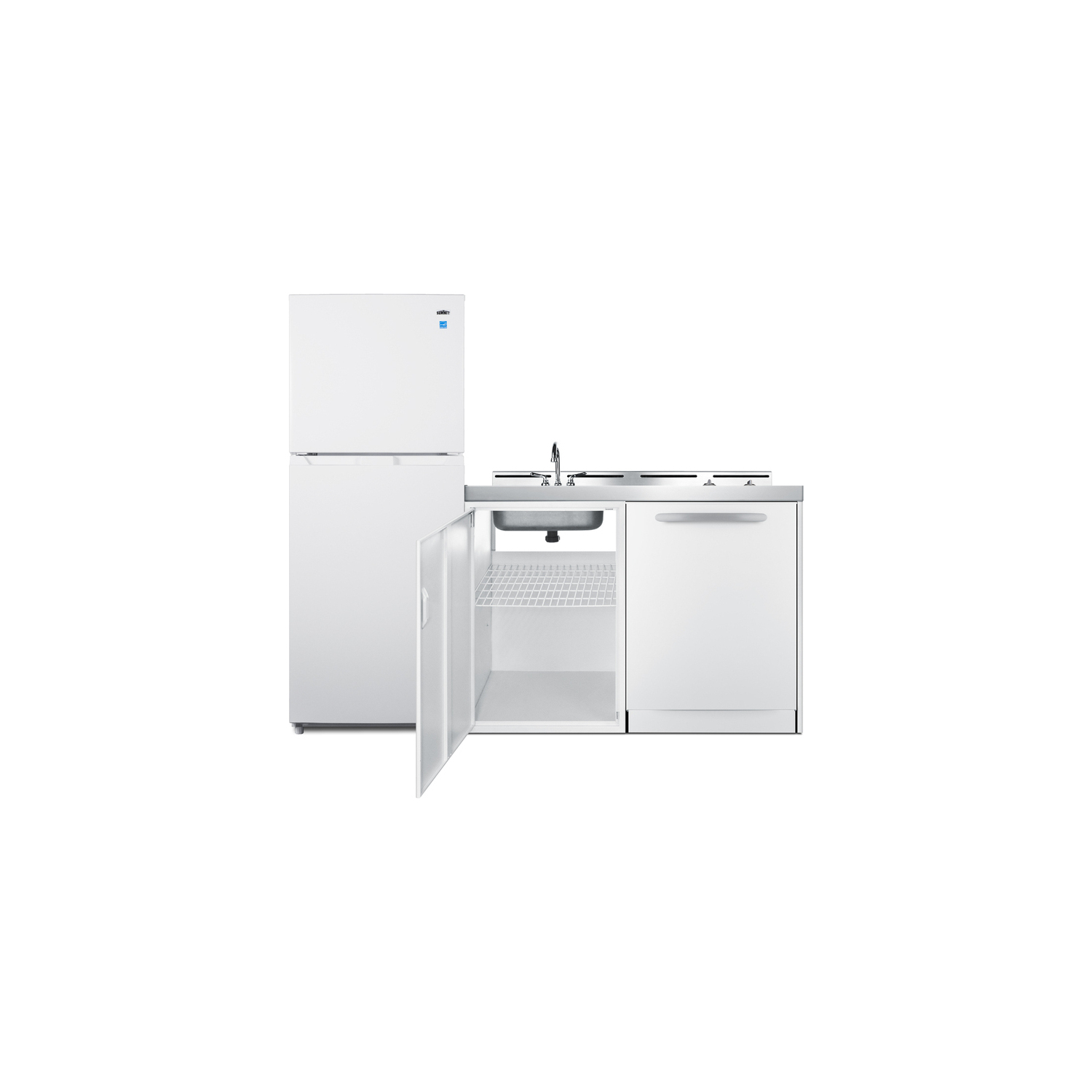

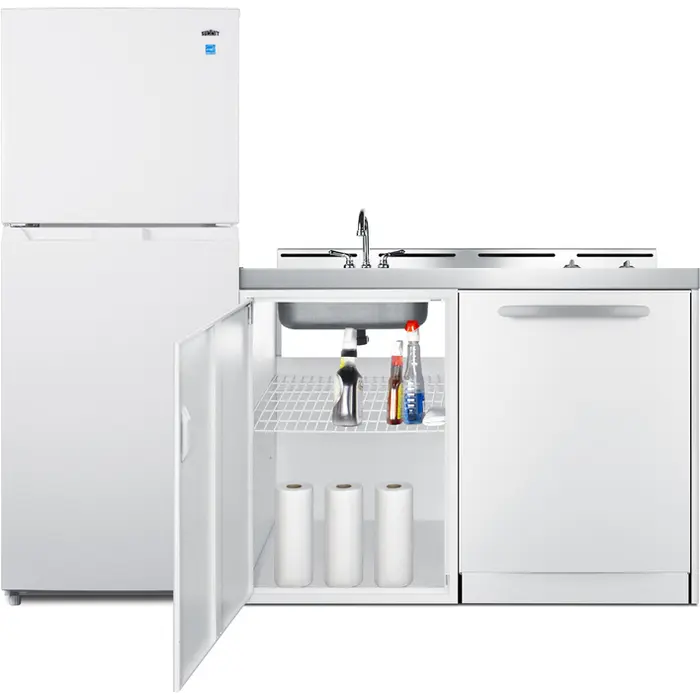

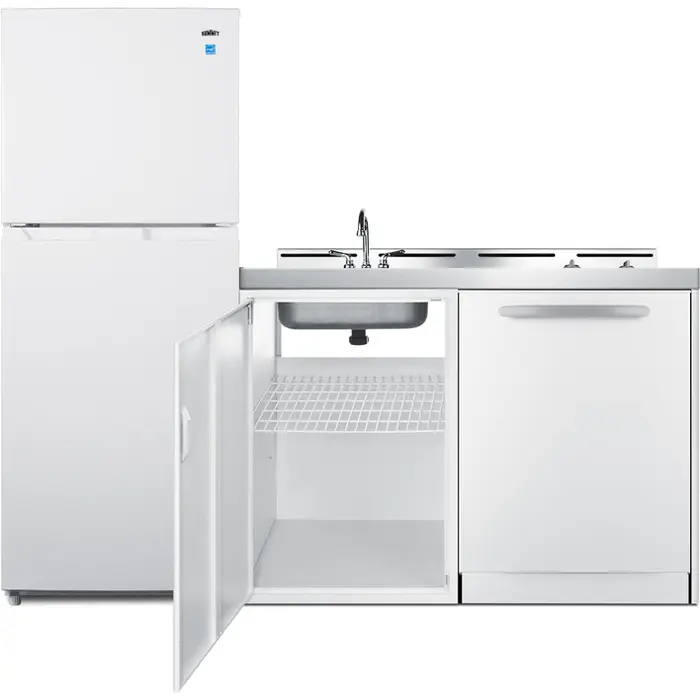

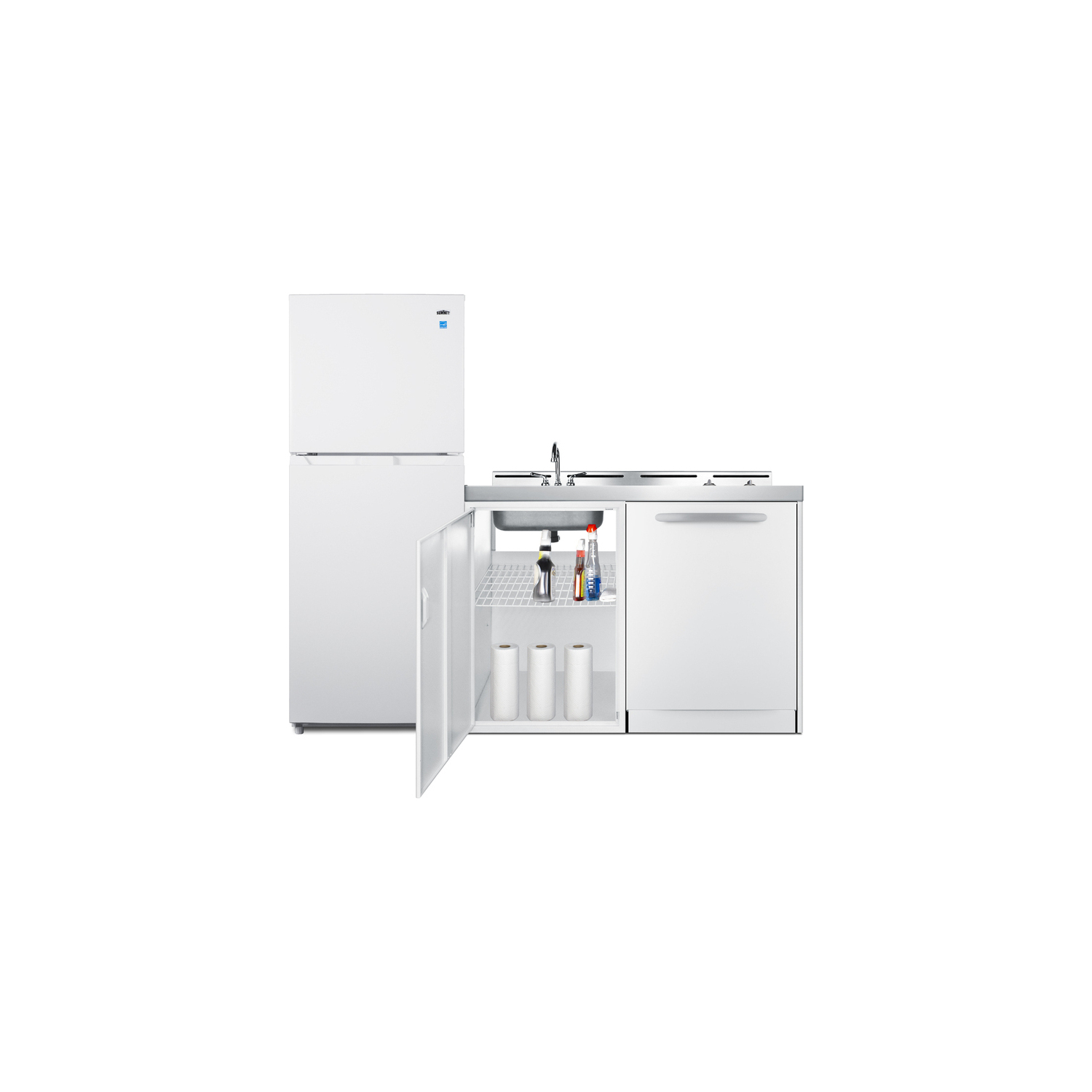

Storage compartment Large convenient cabinet with center shelf lets you store dry goods behind a door

One piece stainless steel countertop Easy to clean and built to last

Fast assembly Each unit includes its own pre-installed power cord for easy setup. This item ships in three boxes

100% CFC free Environmentally friendly design without ozone-damaging chemicals
