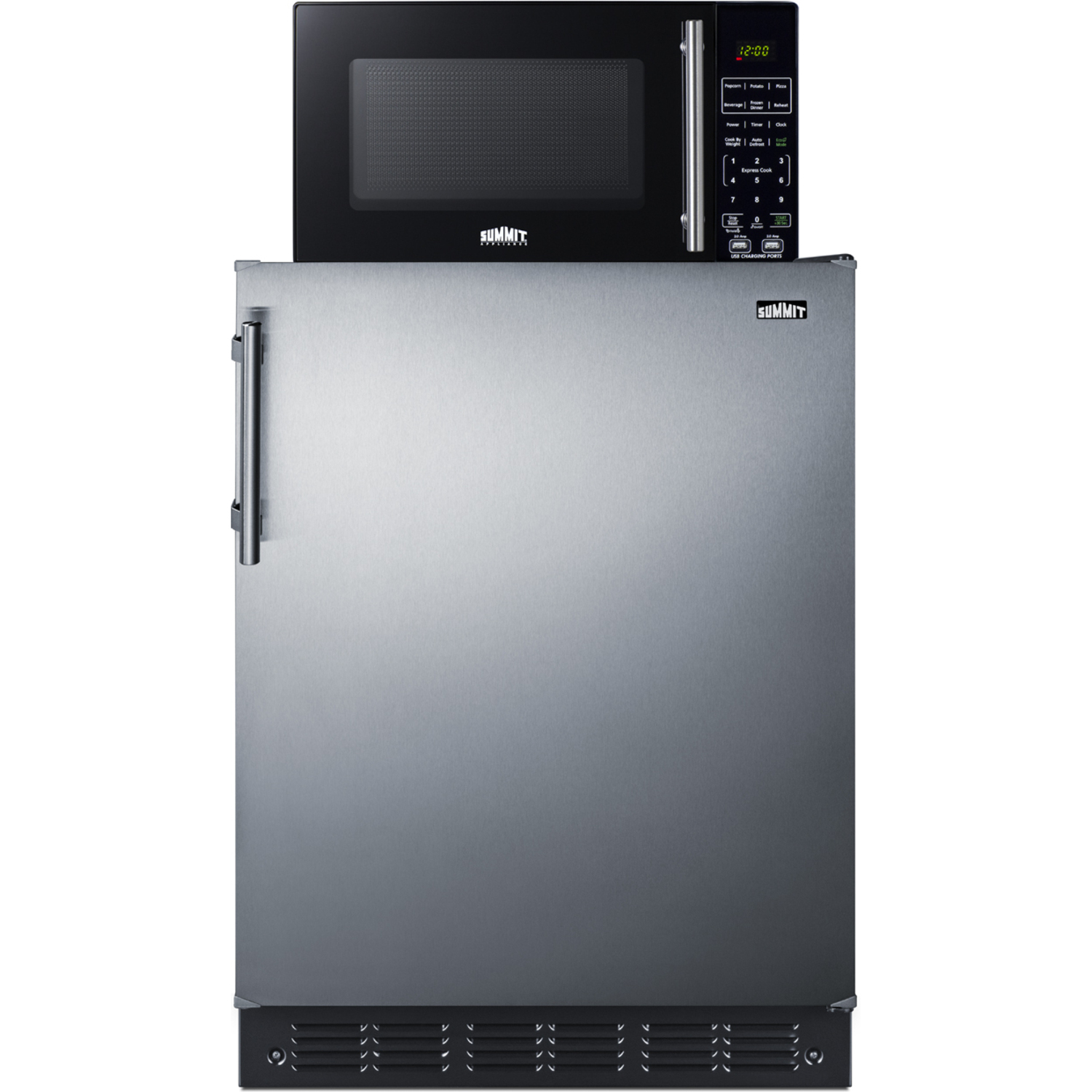

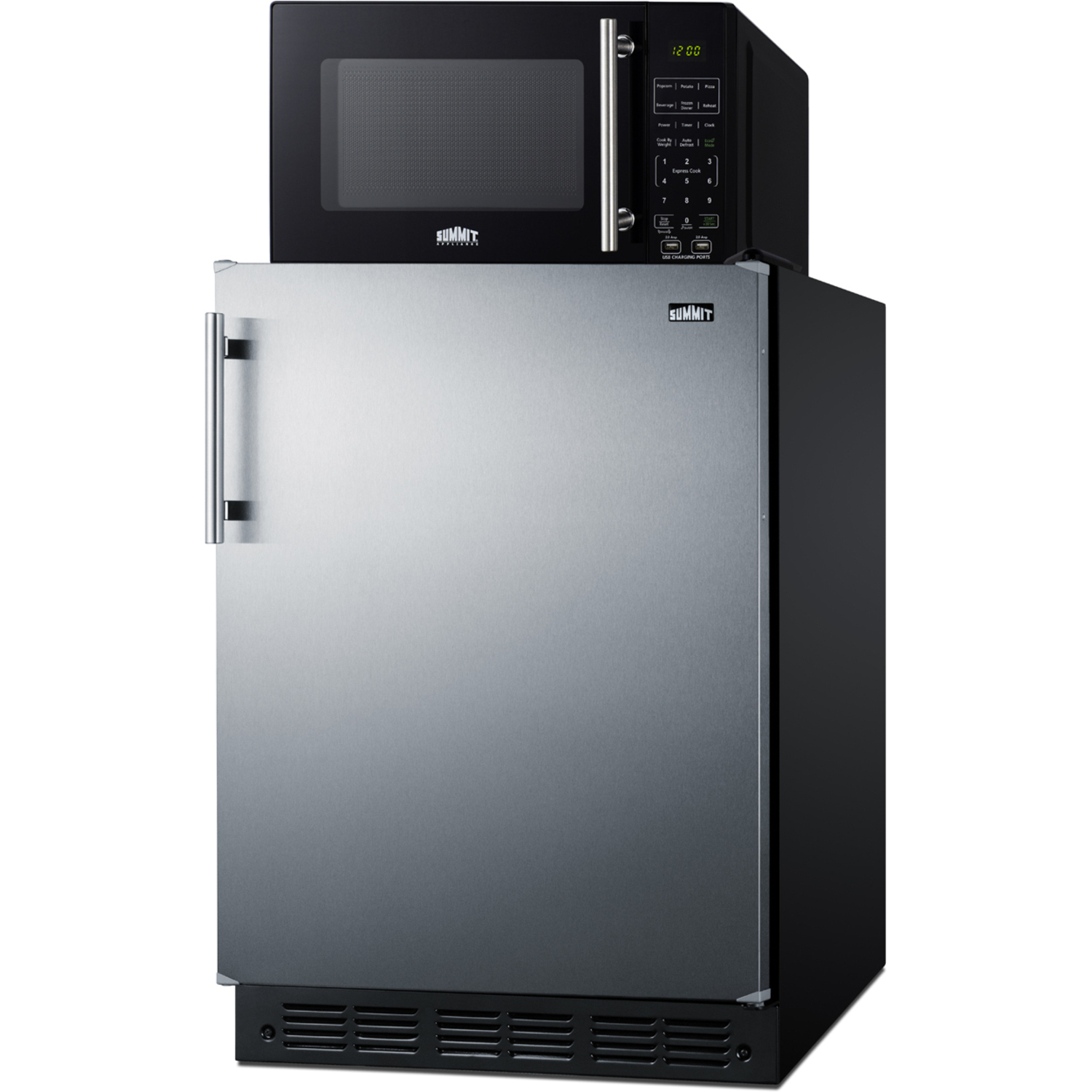

Summit Combination all-refrigerator and microwave, 7.61101e+011, MRF708BLSSA

Summit's innovative MRF series offers combination refrigerator-microwaves with one-plug operation, ideal for hotels, offices, efficiency apartments, and other settings looking to maximize user convenience.

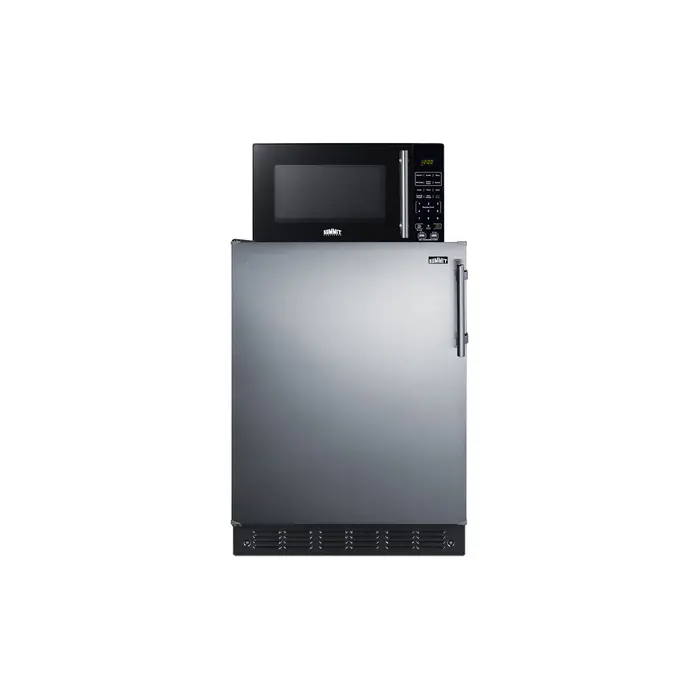

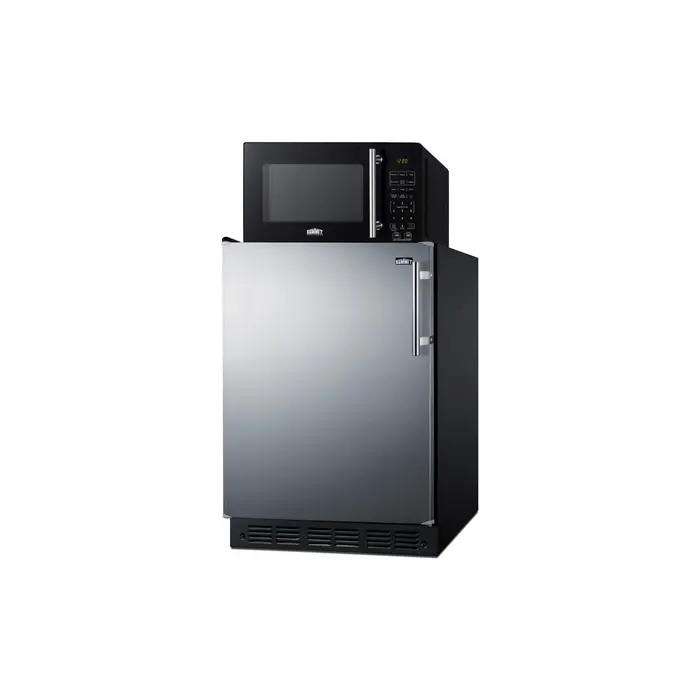

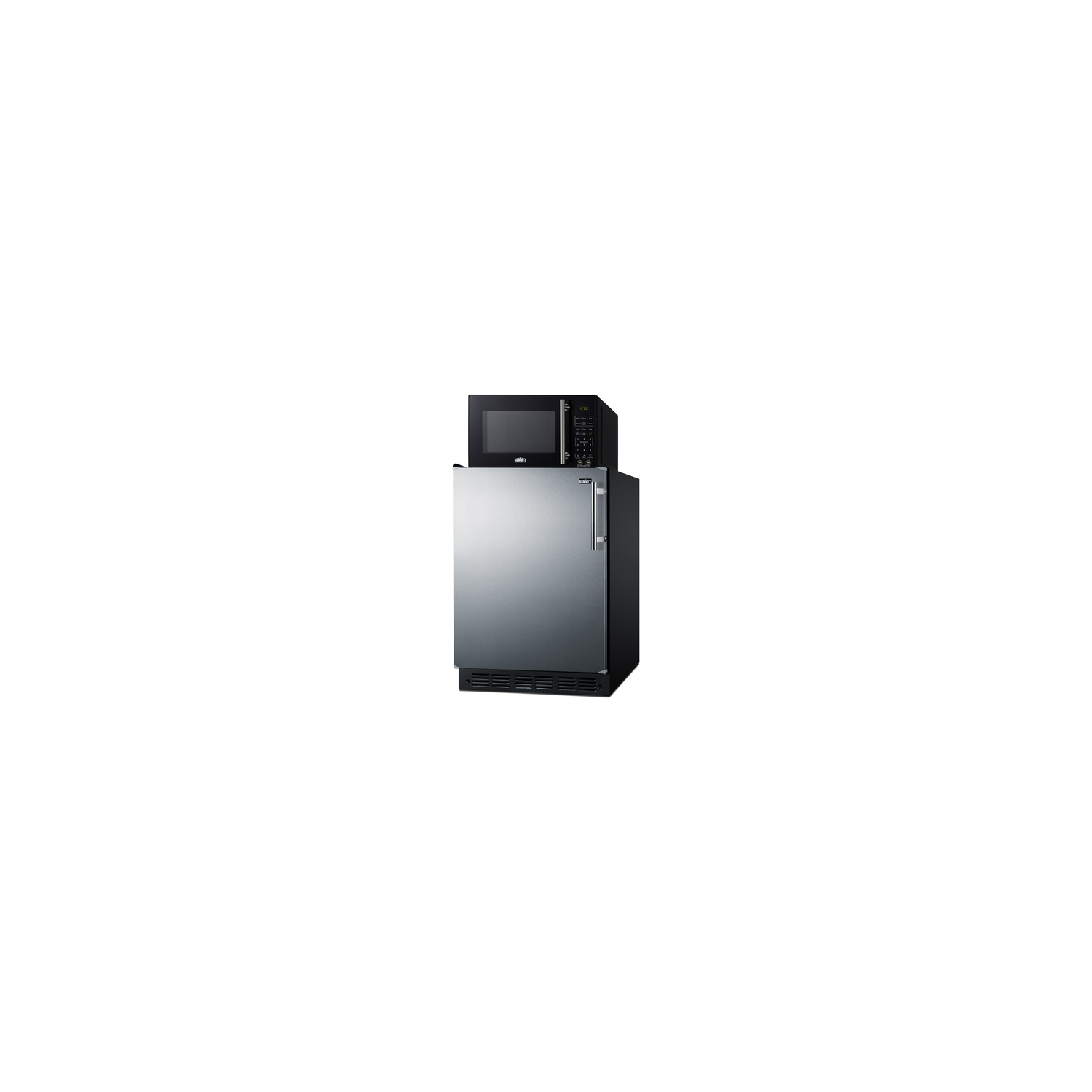

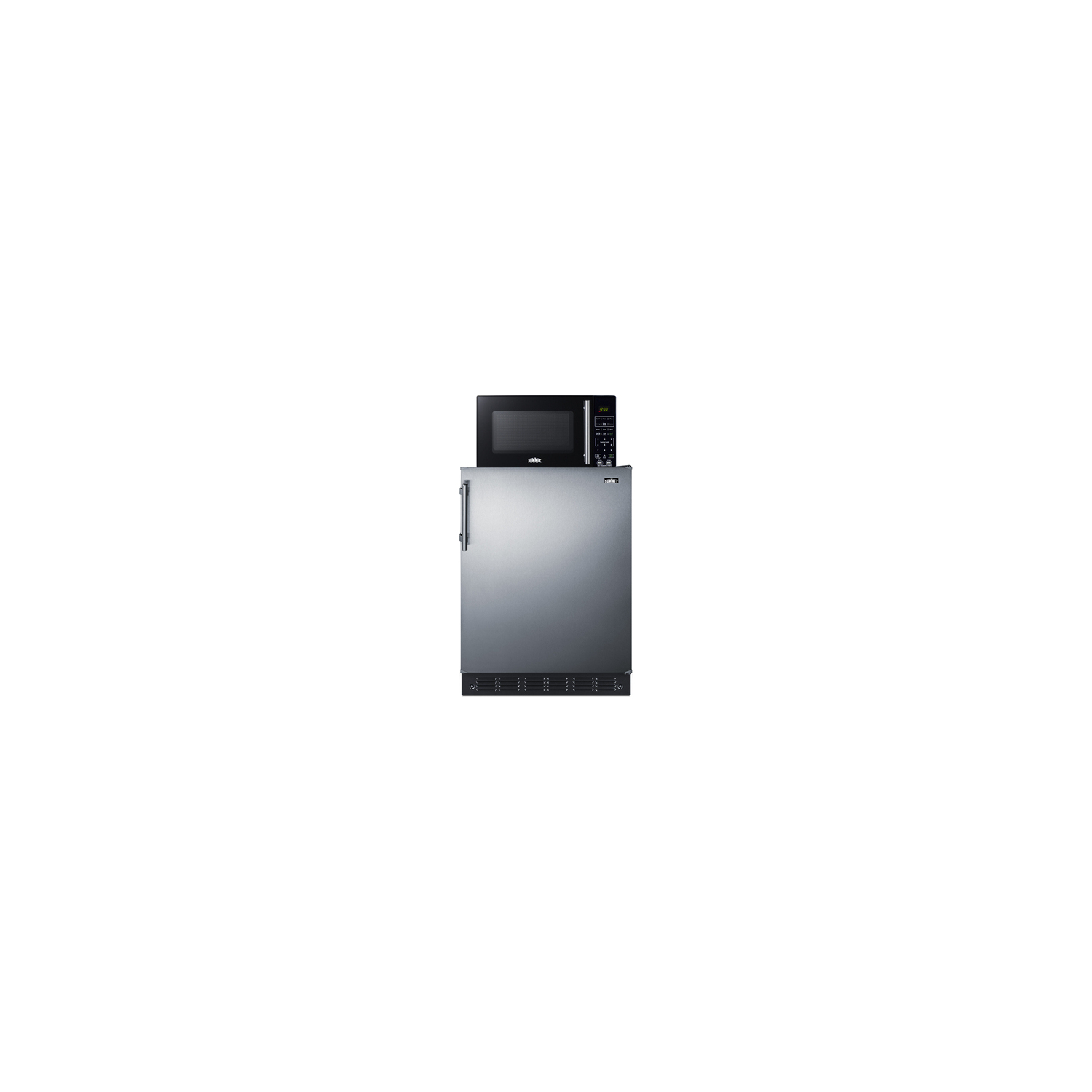

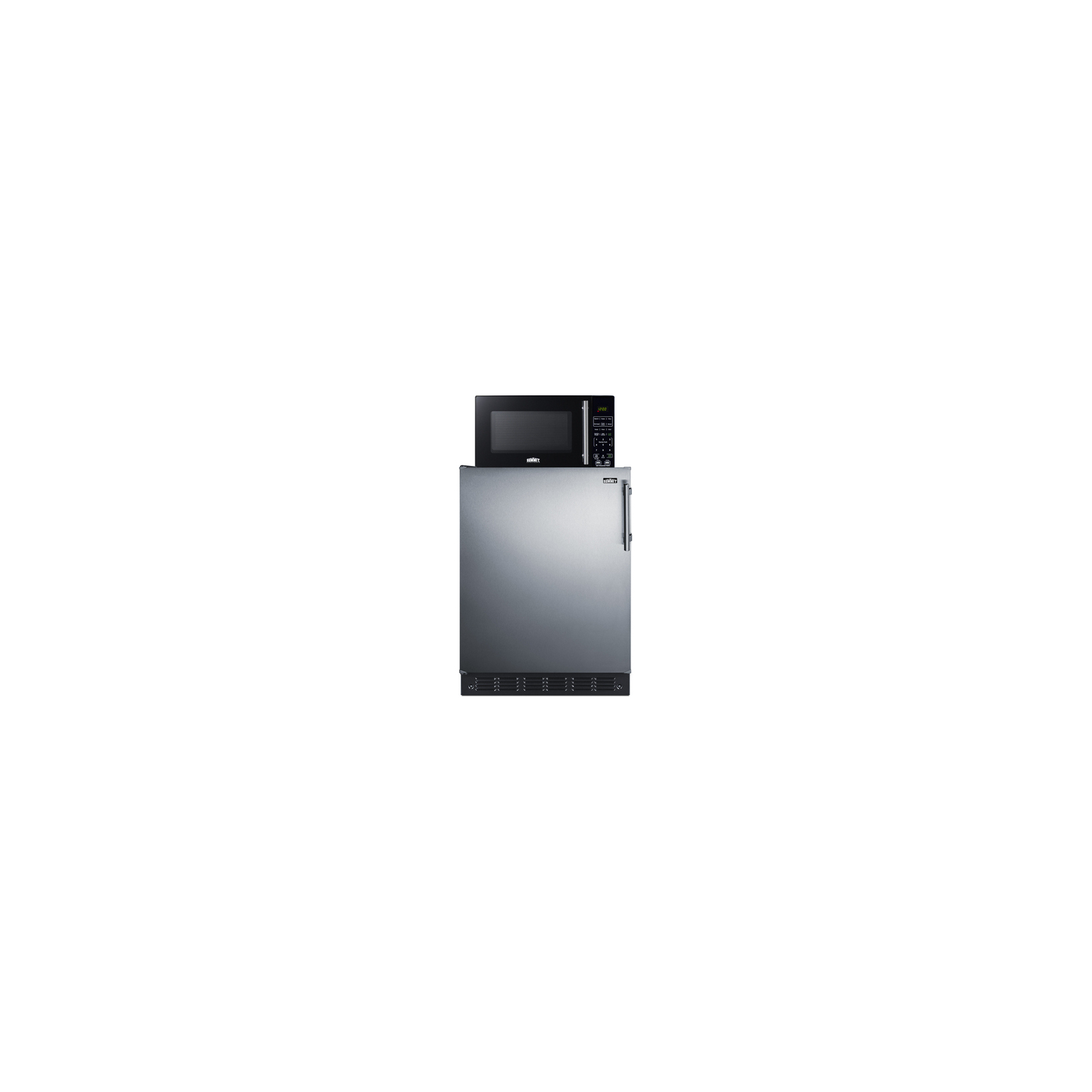

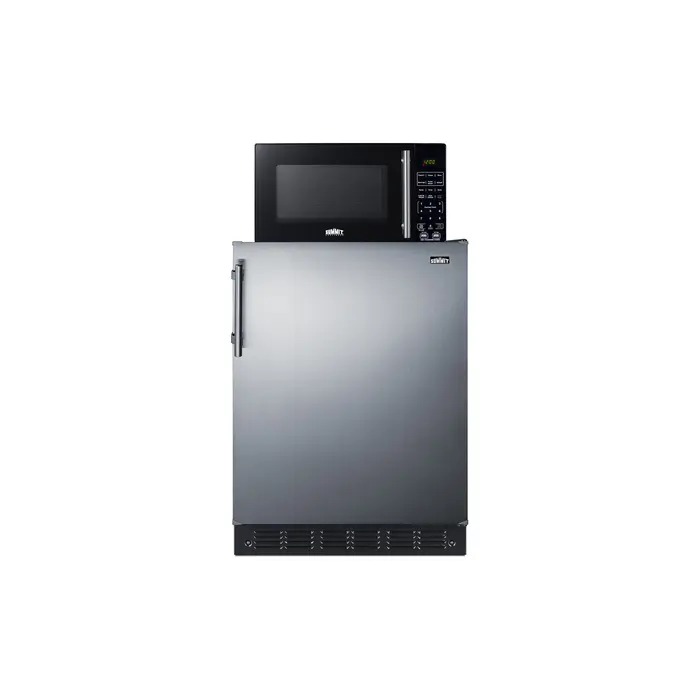

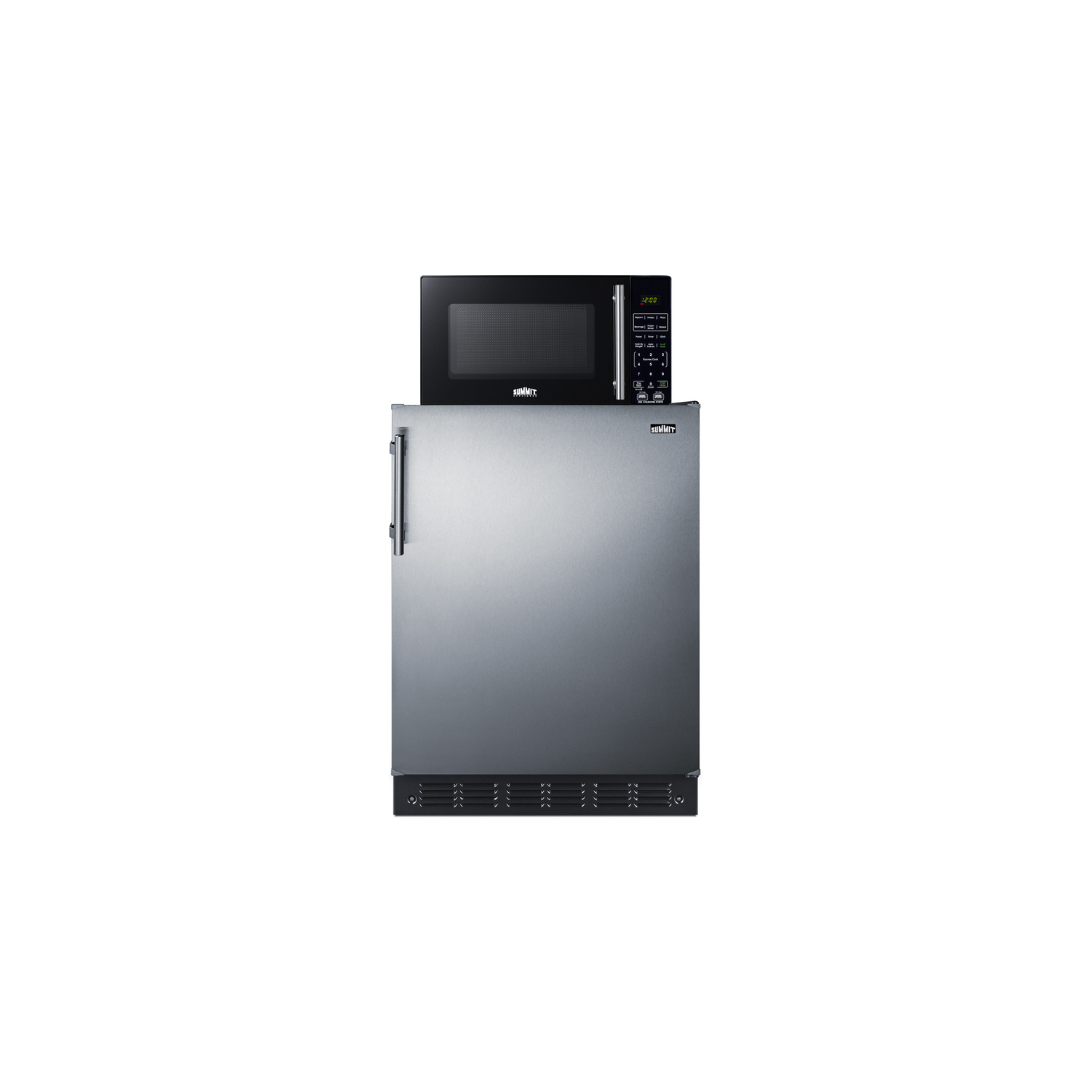

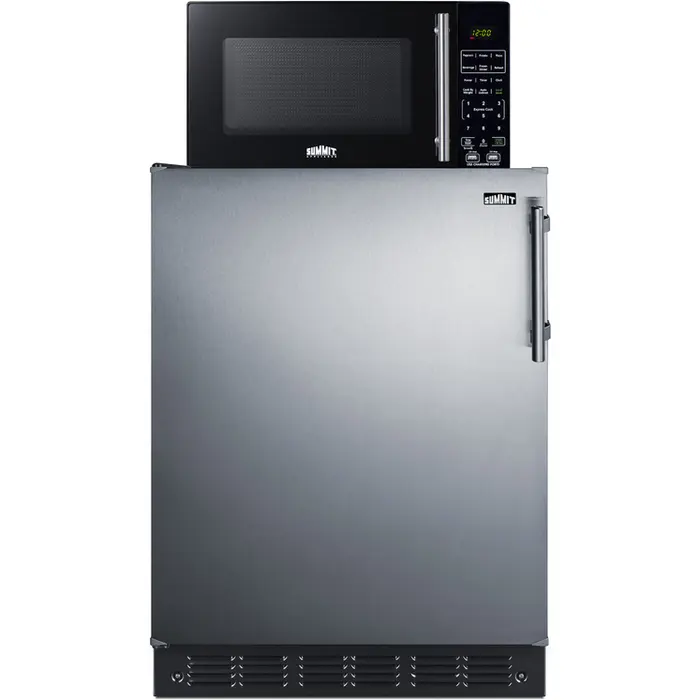

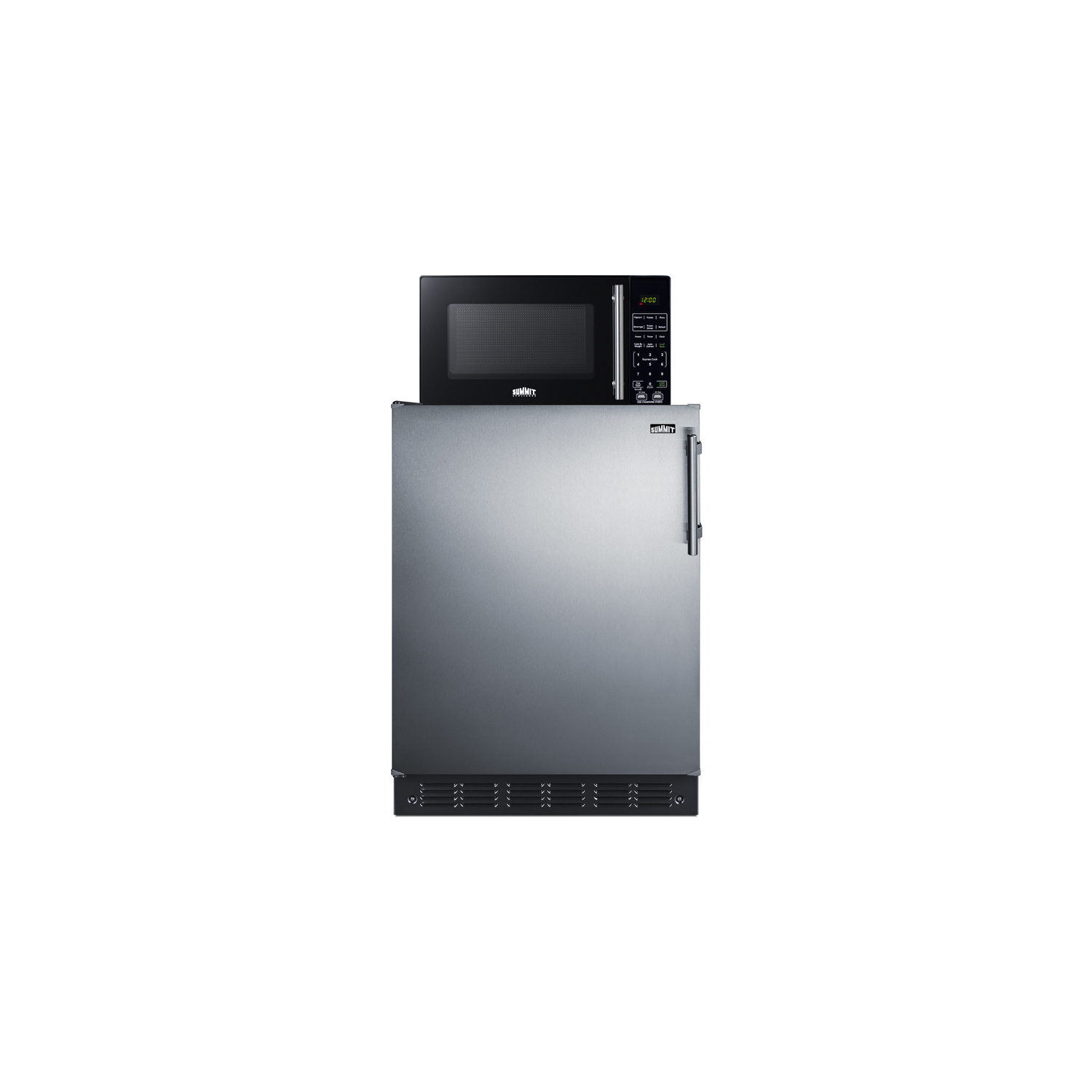

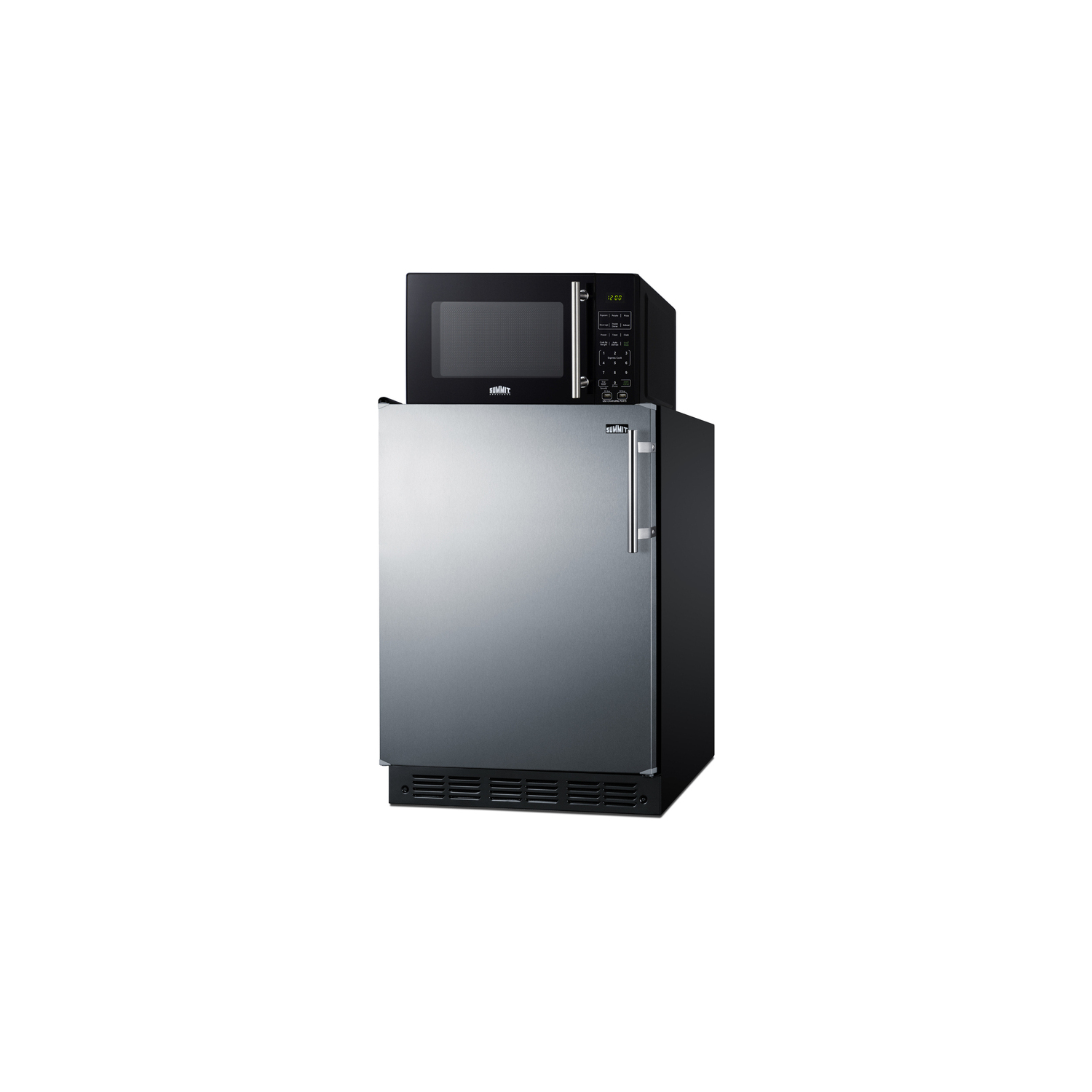

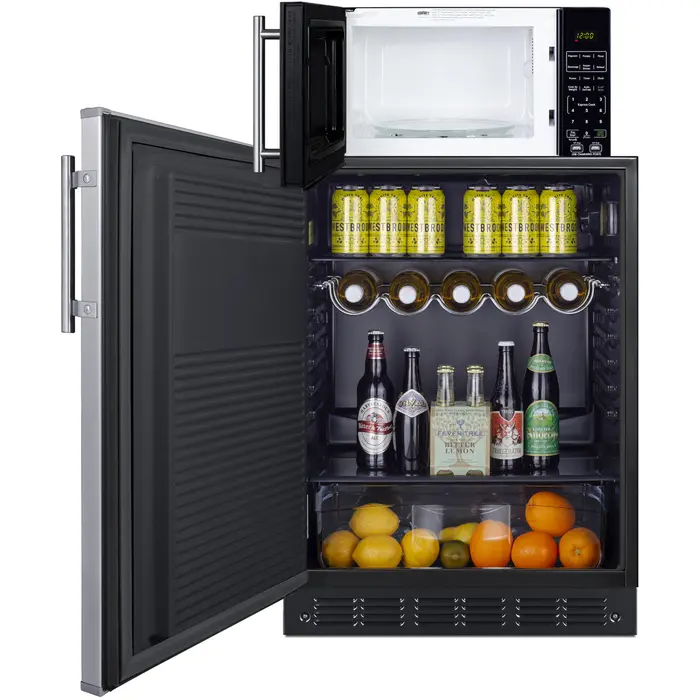

Model MRF708BLSSA combines a fully featured microwave with our European FF708BLSS freezerless refrigerator. The complete unit is sized at just 24" wide for an easy fit. The refrigerator's reversible door make it easy to adjust to any setting, while the microwave includes a built-in allocator, allowing you to plug the fridge directly into the microwave. The allocator will temporarily disable the power of the refrigerator while the microwave is in use, resuming after the cooking cycle is complete in order to protect against power surges.

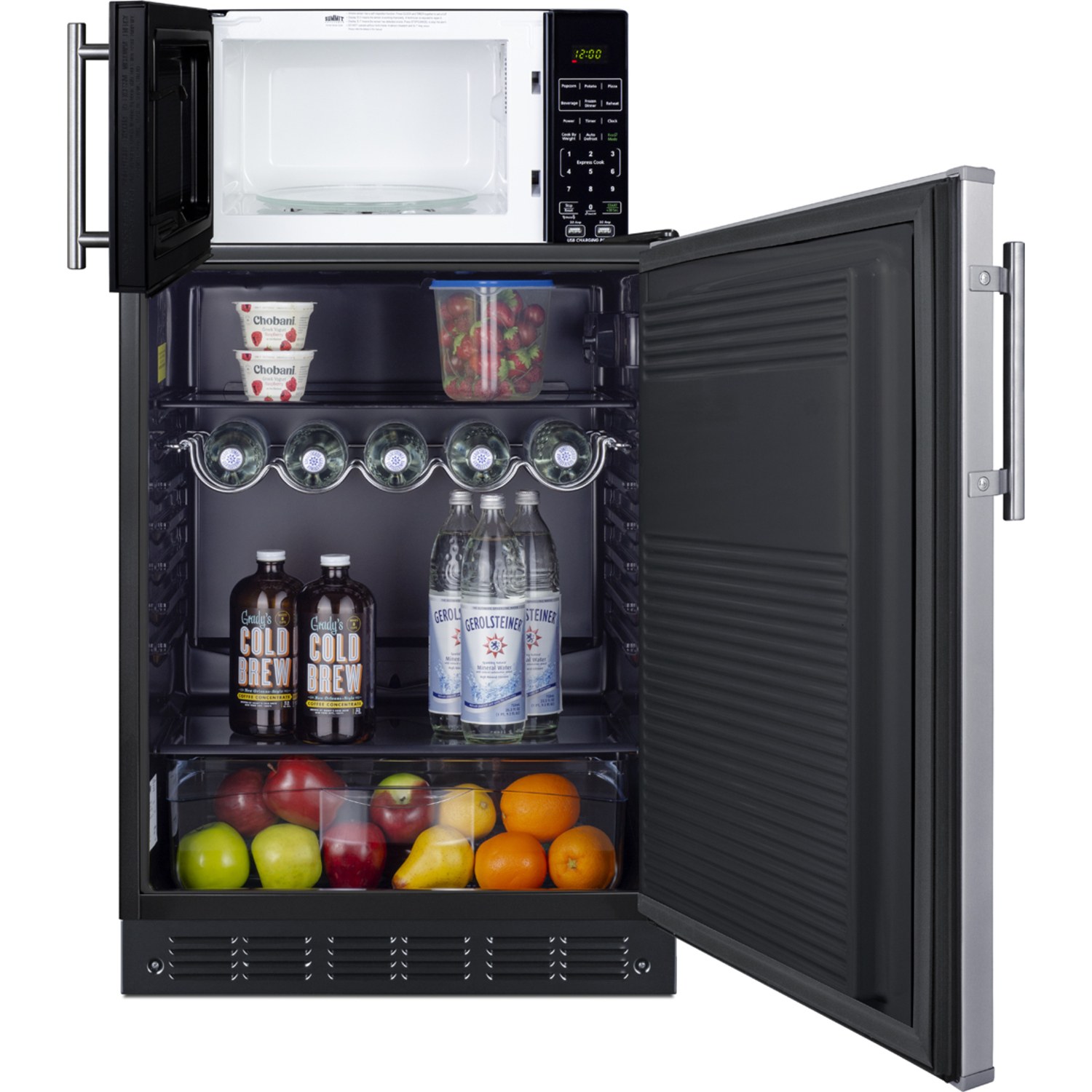

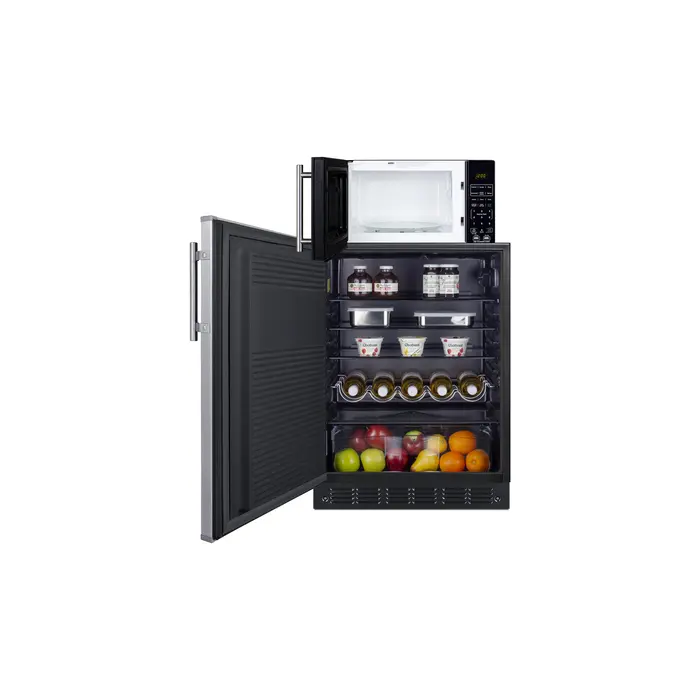

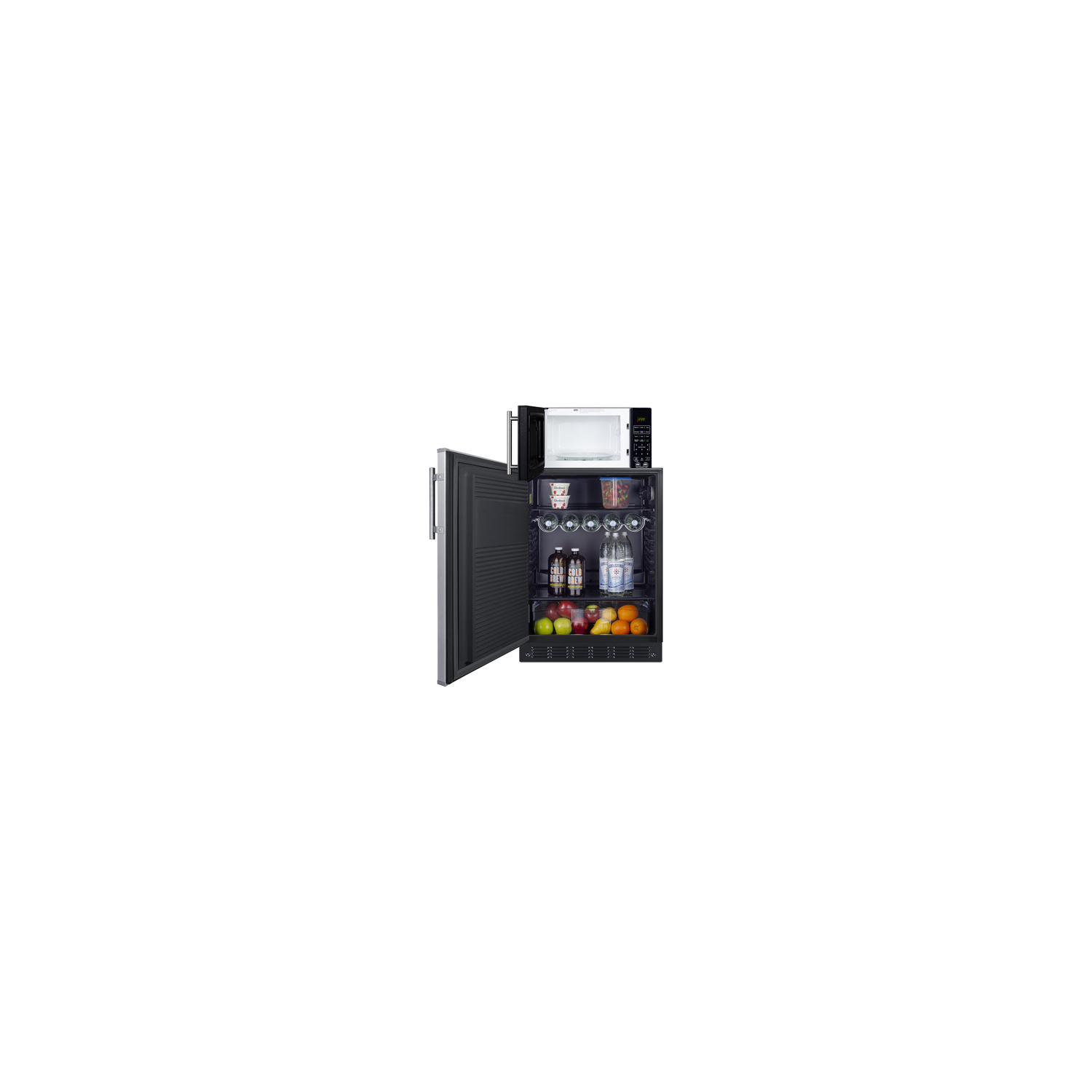

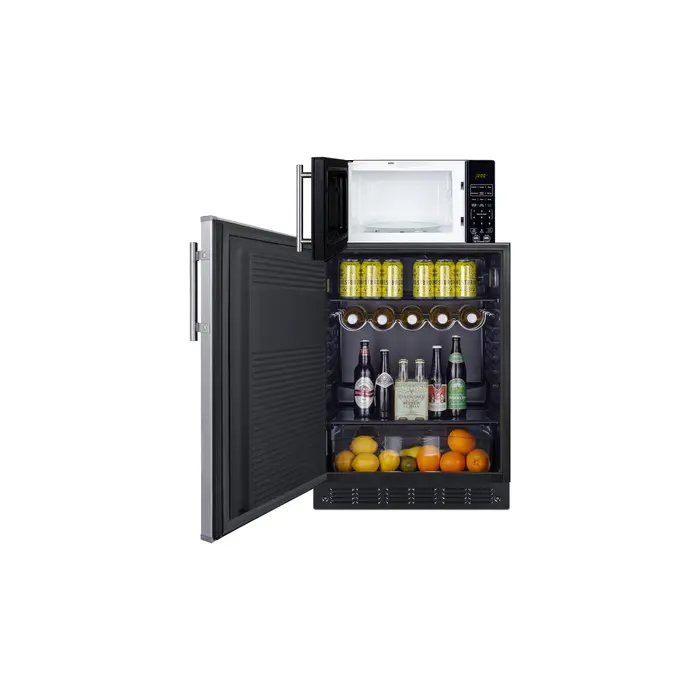

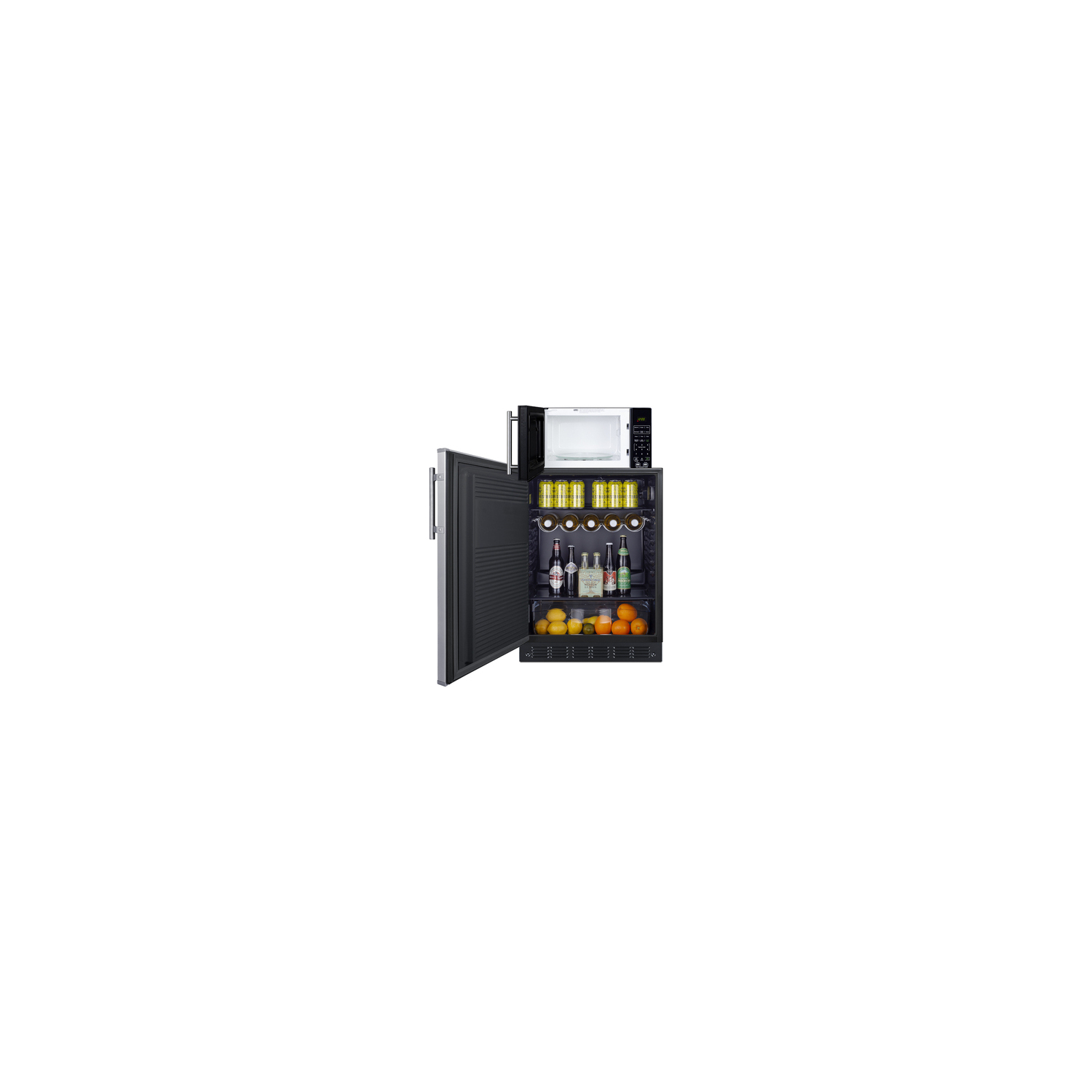

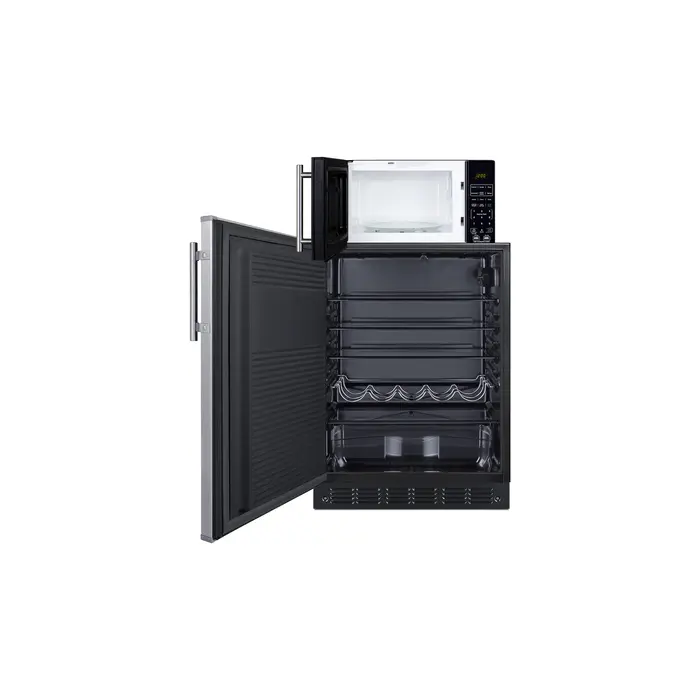

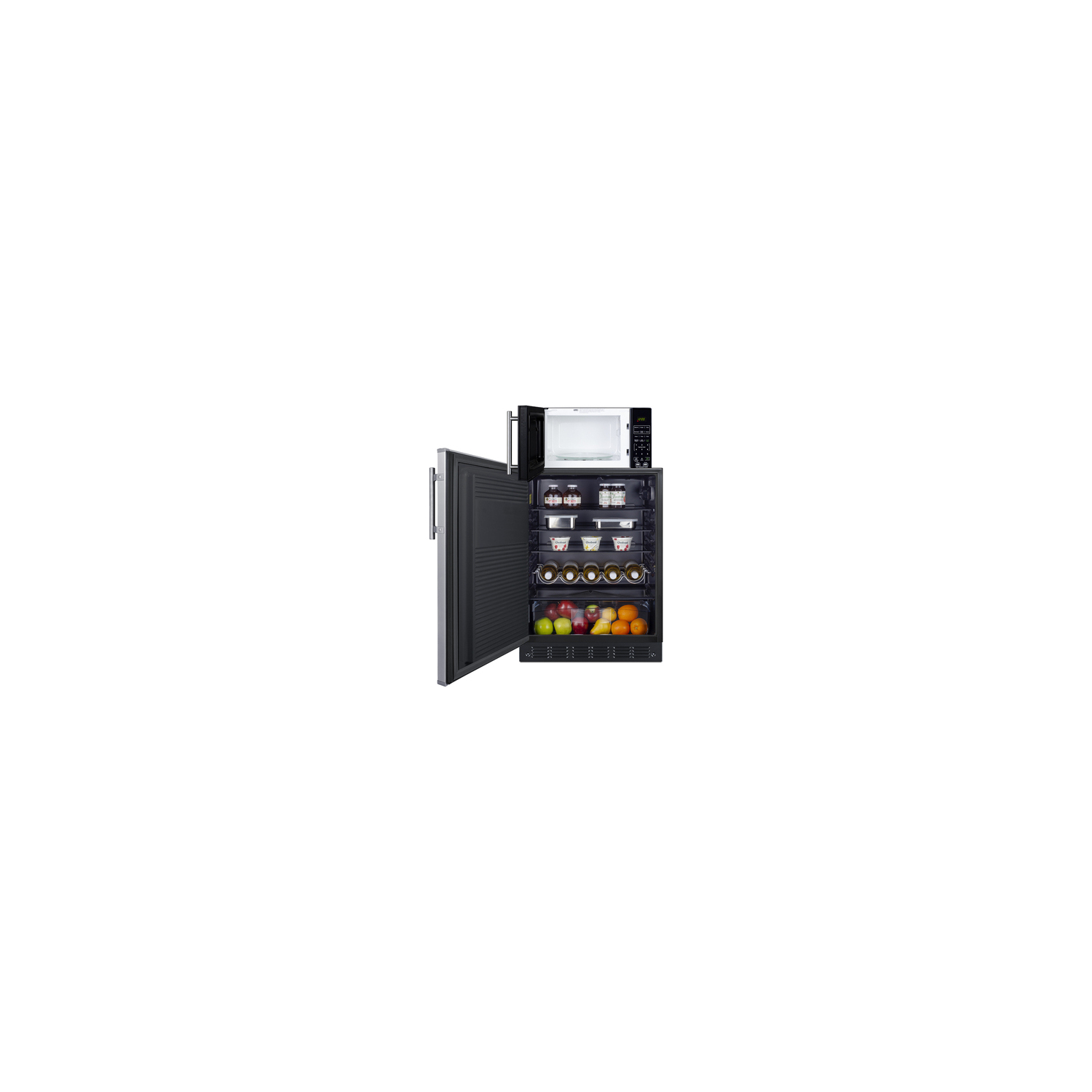

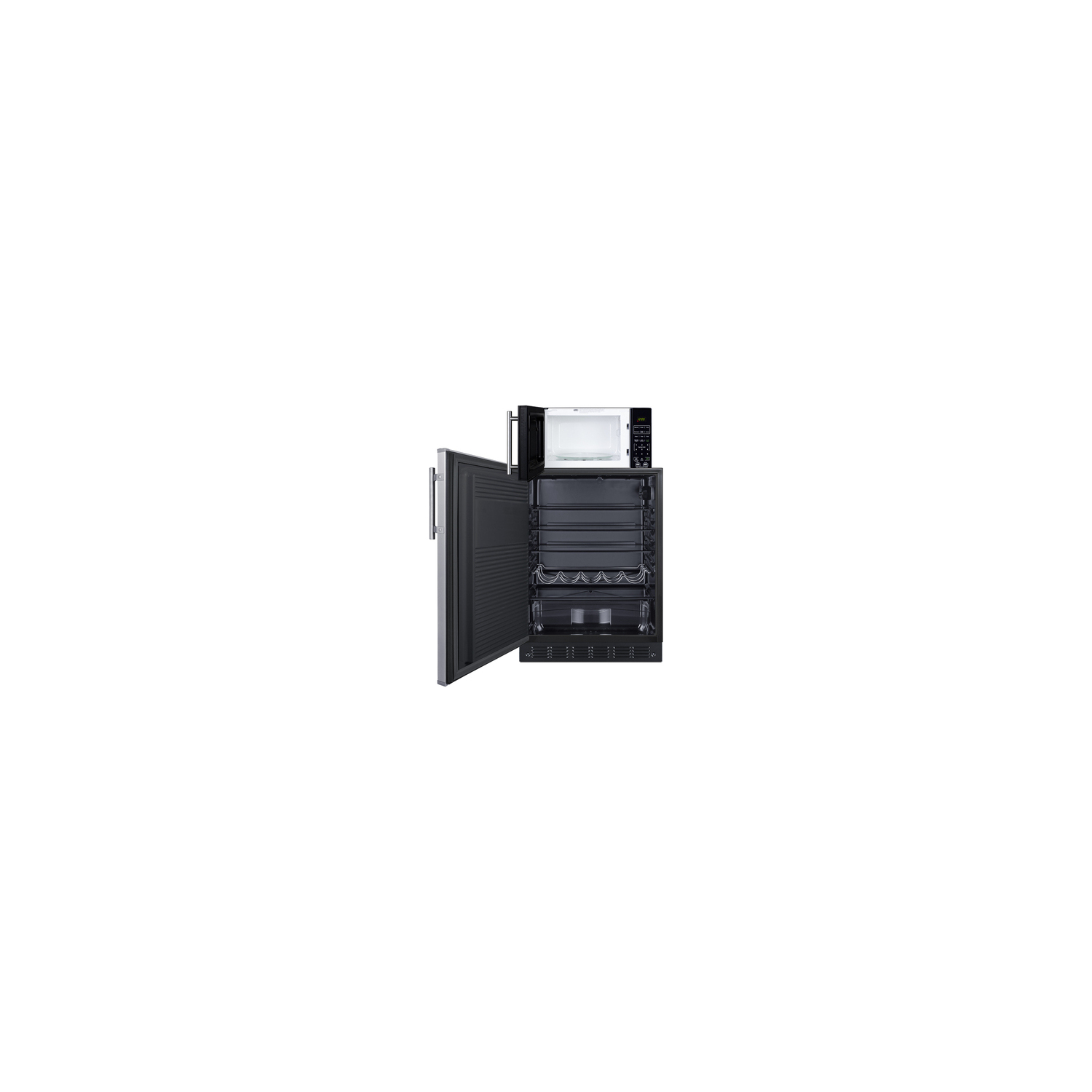

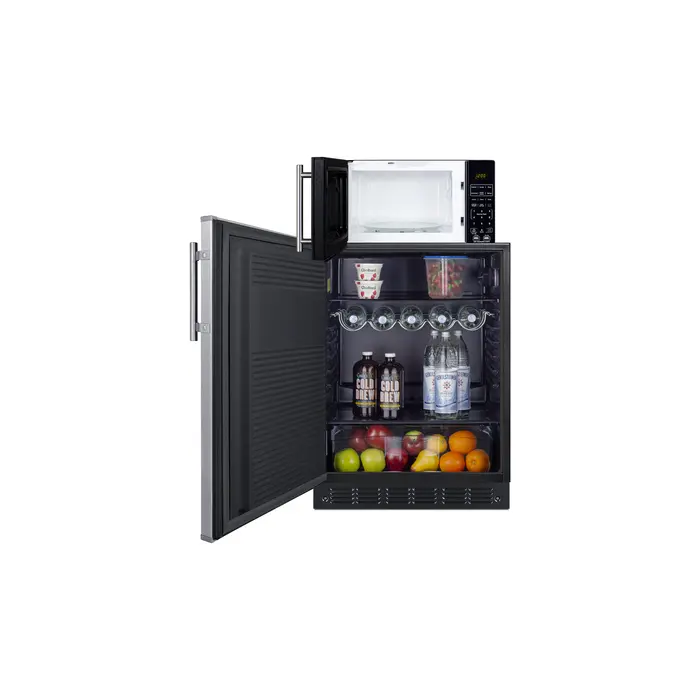

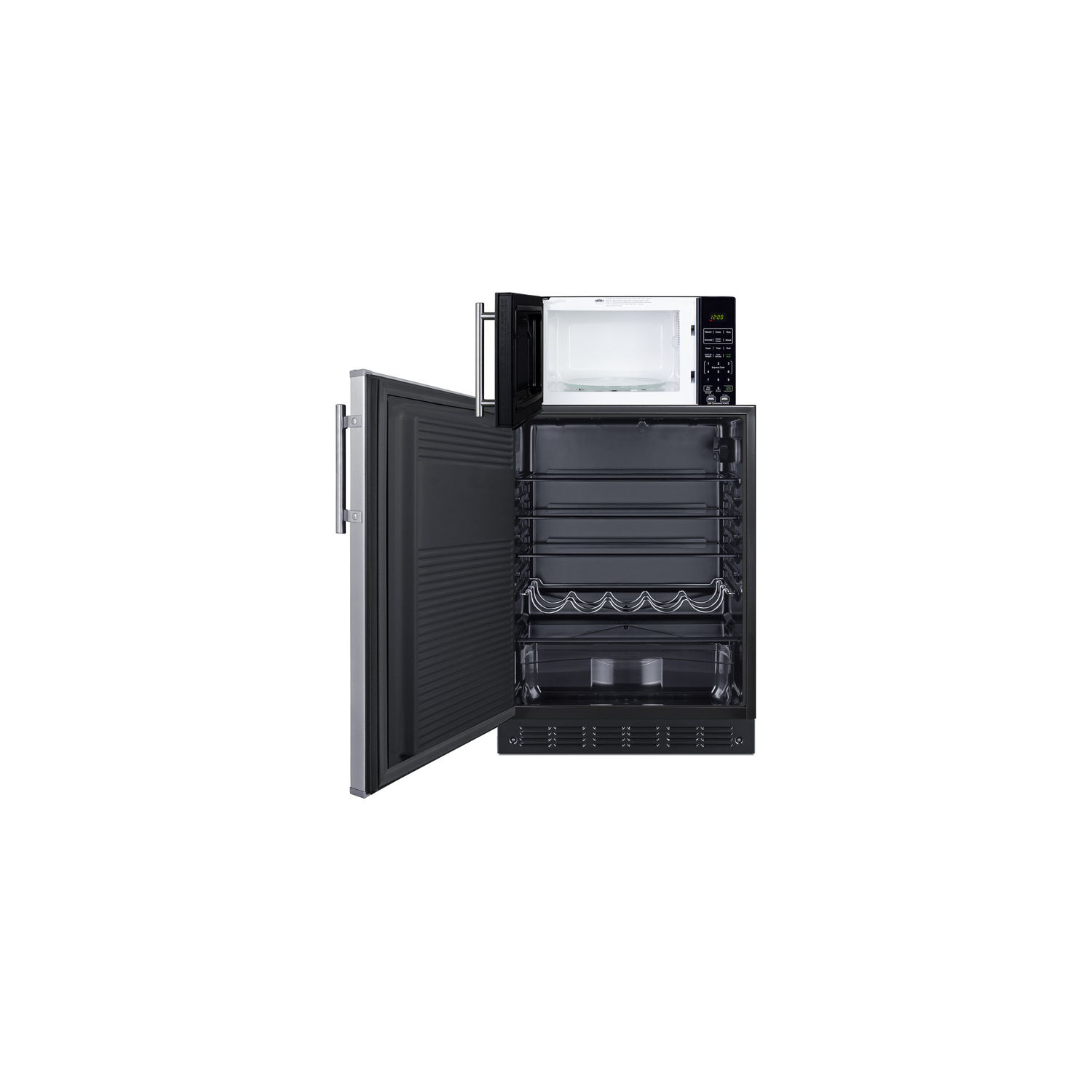

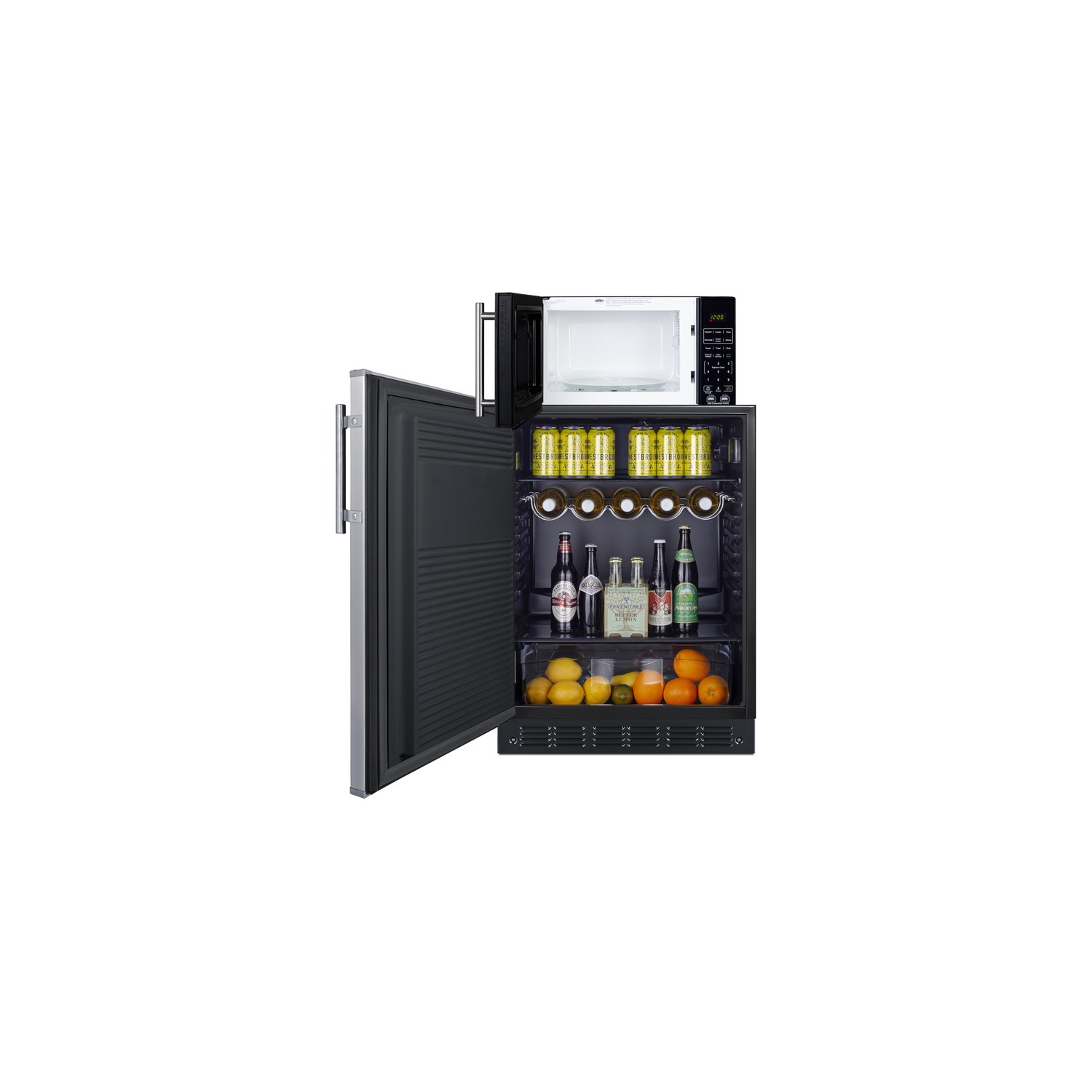

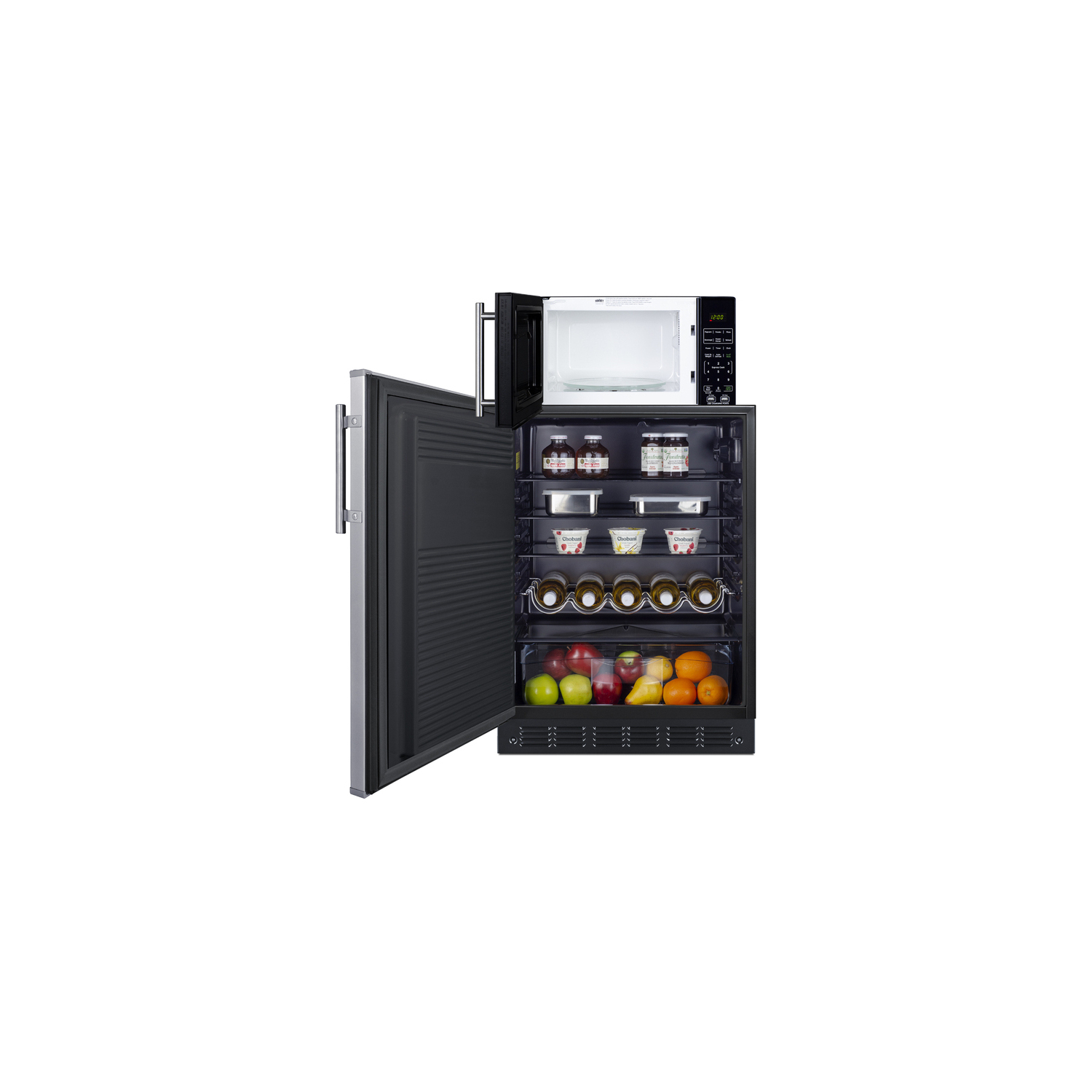

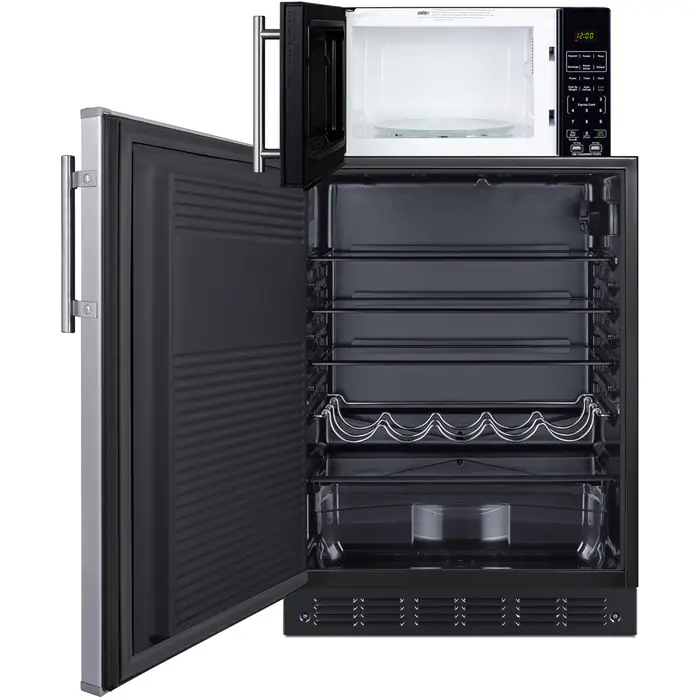

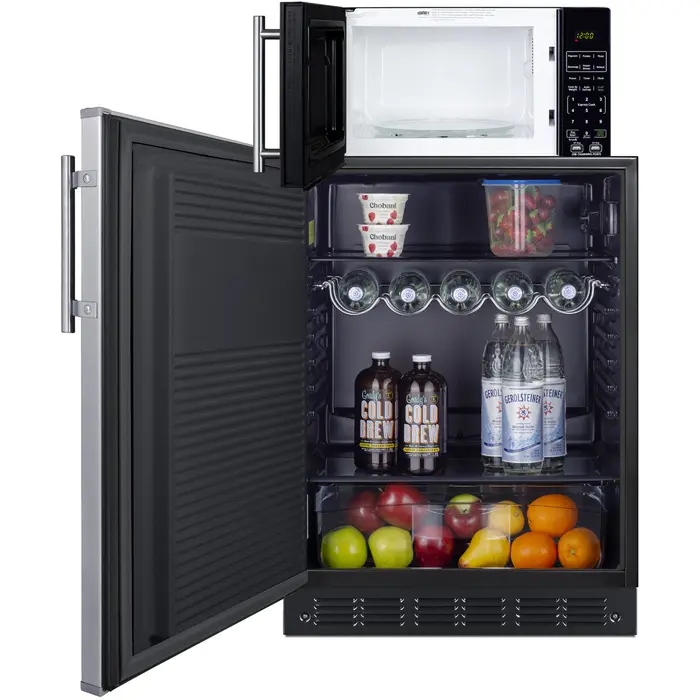

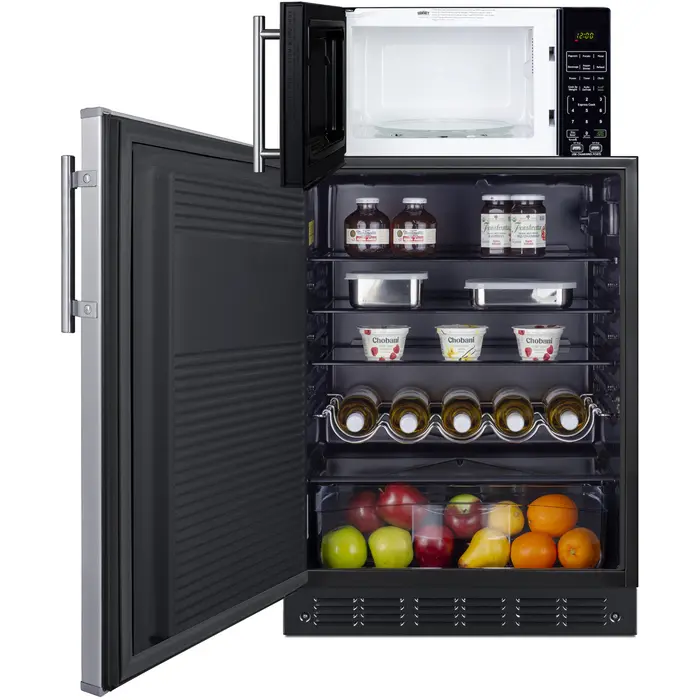

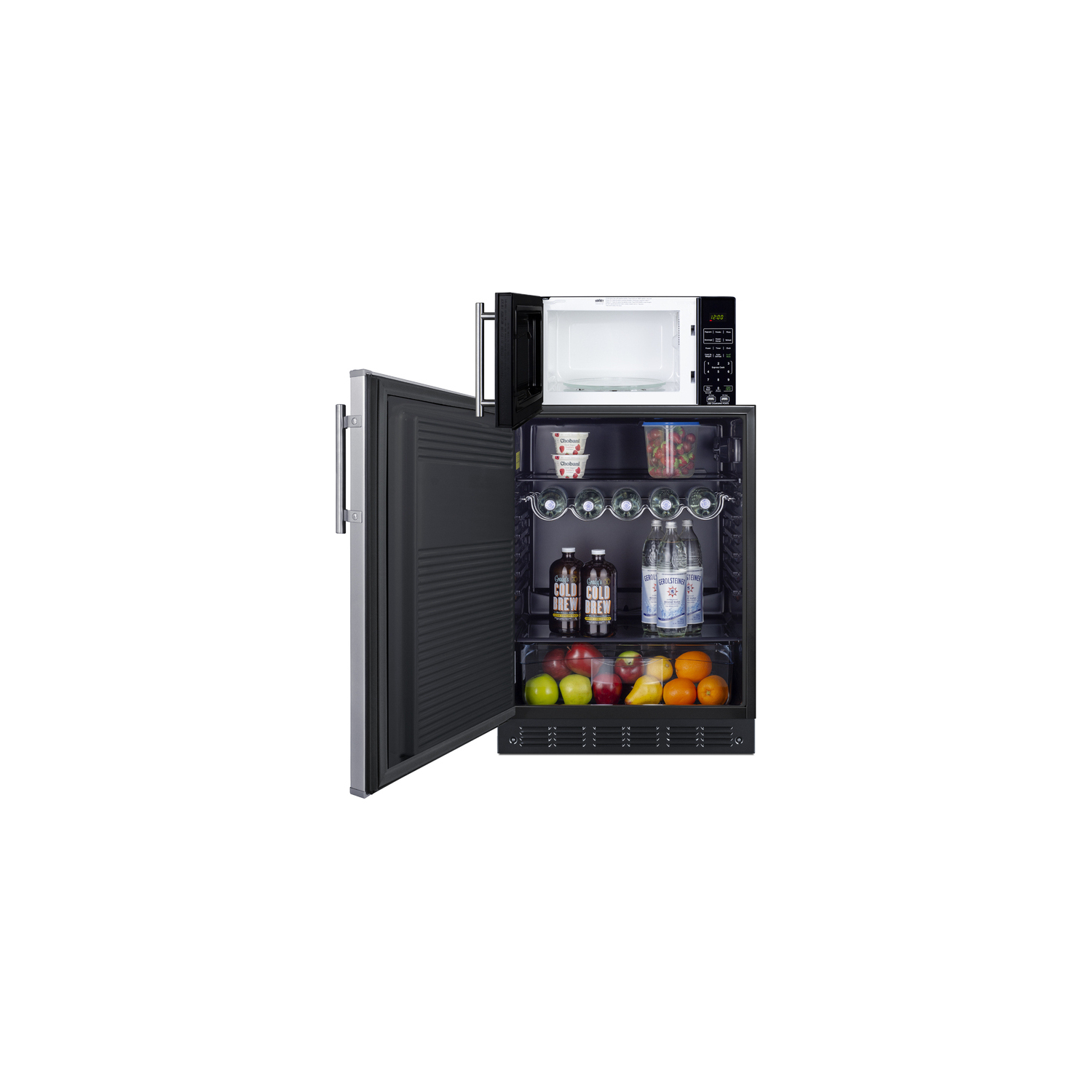

The FF708BLSS offers a full 5.1 cu.ft. of interior storage capacity, one of the largest in this size class of all-refrigerators. Automatic defrost ensures minimum user maintenance. Adjustable glass shelves, removable scalloped steel bottle rack, and a clear crisper drawer offer convenient storage. The flat door liner allows the interior to accommodate deeper shelves. This unit comes with a reversible stainless steel door and pro style handle.

The SM903BSA1 microwave comes in a jet black finish with an easy-grab handle in brushed stainless steel to complement the refrigerator. Two USB ports are included to charge mobile devices. The microwave has a door window and digital touchpad control panel with one-touch settings for common meals, including frozen food, potatoes, pizza, and popcorn. The display and end-of-cycle alerts can be disabled and muted as needed. We include two brackets that let you set the microwave on top of the refrigerator and gently secure with included adhesive.

The MRF708BLSSA ships on one pallet in three boxes (refrigerator FF708BLSS, microwave SM903BSA1, and our MRFKit bracket set). If you prefer to have the unit fully assembled before shipping, add option "MRFAssembly" upon order (note: this will incur an additional charge and added lead time). Alternate combinations can be created by ordering your choice of a Summit refrigerator, the SM903BSA1 microwave, and our MRFKit. For more information, contact our product specialists at 718-893-3900 ext. 507.

SPECIFICATIONS

Overview

Nominal Height 44.0" (112 cm)

Height of Cabinet 43.01" (109 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.38" (57 cm)

Depth with Handle 24.0" (61 cm)

Depth with door at 90° 44.25" (112 cm)

Capacity 5.1 cu.ft. (144 L)

Defrost Type Cycle

Door Stainless Steel

Cabinet Black

US Electrical Safety UL

Canadian Electrical Safety ULC

Amps 15.0

Voltage/Frequency 115 V AC/60 Hz

Weight 120.0 lbs. (54 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101103129

Microwave-Refrigerator

Refrigerator Included FF708BLSS

Refrigerator Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Shelf Type Glass

Shelf Qty 3

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Wine Bottle Shelving Yes

Thermostat Type Dial

Interior Light Yes

Refrigerant Type R600a

Refrigerant Amount 0.92 oz.

Refrigerator Interior Height 27.75" (70 cm)

Refrigerator Interior Width 21.0" (53 cm)

Refrigerator Interior Depth 18.0" (46 cm)

Compressor Step Height 5.5" (14 cm)

Compressor Step Width 21.0" (53 cm)

Compressor Step Depth 6.0" (15 cm)

Level Legs 2

Microwave Wattage 700.0

Microwave Controls Digital

Specialized Cooking Buttons Yes

FEATURES

Combination refrigerator/microwave All-refrigerator and compact microwave offer full storage and food prep convenience in a slim fit

FF708BLSS All-refrigerator 24 inch wide 5.1 cu.ft. European freezerless refrigerator with deluxe interior

SM903BSA1 microwave Compact microwave in black with window, stainless steel handle, and digital controls for easy operation

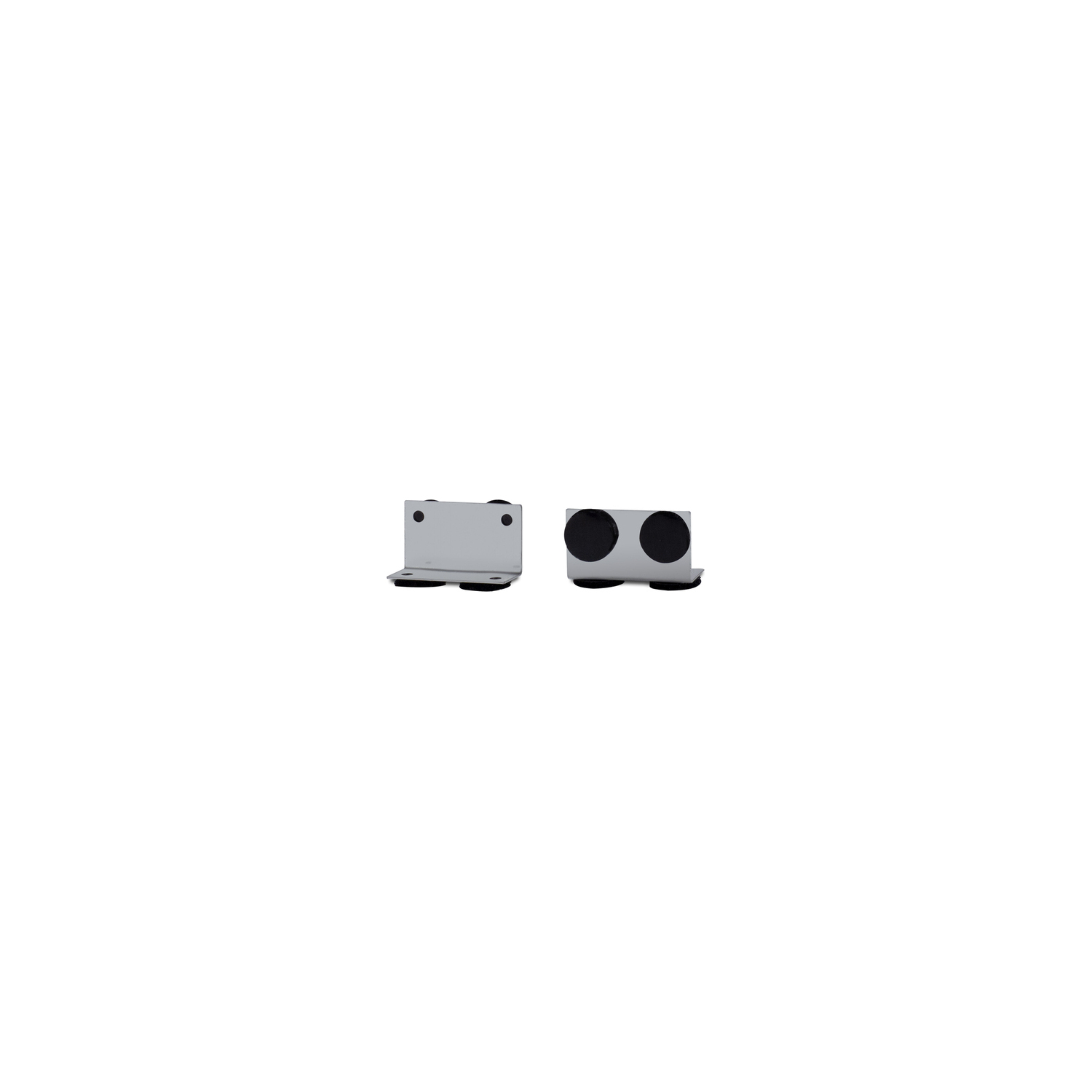

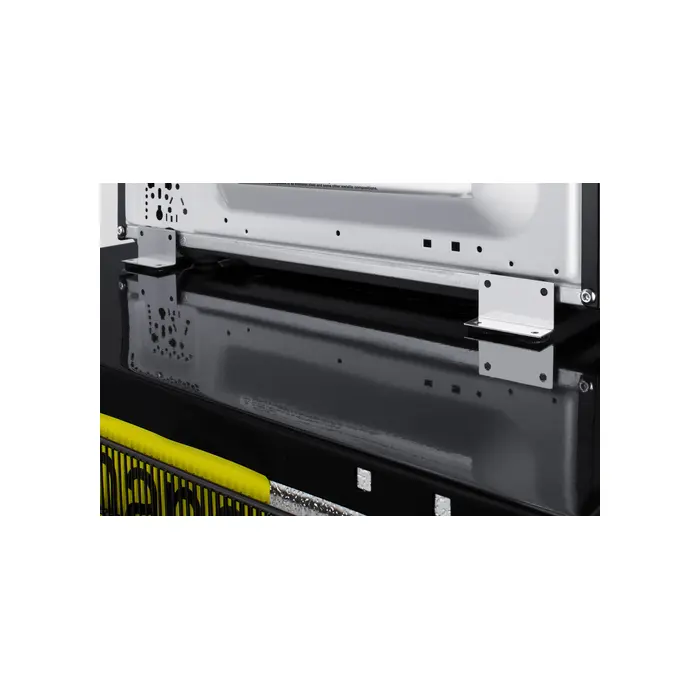

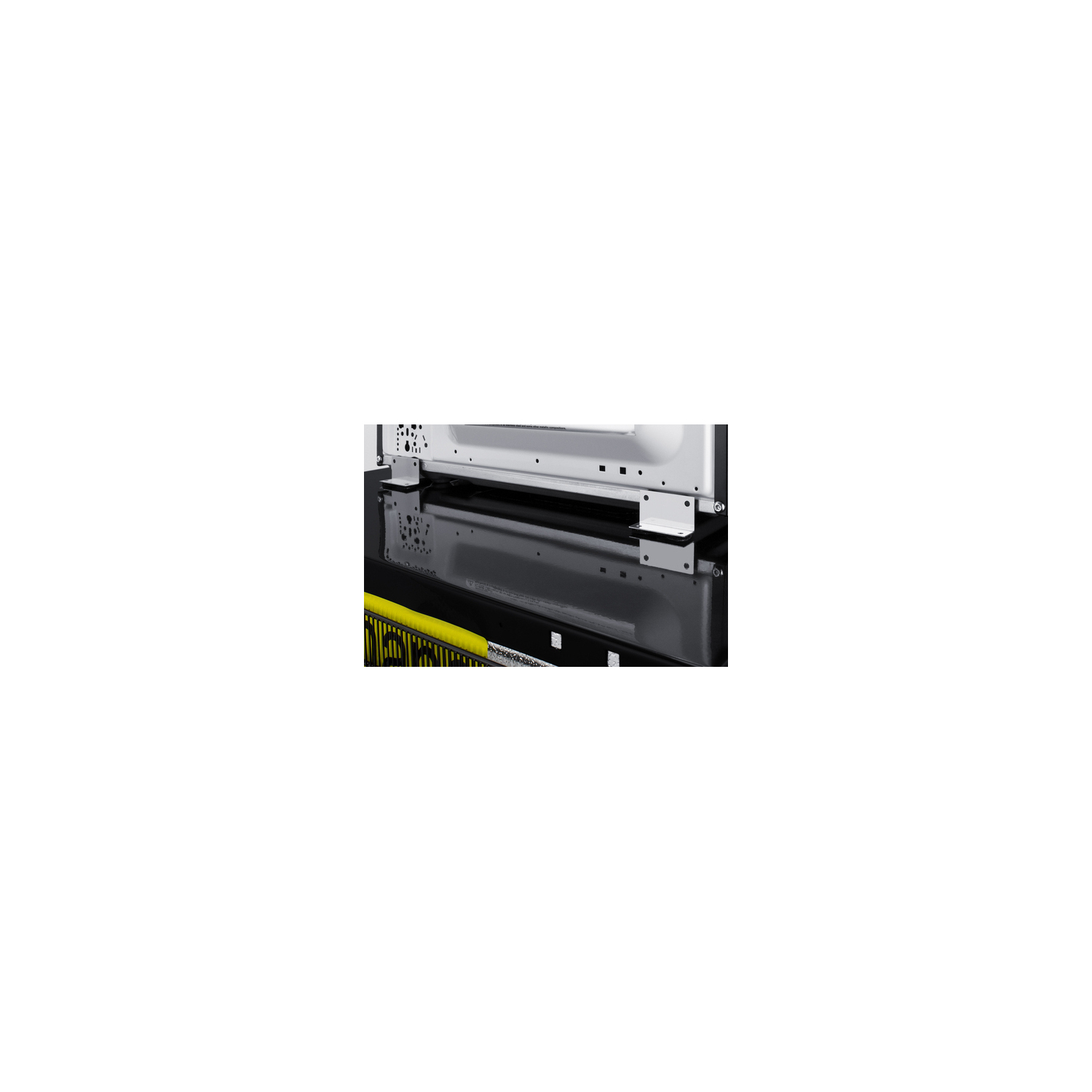

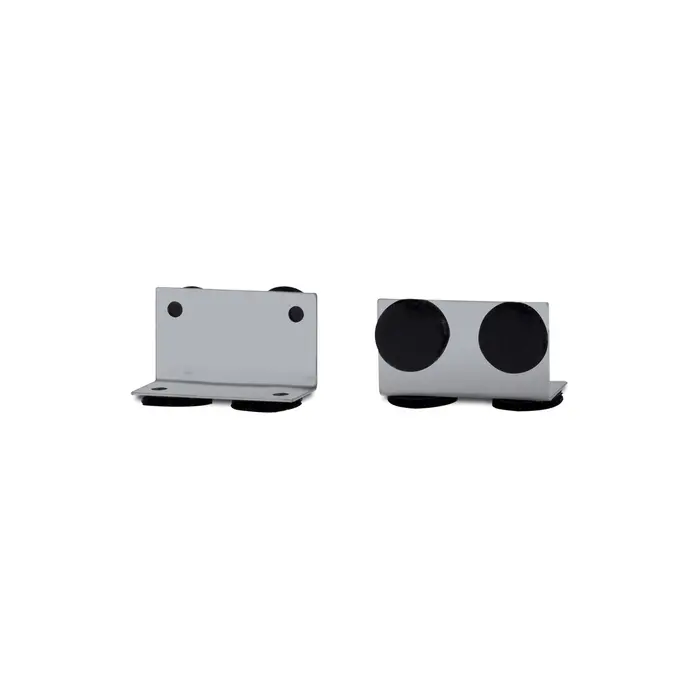

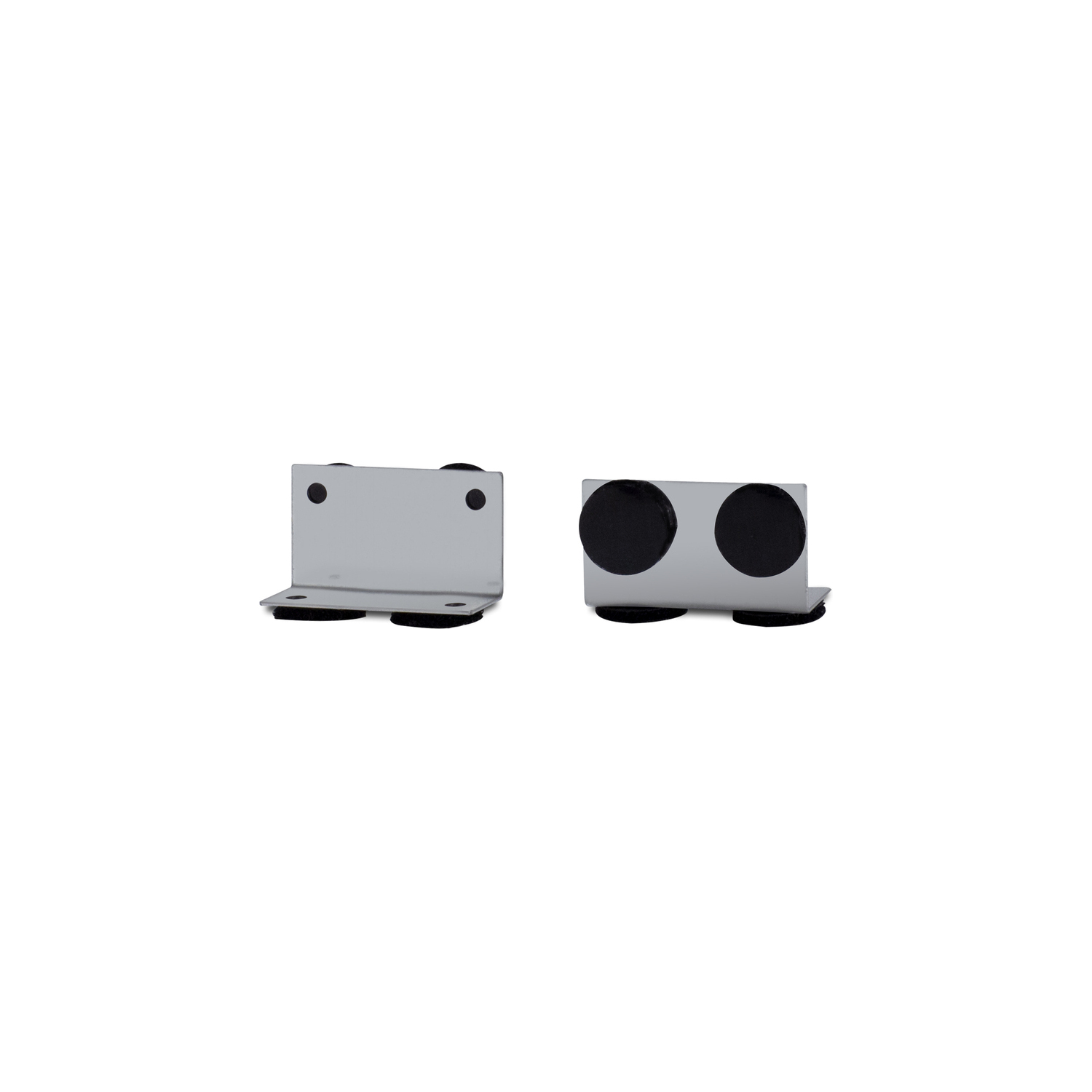

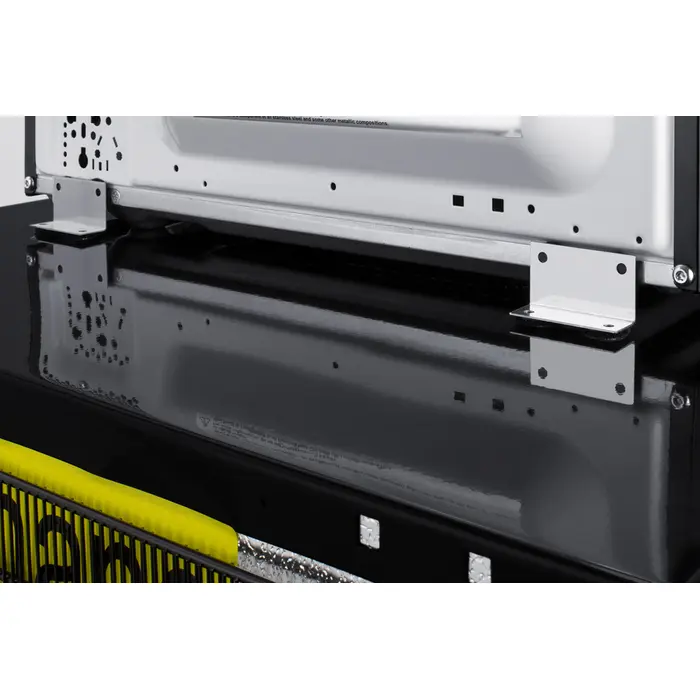

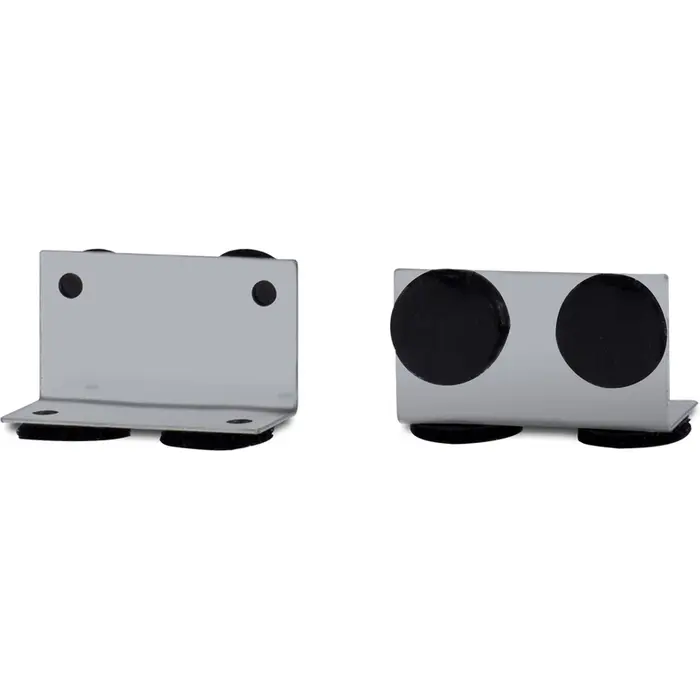

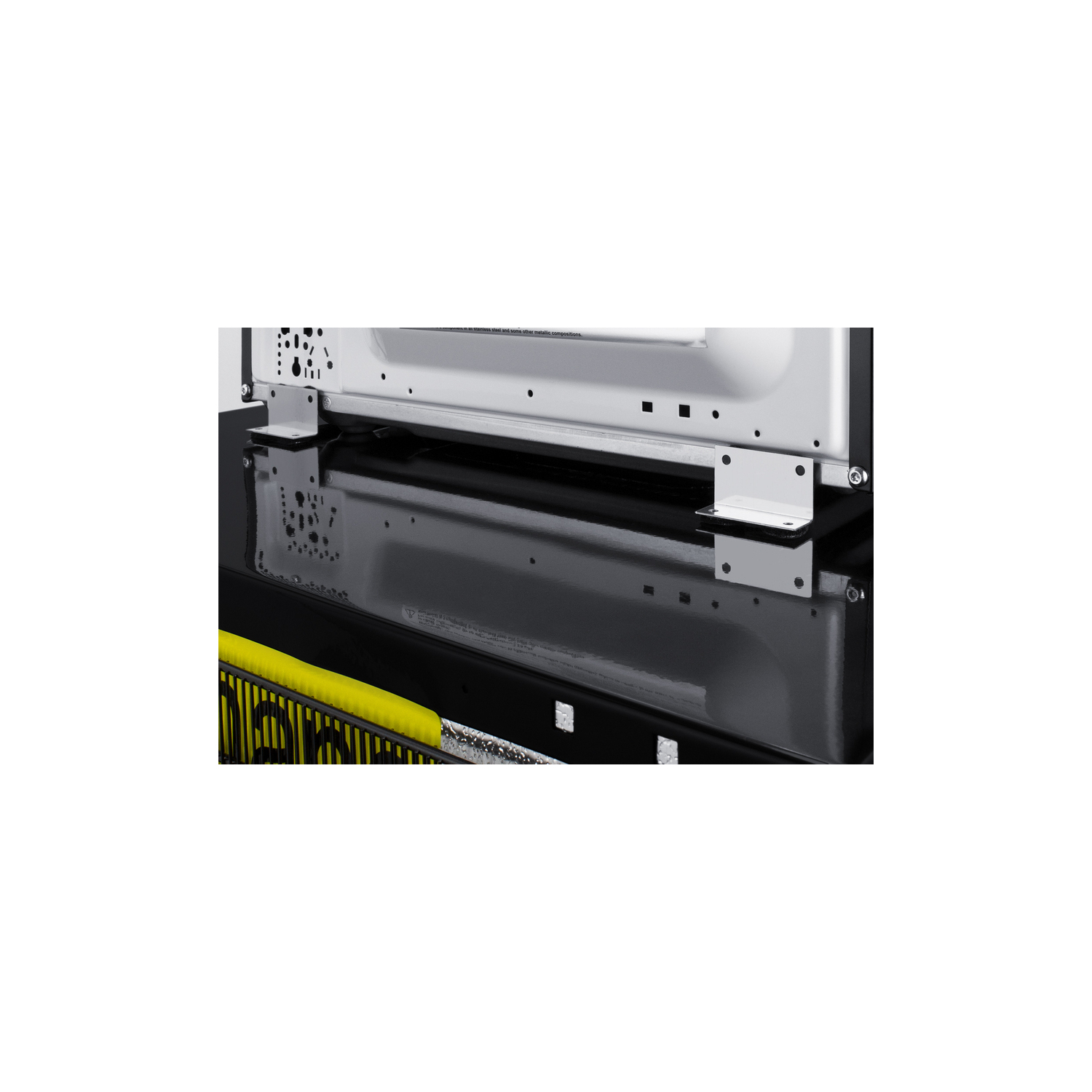

Easy assembly Ships with two removable brackets that let you secure the microwave on top of the refrigerator

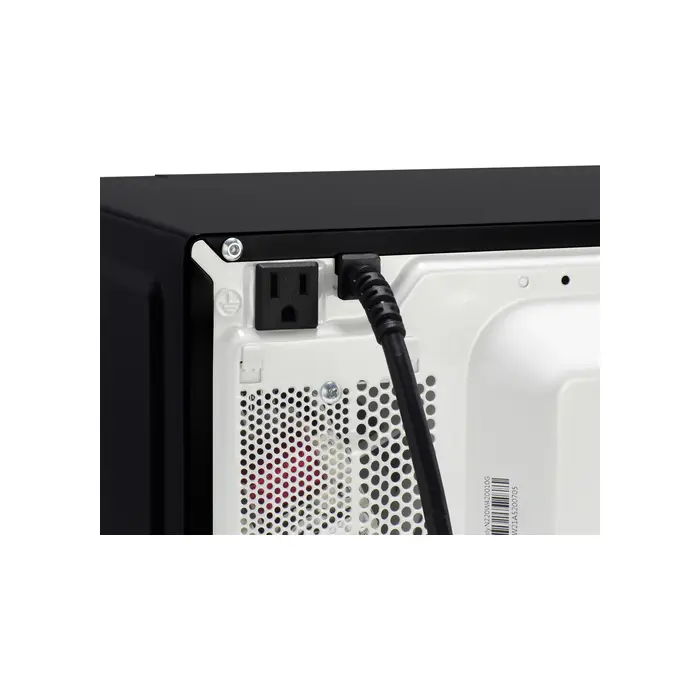

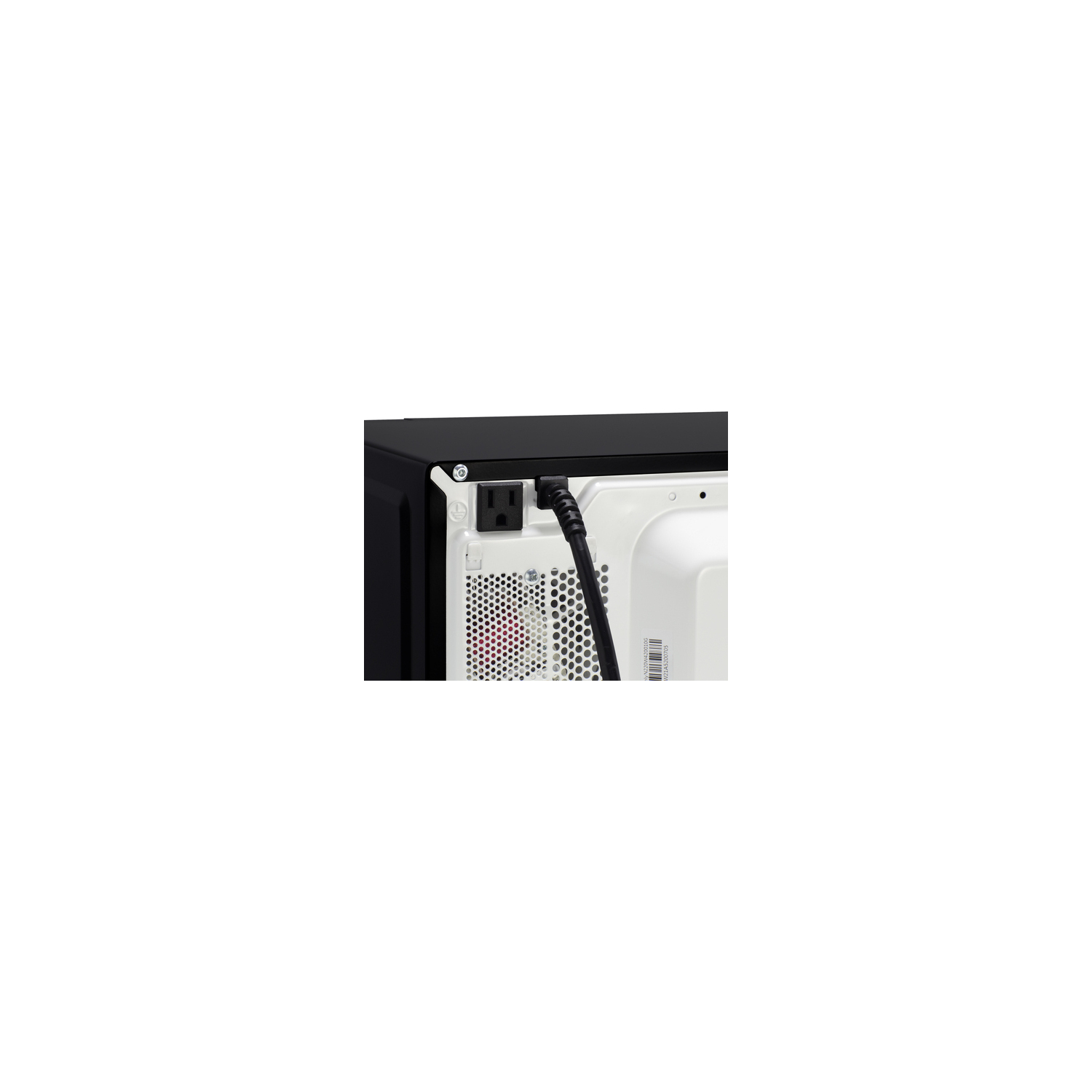

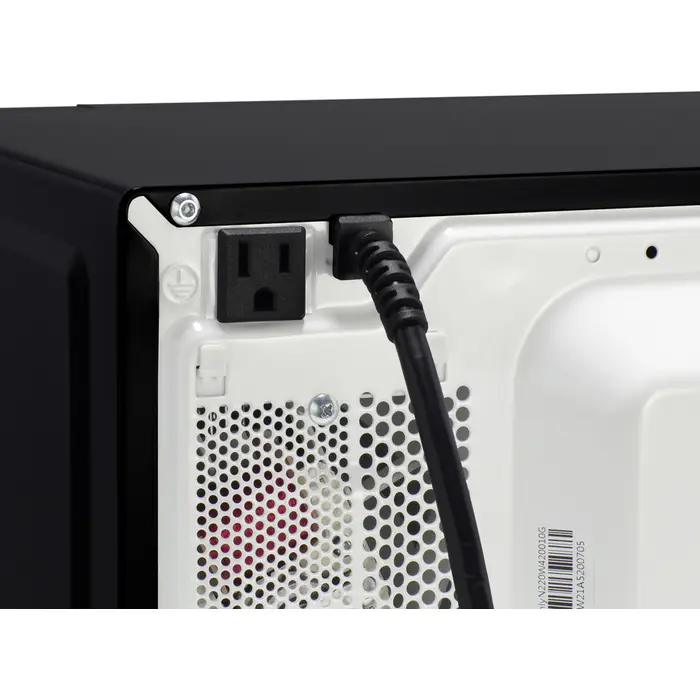

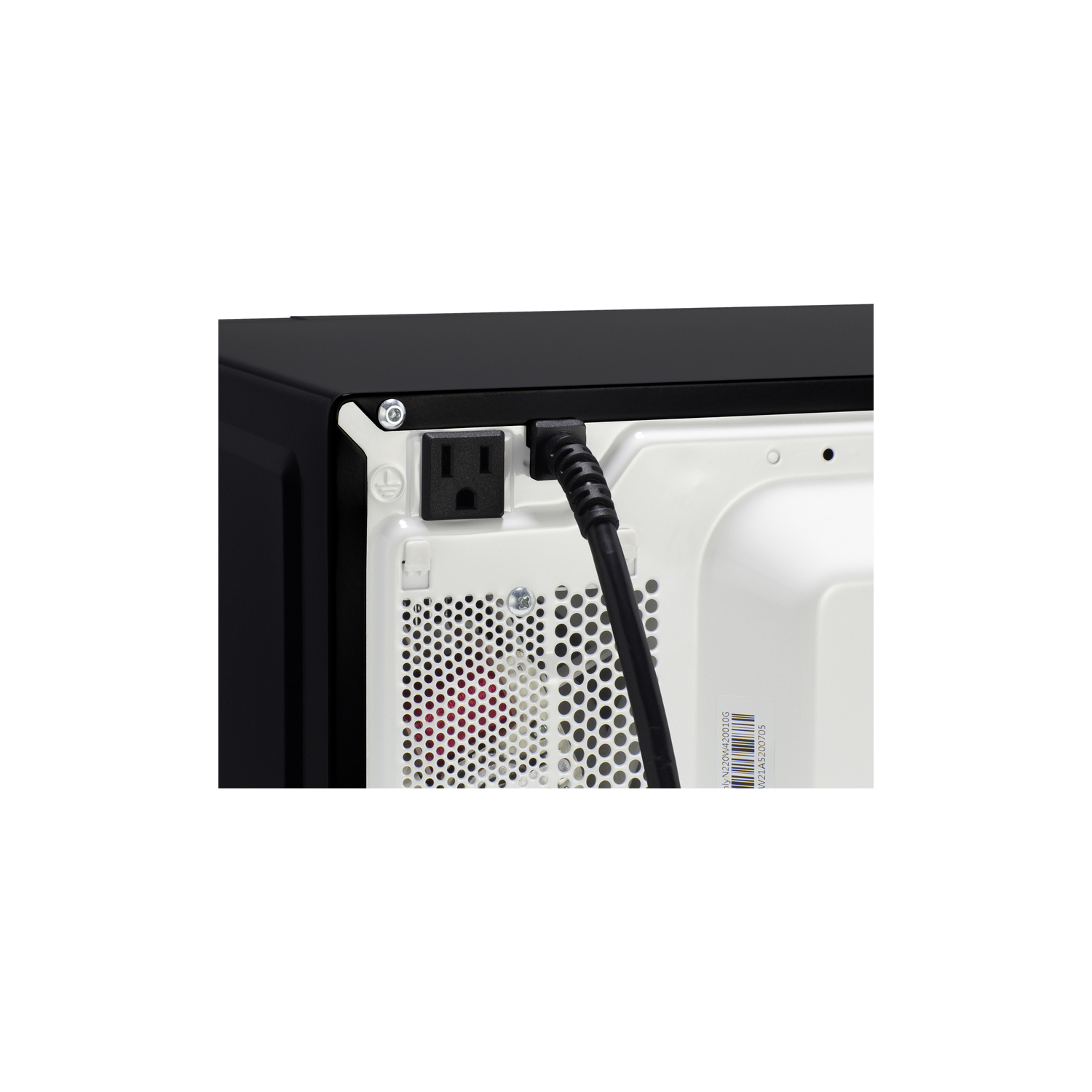

Built-in power allocator Plug the refrigerator into the microwave's rear outlet for easy 1-plug operation that will temporarily disable the fridge while the microwave is in use to prevent power surges

(2) USB ports Charge your mobile devices through the pre-installed ports, located on the microwave's front for added convenience

Automatic defrost No-frost operation for minimum user maintenance

Reversible door (refrigerator) User-reversible door swing for added flexibility

Stainless steel handle (microwave) Easy-grab handle in brushed stainless steel elevates the look for the microwave

One-touch cooking Pre-programmed settings for potatoes, pizza, beverages, popcorn, frozen dinners, and reheating, as well as options for multi-stage cooking, cook by weight, and auto defrost

Mute function Press and hold ON/OFF for 3 seconds to disable the sound of your microwave

Eco Mode Power-saving option lets you disable the digital display

Right angle plug (microwave) Microwave's cord design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Thin-line design Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit spots

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
