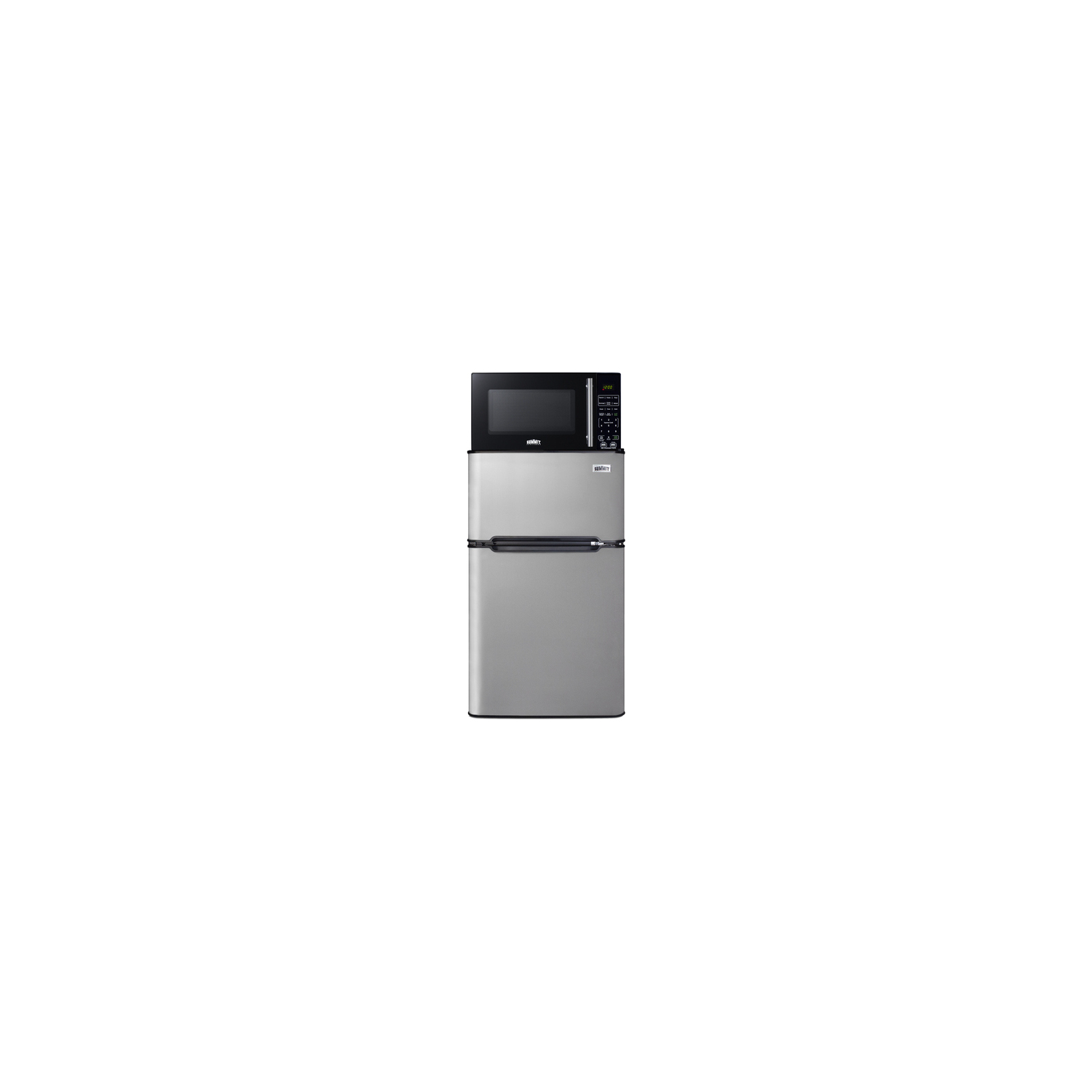

Summit Compact 2-door refrigerator-freezer and microwave with built-in allocator, with brackets included (ships in 3 boxes on one pallet), 7.61101e+011, MRF34BSSA

Summit's innovative MRF series offers combination refrigerator-microwaves with one-plug operation, ideal for hotels and other settings looking to maximize user convenience.

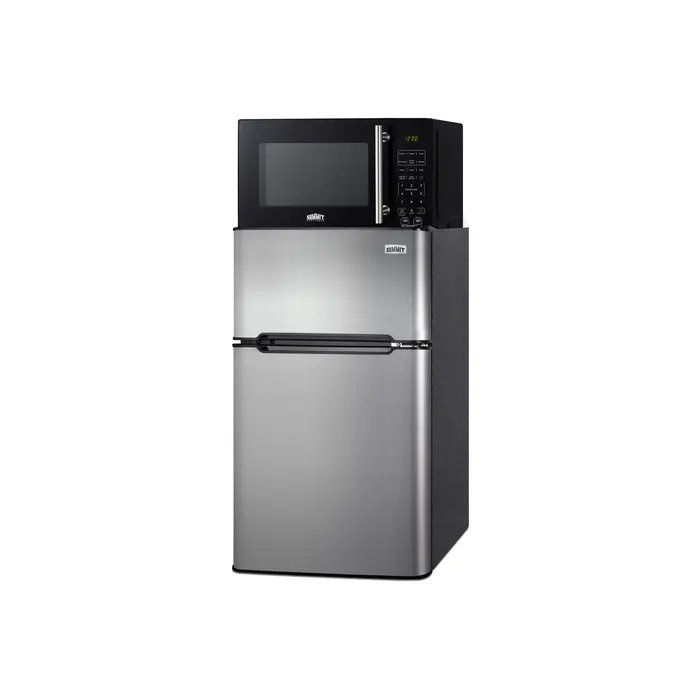

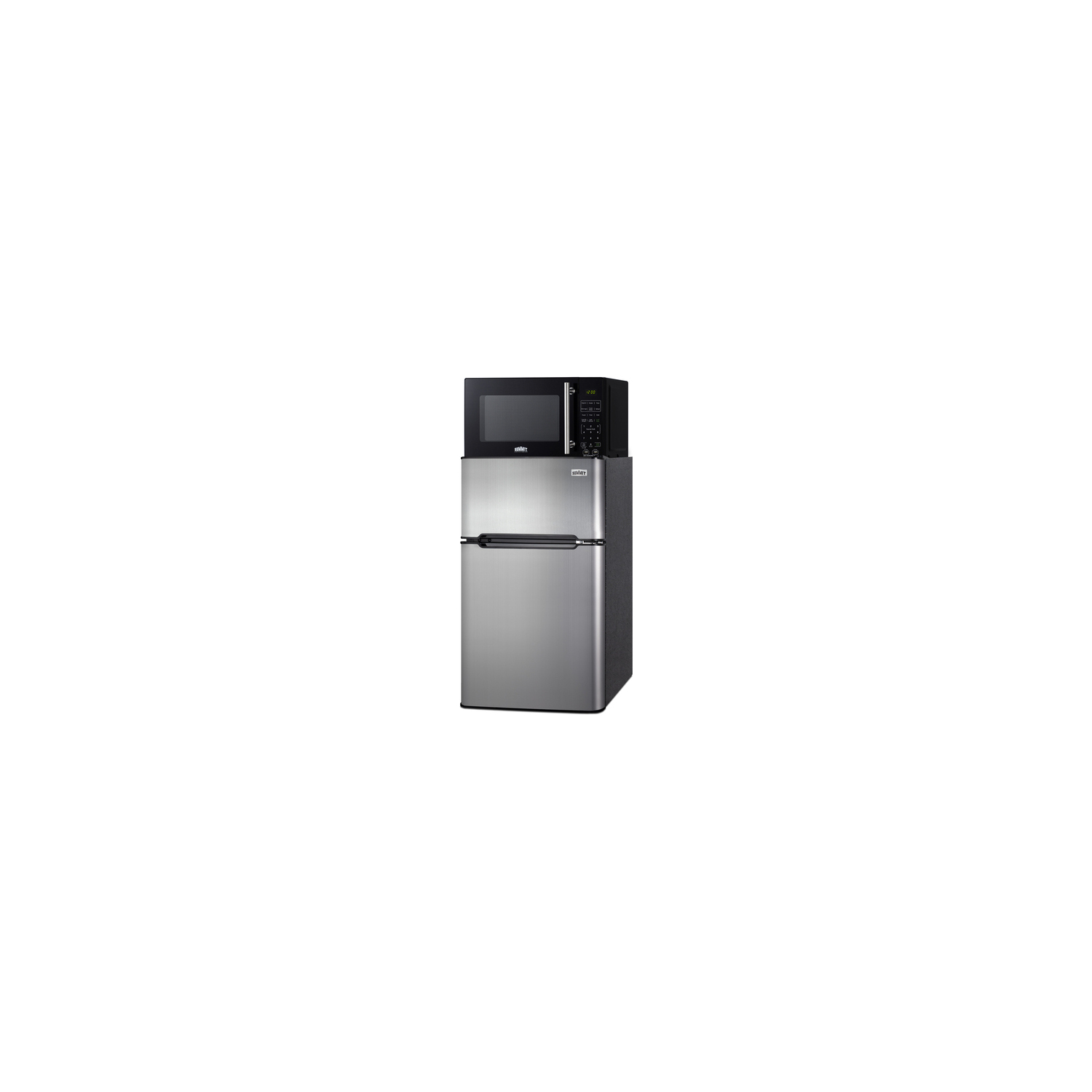

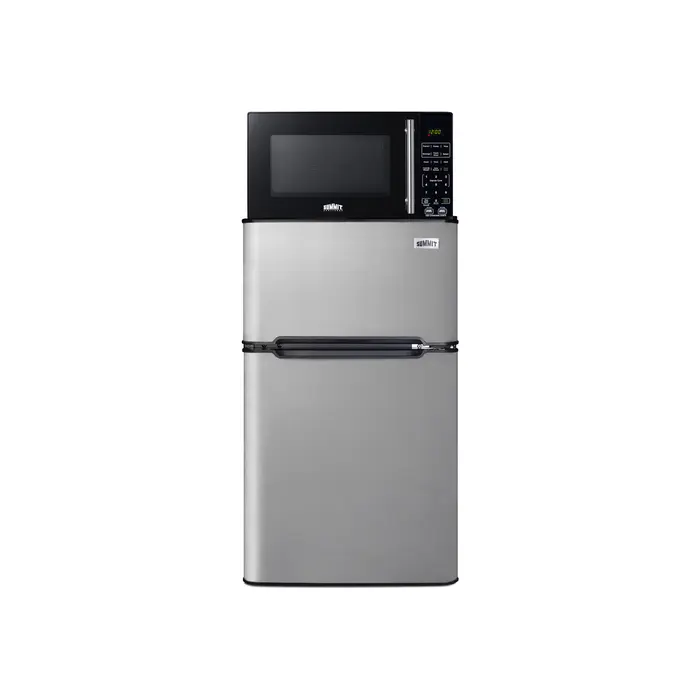

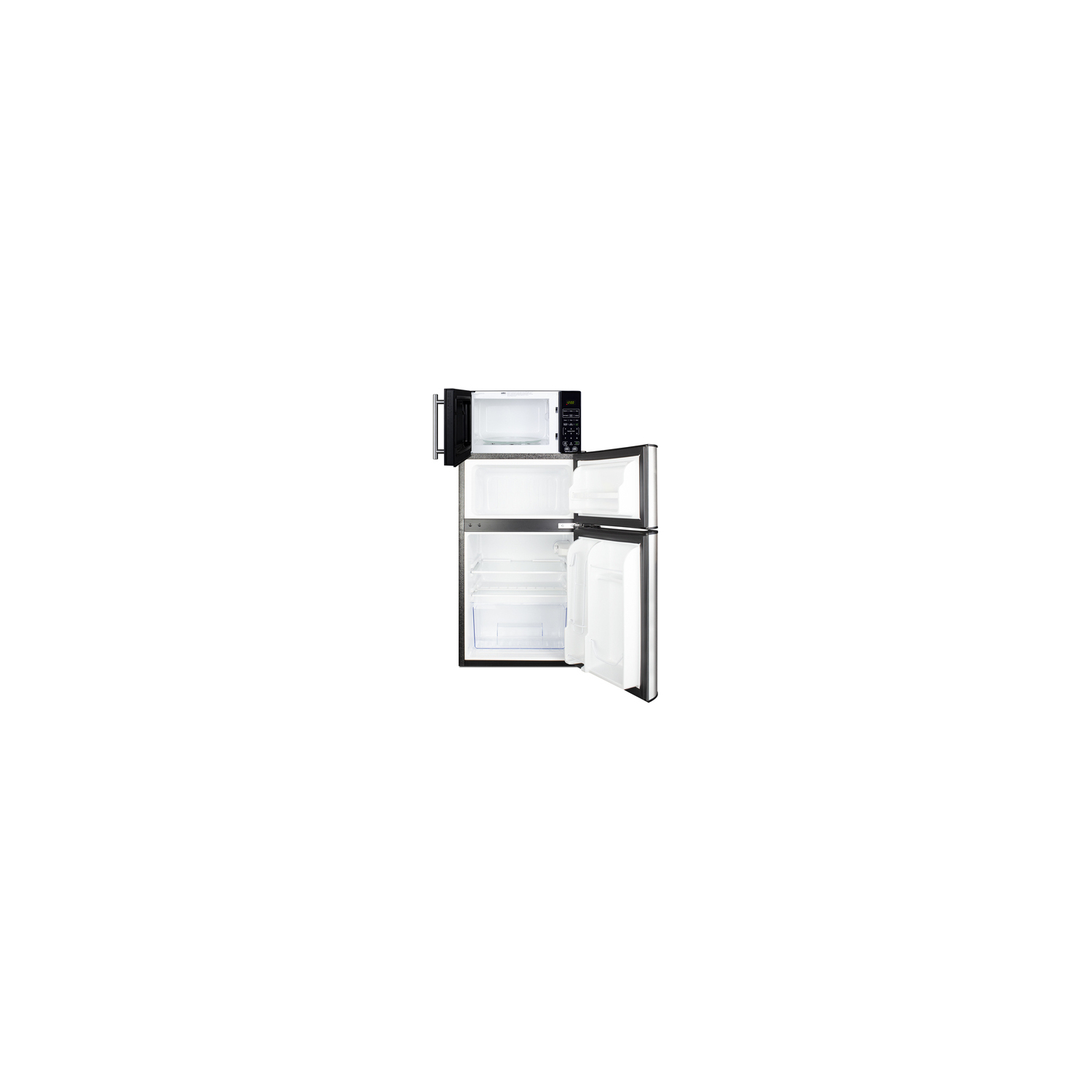

Model MRF34BSSA combines a fully featured compact microwave with our ENERGY STAR listed two-door CP34BSS refrigerator-freezer. The complete unit is sized at just 19" wide for an easy fit. The refrigerator-freezer's reversible stainless steel doors make it easy to adjust to any setting, while the microwave includes a built-in allocator, allowing you to plug the fridge directly into the microwave. The allocator will temporarily disable the power of the refrigerator while the microwave is in use, resuming after the cooking cycle is complete in order to protect against power surges.

The SM903BSA1 microwave comes in a jet black finish with an easy-grab handle in brushed stainless steel to complement the refrigerator. Two USB ports are included to charge mobile devices. The microwave has a door window and digital touchpad control panel with one-touch settings for common meals, including frozen food, potatoes, pizza, and popcorn. The display and end-of-cycle alerts can be disabled and muted as needed. We include two brackets that let you set the microwave on top of the refrigerator and gently secure with included adhesive.

The MRF34BSSA ships on one pallet in three boxes (refrigerator-freezer CP34BSS, microwave SM903BSA1, and our MRFKit bracket set). If you prefer to have the unit fully assembled before shipping, add option "MRFAssembly" upon order (note: this will incur an additional charge and added lead time). Alternate combinations can be created by ordering your choice of a Summit refrigerator, the SM903BSA1 microwave, and our MRFKit. For more information, contact our product specialists at 718-893-3900 ext. 507.

SPECIFICATIONS

Overview

Nominal Height 44.0" (112 cm)

Height of Cabinet 43.38" (110 cm)

Nominal Width 19.0" (48 cm)

Width 19.0" (48 cm)

Nominal Depth 20.0" (51 cm)

Depth 19.75" (50 cm)

Depth with door at 90° 36.75" (93 cm)

Capacity 3.2 cu.ft. (91 L)

Defrost Type Cycle

Door Stainless Steel

Cabinet Black

US Electrical Safety UL

Canadian Electrical Safety ULC

Amps 15.0

Voltage/Frequency 115 V AC/60 Hz

Weight 85.0 lbs. (39 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101084596

Microwave-Refrigerator

Refrigerator Included CP34BSS

Refrigerator Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Shelf Type Glass

Shelf Qty 1

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Full Door Shelves 2

Can Storage Yes

Thermostat Type Dial

Interior Light Yes

Refrigerant Type R600a

Refrigerant Amount 1.16 oz.

High Side PSI 250.0

Low Side PSI 88.0

Refrigerator Interior Height 18.5" (47 cm)

Refrigerator Interior Width 15.75" (40 cm)

Refrigerator Interior Depth 15.0" (38 cm)

Freezer Interior Height 7.5" (19 cm)

Freezer Interior Width 14.0" (36 cm)

Freezer Interior Depth 14.0" (36 cm)

Compressor Step Height 9.0" (23 cm)

Compressor Step Width 15.75" (40 cm)

Compressor Step Depth 5.0" (13 cm)

Level Legs 2

Microwave Wattage 700.0

Microwave Controls Digital

Specialized Cooking Buttons Yes

FEATURES

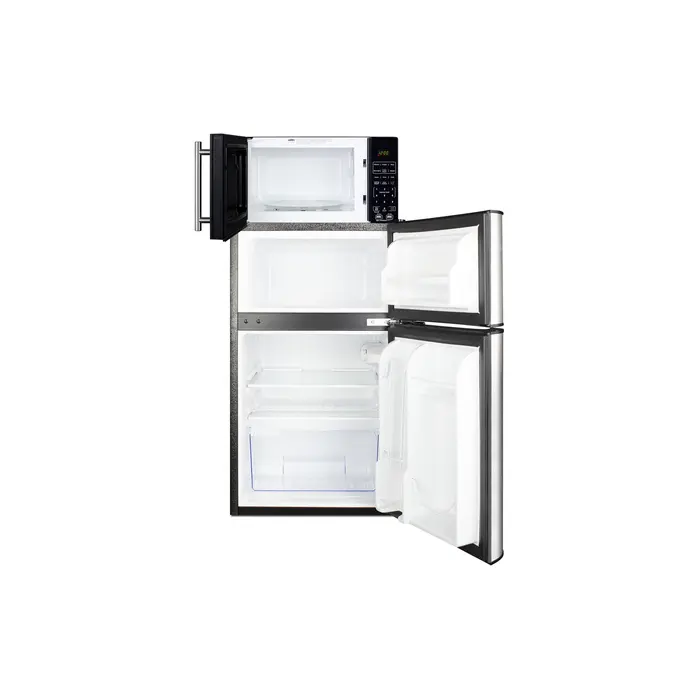

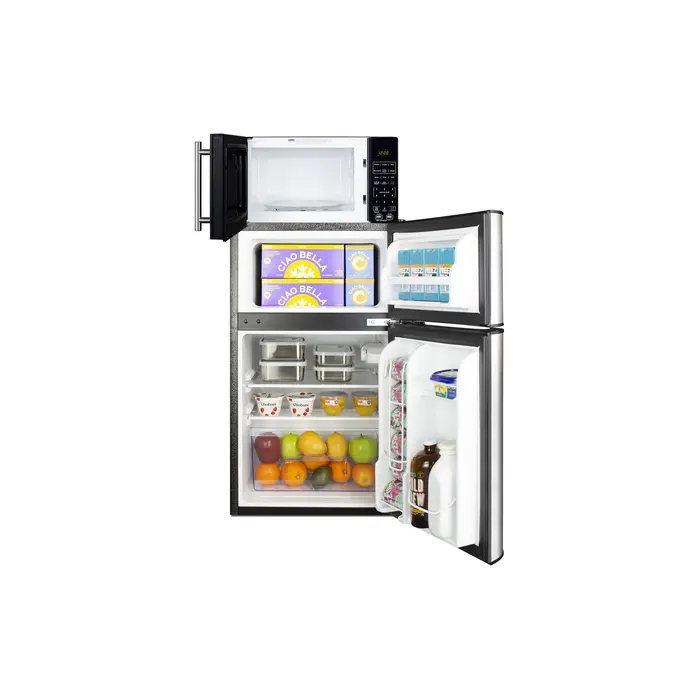

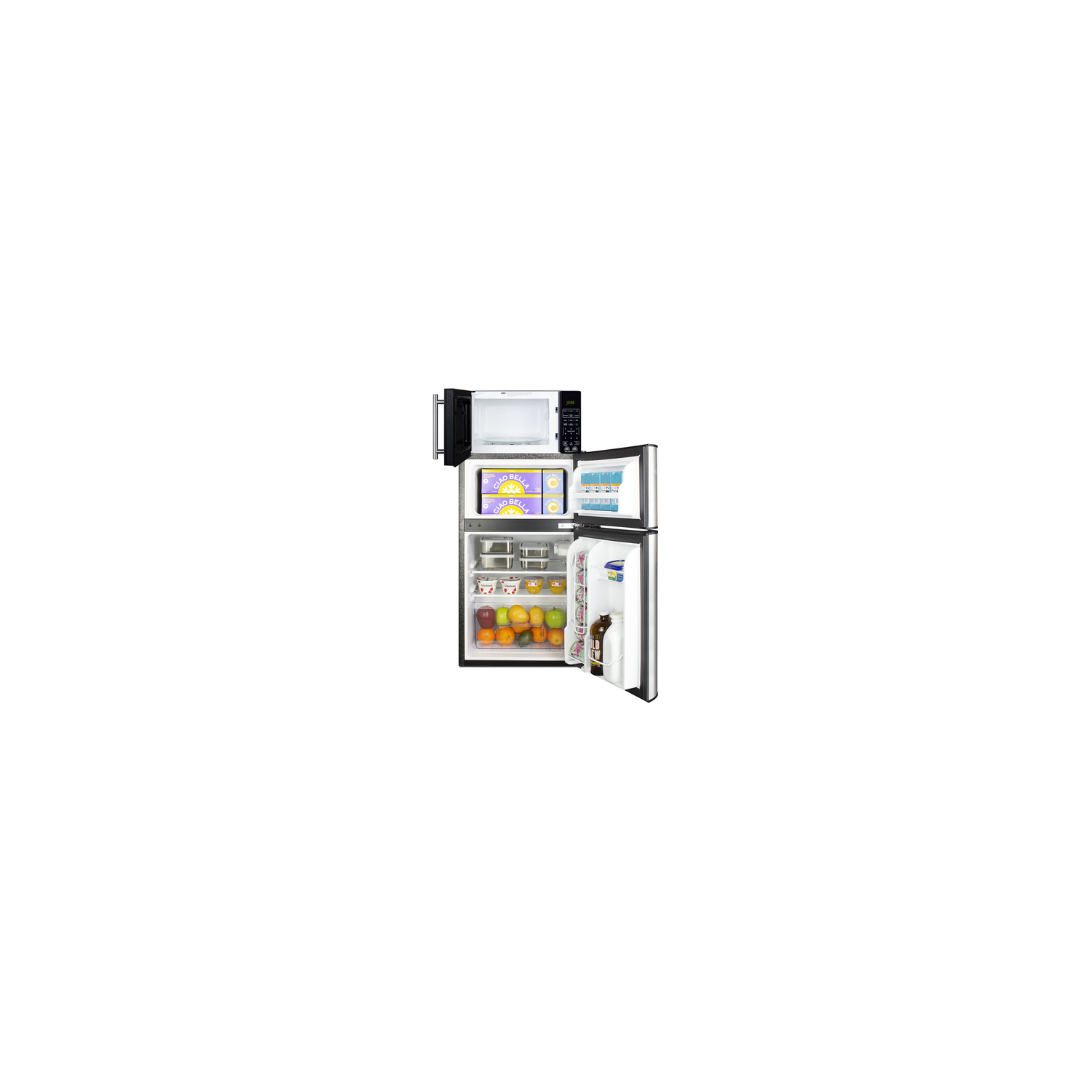

CP34BSS Refrigerator-freezer Two-door ENERGY STAR qualified compact with cycle defrost and deluxe interior that includes glass shelving, door racks, a crisper, and can dispenser

SM903BSA1 microwave Compact microwave in black with window, stainless steel handle, and digital controls for easy operatoin

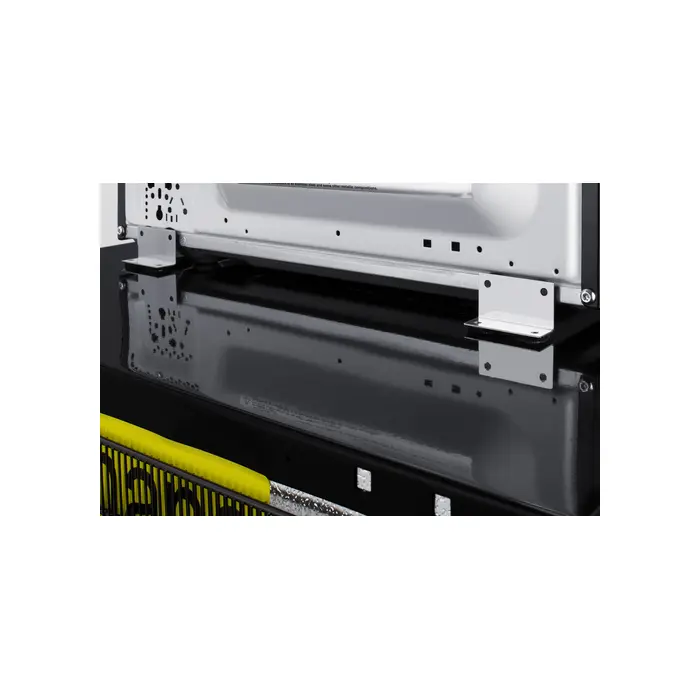

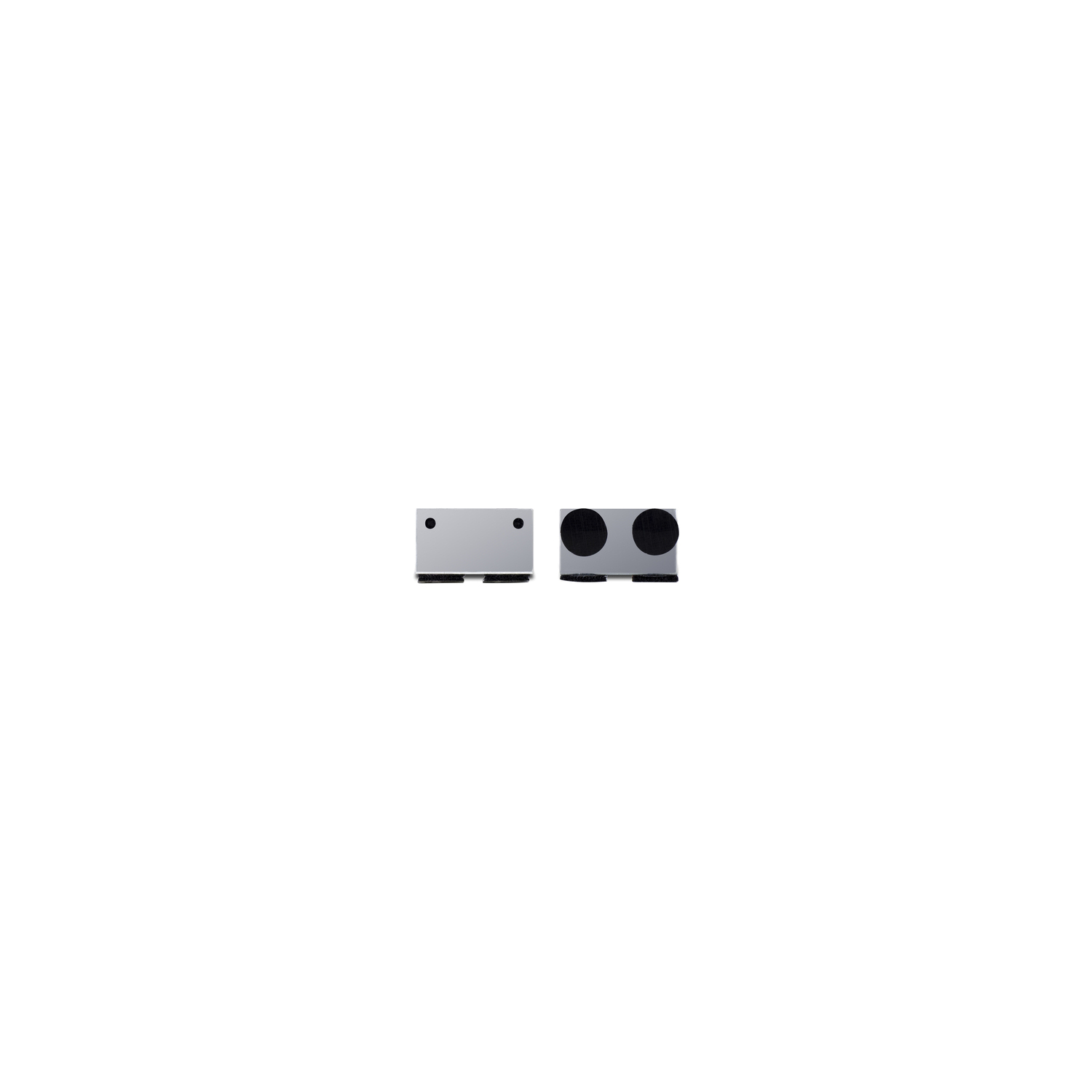

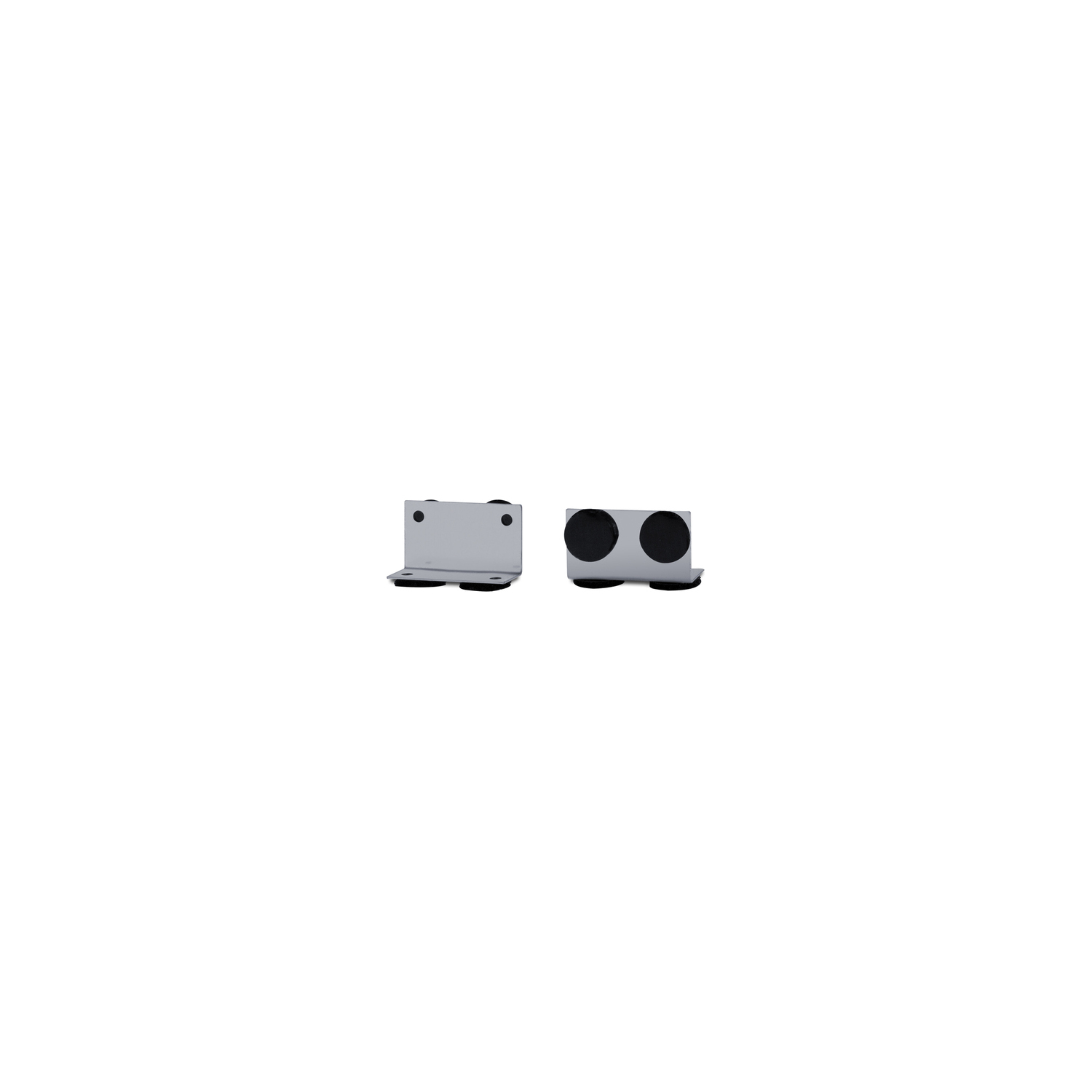

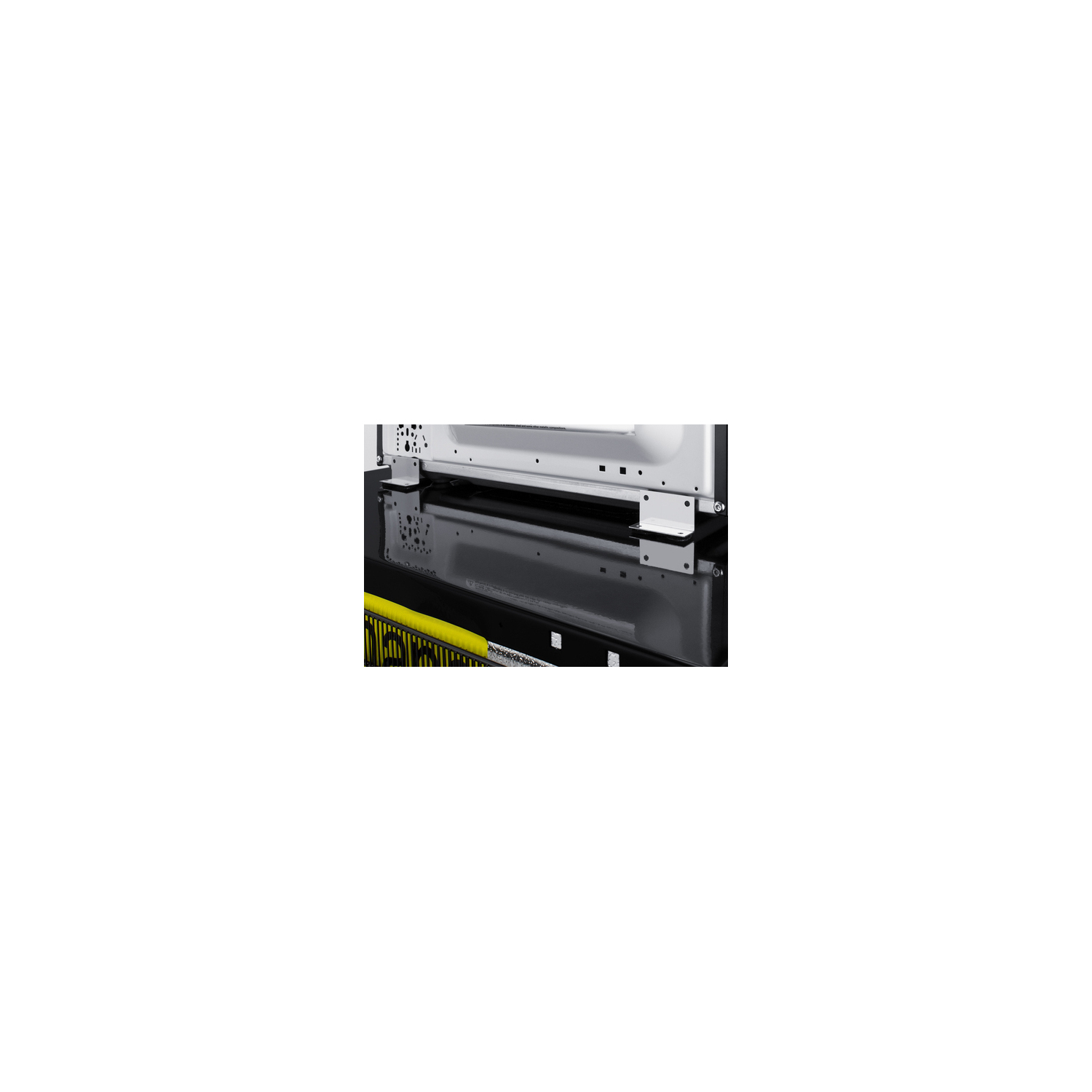

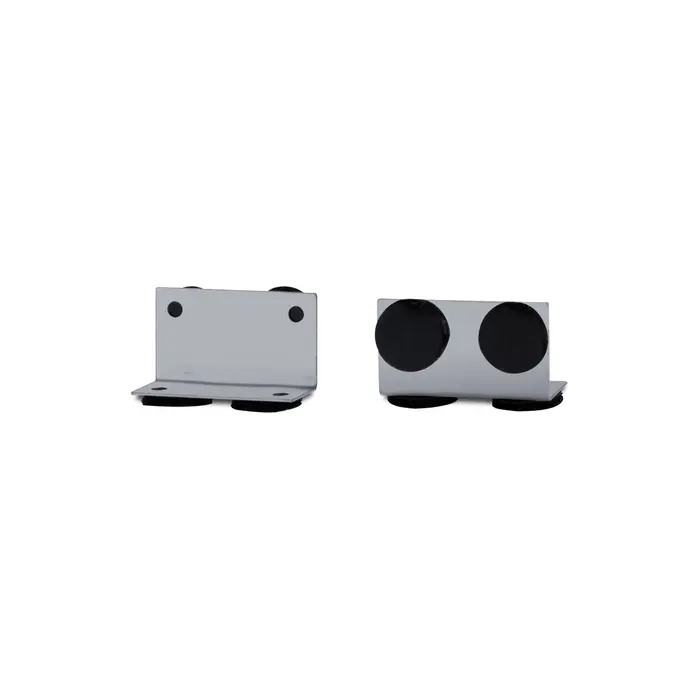

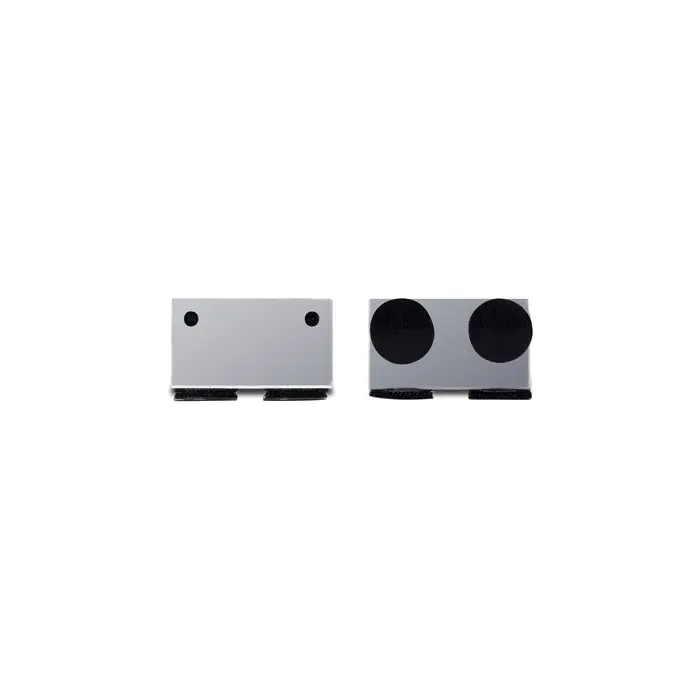

Easy assembly Ships with two removable brackets that let you secure the microwave on top of the refrigerator

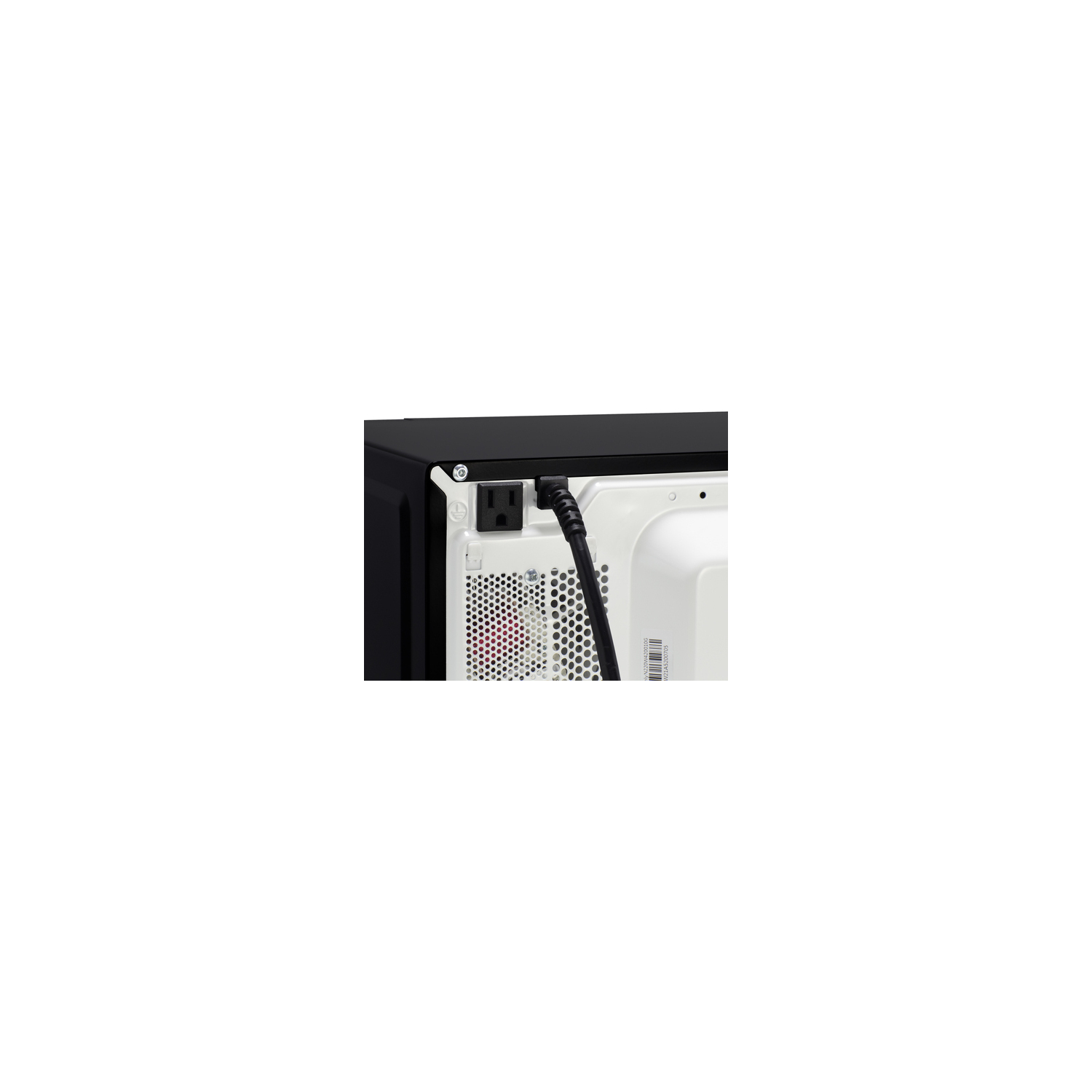

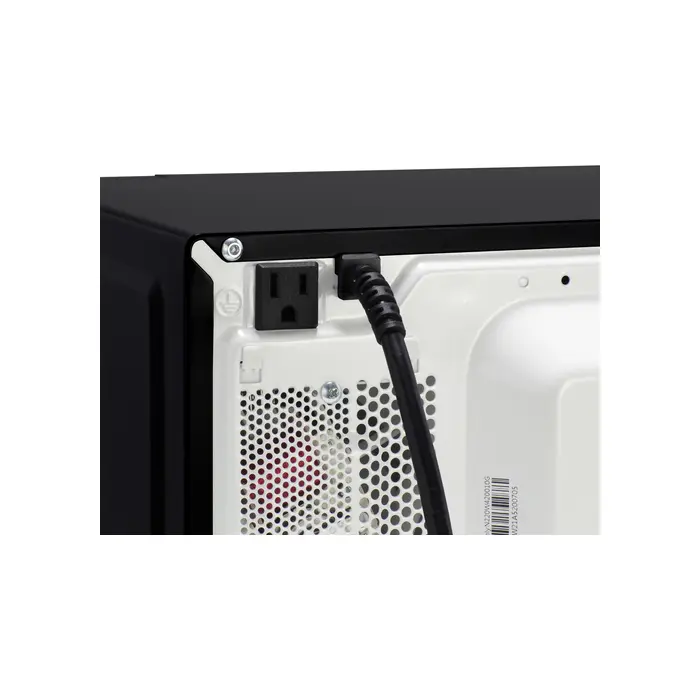

Built-in power allocator Plug the refrigerator into the microwave's rear outlet for easy 1-plug operation that will temporarily disable the fridge while the microwave is in use to prevent power surges

(2) USB ports Charge your mobile devices through the pre-installed ports, located on the microwave's front for added convenience

Cycle defrost Combines an automatic defrosting refrigerator with a static manual defrosting freezer to minimize maintenance while protecting freezer contents

Reversible doors (refrigerator) User-reversible door swing for added flexibility

Sealed back Allows for a better fit and easier cleanability

Stainless steel handle (microwave) Easy-grab handle in brushed stainless steel elevates the look for the microwave

One-touch cooking Pre-programmed settings for potatoes, pizza, beverages, popcorn, frozen dinners, and reheating, as well as options for multi-stage cooking, cook by weight, and auto defrost

Mute function Press and hold ON/OFF for 3 seconds to disable the sound of your microwave

Eco Mode Power-saving option lets you disable the digital display

Right angle plug (microwave) Microwave's cord design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Stainless steel and black finish Exterior cabinet and microwave feature a jet black finish, with the refrigerator doors and microwave handle in attractive stainless steel

Thin-line design Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit spots

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
