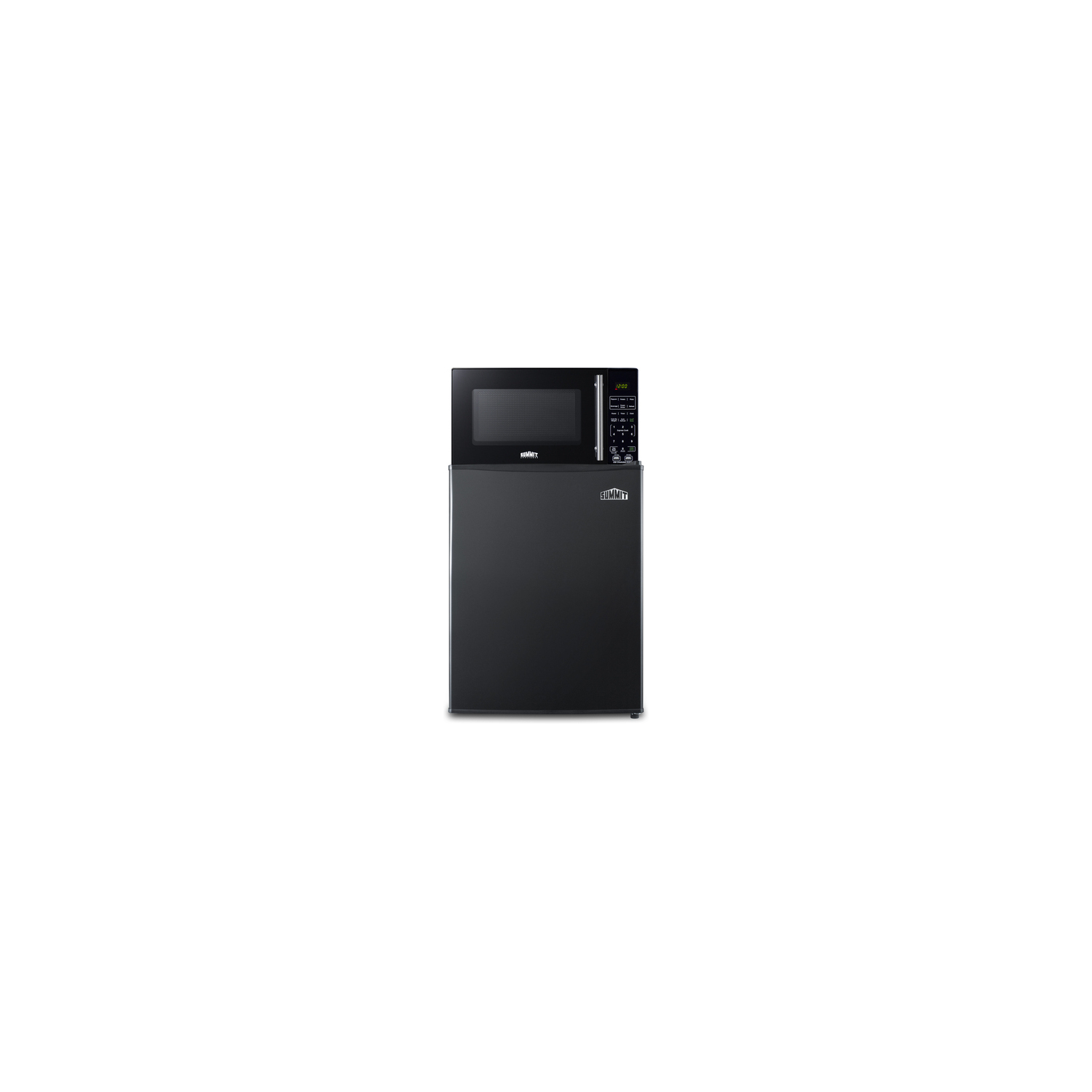

Summit Compact all-refrigerator in black and microwave with built-in allocator, with brackets included (ships in 3 boxes on one pallet), 7.61101e+011, MRF29KA

Summit's innovative MRF series offers combination refrigerator-microwaves with one-plug operation, ideal for hotels and other settings looking to maximize user convenience.

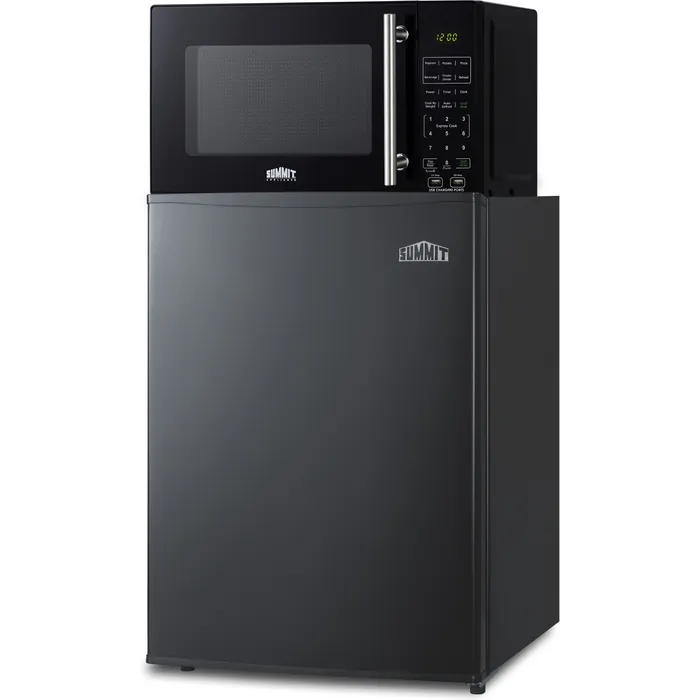

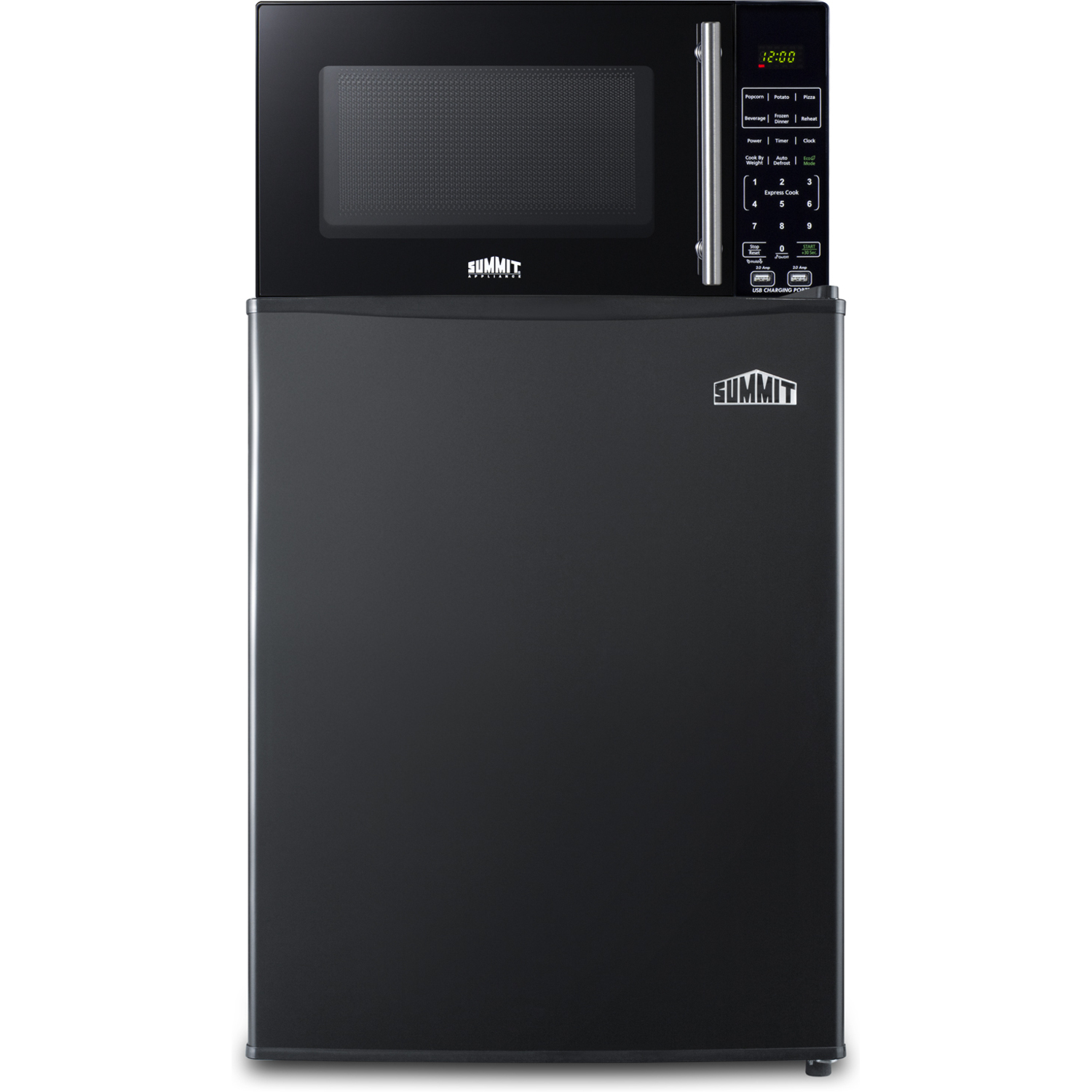

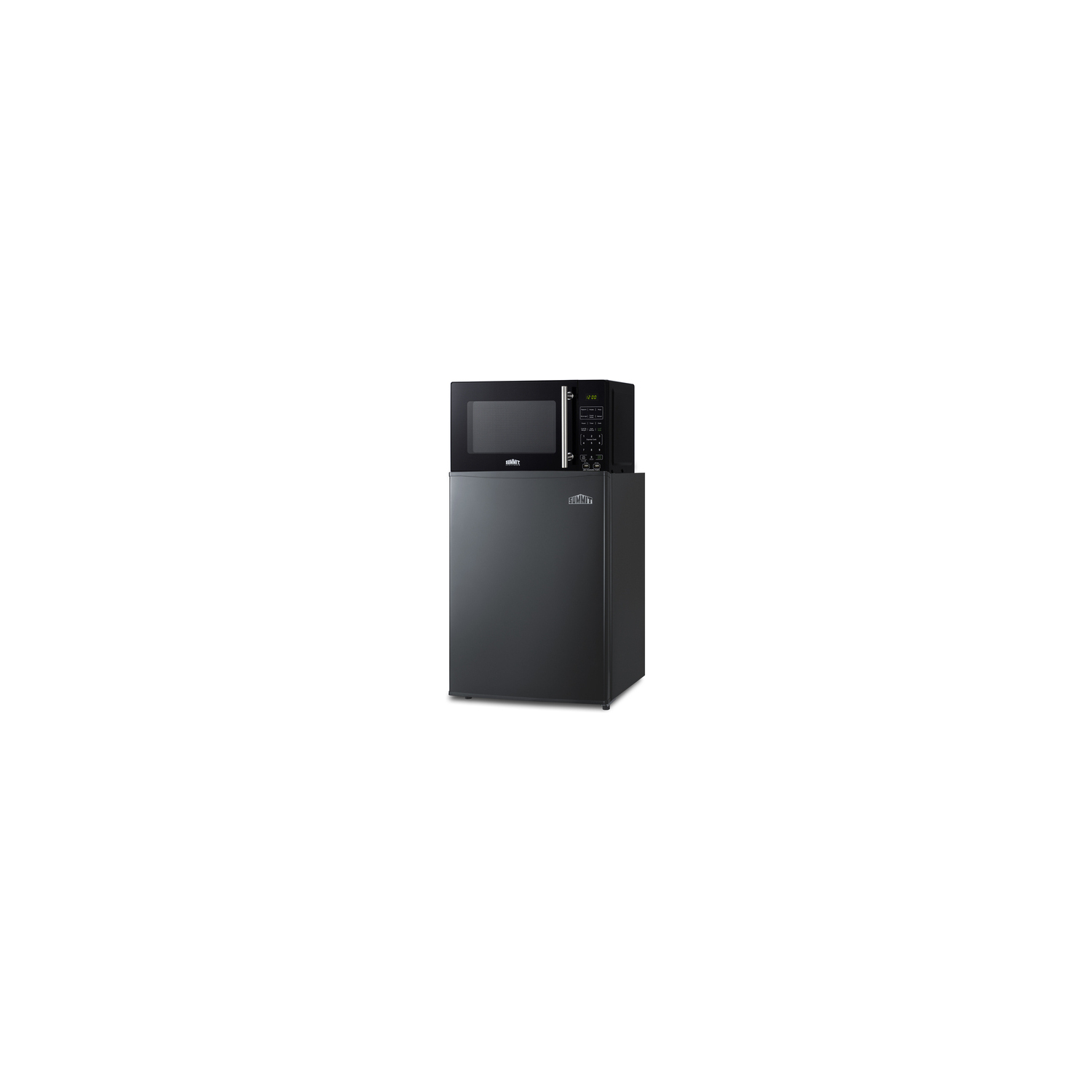

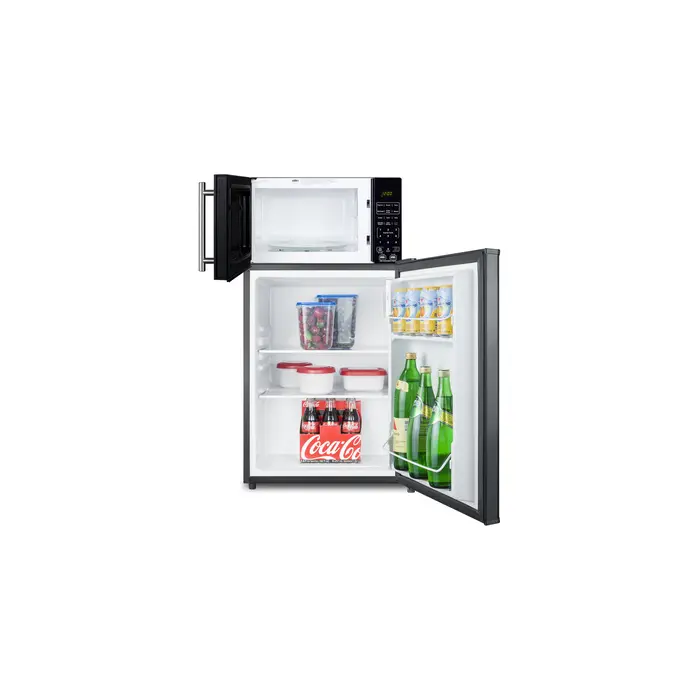

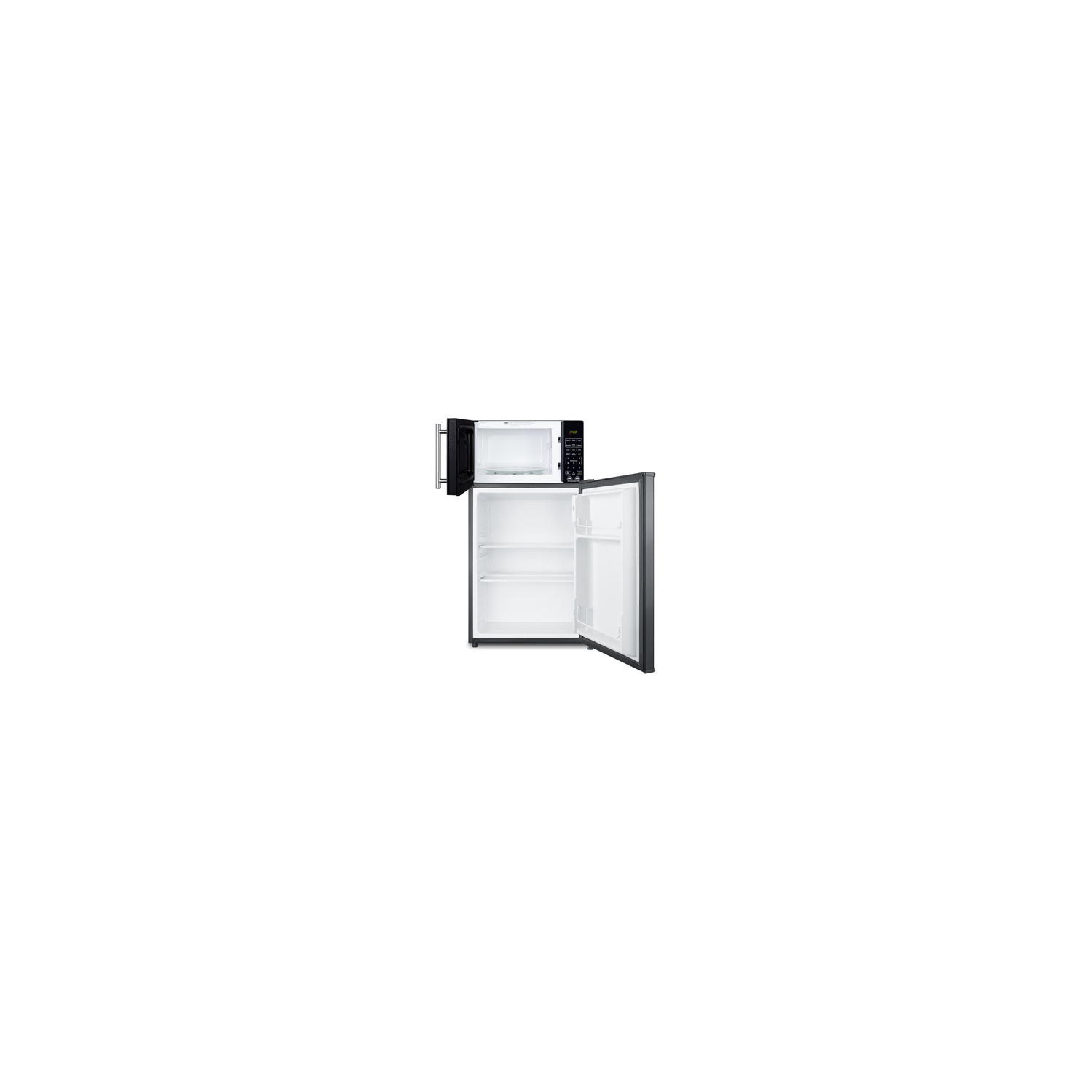

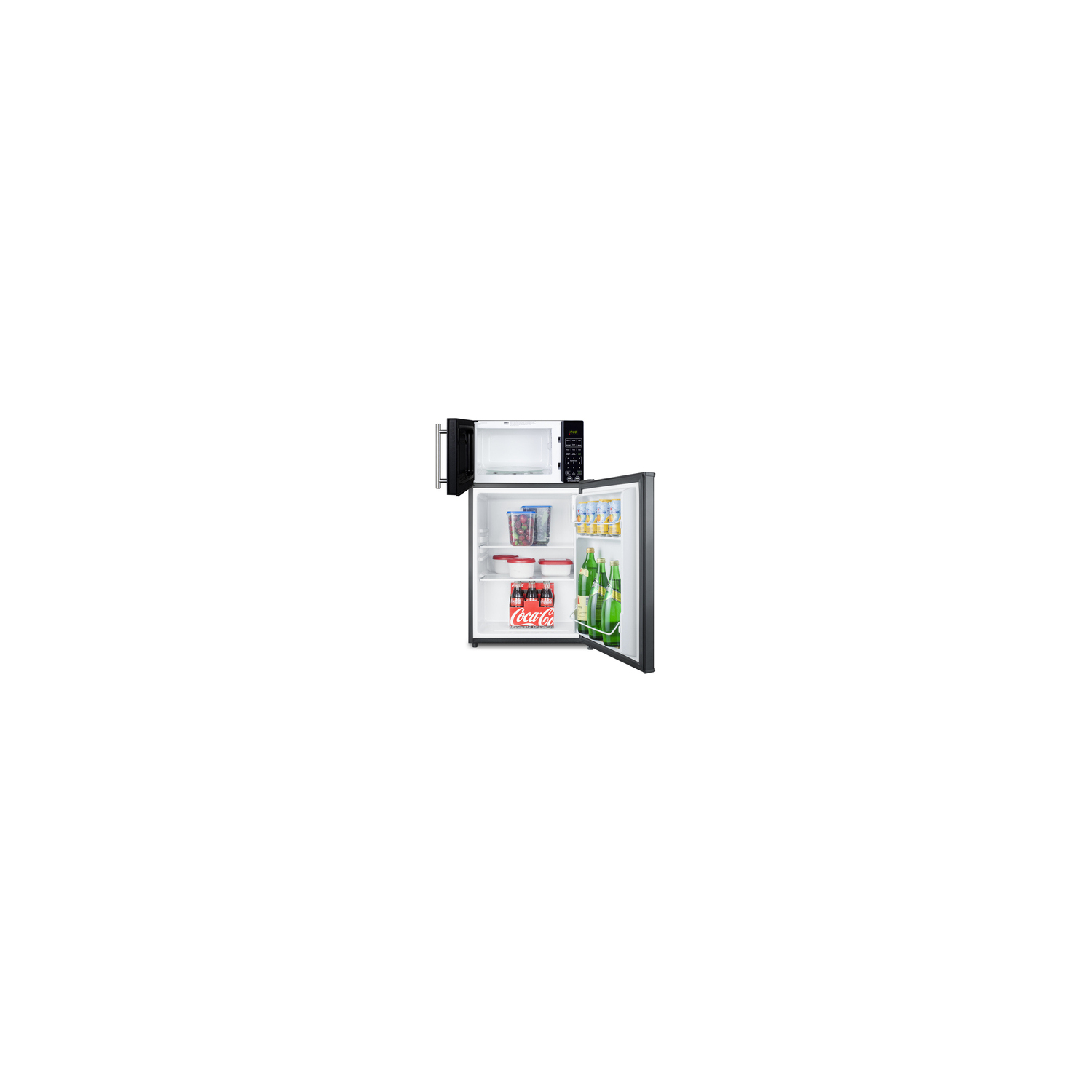

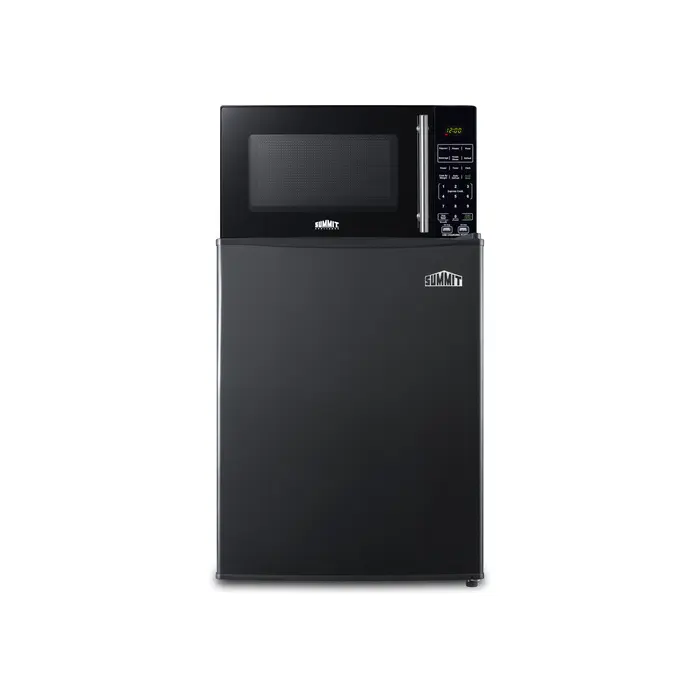

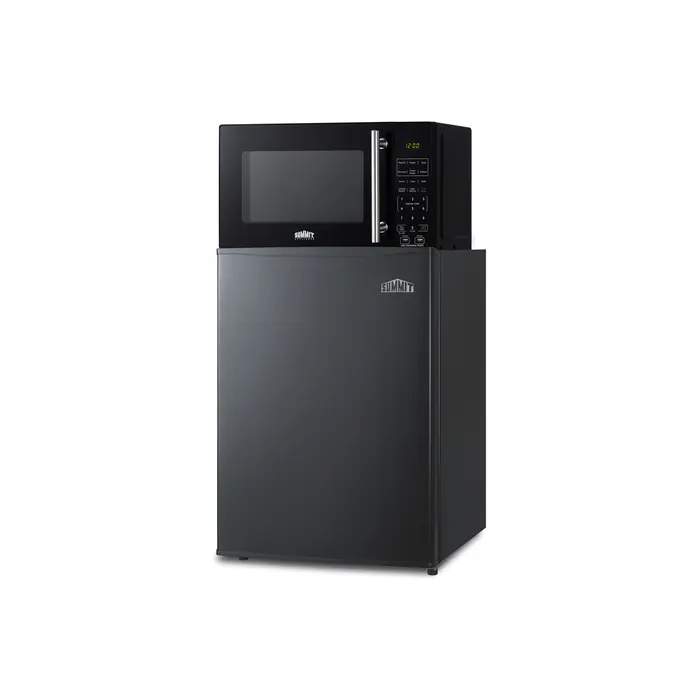

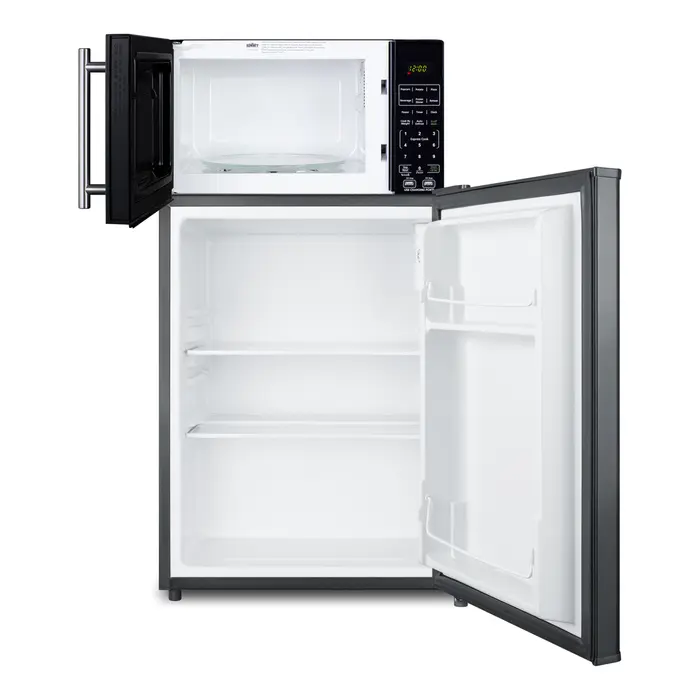

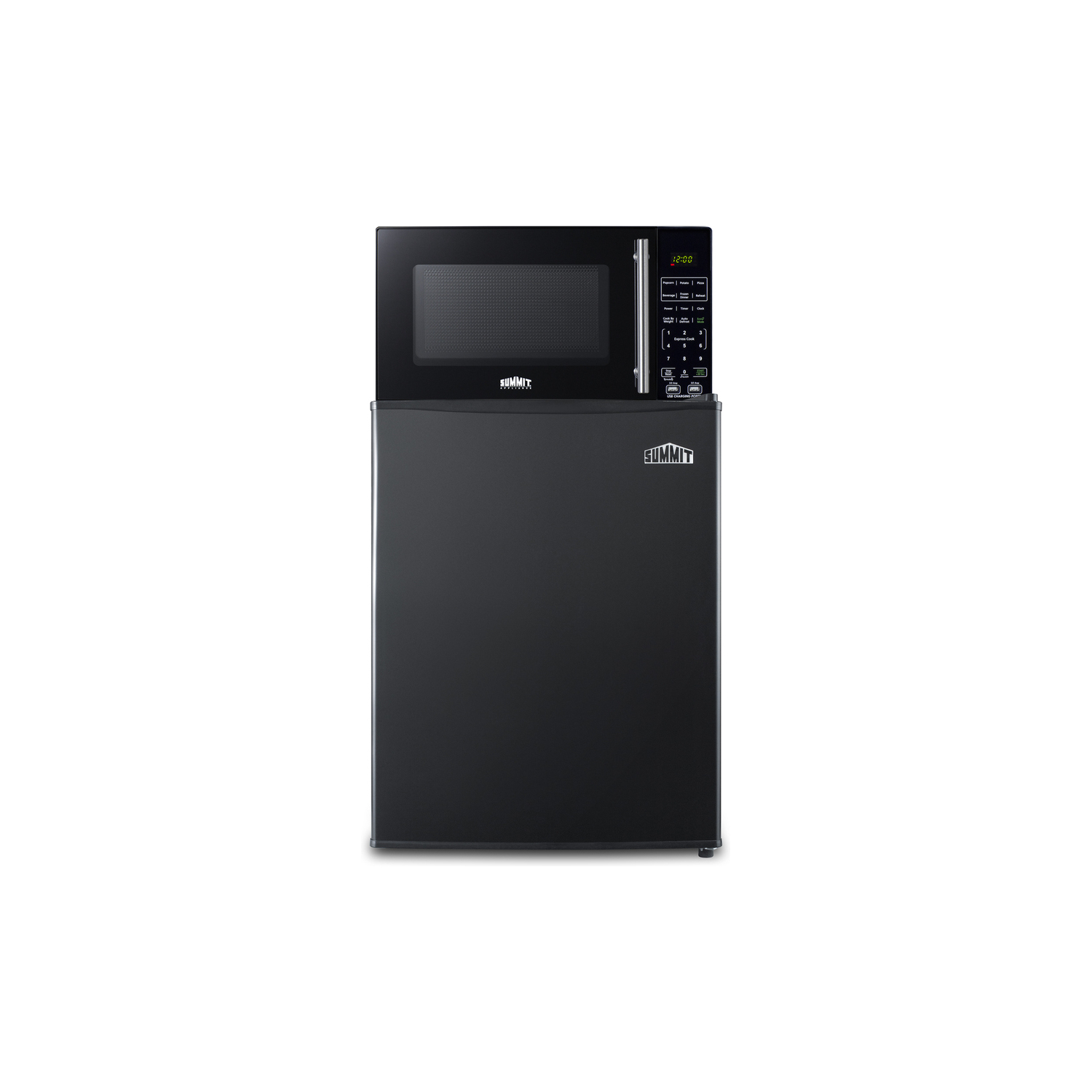

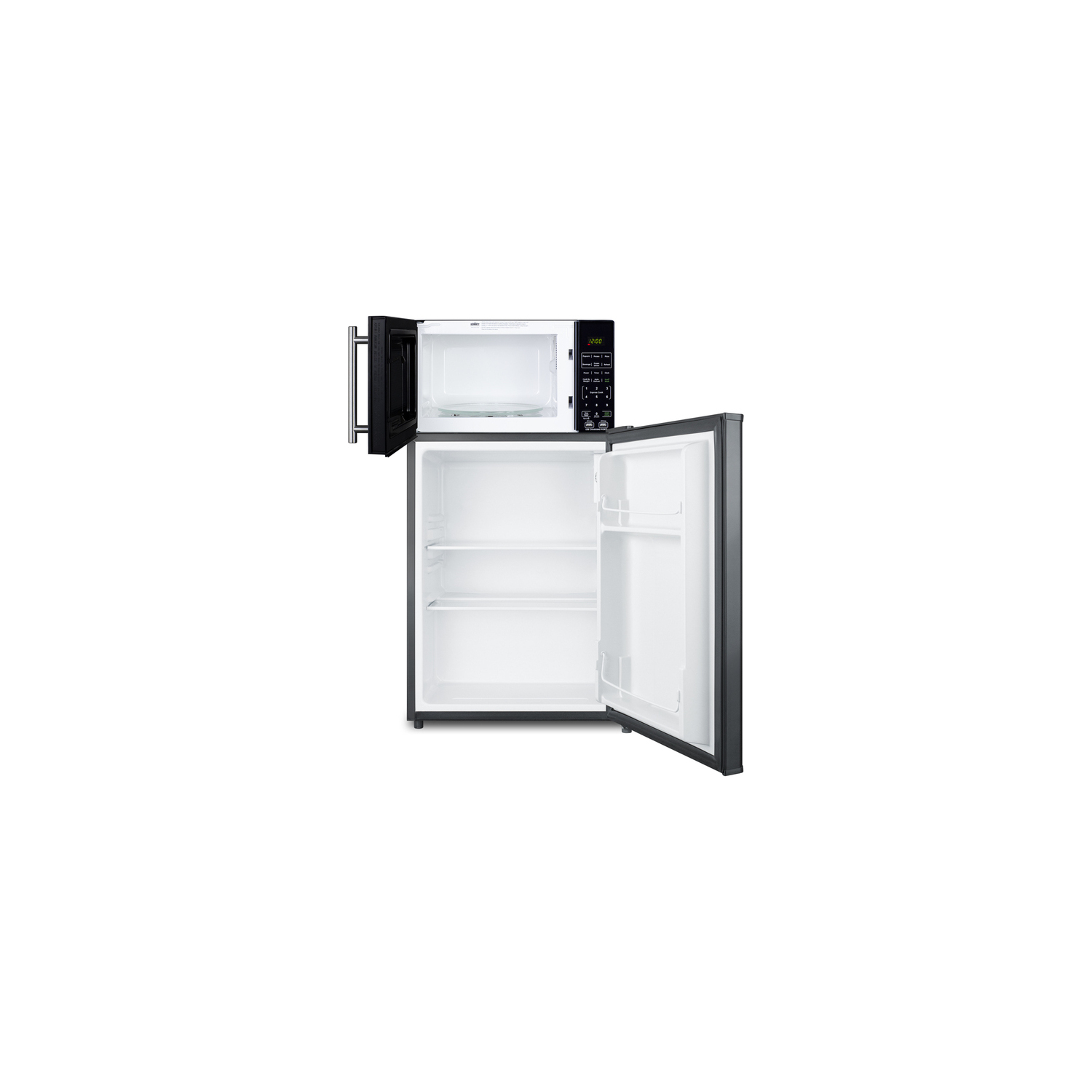

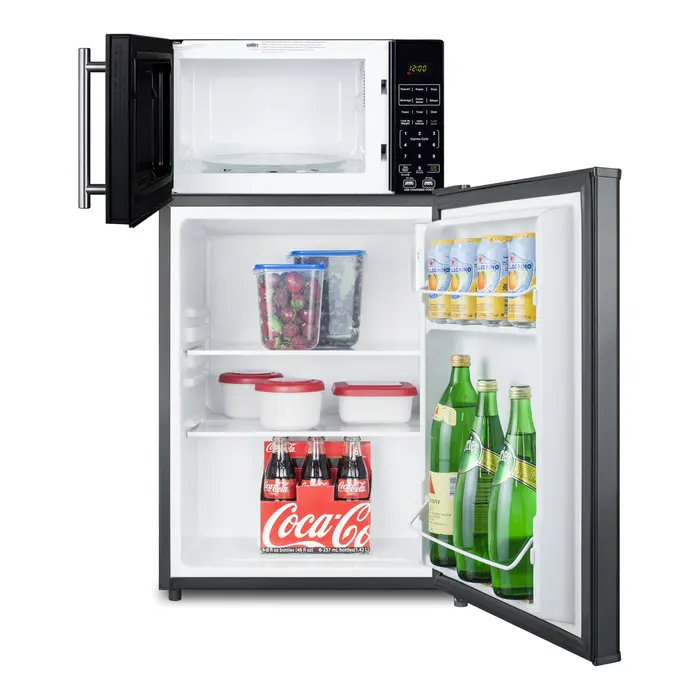

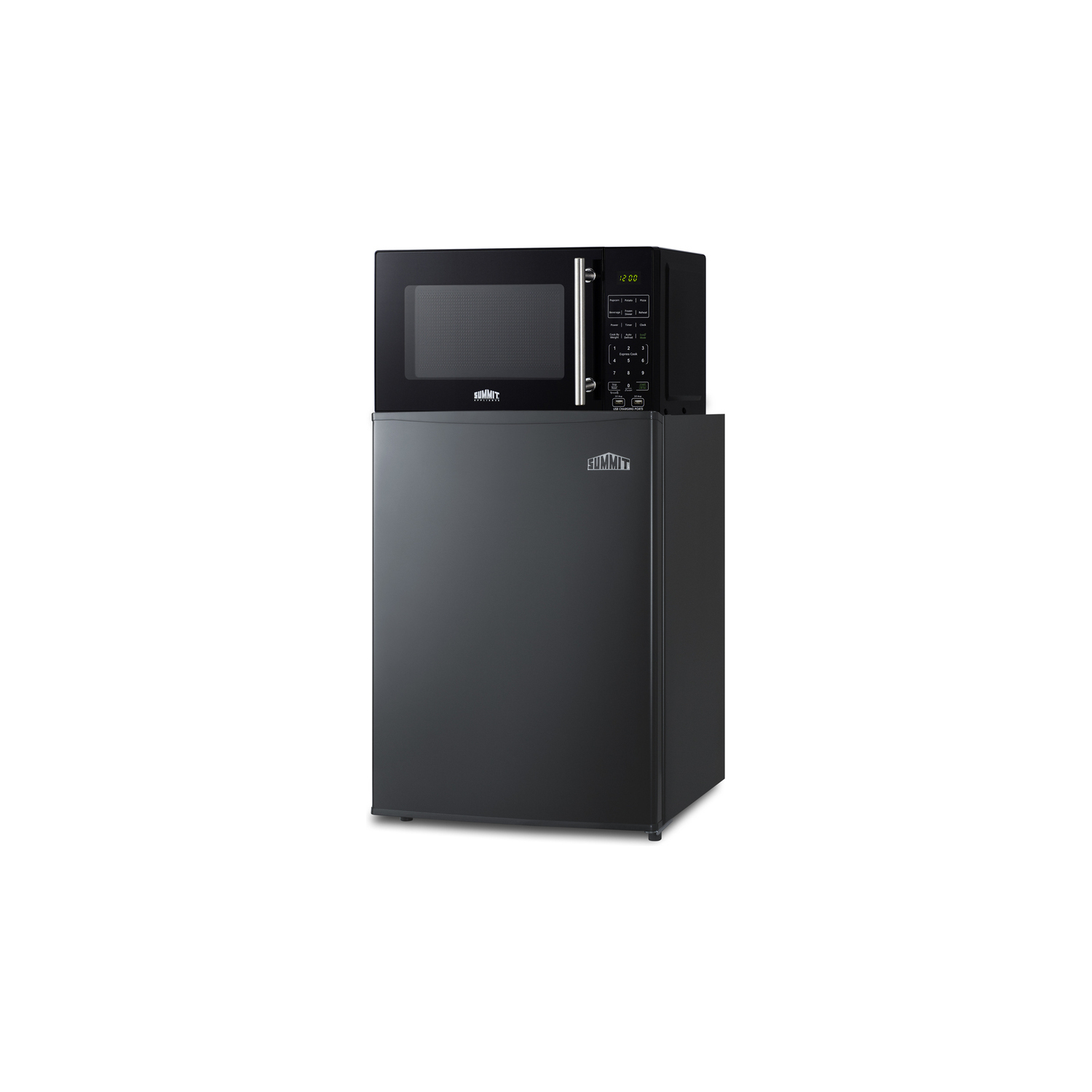

Model MRF29KA combines a fully featured compact microwave with our popular compact FF29K auto defrost all-refrigerator. The complete unit is sized at just under 19" wide for an easy fit. The refrigerator's reversible door make it easy to adjust to any setting, while the microwave includes a built-in allocator, allowing you to plug the fridge directly into the microwave. The allocator will temporarily disable the power of the refrigerator while the microwave is in use, resuming after the cooking cycle is complete in order to protect against power surges.

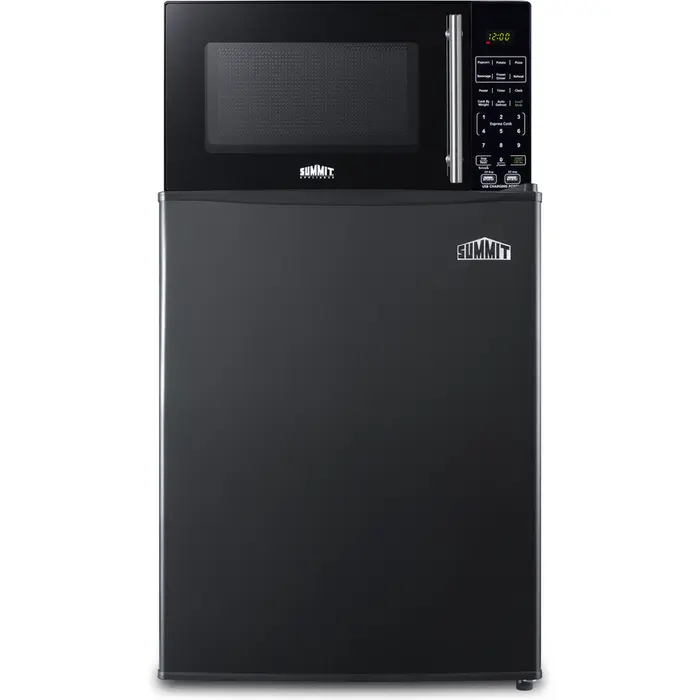

The SM903BSA1 microwave comes in a jet black finish with an easy-grab handle in brushed stainless steel to complement the refrigerator. Two USB ports are included to charge mobile devices. The microwave has a door window and digital touchpad control panel with one-touch settings for common meals, including frozen food, potatoes, pizza, and popcorn. The display and end-of-cycle alerts can be disabled and muted as needed. We include two brackets that let you set the microwave on top of the refrigerator and gently secure with included adhesive.

The MRF29KA ships on one pallet in three boxes (refrigerator FF29K, microwave SM903BSA1, and our MRFKit bracket set). If you prefer to have the unit fully assembled before shipping, add option "MRFAssembly" upon order (note: this will incur an additional charge and added lead time). Alternate combinations can be created by ordering your choice of a Summit refrigerator, the SM903BSA1 microwave, and our MRFKit. For more information, contact our product specialists at 718-893-3900 ext. 507.

SPECIFICATIONS

Overview

Nominal Height 35.0" (89 cm)

Height of Cabinet 34.88" (89 cm)

Nominal Width 19.0" (48 cm)

Width 18.5" (47 cm)

Width with Door Open 19.0" (48 cm)

Nominal Depth 19.0" (48 cm)

Depth 18.38" (47 cm)

Depth with door at 90° 34.5" (88 cm)

Capacity 2.4 cu.ft. (68 L)

Defrost Type Automatic

Door Black

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 15.0

Voltage/Frequency 115 V AC/60 Hz

Weight 65.0 lbs. (29 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101084589

Microwave-Refrigerator

Refrigerator Included FF29K

Refrigerator Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Shelf Type Glass

Shelf Qty 2

Full Door Shelves 2

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 0.63 oz.

Refrigerator Interior Height 20.5" (52 cm)

Refrigerator Interior Width 15.5" (39 cm)

Refrigerator Interior Depth 13.5" (34 cm)

Compressor Step Height 8.75" (22 cm)

Compressor Step Width 15.5" (39 cm)

Compressor Step Depth 5.0" (13 cm)

Level Legs 2

Microwave Wattage 700.0

Microwave Controls Digital

Specialized Cooking Buttons Yes

FEATURES

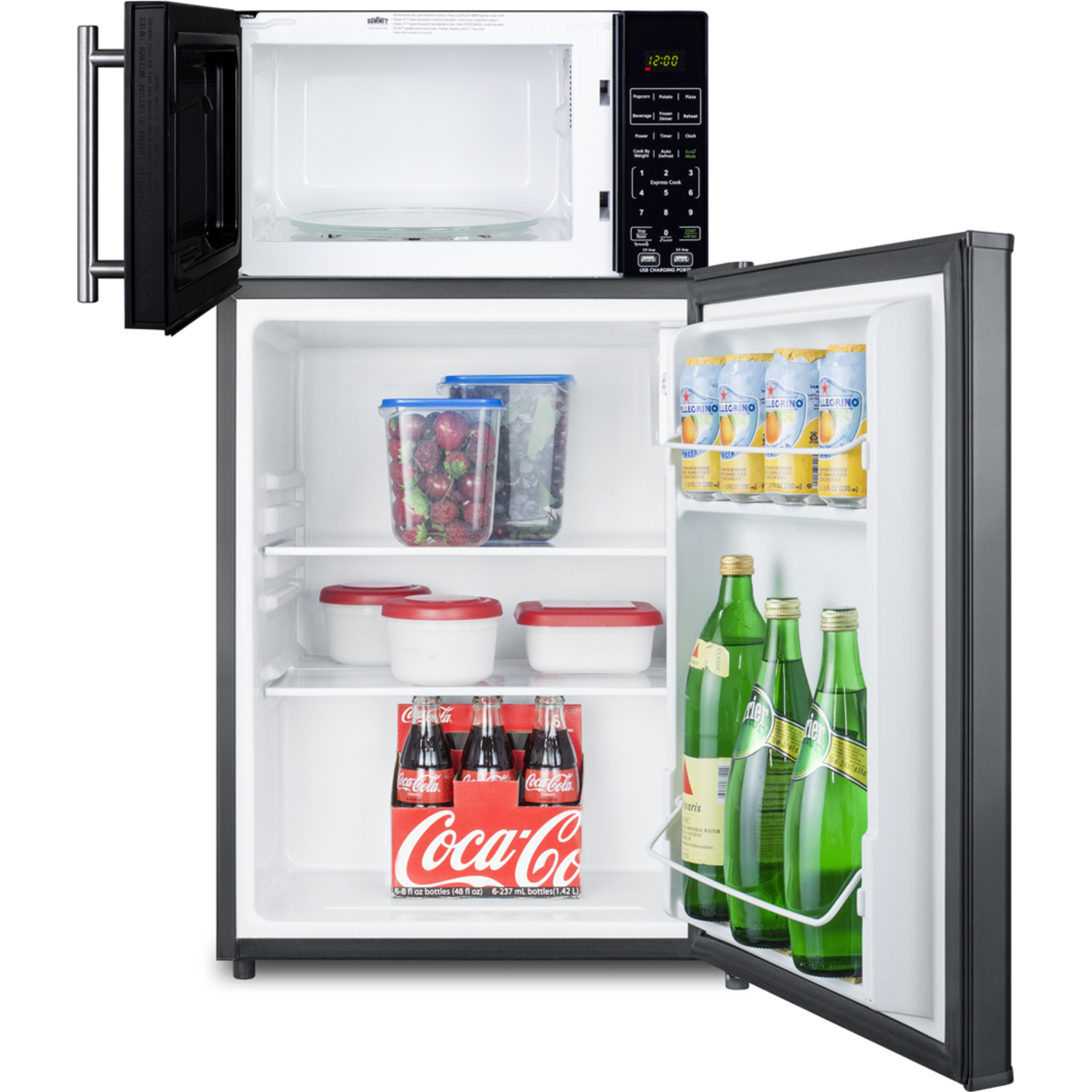

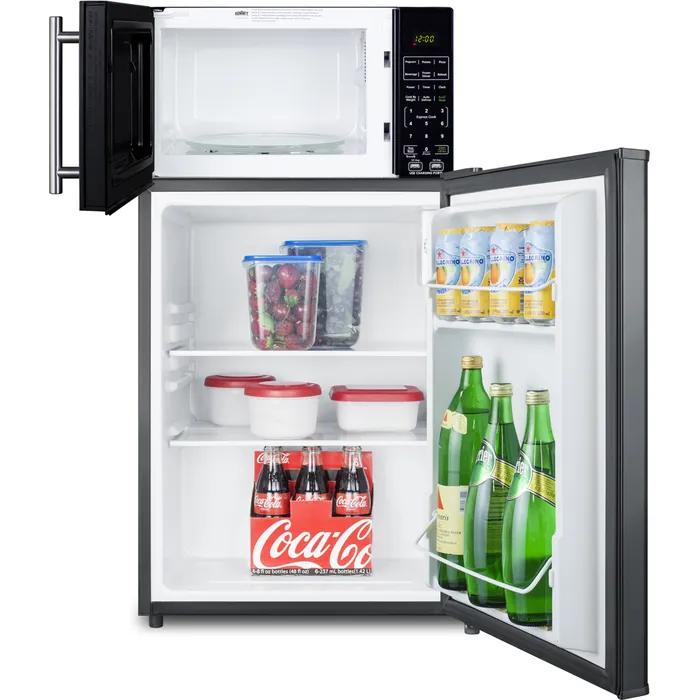

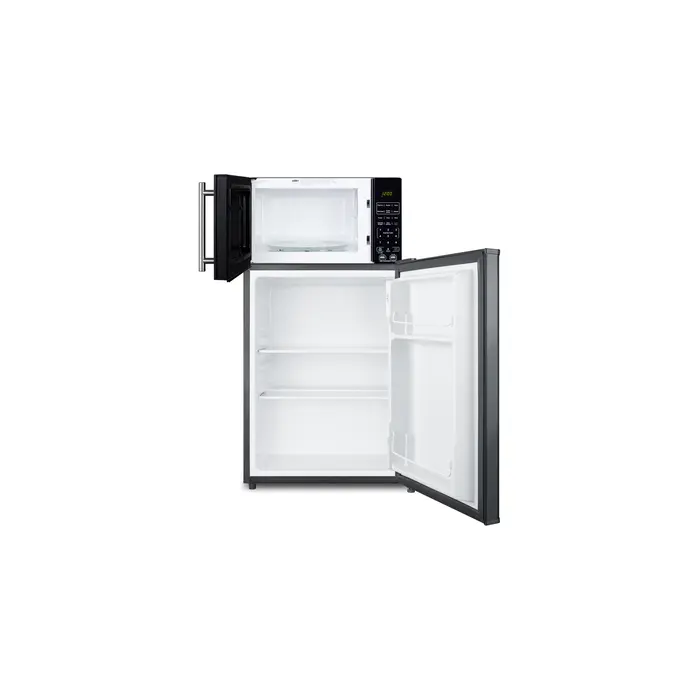

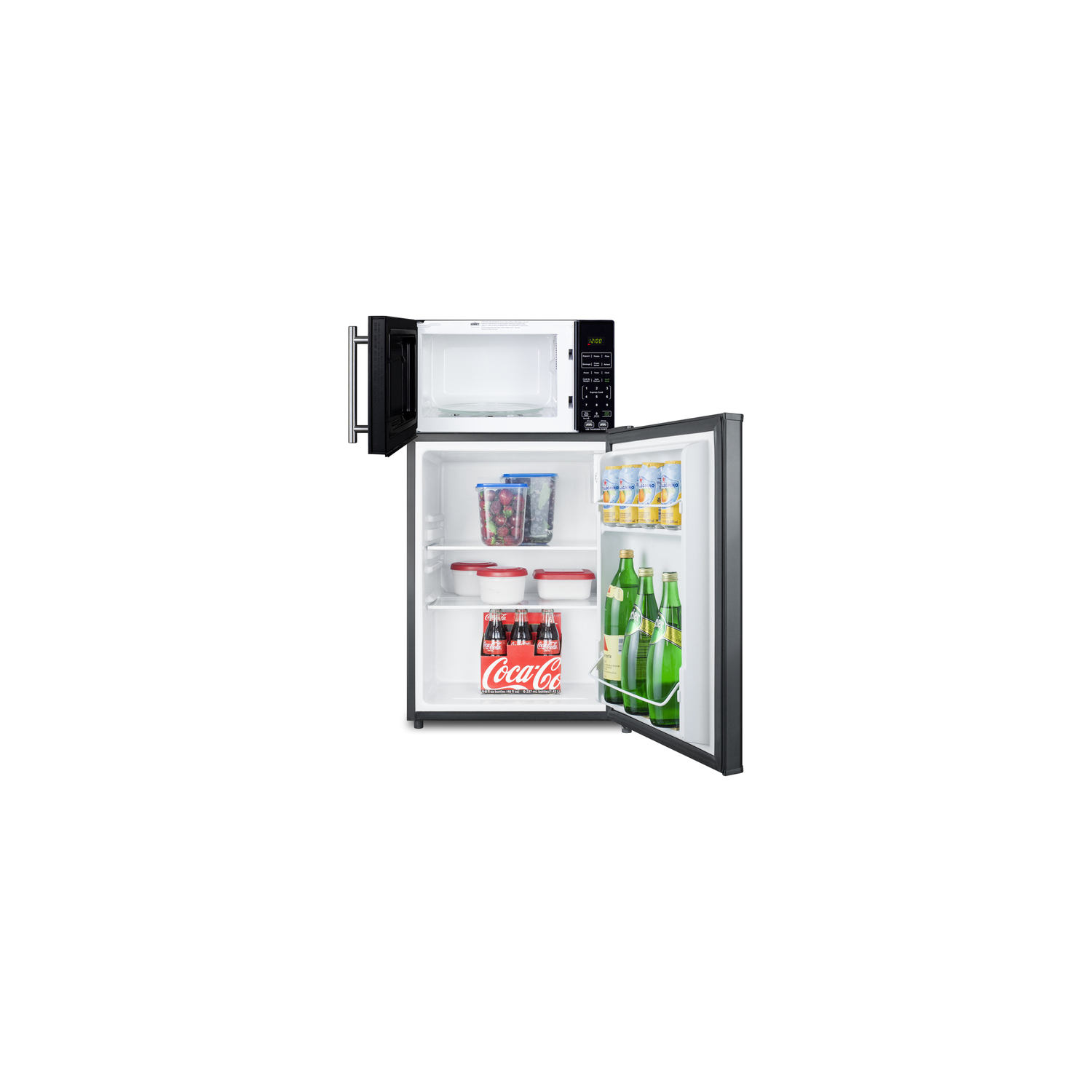

FF29K All-Refrigerator Compact auto defrost all-refrigerator with adjustable glass shelves and door storage

SM903BSA1 microwave Compact microwave in black with window, stainless steel handle, and digital controls for easy operatoin

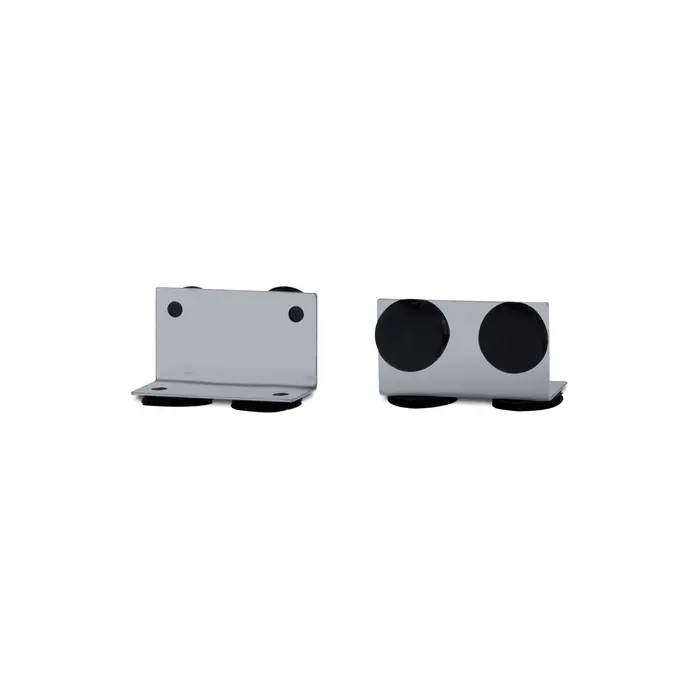

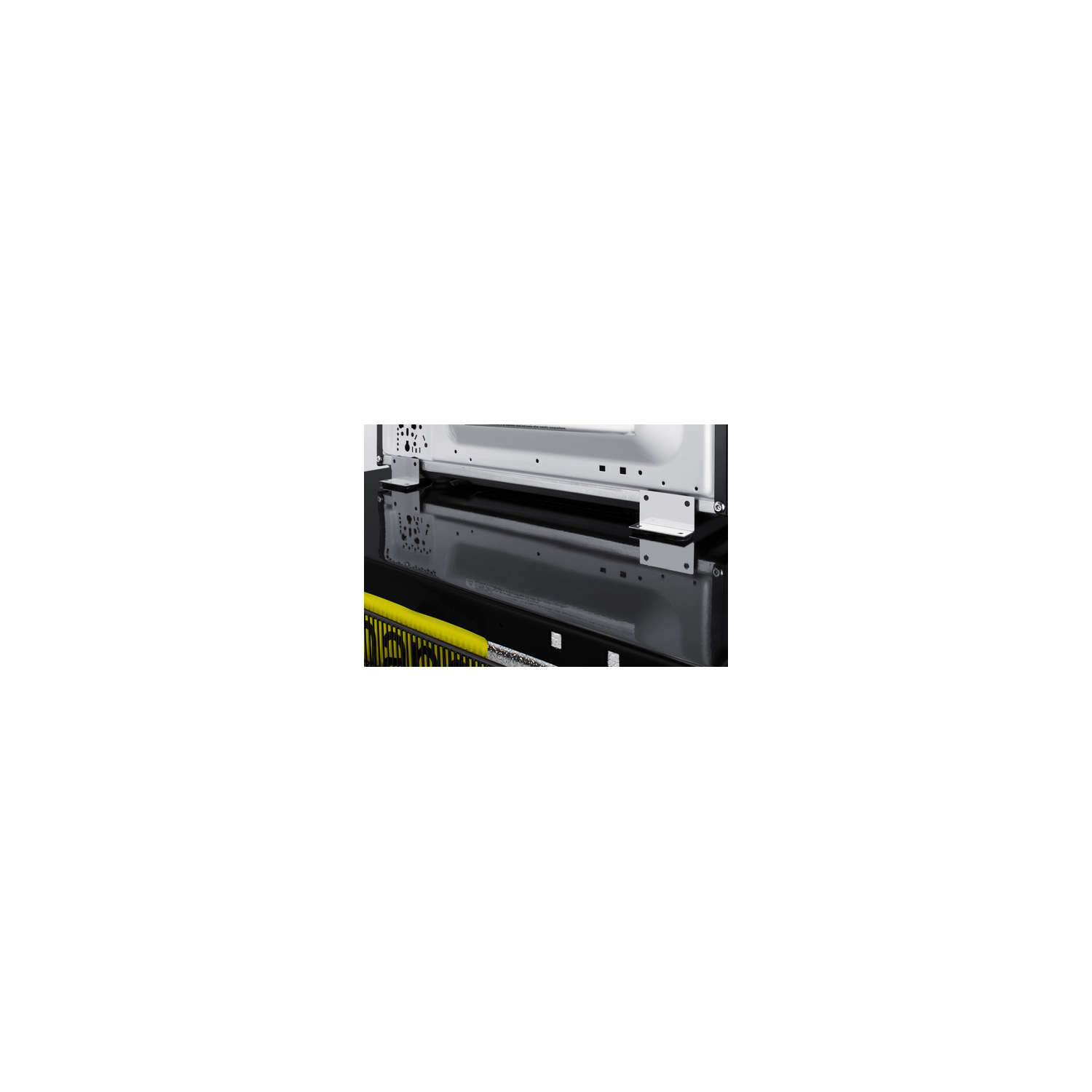

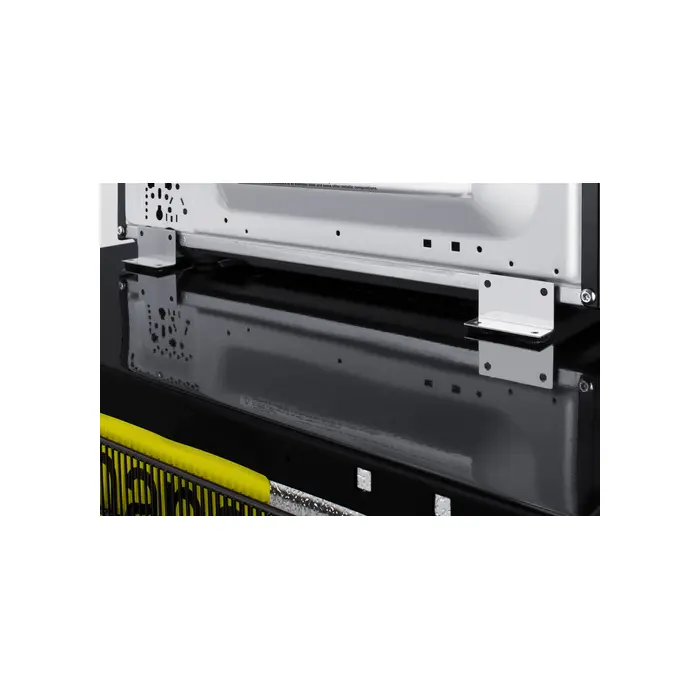

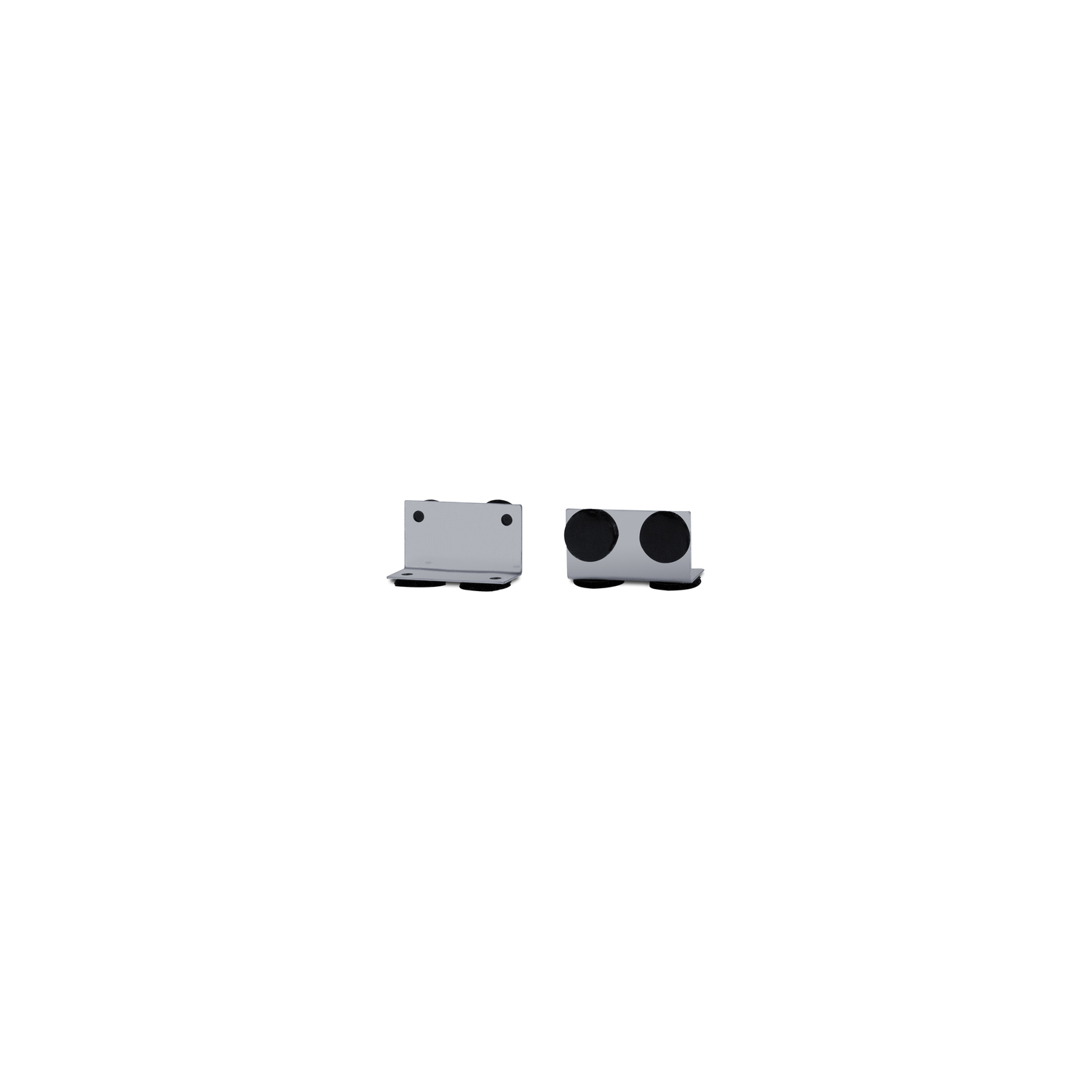

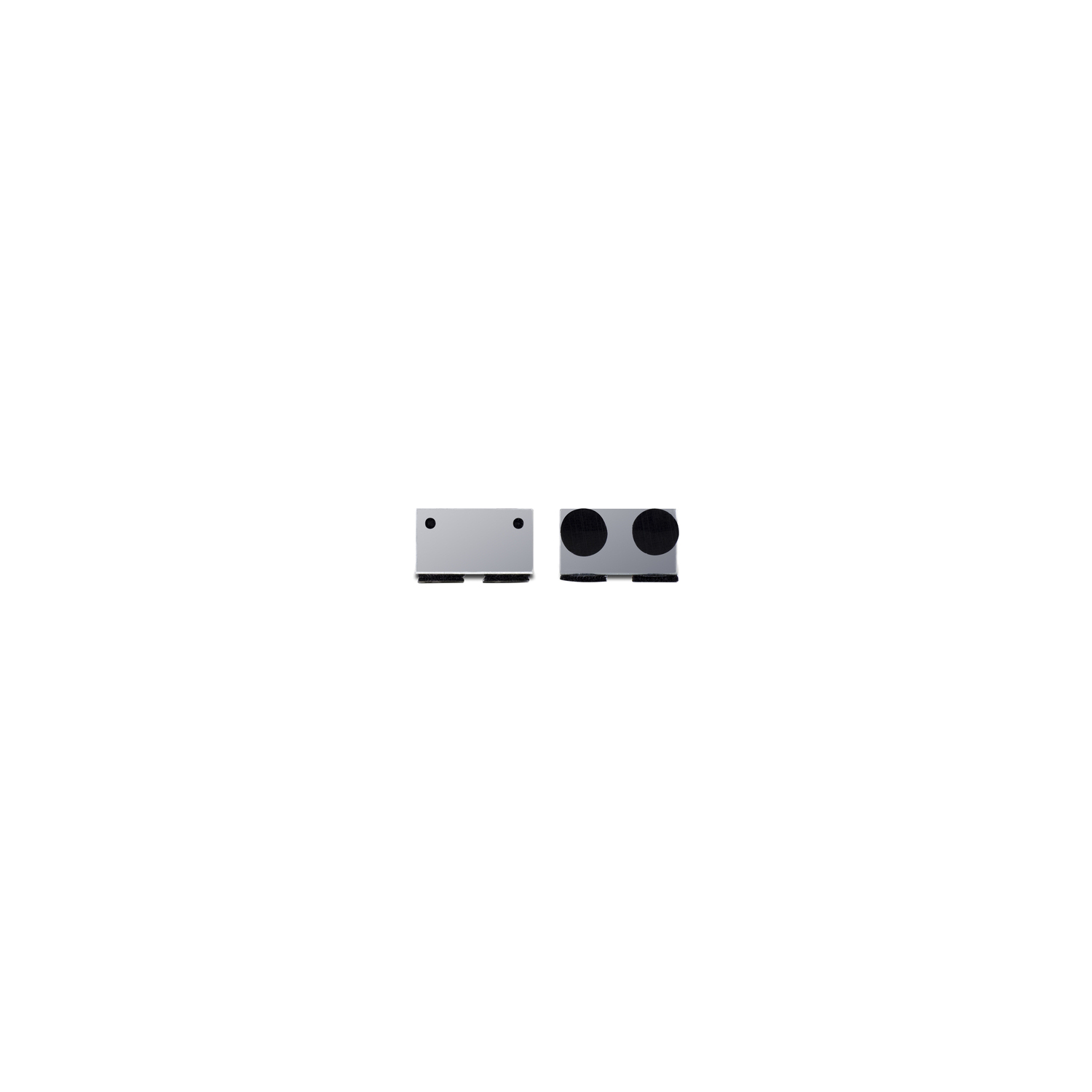

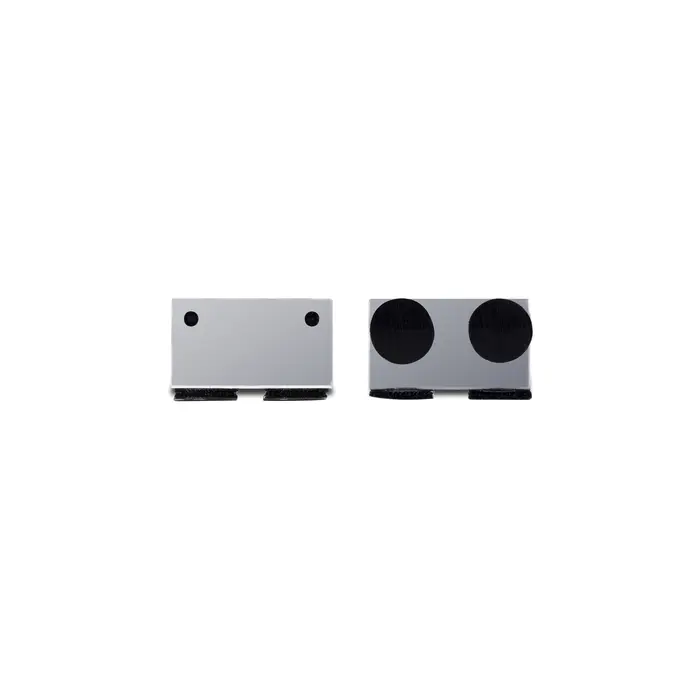

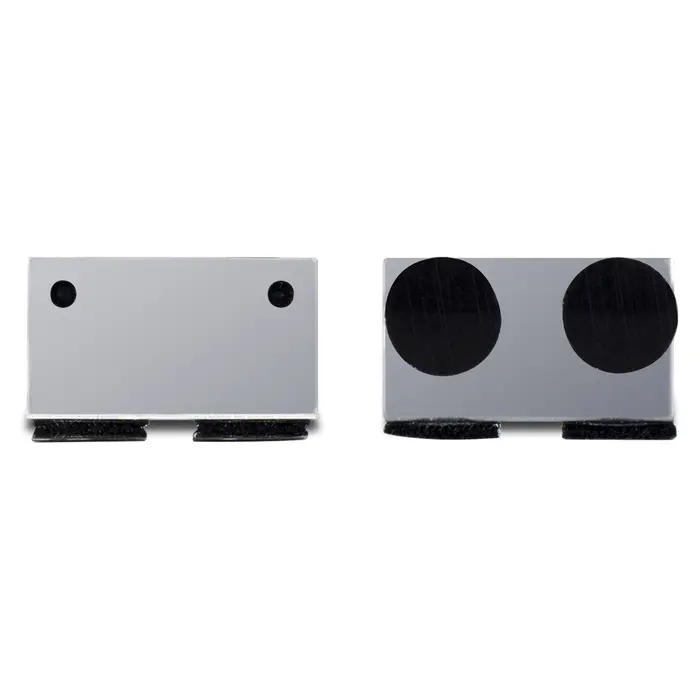

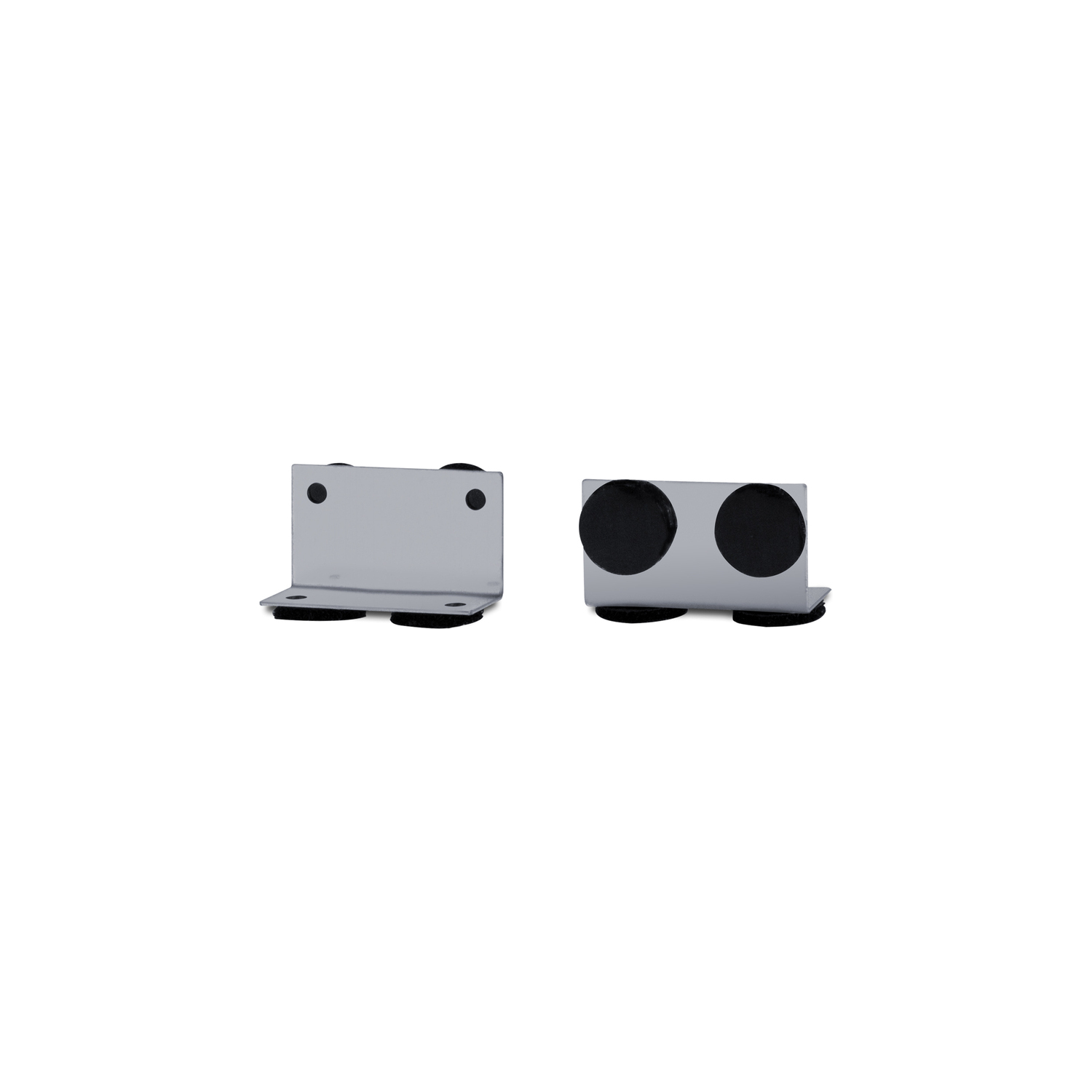

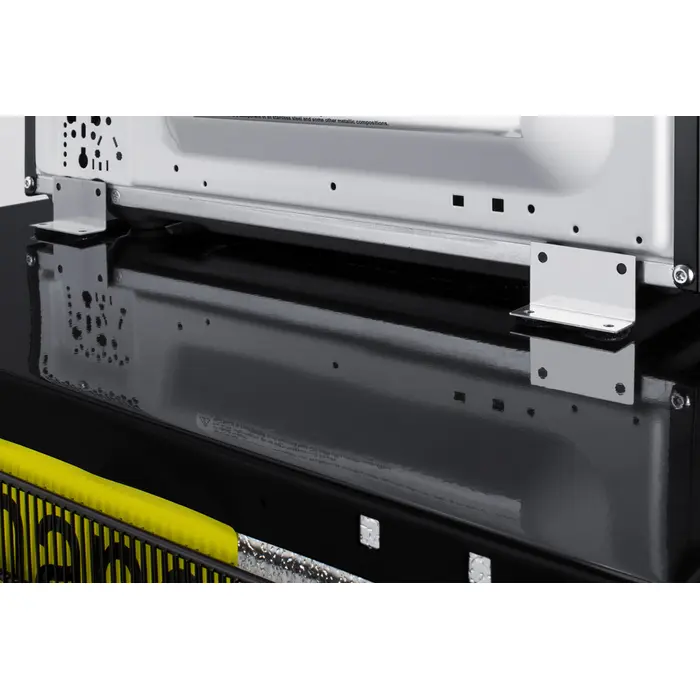

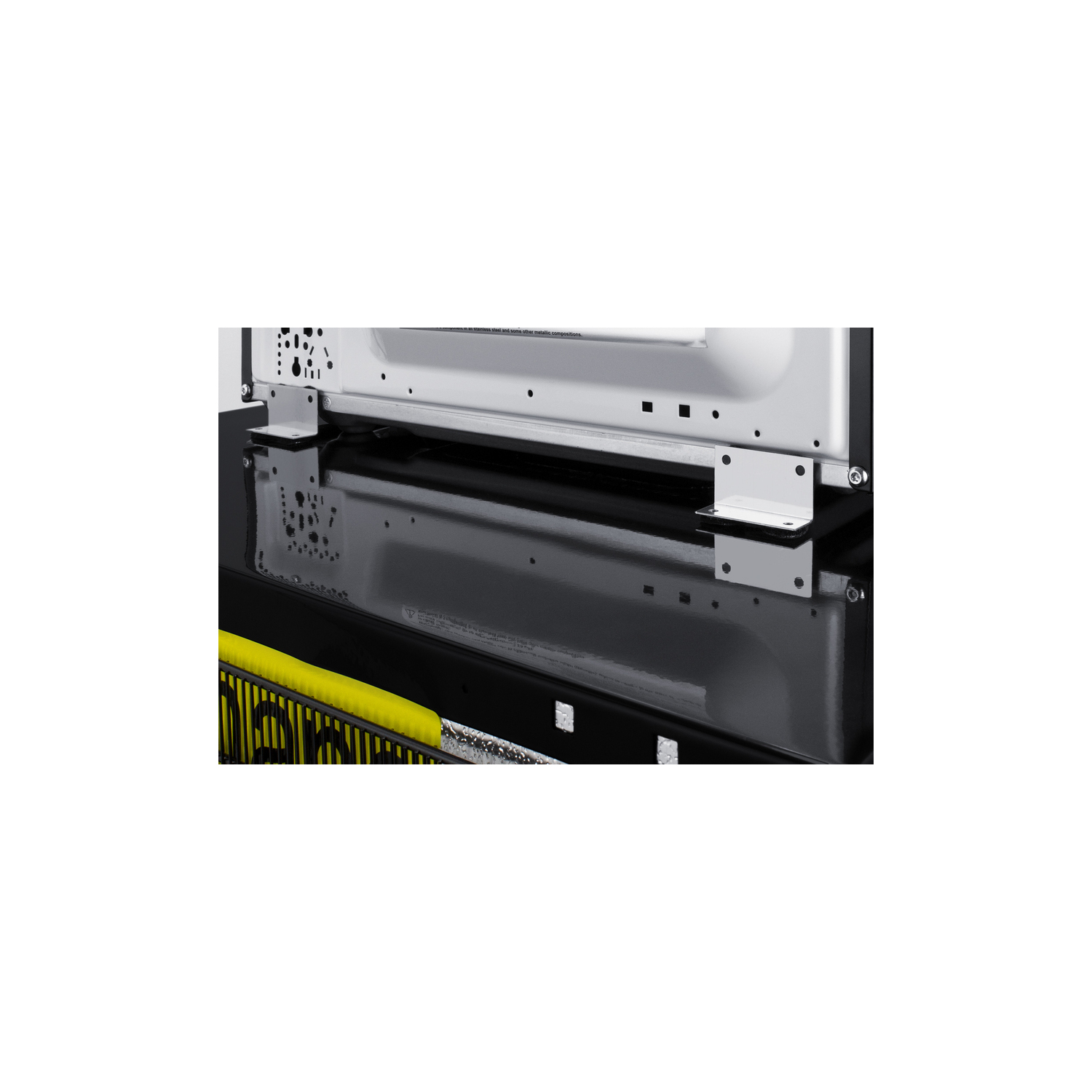

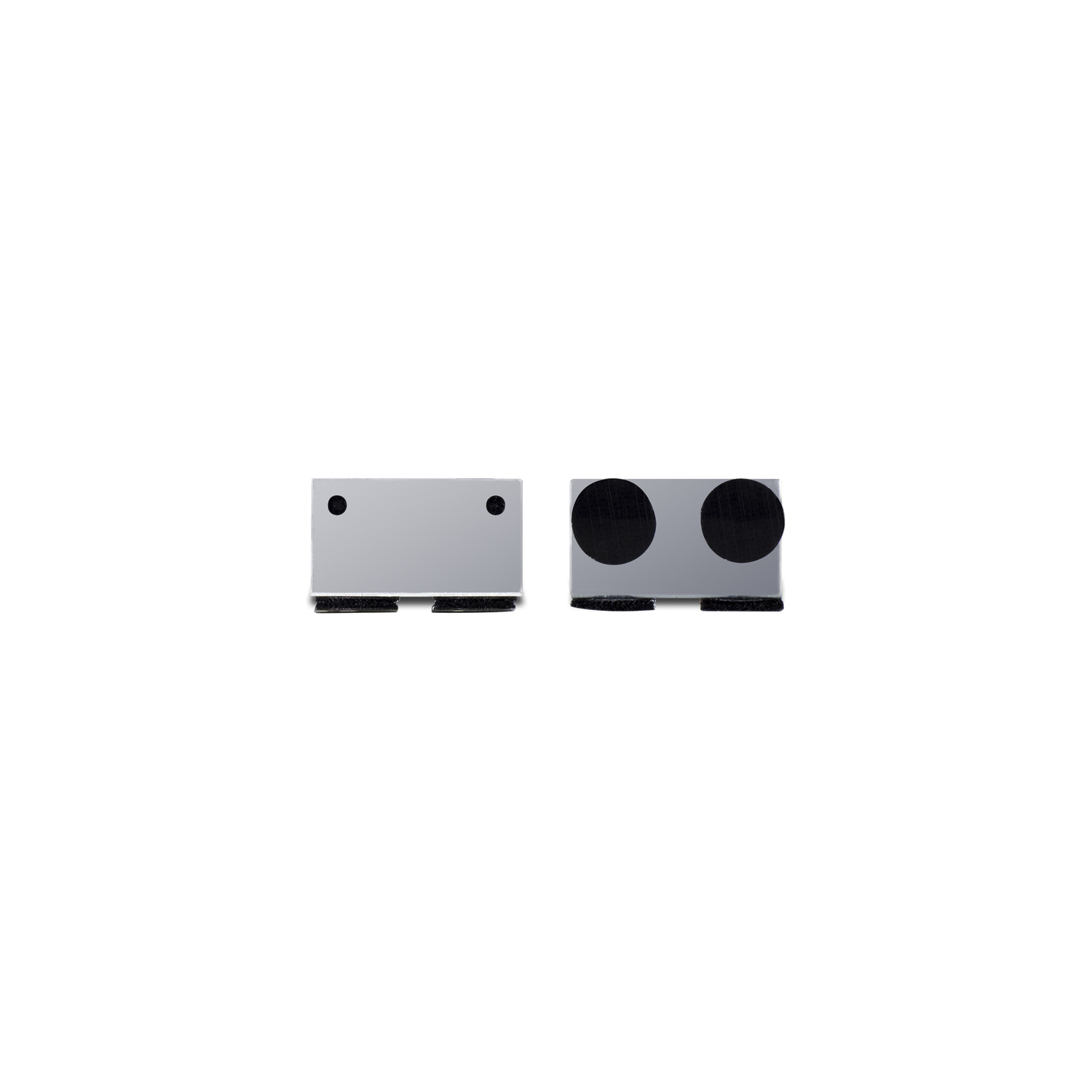

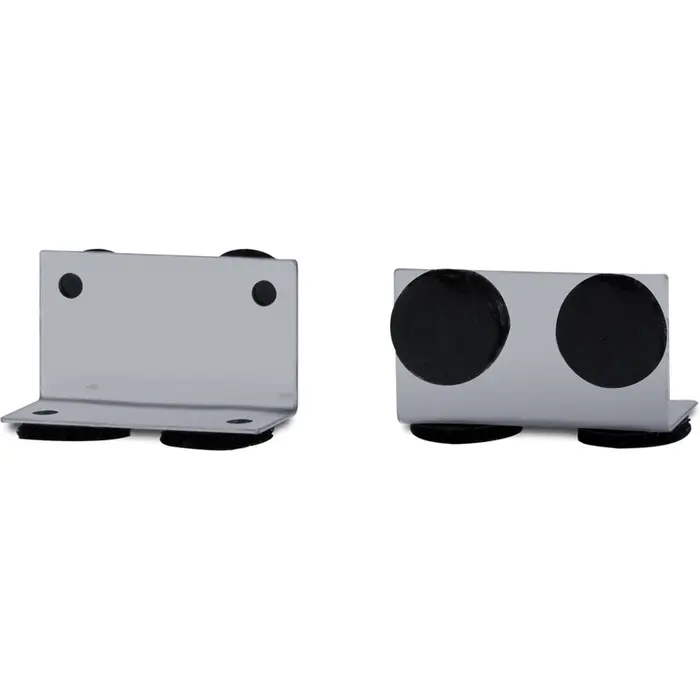

Easy assembly Ships with two removable brackets that let you secure the microwave on top of the refrigerator

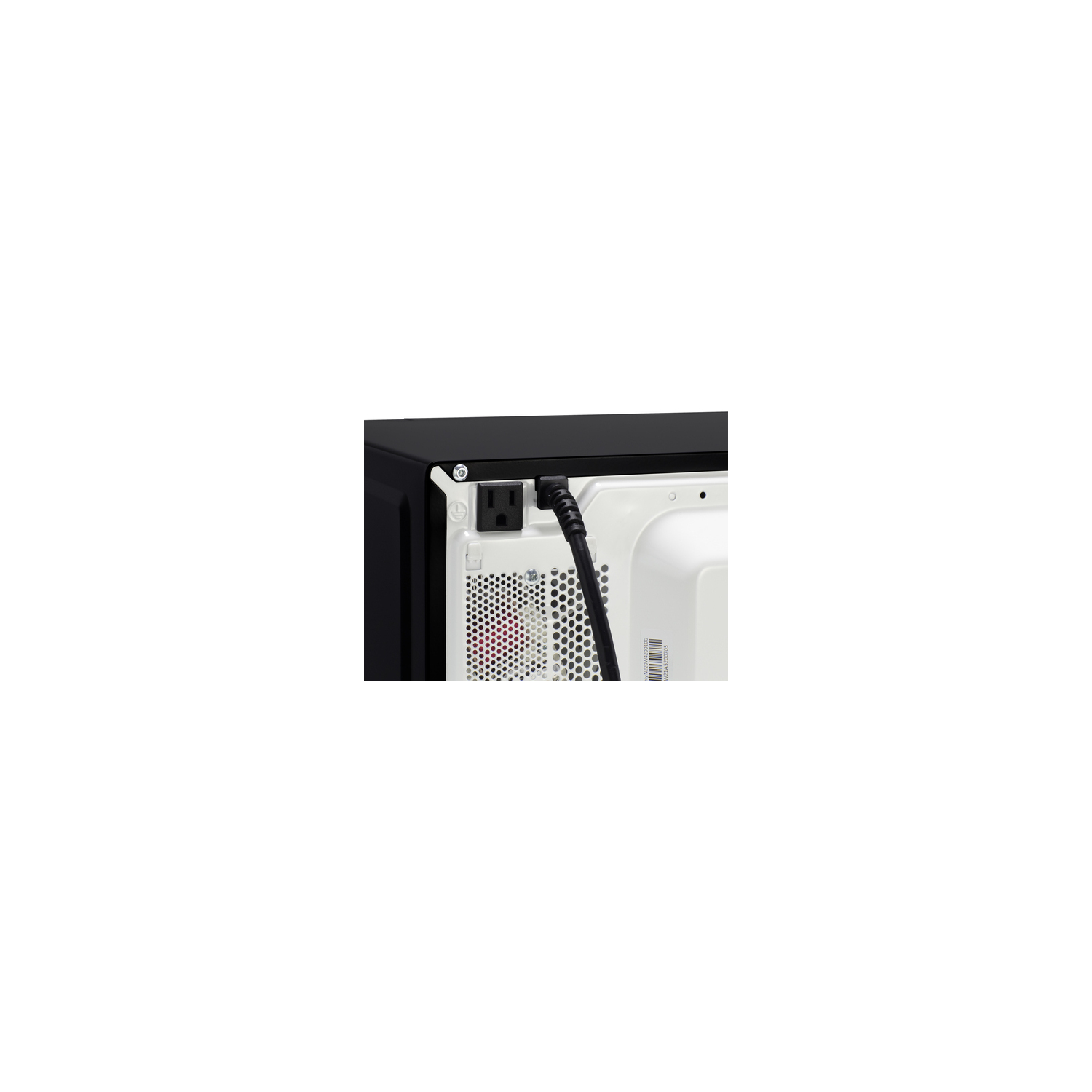

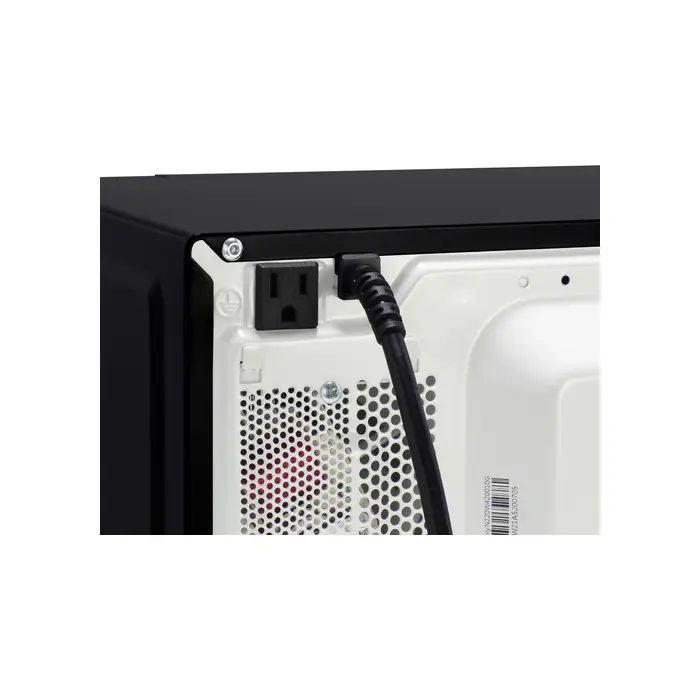

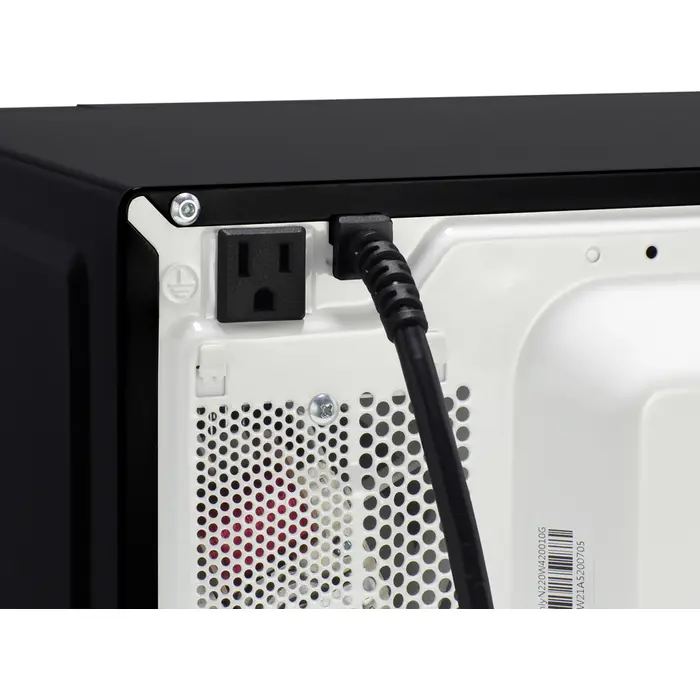

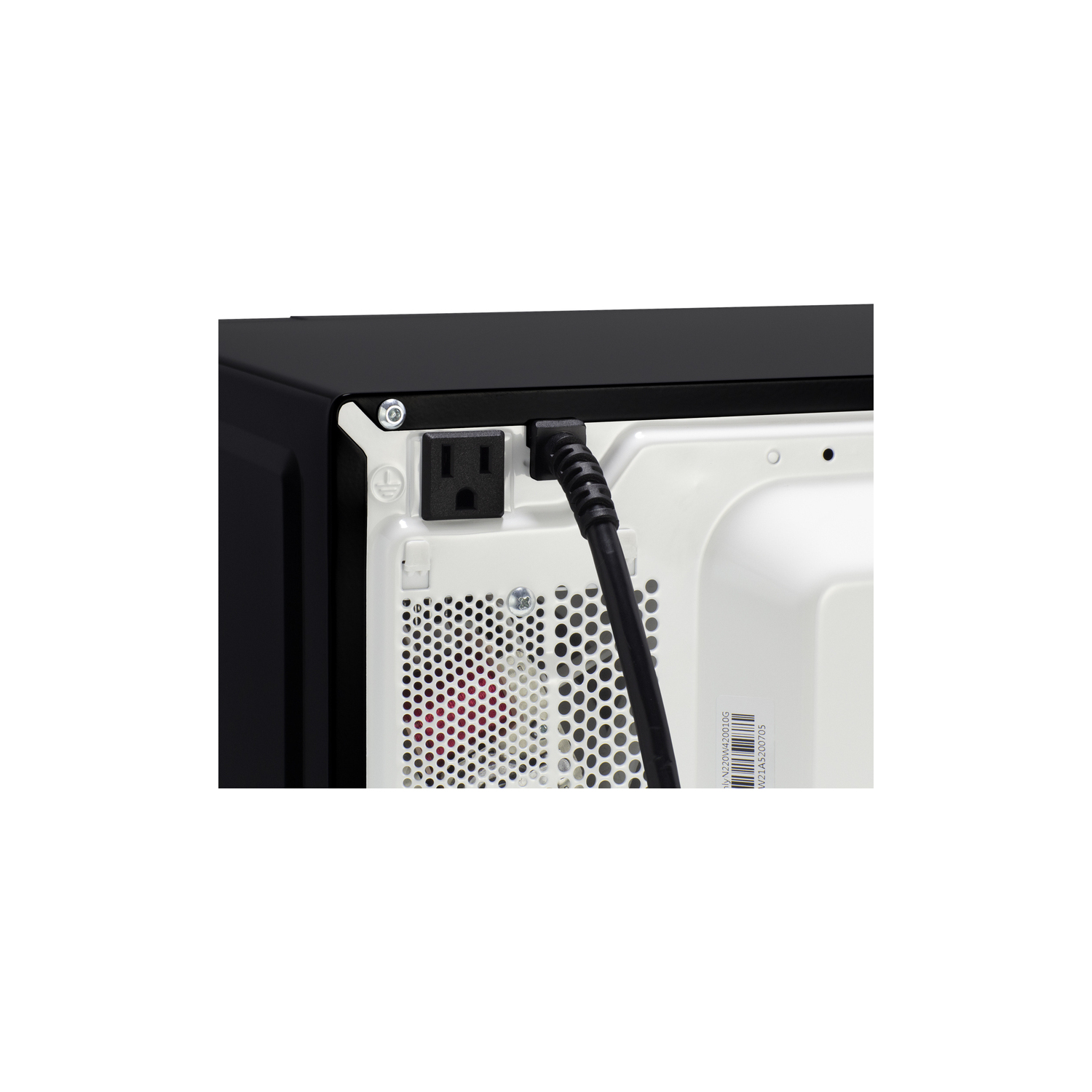

Built-in power allocator Plug the refrigerator into the microwave's rear outlet for easy 1-plug operation that will temporarily disable the fridge while the microwave is in use to prevent power surges

(2) USB ports Charge your mobile devices through the pre-installed ports, located on the microwave's front for added convenience

Reversible door (refrigerator) User-reversible door swing for added flexibility

Sealed back Allows for a better fit and easier cleanability

Stainless steel handle (microwave) Easy-grab handle in brushed stainless steel elevates the look for the microwave

One-touch cooking Pre-programmed settings for potatoes, pizza, beverages, popcorn, frozen dinners, and reheating, as well as options for multi-stage cooking, cook by weight, and auto defrost

Mute function Press and hold ON/OFF for 3 seconds to disable the sound of your microwave

Eco Mode Power-saving option lets you disable the digital display

Right angle plug (microwave) Microwave's cord design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Black exterior Refrigerator and microwave feature a jet black finish

Thin-line design Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit spots

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
