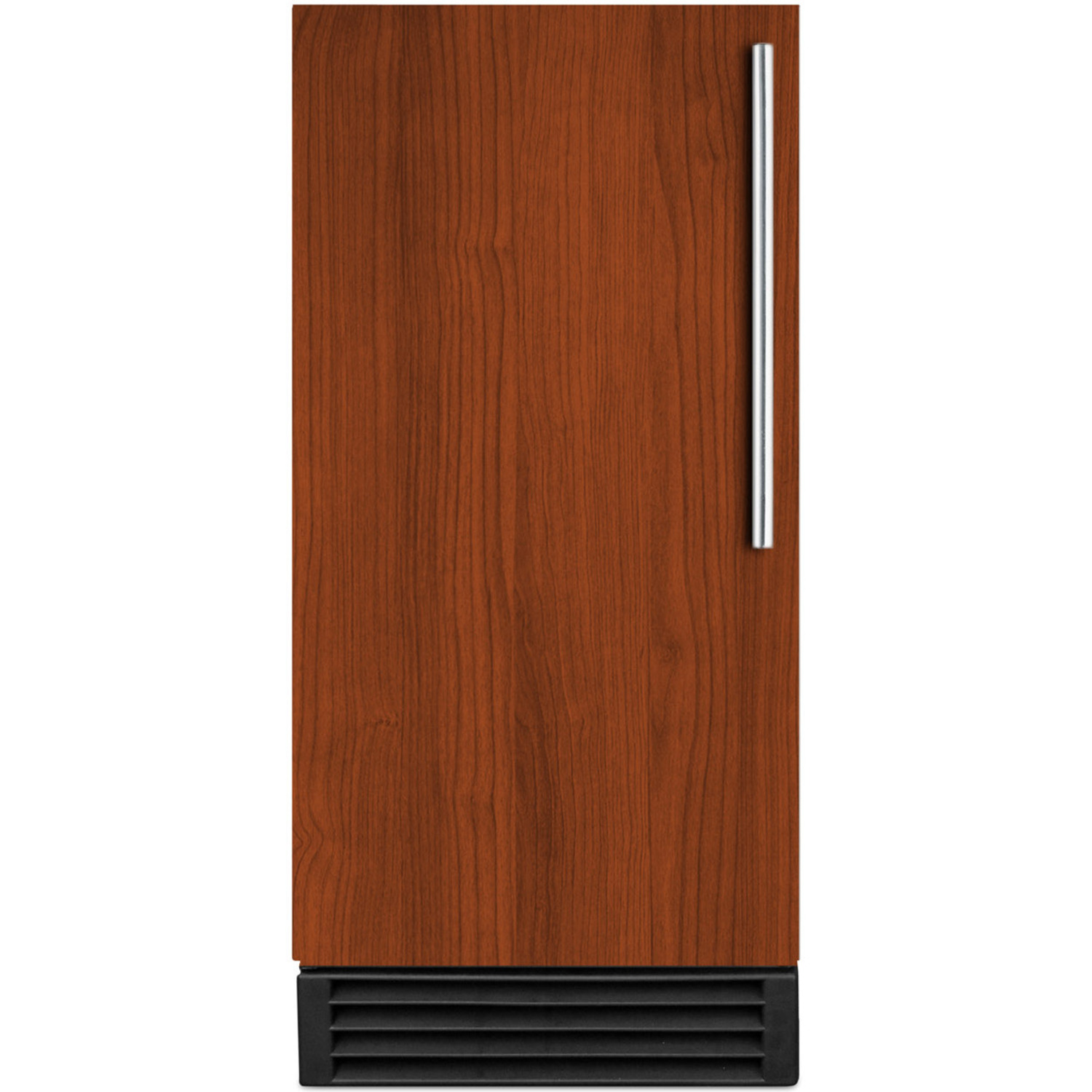

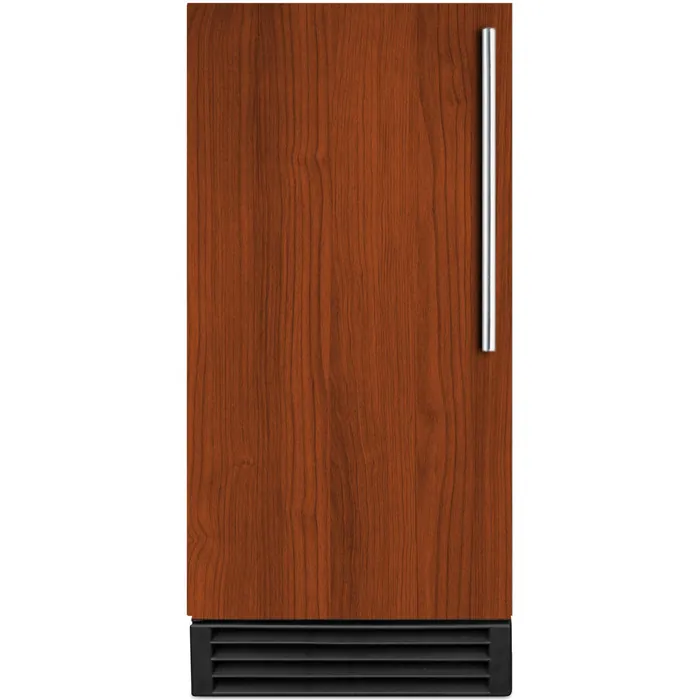

Summit 15 inch wide ADA compliant built-in undercounter panel-ready NSF-listed clear icemaker with automatic defrost and internal pump, 7.61101e+011, BIM44GIFADA
$2,092.32
Retail Price: $3,040.00
Shipping: $150
$ 2,092.32
Description
Summit's commercially approved icemakers are an attractive and durable solution to keeping a continuous supply of clear ice on hand in virtually any kitchen space.
ENERGY STAR certified for commercial use, BIM44GIFADA is just 32 1/8"high, ideal for use under lower counters following ADA compliant guidelines. The front-breathing design allows built-in use under counters, while the fully finished cabinet also allows freestanding use, with a sealed back for easier cleanup. The door features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel dimensions: 27" H x 14 1/2" W at 3/4" thick). Customers provide their own handle to complete the look.

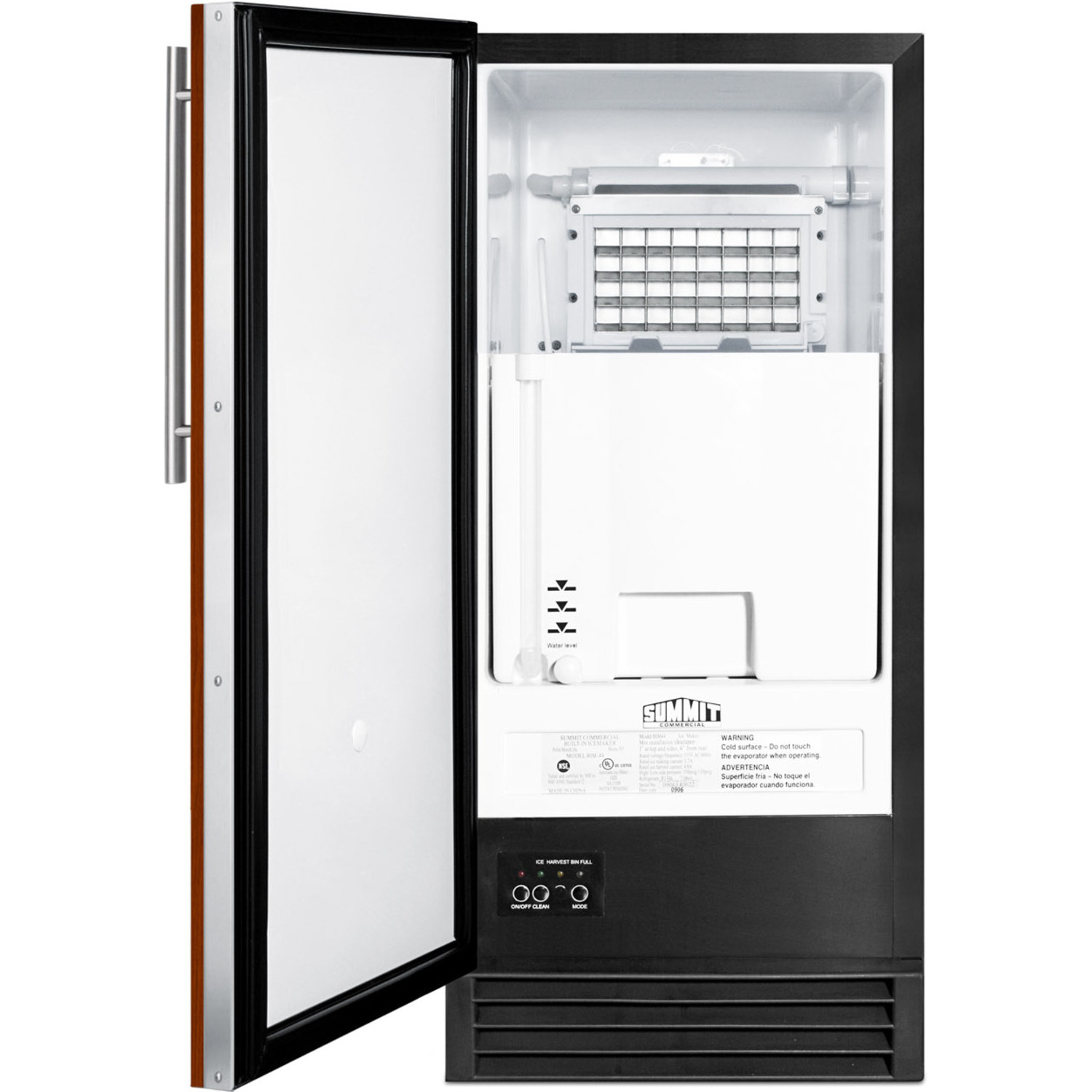

Inside, the BIM44GFADA has a touch control panel for easy operation. Indicator lights alert users to each step in the production process, as well as to when the bin is full. This unit can produce up to 45 lbs. of clear cube-shaped ice, with an adjustable bin capacity that can hold up to 25 lbs. The ice is produced in sheets and can easily be broken into cubes with the provided scoop, which can be mounted on brackets inside for easy use. An interior light in a blue hue allows for easy viewing of the interior, while automatic defrost operation makes maintenance simple and stress-free. This model comes equipped with an internal pump, while four adjustable leveling legs keep the unit level on uneven surfaces.
Sized at 15" wide, BIM44GIFADA is ETL-S listed to NSF-12 for use in foodservice settings and can also be installed in any kitchen or wet bar. For this unit in a standard height, see the BIM44GIF.
SPECIFICATIONS
Overview
Height of Cabinet 31.88" (81 cm)
Height to Hinge Cap 32.13" (82 cm)
Width 14.63" (37 cm)
Depth 22.5" (57 cm)
Depth with Panel 23.25" (59 cm)
Depth with door at 90° 36.25" (92 cm)
Defrost Type Automatic
Door Panel-Ready
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation ETL-S
Amps 2.5
Plug Type NEMA 5-15P
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101029283
Icemaker
Door Swing LHD
Reversible Factory Reversible
Drain Required Yes
Daily Ice Production 45.0 lbs. (20 kg)
Ice Storage Capacity 25.0 lbs. (11 kg)
Ice Shape Cube
Size of Cube 7/8" x 7/8" x 7/8"
Number of Ice Cube Sizes 1
Interior Light Yes
Fan Type Exterior
Refrigerant Type R290a
Refrigerant Amount 1.87 oz.
High Side PSI 286.0
Low Side PSI 110.0
Interior Height 18.75" (48 cm)
Interior Width 11.25" (29 cm)
Interior Depth 15.5" (39 cm)
Level Legs 4
FEATURES
15" Wide ADA Compliant Clear Icemaker Built-in undercounter icemaker produces up to 45 lbs. of clear cubes
ENERGY STAR certified commercial performance Efficient performance for commercial use
ADA compliant 32 1/8" height fits under lower ADA compliant counters
Commercially approved ETL-S listed to NSF-12 standards for use in commercial environments
Built-in pump Internal pump allows more flexibility in placing the unit
Built-in capable Make the best use of space by installing your appliance under the counter
Panel-ready door Stainless steel door frame accepts full overlay panels to match adjacent cabinetry (panel size: 27" H x 14 1/2" W and at least 3/4" thick; maximum weight: 10 lbs.)
Clear ice cube production Clear cubes offer the perfect cooling of your beverages; NOTE: ice is produced in sheets and can easily be broken into cubes using the provided scoop
Automatic defrost Reduced maintenance with auto defrost system
Insulated storage bin Ice stays frozen longer inside this cold-protected bin
Interior light LED lighting in a soft blue hue for easy viewing of the interior
Hoses included Water supply and drain hose packaged inside for easy setup
Ice scoop included Large scoop included, with a hanging hook located inside for easy storage
Fully finished black cabinet Allows the unit to be used freestanding
Sealed rear Space saving design for easier cleanability
Leveling legs Four leveling legs help to keep the unit level on uneven surfaces
100% CFC Free Environmentally friendly design with no ozone-damaging chemicals
CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Lead-free certified Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
DOWNLOADS
TECHNICAL DRAWING (.dwg) (BIM44GIFADA_BIM44GCSSIFADA_BIM47OSIFADA_2.dwg)
ASSEMBLY DRAWING (BIM44GIFADA_BIM44GCSSIFADA_BIM47OSIFADA-Assembly_2.pdf)
