Summit 15 inch wide built-in undercounter NSF-listed clear icemaker with automatic defrost and internal pump, 7.61101e+011, BIM44G
$1,725.76
Retail Price: $2,530.00
Shipping: $150
$ 1,725.76
Description
Summit brings full capacity clear ice production to residential and commercial spaces with a full selection of built-in undercounter clear icemakers.

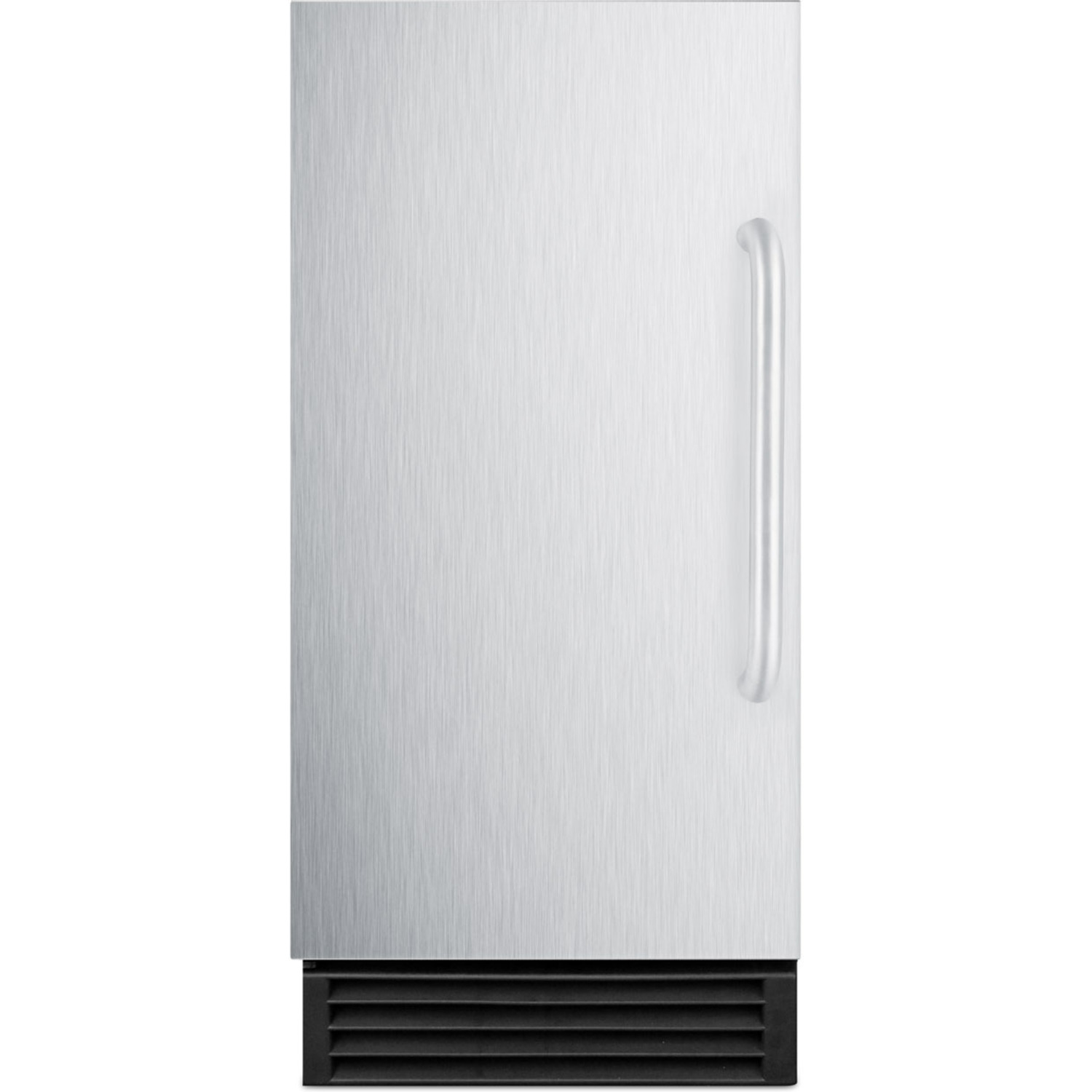

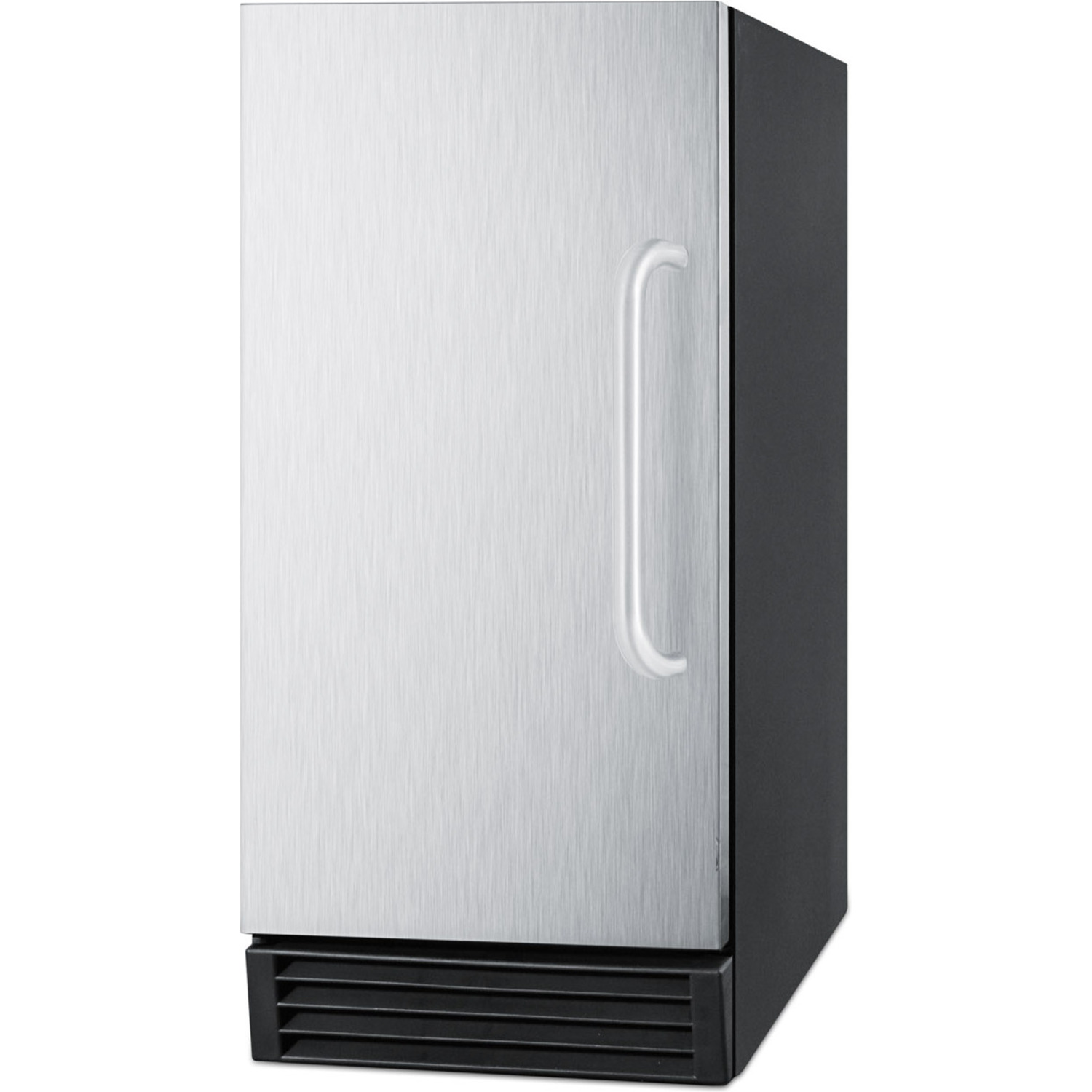

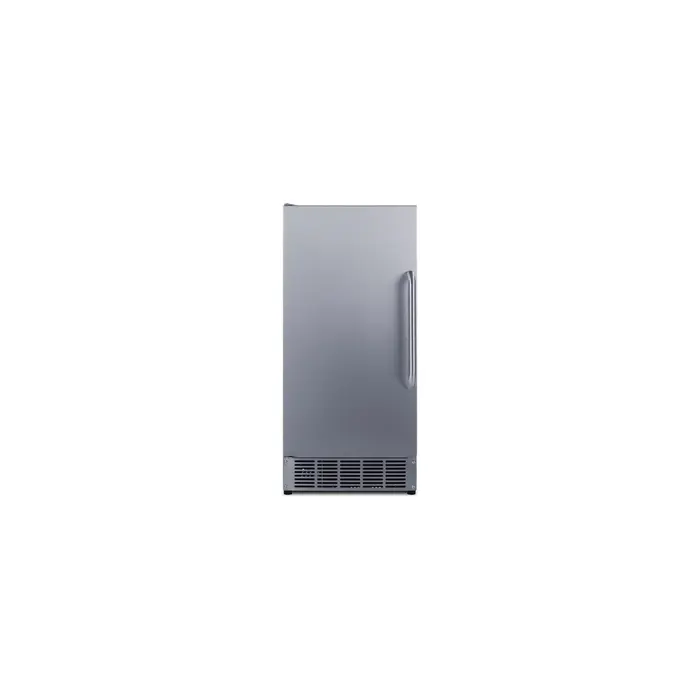

Model BIM44G is an indoor icemaker sized just under 34" high and 15" wide for an easy fit in commercial or home kitchens and bars. It features a reversible stainless steel door with a left hand door swing and pro style handle.The stainless steel kickplate completes the look. The front-breathing cooling system allows for built-in installation, while the fully finished black cabinet also lets you use the icemaker freestanding. This unit includes a built-in pump to allow for more flexible placement. We include both a drain hose and water supply hose.

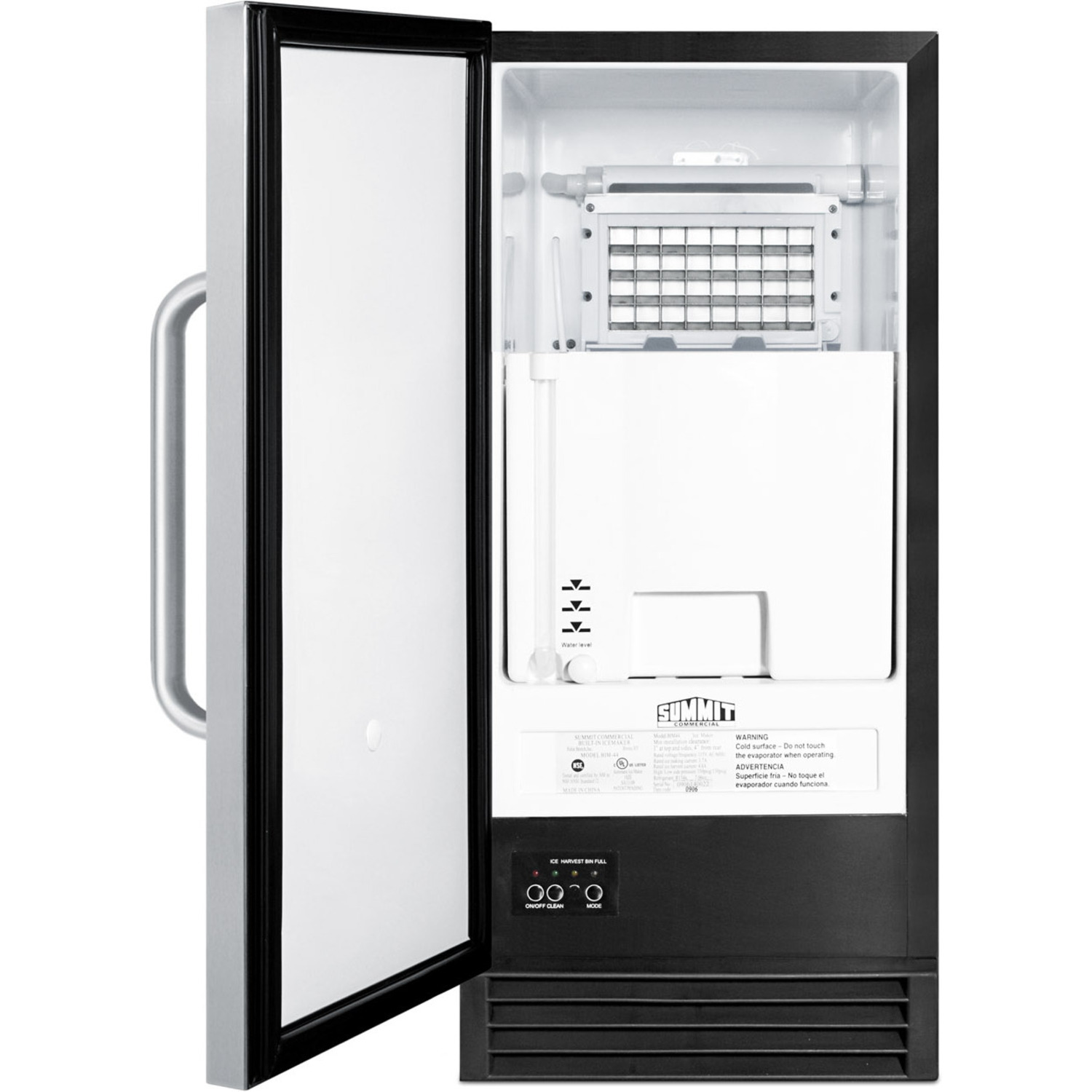

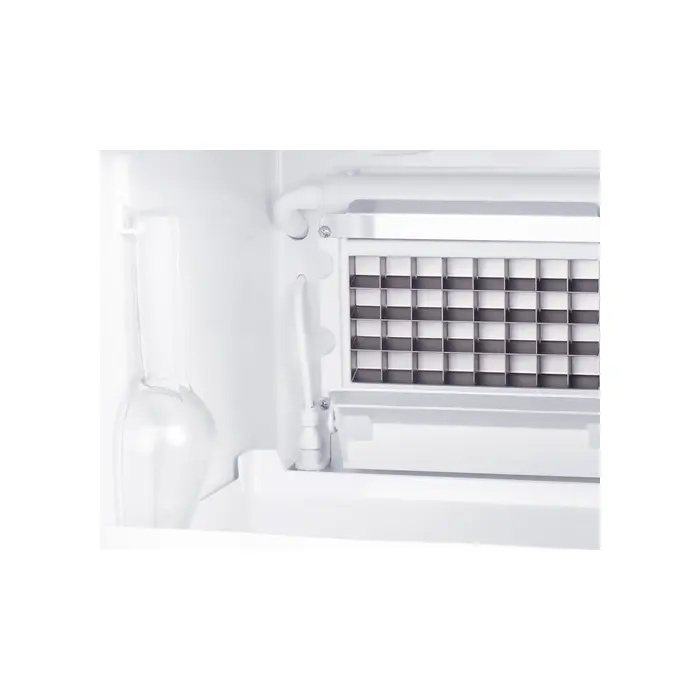

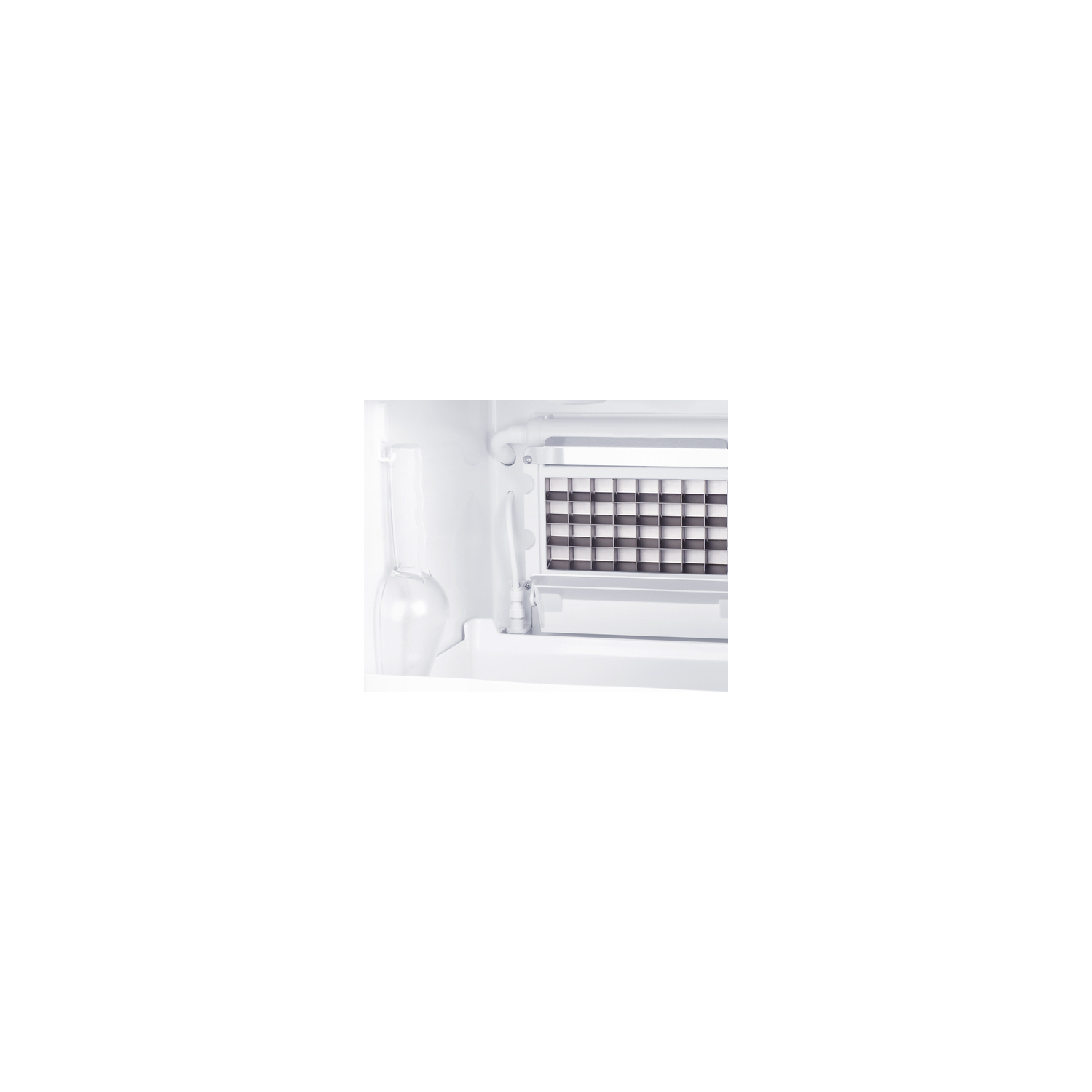

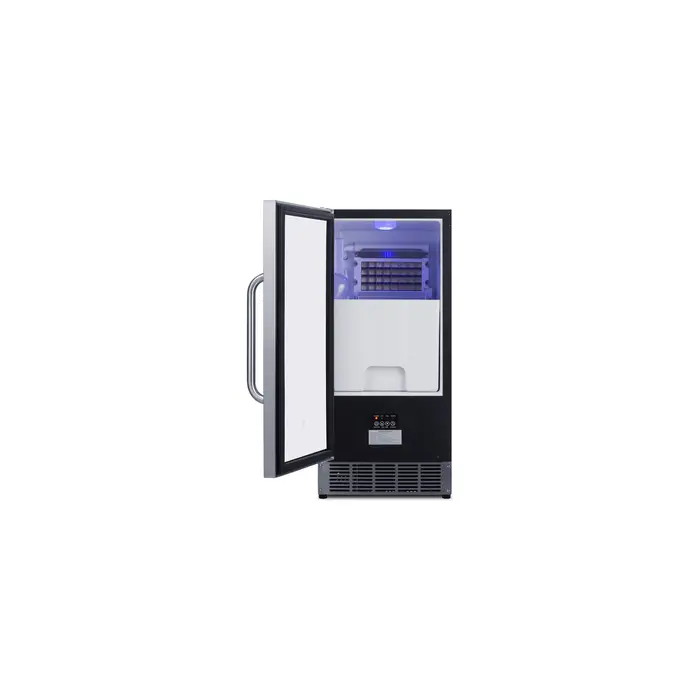

Automatic defrost ensures minimum user maintenance. This unit produces up to 45 pounds of clear cube-shaped ice in a day cycle. The removable bin can hold up to 25 pounds. Ice is formed in sheets and can easily be broken into cubes using the provided scoop. We include a handy hook in the upper interior cabinet that lets you store the scoop in easy reach. LED lighting in a modern blue finish provides full illumination of the interior.
This unit is ETL-S listed to NSF standards and is ENERGY STAR certified as a commercial icemaker. Additional choices are available with a lower ADA compliant height, panel-ready door, and for outdoor use. Explore the full Summit selection to find the right icemaker for your needs.
SPECIFICATIONS
Overview

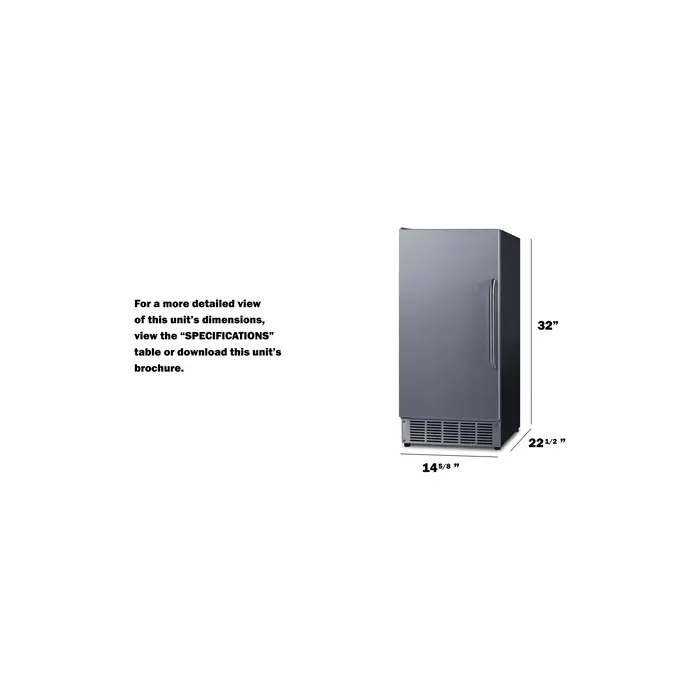

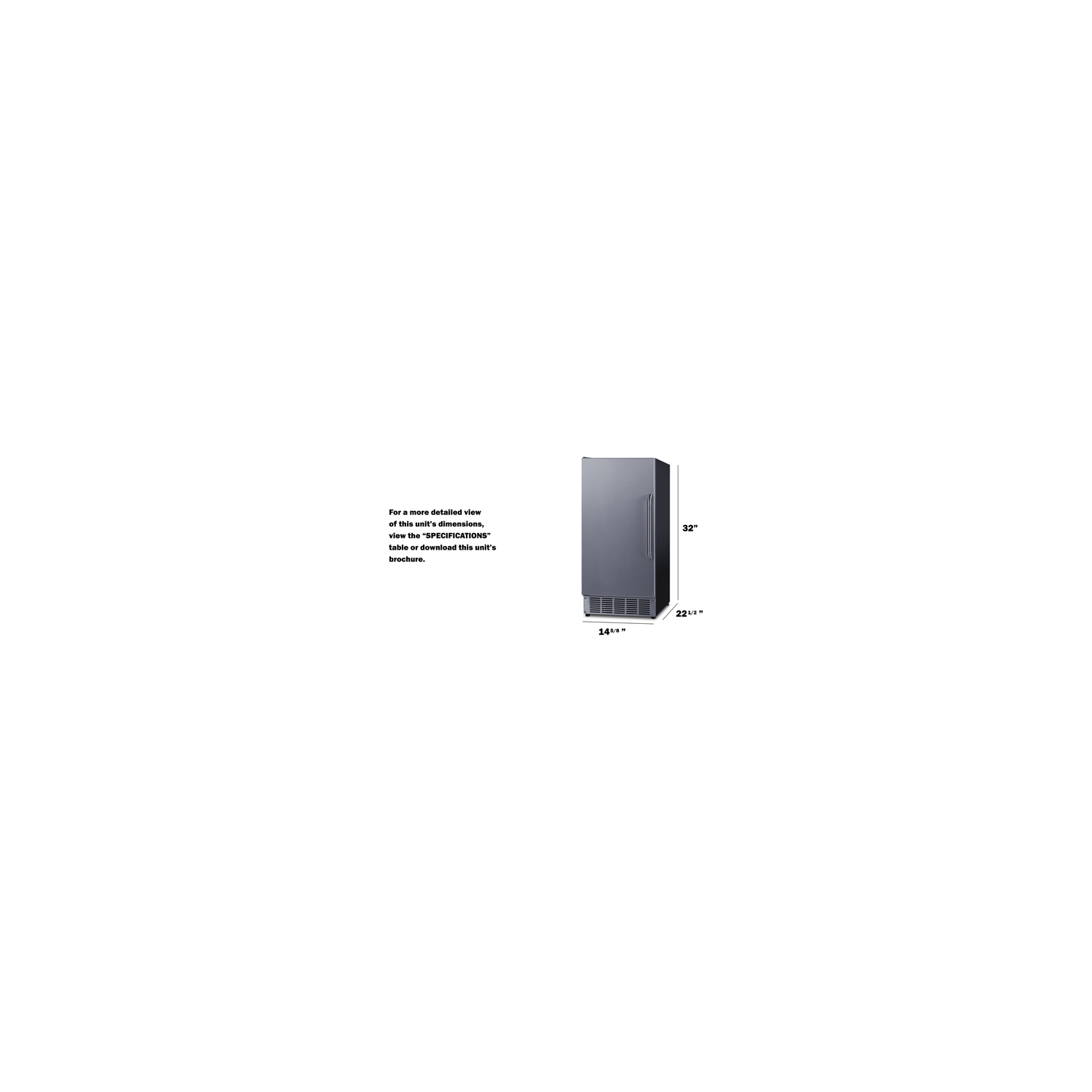

Height of Cabinet 33.63" (85 cm)
Height to Hinge Cap 33.75" (86 cm)
Width 14.63" (37 cm)
Depth 22.5" (57 cm)
Depth with Handle 24.5" (62 cm)
Depth with door at 90° 36.25" (92 cm)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation ETL-S
Amps 2.5
Plug Type NEMA 5-15P
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101012261
Icemaker
Door Swing LHD
Reversible Yes
Drain Required Yes
Daily Ice Production 45.0 lbs. (20 kg)
Ice Storage Capacity 25.0 lbs. (11 kg)
Ice Shape Cube
Size of Cube 7/8" x 7/8" x 7/8"
Number of Ice Cube Sizes 1
Interior Light Yes
Fan Type Exterior
Refrigerant Type R290a
Refrigerant Amount 1.87 oz.
High Side PSI 286.0
Low Side PSI 110.0
Interior Height 18.75" (48 cm)
Interior Width 11.25" (29 cm)
Interior Depth 15.5" (39 cm)
Level Legs 4
FEATURES
15" Wide Clear Icemaker Built-in undercounter icemaker produces up to 45 lbs. of clear cubes
ENERGY STAR certified commercial performance Efficient performance for commercial use
Commercially approved ETL-S listed to NSF-12 standards for use in commercial environments
Built-in pump Internal pump allows more flexibility in placing the unit
Automatic defrost Reduced maintenance with auto defrost system
Reversible door Keep your options flexible with a reversible door that is easy to switch when your arrangement changes; Unit ships LHD but can be reversed in our factory or by the user
Built-in capable Make the best use of space by installing your icemaker under the counter
Stainless steel door Professional styling with lasting durability
Professional towel bar handle A curved handle in brushed stainless steel offers an easy grip
Clear ice cube production Clear cubes offer the perfect cooling of your beverages; NOTE: ice is produced in sheets and can easily be broken into cubes using the provided scoop
Insulated storage bin Ice stays solid longer in this cold-protected bin
Hoses included Water supply and drain hose packaged inside for easy setup
Ice scoop Large scoop included, with a hanging hook located inside for easy storage
Interior light LED lighting in a soft blue hue for easy viewing of the interior
Touch control panel Provides easy operation of the unit with indicator lights for each stage of the production process
Fully finished black cabinet Allows the icemaker to be used as a freestanding model
Sealed rear Space saving design for easier cleanability
Leveling legs Four leveling legs help to keep the unit level on uneven surfaces
100% CFC free Environmentally friendly design without ozone-damaging chemicals
CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Lead-free certified Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
DOWNLOADS
TECHNICAL DRAWING (.dwg) (BIM44G_BIM44GCSS_BIM47OS.dwg)
