Summit 15 inch wide built-in undercounter panel-ready NSF-listed clear icemaker with automatic defrost and internal pump, 7.61101e+011, BIM44GIF

Summit brings full capacity clear ice production to residential and commercial spaces with a full selection of built-in undercounter clear icemakers.

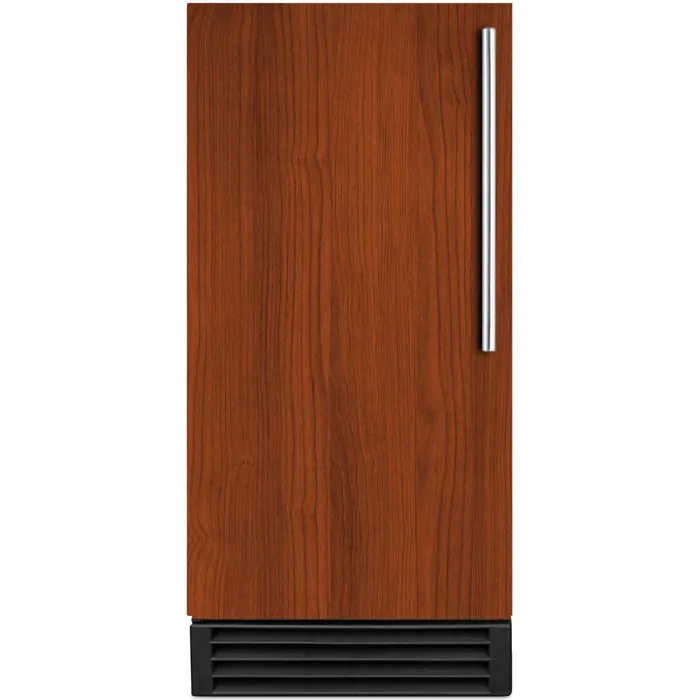

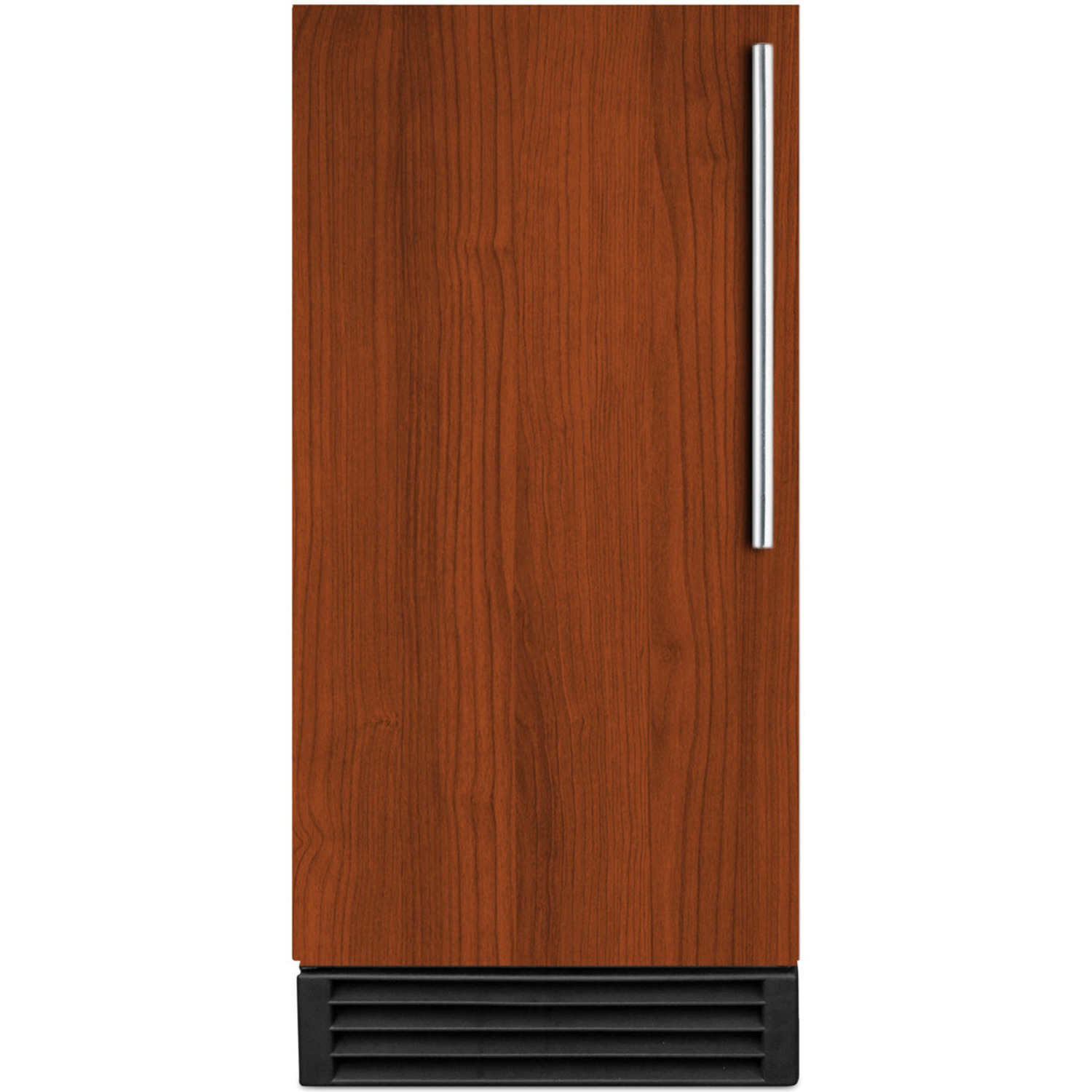

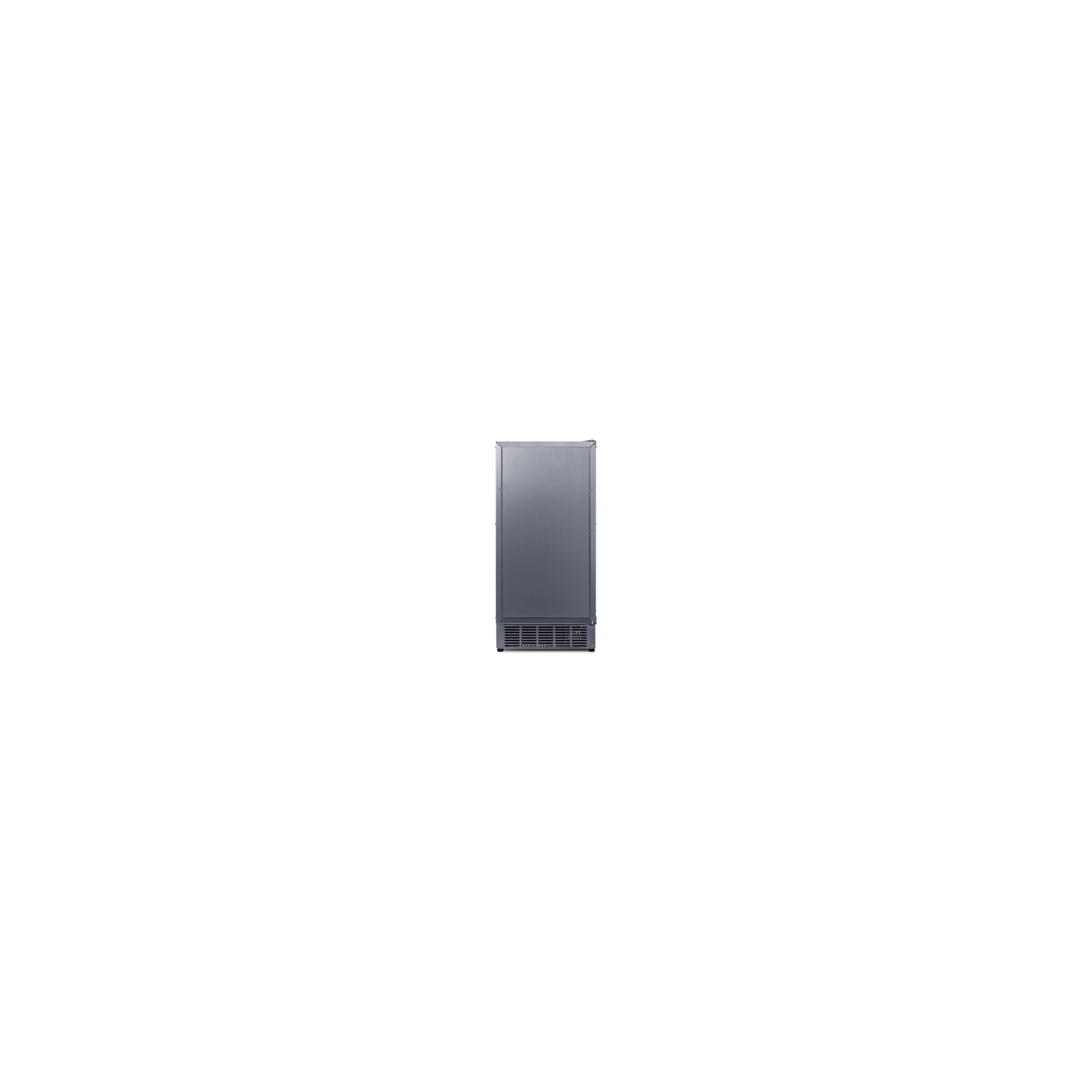

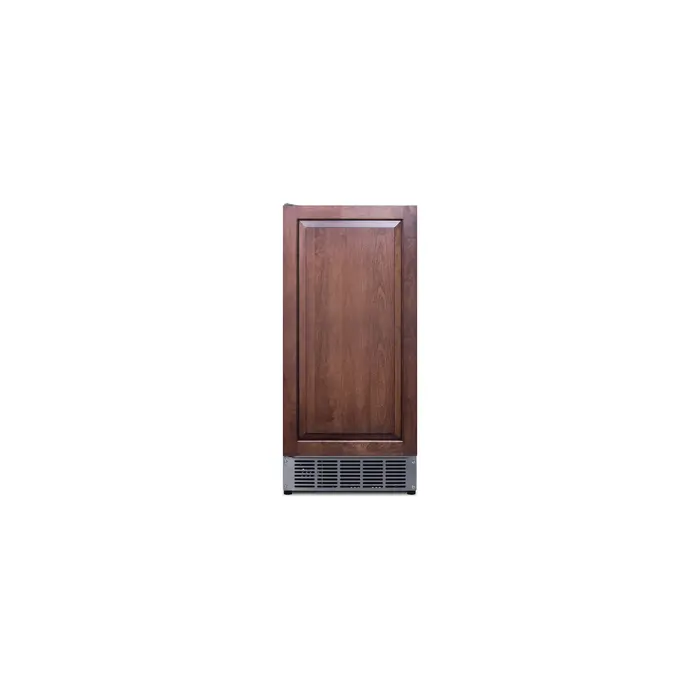

Model BIM44GIF is an indoor icemaker sized just under 34" high and 15" wide for an easy fit in commercial or home kitchens and bars. The door includes an integrated stainless steel frame that can accept full overlay panels for a seamless look that blends into matching cabinetry (panel size: 28 11/16" H x 14 1/2" W at 3/4" thick and 10 lb. maximum). Users supply their own handle and panel. This unit comes with a black cabinet and and stainless steel kickplate. It includes a built-in pump to allow for more flexible placement. We include both a drain hose and water supply hose.

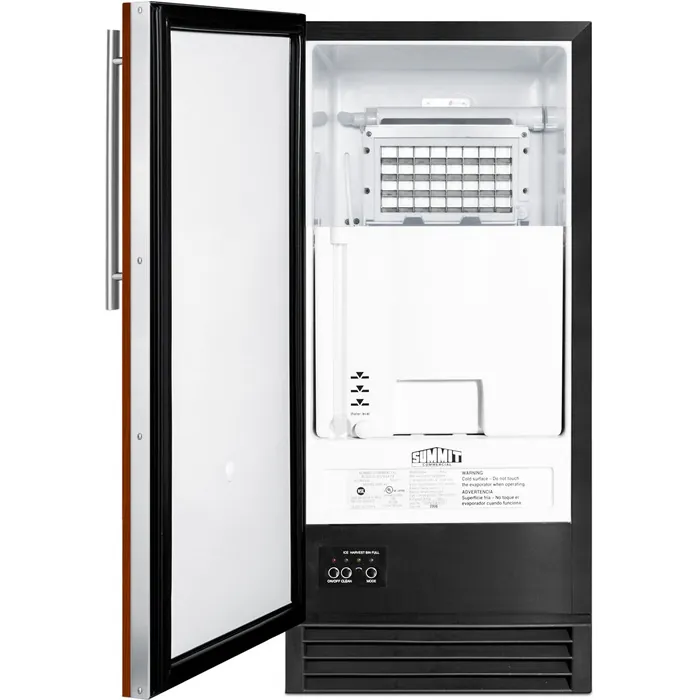

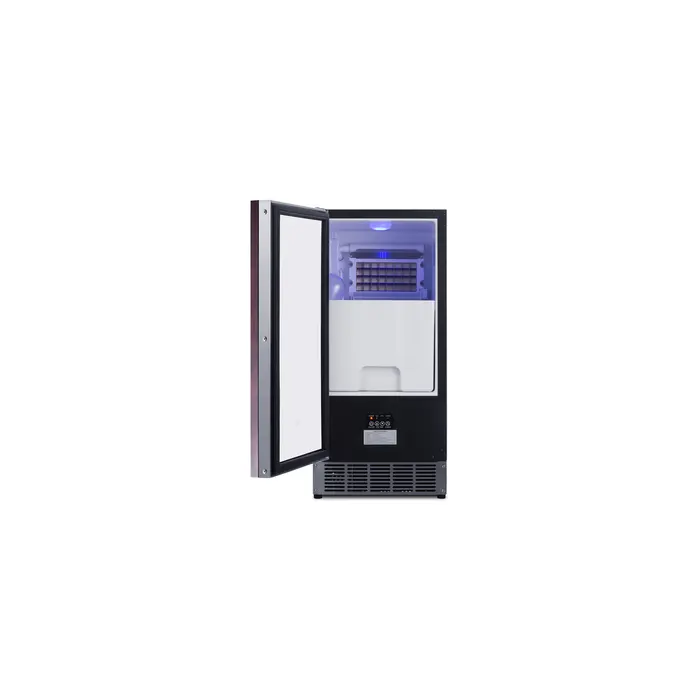

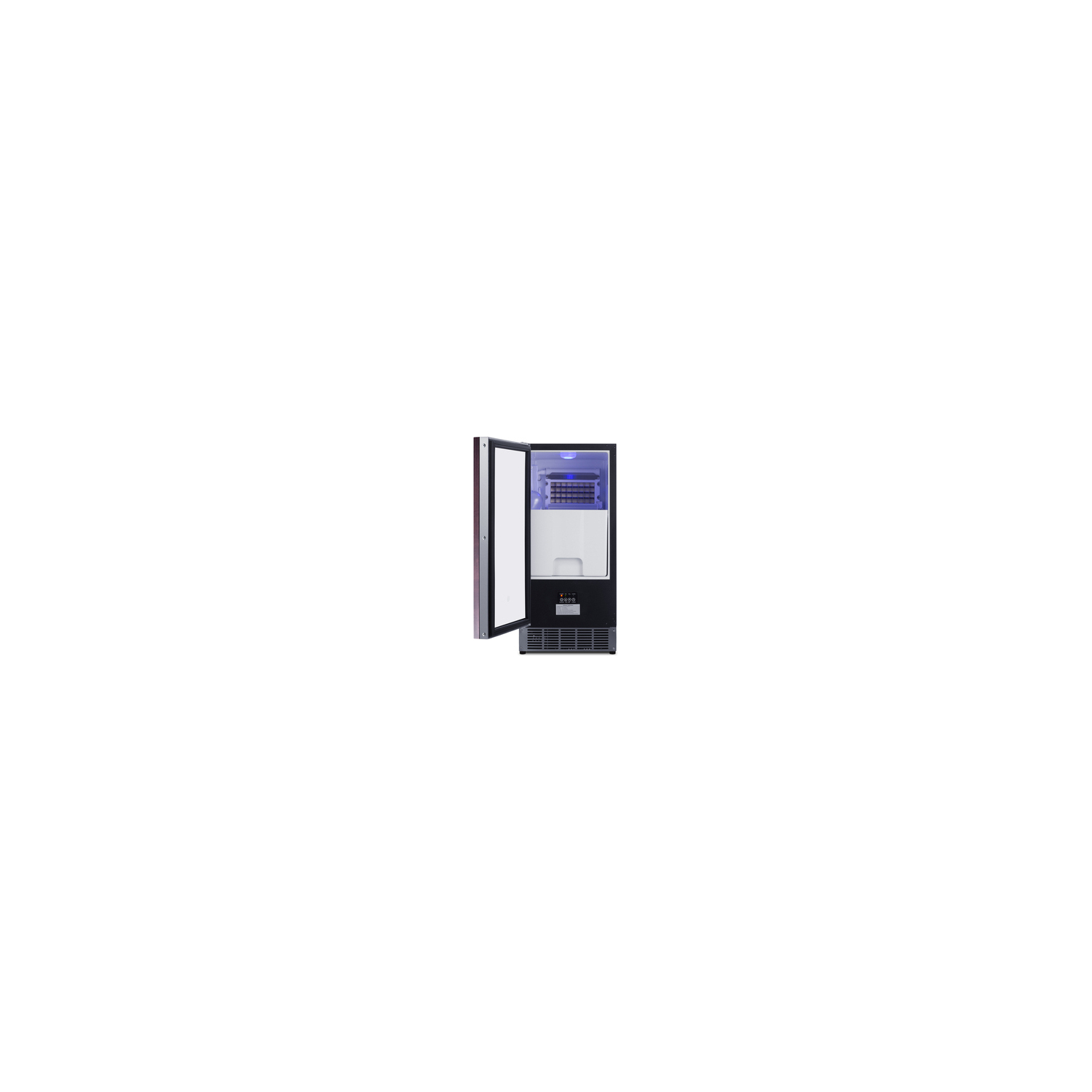

Automatic defrost ensures minimum user maintenance. This unit produces up to 45 pounds of clear cube-shaped ice in a day cycle. The removable bin can hold up to 25 pounds. Ice is formed in sheets and can easily be broken into cubes using the provided scoop. We include a handy hook in the upper interior cabinet that lets you store the scoop in easy reach. LED lighting in a modern blue finish provides full illumination of the interior.

This unit is ETL-S listed to NSF standards and is ENERGY STAR certified as a commercial icemaker. Additional choices are available with a lower ADA compliant height, stainless steel doors, and for outdoor use. Explore the full Summit selection to find the right icemaker for your needs.

SPECIFICATIONS

Overview

Height of Cabinet 33.63" (85 cm)

Height to Hinge Cap 33.88" (86 cm)

Width 14.63" (37 cm)

Depth 22.5" (57 cm)

Depth with Panel 23.25" (59 cm)

Depth with door at 90° 36.25" (92 cm)

Defrost Type Automatic

Door Panel-Ready

Cabinet Black

US Electrical Safety UL

Canadian Electrical Safety ULC

Sanitation ETL-S

Amps 2.5

Plug Type NEMA 5-15P

Voltage/Frequency 115 V AC/60 Hz

Weight 100.0 lbs. (45 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101027128

Icemaker

Door Swing LHD

Reversible Factory Reversible

Drain Required Yes

Daily Ice Production 45.0 lbs. (20 kg)

Ice Storage Capacity 25.0 lbs. (11 kg)

Ice Shape Cube

Size of Cube 7/8" x 7/8" x 7/8"

Number of Ice Cube Sizes 1

Interior Light Yes

Fan Type Exterior

Refrigerant Type R290a

Refrigerant Amount 1.87 oz.

High Side PSI 286.0

Low Side PSI 110.0

Interior Height 18.75" (48 cm)

Interior Width 11.25" (29 cm)

Interior Depth 15.5" (39 cm)

Level Legs 4

FEATURES

15" Wide Clear Icemaker Built-in undercounter icemaker produces up to 45 lbs. of clear cubes

ENERGY STAR certified commercial performance Efficient performance for commercial use

Commercially approved ETL-S listed to NSF-12 standards for use in commercial environments

Built-in pump Internal pump allows more flexibility in placing the unit

Built-in capable Make the best use of space by installing your appliance under the counter

Automatic defrost Reduced maintenance with auto defrost system

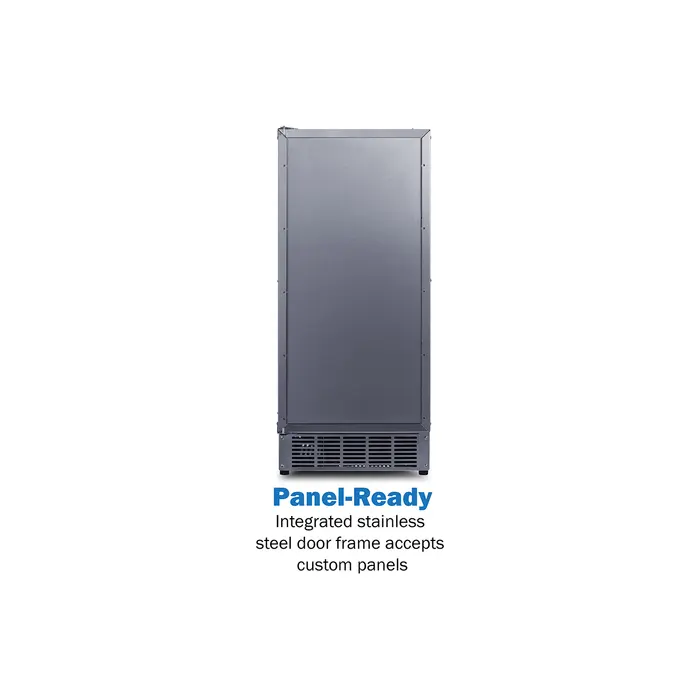

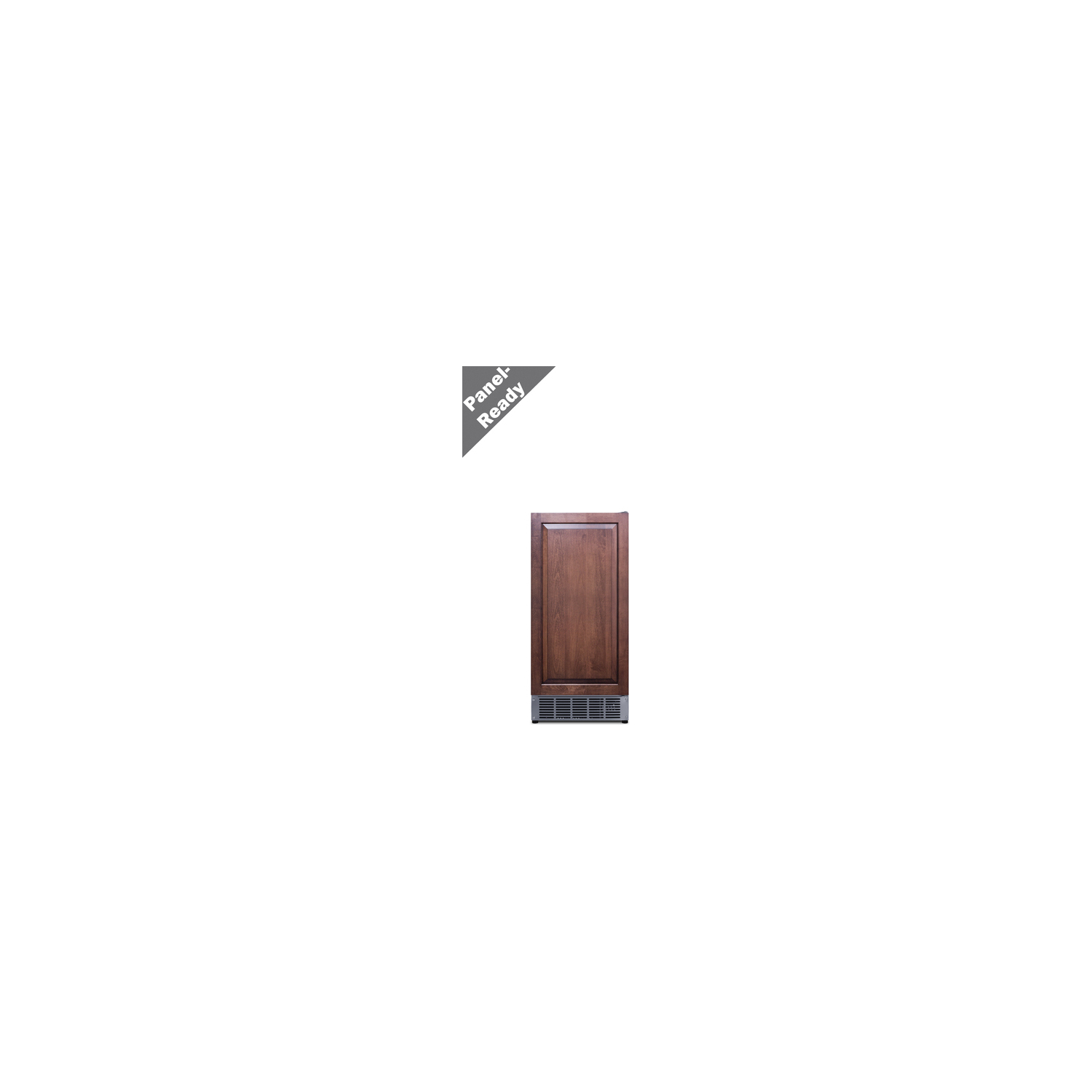

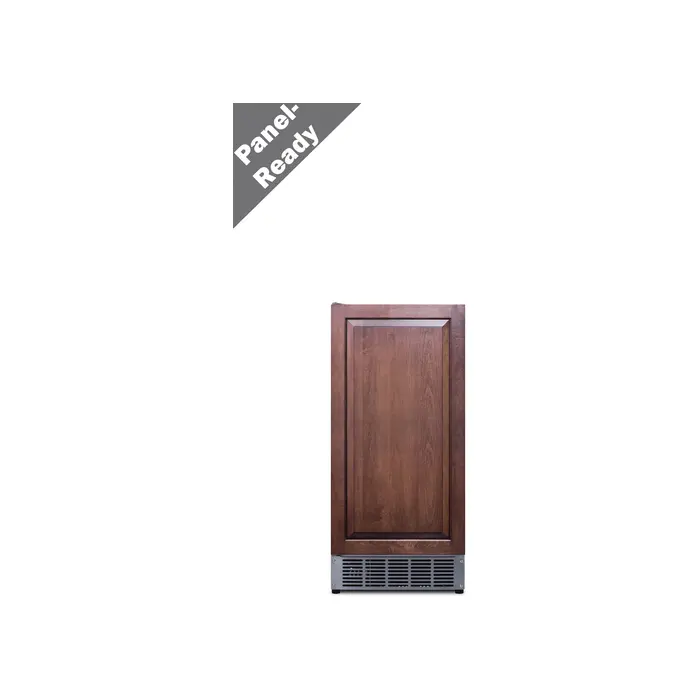

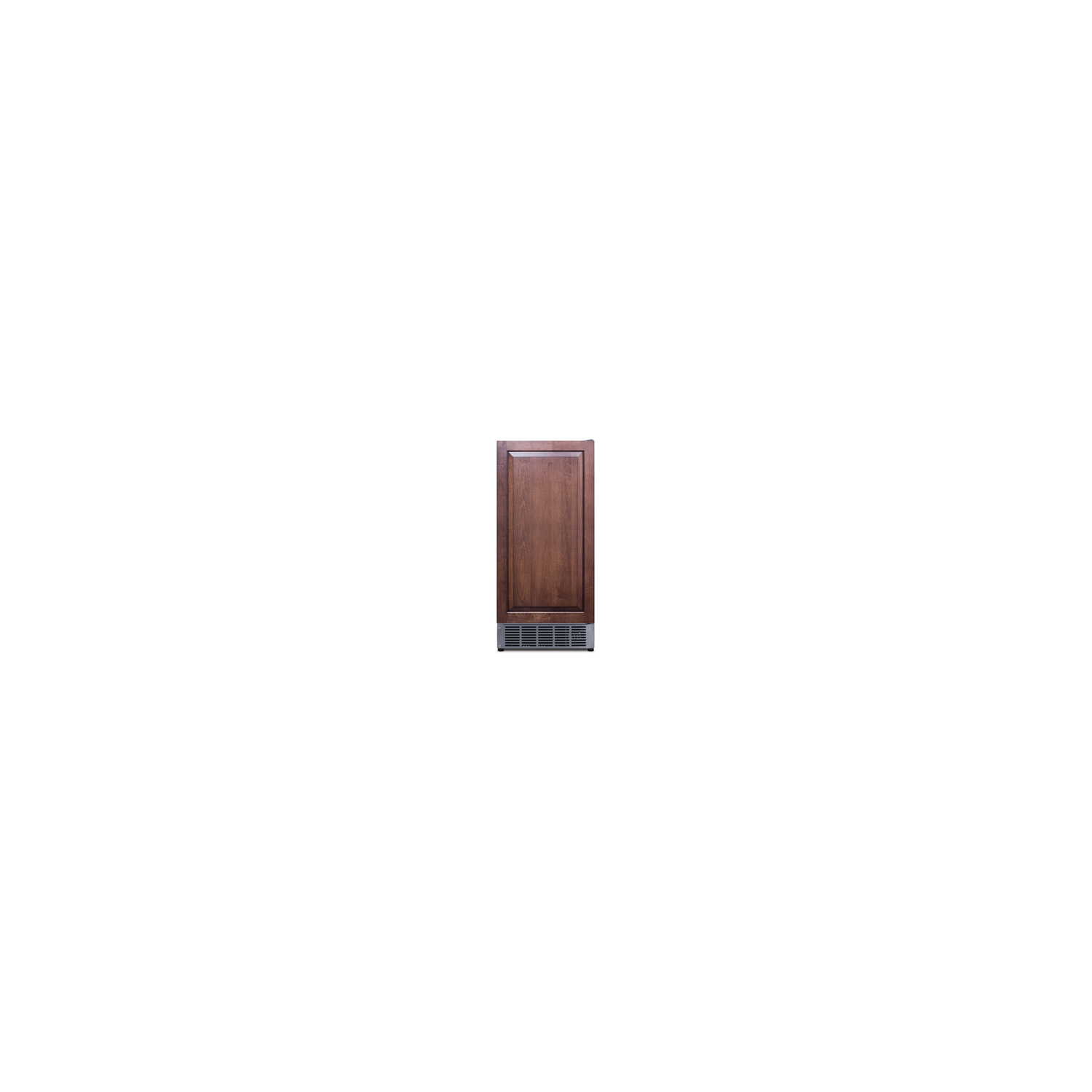

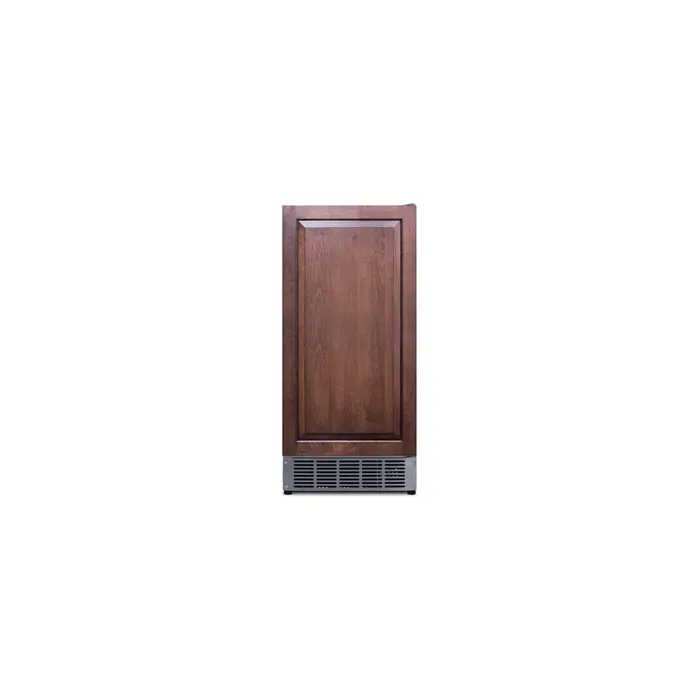

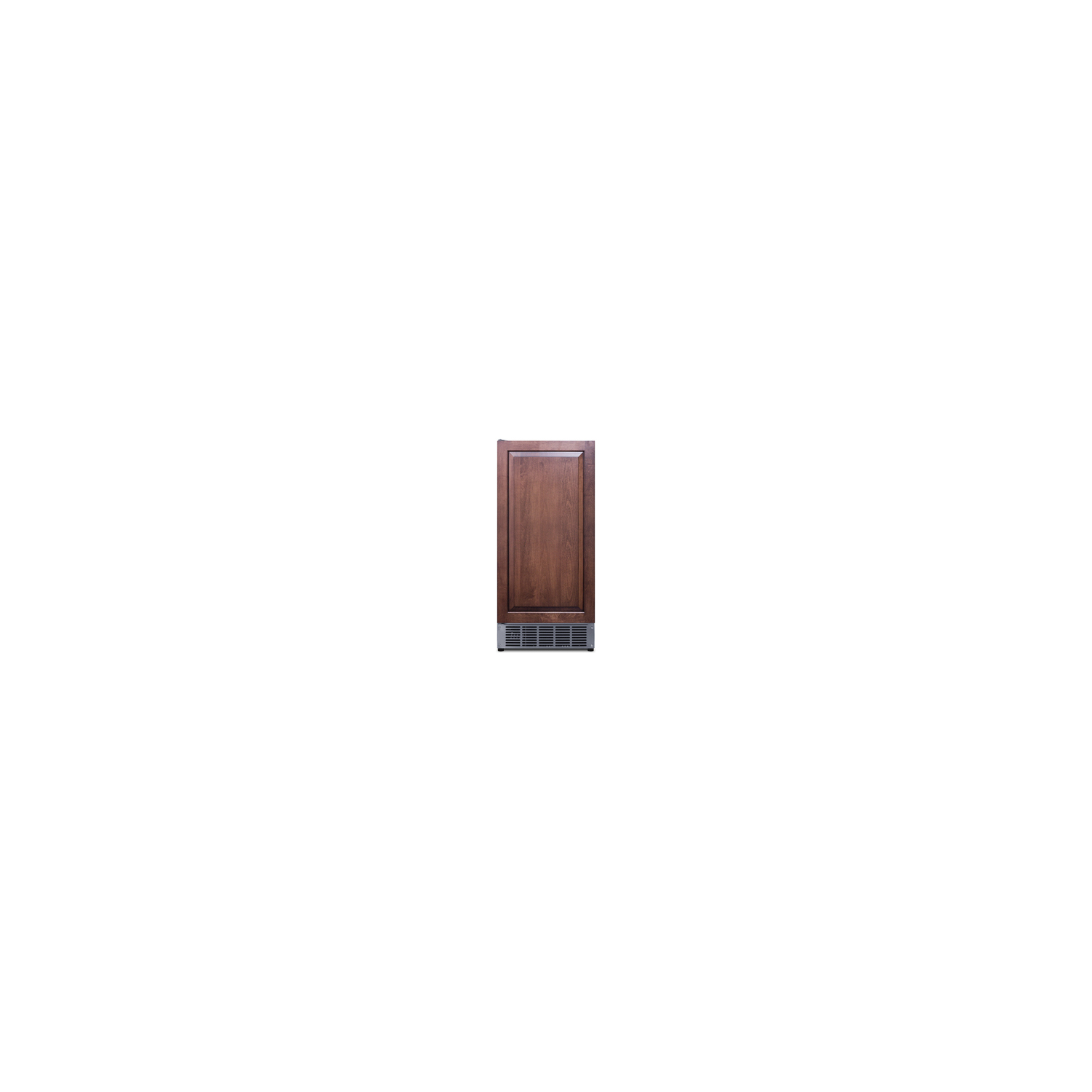

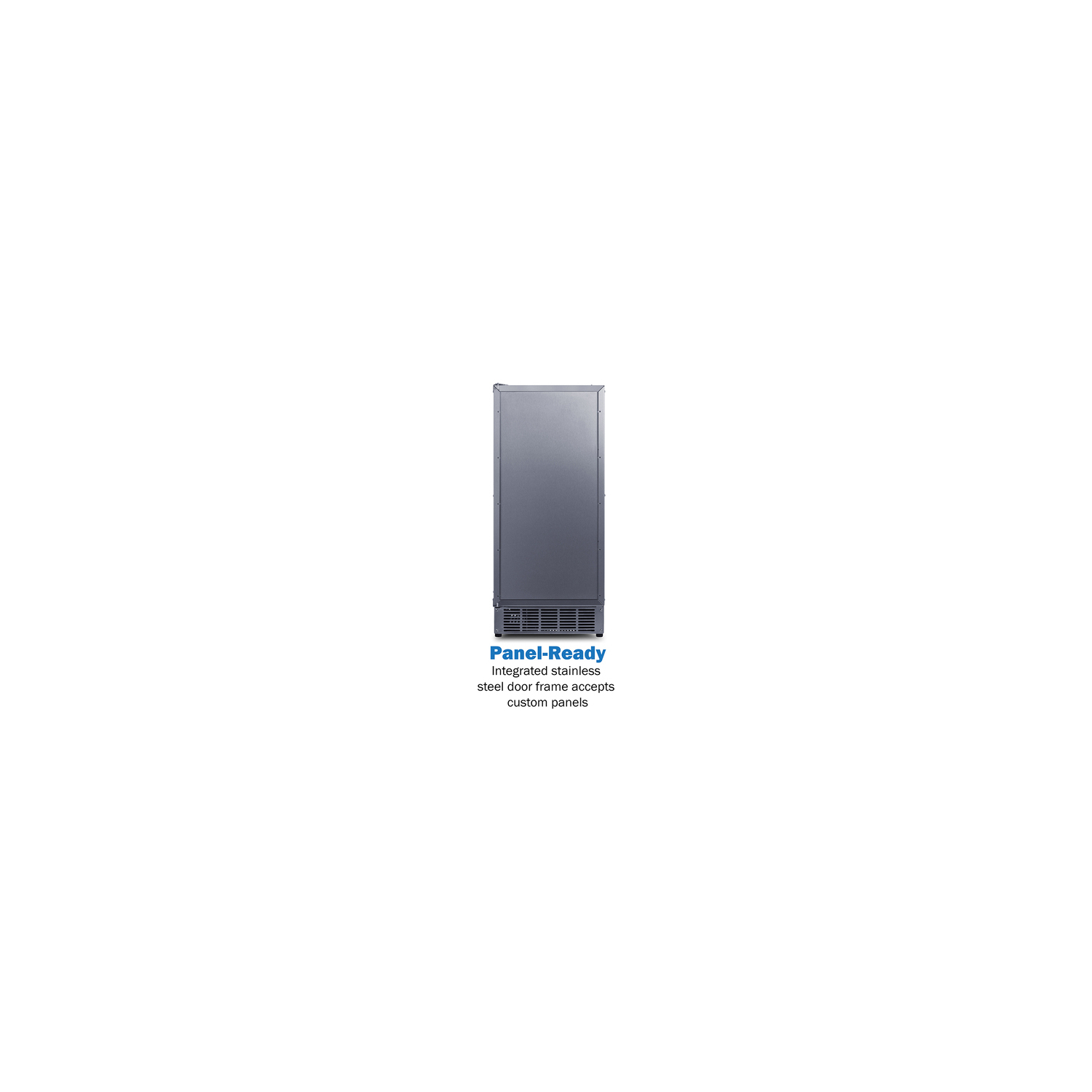

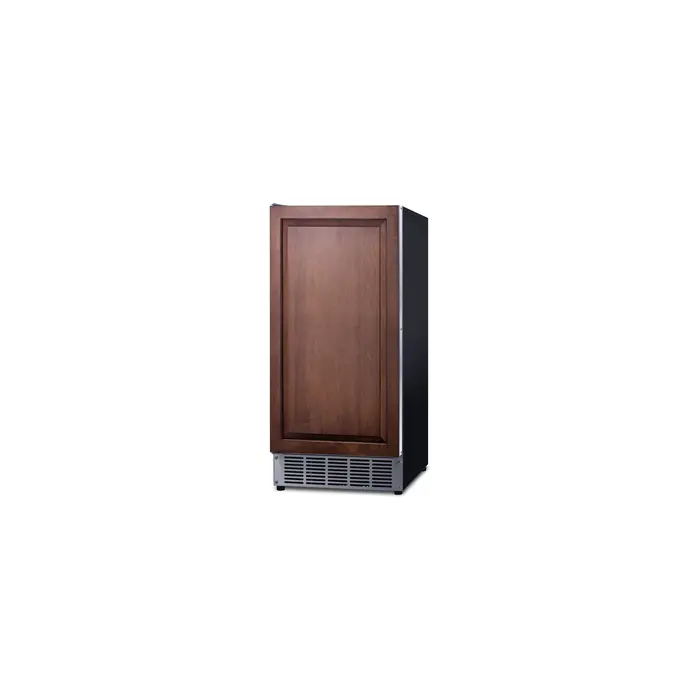

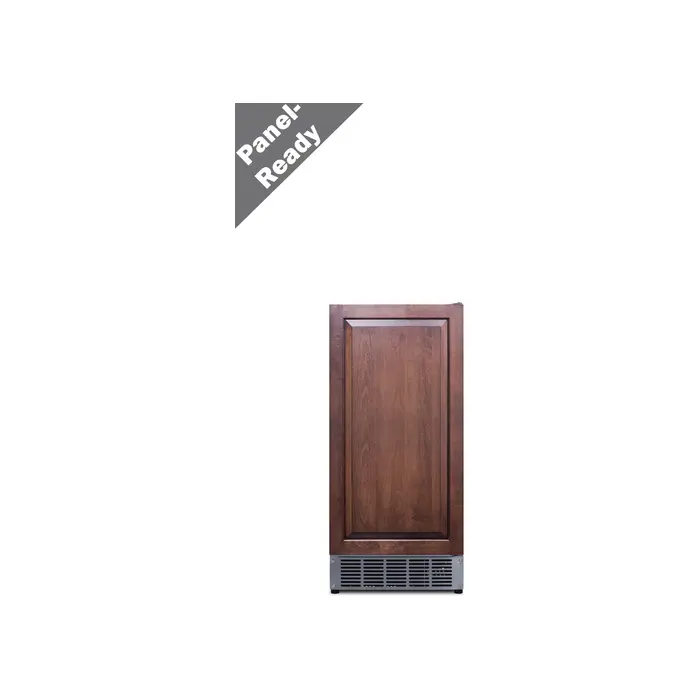

Panel-ready door Stainless steel door frame accepts full overlay panels to match adjacent cabinetry (panel size: 28 11/16" H x 14 1/2" W at 3/4" thickness at 10 lbs. maximum)

Hoses included Water supply and drain hose packaged inside for easy setup

Ice scoop Large scoop included, with a hanging hook located inside for easy storage

LED lighting LED lighting in a soft blue hue for easy viewing of the interior

Insulated storage bin Ice stays frozen longer inside this cold-protected bin

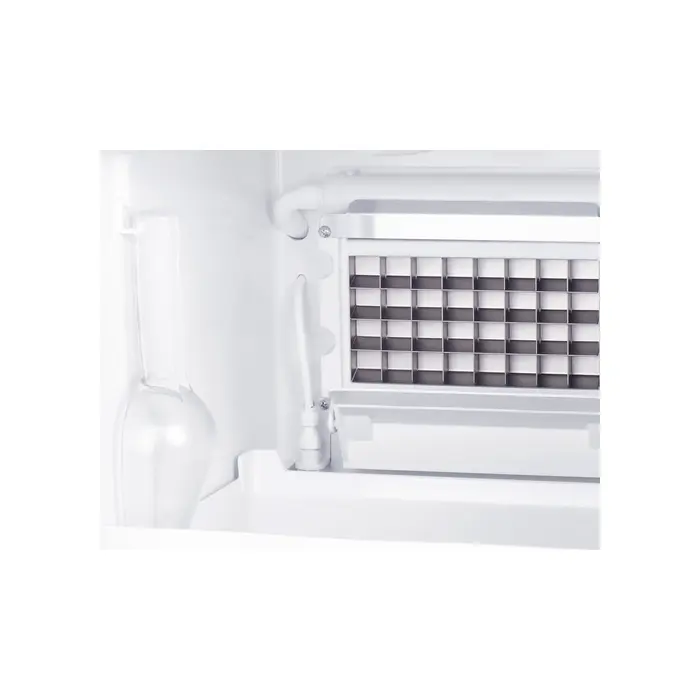

Clear ice cube production Clear cubes offer the perfect cooling of your beverages; NOTE: ice is produced in sheets and can easily be broken into cubes using the provided scoop

Touch control panel Provides easy operation of the unit with indicator lights for each stage of the production process

Fully finished black cabinet Allows the unit to be used freestanding

Sealed rear Space saving design for easier cleanability

Leveling legs Four leveling legs help to keep the unit level on uneven surfaces

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Lead-free certified Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

DOWNLOADS

BROCHURE (BIM44GIF.pdf)

TECHNICAL DRAWING (.dwg) (BIM44GIF_BIM44GCSSIF_BIM47OSIF_2.dwg)

ASSEMBLY DRAWING (BIM44GIF_BIM44GCSSIF_BIM47OSIF-Assembly_2.pdf)

USE & CARE (BIM44GIF-User-Manual.pdf)

SUPPORT (IF_Instructions_-_General.pdf)
