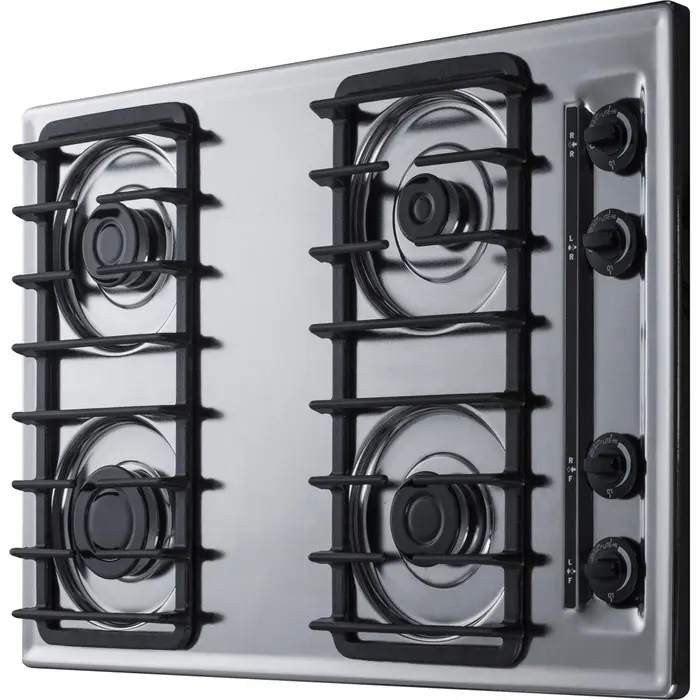

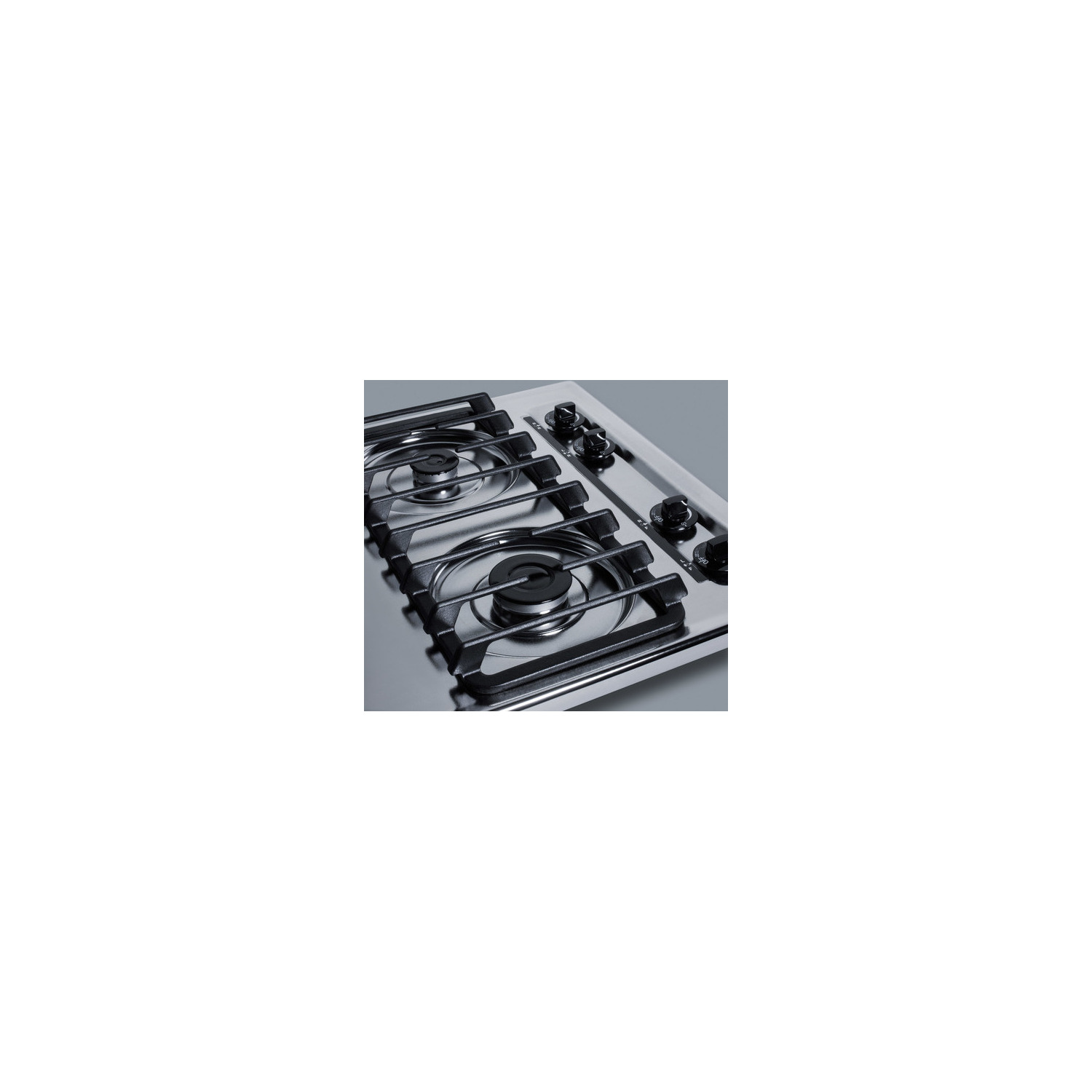

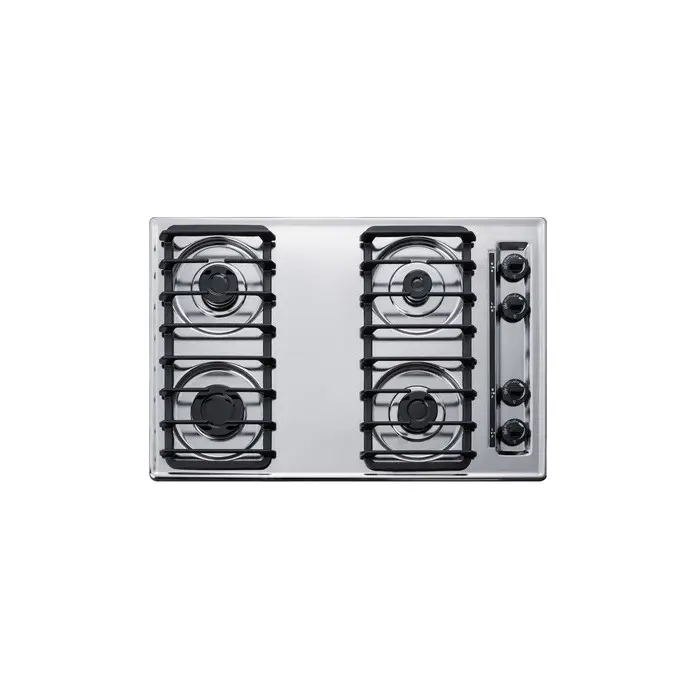

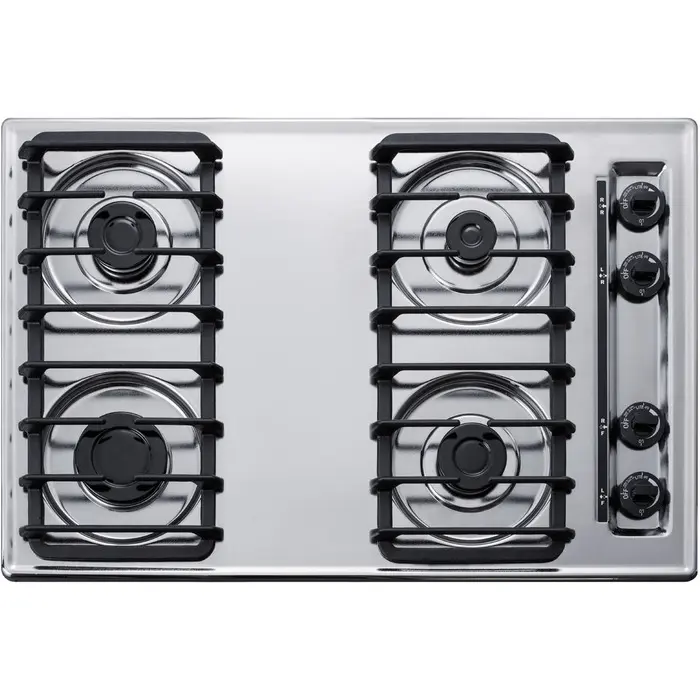

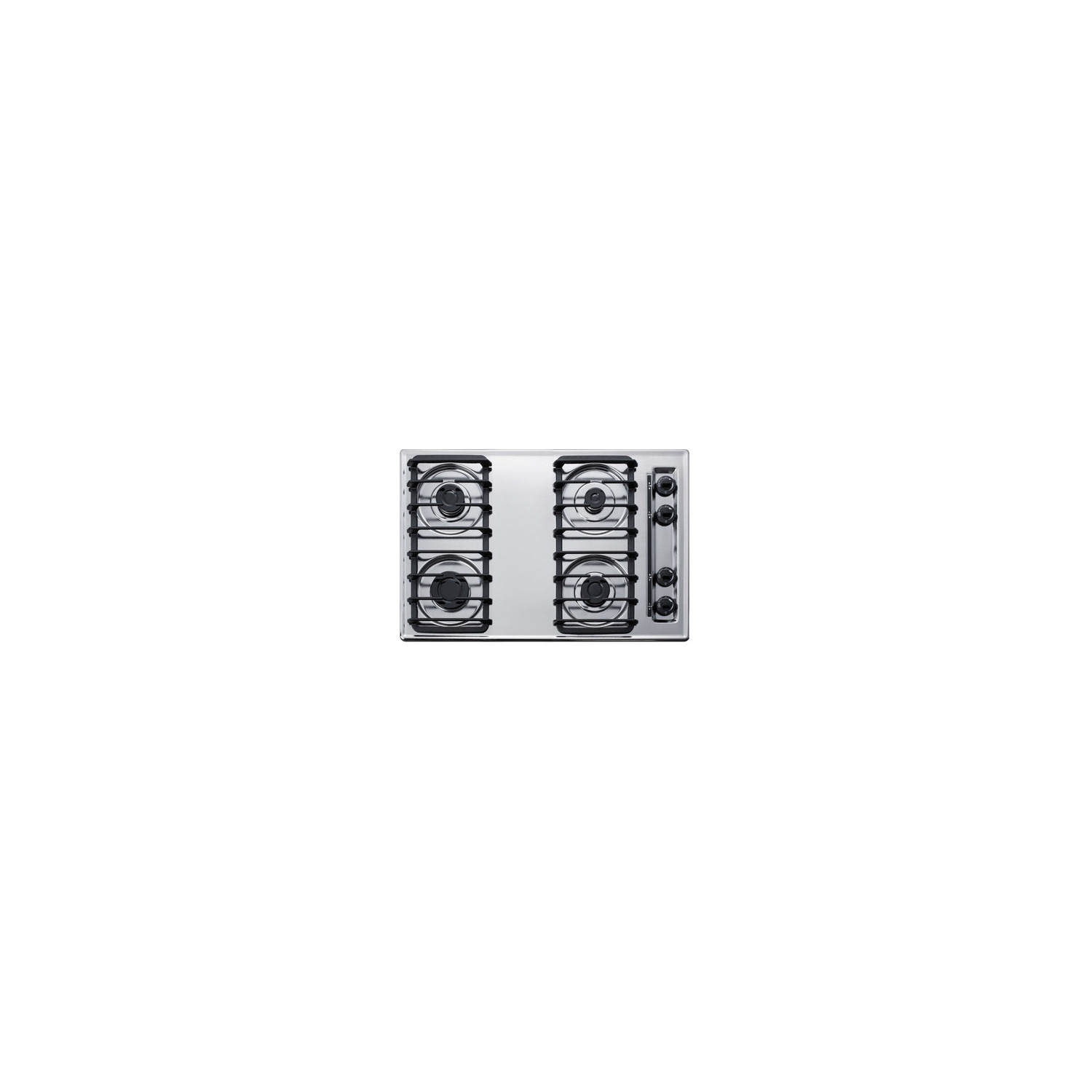

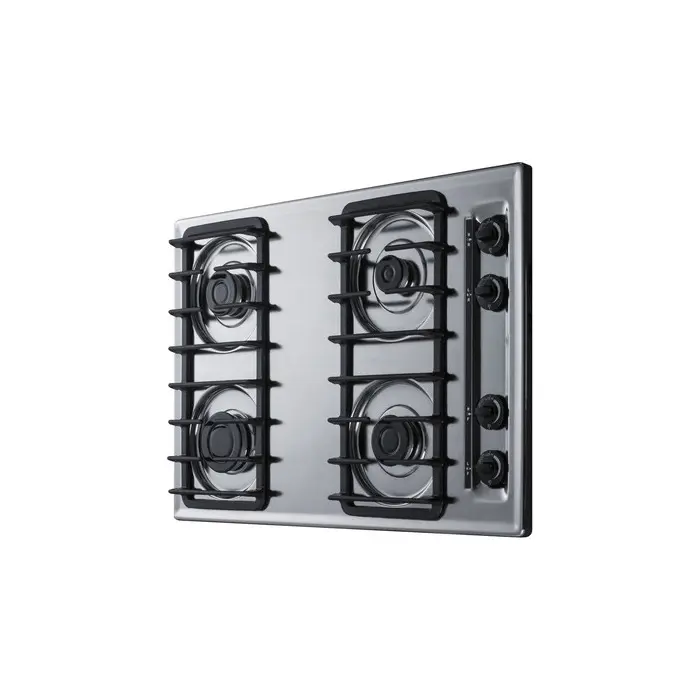

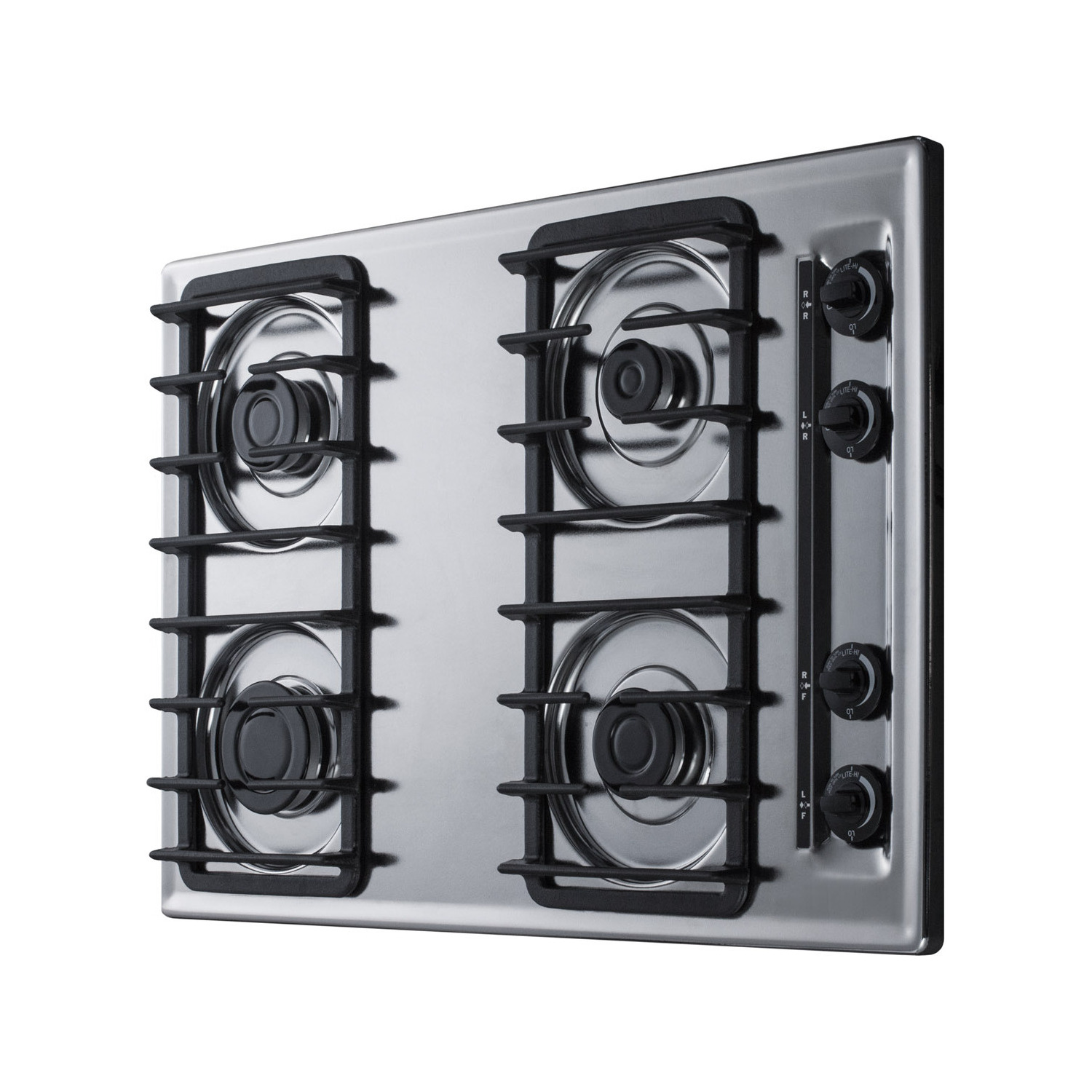

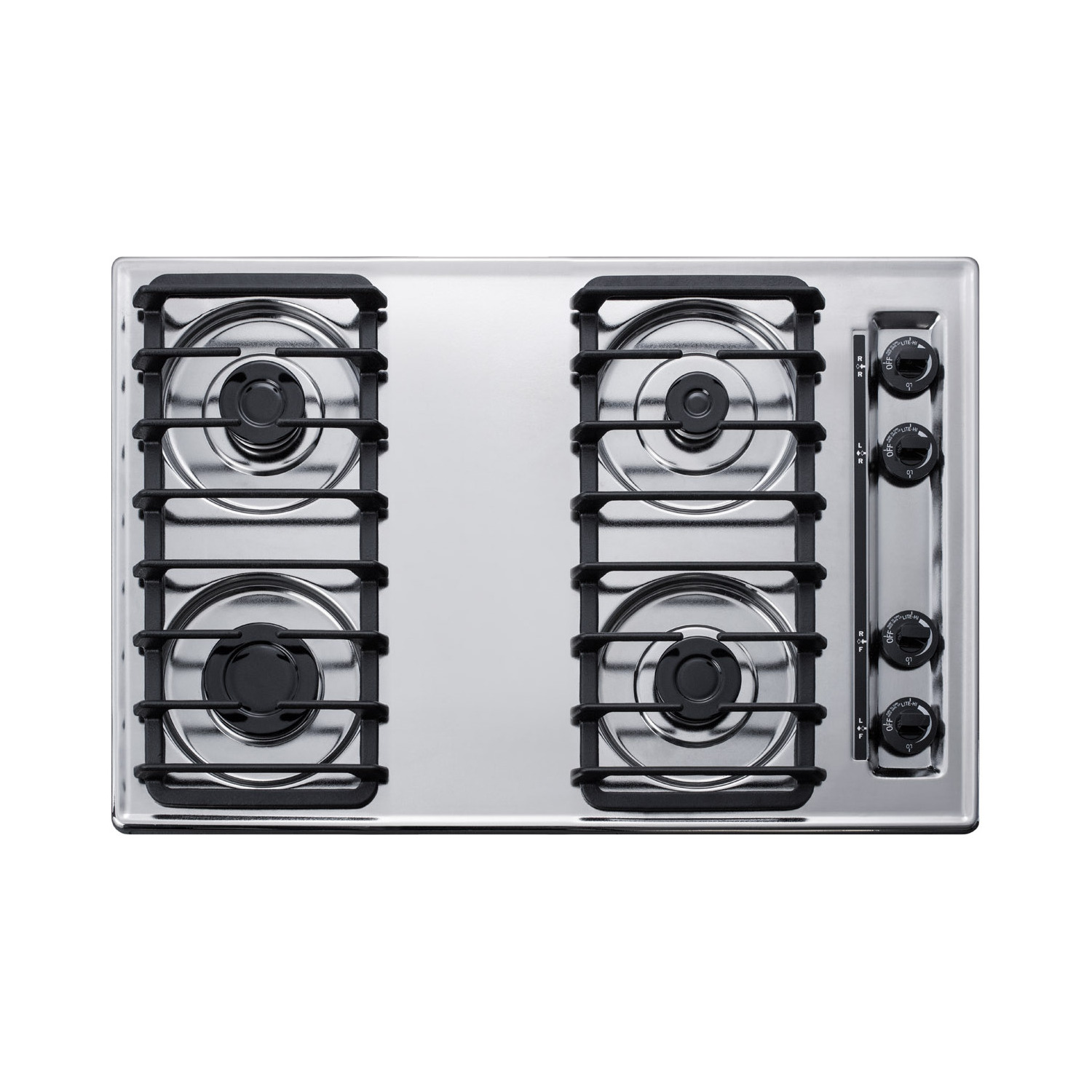

Summit 30 inch wide gas cooktop with four sealed burners, chrome surface, and cast iron grates; made in the USA, 7.61101e+011, ZTL053S
$645.20
Retail Price: $825.00
Free shipping
$ 645.20
Description
Made in the U.S.A., Summit's gas cooktops offer lasting quality and reliable cooking.
The ZTL053S is a 30" wide 4-burner cooktop designed for 28 3/8" W x 18 5/8" D cutouts. The brushed chrome surface features a recessed design to better contain spills. The side-located push-to-turn dial knobs offer easy use. Two sets of continuous cast iron grates are designed to hold up to heavy pots and pans.
Four sealed Sabaf burners with removable burner caps ensure safer and cleaner cooking. The ZTL053S includes a high output 12000 BTU burner for powerful heating, conveniently located in front for easy access. The rear 5000 BTU burner is ideal for simmering at lower power or keeping food warm without overcooking. Two standard 9100 BTU burners meet most cooking needs. This unit utilizes electronic spark ignition and includes a pre-installed 3-pronged cord.
The ZTL053S is set for natural gas and can be converted to propane connections with the purchase of our Kit LP S2. Additional choices are available in black and white, as well as in 24" and 27" wide fits. Browse our site for more. Nominal Height: 4
Height of Cabinet: 4
Height to Hinge Cap: 0
Nominal Width: 30
Width: 29.75
Width with Door Open: 0
Nominal Depth: 20
Depth: 20
Depth with Handle: 0
Depth with door at 90°: 0
Capacity: 0
Bottles: 0Defrost Type: N/ADoor: N/ACabinet: ChromeUS Electrical Safety: CSACanadian Electrical Safety: CSA-CSanitation: N/AVoltage/Frequency: N/AParts & Labor Warranty: 1 YearCompressor Warranty: N/A
SPECIFICATIONS
Overview
Nominal Height 4.0" (10 cm)
Height of Cabinet 4.0" (10 cm)
Nominal Width 30.0" (76 cm)
Width 29.75" (76 cm)
Nominal Depth 20.0" (51 cm)
Depth 20.0" (51 cm)
Cabinet Chrome
US Electrical Safety CSA
Canadian Electrical Safety CSA-C
Weight 27.0 lbs. (12 kg)
Parts & Labor Warranty 1 Year
UPC 761101061641
Gas Cooktop
Ignition Spark
LP Convertible With Kit LP S2 Accessory
Number of Burners 4
Controls Dial
Surface Painted
Grate Material Cast Iron
Cutout Width 28.38" (72 cm)
Cutout Depth 18.63" (47 cm)
Burner #1 BTU 12000.0
Burner #2 BTU 9100.0
Burner #3 BTU 9100.0
Burner #4 BTU 5000.0
Power Cord Included Yes
FEATURES
Made in the USA Designed and constructed domestically
Fits common cutouts Designed for 28 3/8" W x 18 5/8" D cutouts for an easy fit in smaller kitchens
Sealed Sabaf® burners Quality burners with cast iron tops ensure lasting durability and easier cleanup

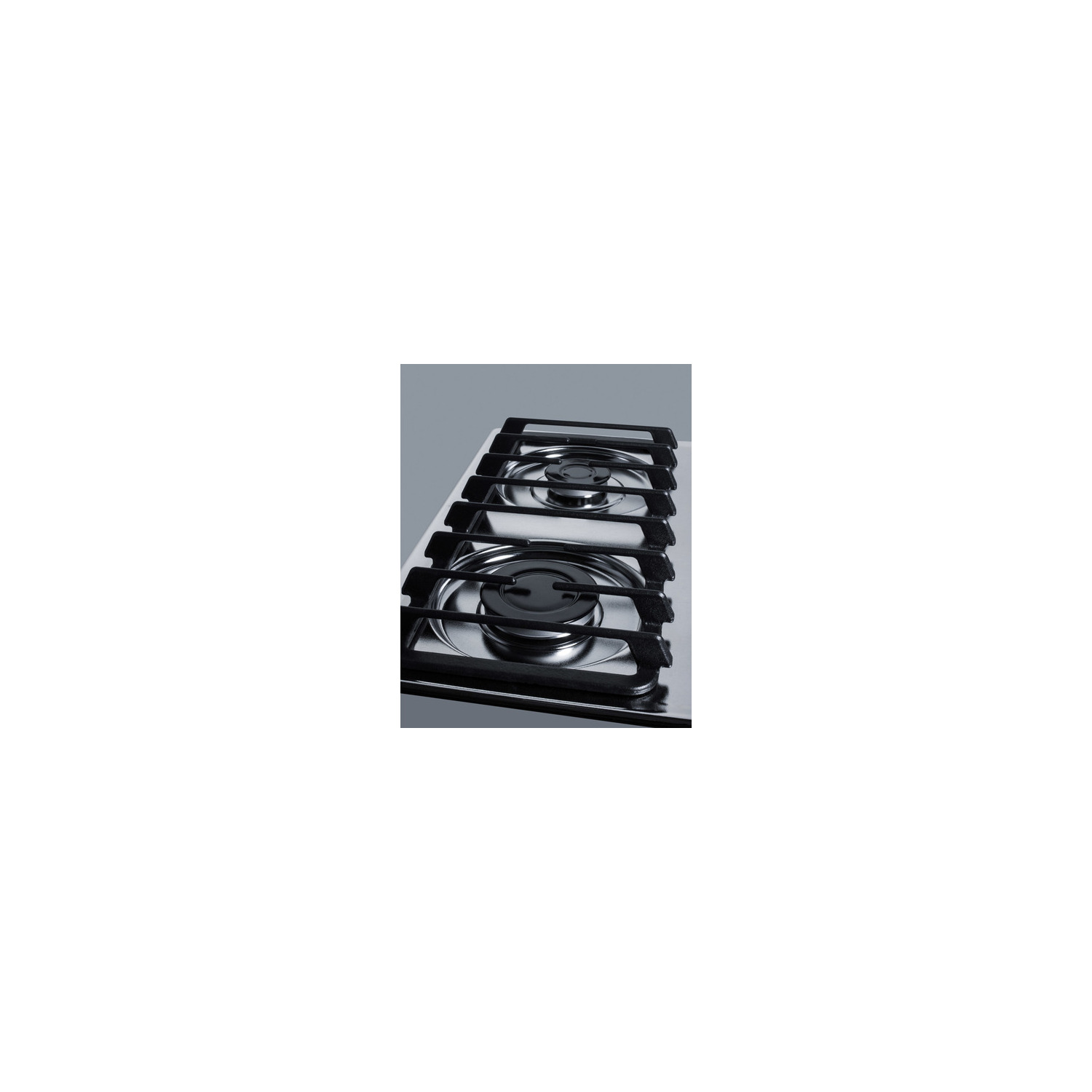

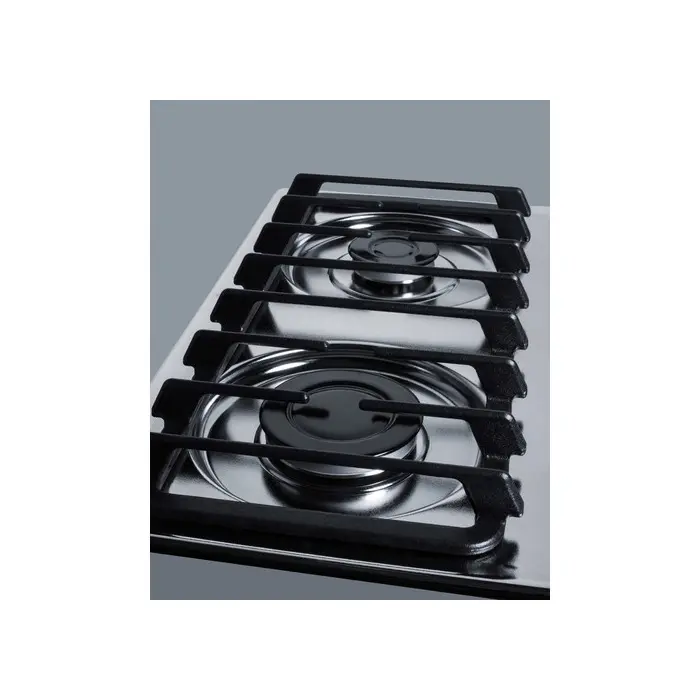

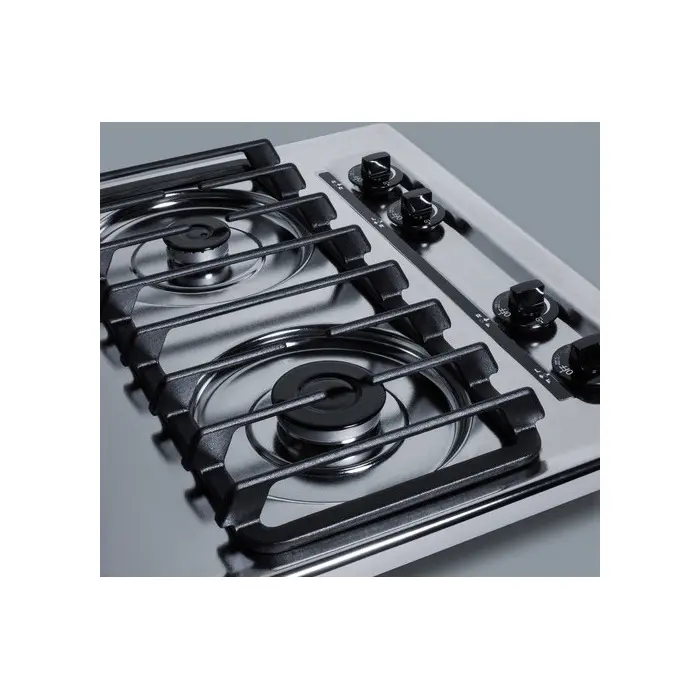

Cast iron grates Two sets of continuous grates in heavy duty cast iron hold up to large cookware
Power burner Front left burner features 12,000 BTU output for powerful cooking
Simmer burner Rear burner on right side reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items
Two standard burners Front right and rear left burners offer 9100 BTUs of cooking power to accommodate most dishes
Removable burner caps Burners include a removable cap for easy cleaning
Brushed chrome surface Striking look with easy cleanability
Recessed top Curved design helps to contain spills on the surface for easier cleanup
Designed for natural gas Set for use with natural gas connection. To convert for propane use, add Kit LP S2
Side controls Cooktop knobs are located on the right side of the cooktop, clearing up space in the front for easier cooking
Push-to-turn knobs To prevent accidents, knobs require a small amount of force when turning
Electronic/gas spark ignition Gas spark ignition for automatic lighting of burners
Cord included Pre-installed 115V 3-pronged power cord
DOWNLOADS
BROCHURE w/ DRAWINGS (ZTL053S.pdf)
TECHNICAL DRAWING (.dwg) (TTL053S__30__GAS_COOKTOP__A-C_2010__3.dwg)
ASSEMBLY DRAWING (TTL053S__WTL__ZTL__30__ASS_Y_3.pdf)
