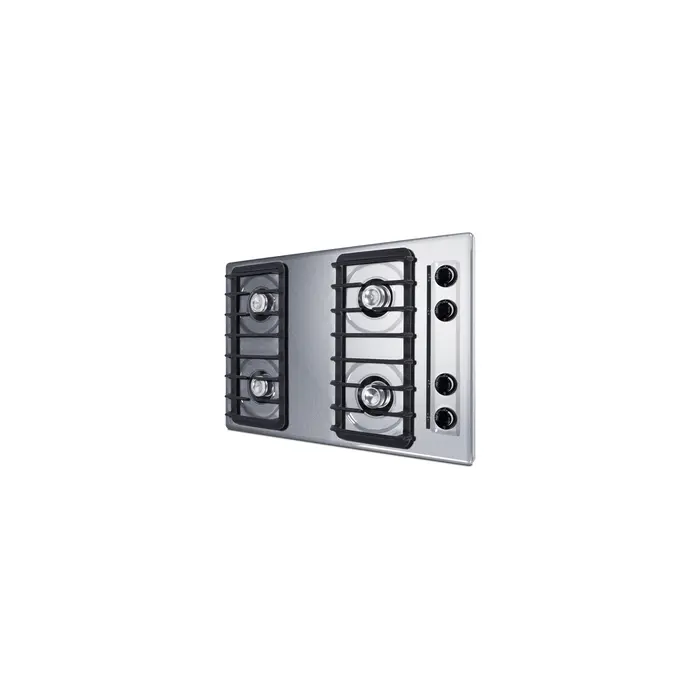

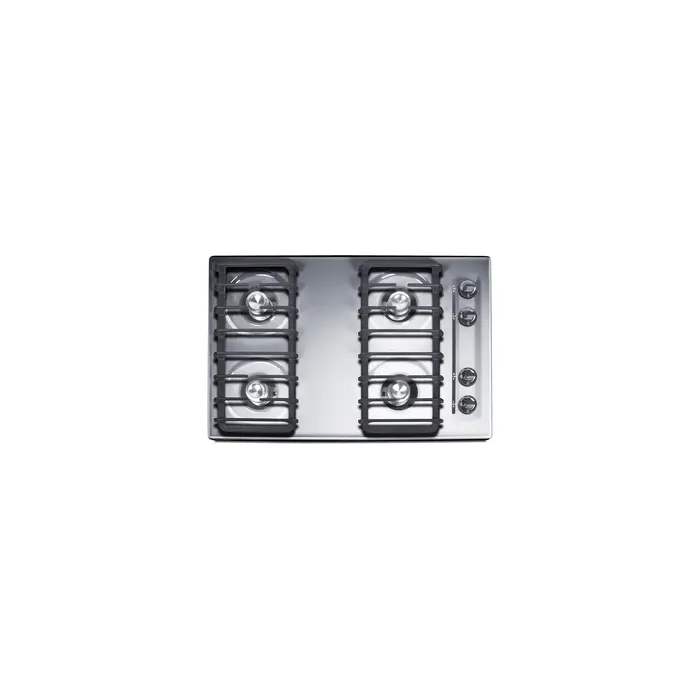

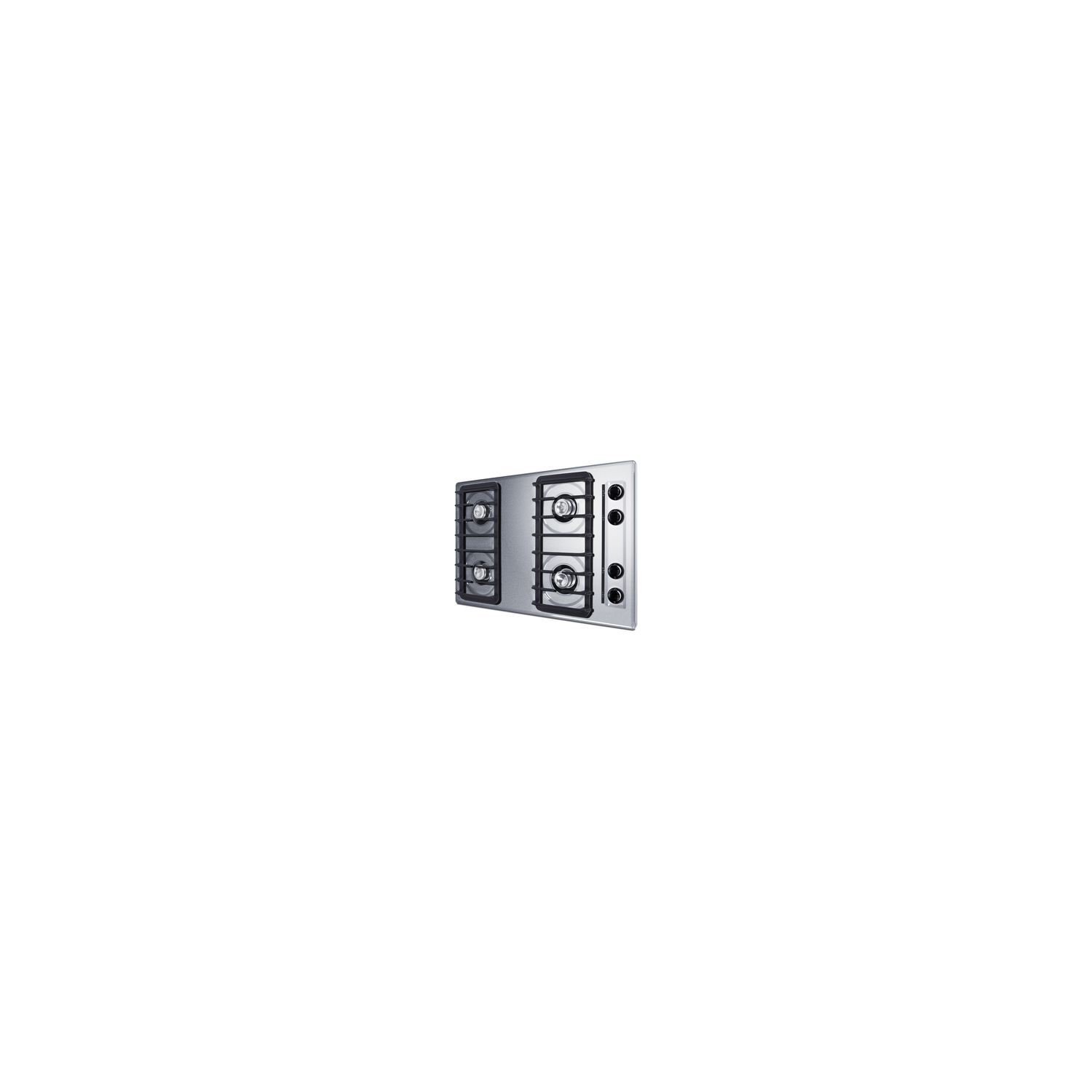

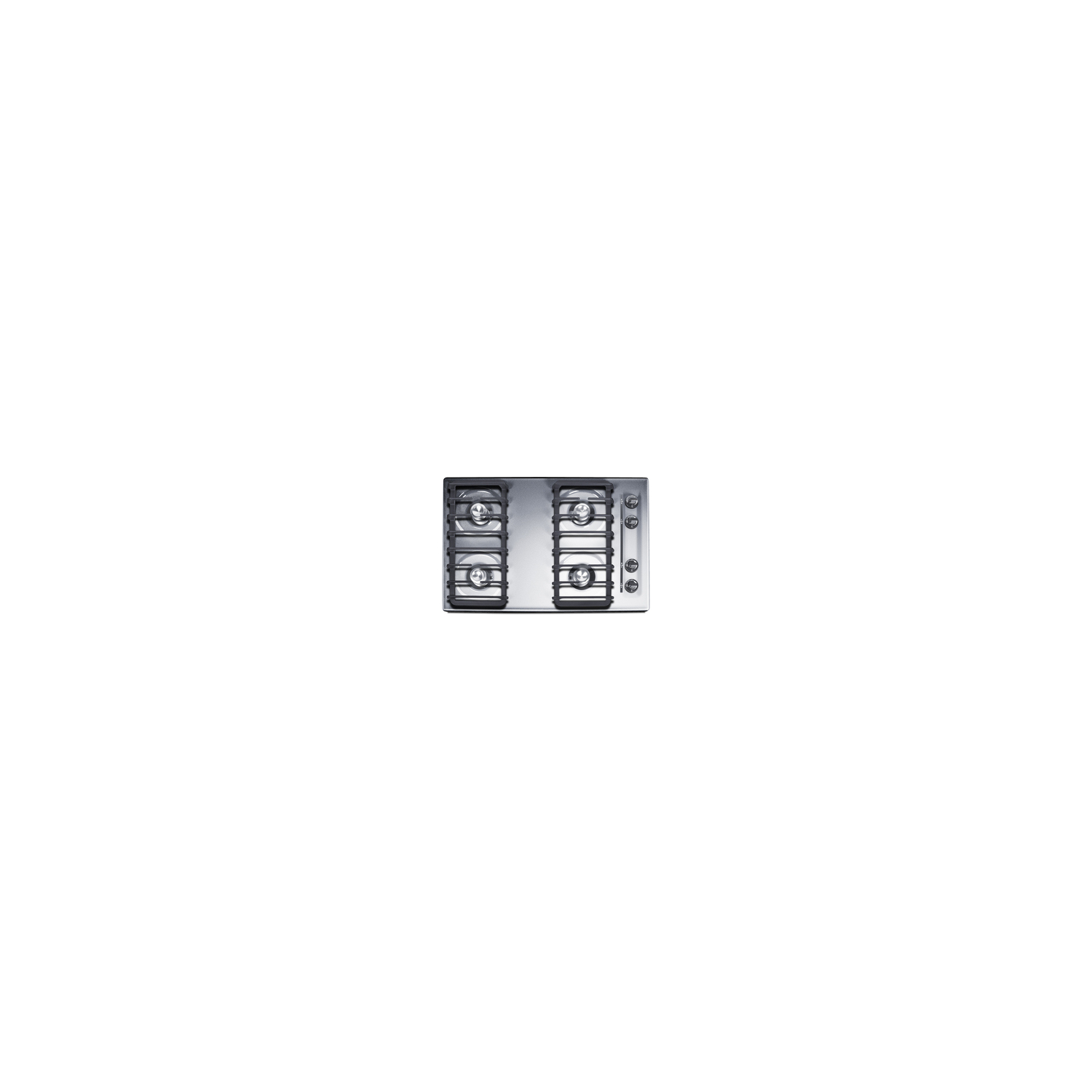

Summit 30 inch wide open burner gas cooktop in chorme with battery start ignition and continuous cast iron grates, ZNL05IP

Summit Appliance offers a wide selection of American-made household cooktops built for long-lasting durability, with non-electrical options ideal for off-grid and remote kitchens without traditional power access.

The ZNL05IP is a 30" wide gas cooktop designed to fit common 28 3//8" wide x 18 5/8" deep cutouts. It features a brushed chrome surface, with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use.

Four open 9000 BTU burners meet most cooking needs. We include two sets of continuous cast iron grates to protect your cooktop. This unit comes set for natural gas but can be converted to propane with the purchase of the Kit LP accessory. It utilizes battery start ignition with a standard 9V battery (included) to allow the cooktop to function in homes not using electricity.

The ZNL05IP is designed and constructed in the USA. Additional finishes are available, as well as 24" sizes for smaller kitchen spaces and matching wall ovens. Browse our website to explore our complete selection.

SPECIFICATIONS

Overview

Nominal Height 4.0" (10 cm)

Height of Cabinet 3.75" (10 cm)

Nominal Width 30.0" (76 cm)

Width 29.75" (76 cm)

Nominal Depth 20.0" (51 cm)

Depth 20.0" (51 cm)

Cabinet Chrome

Weight 30.0 lbs. (14 kg)

Parts & Labor Warranty 1 Year

UPC 761101158259

Gas Cooktop

Ignition Battery Start

LP Convertible With Kit LP Accessory

Number of Burners 4

Controls Dial

Surface Painted

Grate Material Cast Iron

Cutout Width 28.38" (72 cm)

Cutout Depth 18.63" (47 cm)

Burner #1 BTU 9000.0

Burner #2 BTU 9000.0

Burner #3 BTU 9000.0

Burner #4 BTU 9000.0

Power Cord Included No

FEATURES

30" Wide Gas Cooktop Built-in natural gas cooktop with four open burners

Made in the USA Designed and constructed domestically

Cast iron grates Two sets of continuous grates in heavy duty cast iron hold up to large cookware

Battery start ignition Ideal alternative to pilot light sources when no power source is accessible

Classic 30" fit Fits common 28 3/8" W x 18 5/8" D counter cutouts

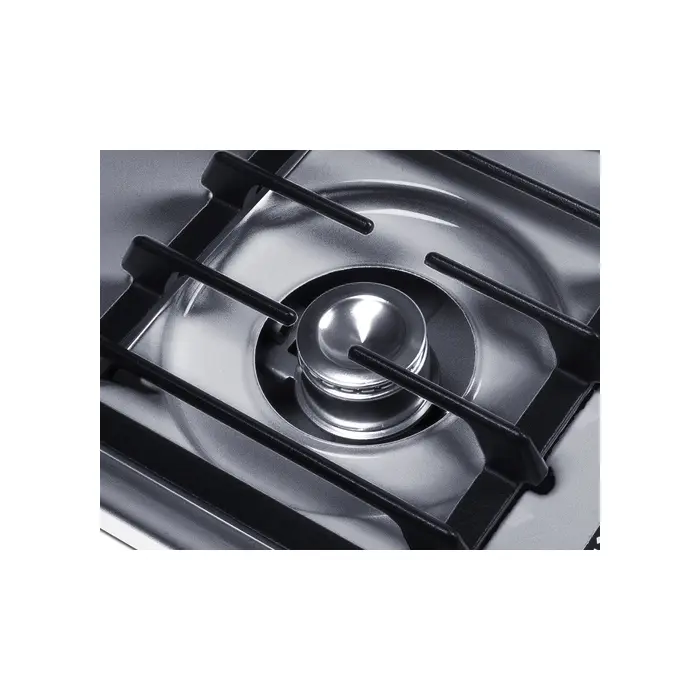

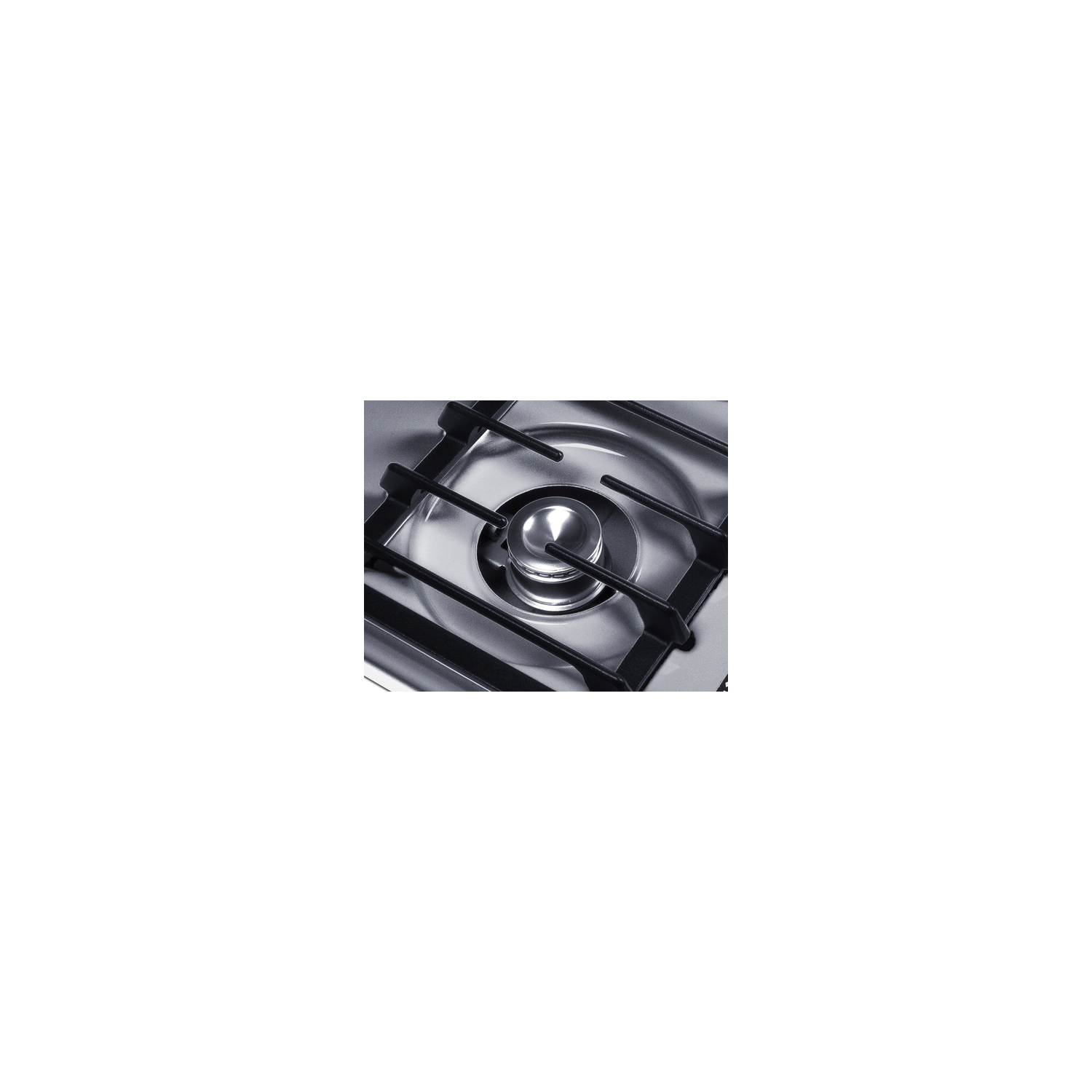

Four open burners 9000 BTU burners with built-in enamel grates to meet most cooking needs

Brushed chrome surface Striking look with easy cleanability

Recessed top Curved design helps to contain spills on the surface

Designed for natural gas Set for use with natural gas connection. To convert for propane use, add Kit LP

Push-to-turn knobs Knobs require a small amount of force to ensure burners are not accidentally turned on

Side controls Cooktop knobs are located on the right side of the cooktop, clearing up space in the front for easier cooking

DOWNLOADS

BROCHURE (ZNL05IP.pdf)

TECHNICAL DRAWING (.dwg) (WNL053IP.dwg)

ASSEMBLY DRAWING (WNL053IP-Assembly.pdf)

USE & CARE (ZNL05IP-User-Manual.pdf)
