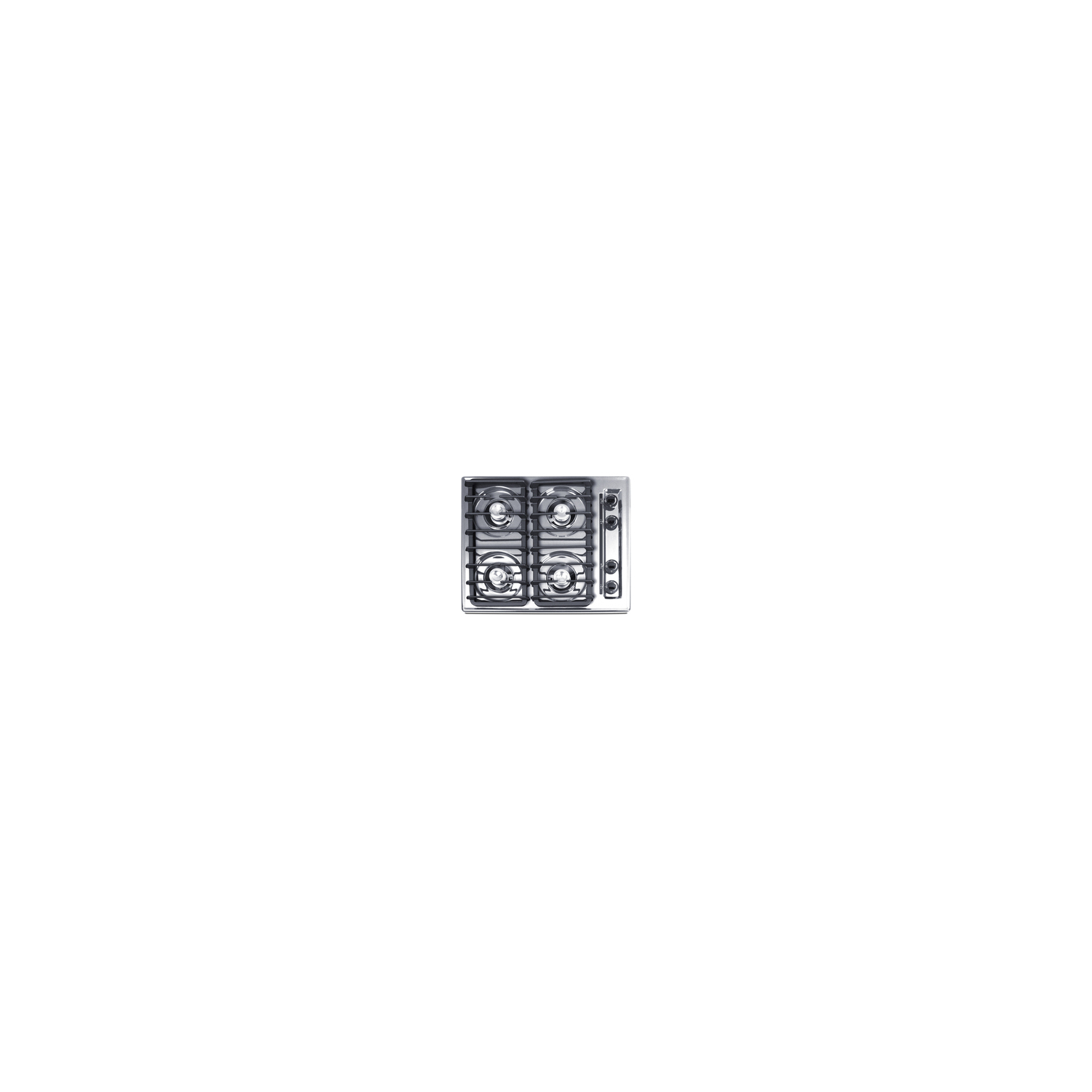

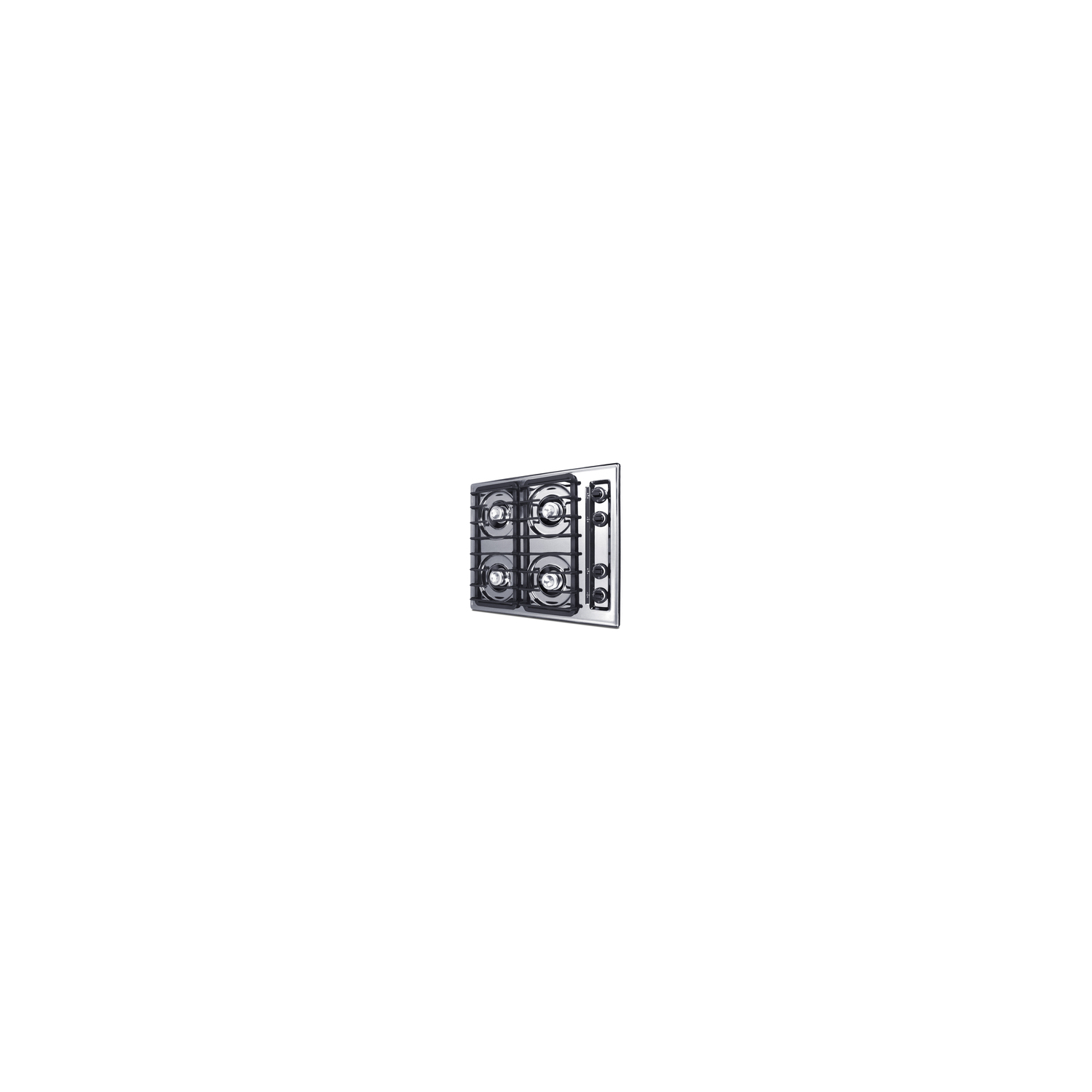

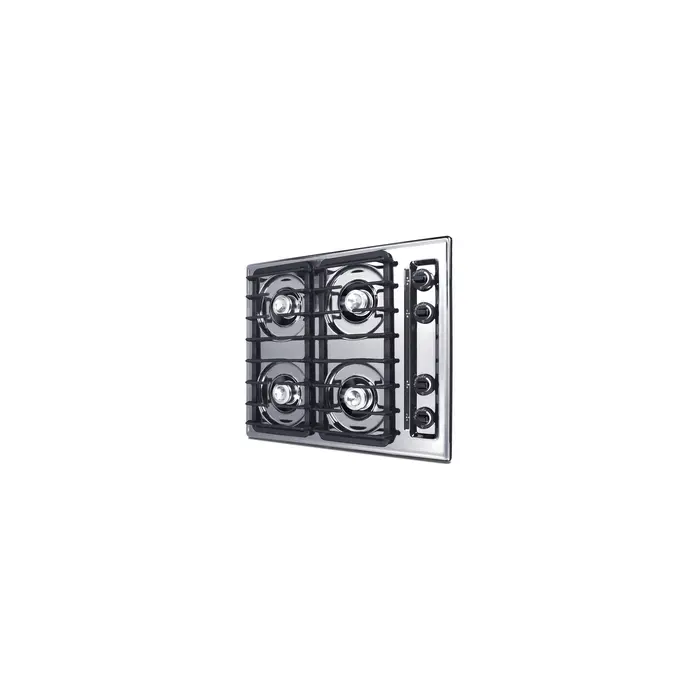

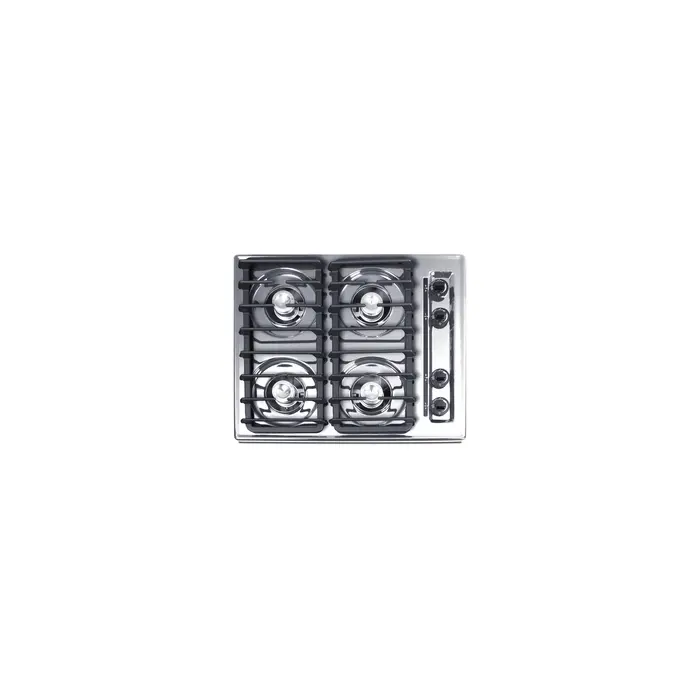

Summit 24 inch wide open burner gas cooktop in chrome with battery start ignition and continuous cast iron grates, ZNL03IP
$561.20
Retail Price: $715.00
Free shipping
$ 561.20
Description
Summit Appliance offers a wide selection of American-made household cooktops built for long-lasting durability, with non-electrical options ideal for off-grid and remote kitchens without traditional power access.
The ZNL03IP is a 24" wide gas cooktop designed to fit common 22 5/8" wide x 18 5/8" deep cutouts. It features a brushed chrome surface with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use.
Four open 9000 BTU burners meet most cooking needs. We include two sets of continuous cast iron grates to protect your cooktop. This unit comes set for natural gas but can be converted to propane with the purchase of the Kit LP accessory. It utilizes battery start ignition with a standard 9V battery (included) to allow the cooktop to function in homes not using electricity.
The ZNL03IP is designed and constructed in the USA. Additional finishes are available, as well as 30" sizes for larger kitchen spaces and matching wall ovens. Browse our website to explore our complete selection.
SPECIFICATIONS
Overview
Nominal Height 4.0" (10 cm)
Height of Cabinet 3.75" (10 cm)
Nominal Width 24.0" (61 cm)
Width 24.0" (61 cm)
Nominal Depth 20.0" (51 cm)
Depth 20.0" (51 cm)
Cabinet Chrome
US Electrical Safety CSA
Weight 27.0 lbs. (12 kg)
Parts & Labor Warranty 1 Year
UPC 761101158235
Gas Cooktop
Ignition Battery Start
LP Convertible With Kit LP Accessory
Number of Burners 4
Controls Dial
Surface Painted
Grate Material Cast Iron
Cutout Width 22.63" (57 cm)
Cutout Depth 18.63" (47 cm)
Burner #1 BTU 9000.0
Burner #2 BTU 9000.0
Burner #3 BTU 9000.0
Burner #4 BTU 9000.0
Power Cord Included No
FEATURES
24" Wide Gas Cooktop Built-in natural gas cooktop with four open burners
Made in the USA Designed and constructed domestically
Battery start ignition Ideal alternative to pilot light sources when no power source is accessible
Classic 24" size Fits common 22 5/8" W x 18 5/8" D counter cutouts

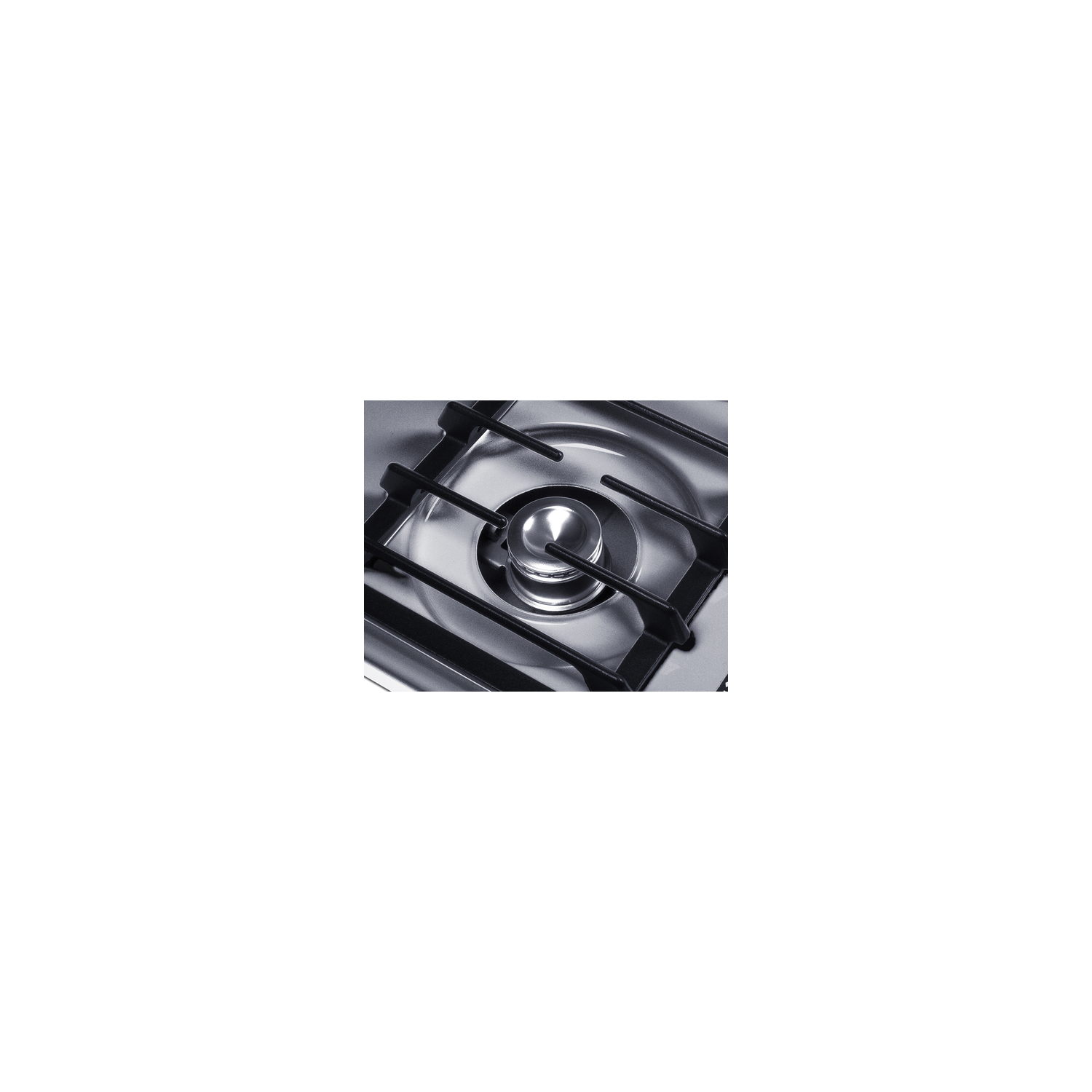

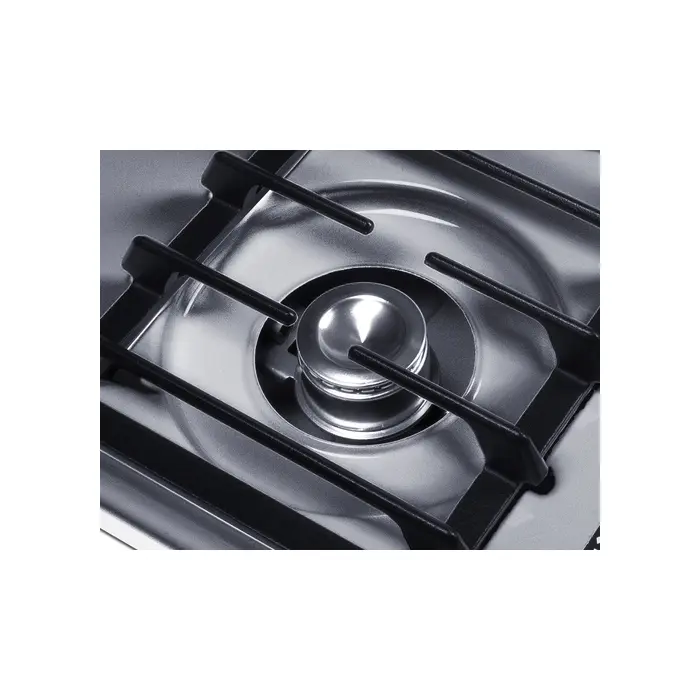

Cast iron grates Two sets of continuous grates in heavy duty cast iron hold up to large cookware
Four open burners 9000 BTU burners with built-in enamel grates to meet most cooking needs
Brushed chrome surface Striking look with easy cleanability
Recessed top Curved design helps to contain spills on the surface
Designed for natural gas Set for use with natural gas connection. To convert for propane use, add Kit LP
Side controls Cooktop knobs are located on the right side of the cooktop, clearing up space in the front for easier cooking
Push-to-turn knobs Knobs require a small amount of force to ensure burners are not accidentally turned on
DOWNLOADS
TECHNICAL DRAWING (.dwg) (WNL033IP.dwg)
