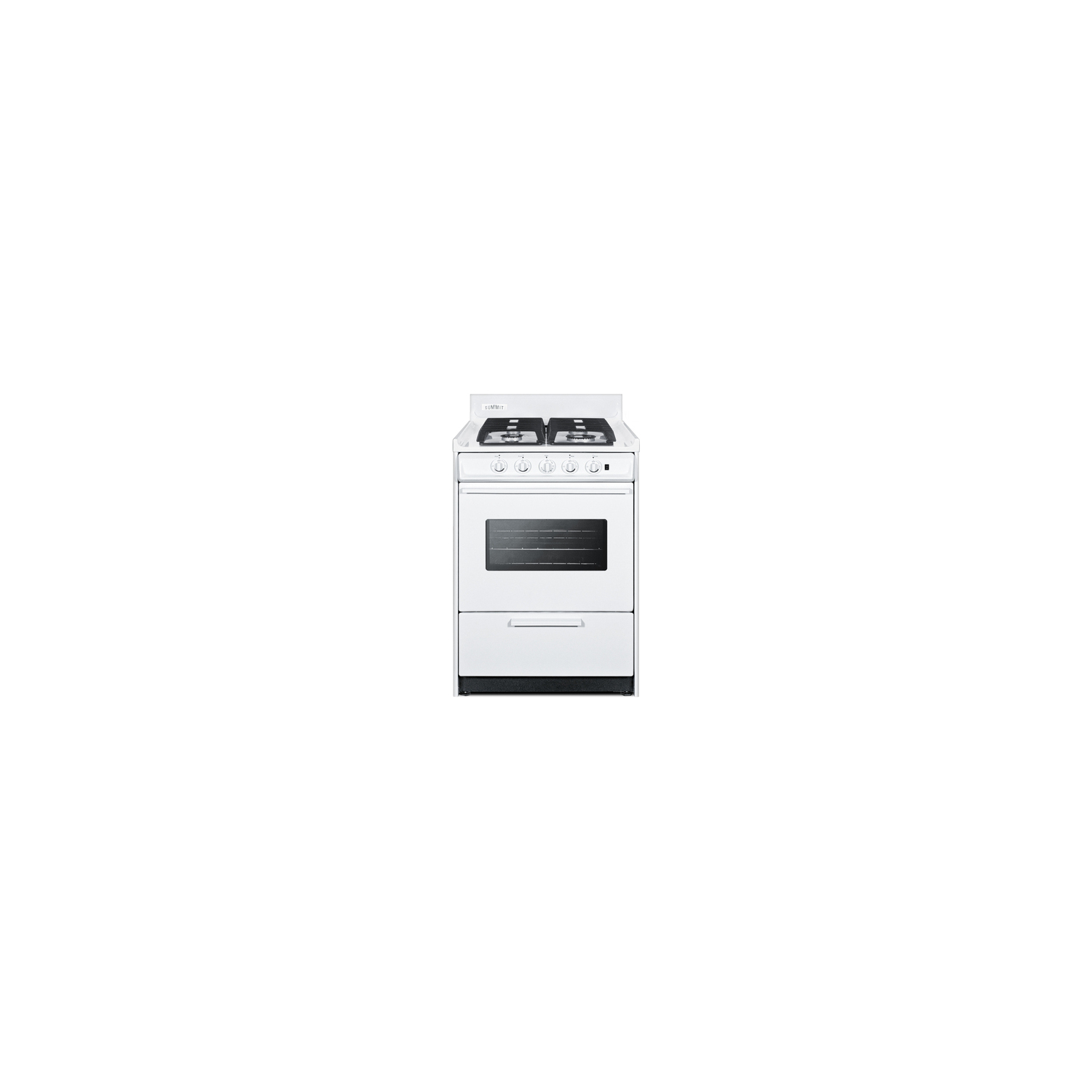

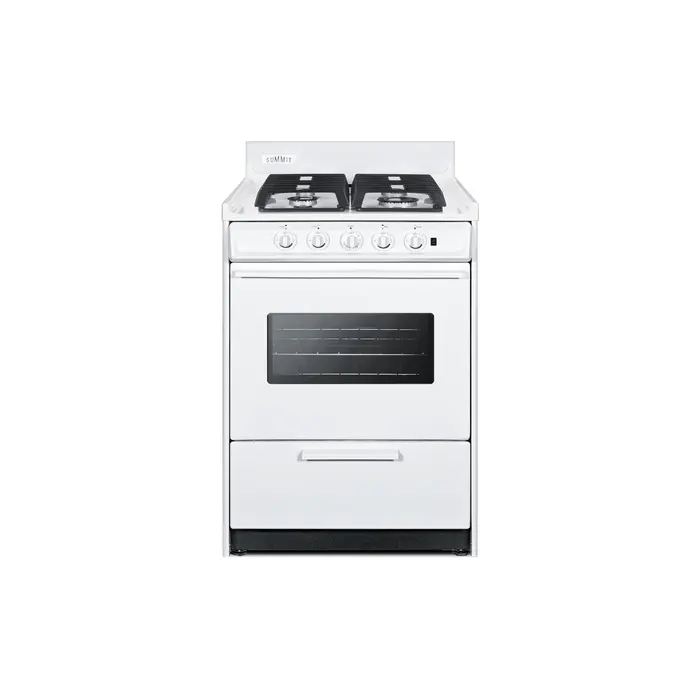

Summit 24 inch wide sealed burner gas range made in the USA, WTM6107ISW

Summit 24" wide sealed burner gas range made in the USA, 7.61101e+011, WTM6107ISW
MPN:WTM6107ISW
Category:
UPC:761101000000
Brand:Summit
Color/Finish:

SPECIFICATIONS

Overview

Nominal Height 40.0" (102 cm)

Height of Cabinet 40.0" (102 cm)

Nominal Width 24.0" (61 cm)

Width 24.0" (61 cm)

Nominal Depth 24.0" (61 cm)

Depth 24.0" (61 cm)

Door White

Cabinet White

US Electrical Safety CSA

Weight 135.0 lbs. (61 kg)

Parts & Labor Warranty 1 Year

UPC 761101152912

Gas Range

Ignition Spark

LP Convertible With Kit LP S2 Accessory

Oven Capacity 2.92 cu.ft

Cooktop Surface Porcelain

Burner Type Sealed

Number of Burners 4

Grate Material Cast iron

Burner #1 BTU 12000.0

Burner #2 BTU 9100.0

Burner #3 BTU 9100.0

Burner #4 BTU 5000.0

Burner Controls Dial

Oven Controls Dial

Oven Light Yes

Backguard Yes

Cleaning Type Manual

Oven Rack Qty 2

Oven Window Yes

Oven Interior Height 14.0" (36 cm)

Oven Interior Width 19.0" (48 cm)

Oven Interior Depth 19.0" (48 cm)

Broiler Location Below Oven

FEATURES

24" Wide Gas Range Slim-fitting sealed burner gas stove with large oven

Made in the USA Designed and constructed domestically

Slim 24 inch width Apartment-sized width offers all the functionality you need in a smaller footprint

24 inch depth Shallower fit is ideal for L-shaped and galley kitchens

Cast iron grates Two sets of continuous grates in heavy duty cast iron hold up to large cookware

Four sealed burners Easy cleanup on boil-overs and accidental spills

High output burner Right front burner features 12,000 BTU output for powerful cooking

Low output simmer burner Rear left burner reaches a maximum of 5000 BTUs, ideal for simmering sensitive items or keeping dishes warm without overheating

Designed for natural gas Set for use with natural gas connection. To convert for propane use, add Kit LP S2

Electronic ignition Spark ignition system with a pre-installed 115V 3-prong cord

Oven window and interior lighting Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door

Upfront oven/burner controls Push-to-turn knobs offer easier, safer access, preventing users from reaching over hot burners to adjust

Recessed oven door Smart design limits the depth and protects adjacent cabinets

Adjustable oven racks Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Broiler compartment Lower drop-down compartment for separate broiling with even heat distribution

Porcelain construction Oven interior features high quality porcelain construction for long-lasting durability, while the cooking surface is made from scratch resistant porcelain enamel

Removable burner caps Burners include a removable cap for easy cleaning

Recessed surface Smart design helps to contain spills

Removable oven door and range top Allows for easier cleaning as needed

Broiler pan Two-piece broiler pan included

White exterior finish Classic design in a clean white finish to match any kitchen

Anti-tip bracket Included for user installation to help prevent tipping

DOWNLOADS

BROCHURE (WTM6107ISW.pdf)

OTHER (Summit_Anti-Tip_Bracket.pdf)

USE & CARE (WTM6107ISW-User-Manual.pdf)
