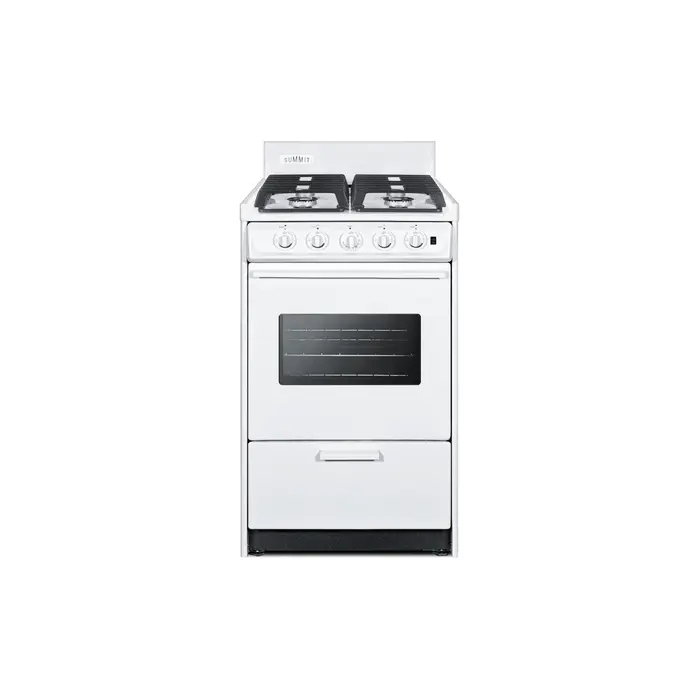

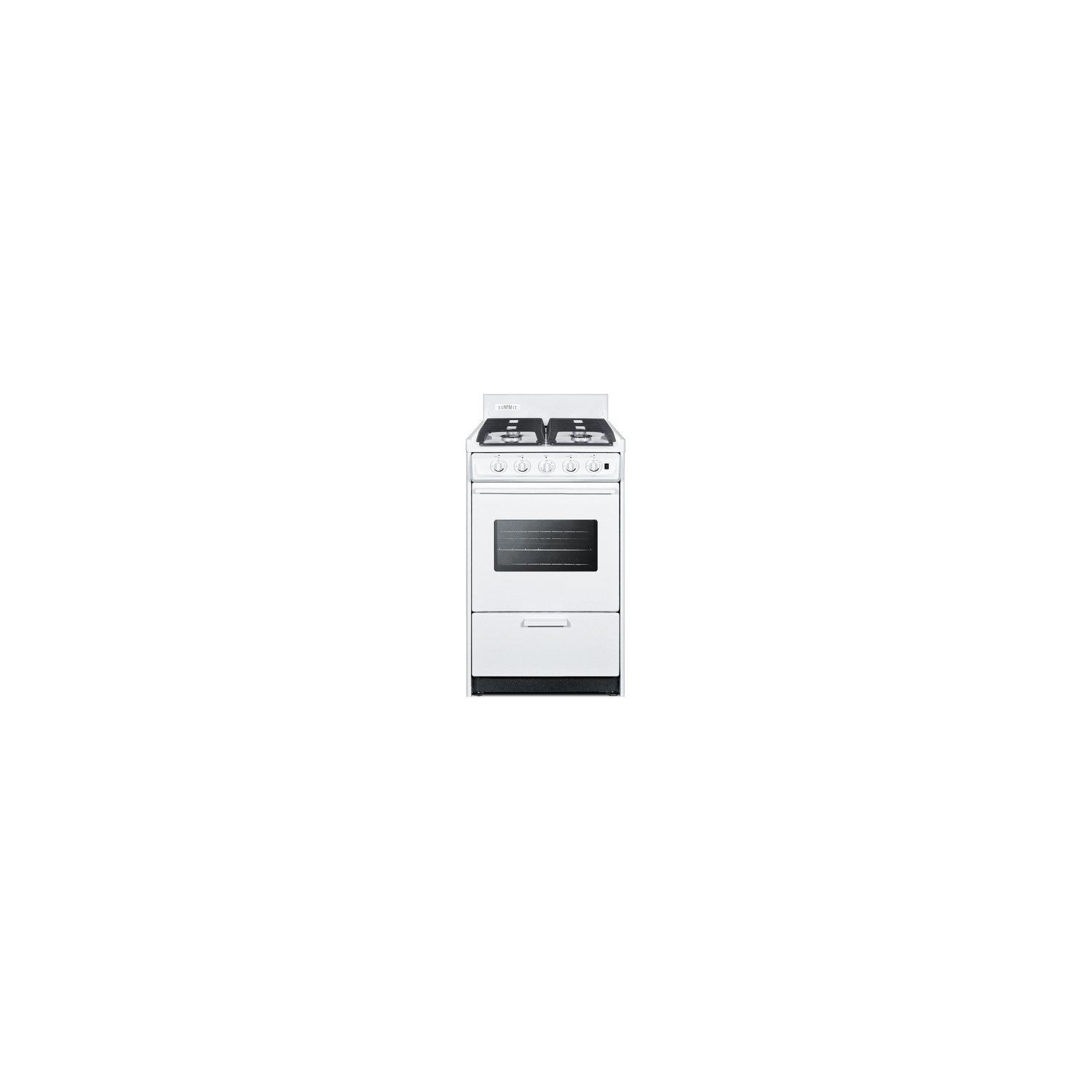

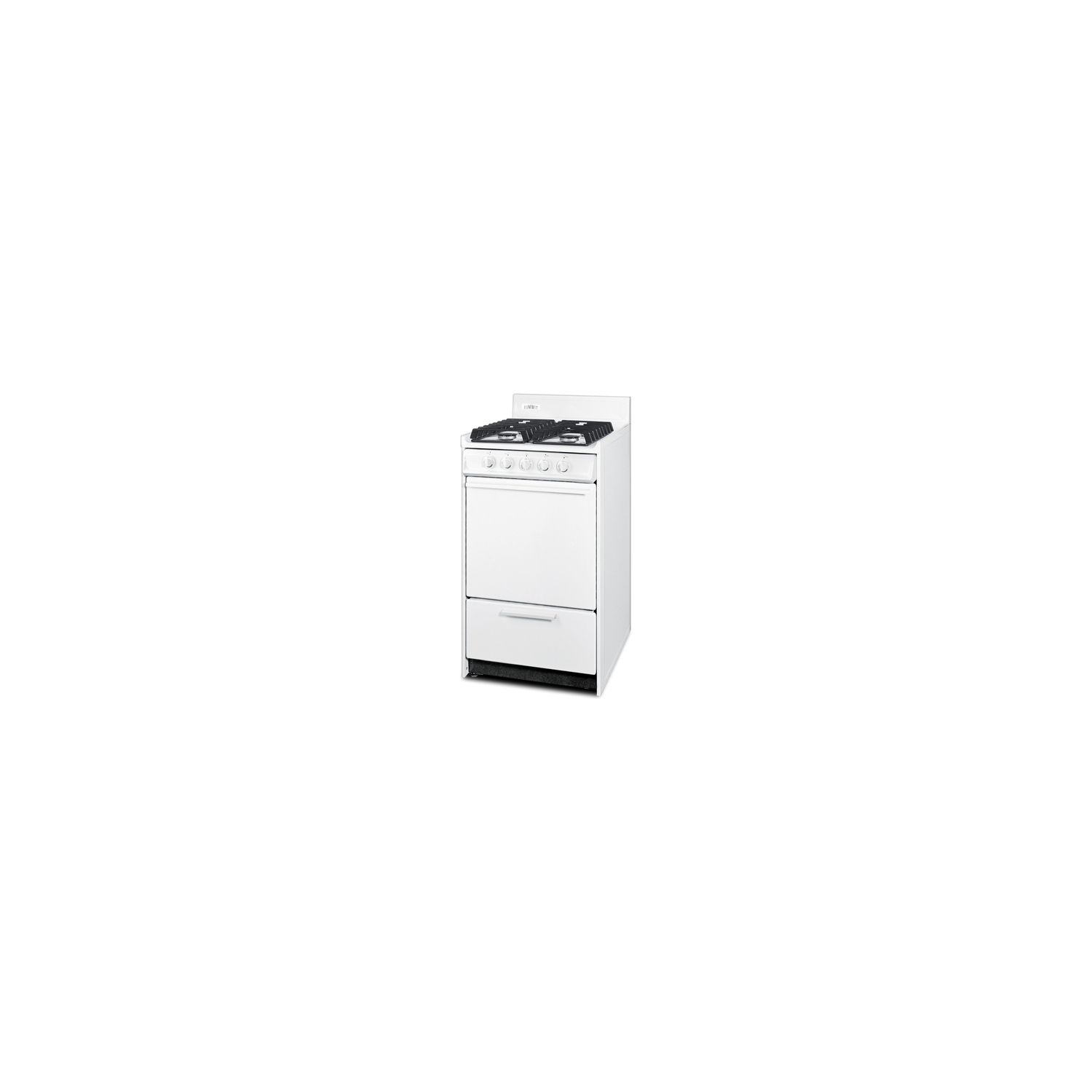

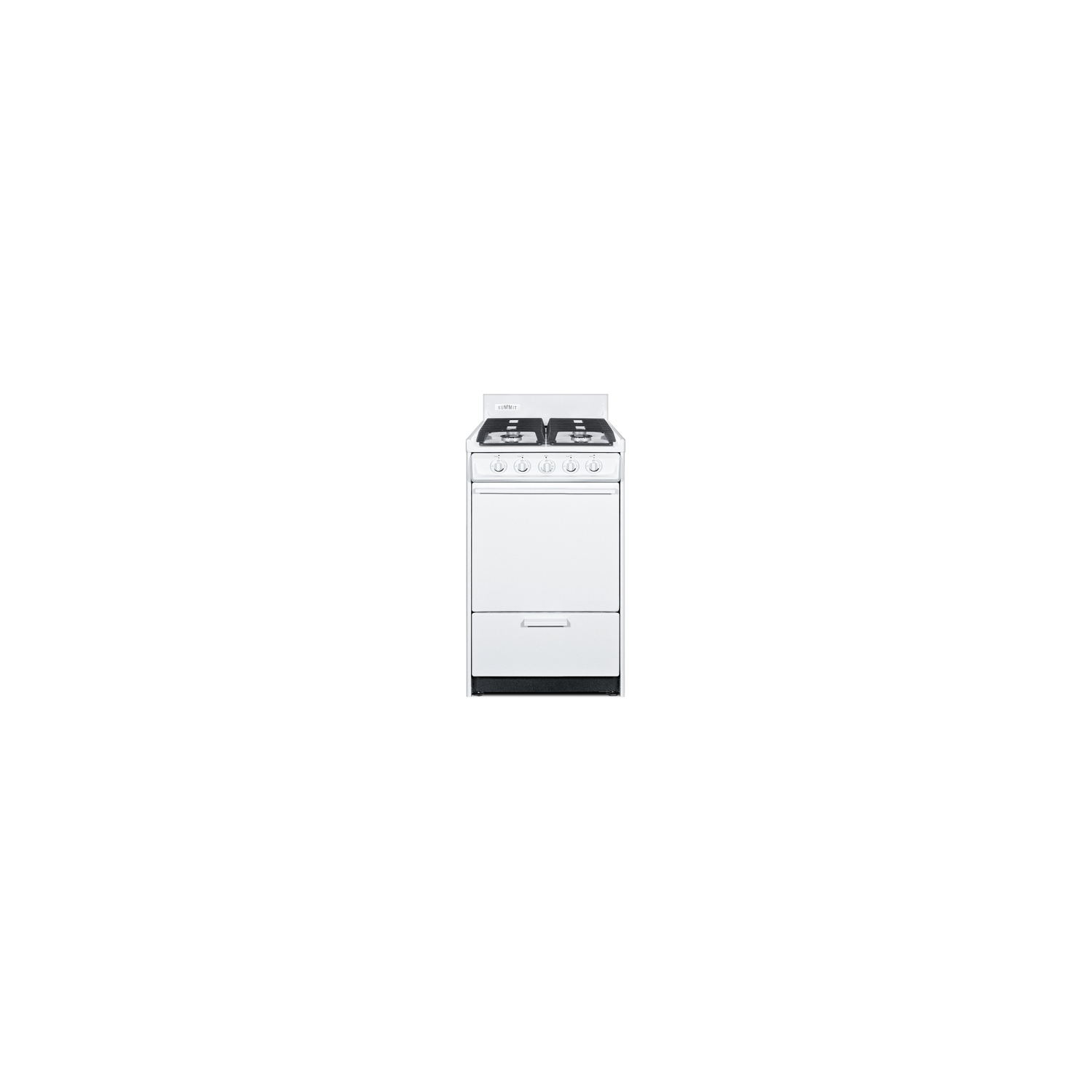

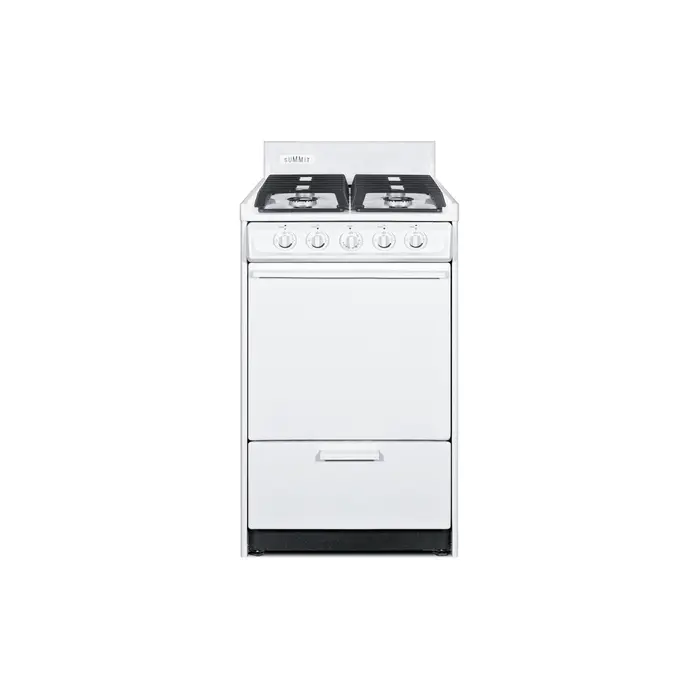

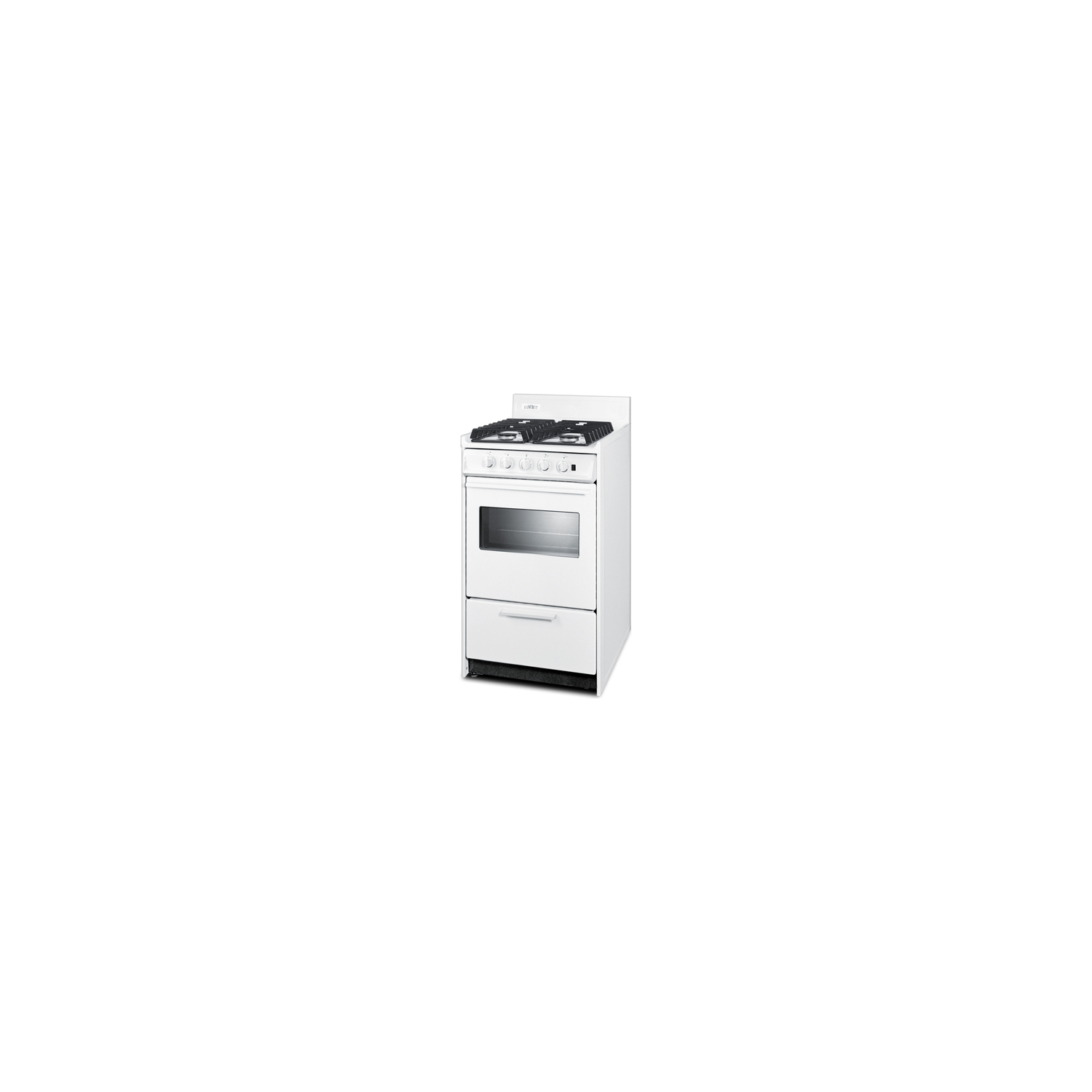

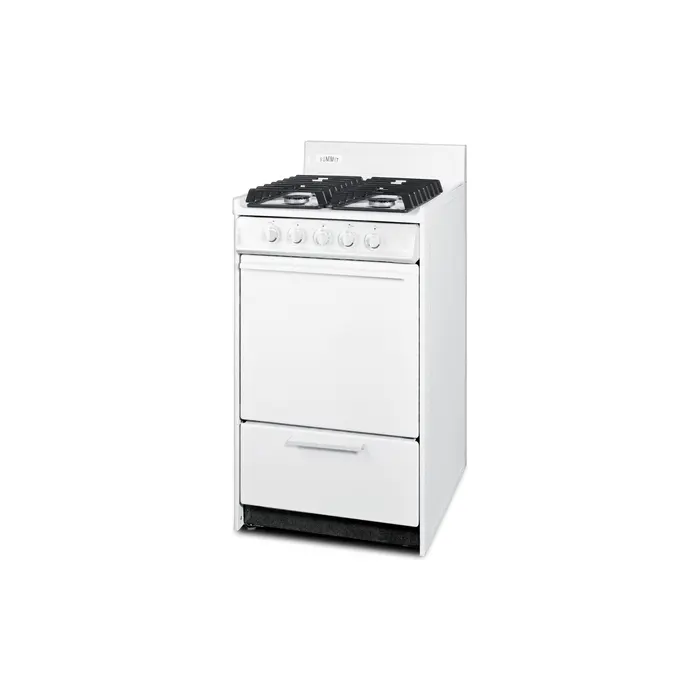

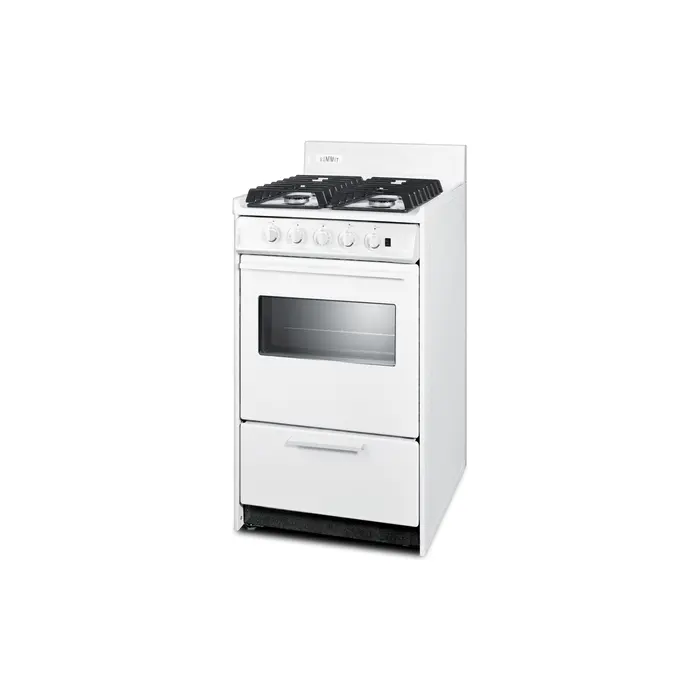

Summit 20 inch wide sealed burner gas range made in the USA, WTM1107IS

Summit 20" wide sealed burner gas range made in the USA, 7.61101e+011, WTM1107IS
MPN:WTM1107IS
Category:
UPC:761101000000
Brand:Summit
Color/Finish:

SPECIFICATIONS

Overview

Nominal Height 40.0" (102 cm)

Height of Cabinet 40.0" (102 cm)

Nominal Width 20.0" (51 cm)

Width 20.0" (51 cm)

Nominal Depth 24.0" (61 cm)

Depth 24.0" (61 cm)

Depth with door at 90° 40.0" (102 cm)

Door White

Cabinet White

US Electrical Safety CSA

Weight 135.0 lbs. (61 kg)

Parts & Labor Warranty 1 Year

UPC 761101156422

Gas Range

Ignition Spark

LP Convertible With Kit LP S2 Accessory

Oven Capacity 2.46 cu.ft

Cooktop Surface Porcelain

Burner Type Sealed

Number of Burners 4

Grate Material Cast iron

Burner #1 BTU 9100.0

Burner #2 BTU 9100.0

Burner #3 BTU 9100.0

Burner #4 BTU 9100.0

Burner Controls Dial

Oven Controls Dial

Backguard Yes

Cleaning Type Manual

Oven Rack Qty 2

Oven Interior Height 14.0" (36 cm)

Oven Interior Width 16.0" (41 cm)

Oven Interior Depth 19.0" (48 cm)

Broiler Location Below Oven

FEATURES

20" Wide Gas Range Slim-fitting sealed burner gas stove with large oven

Made in the USA Designed and constructed domestically

Slim 20 inch width Apartment-sized width offers all the functionality you need in a smaller footprint

24 inch depth Shallower fit is ideal for L-shaped and galley kitchens

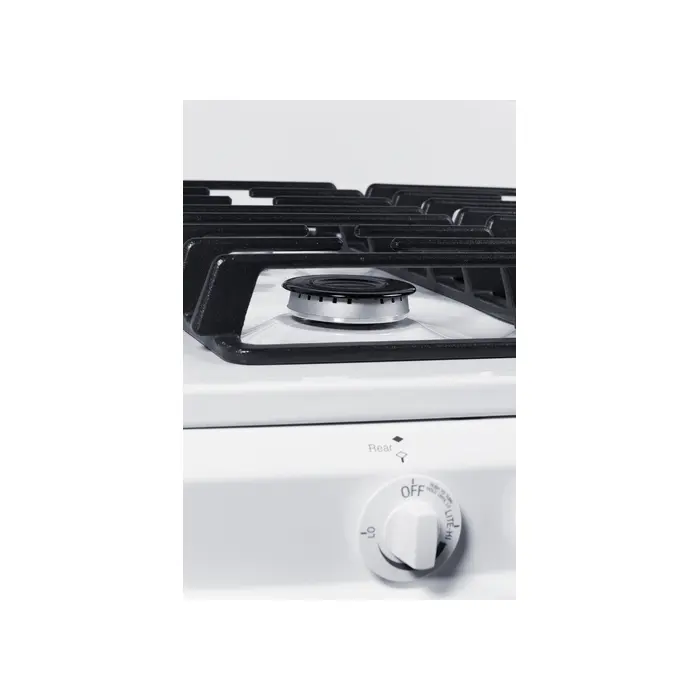

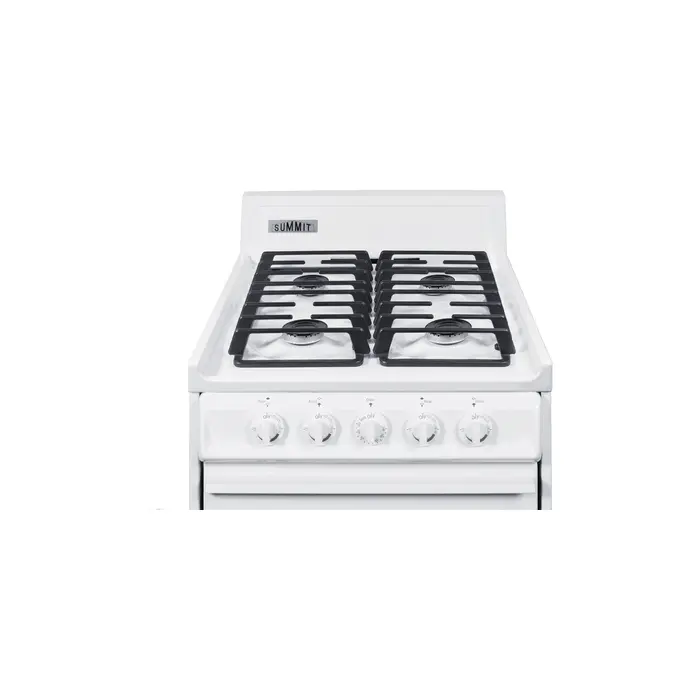

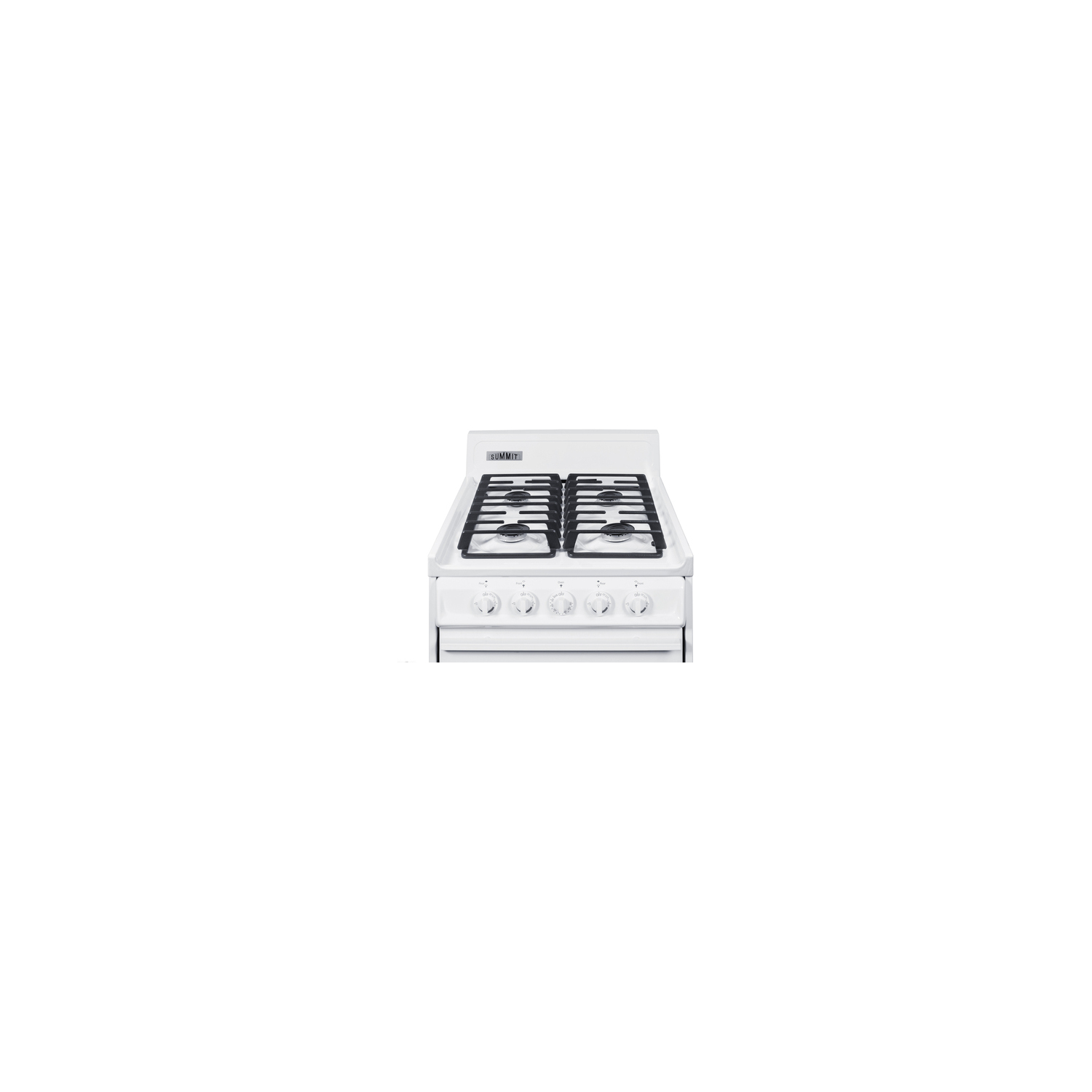

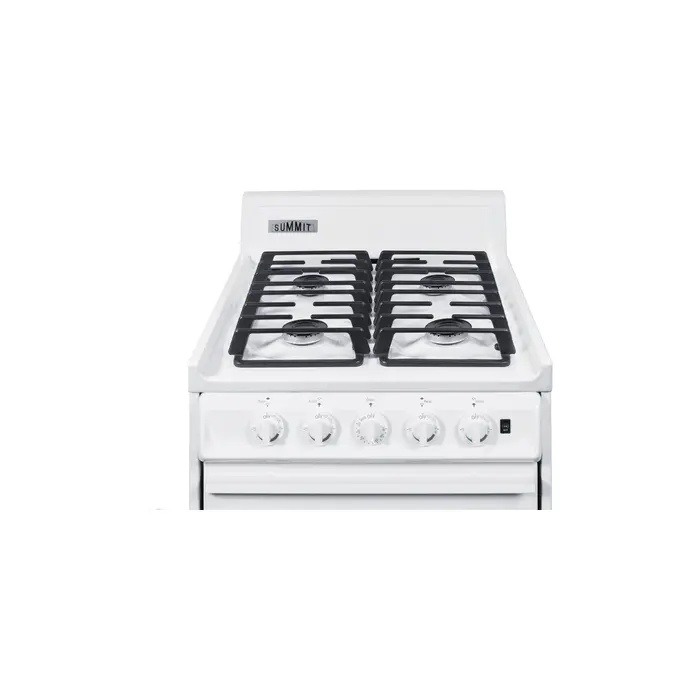

Cast iron grates Two sets of continuous grates in heavy duty cast iron hold up to large cookware

Four sealed 9100 BTU burners Easy cleanup on boil-overs and accidental spills

Designed for natural gas Set for use with natural gas connection. To convert for propane use, add Kit LP S2

Electronic ignition Spark ignition system with a pre-installed 115V 3-prong cord

Upfront oven/burner controls Push-to-turn knobs offer easier, safer access, preventing users from reaching over hot burners to adjust

Recessed oven door Smart design limits the depth and protects adjacent cabinets

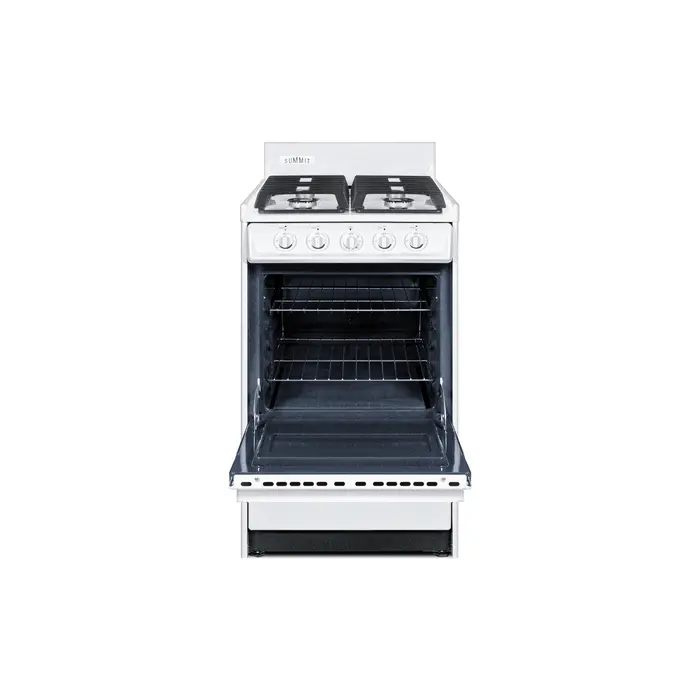

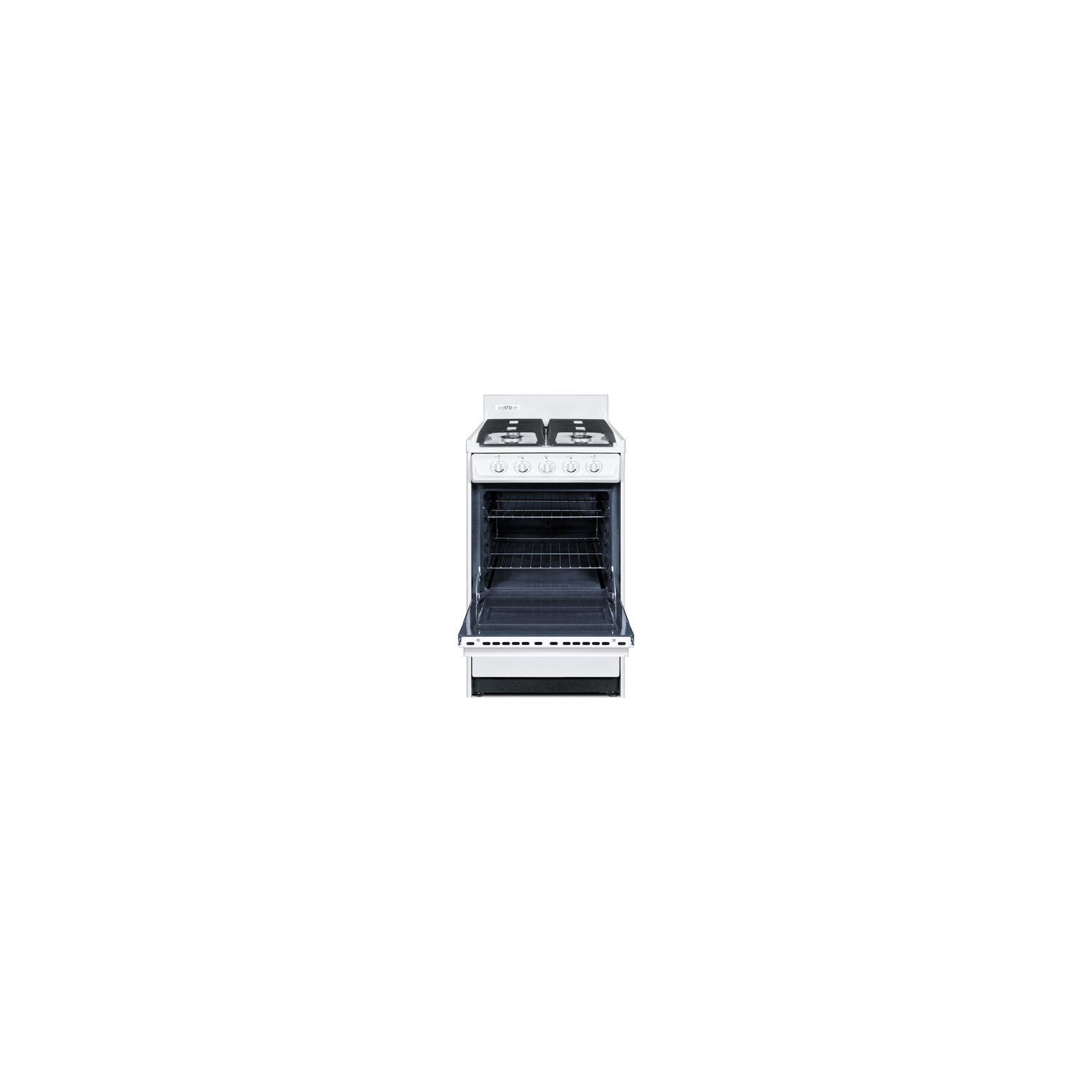

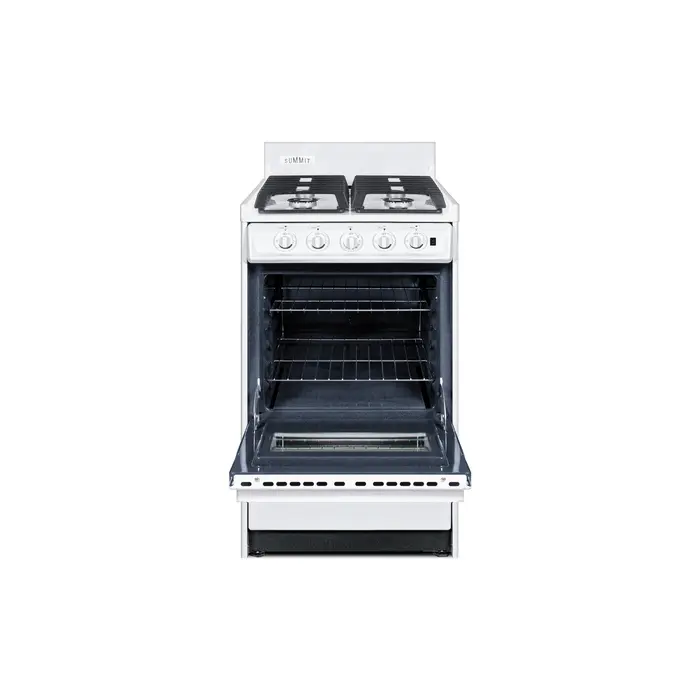

Adjustable oven racks Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Broiler compartment Lower drop-down compartment for separate broiling with even heat distribution

Porcelain construction Oven interior features high quality porcelain construction for long-lasting durability, while the cooking surface is made from scratch resistant porcelain enamel

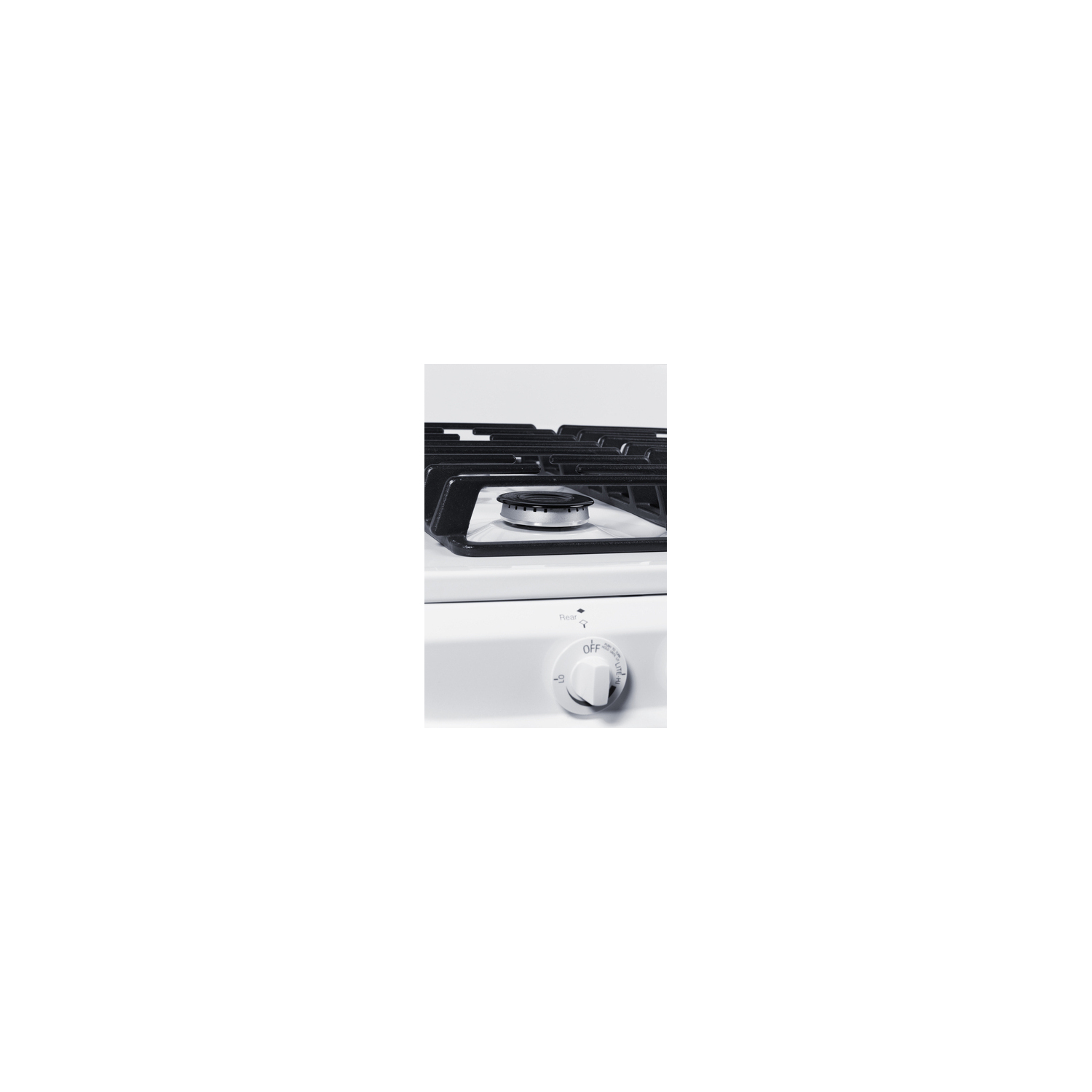

Removable burner caps Burners include a removable cap for easy cleaning

Recessed surface Smart design helps to contain spills

Removable oven door and range top Allows for easier cleaning as needed

Broiler pan Two-piece broiler pan included

White exterior finish Classic design in a clean white finish to match any kitchen

Anti-tip bracket Included for user installation to help prevent tipping

DOWNLOADS

BROCHURE (WTM1107IS.pdf)

OTHER (Summit_Anti-Tip_Bracket.pdf)

USE & CARE (WTM1107IS-User-Manual.pdf)
