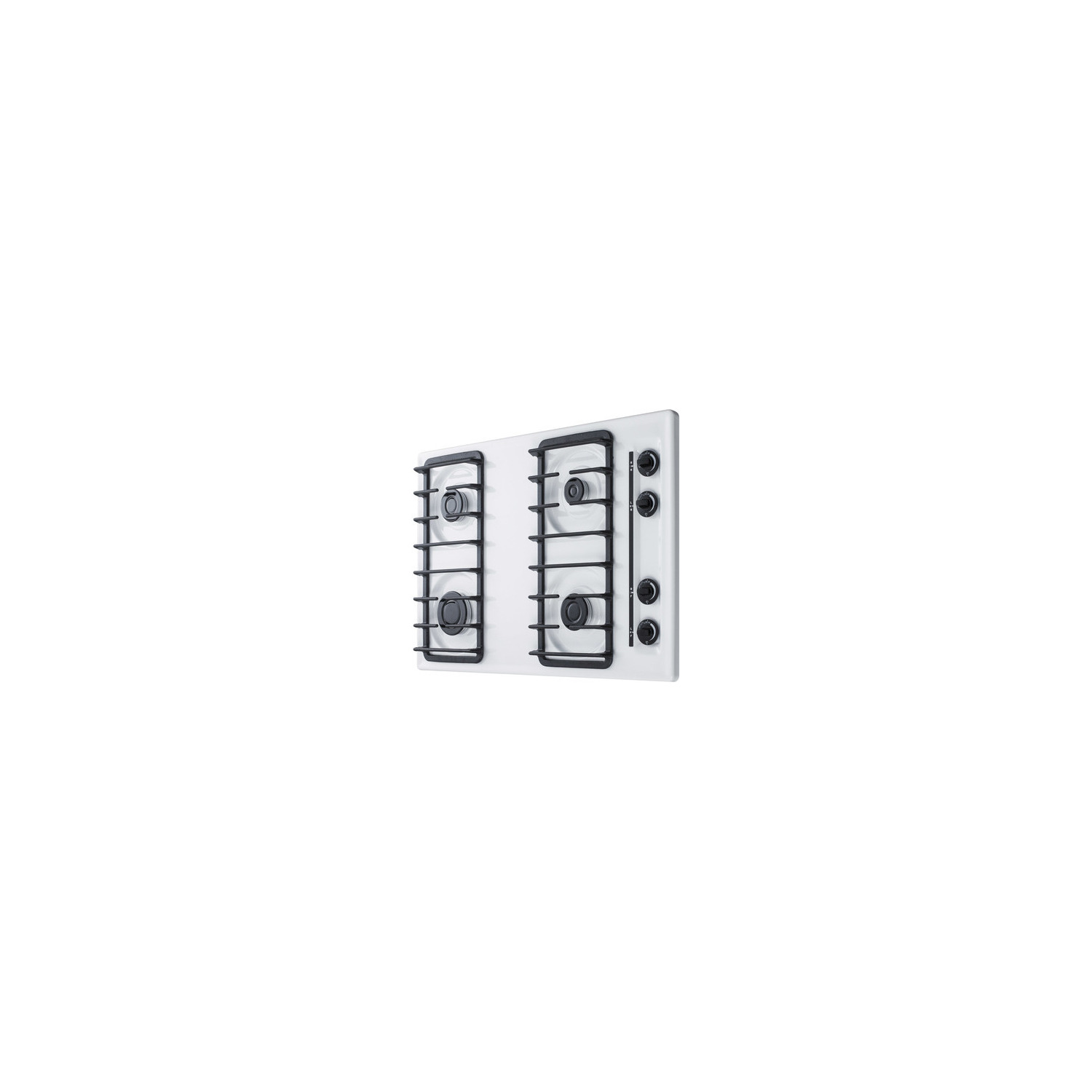

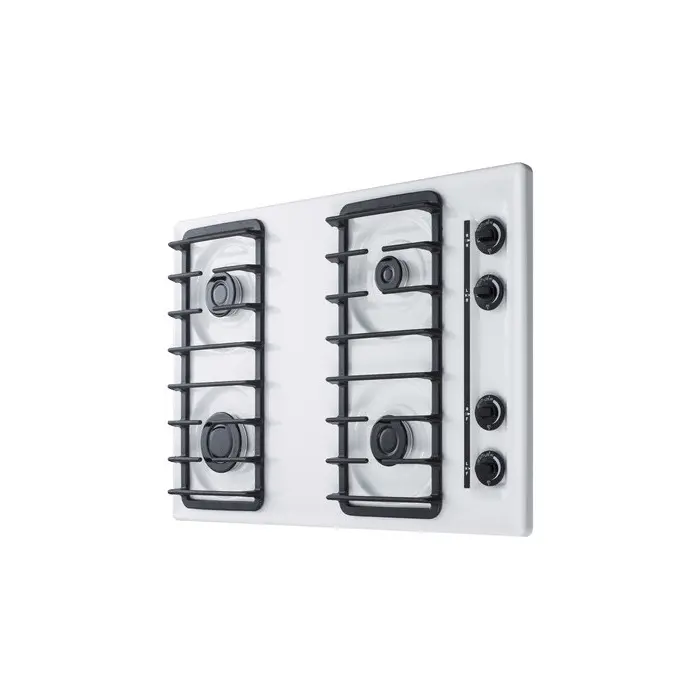

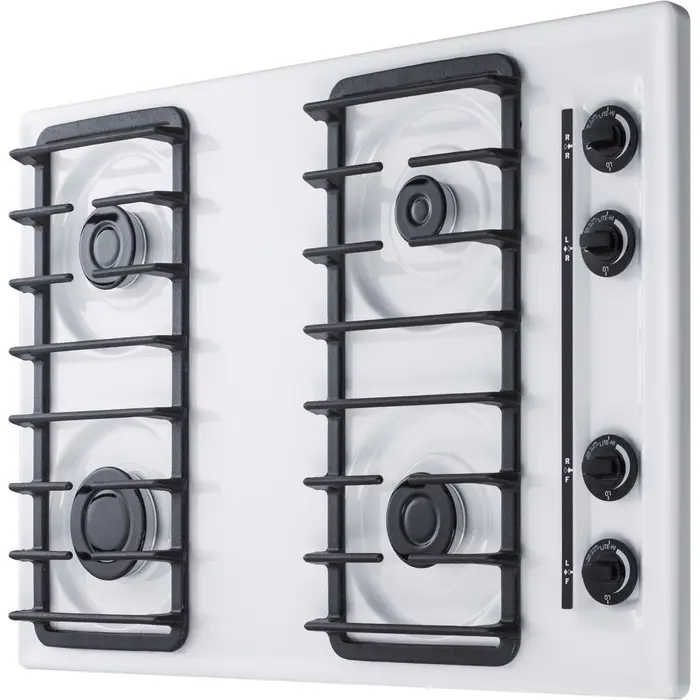

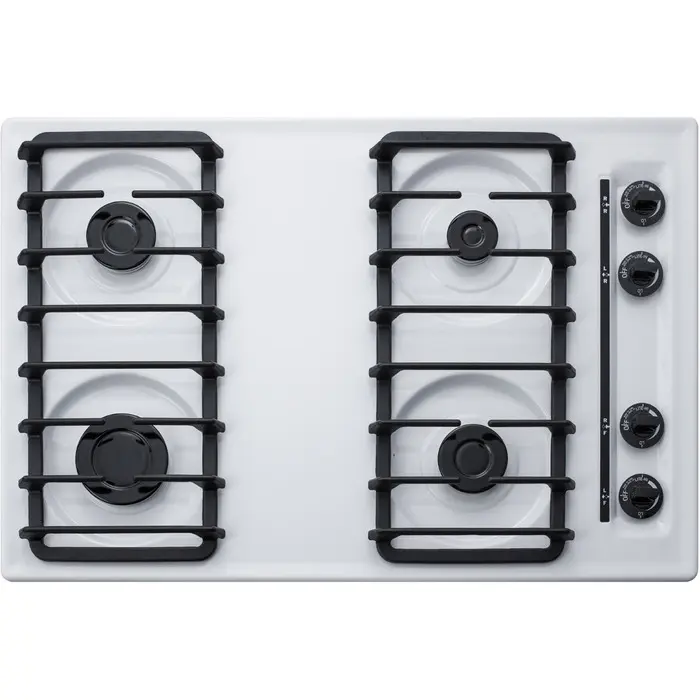

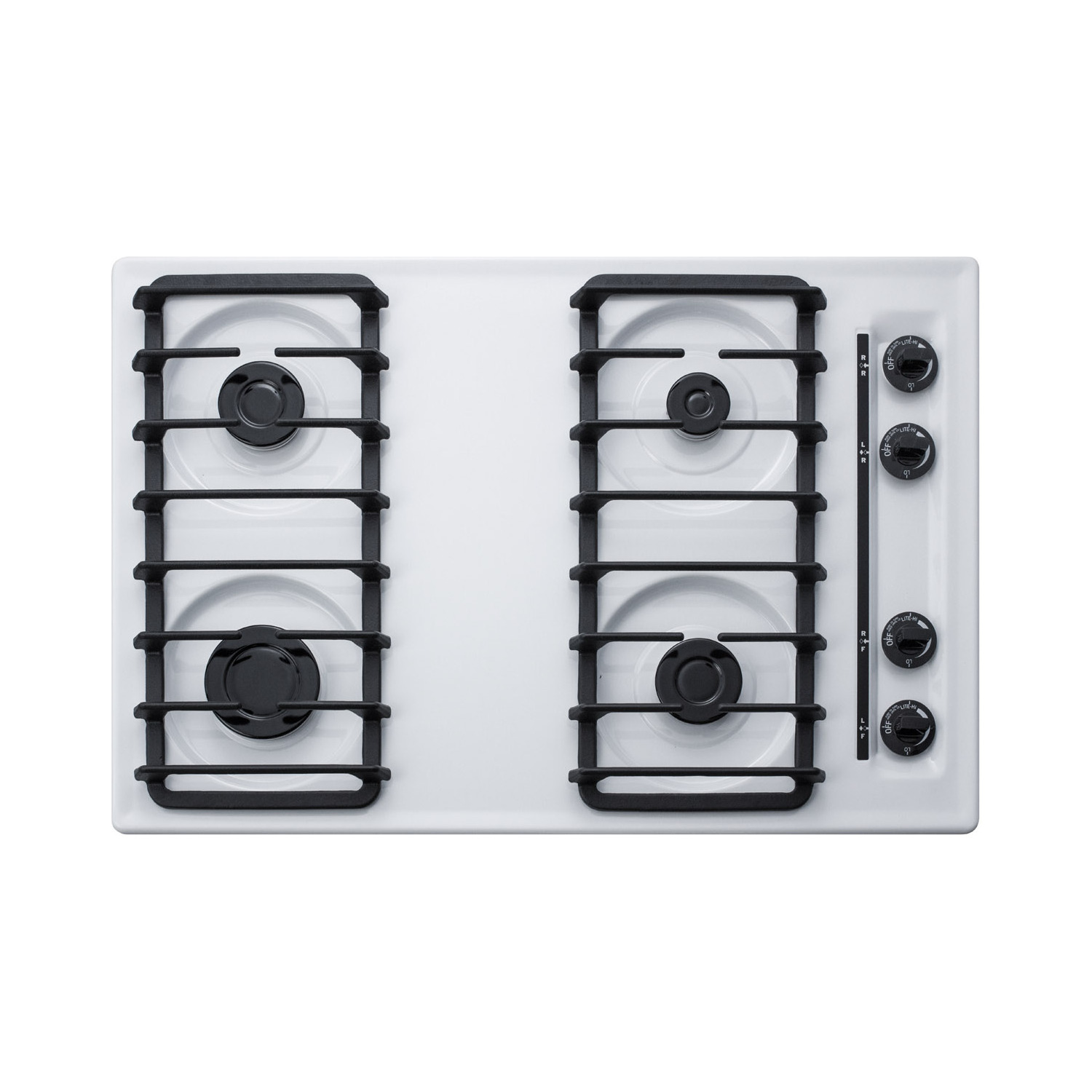

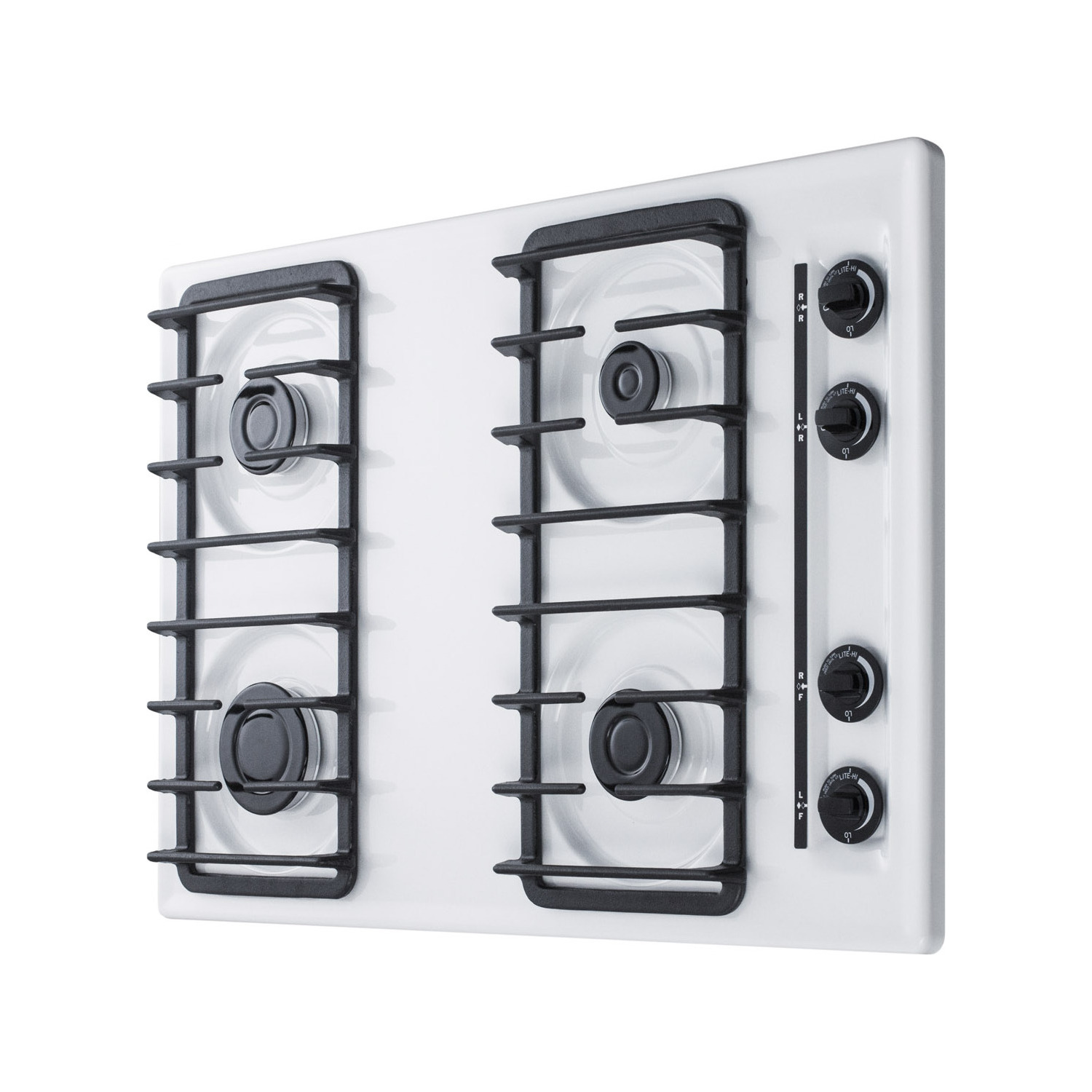

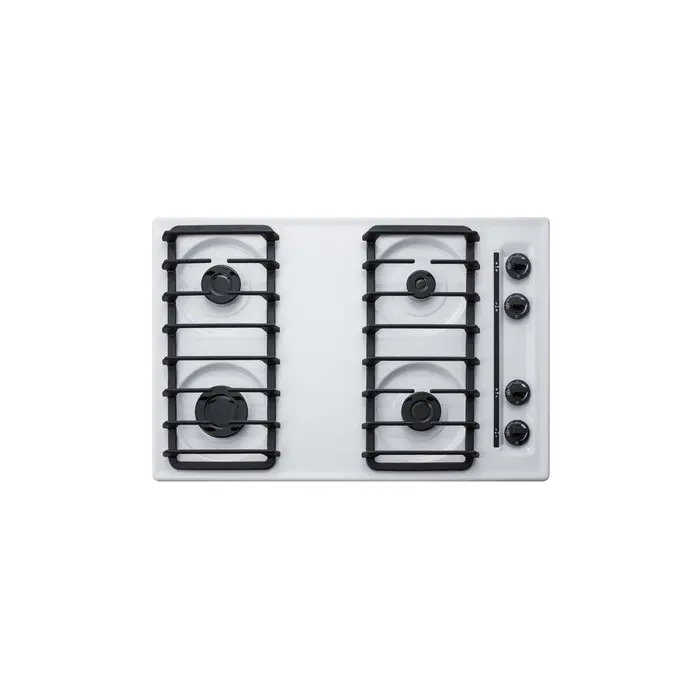

Summit 30 inch wide gas cooktop with four sealed burners, white porcelain surface, and cast iron grates; made in the USA, WTL053S
$581.60
Retail Price: $740.00
Free shipping
$ 581.60
Description
Summit 30" wide gas cooktop with four sealed burners, white porcelain surface, and cast iron grates; made in the USA, 7.61101e+011, WTL053S
MPN:WTL053S
Category:
UPC:761101000000
Brand:Summit
Color/Finish:
SPECIFICATIONS
Overview
Nominal Height 4.0" (10 cm)
Height of Cabinet 4.0" (10 cm)
Nominal Width 30.0" (76 cm)
Width 29.75" (76 cm)
Nominal Depth 20.0" (51 cm)
Depth 20.0" (51 cm)
Cabinet White
US Electrical Safety CSA
Canadian Electrical Safety CSA-C
Weight 27.0 lbs. (12 kg)
Parts & Labor Warranty 1 Year
UPC 761101061627
Gas Cooktop
Ignition Spark
LP Convertible With Kit LP S2 Accessory
Number of Burners 4
Controls Dial
Surface Painted
Grate Material Cast Iron
Cutout Width 28.38" (72 cm)
Cutout Depth 18.63" (47 cm)
Burner #1 BTU 12000.0
Burner #2 BTU 9100.0
Burner #3 BTU 9100.0
Burner #4 BTU 5000.0
Power Cord Included Yes
FEATURES
Made in the USA Designed and constructed domestically
Sealed Sabaf® burners Quality burners with cast iron tops ensure lasting durability and easier cleanup

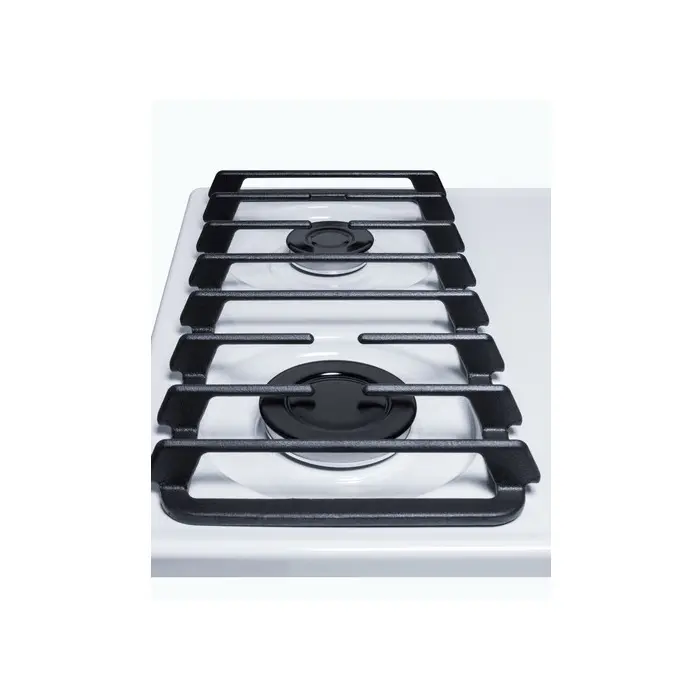

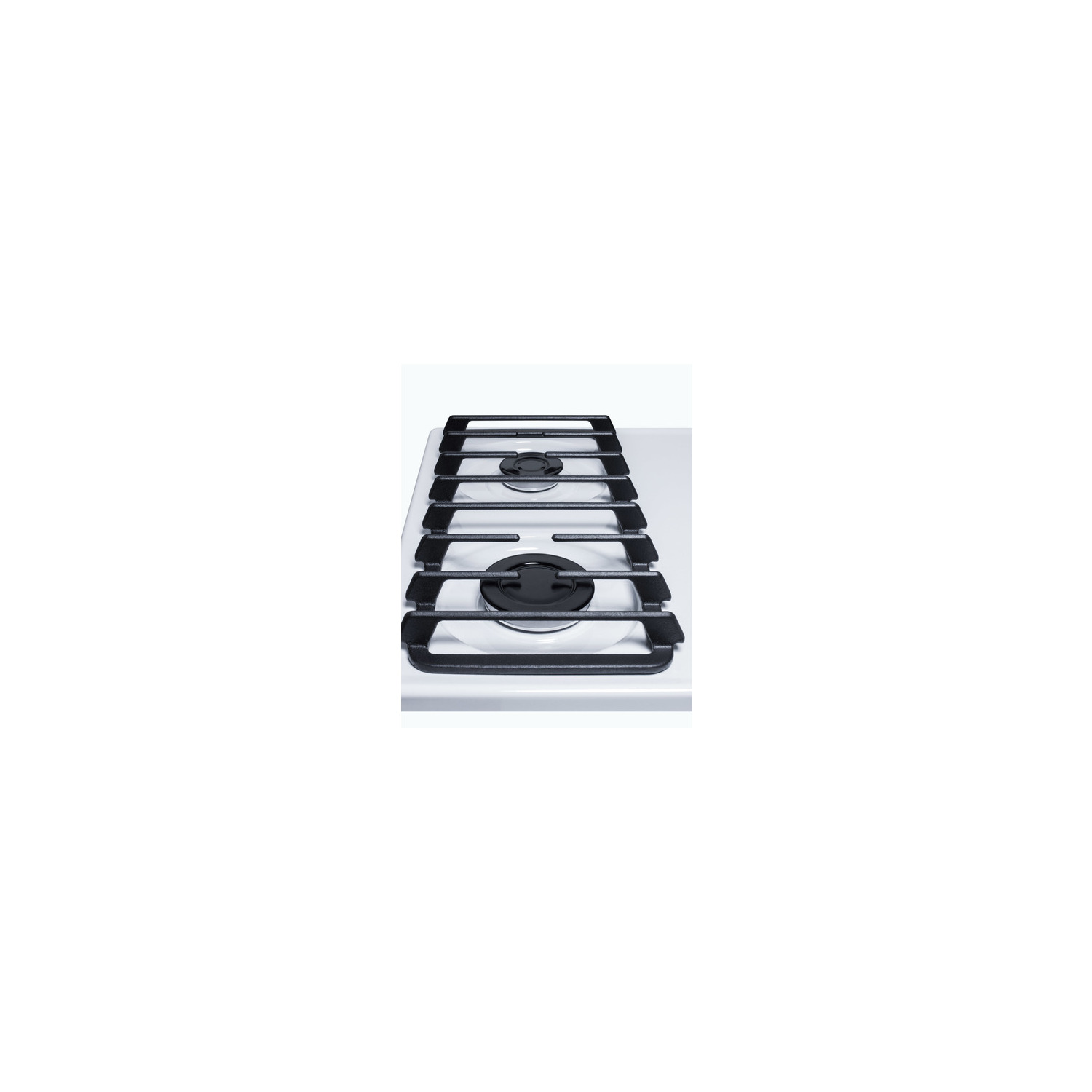

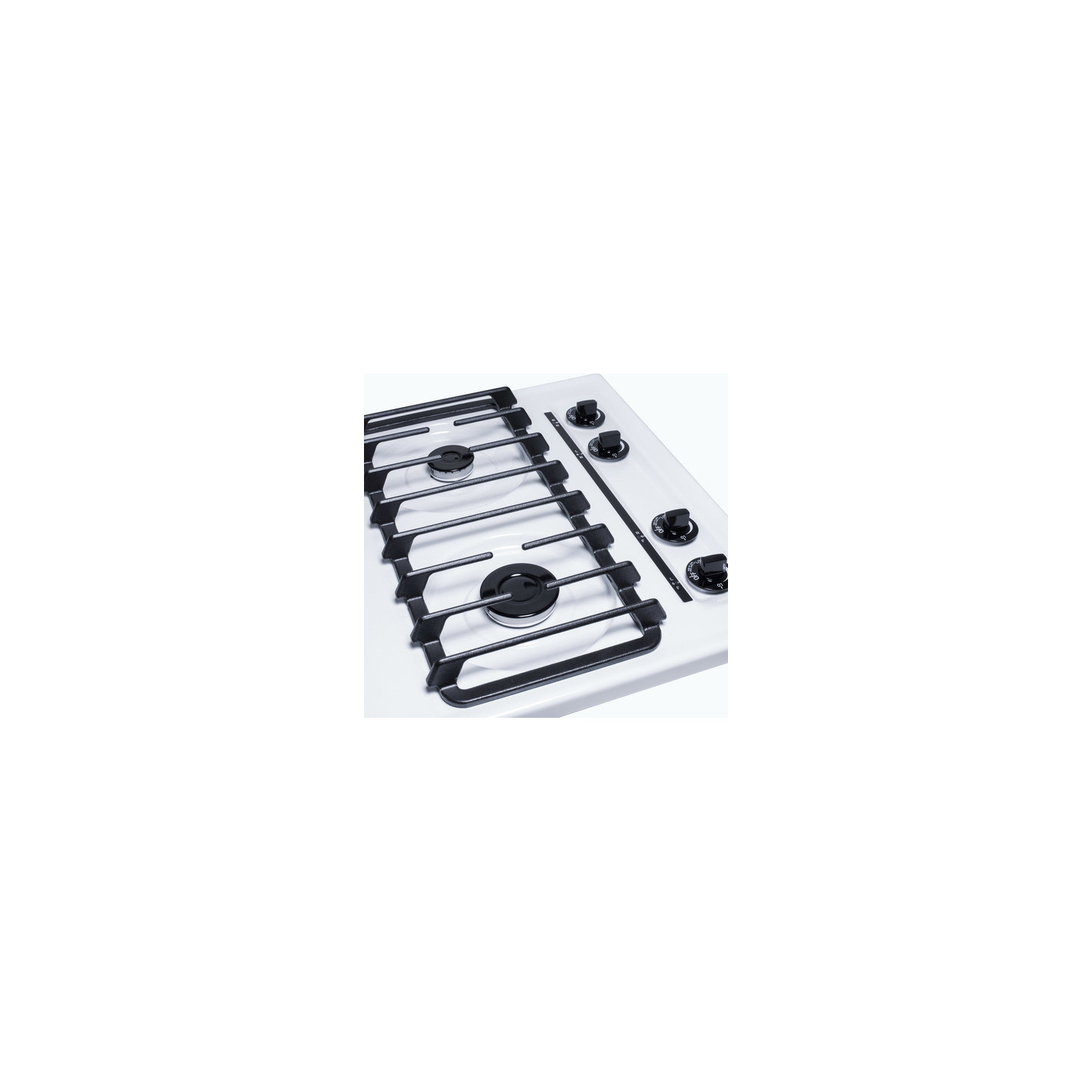

Cast iron grates Two sets of continuous grates in heavy duty cast iron hold up to large cookware
Fits common cutouts Designed for 28 3/8" W x 18 5/8" D cutouts for an easy fit in smaller kitchens
Power burner Front left burner features 12,000 BTU output for powerful cooking
Simmer burner Rear burner on right side reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items
Two standard burners Front right and rear left burners offer 9100 BTUs of cooking power to accommodate most dishes

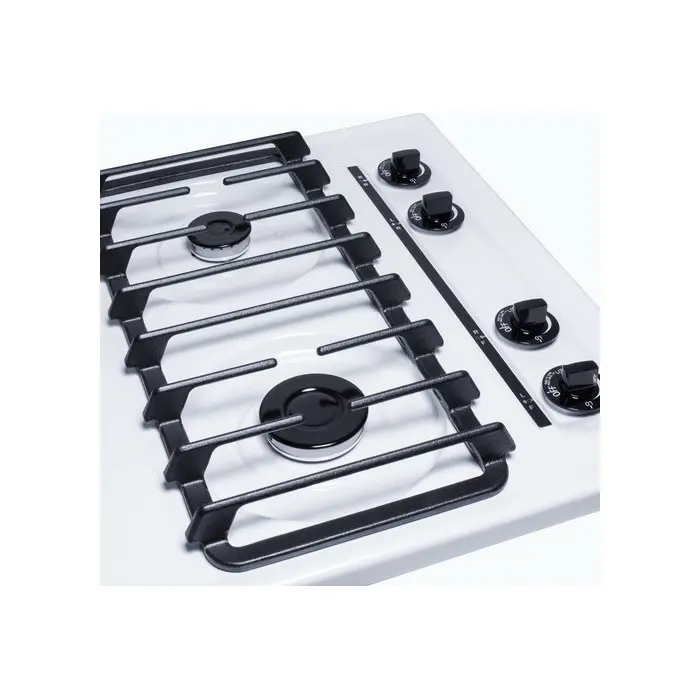

Push-to-turn knobs To prevent accidents, knobs require a small amount of force when turning
Recessed top Curved design helps to contain spills on the surface for easier cleanup
Porcelain cooking surface White finish on scratch resistant top
Removable burner caps Burners include a removable cap for easy cleaning
Electronic/gas spark ignition Gas spark ignition for automatic lighting of burners
Cord included Pre-installed 115V 3-pronged power cord
Convertible with kit Unit is set for natural gas. To use with LP gas, order Summit Kit LP S2 accessory
DOWNLOADS
BROCHURE w/ DRAWINGS (WTL053S.pdf)
TECHNICAL DRAWING (.dwg) (TTL053S__30__GAS_COOKTOP__A-C_2010__2.dwg)
ASSEMBLY DRAWING (TTL053S__WTL__ZTL__30__ASS_Y_2.pdf)
