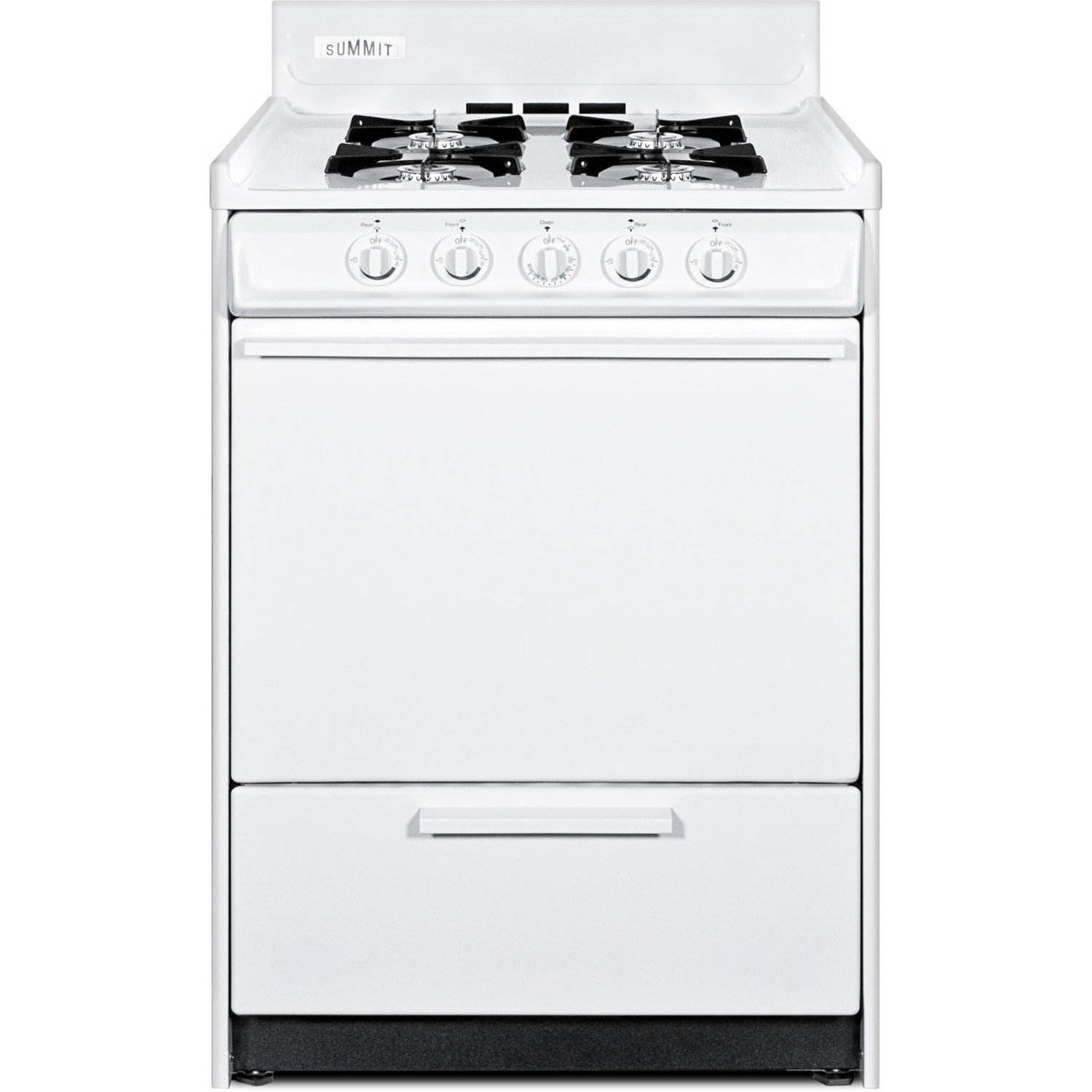

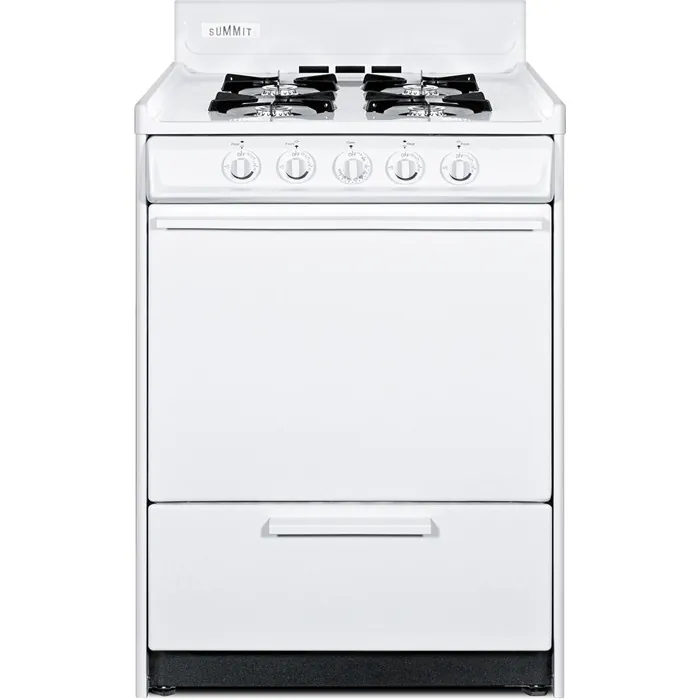

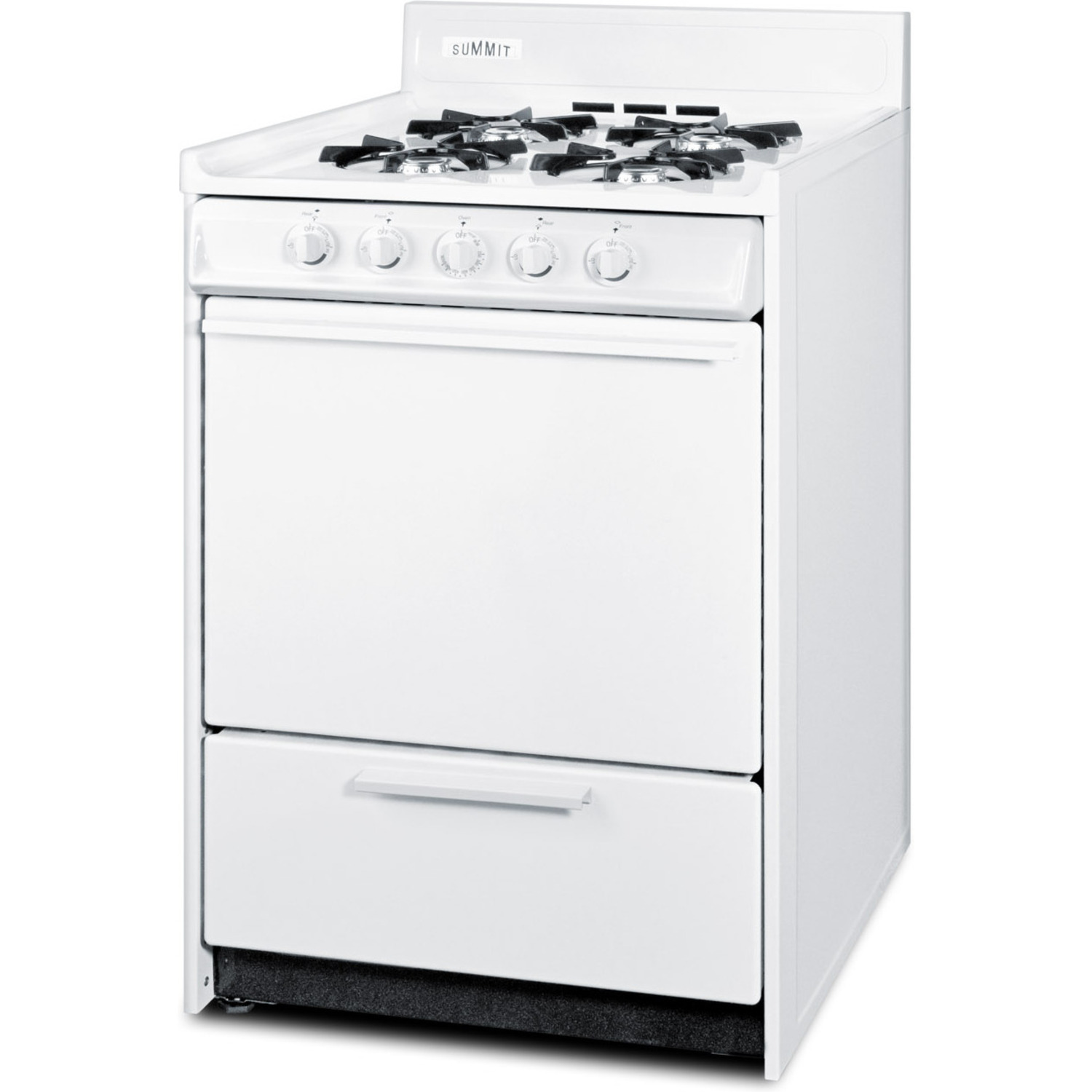

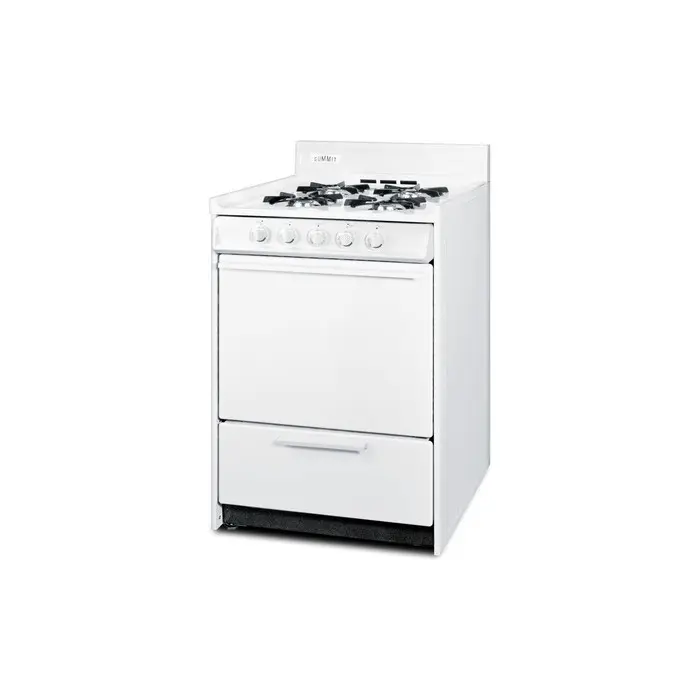

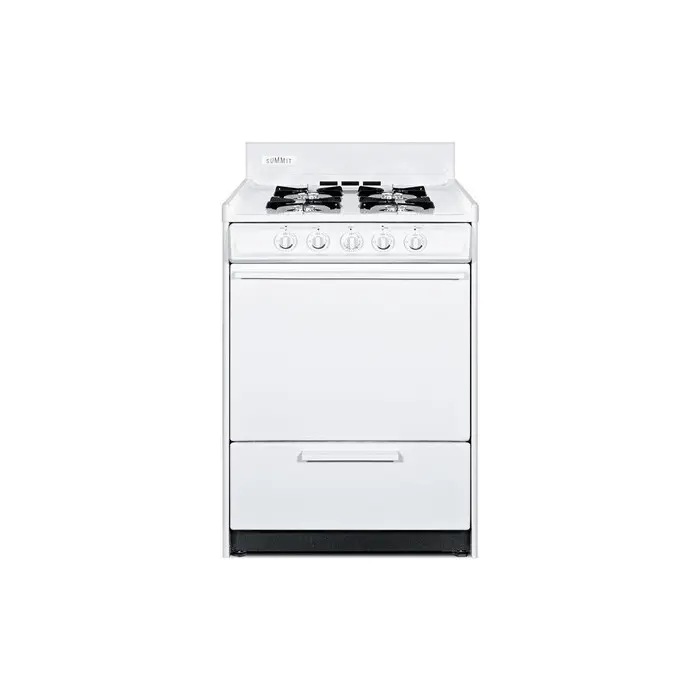

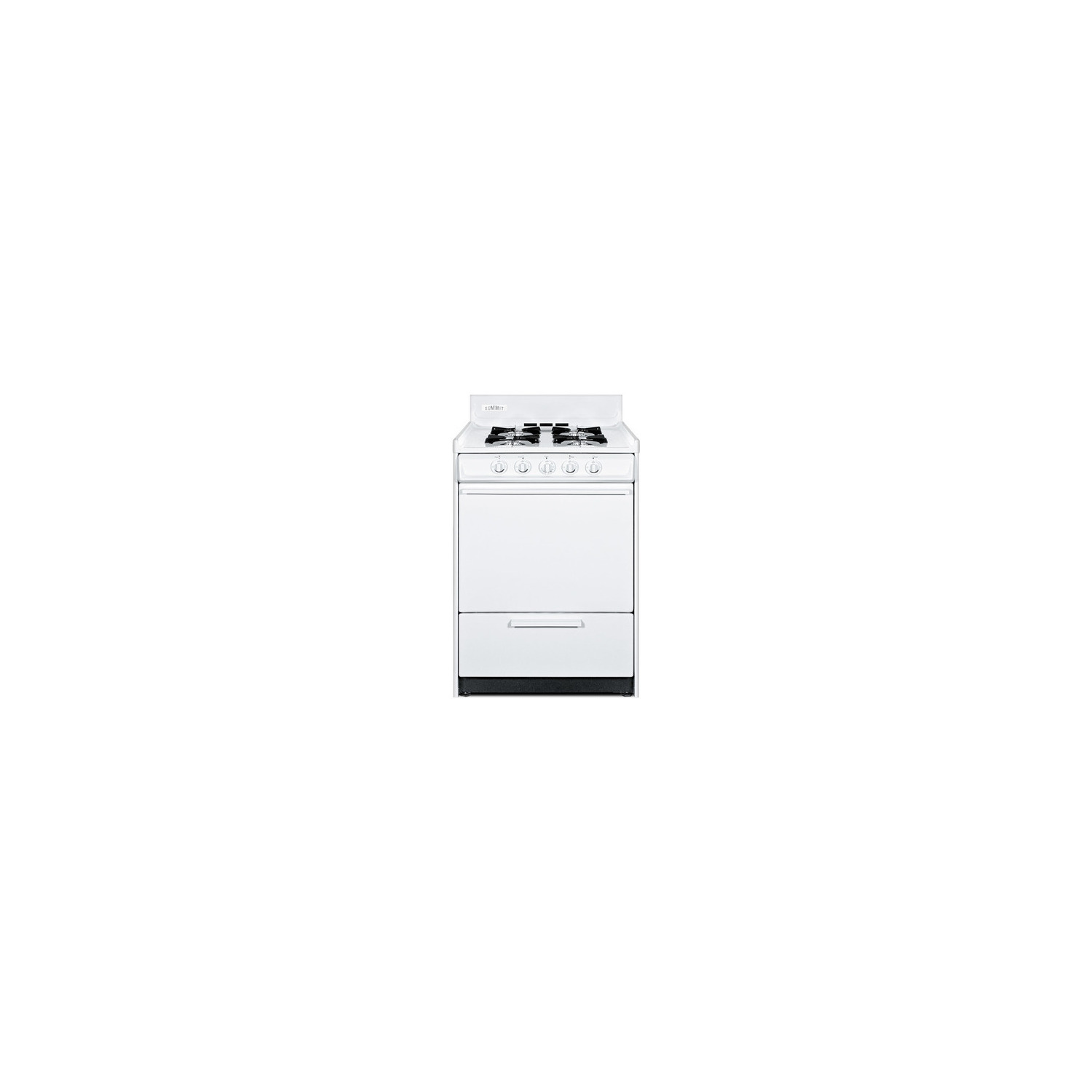

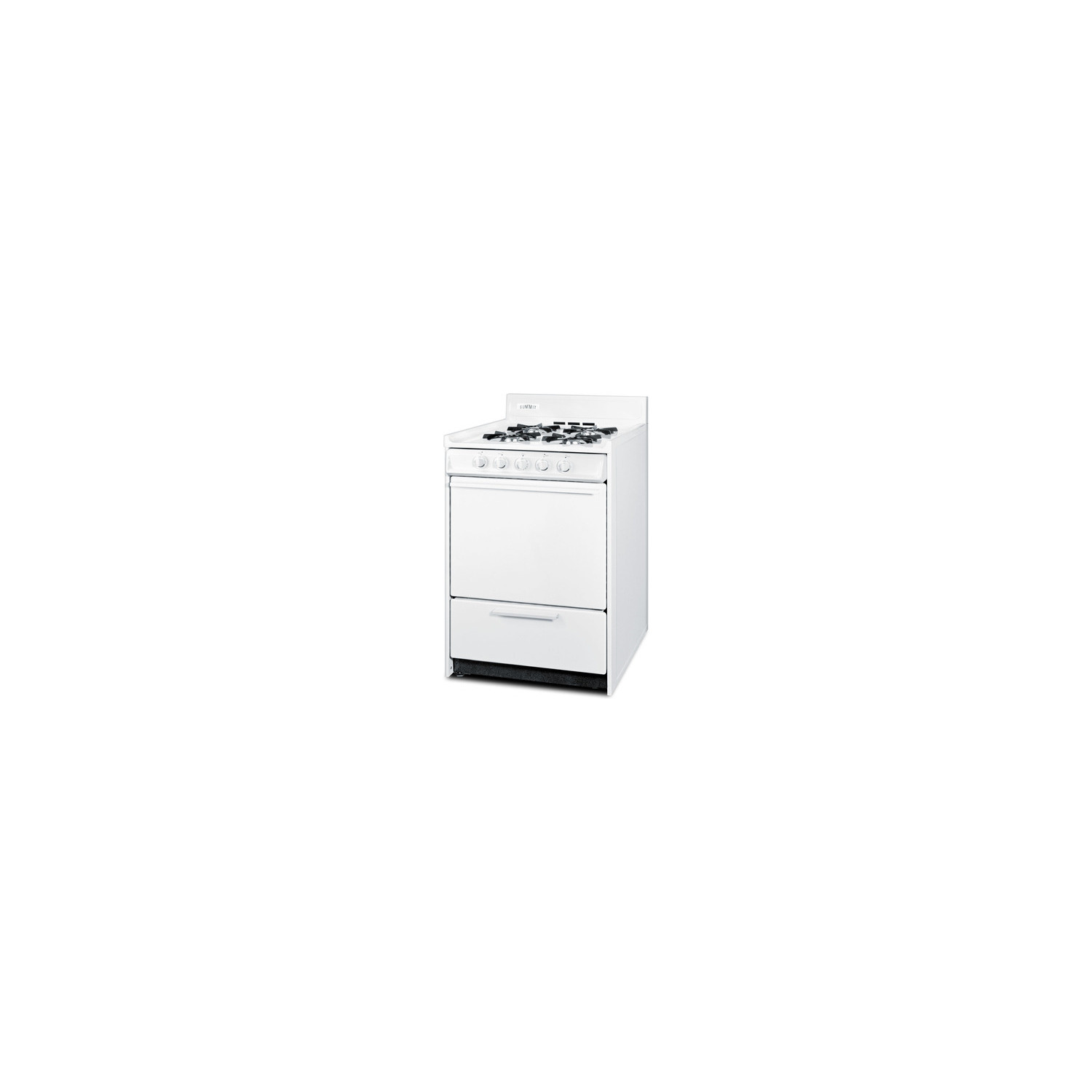

Summit 24 inch wide gas range in white with open burners and battery-start ignition, 7.61101e+011, WNM610P

Summit Appliance offers a wide selection of American-made household ranges built to last in space-challenged kitchens, including off-grid settings with non-traditional power needs.

Sized at just 24" wide, the WNM610P is a complete gas range with four open 9000 BTU burners, a 2.92 cu.ft. oven, and lower drop-down broiler compartment. It utilizes battery start ignition, ideal for rural areas or other homes not using electricity to power appliances. This item is set for natural gas. To convert for propane use, add accessory Kit LPP or order model WLM610P.

With a classic white exterior, the WNM610P matches any kitchen style. It is sized with a convenient 24" depth, ideal for L-shaped or galley kitchens where every" counts. The recessed door design helps to protect adjacent cabinetry. Upfront push-to-turn knobs ensure easy, safer cooking, preventing users from reaching over hot burners to adjust the heating. Inside, the porcelain oven includes two adjustable racks to accommodate a variety of sizes.

Made in the USA, Summit's slim-fitting ranges offer lasting durability in the prefect fit. Additional sizes and styles are available. Browse our full selection to explore your choices.Nominal Height: 40
Height of Cabinet: 40
Height to Hinge Cap: 0
Nominal Width: 24
Width: 24
Width with Door Open: 0
Nominal Depth: 24
Depth: 24
Depth with Handle: 0
Depth with door at 90°: 0
Capacity: 0
Bottles: 0Defrost Type: N/ADoor: WhiteCabinet: WhiteUS Electrical Safety: N/ACanadian Electrical Safety: N/ASanitation: N/AVoltage/Frequency: N/AParts & Labor Warranty: 1 YearCompressor Warranty: N/A

SPECIFICATIONS

Overview

Nominal Height 40.0" (102 cm)

Height of Cabinet 40.0" (102 cm)

Nominal Width 24.0" (61 cm)

Width 24.0" (61 cm)

Nominal Depth 24.0" (61 cm)

Depth 24.0" (61 cm)

Door White

Cabinet White

Weight 150.0 lbs. (68 kg)

Parts & Labor Warranty 1 Year

UPC 761101028323

Gas Range

Ignition Battery Start

LP Convertible With Kit LP Accessory

Oven Capacity 2.92 cu.ft

Cooktop Surface Porcelain

Burner Type Open

Number of Burners 4

Burner #1 BTU 9000.0

Burner #2 BTU 9000.0

Burner #3 BTU 9000.0

Burner #4 BTU 9000.0

Burner Controls Dial

Oven Controls Dial

Backguard Yes

Cleaning Type Manual

Oven Interior Height 14.0" (36 cm)

Oven Interior Width 19.0" (48 cm)

Oven Interior Depth 19.0" (48 cm)

Broiler Location Below Oven

Oven Door White

FEATURES

Made in the USA Designed and constructed domestically

Slim 24 inch width Apartment-sized width offers all the functionality you need in a smaller footprint

24 inch depth Shallower fit is ideal for L-shaped and galley kitchens

Battery start ignition Uses a 9V battery (included) to ignite the oven and burners, providing a convenient off-grid solution to kitchens previously using pilot lights when no electricity is available

Natural gas design Set for use with natural gas connection. To convert for propane use, add Kit LPP

4 open burners 9000 BTU burners with built-in enamel grates to meet most cooking needs

Broiler compartment Lower drop-down compartment for separate broiling with even heat distribution

Recessed oven door Smart design limits the depth and protects adjacent cabinets

Upfront controls Push-to-turn knobs offer easier, safer access, preventing users from reaching over hot burners to adjust

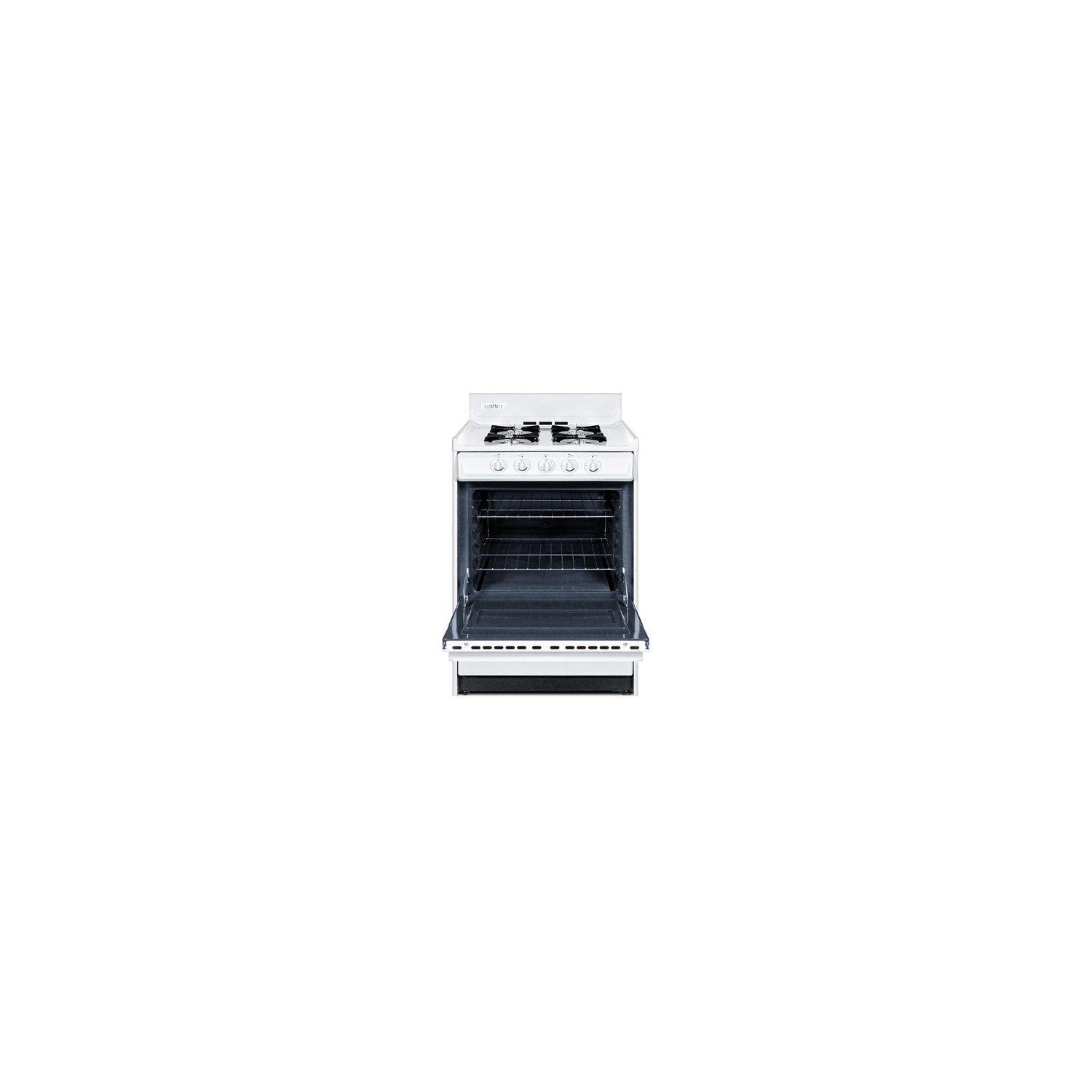

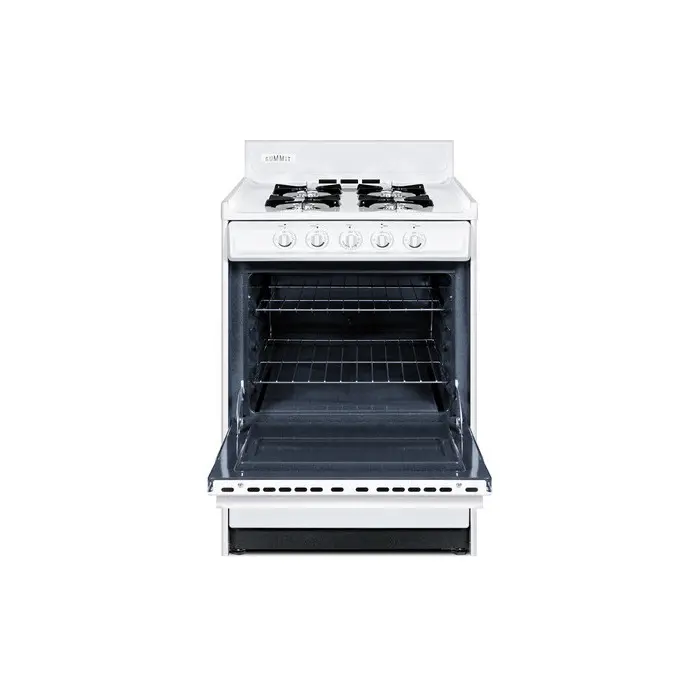

Adjustable oven racks Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

ADA compliant design Upfront controls and easy-to-operate knobs offer easier accessibility

Porcelain and steel construction Lasting durability with solid construction inside and out designed to hold up to everyday kitchen use

Removable oven door and range top White porcelain oven door and top can be removed for easier cleaning

Broiler pan included Two-piece porcelain broiler tray with grease well

Anti-tip bracket Included for user installation to help prevent tipping

White exterior finish Classic design in a clean white finish to match any kitchen

DOWNLOADS

BROCHURE w/ DRAWINGS (WNM610P.pdf)

TECHNICAL DRAWING (.dwg) (WNM610_WNM6107_WNM6107FRANGEGASA-C2000.dwg)

USE & CARE (WNM610P-User-Manual.PDF)

OTHER (Summit_Anti-Tip_Bracket.pdf)

USE & CARE (WNM610P-User-Manual.pdf)
