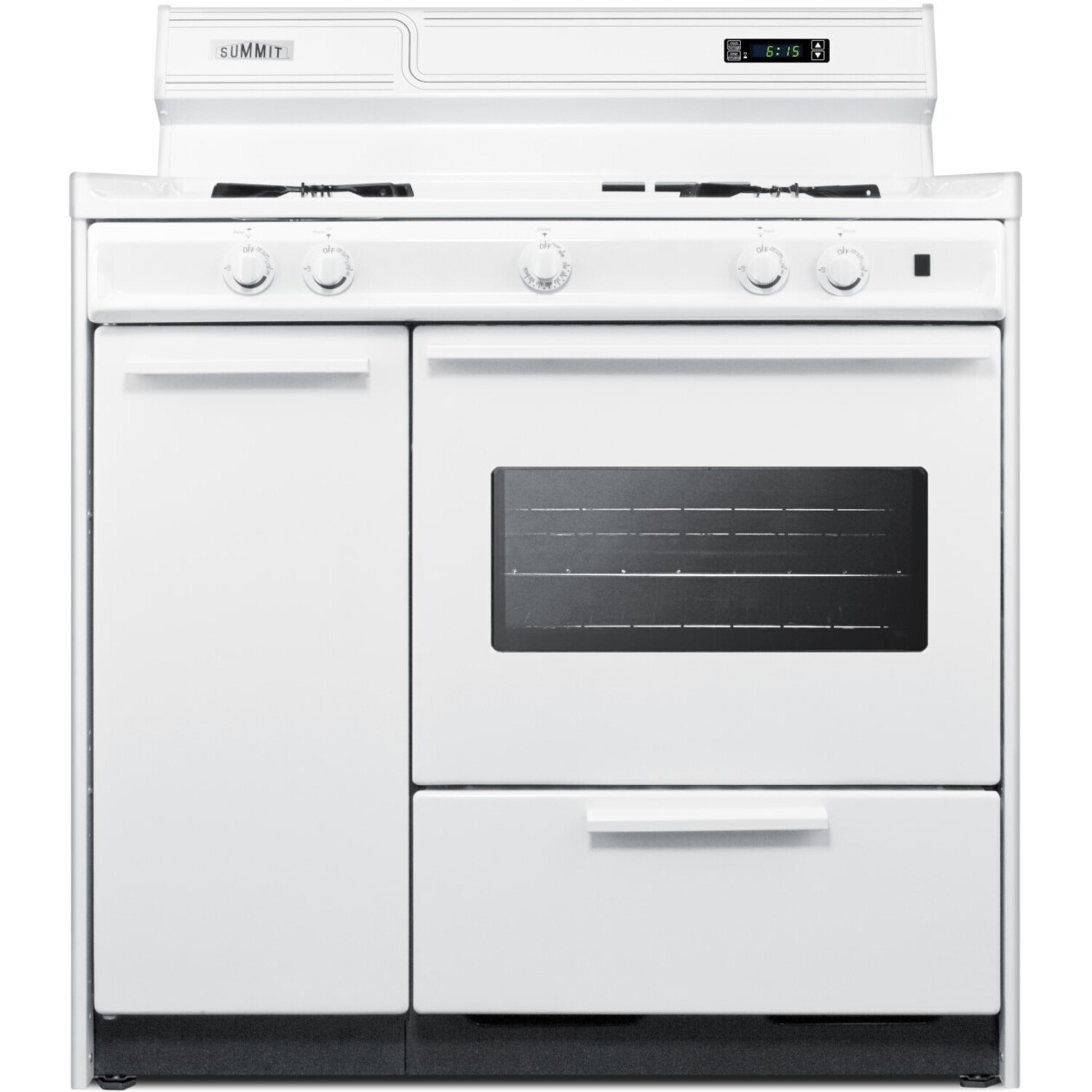

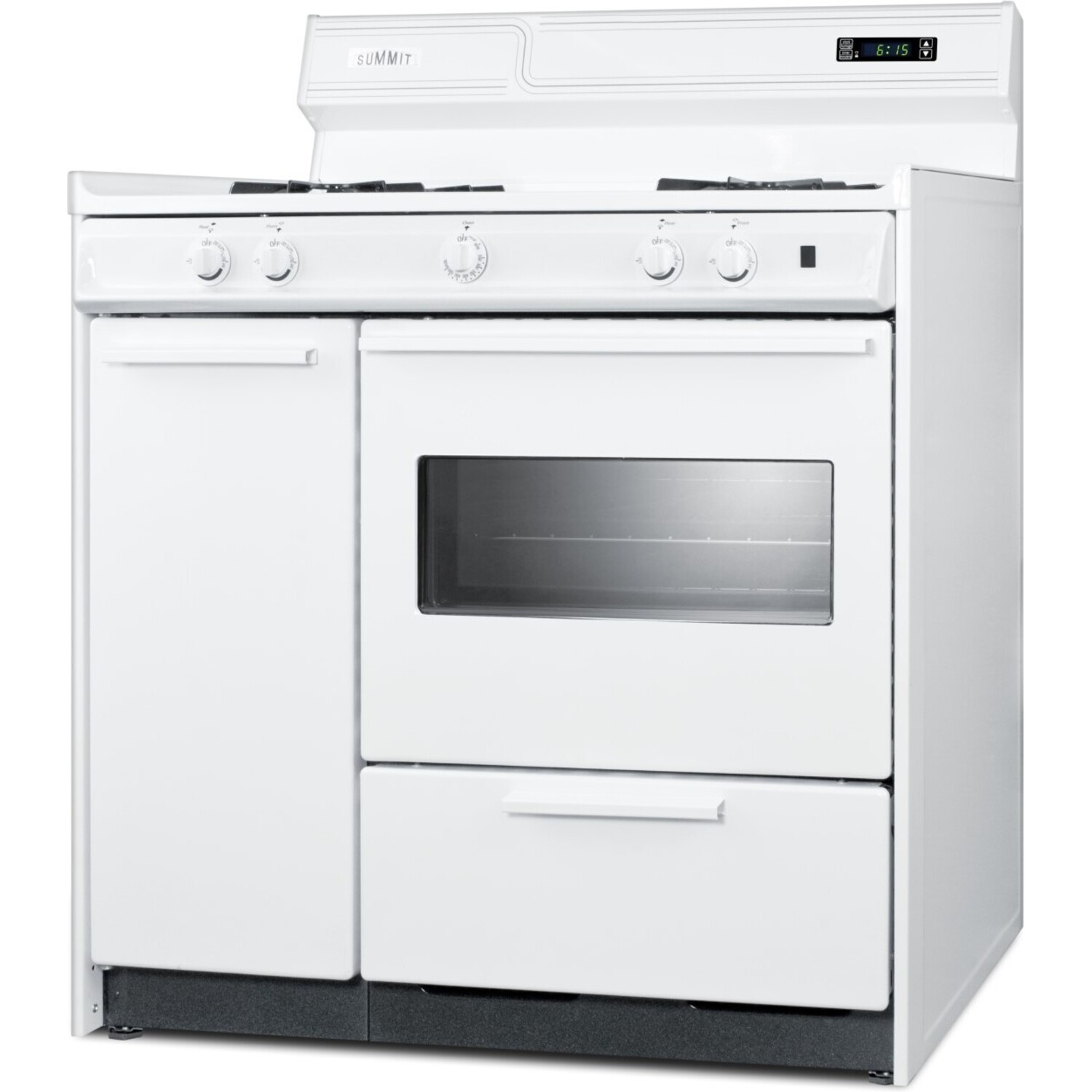

Summit 36 inch wide gas range in white with open burners, storage compartment, oven window, high backguard, and spark ignition, 7.61101e+011, WNM4307KW

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens.

The WNM4307KW is a gas range sized at 36" wide, with a 2.92 cu.ft oven interior that can accommodate large trays. Two adjustable oven racks are included. An oven window and on/off interior light allow you to easily keep watch over your cooking. The broiler is located below the oven in a drop-down compartment. Four open 9000 BTU gas burners accommodate most of your stovetop heating needs, with upfront push-to-turn knobs that let you adjust your cooking without reaching over hot burners. This unit utilizes an electronic ignition system for added safety.

The WNM2307KW comes in a classic white finish, with a high backguard that includes a digital clock and timer. The side storage compartment features a removable shelf for keeping your cookware and other kitchen tools handy. This unit has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every" counts. Constructed from porcelain and steel, the WNM4307KW offers lasting durability. We include an anti-tip bracket for added safety.

With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 24", and 30" wide fits. This unit ships ready for natural gas connections. To use with propane, add the Kit LP. Nominal Height: 44
Height of Cabinet: 44
Height to Hinge Cap: 0
Nominal Width: 36
Width: 36
Width with Door Open: 0
Nominal Depth: 24
Depth: 24
Depth with Handle: 0
Depth with door at 90°: 0
Capacity: 0
Bottles: 0Defrost Type: N/ADoor: WhiteCabinet: WhiteUS Electrical Safety: N/ACanadian Electrical Safety: N/ASanitation: N/AVoltage/Frequency: N/AParts & Labor Warranty: 1 YearCompressor Warranty: N/A

SPECIFICATIONS

Overview

Nominal Height 44.0" (112 cm)

Height of Cabinet 44.0" (112 cm)

Nominal Width 36.0" (91 cm)

Width 36.0" (91 cm)

Nominal Depth 24.0" (61 cm)

Depth 24.0" (61 cm)

Door White

Cabinet White

Weight 195.0 lbs. (88 kg)

Parts & Labor Warranty 1 Year

UPC 761101013176

Gas Range

Ignition Spark

LP Convertible With Kit LP Accessory

Oven Capacity 2.92 cu.ft

Cooktop Surface Porcelain

Burner Type Open

Number of Burners 4

Burner #1 BTU 9000.0

Burner #2 BTU 9000.0

Burner #3 BTU 9000.0

Burner #4 BTU 9000.0

Burner Controls Dial

Oven Controls Dial

Oven Light Yes

Cooking Timer Yes

Backguard Yes

Backguard Display Yes

Oven Window Yes

Oven Interior Height 14.0" (36 cm)

Oven Interior Width 19.0" (48 cm)

Oven Interior Depth 19.0" (48 cm)

Broiler Location Below Oven

Broiler Door White

Oven Door White/Window

FEATURES

Made in the USA Designed and constructed domestically

36 inch wide range Uniquely sized to fit many older kitchen spaces

24 inch depth Shallower fit is ideal for L-shaped and galley kitchens

Four open burners 9000 BTU burners with built-in enamel grates to meet most cooking needs

Natural gas design Set for use with natural gas connection. To convert for propane use, add Kit LP

Electronic ignition Spark ignition system with a pre-installed 115V 3-prong cord

Oven window and interior lighting Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door

Deluxe backguard 8" high backguard to protect wall from back splashes

Digital clock and timer Backguard includes time readout

Upfront oven/burner controls Push-to-turn knobs offer easier, safer access, preventing users from reaching over hot burners to adjust

Recessed oven door Smart design limits the depth and protects adjacent cabinets

Adjustable oven racks Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Broiler drawer Lower drop-down compartment for separate broiling with even heat distribution

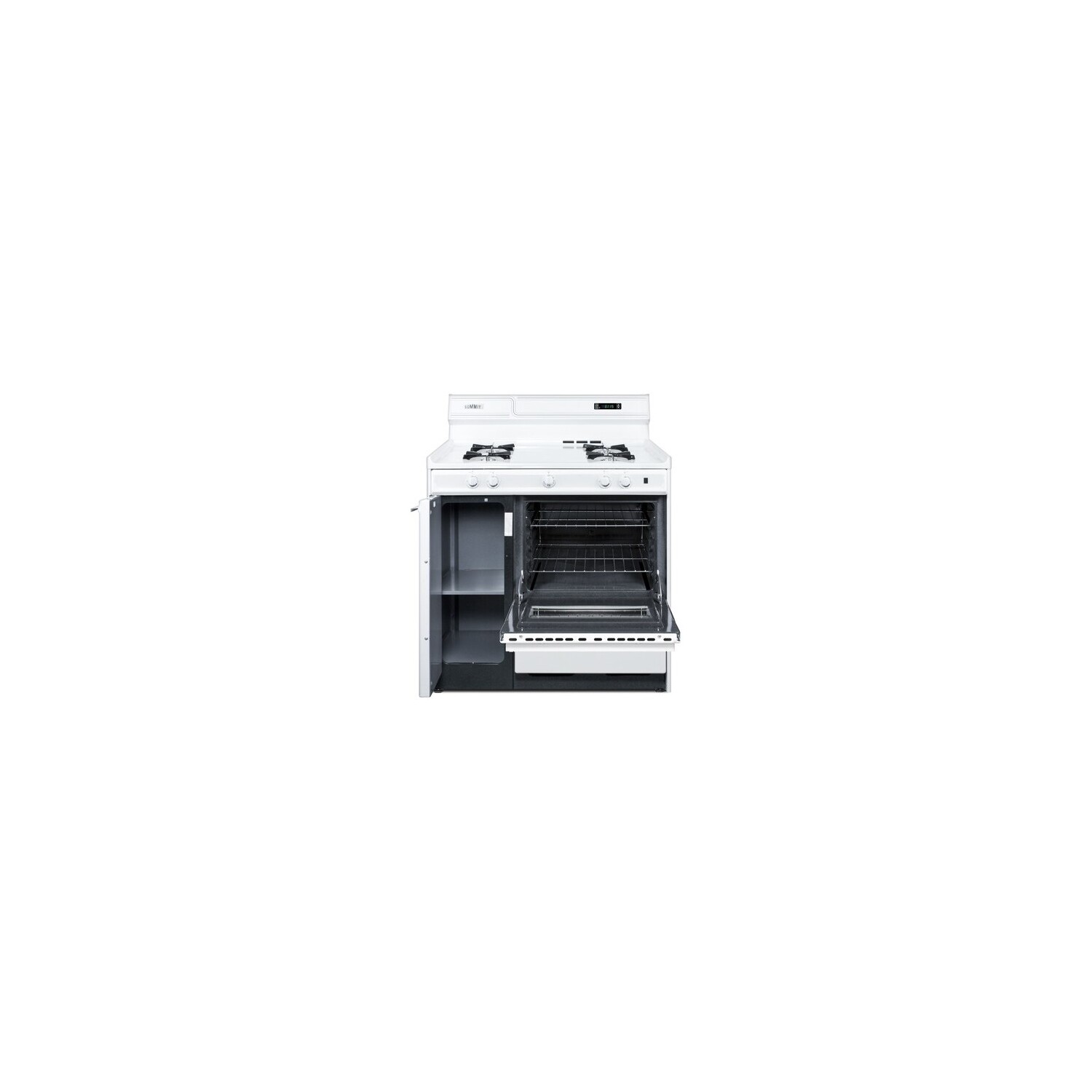

Storage cabinet 12" wide storage cabinet included in body, with a removable shelf to help store cookware, smaller appliances, non-perishable food, and other items

Porcelain and steel construction Lasting durability with solid construction inside and out designed to hold up to everyday kitchen use

Removable oven door and range top White porcelain oven door and top can be removed for easier cleaning

Anti-tip bracket Included for user installation to help prevent tipping

Broiler tray included Two-piece porcelain broiler tray with grease well

White exterior finish Classic design in a clean white finish to match any kitchen

DOWNLOADS

BROCHURE (WNM4307KW.pdf)

USE & CARE (WNM4307KW-User-Manual.pdf)

OTHER (Summit_Anti-Tip_Bracket.pdf)
