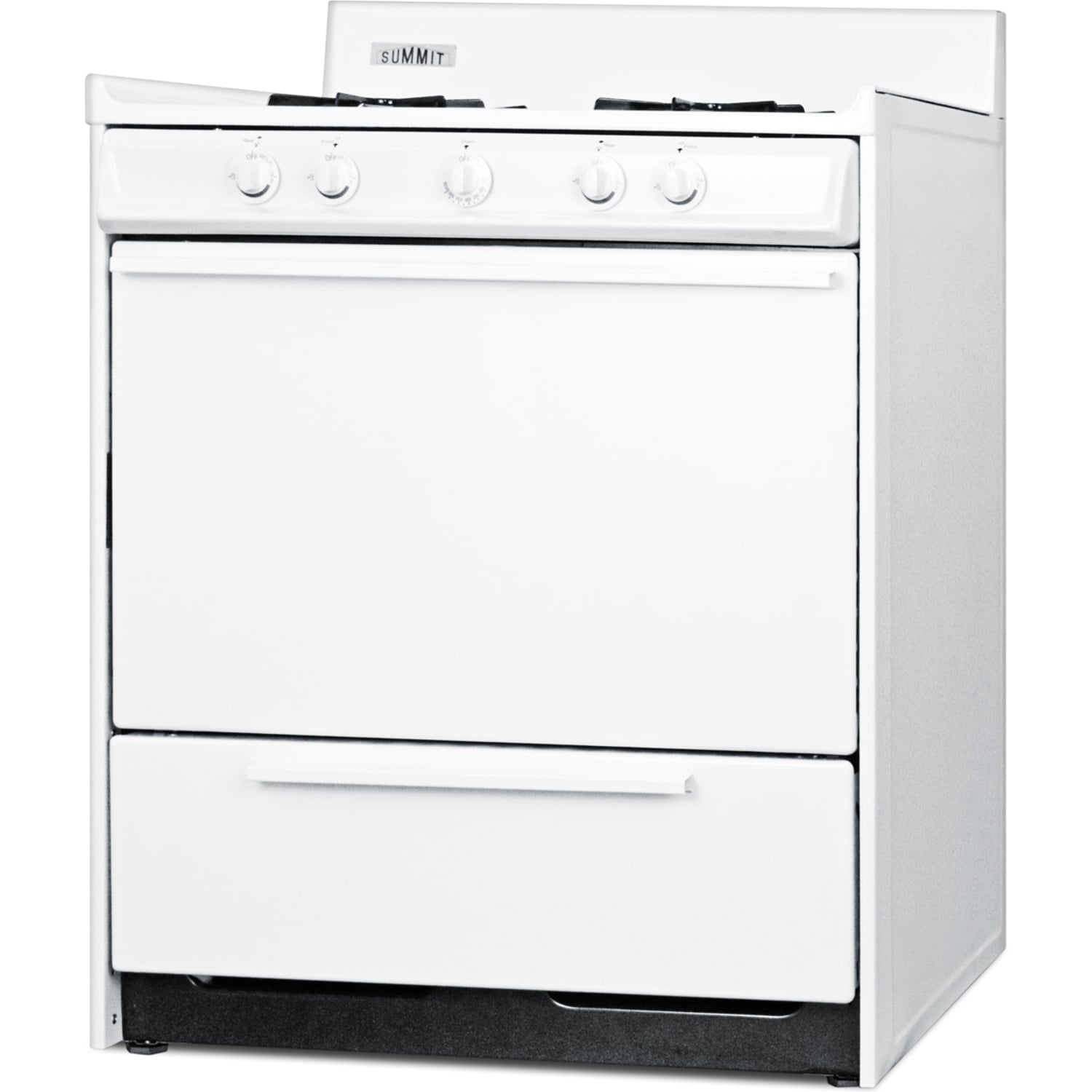

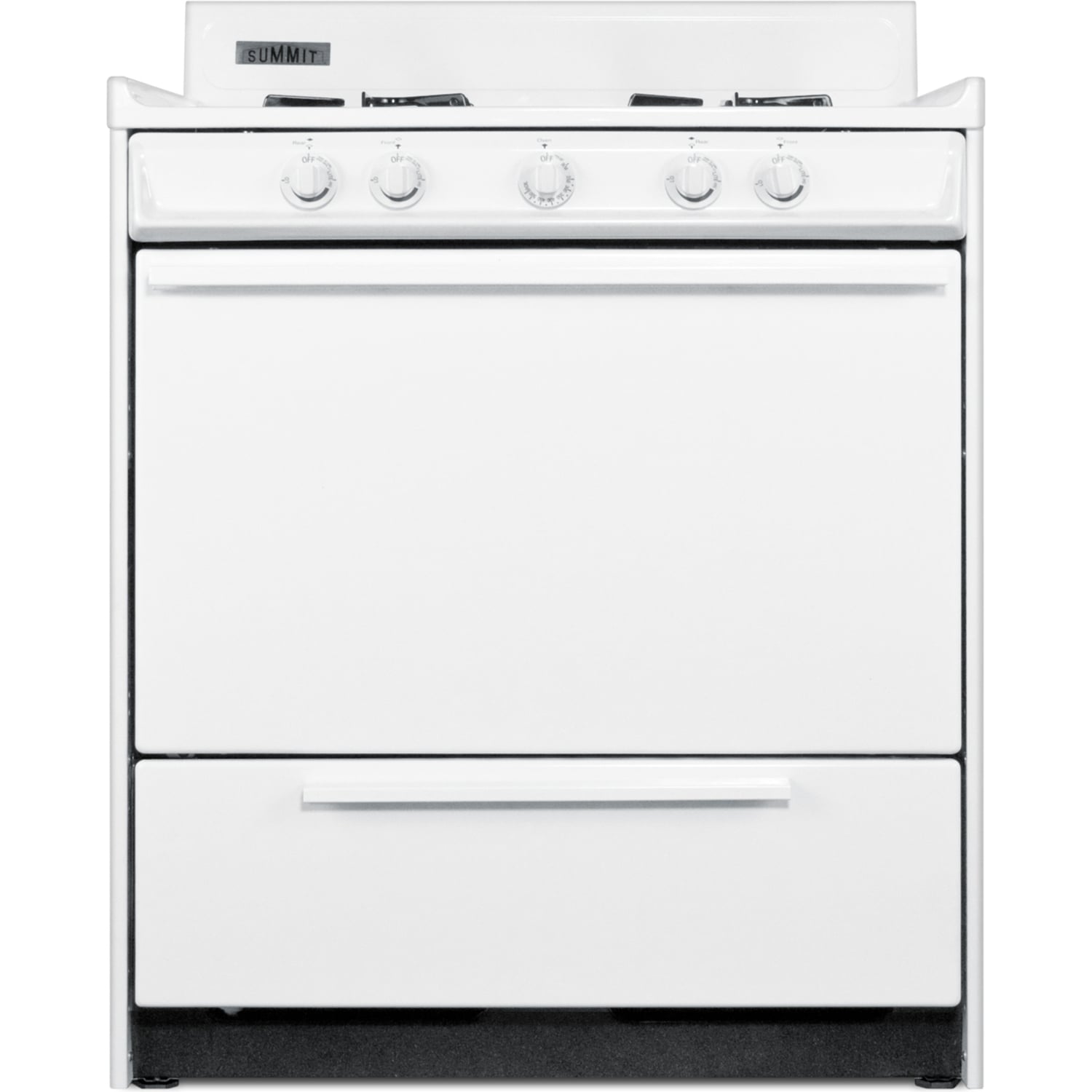

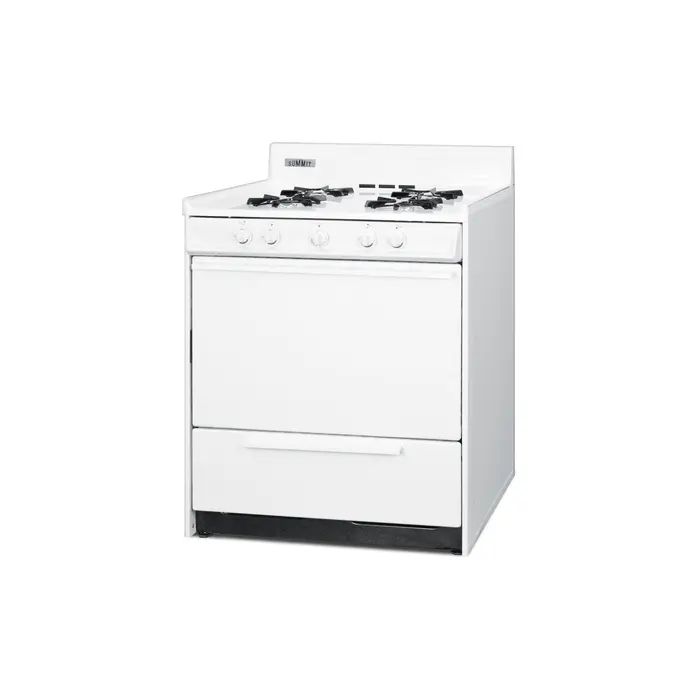

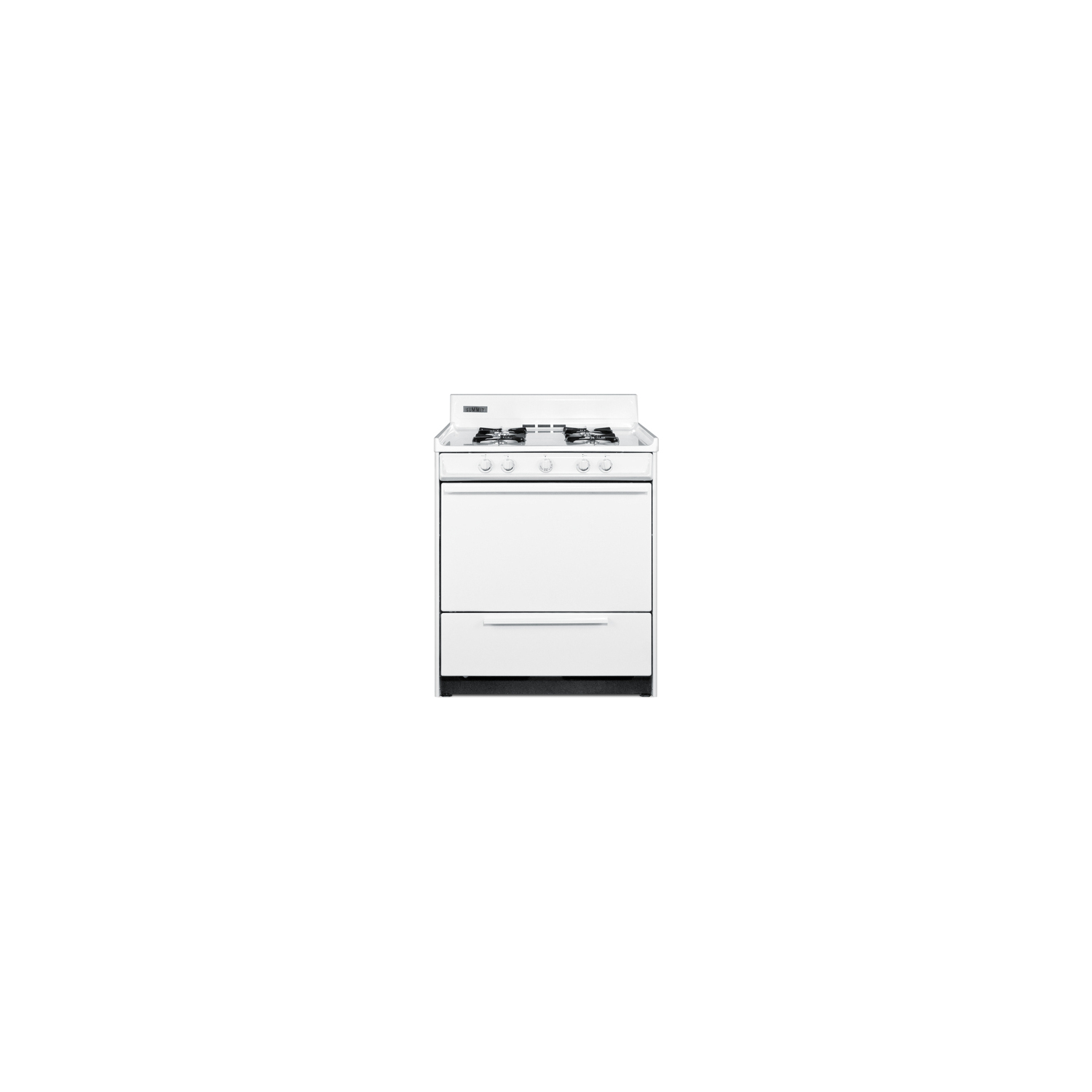

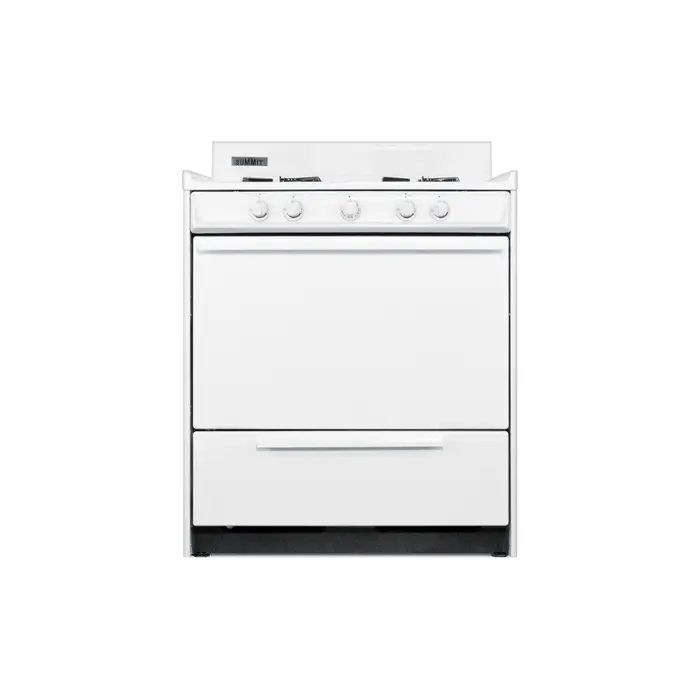

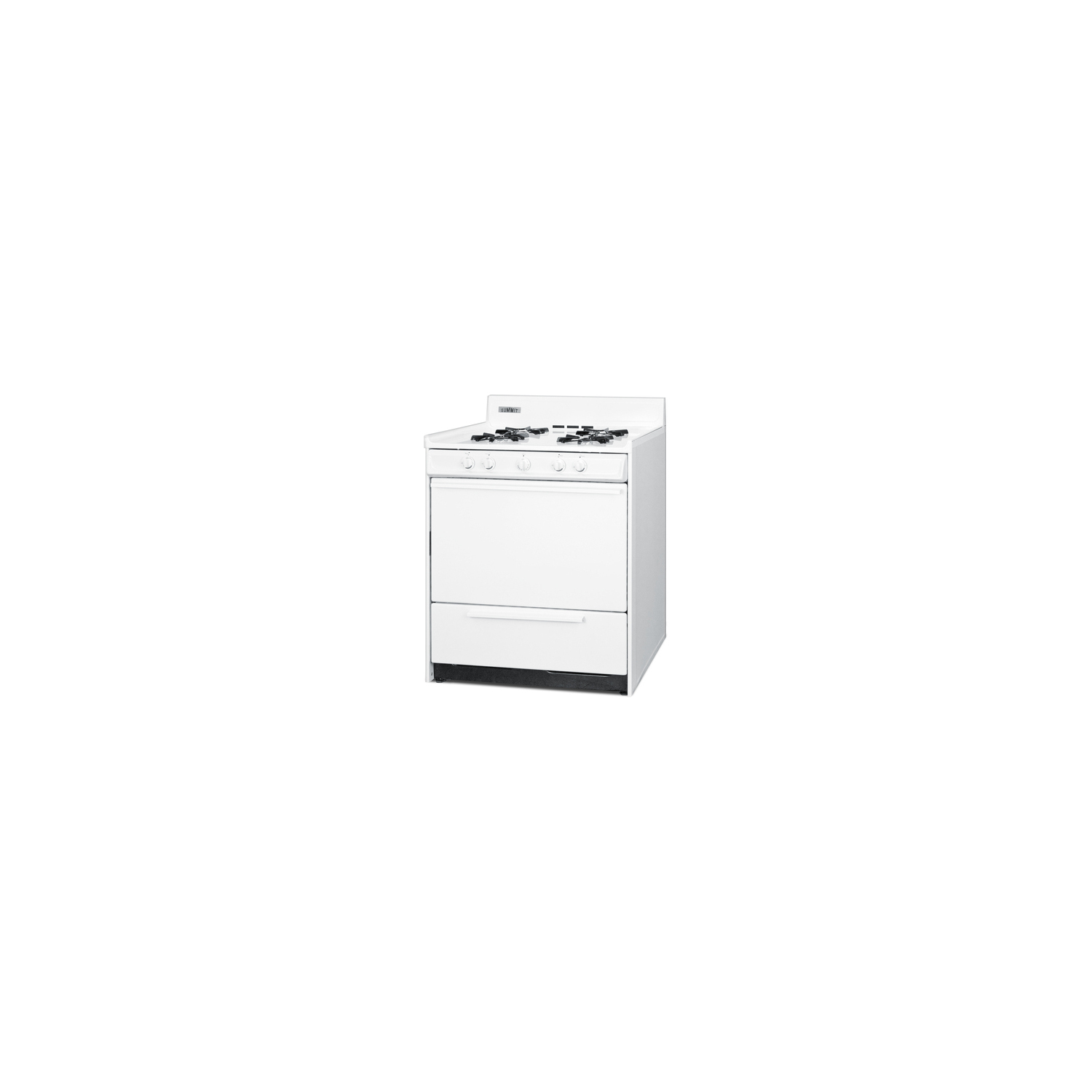

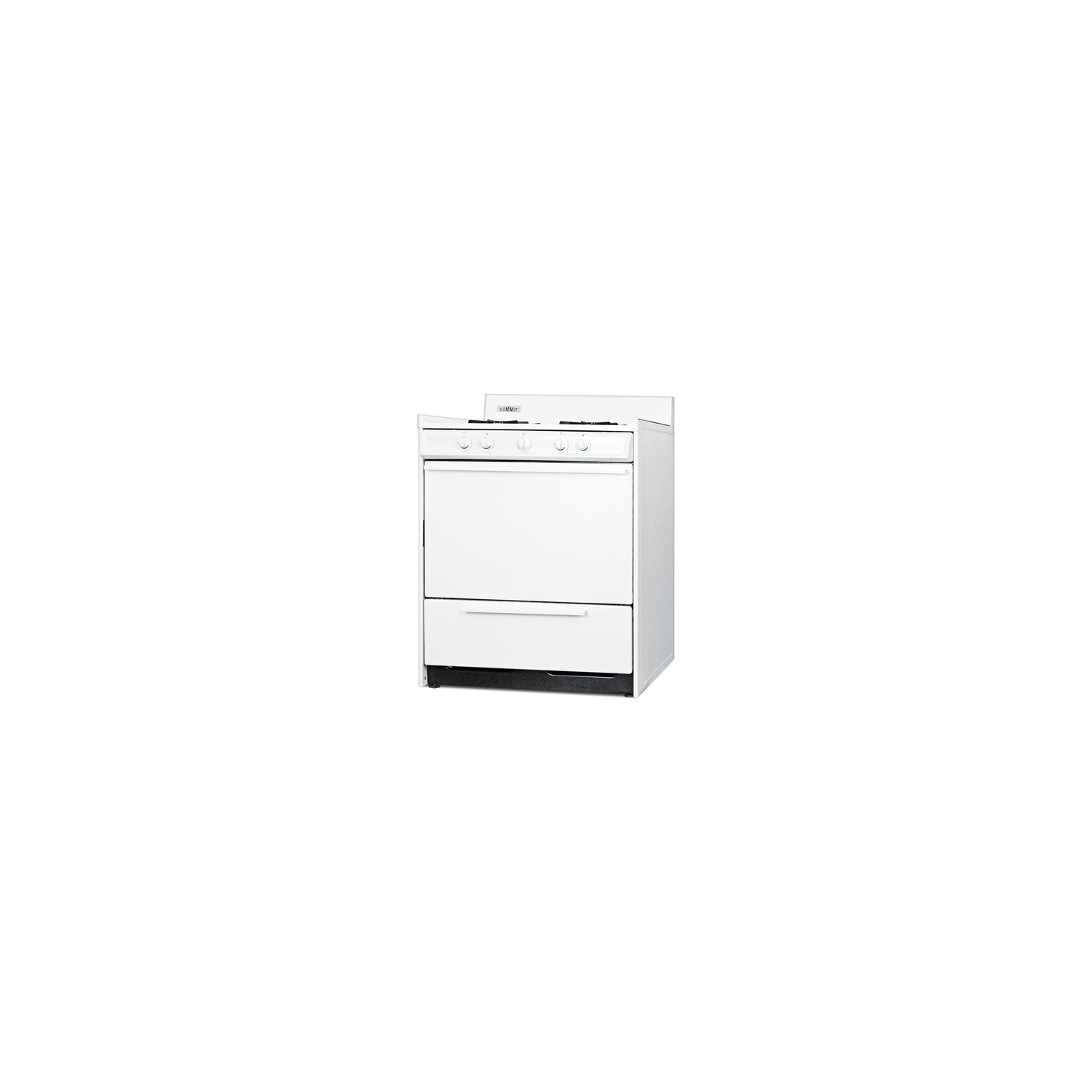

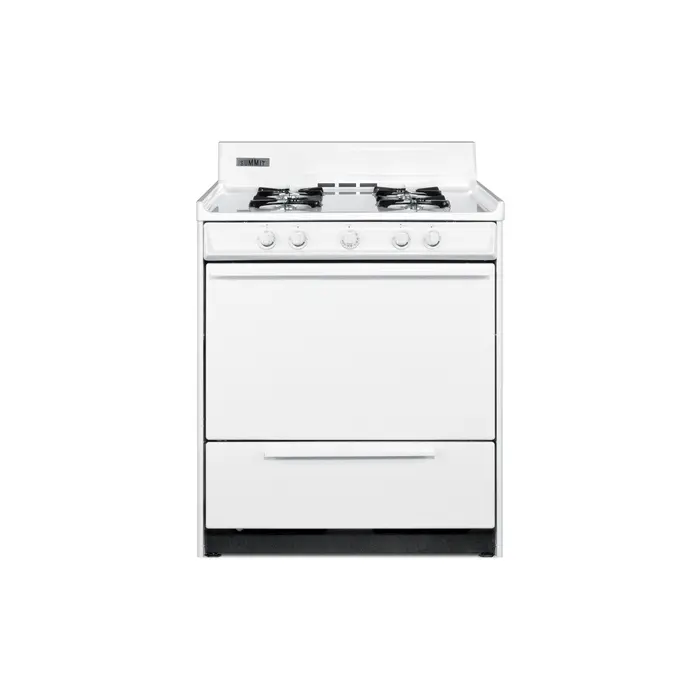

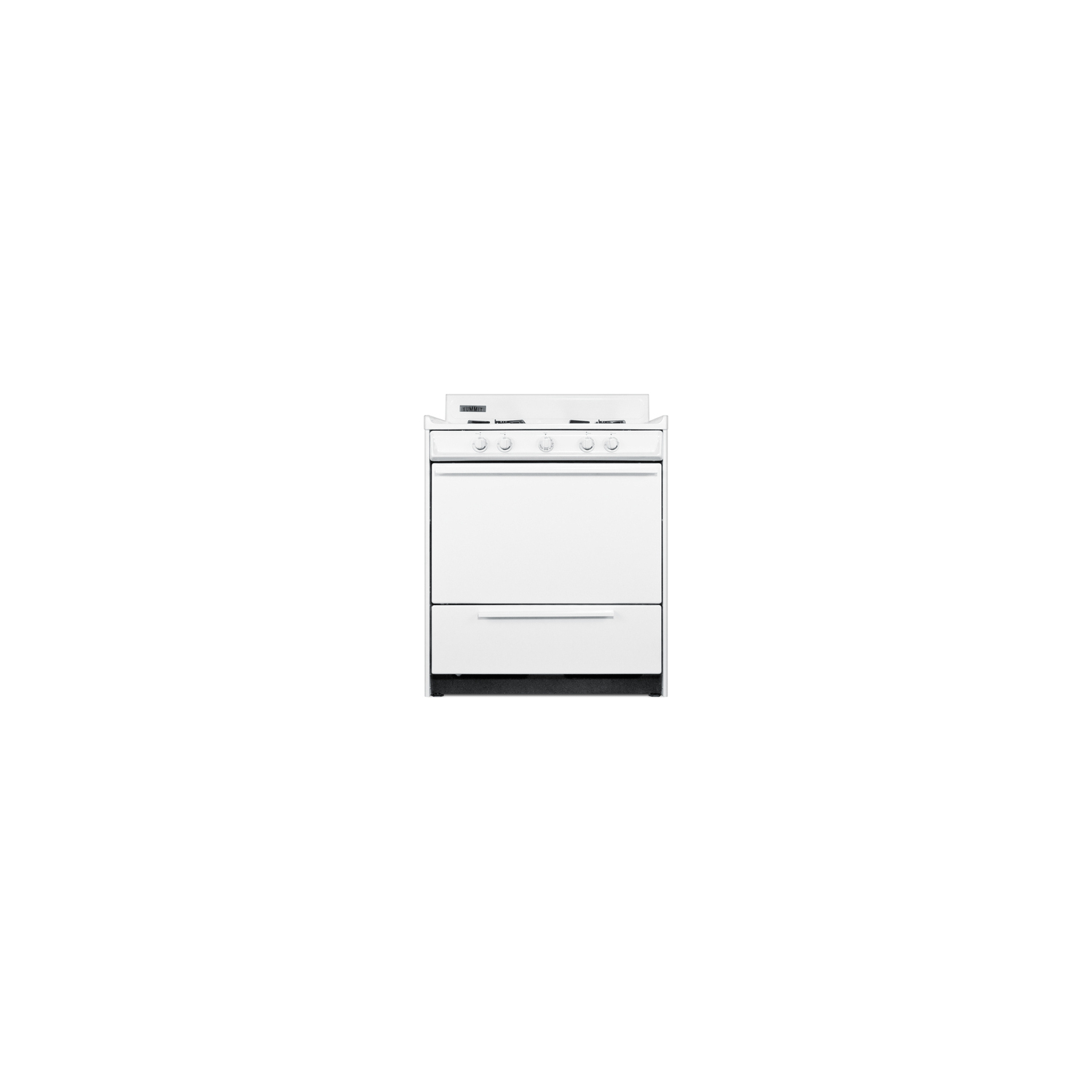

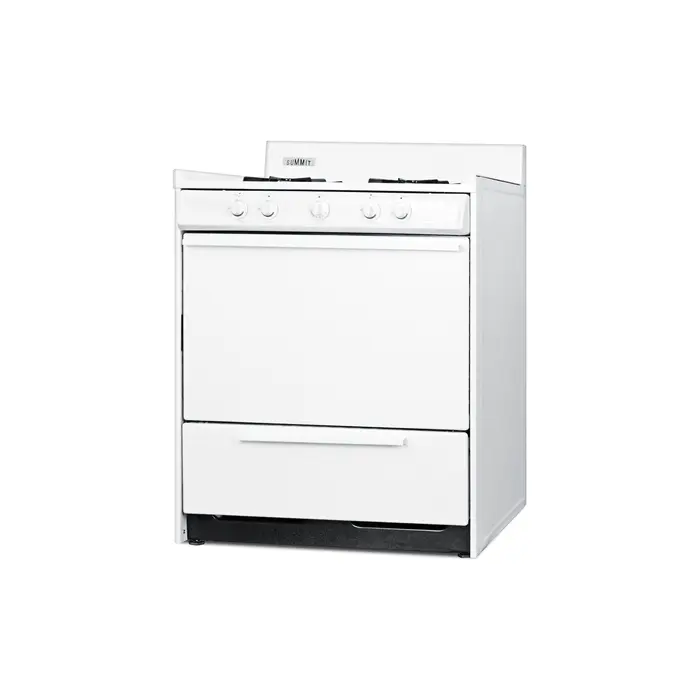

Summit 30 inch wide gas range in white with open burners and spark ignition, 7.61101e+011, WNM2107
$807.50
Retail Price: $1,310.00
Shipping: $250
$ 807.50
Description
Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens.

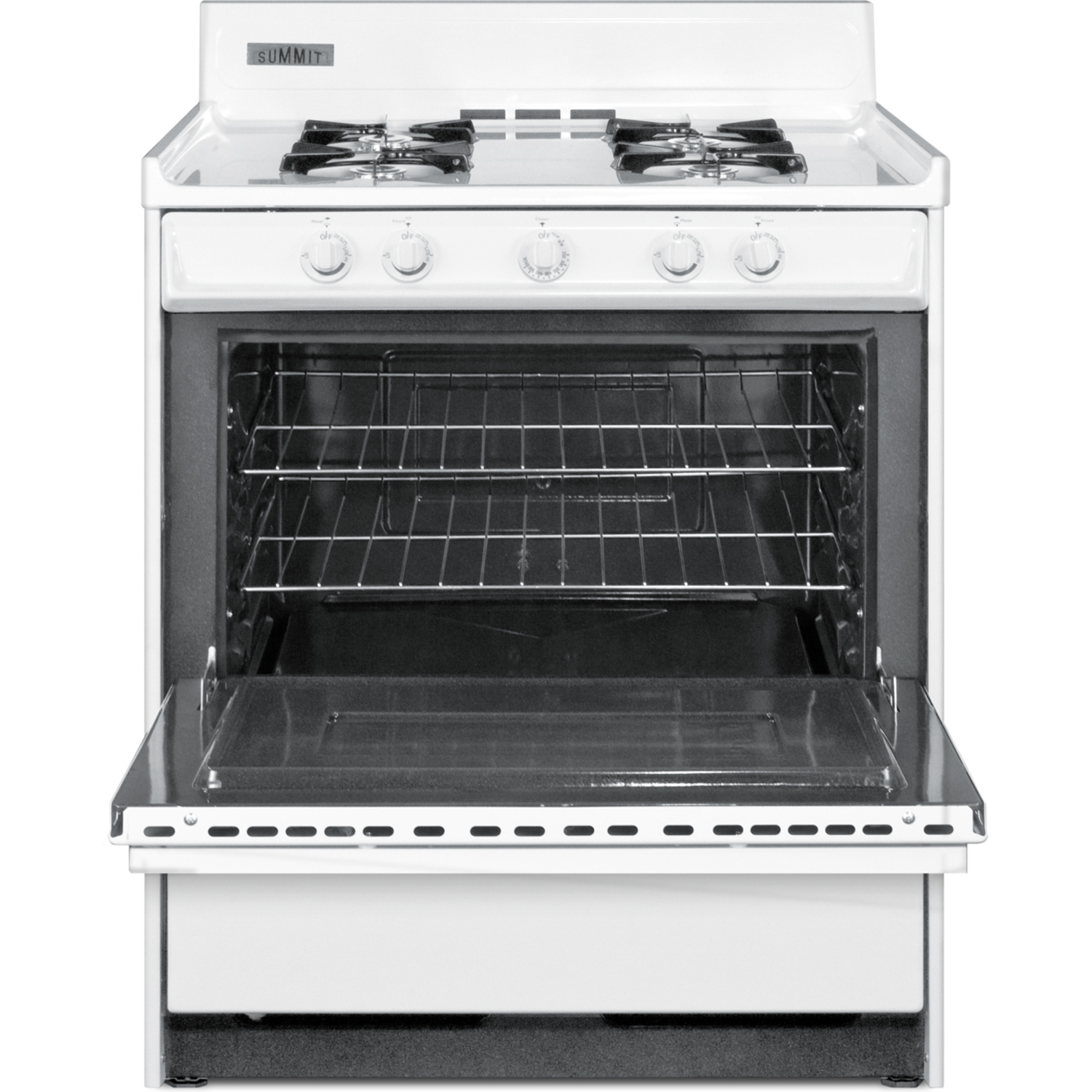

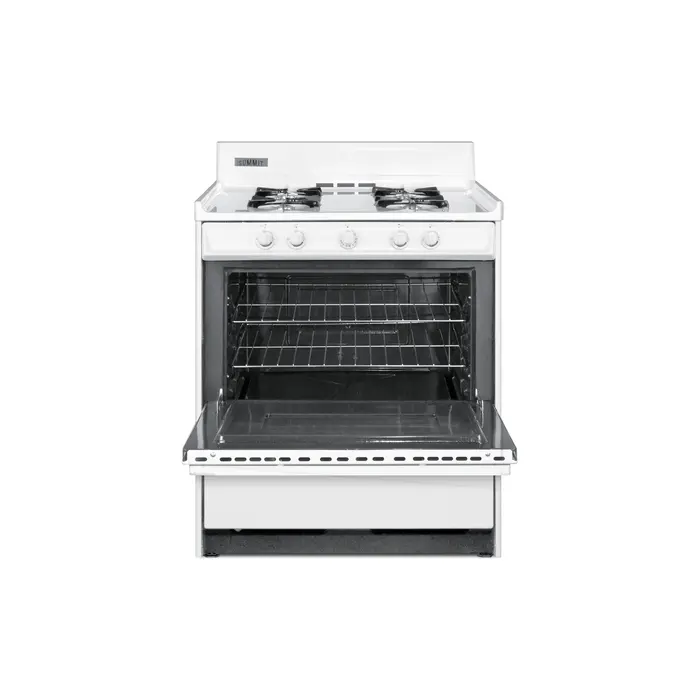

The WNM2107 is a gas range sized at 30" wide, with a generous 3.7 cu.ft oven interior that can accommodate large trays. Two adjustable oven racks are included. The broiler is located below the oven in a drop-down compartment. Four open 9000 BTU gas burners accommodate most of your stovetop heating needs, with upfront push-to-turn knobs that let you adjust your cooking without reaching over hot burners. This unit utilizes an electronic ignition system for added safety.
The WNM2107 comes in a classic white finish to suit any kitchen setting. This unit has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every" counts. Constructed from porcelain and steel, the WNM2107 offers lasting durability. We include an anti-tip bracket for added safety.
With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 24", and 36" wide fits. This unit ships ready for natural gas connections. To use with propane, add the Kit LP.Nominal Height: 40
Height of Cabinet: 40
Height to Hinge Cap: 0
Nominal Width: 30
Width: 30
Width with Door Open: 0
Nominal Depth: 24
Depth: 24
Depth with Handle: 0
Depth with door at 90°: 0
Capacity: 0
Bottles: 0Defrost Type: N/ADoor: WhiteCabinet: WhiteUS Electrical Safety: N/ACanadian Electrical Safety: N/ASanitation: N/AVoltage/Frequency: N/AParts & Labor Warranty: 1 YearCompressor Warranty: N/A
SPECIFICATIONS
Overview
Nominal Height 40.0" (102 cm)
Height of Cabinet 40.0" (102 cm)
Nominal Width 30.0" (76 cm)
Width 30.0" (76 cm)
Nominal Depth 24.0" (61 cm)
Depth 24.0" (61 cm)
Door White
Cabinet White
Weight 165.0 lbs. (75 kg)
Parts & Labor Warranty 1 Year
UPC 761101019673
Gas Range
Ignition Spark
LP Convertible With Kit LP Accessory
Oven Capacity 3.7 cu.ft
Cooktop Surface Porcelain
Burner Type Open
Number of Burners 4
Burner #1 BTU 9000.0
Burner #2 BTU 9000.0
Burner #3 BTU 9000.0
Burner #4 BTU 9000.0
Burner Controls Dial
Oven Controls Dial
Backguard Yes
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 24.0" (61 cm)
Oven Interior Depth 19.0" (48 cm)
Broiler Location Below Oven
Broiler Door White
Oven Door White
FEATURES
Made in the USA Designed and constructed domestically
30 inch wide range Standard size ideal for most kitchens
24 inch depth Shallower fit is ideal for L-shaped and galley kitchens
Four open burners 9000 BTU burners with built-in enamel grates to meet most cooking needs
Natural gas design Set for use with natural gas connection. To convert for propane use, add Kit LP
Electronic ignition Spark ignition system with a pre-installed 115V 3-prong cord
Broiler compartment Lower drop-down compartment for separate broiling with even heat distribution
Recessed oven door Smart design limits the depth and protects adjacent cabinets
Upfront controls Push-to-turn knobs offer easier, safer access, preventing users from reaching over hot burners to adjust
ADA compliant design Upfront controls and easy-to-operate knobs offer easier accessibility

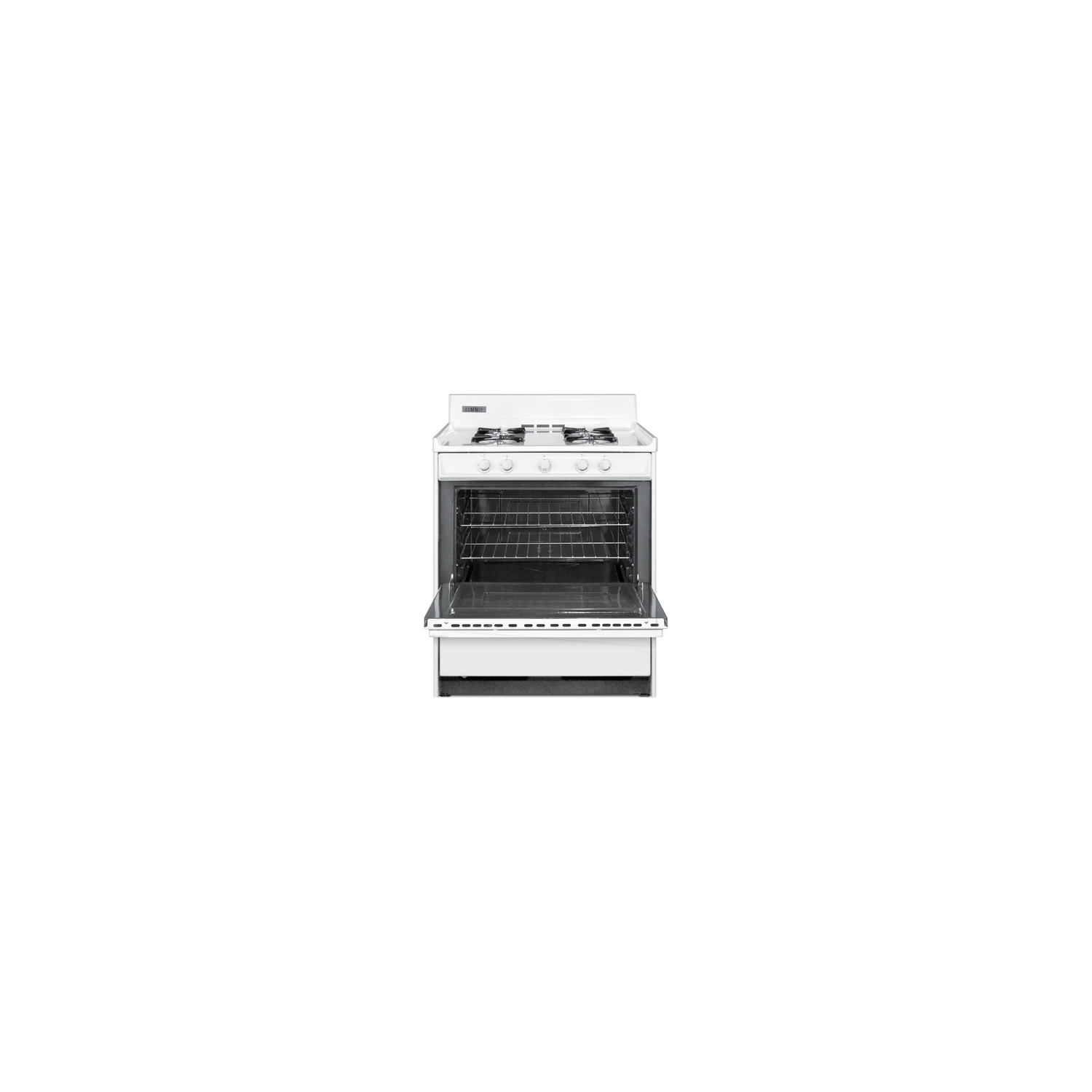

Adjustable oven racks Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Porcelain and steel construction Lasting durability with solid construction inside and out designed to hold up to everyday kitchen use
Removable oven door and range top White porcelain oven door and top can be removed for easier cleaning
Anti-tip bracket Included for user installation to help prevent tipping
Broiler tray included Two-piece porcelain broiler tray with grease well
White exterior finish Classic design in a clean white finish to match any kitchen
DOWNLOADS
BROCHURE w/ DRAWINGS (WNM2107.pdf)
TECHNICAL DRAWING (.dwg) (WNM210RANGEGASA-C2000_2.dwg)
