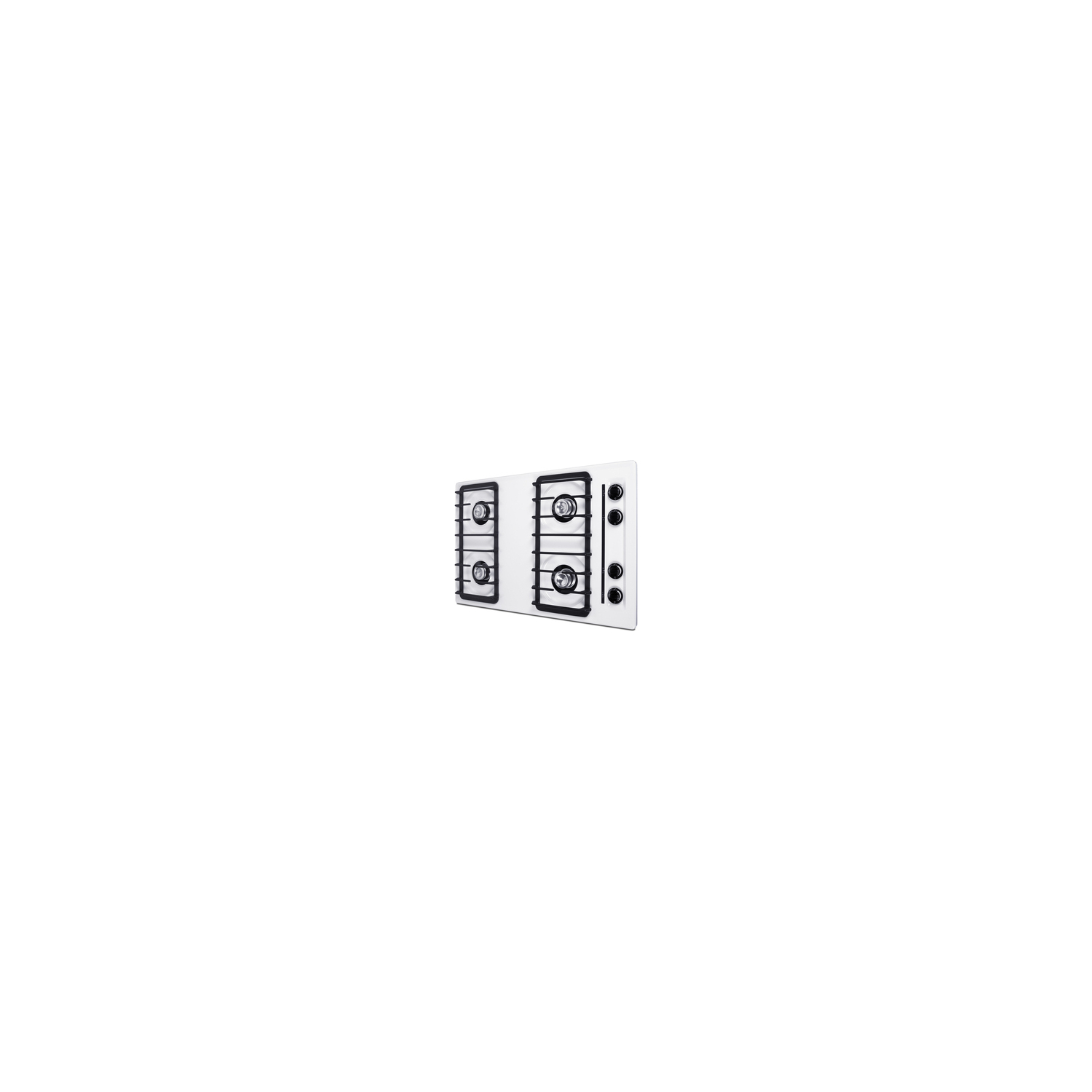

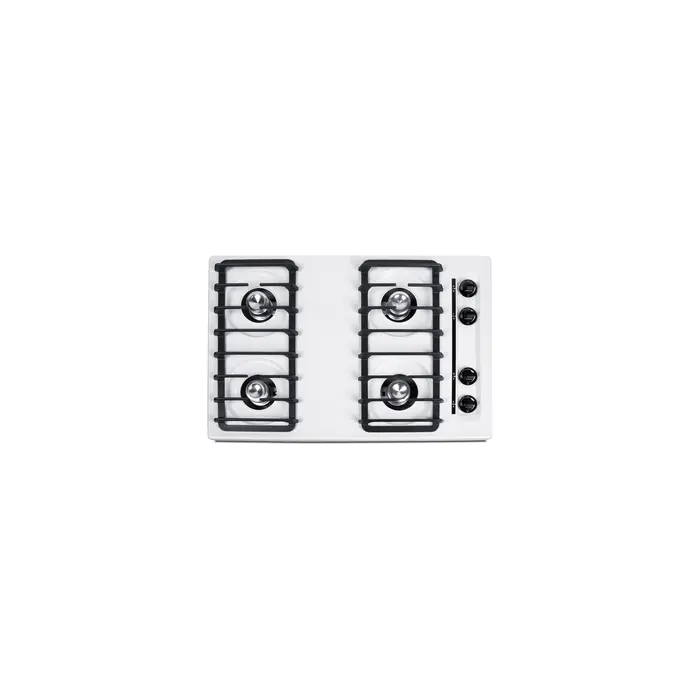

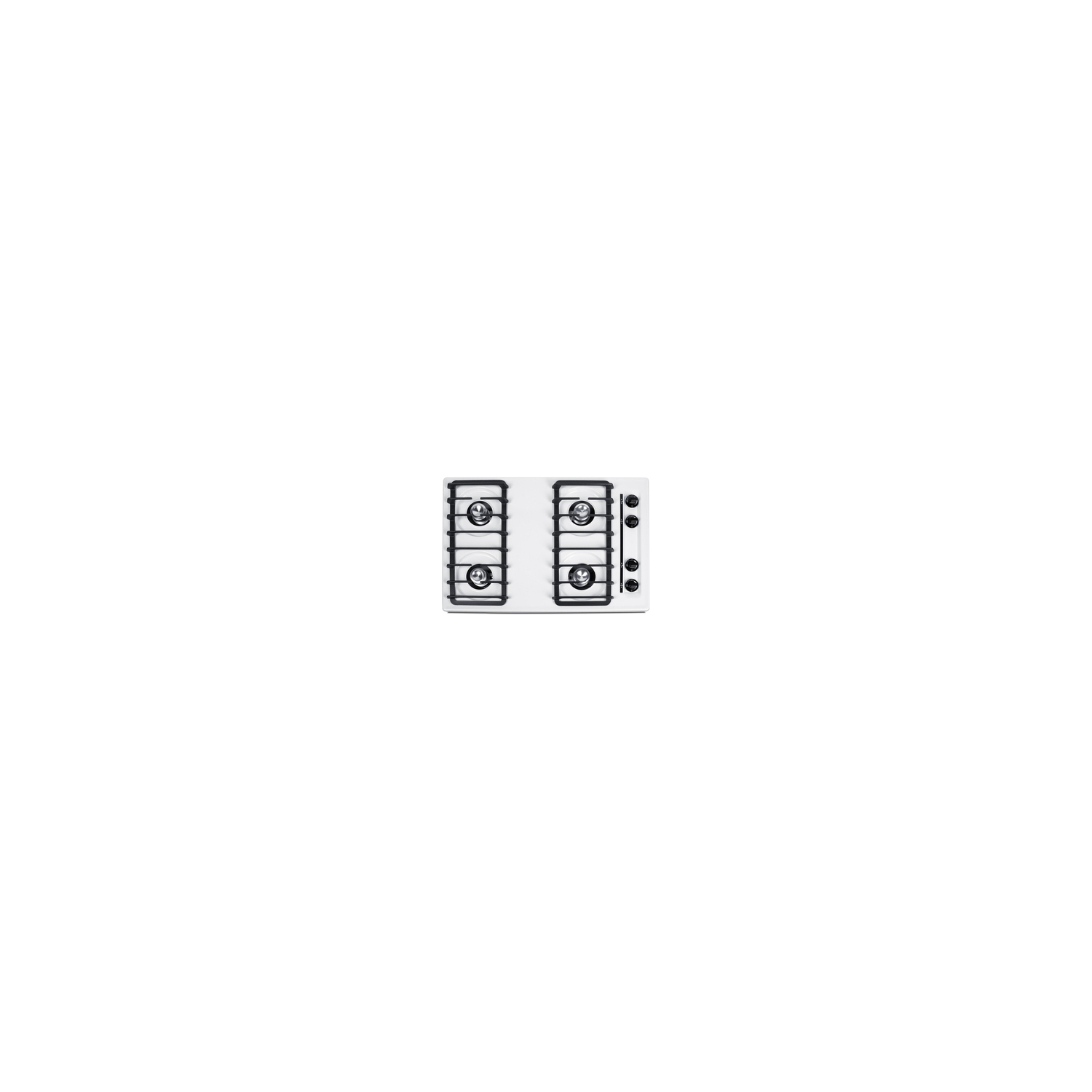

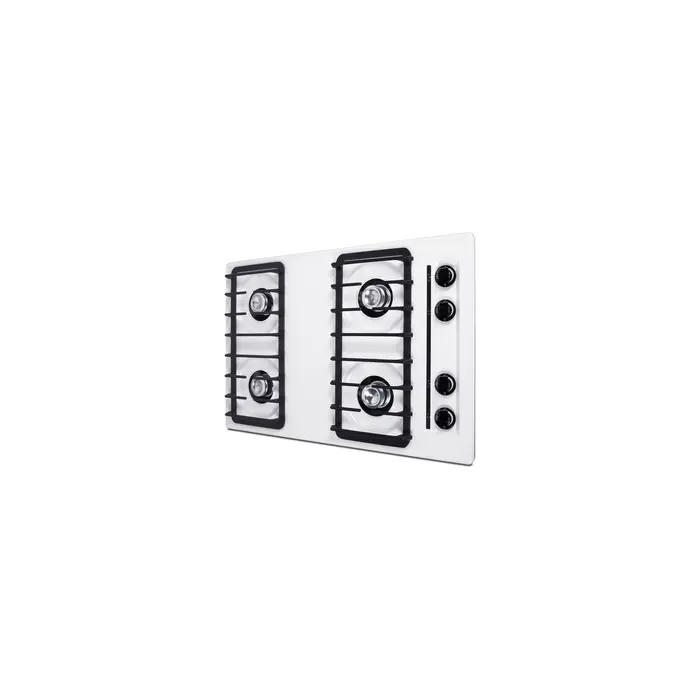

Summit 30 inch wide open burner gas cooktop in white with battery start ignition and continuous cast iron grates, WNL05IP
$540.80
Retail Price: $685.00
Free shipping
$ 540.80
Description
Summit 30" wide open burner gas cooktop in white with battery start ignition and continuous cast iron grates, 7.61101e+011, WNL05IP
MPN:WNL05IP
Category:
UPC:761101000000
Brand:Summit
Color/Finish:
SPECIFICATIONS
Overview
Nominal Height 4.0" (10 cm)
Height of Cabinet 3.75" (10 cm)
Nominal Width 30.0" (76 cm)
Width 29.75" (76 cm)
Nominal Depth 20.0" (51 cm)
Depth 20.0" (51 cm)
Cabinet White
US Electrical Safety CSA
Weight 27.0 lbs. (12 kg)
Parts & Labor Warranty 1 Year
UPC 761101158228
Gas Cooktop
Ignition Battery Start
LP Convertible With Kit LP Accessory
Number of Burners 4
Controls Dial
Surface Painted
Grate Material Cast Iron
Cutout Width 28.38" (72 cm)
Cutout Depth 18.63" (47 cm)
Burner #1 BTU 9000.0
Burner #2 BTU 9000.0
Burner #3 BTU 9000.0
Burner #4 BTU 9000.0
Power Cord Included Yes
FEATURES
30" Wide Gas Cooktop Built-in natural gas cooktop with four open burners
Made in the USA Designed and constructed domestically

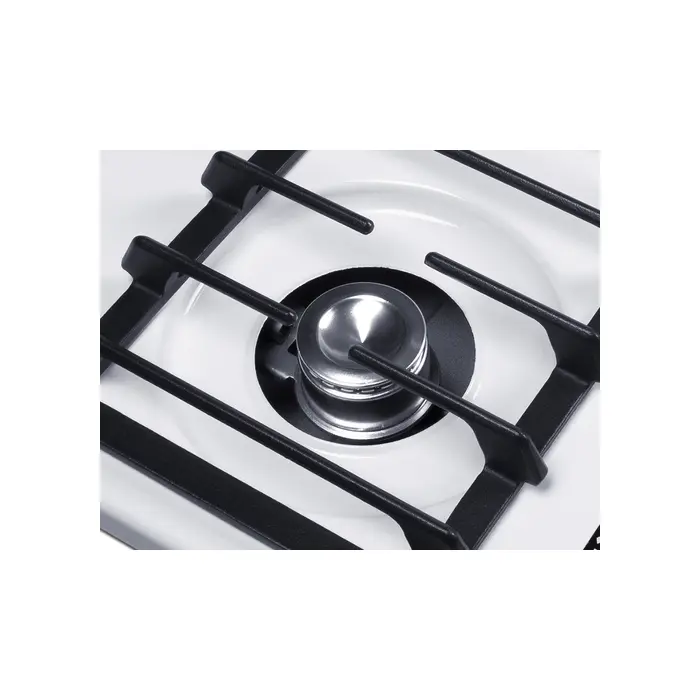

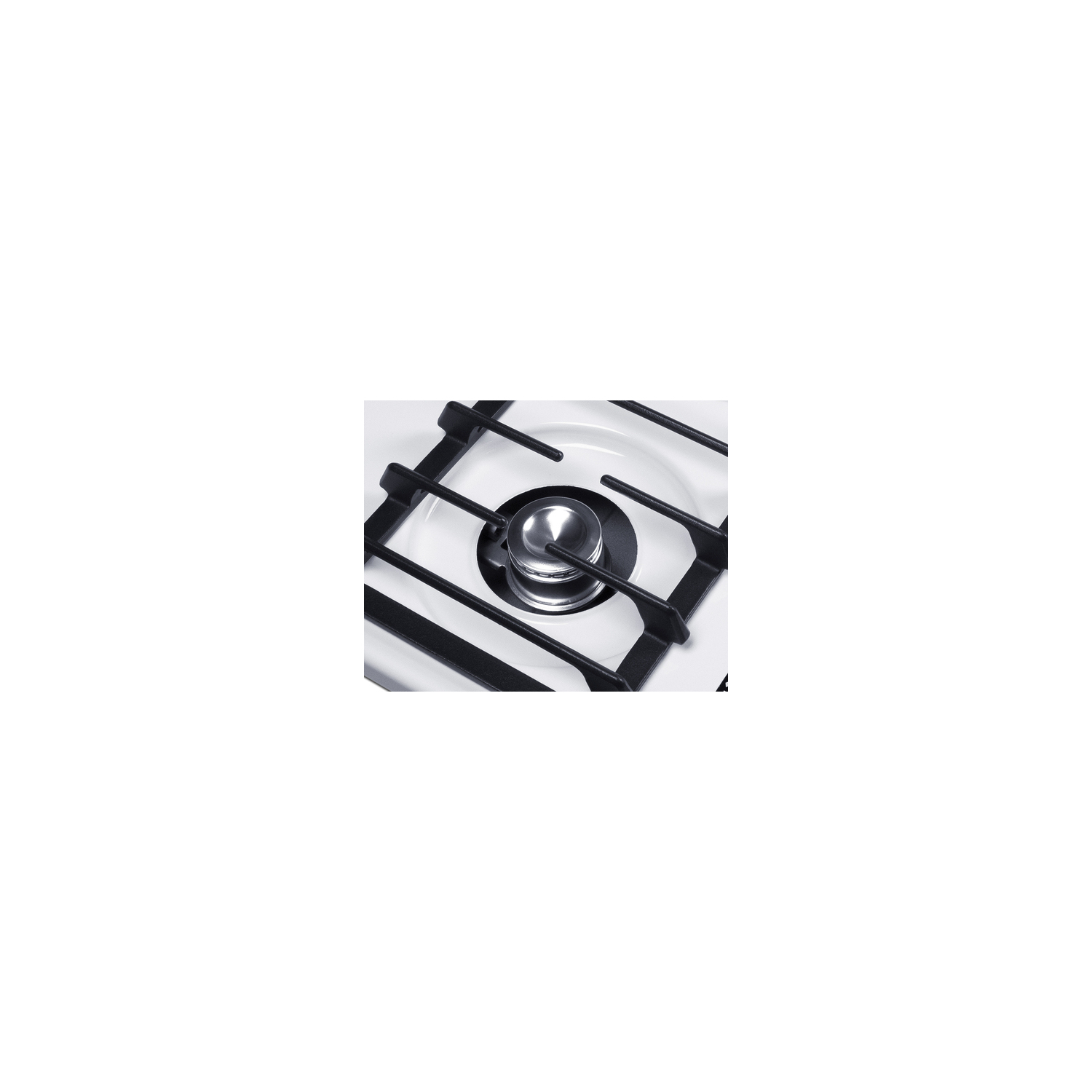

Cast iron grates Two sets of continuous grates in heavy duty cast iron hold up to large cookware
Battery start ignition Ideal alternative to pilot light sources when no power source is accessible
Electronic/gas spark ignition Spark ignition system with a pre-installed 115V cord and standard NEMA 5-15P plug
Classic 30" fit Fits common 28 3/8" W x 18 5/8" D counter cutouts
Four open burners 9000 BTU burners meet most cooking needs
White exterior Classic design in a clean white finish to match any kitchen
Porcelain finish Scratch-resistant design for lasting durability
Recessed top Curved design helps to contain spills on the surface
Designed for natural gas Set for use with natural gas connection. To convert for propane use, add Kit LP
Side controls Cooktop knobs are located on the right side of the cooktop, clearing up space in the front for easier cooking
Push-to-turn knobs Knobs require a small amount of force to ensure burners are not accidentally turned on
DOWNLOADS
TECHNICAL DRAWING (.dwg) (WNL053IP_3.dwg)
