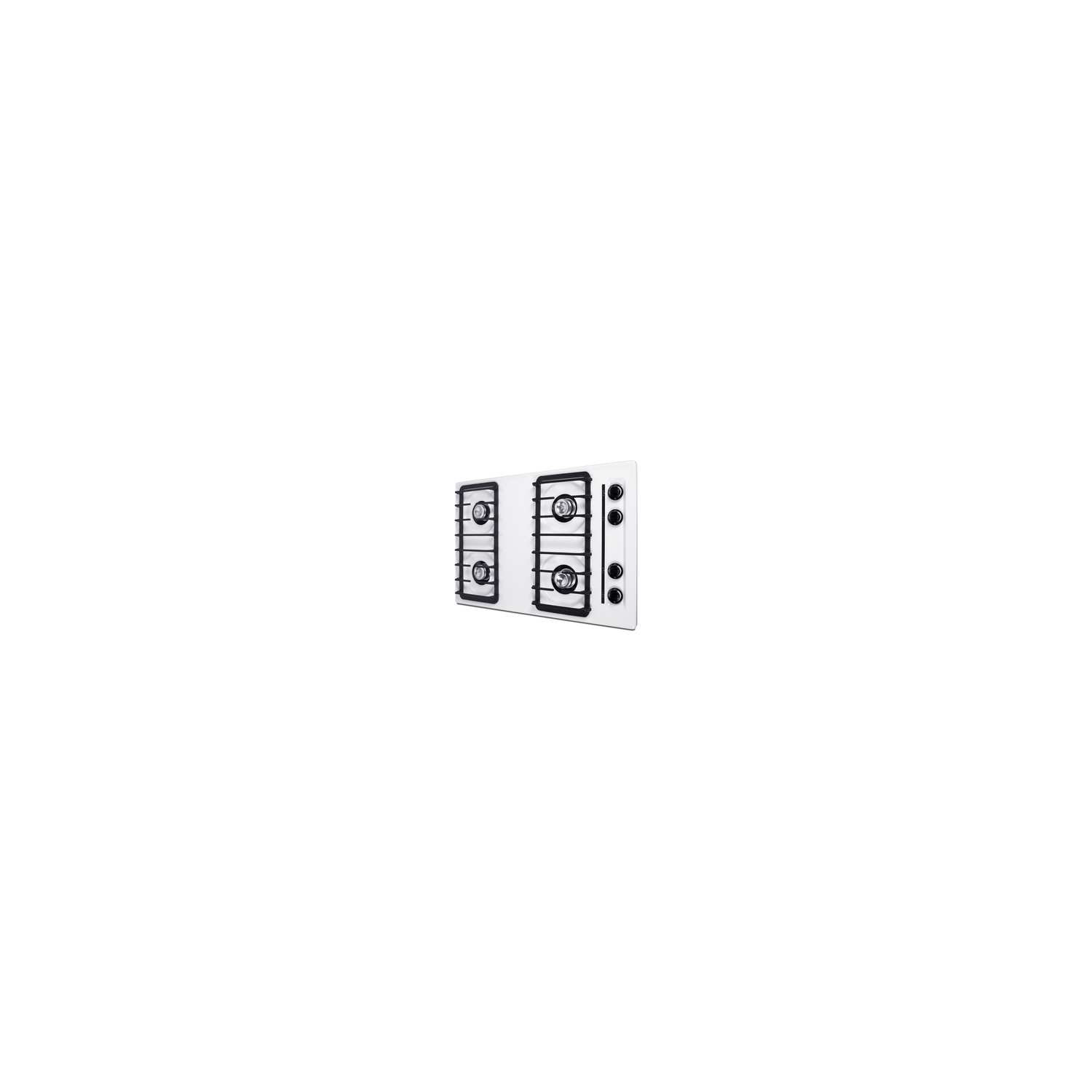

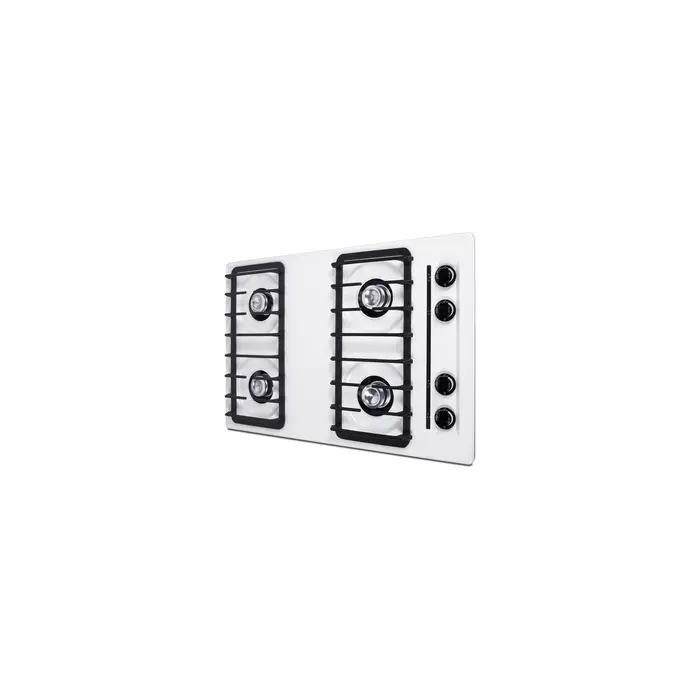

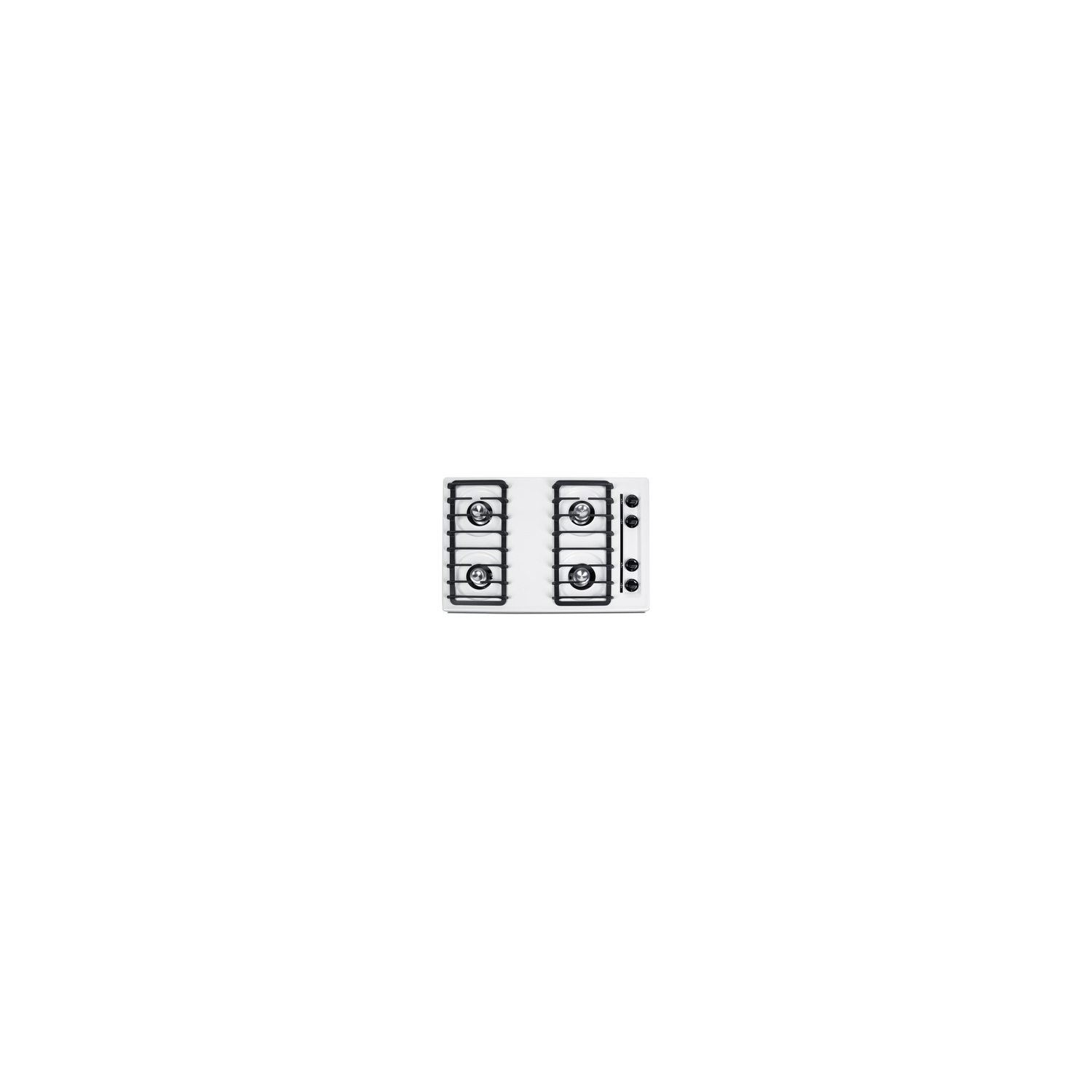

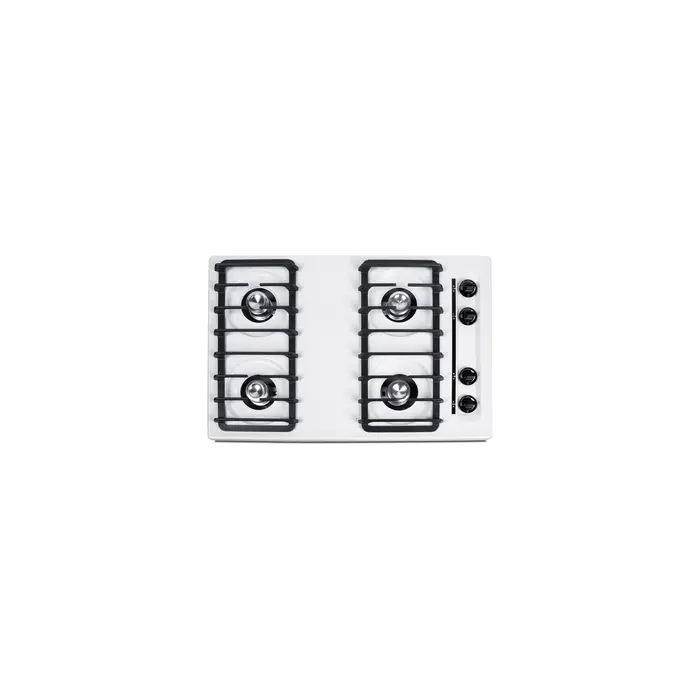

Summit 30 inch wide open burner gas cooktop in white with spark ignition and continuous cast iron grates, WNL053I

Summit 30" wide open burner gas cooktop in white with spark ignition and continuous cast iron grates, 7.61101e+011, WNL053I
MPN:WNL053I
Category:
UPC:761101000000
Brand:Summit
Color/Finish:

SPECIFICATIONS

Overview

Nominal Height 4.0" (10 cm)

Height of Cabinet 3.75" (10 cm)

Nominal Width 30.0" (76 cm)

Width 29.75" (76 cm)

Nominal Depth 20.0" (51 cm)

Depth 20.0" (51 cm)

Cabinet White

US Electrical Safety CSA

Voltage/Frequency 115 V AC/60 Hz

Weight 27.0 lbs. (12 kg)

Parts & Labor Warranty 1 Year

UPC 761101158068

Gas Cooktop

Ignition Spark

LP Convertible With Kit LP Accessory

Number of Burners 4

Controls Dial

Surface Painted

Grate Material Cast Iron

Cutout Width 28.38" (72 cm)

Cutout Depth 18.63" (47 cm)

Burner #1 BTU 9000.0

Burner #2 BTU 9000.0

Burner #3 BTU 9000.0

Burner #4 BTU 9000.0

Power Cord Included Yes

FEATURES

30" Wide Gas Cooktop Built-in natural gas cooktop with four open burners

Made in the USA Designed and constructed domestically

Cast iron grates Two sets of continuous grates in heavy duty cast iron hold up to large cookware

Classic 30" fit Fits common 28 3/8" W x 18 5/8" D counter cutouts

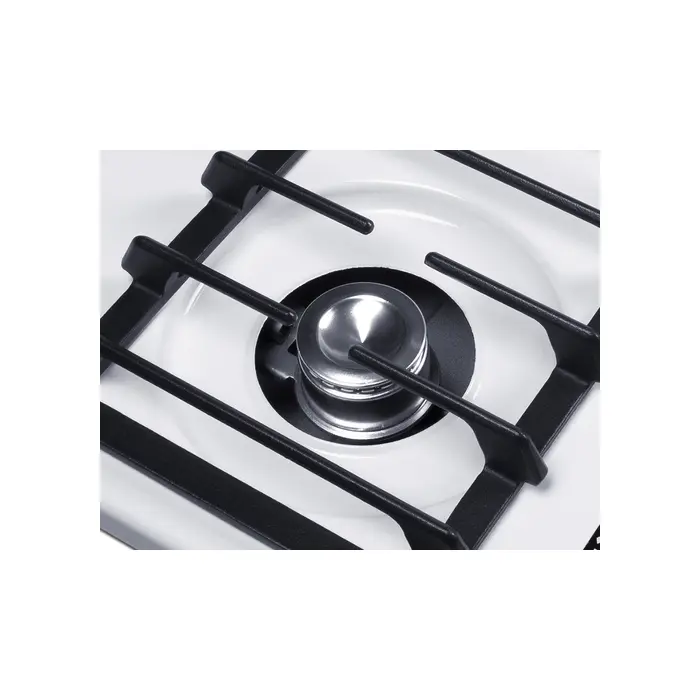

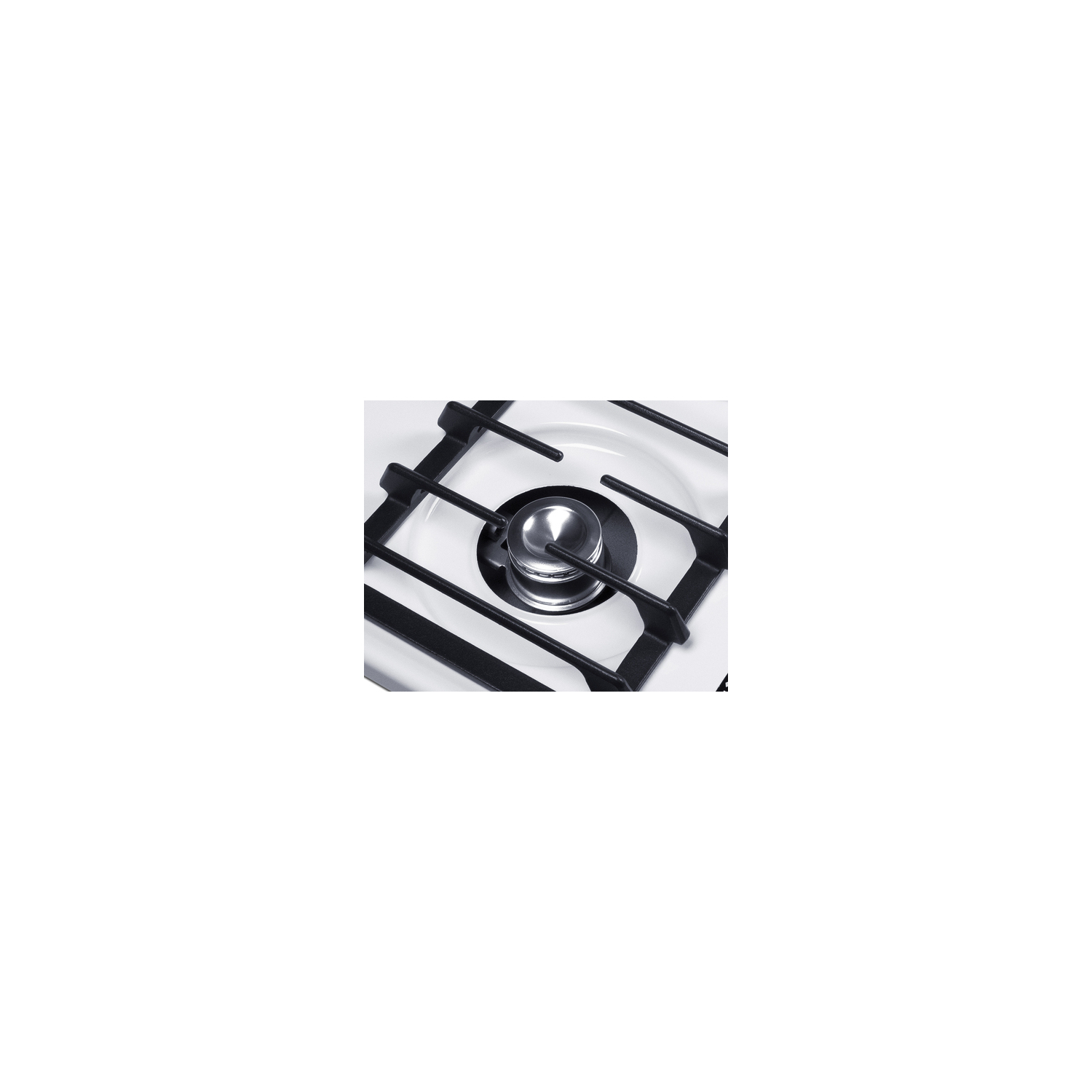

Four open burners 9000 BTU burners meet most cooking needs

White exterior Classic design in a clean white finish to match any kitchen

Porcelain finish Scratch-resistant design for lasting durability

Recessed top Curved design helps to contain spills on the surface

Electronic spark ignition Spark ignition system with a pre-installed 115V cord and standard NEMA 5-15P plug

Designed for natural gas Set for use with natural gas connection. To convert for propane use, add Kit LP

Side controls Cooktop knobs are located on the right side of the cooktop, clearing up space in the front for easier cooking

Push-to-turn knobs Knobs require a small amount of force to ensure burners are not accidentally turned on

DOWNLOADS

BROCHURE (WNL053I.pdf)

TECHNICAL DRAWING (.dwg) (WNL053I_2.dwg)

ASSEMBLY DRAWING (WNL053I-Assembly_2.pdf)

USE & CARE (WNL053I-User-Manual.pdf)
