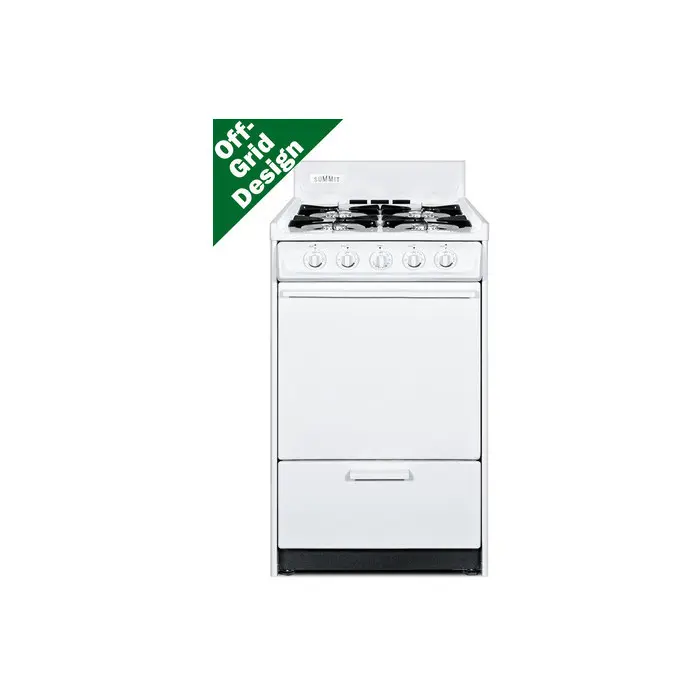

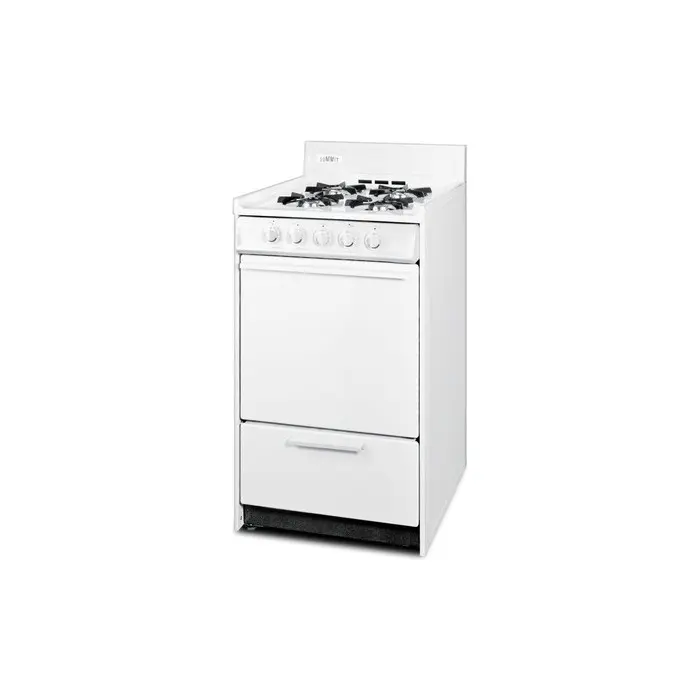

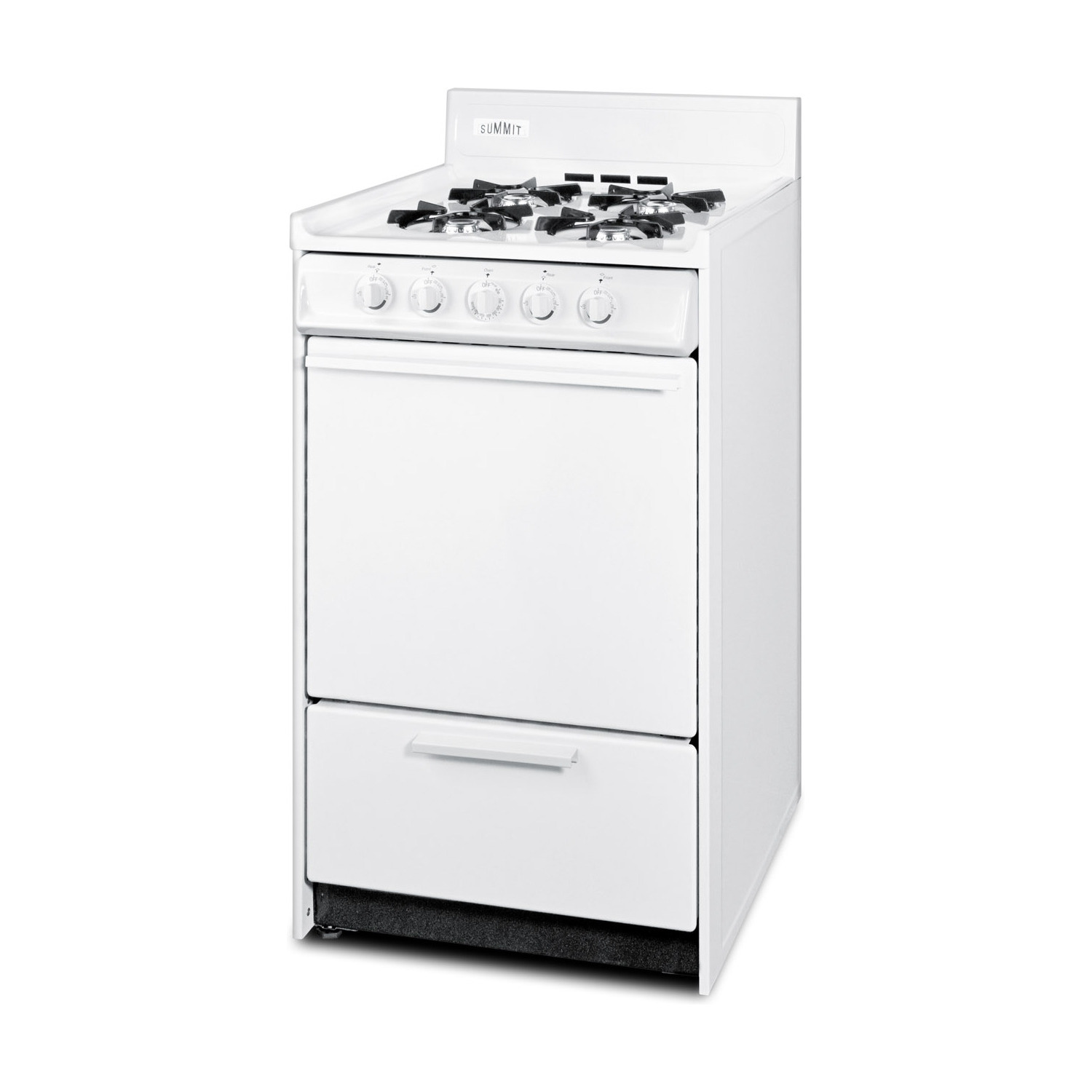

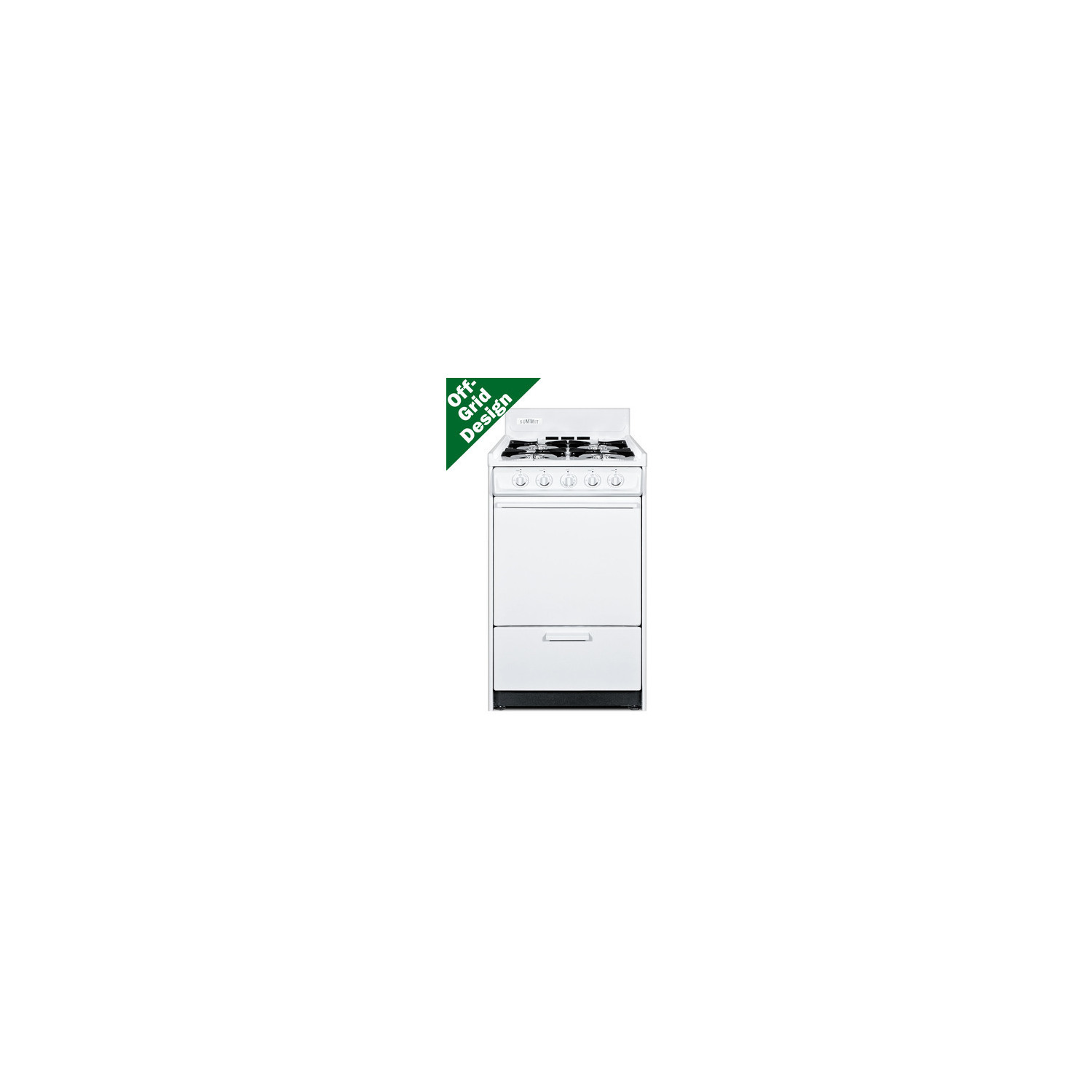

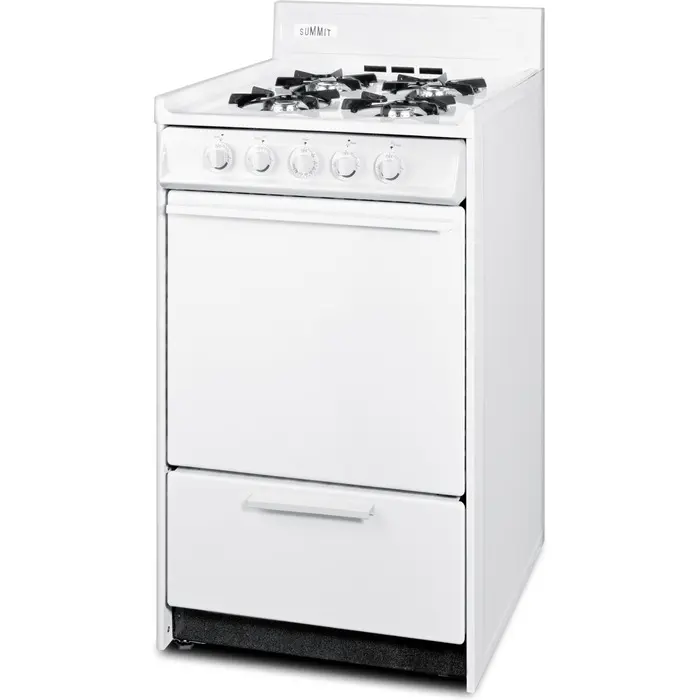

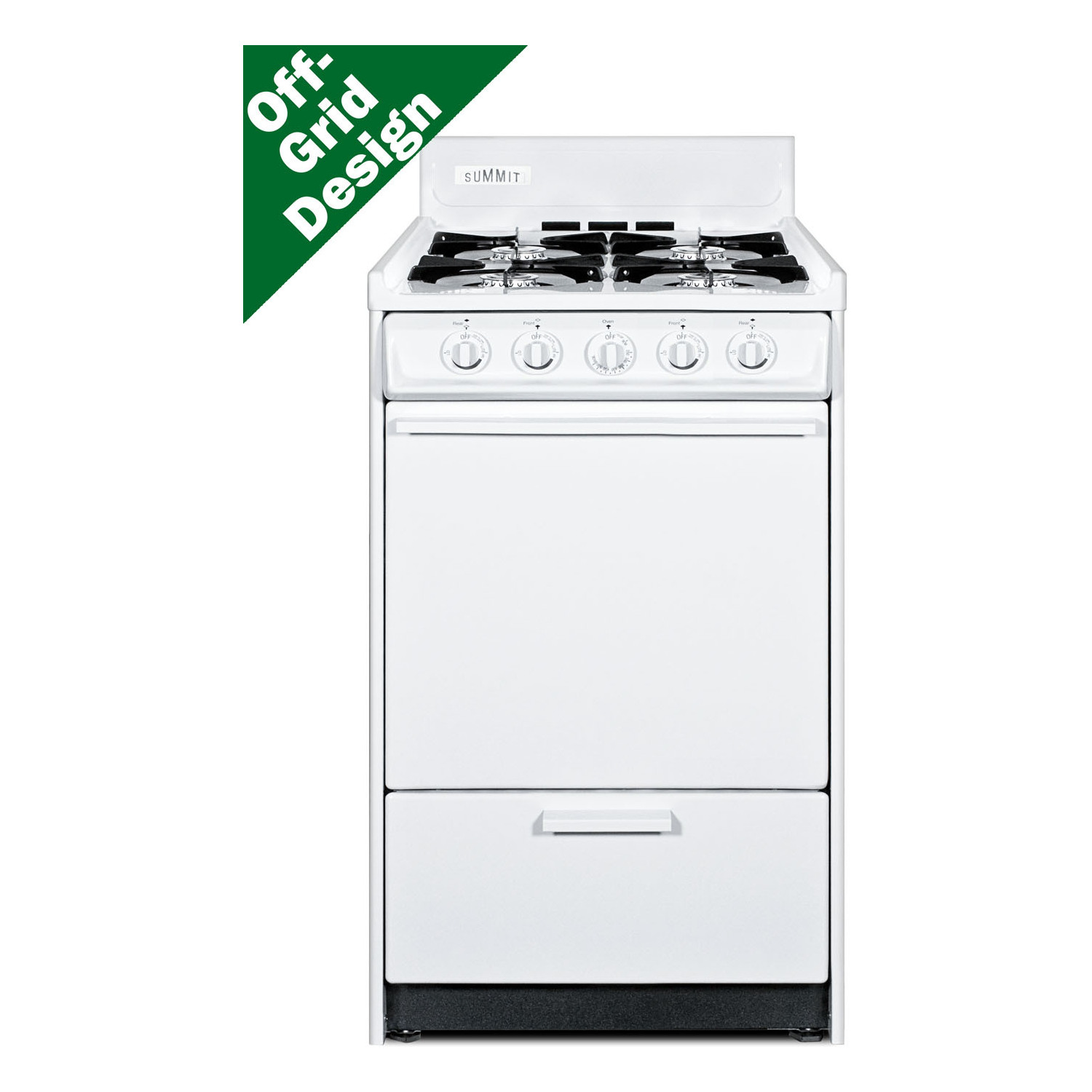

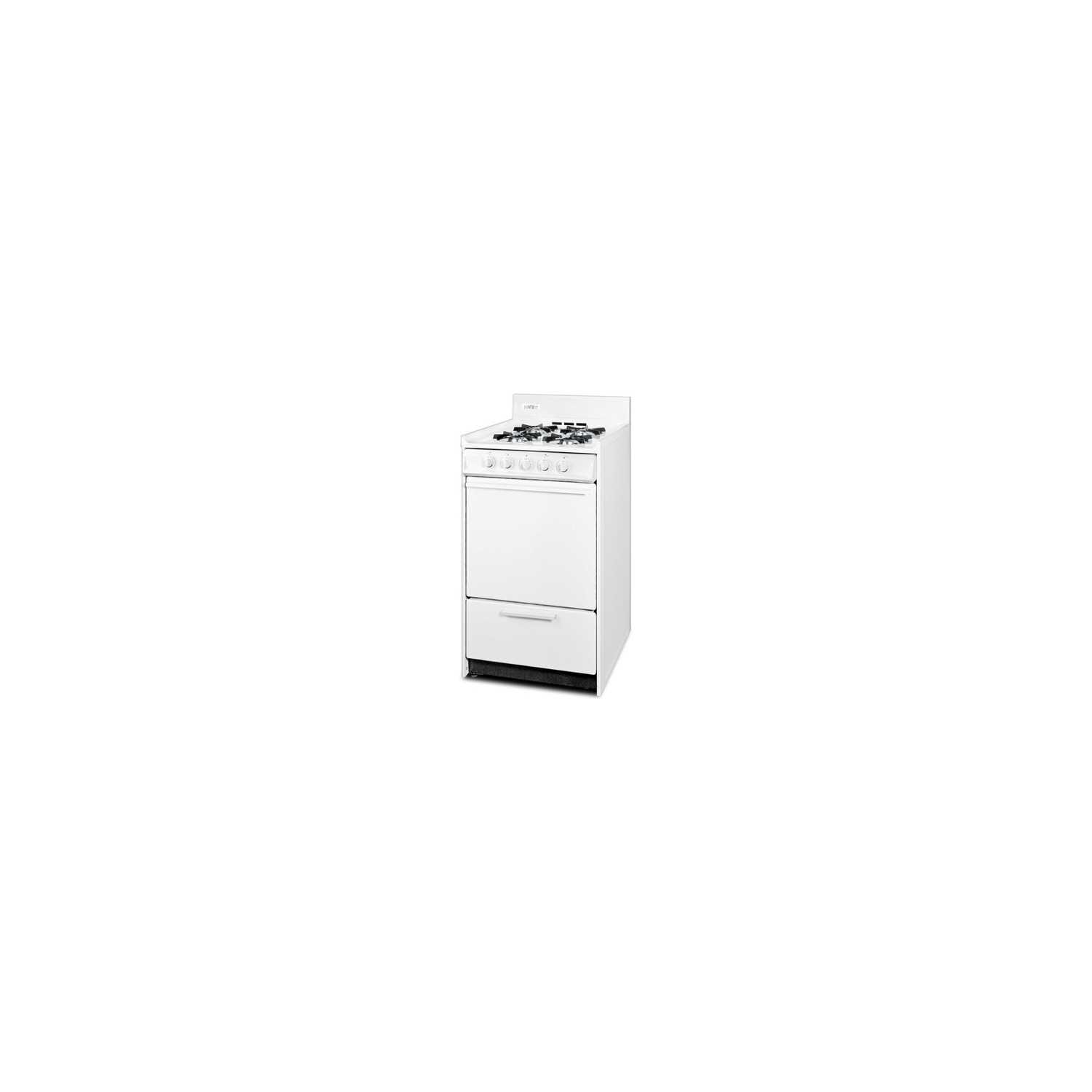

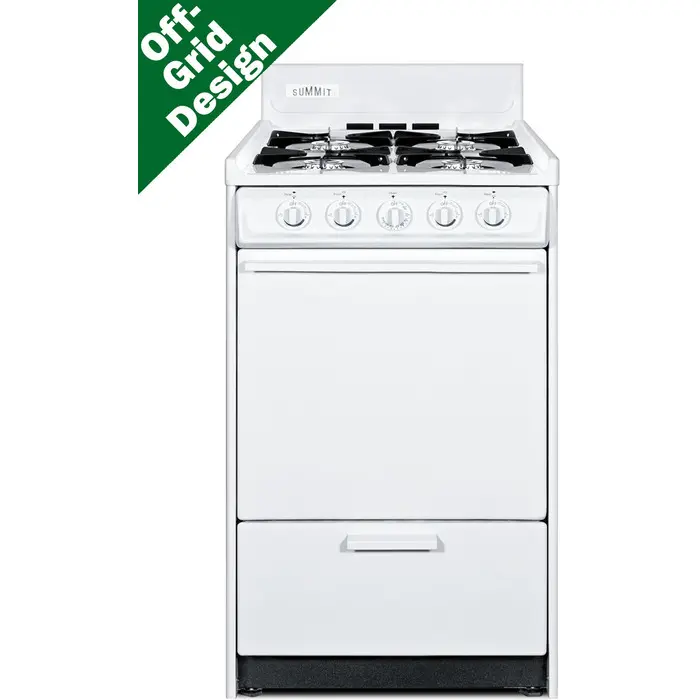

Summit 20 inch wide LP gas range in white with battery-start ignition, 7.61101e+011, WLM110P

Summit Appliance offers a wide selection of American-made household ranges built to last in space-challenged kitchens, including off-grid settings with non-traditional power needs.

Sized at just 20" wide, the WLM110P is a complete LP gas range with four open 9000 BTU burners, a 2.46 cu.ft. oven, and lower drop-down broiler compartment. It utilizes battery start ignition, ideal for rural areas or other homes not using electricity to power appliances. This item is preset for propane/LP gas connections. For the same item designed for use with natural gas, see the WNM110P.

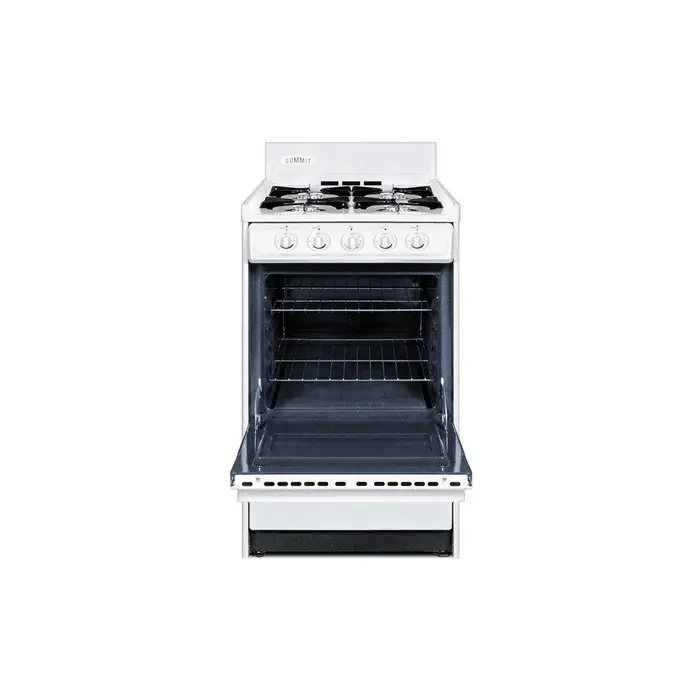

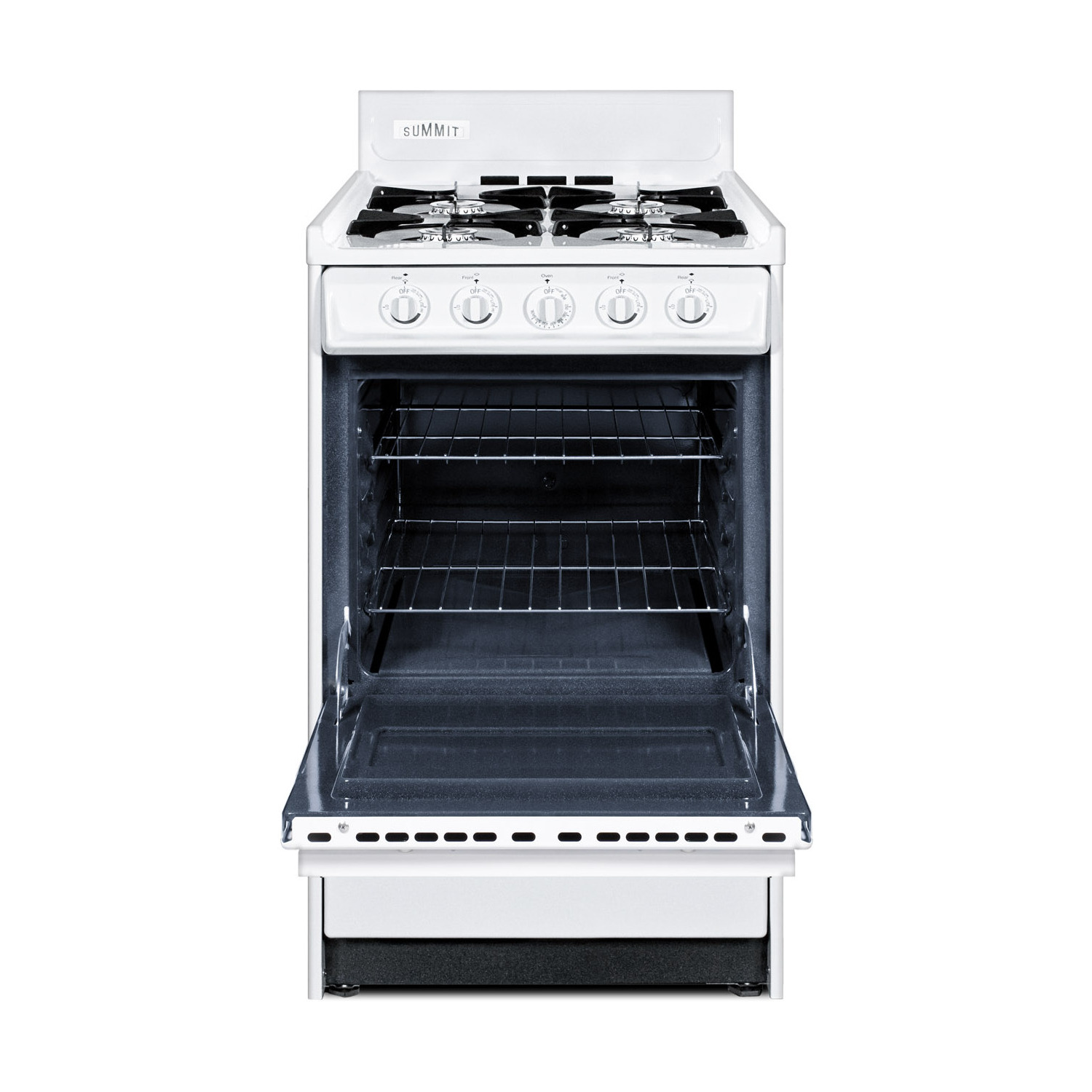

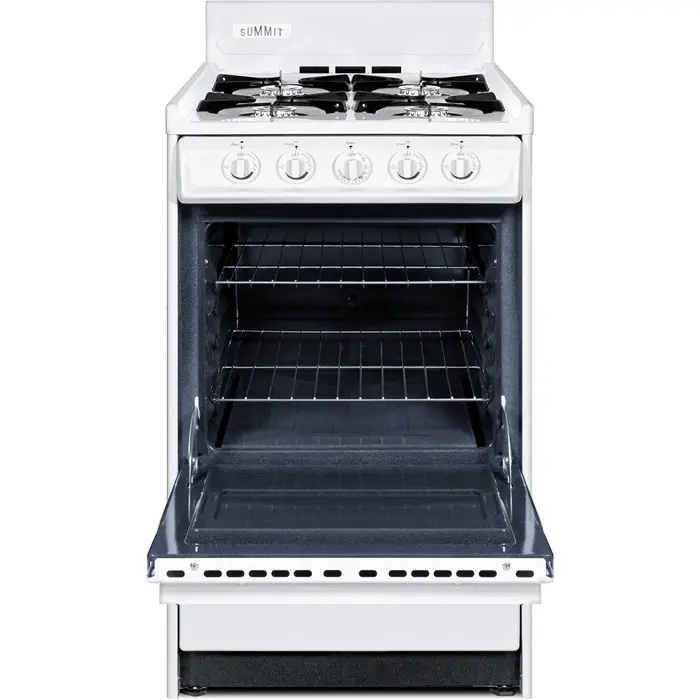

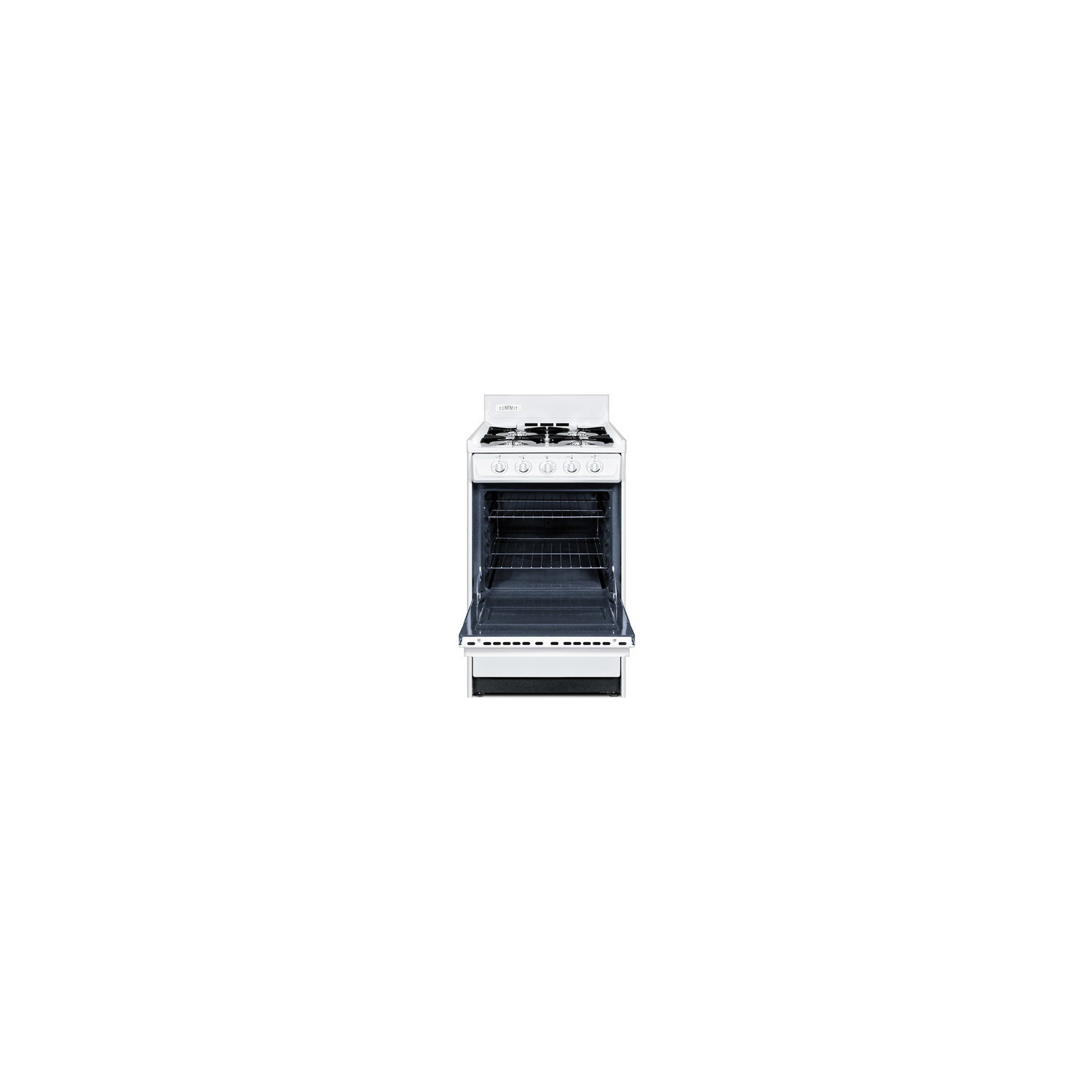

With a classic white exterior, the WLM110P matches any kitchen style. It is sized with a convenient 24" depth, ideal for L-shaped or galley kitchens where every" counts. The recessed door design helps to protect adjacent cabinetry. Upfront push-to-turn knobs ensure easy, safer cooking, preventing users from reaching over hot burners to adjust the heating. Inside, the porcelain oven includes two adjustable racks to accommodate a variety of sizes.

Made in the USA, Summit's slim-fitting ranges offer lasting durability in the prefect fit. Additional sizes and styles are available. Browse our full selection to explore your choices. Nominal Height: 40
Height of Cabinet: 40
Height to Hinge Cap: 0
Nominal Width: 20
Width: 20
Width with Door Open: 0
Nominal Depth: 24
Depth: 24
Depth with Handle: 0
Depth with door at 90°: 0
Capacity: 0
Bottles: 0Defrost Type: N/ADoor: WhiteCabinet: WhiteUS Electrical Safety: CSACanadian Electrical Safety: N/ASanitation: N/AVoltage/Frequency: N/AParts & Labor Warranty: 1 YearCompressor Warranty: N/A

SPECIFICATIONS

Overview

Nominal Height 40.0" (102 cm)

Height of Cabinet 40.0" (102 cm)

Nominal Width 20.0" (51 cm)

Width 20.0" (51 cm)

Nominal Depth 24.0" (61 cm)

Depth 24.0" (61 cm)

Door White

Cabinet White

US Electrical Safety CSA

Weight 140.0 lbs. (64 kg)

Parts & Labor Warranty 1 Year

UPC 761101083889

Gas Range

Ignition Battery Start

LP Convertible Pre-set for LP

Oven Capacity 2.46 cu.ft

Cooktop Surface Porcelain

Burner Type Open

Number of Burners 4

Burner #1 BTU 9000.0

Burner #2 BTU 9000.0

Burner #3 BTU 9000.0

Burner #4 BTU 9000.0

Burner Controls Dial

Oven Controls Dial

Cleaning Type Manual

Oven Rack Qty 2

Oven Interior Height 14.0" (36 cm)

Oven Interior Width 16.0" (41 cm)

Oven Interior Depth 19.0" (48 cm)

Power Source Battery

Broiler Location Below Oven

Oven Door White

FEATURES

Made in the USA Designed and constructed domestically

LP/propane range Pre-set for use with LP gas

Battery start ignition Uses a 9V battery (included) to ignite the oven and burners, providing a convenient off-grid solution to kitchens previously using pilot lights when no electricity is available

Slim 20 inch width Apartment-sized width offers all the functionality you need in a smaller footprint

24 inch depth Shallower fit is ideal for L-shaped and galley kitchens

4 open burners 9000 BTU burners with built-in enamel grates to meet most cooking needs

Broiler compartment Lower drop-down compartment for separate broiling with even heat distribution

Recessed oven door Smart design limits the depth and protects adjacent cabinets

Upfront controls Push-to-turn knobs offer easier, safer access, preventing users from reaching over hot burners to adjust

Adjustable oven racks Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

ADA compliant design Upfront controls and easy-to-operate knobs offer convenient accessibility

Porcelain and steel construction Lasting durability with solid construction inside and out designed to hold up to everyday kitchen use

Removable oven door and range top White porcelain oven door and top can be removed for easier cleaning

Anti-tip bracket Included for user installation to help prevent tipping

Broiler pan included Two-piece porcelain broiler tray with grease well

White exterior finish Classic design in a clean white finish to match any kitchen
