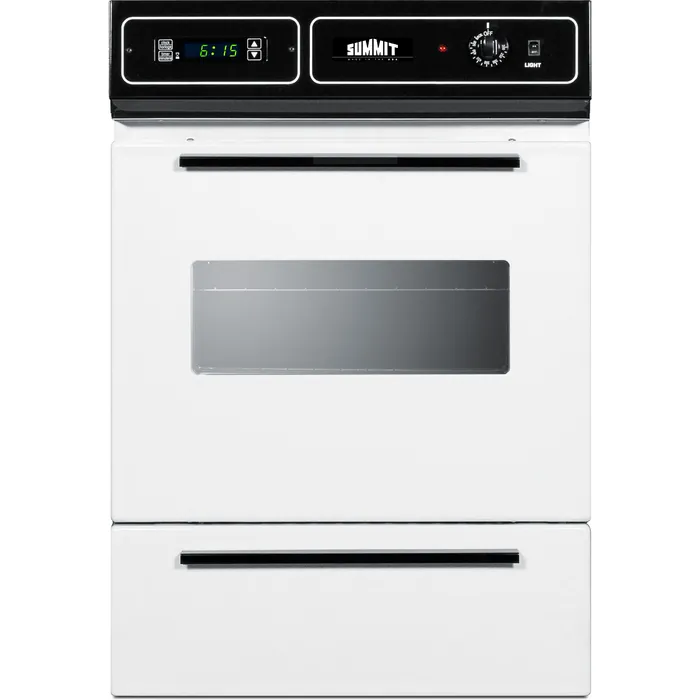

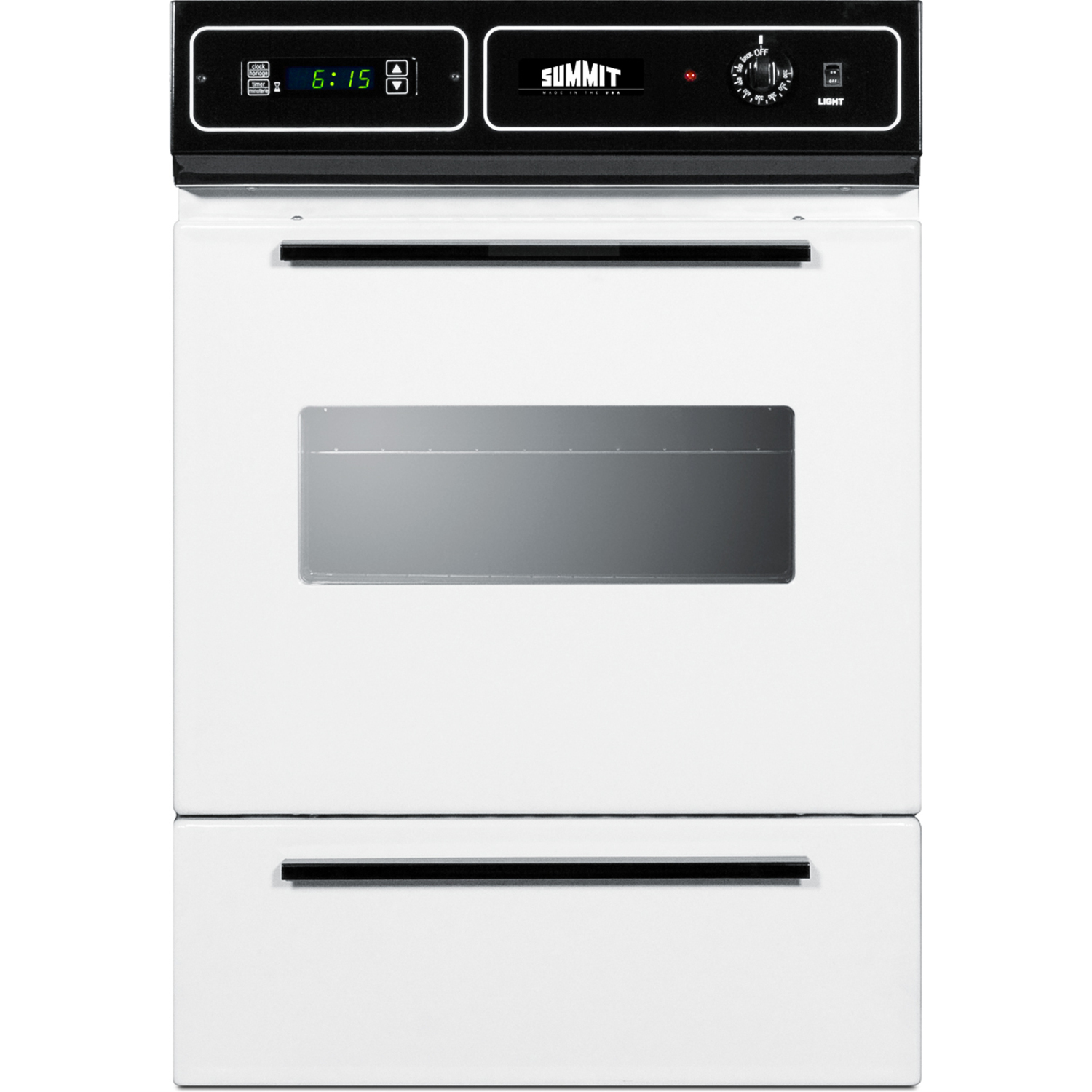

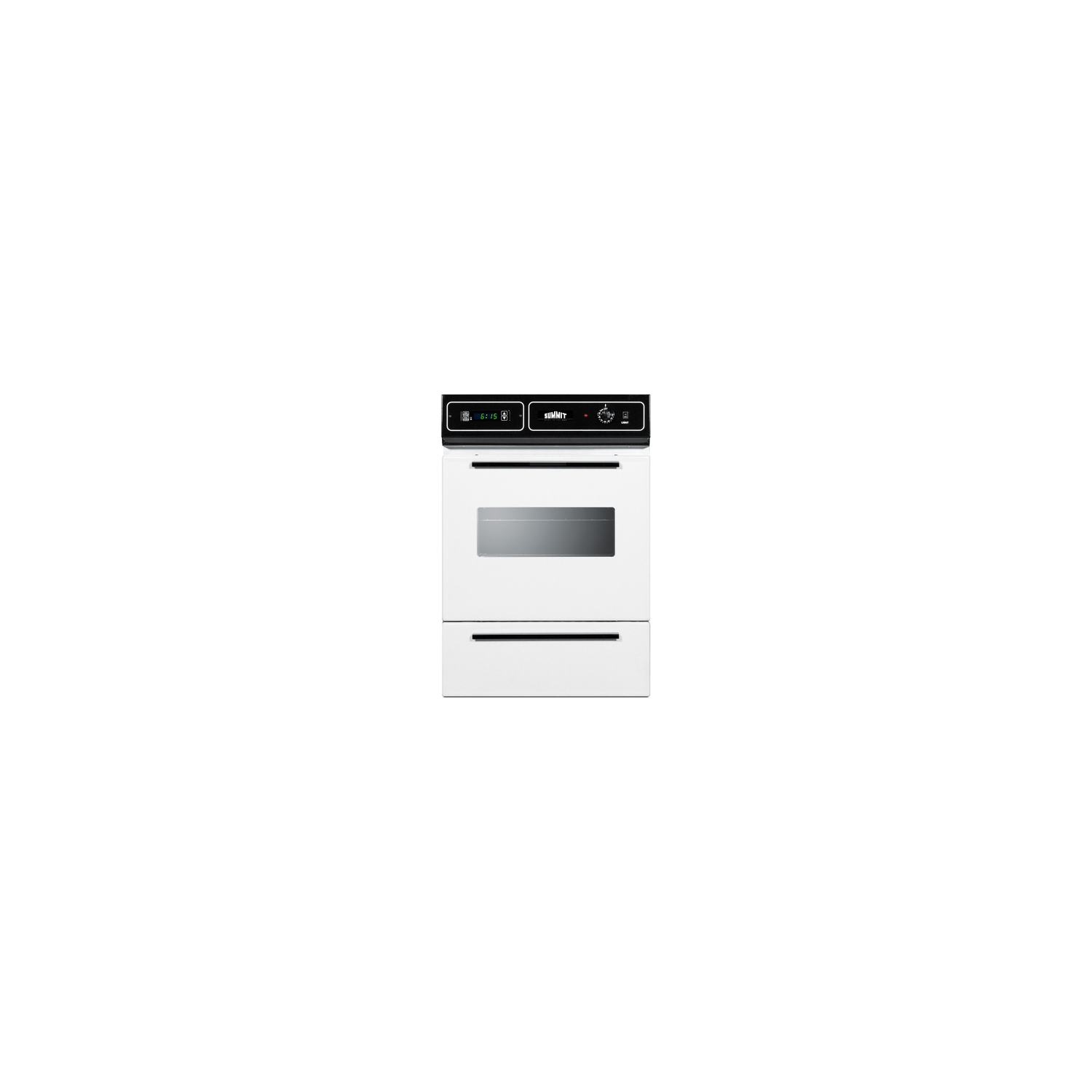

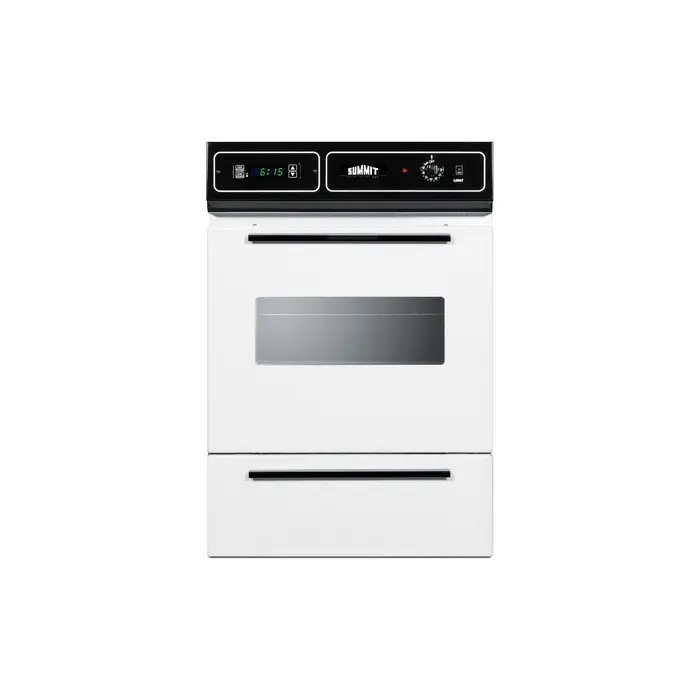

Summit White 115V electric wall oven with digital clock/timer and oven window; for cutouts 22 3/8 inch wide by 34 1/8 inch high, 7.61101e+011, WEM715KW

Summit brings endless possibility to small kitchen spaces with one of the industry's only 24" wall ovens designed to work with 110-120V connections.

Made in the USA, the WEM715KW is an electric wall oven specially sized to fit common 34 1/8" H x 22 3/8" W cutouts. It includes a pre-installed cord with a standard 3-prong NEMA 5-15 plug for easy installation in 115V connections (20 amp circuit required). This unit features a white oven door and drop-down lower compartment for cookware storage. The oven includes a window and interior light with an on/off rocker switch, allowing you to view your cooking progress as needed. The exterior includes a digital clock with timer to help you keep track of your cooking.

Inside, this wall oven offers nearly 3 cu.ft. of capacity to accommodate large meals. Solid porcelain construction ensures lasting durability that holds up to everyday use. We include two adjustable slide-out oven racks with brakes, as well as a two-piece broiler tray with grease well. The oven features a bake and broil setting, easily managed with one push-to-turn dial control.

Summit's American-made wall ovens have an industry exclusive height to fit cutouts commonly once commonly served by discontinued models from Caloric, Slattery, and older makes, including Magic Chef. To fit other cutouts up to 39" high, add the TKW700 trim kit accessory. Additional finishes are available, as well as standard gas and 220V options and a full suite of 115V electric and induction cooktops. Browse the full Summit website to explore your options.

Nominal Height: 35
Height of Cabinet: 35
Height to Hinge Cap: 0
Nominal Width: 24
Width: 24
Width with Door Open: 0
Nominal Depth: 25
Depth: 24.5
Depth with Handle: 25.75
Depth with door at 90°: 42.13
Capacity: 2.92
Bottles: 0Defrost Type: N/ADoor: WhiteCabinet: N/AUS Electrical Safety: CSACanadian Electrical Safety: N/ASanitation: N/AVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: N/A

SPECIFICATIONS

Overview

Nominal Height 35.0" (89 cm)

Height of Cabinet 35.0" (89 cm)

Nominal Width 24.0" (61 cm)

Width 24.0" (61 cm)

Nominal Depth 25.0" (64 cm)

Depth 24.5" (62 cm)

Depth with Handle 25.75" (65 cm)

Depth with door at 90° 42.13" (107 cm)

Capacity 2.92 cu.ft. (83 L)

Door White

US Electrical Safety CSA

Amps 14.6

Voltage/Frequency 115 V AC/60 Hz

Weight 135.0 lbs. (61 kg)

Parts & Labor Warranty 1 Year

UPC 761101103693

Electric Walloven

Controls Dial

Oven Light Yes

Cooking Timer Yes

Digital Clock Yes

Cleaning Type Manual

Oven Rack Qty 2

Oven Window Yes

Interior Height 14.0" (36 cm)

Interior Width 18.75" (48 cm)

Interior Depth 18.5" (47 cm)

Cutout Height 34.18" (87 cm)

Cutout Width 22.38" (57 cm)

Cutout Depth 23.0" (58 cm)

Power Source 115V (cord included)

FEATURES

24" Wide 115V Wall Oven Electric wall oven sized for 34 1/8" H x 22 3/8" W cutouts with a power cord and plug included

Made in the USA Designed and constructed domestically

110-120V Operation Designed for installation in kitchens with a 115V/60Hz/20 amp connection

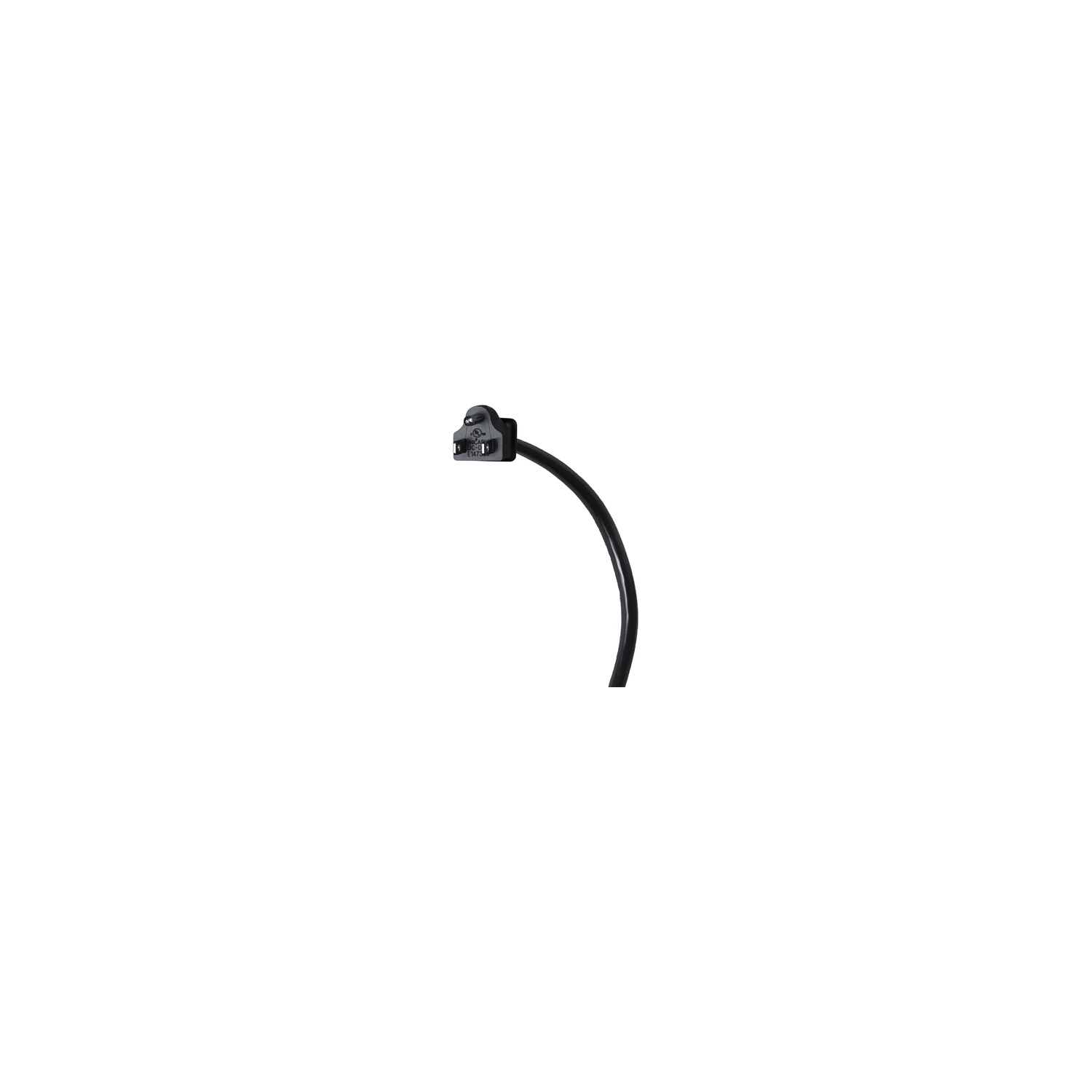

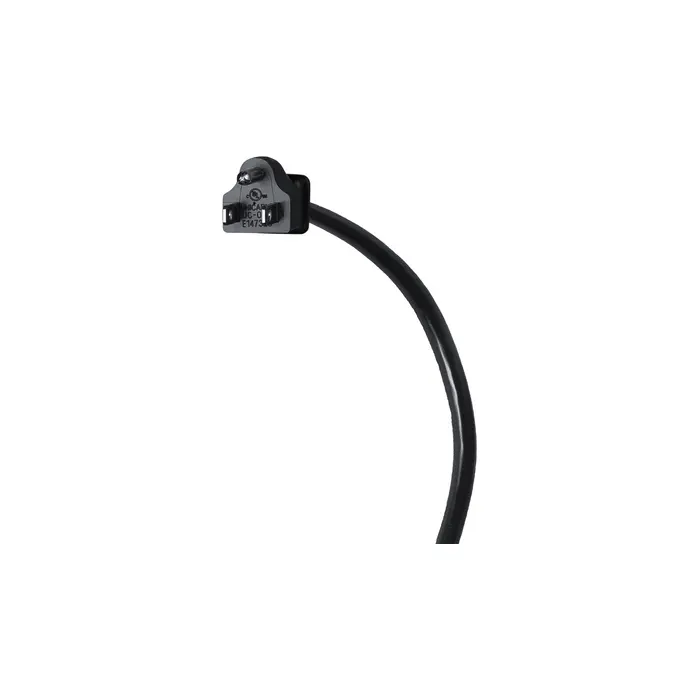

Power cord included Ships with a pre-installed cord and standard NEMA 5-15 3-prong plug for easy installation (20 amp circuit required)

Classic fit Sized to fit 34 1/8" H x 22 3/8" W cabinet cutouts, a popular replacement size rarely offered by other manufacturers

Large capacity 2.92 cu.ft. interior allows you to prepare large meals

White exterior finish Classic design to suit any kitchen

Storage compartment Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen

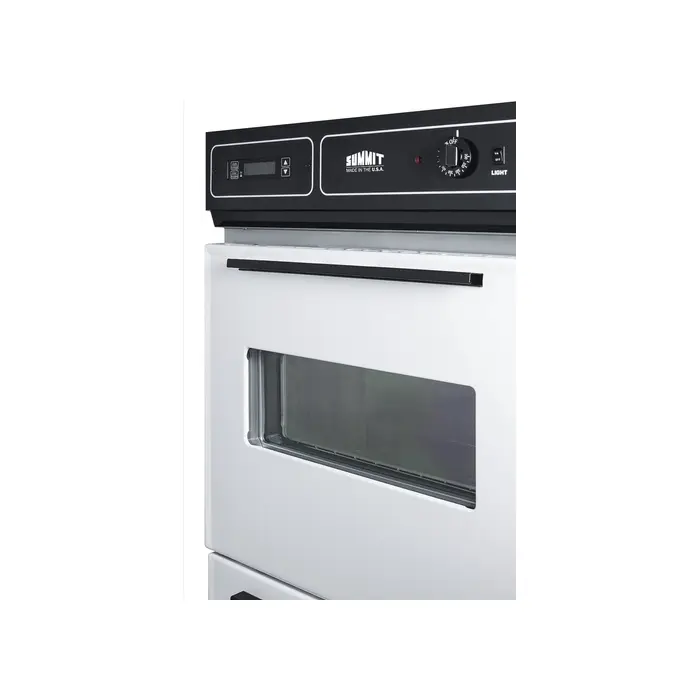

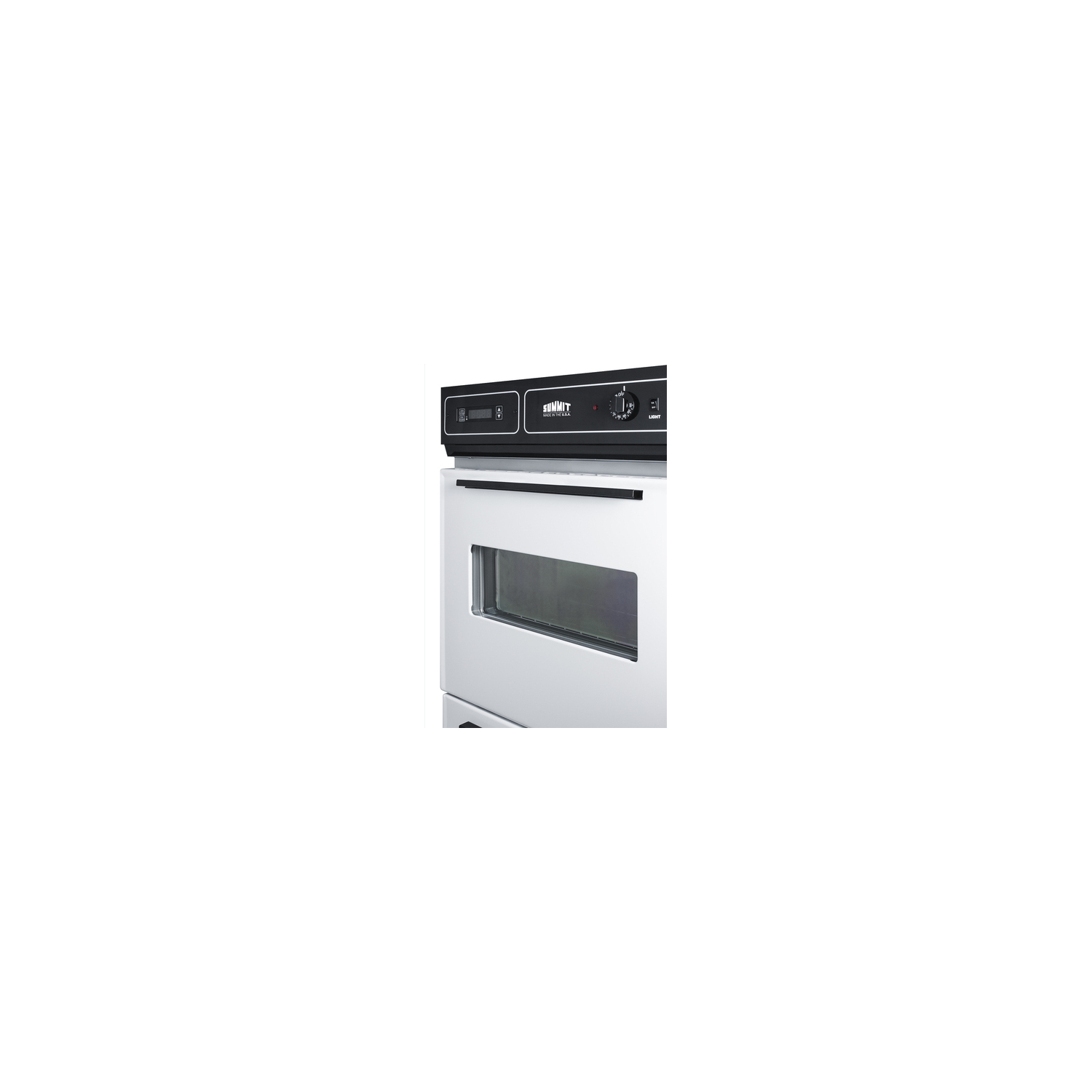

Oven window and interior lighting Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door

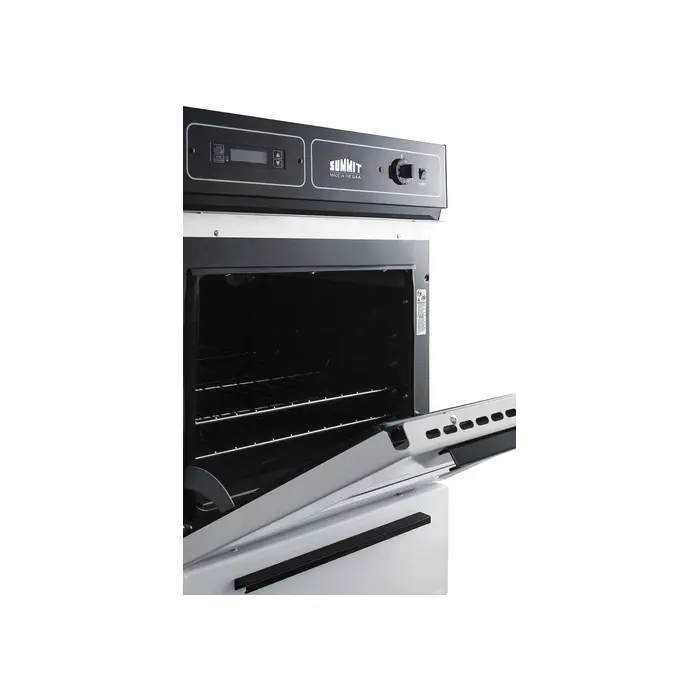

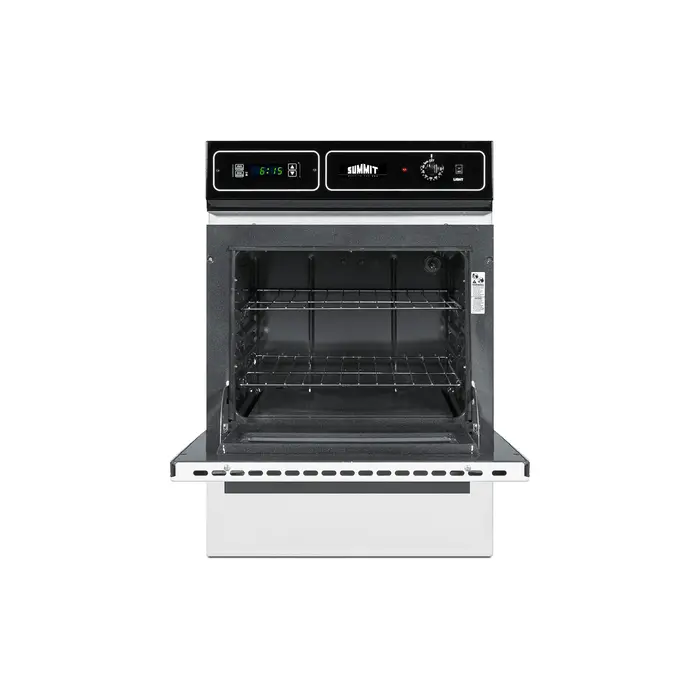

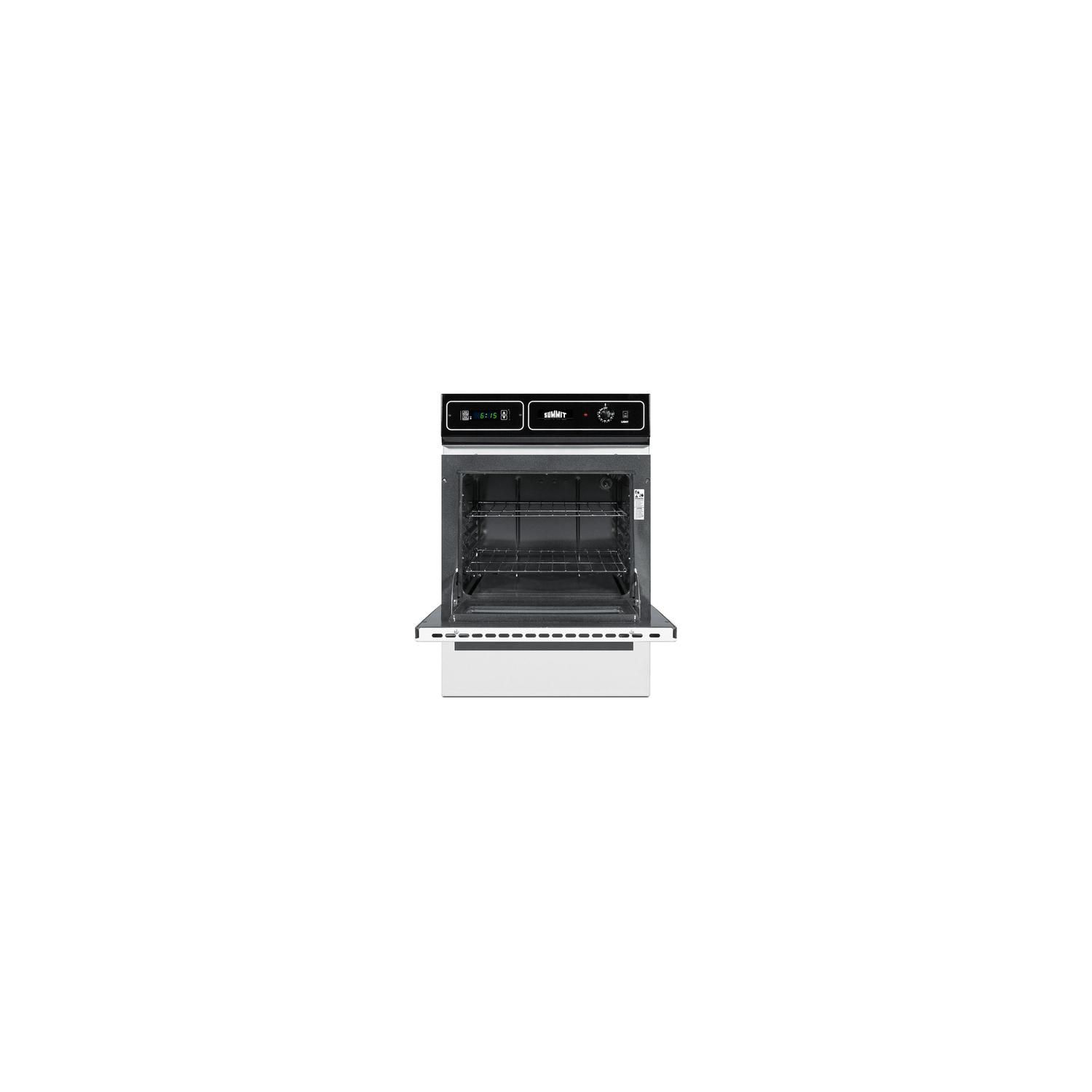

Adjustable oven racks Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Broiler function Upper heating element is located inside the oven so there is no need to transfer dishes to another compartment for broiling

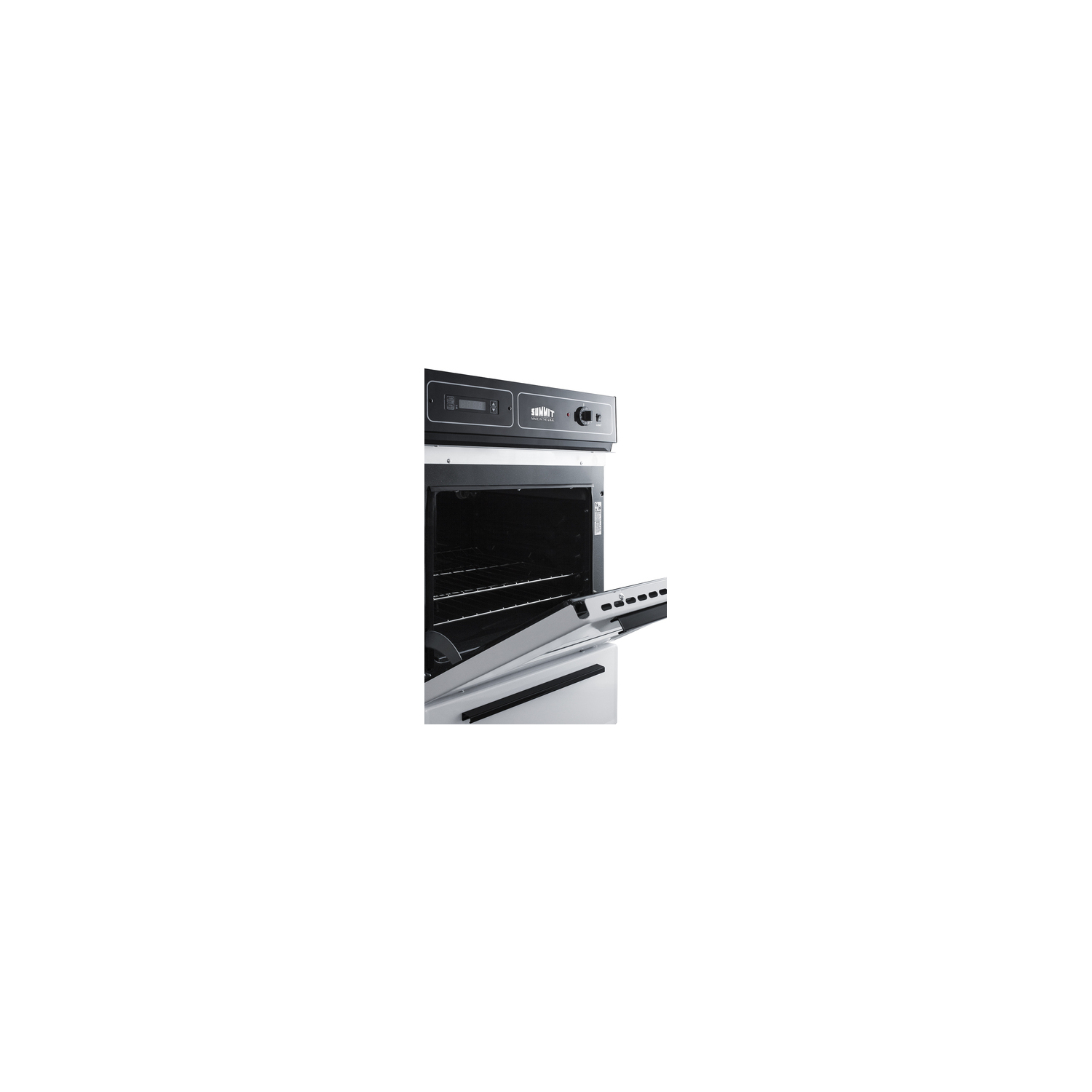

Removable oven door Allows for easier cleaning as needed

Porcelain and steel construction Interior oven is constructed from porcelain for lasting durability that holds up to daily cooking

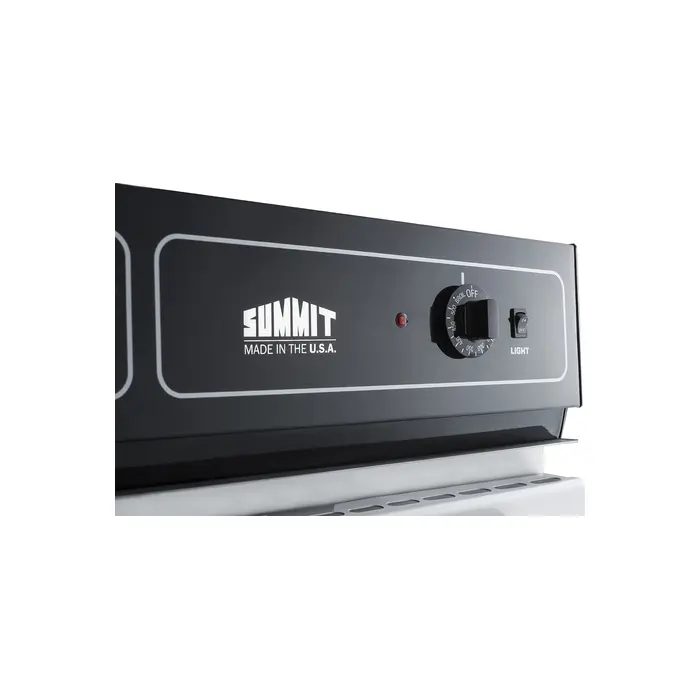

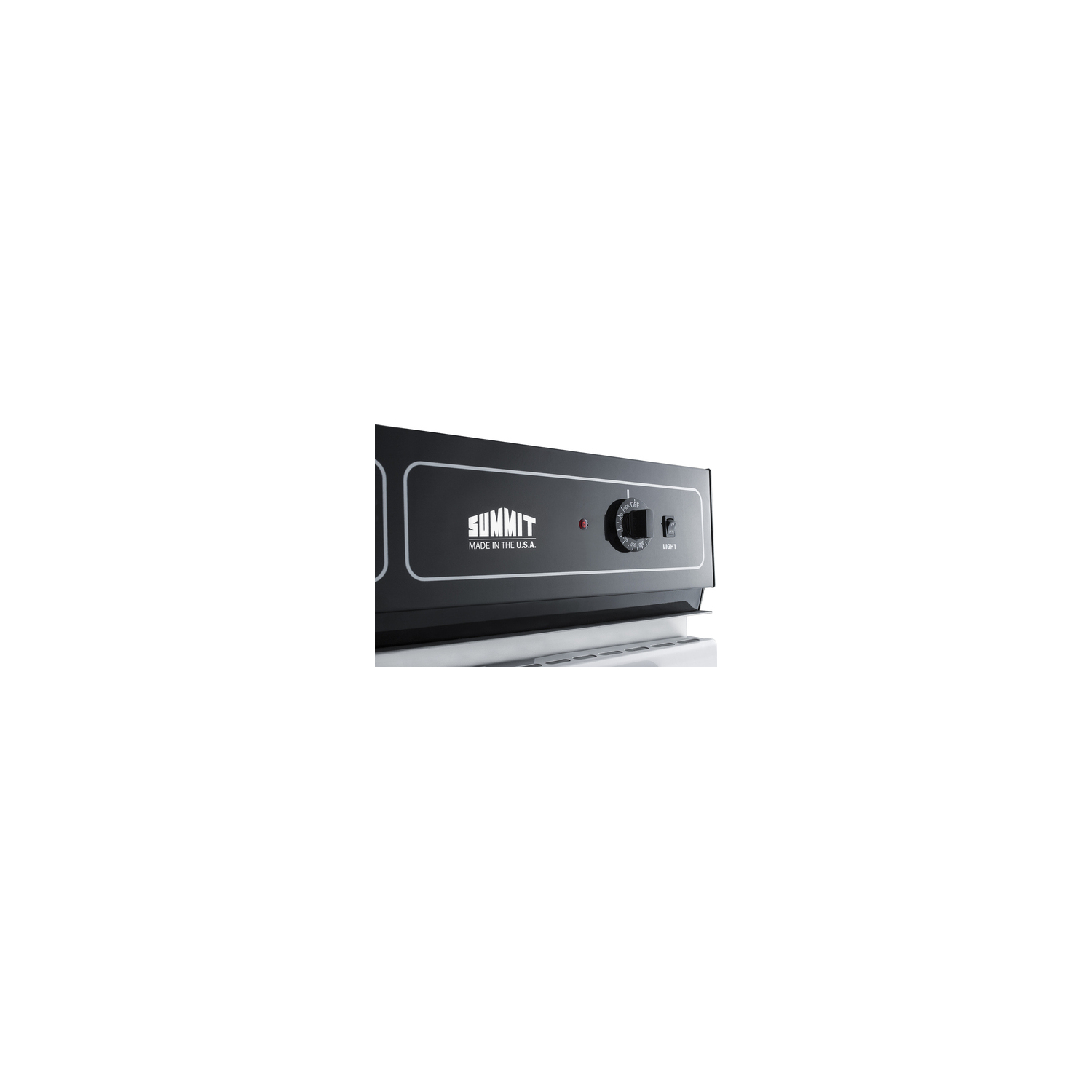

Dial controls Basic knob controls for simple and intuitive cooking

Digital clock and timer Added convenience with an easy display

Broiler pan included Two-piece porcelain broiler tray with grease well

Optional trim kit Add TKW700 accessory to raise the exterior height to fit 39" high openings

DOWNLOADS

BROCHURE w/ DRAWINGS (WEM715KW.pdf)

TECHNICAL DRAWING (.dwg) (TEM715DK_WEM715KW_2.dwg)

ASSEMBLY DRAWING (TEM715DK_WEM715KW-Assembly_2.pdf)

USE & CARE (WEM715KW-User-Manual.pdf)
