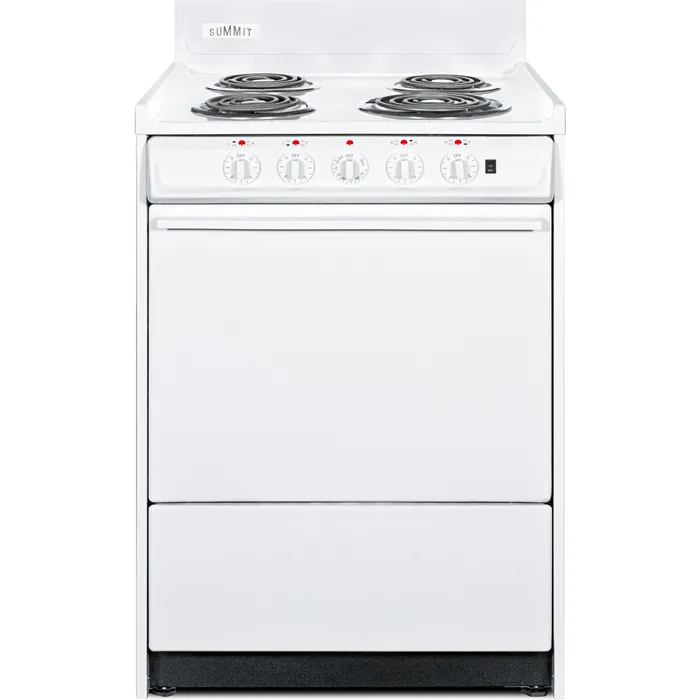

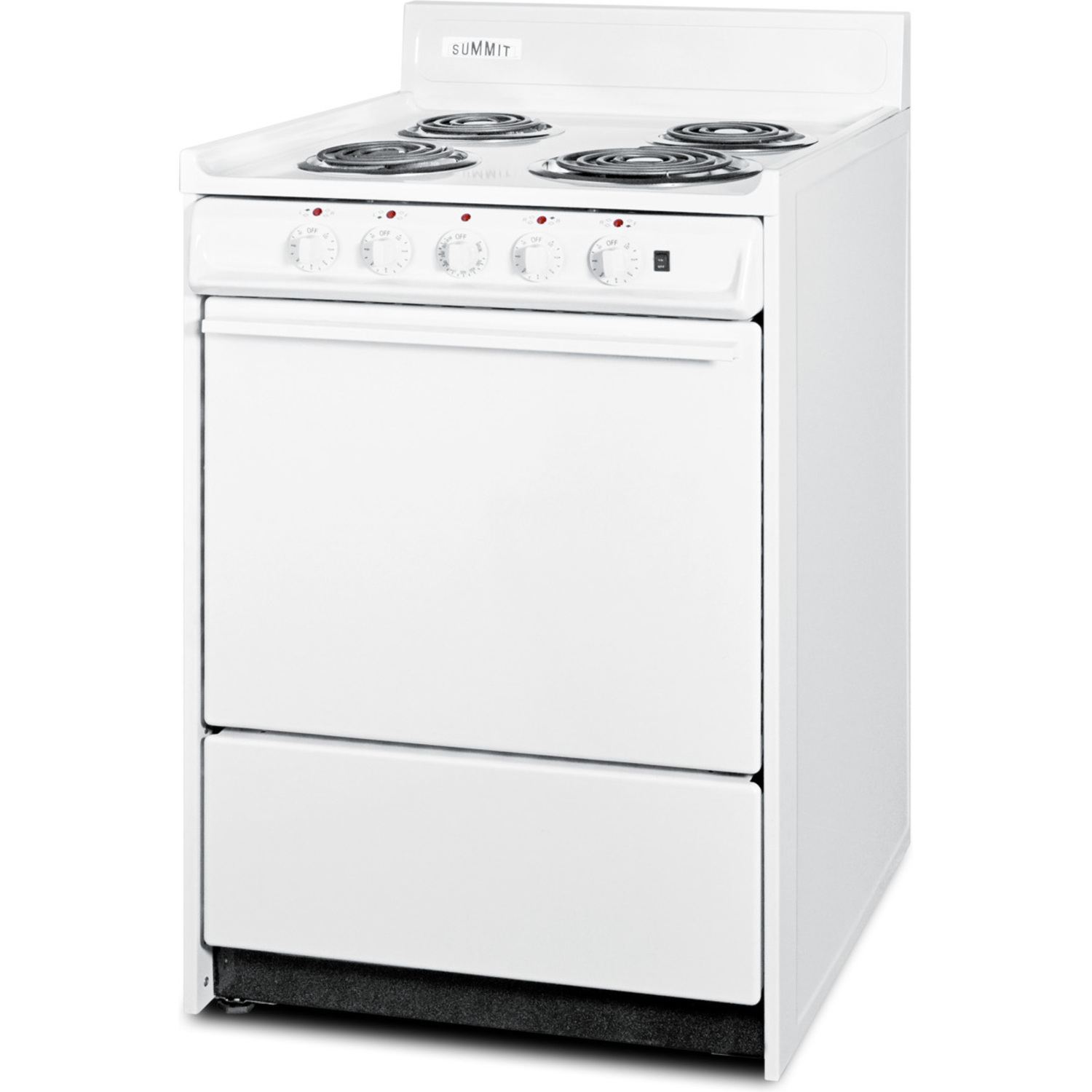

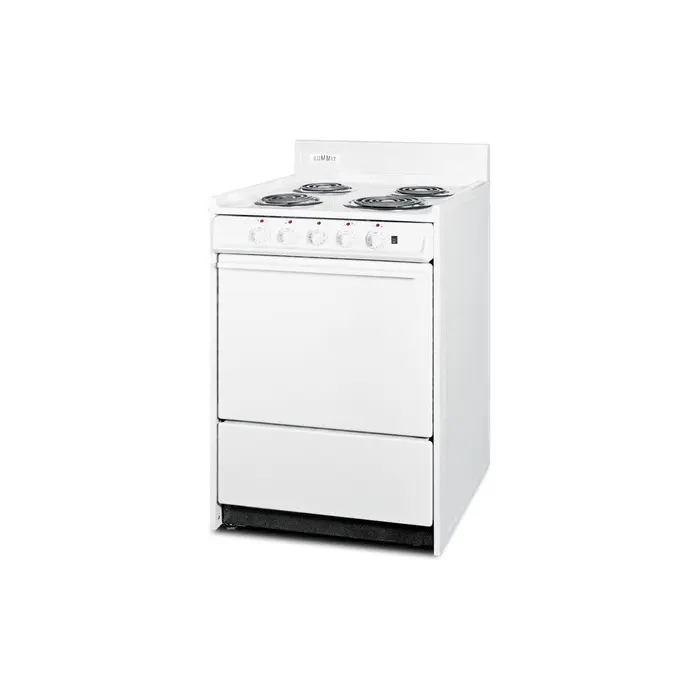

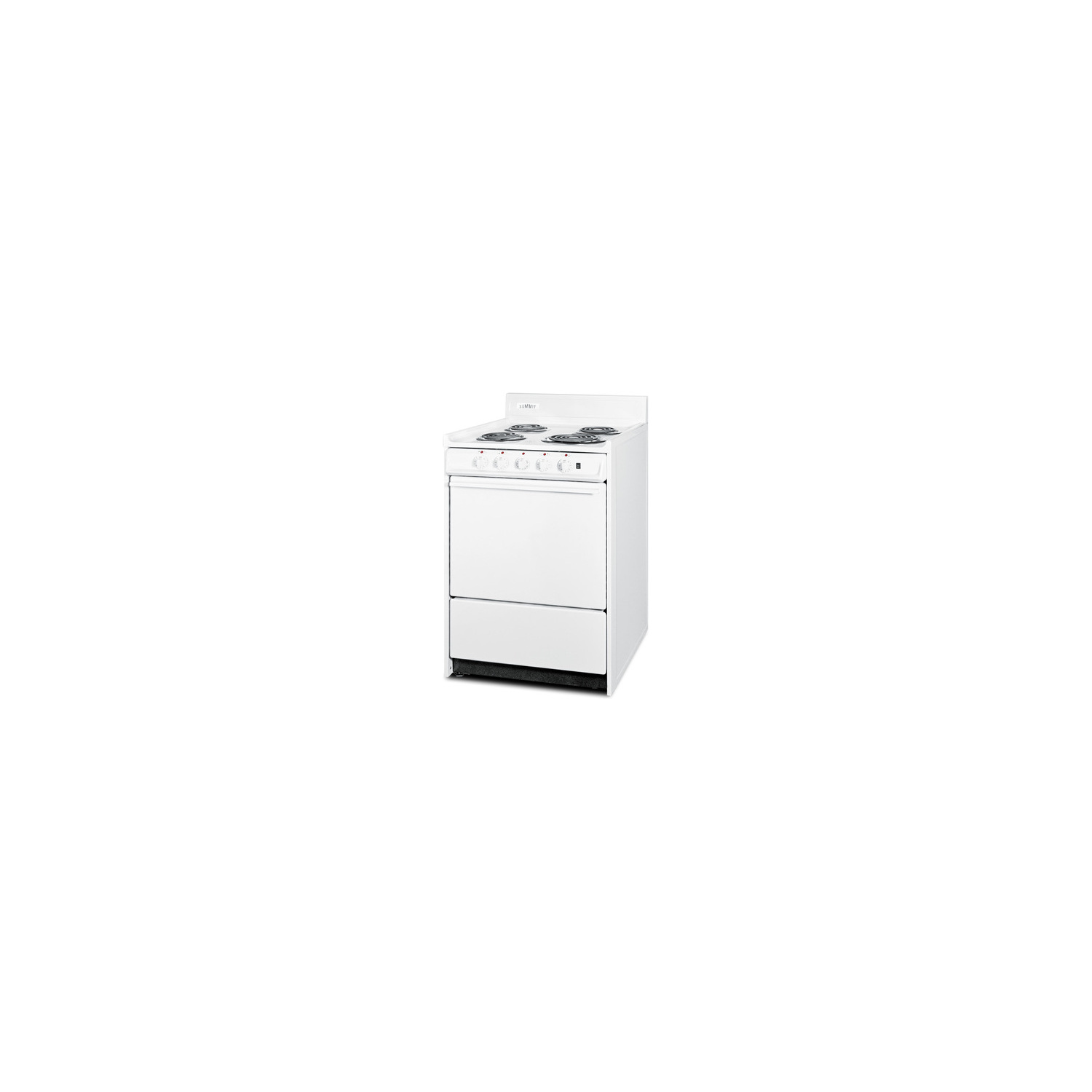

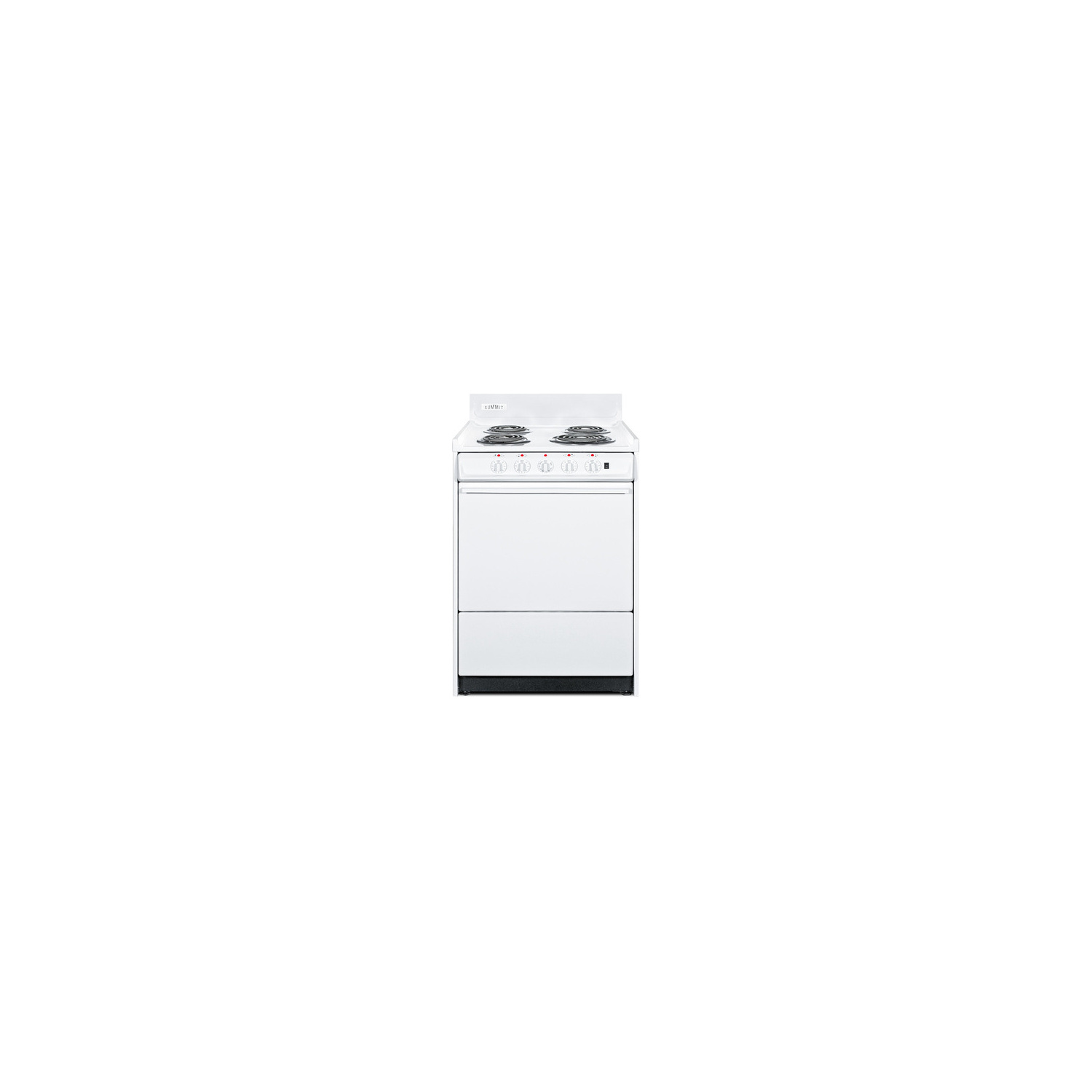

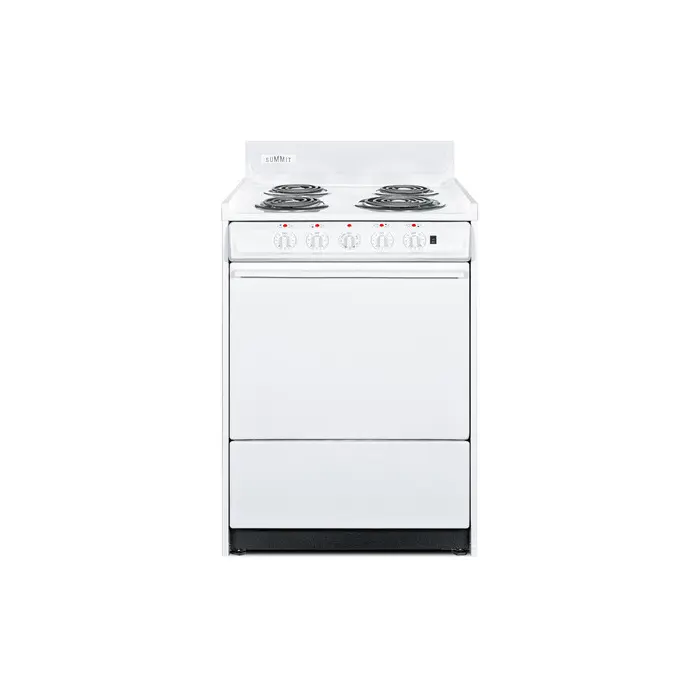

Summit 24 inch wide electric range with indicator lights and a three-prong line cord, 7.61101e+011, WEM6171Q

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens.

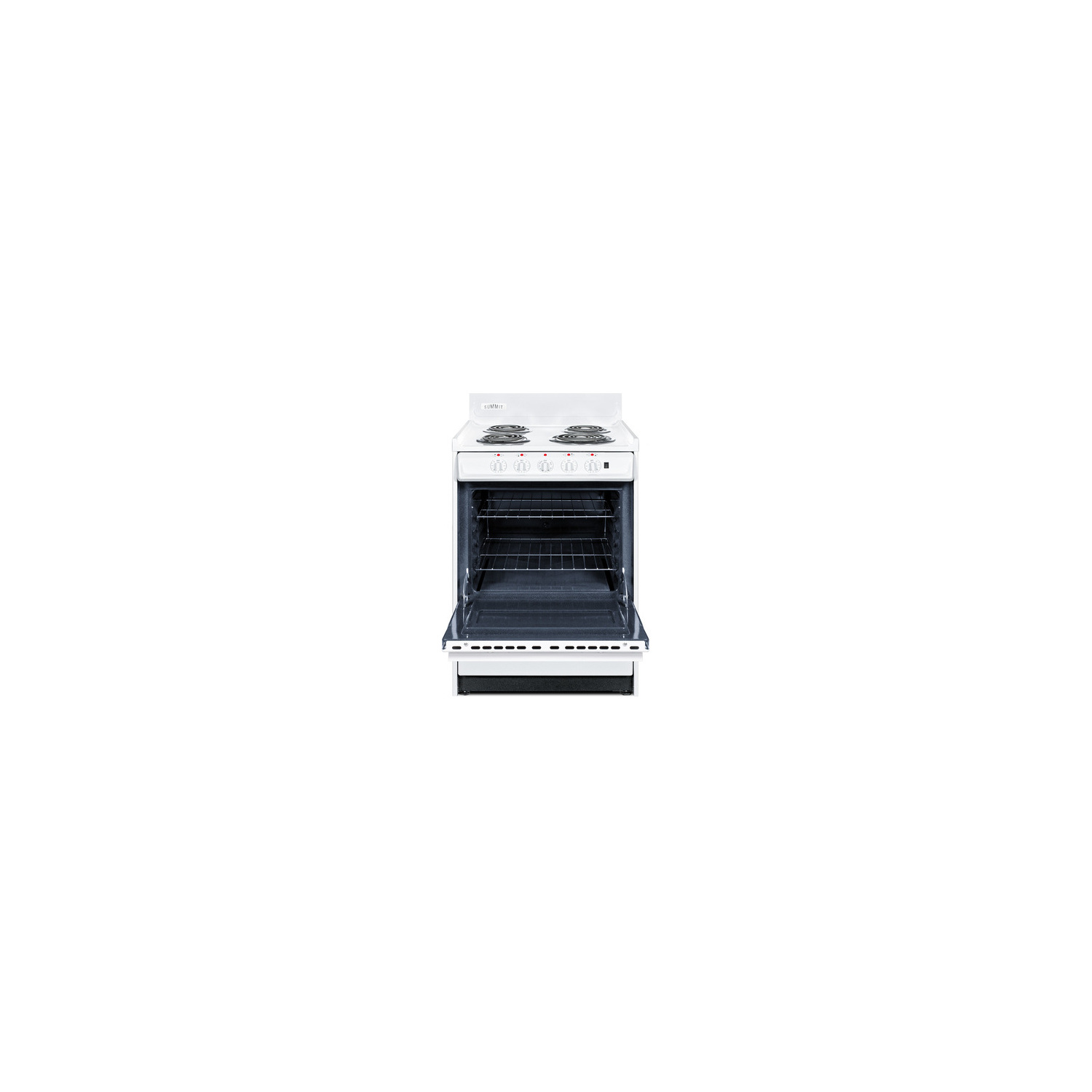

The WEM6171Q is an apartment-sized 220V electric range featured to meet ADA guidelines and ideal for use in senior living facilities, HUD applications, and other types of community living with added safety needs. It includes a pre-installed 3-prong line cord, as well as individual indicator lights for each cooking element and an interior oven light with an exterior on/off rocker switch. Sized at just 24" wide, it has a full-sized 2.92 cu.ft oven interior that can accommodate large trays. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens.

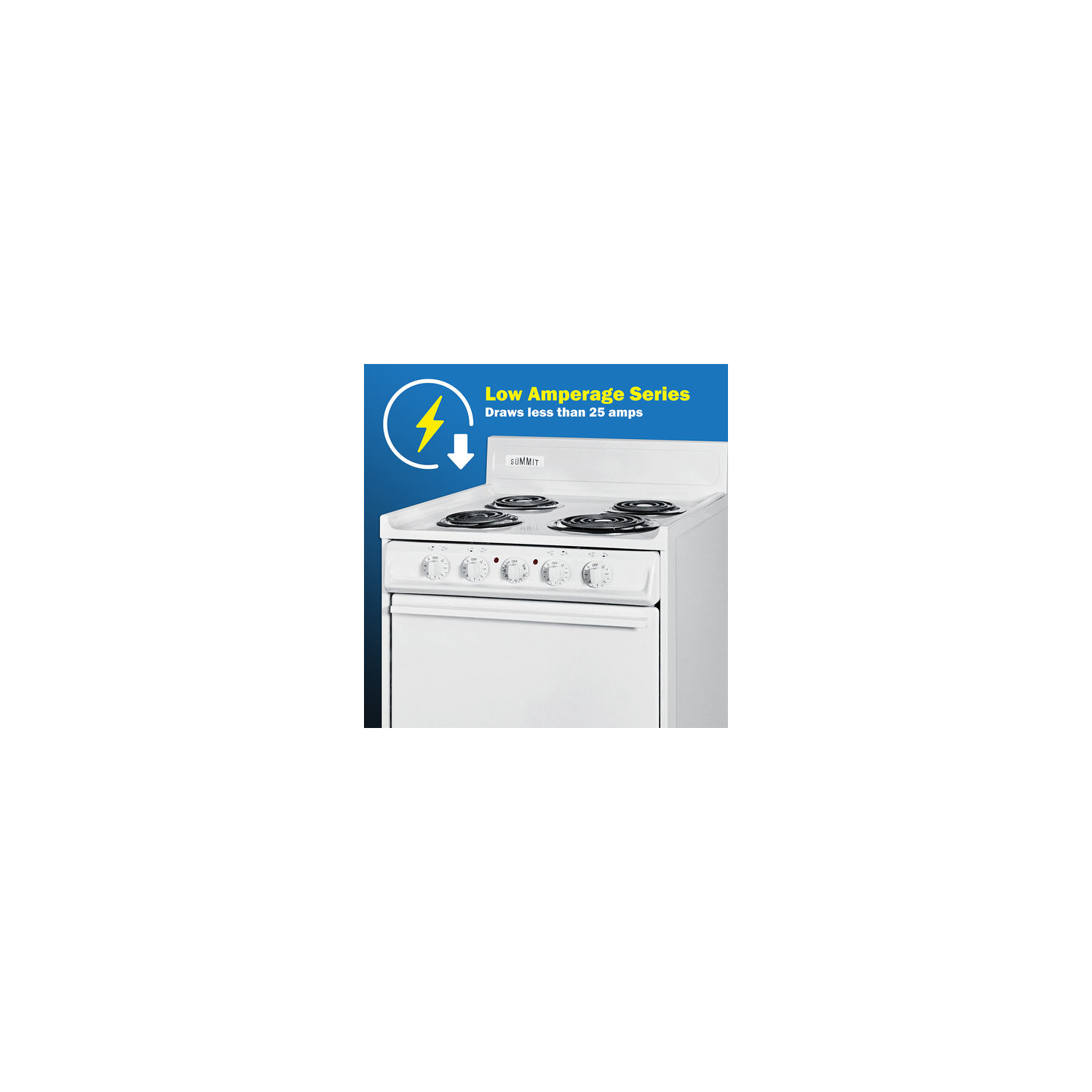

Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines.

The WEM6171Q comes in a classic white finish to suit any kitchen setting. It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every" counts. Porcelain and steel construction help the unit hold up to years of daily use. We include an anti-tip bracket for added safety.

With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 30", and 36" wide fits.

Nominal Height: 40
Height of Cabinet: 40
Height to Hinge Cap: 0
Nominal Width: 24
Width: 24
Width with Door Open: 0
Nominal Depth: 24
Depth: 24
Depth with Handle: 0
Depth with door at 90°: 0
Capacity: 0
Bottles: 0Defrost Type: N/ADoor: WhiteCabinet: WhiteUS Electrical Safety: CSACanadian Electrical Safety: N/ASanitation: N/AVoltage/Frequency: 220 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: N/A

SPECIFICATIONS

Overview

Nominal Height 40.0" (102 cm)

Height of Cabinet 40.0" (102 cm)

Nominal Width 24.0" (61 cm)

Width 24.0" (61 cm)

Nominal Depth 24.0" (61 cm)

Depth 24.0" (61 cm)

Door White

Cabinet White

US Electrical Safety CSA

Amps 40.0

Voltage/Frequency 220 V AC/60 Hz

Weight 150.0 lbs. (68 kg)

Parts & Labor Warranty 1 Year

UPC 761101003573

Electric Range

Oven Capacity 2.92 cu.ft. (83 L)

Cooktop Surface Porcelain

Element Type Coils

Number of Elements 4

Element #1 Size 6.0" (15 cm)

Element #1 Wattage 675.0

Element #2 Size 6.0" (15 cm)

Element #2 Wattage 675.0

Element #3 Size 6.0" (15 cm)

Element #3 Wattage 675.0

Element #4 Size 8.0" (20 cm)

Element #4 Wattage 950.0

Burner Controls Dial

Oven Controls Dial

Oven Light Yes

Backguard Yes

Cleaning Type Manual

Oven Interior Height 14.0" (36 cm)

Oven Interior Width 19.0" (48 cm)

Oven Interior Depth 19.0" (48 cm)

Individual Indicator Lights Yes

Storage Compartment Yes

Broiler Location Inside Oven

Oven Door White

HUD Qualified Yes

FEATURES

24" Wide Electric Range Coil surface and full-sized oven ideal for smaller kitchens

Made in the USA Designed and constructed domestically

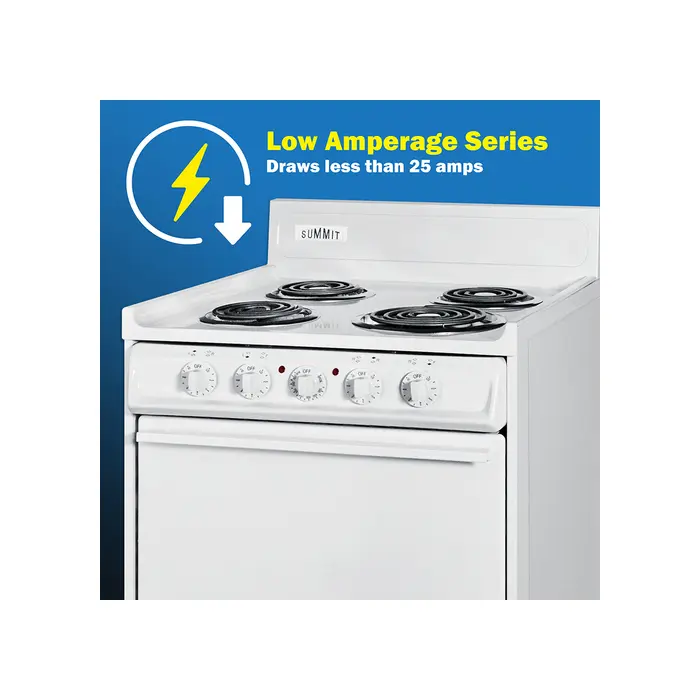

Advanced safety features Low wattage elements, individual indicator lights, and additional features to ensure added safety in senior living, HUD kitchens, and other group facilities

Slim 24 inch width Apartment-sized width offers all the functionality you need in a smaller footprint

24 inch depth Shallower fit is ideal for L-shaped and galley kitchens

Four coil elements Three standard 6" and one large 8" element

Safety burners with low wattage outputs Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off

Chrome drip pans Each coil element includes a removable chrome pan for easier cleaning

Individual indicator lights Control panel includes five indicator lights to show when every cooking element in use

Cord included Pre-installed 3-prong range cord

Upfront controls All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners

Push-to-turn knobs Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn

Recessed oven door Smart design limits the depth and protects adjacent cabinets

Porcelain and steel construction Solid construction built to hold up to everyday use

Waist-high broiler Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor

Oven light Exterior on/off rocker switch control for the oven interior

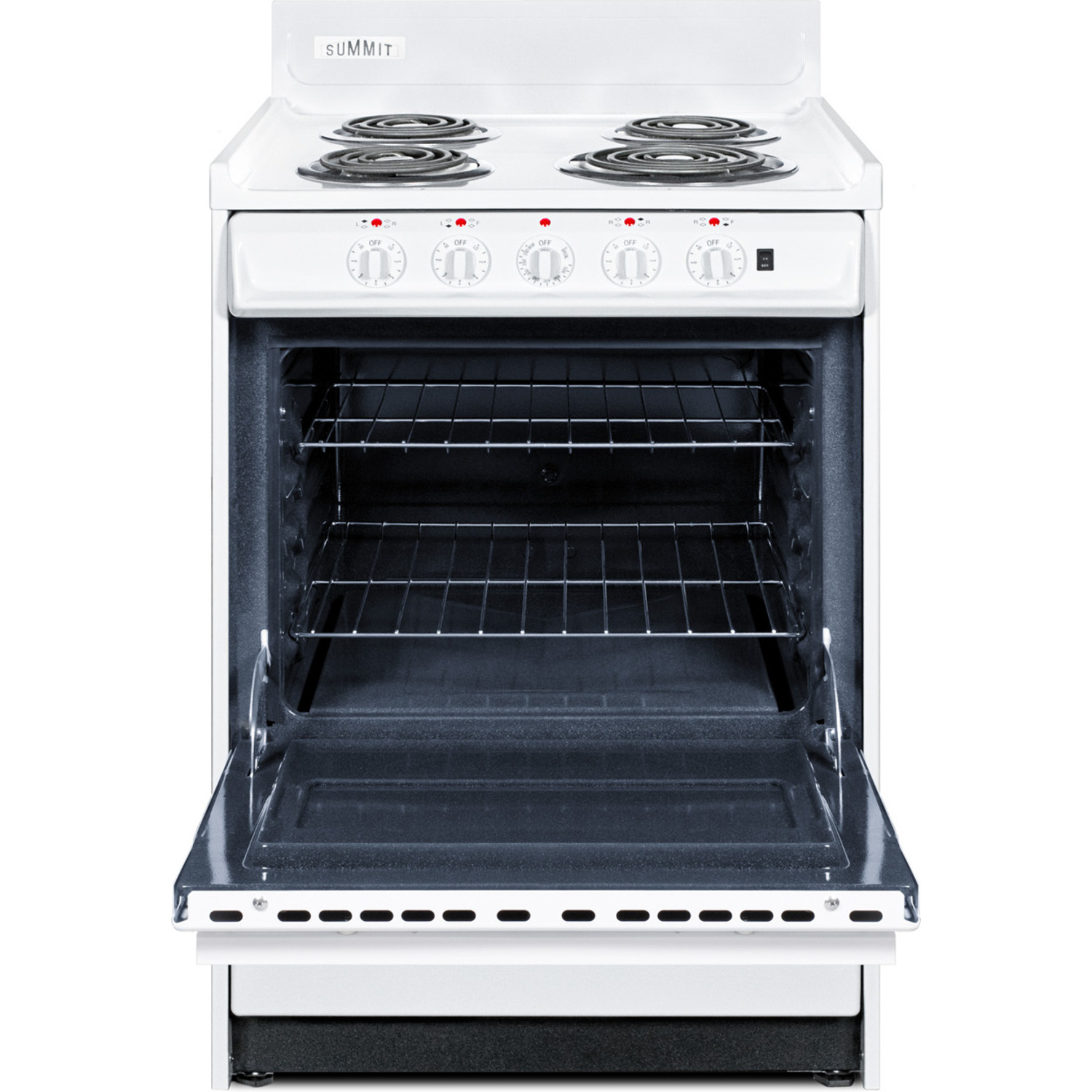

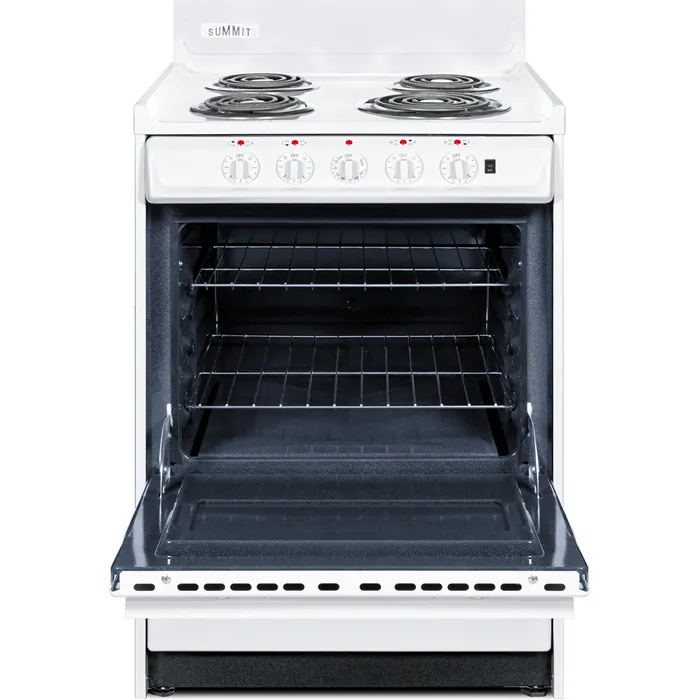

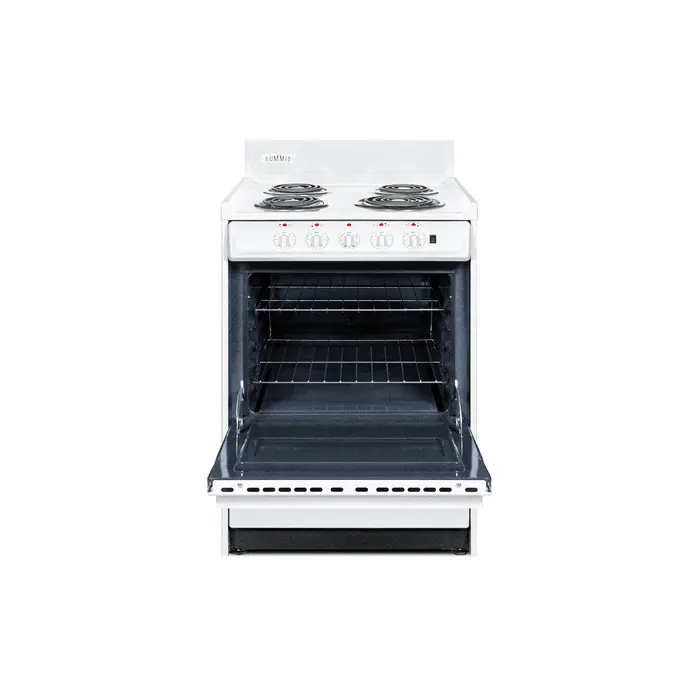

Adjustable oven racks Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Storage compartment Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen

Removable oven door and range top Allows for easier cleaning as needed

Broiler tray included Two-piece porcelain broiler tray with grease well

Anti-tip bracket Included for user installation to help prevent tipping

ADA compliant design Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines

DOWNLOADS

BROCHURE w/ DRAWINGS (WEM6171Q.pdf)

TECHNICAL DRAWING (.dwg) (WEM6171QRANGEELECTRICA-C2000.dwg)

USE & CARE (WEM6171Q-User-Manual.pdf)

OTHER (Summit_Anti-Tip_Bracket.pdf)
