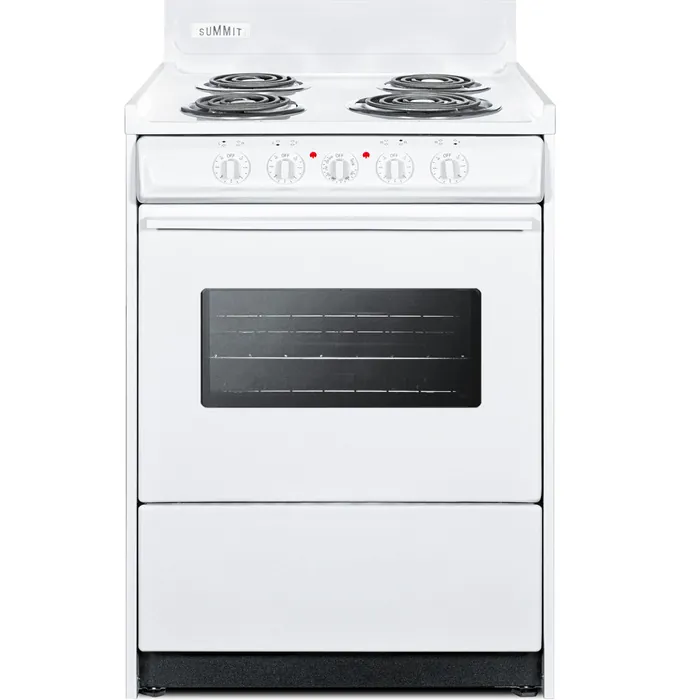

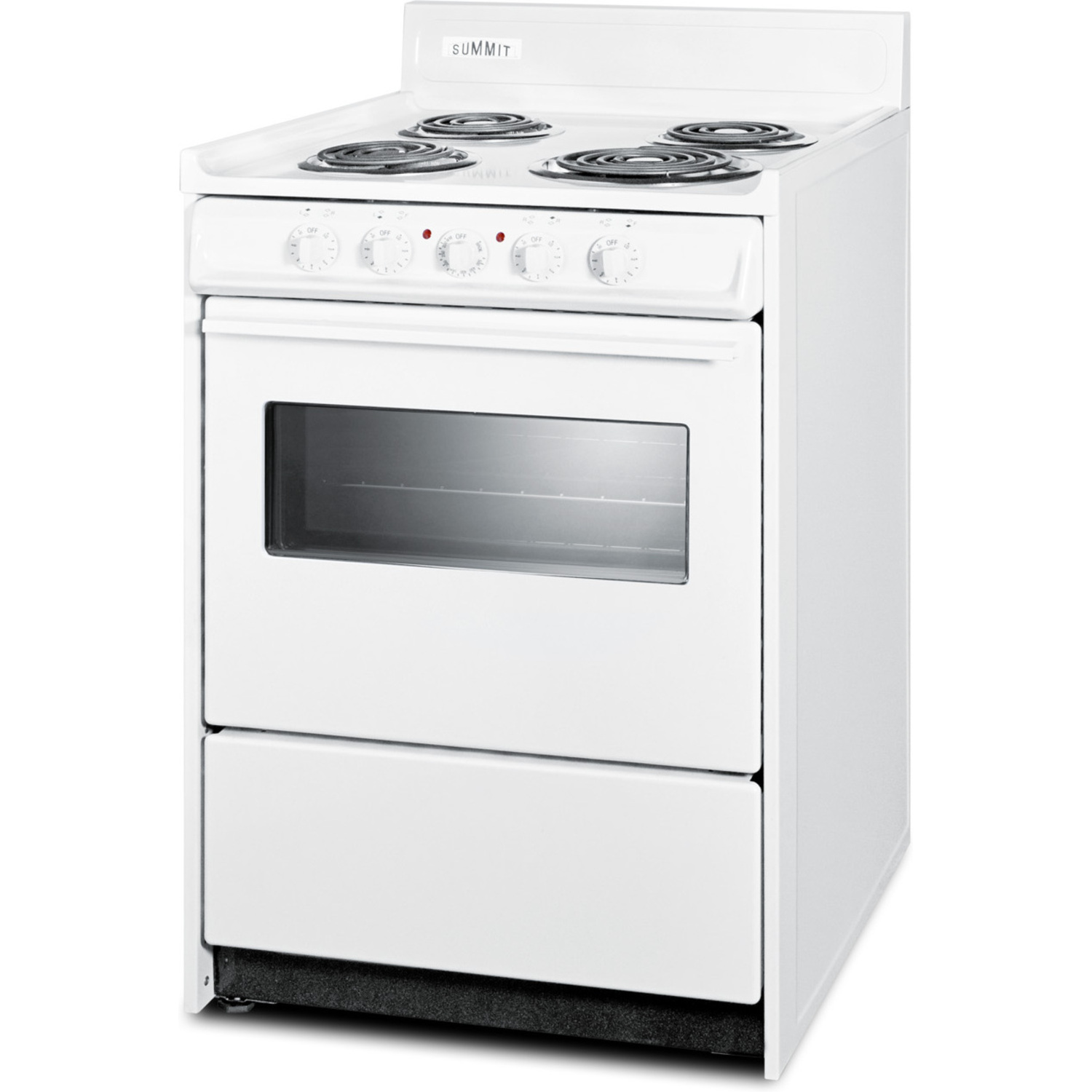

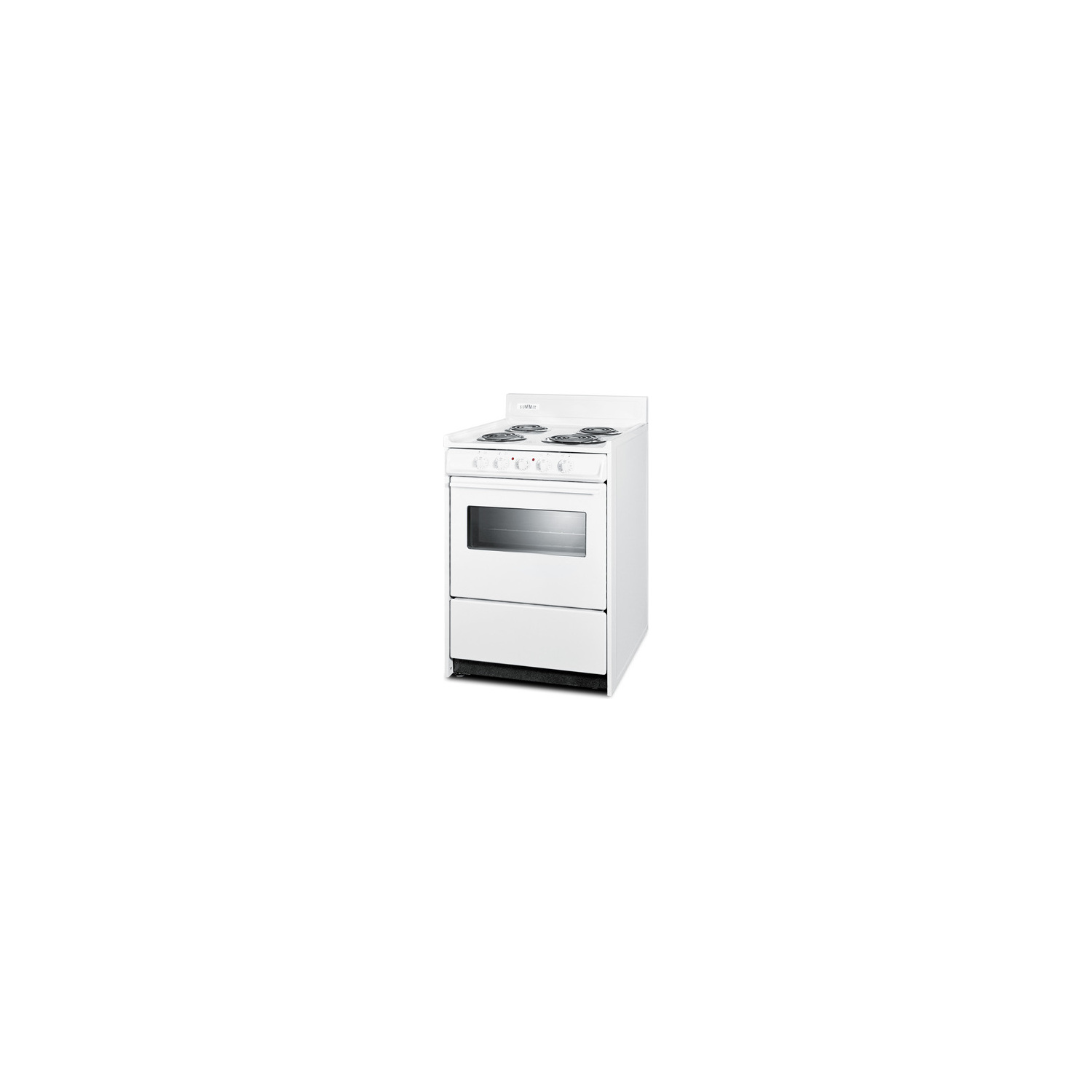

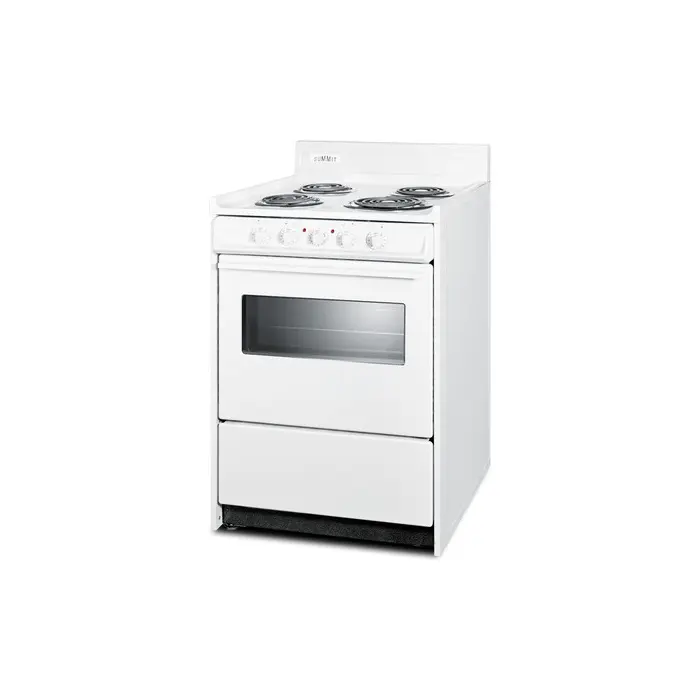

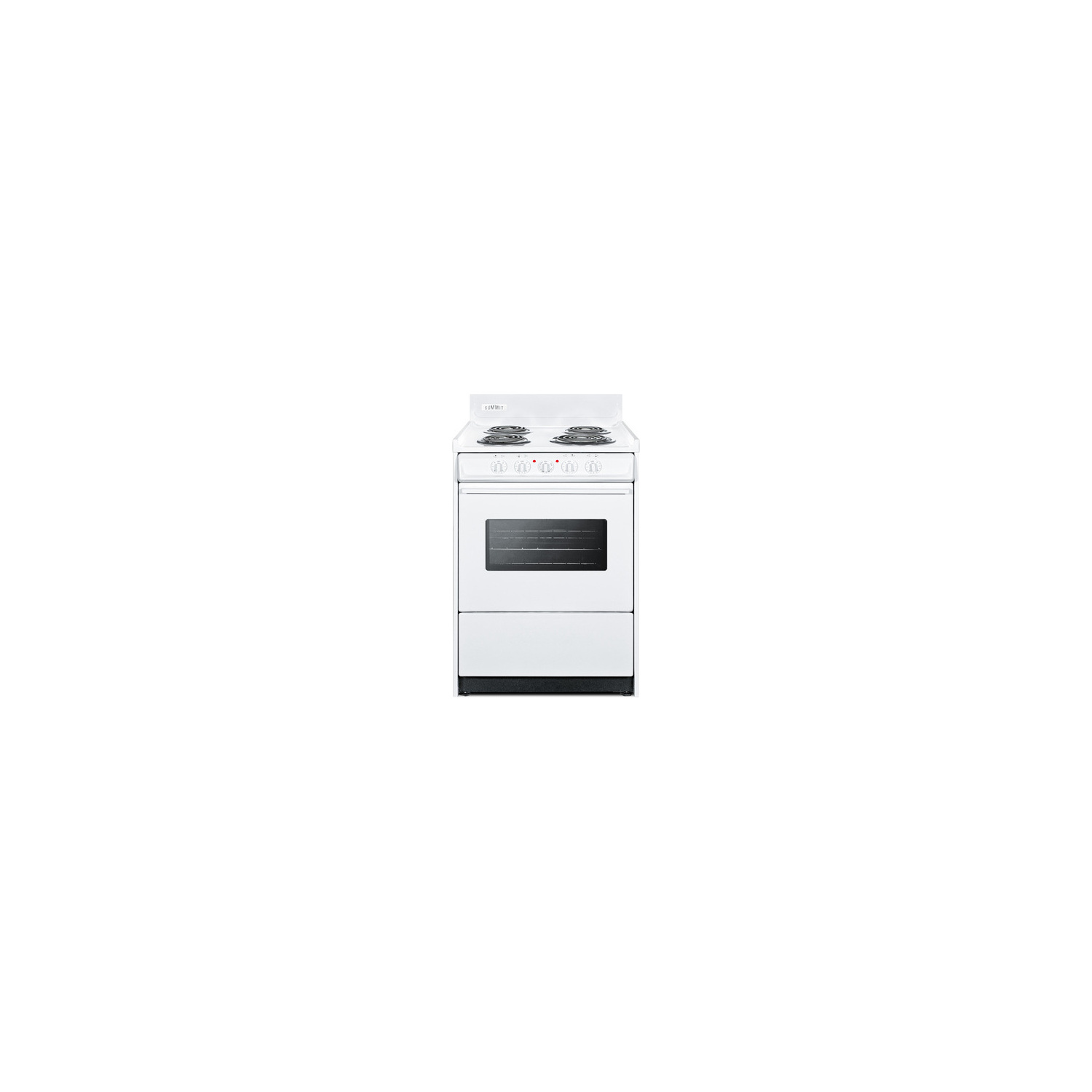

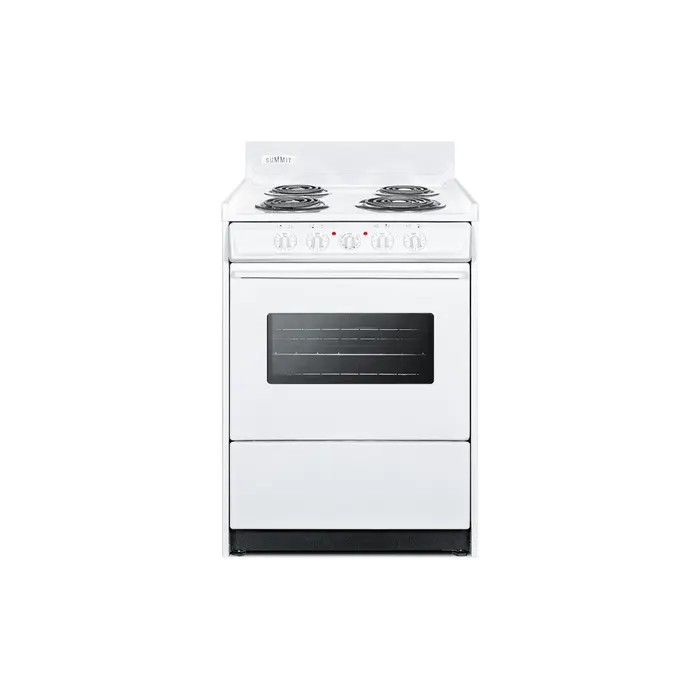

Summit 24 inch wide slide-in style electric coil top range in white with oven window, 7.61101e+011, WEM610W
$850.34
Retail Price: $1,360.00
Shipping: $250
$ 850.34
Description
Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens.

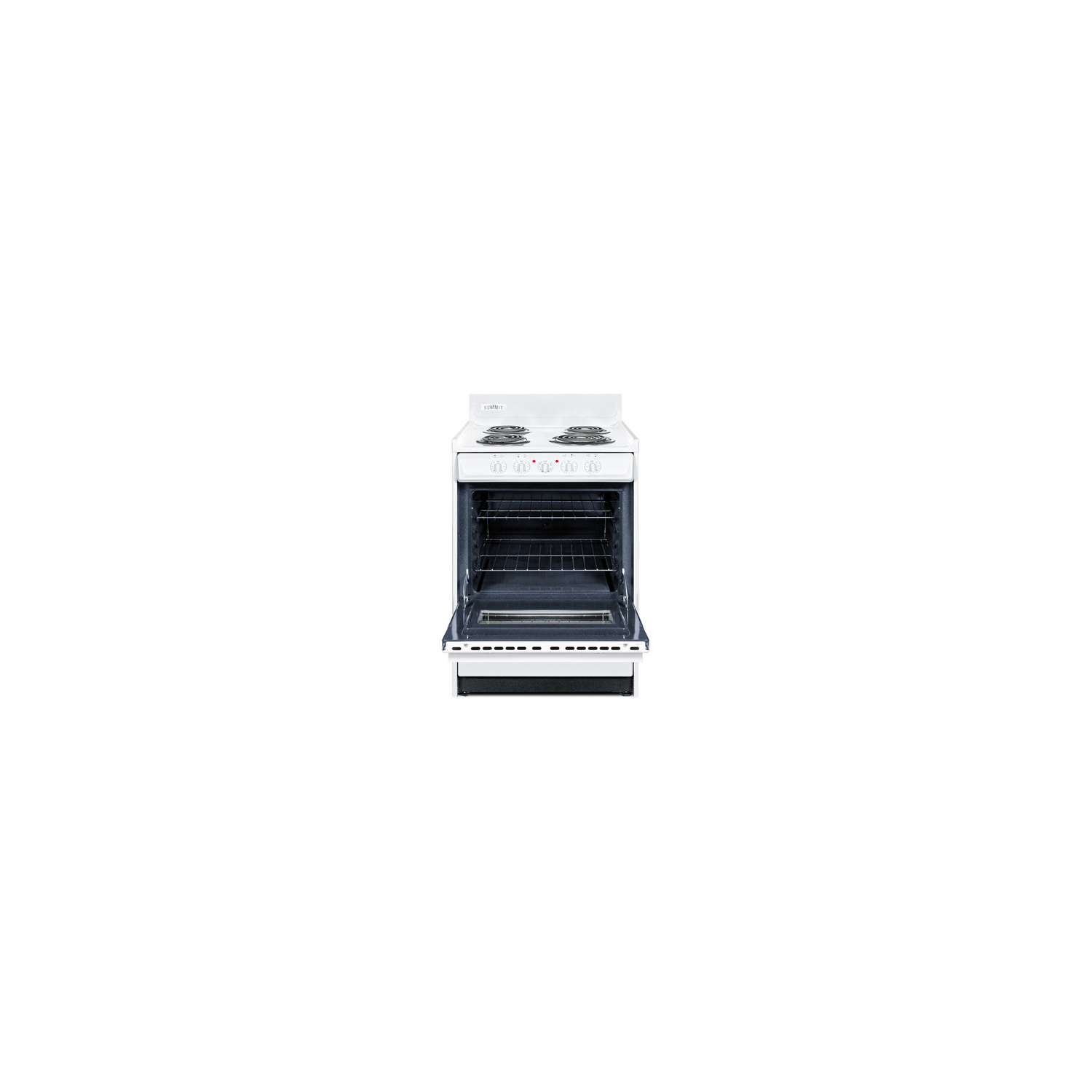

The WEM610W is an apartment-sized 220V electric range sized at just 24" wide, with a generous 2.92 cu.ft oven interior that can accommodate large trays. The oven window and interior light with an on/off switch make it easy to monitor your cooking without opening the door. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens.
Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines.
The WEM610W comes in a classic white finish to suit any kitchen. It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every" counts. Porcelain and steel construction help the unit hold up to years of daily use. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 40 amp 3 or 4-prong cord can be installed by your electrician).
With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 30", and 36" wide fits.
Nominal Height: 40
Height of Cabinet: 40
Height to Hinge Cap: 0
Nominal Width: 24
Width: 24
Width with Door Open: 0
Nominal Depth: 24
Depth: 24
Depth with Handle: 0
Depth with door at 90°: 0
Capacity: 0
Bottles: 0Defrost Type: N/ADoor: WhiteCabinet: WhiteUS Electrical Safety: CSACanadian Electrical Safety: N/ASanitation: N/AVoltage/Frequency: 220 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: N/A
SPECIFICATIONS
Overview
Nominal Height 40.0" (102 cm)
Height of Cabinet 40.0" (102 cm)
Nominal Width 24.0" (61 cm)
Width 24.0" (61 cm)
Nominal Depth 24.0" (61 cm)
Depth 24.0" (61 cm)
Door White
Cabinet White
US Electrical Safety CSA
Amps 23.2
Voltage/Frequency 220 V AC/60 Hz
Weight 140.0 lbs. (64 kg)
Parts & Labor Warranty 1 Year
UPC 761101012797
Electric Range
Oven Capacity 2.92 cu.ft. (83 L)
Cooktop Surface Porcelain
Element Type Coils
Number of Elements 4
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 675.0
Element #2 Size 6.0" (15 cm)
Element #2 Wattage 675.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 675.0
Element #4 Size 8.0" (20 cm)
Element #4 Wattage 950.0
Burner Controls Dial
Oven Controls Dial
Oven Light Yes
Backguard Yes
Cleaning Type Manual
Oven Rack Qty 2
Oven Window Yes
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 19.0" (48 cm)
Oven Interior Depth 19.0" (48 cm)
Storage Compartment Yes
Broiler Location Inside Oven
Oven Door White
FEATURES
24" Wide Electric Range Coil surface and full-sized oven ideal for smaller kitchens
Made in the USA Designed and constructed domestically
Low amperage 23.2 amp performance allows use with 25 or 30 amp breakers, ensuring full cooking performance in kitchens with limited power resources
Slim 24 inch width Apartment-sized width offers all the functionality you need in a smaller footprint
24 inch depth Shallower fit is ideal for L-shaped and galley kitchens
Storage compartment Keep pots and pans inside the lower drop-down compartment for easy space-saving storage
Four coil elements Three standard 6" and one large 8" element
Safety burners with low wattage outputs Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
Chrome drip pans Each coil element includes a removable chrome pan for easier cleaning
Oven window and interior lighting Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
Waist-high broiler Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
Recessed oven door Smart design limits the depth and protects adjacent cabinets

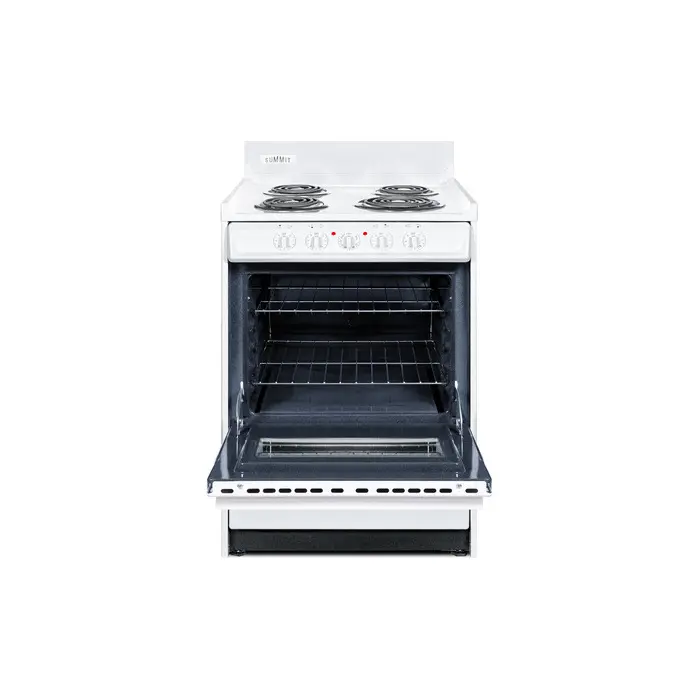

Adjustable oven racks Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Porcelain and steel construction Solid construction built to hold up to everyday use
Upfront controls All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners
Push-to-turn burner knobs Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
Indicator lights Control panel includes an 'on' light for the oven and burners for added safety when using the range
Removable oven door and range top Allows for easier cleaning as needed
Broiler tray included Two-piece porcelain broiler tray with grease well
Anti-tip bracket Included for user installation to help prevent tipping
Cord not included Compatible with standard 25 or 30 amp 3 or 4-wire range cords
ADA compliant Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines
