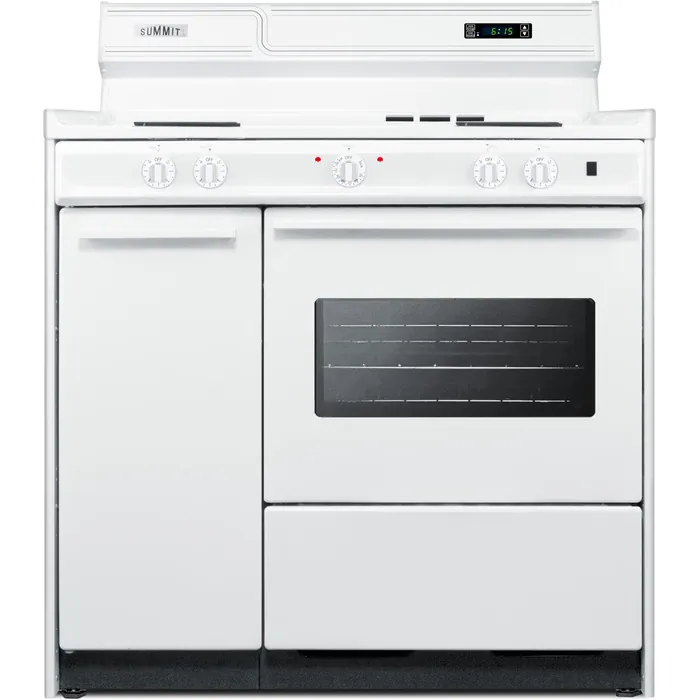

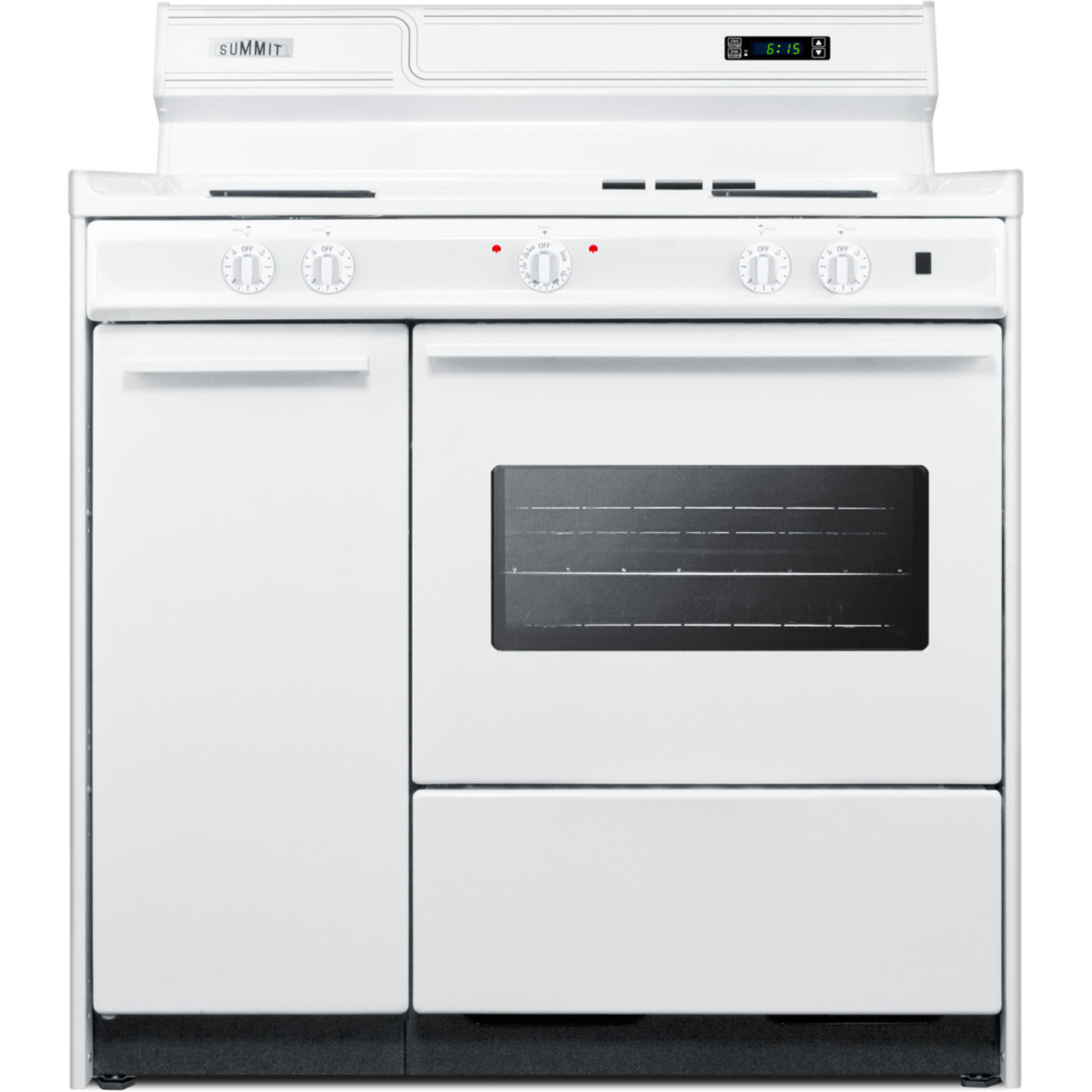

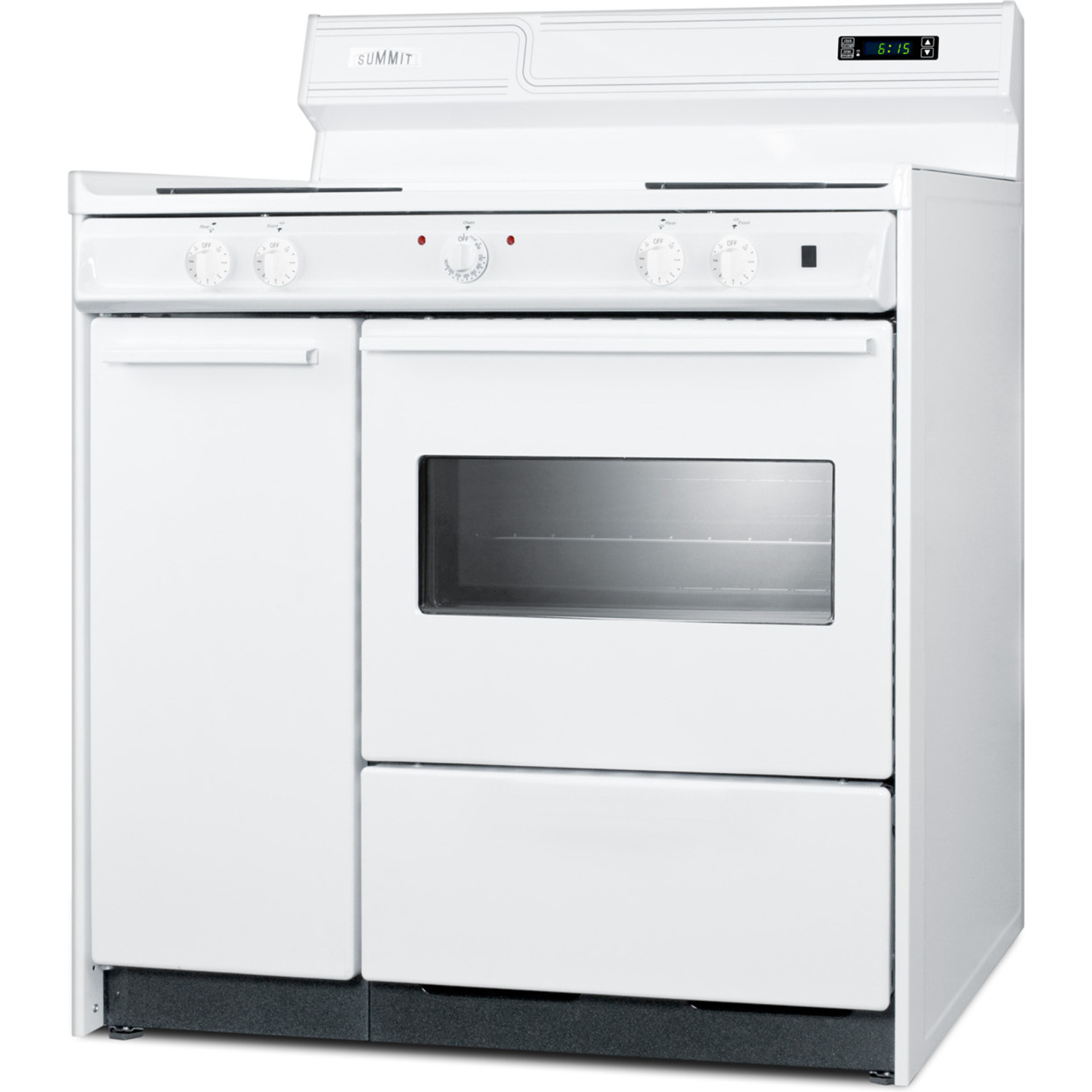

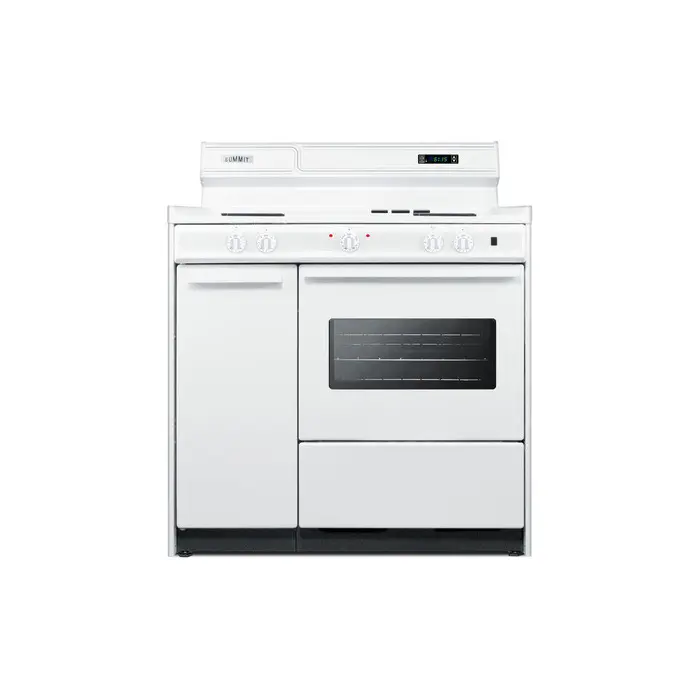

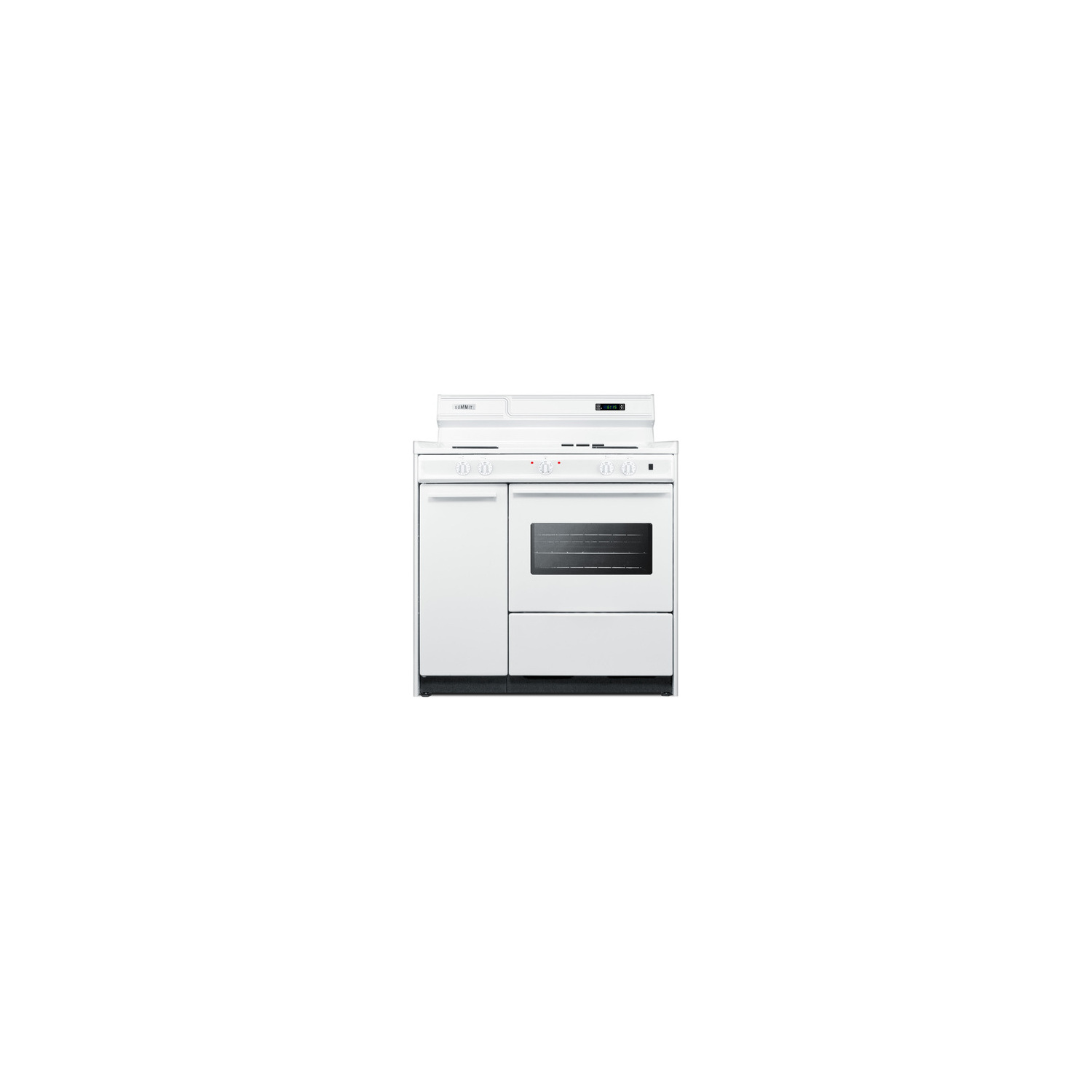

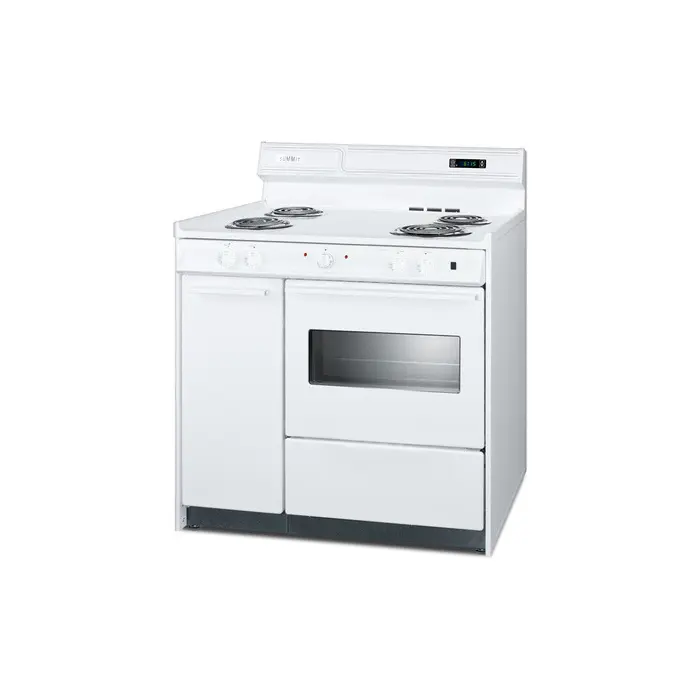

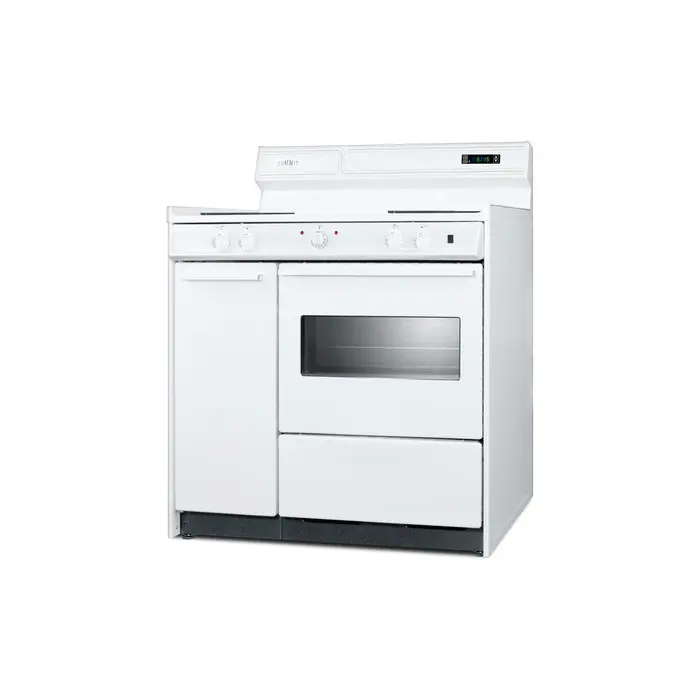

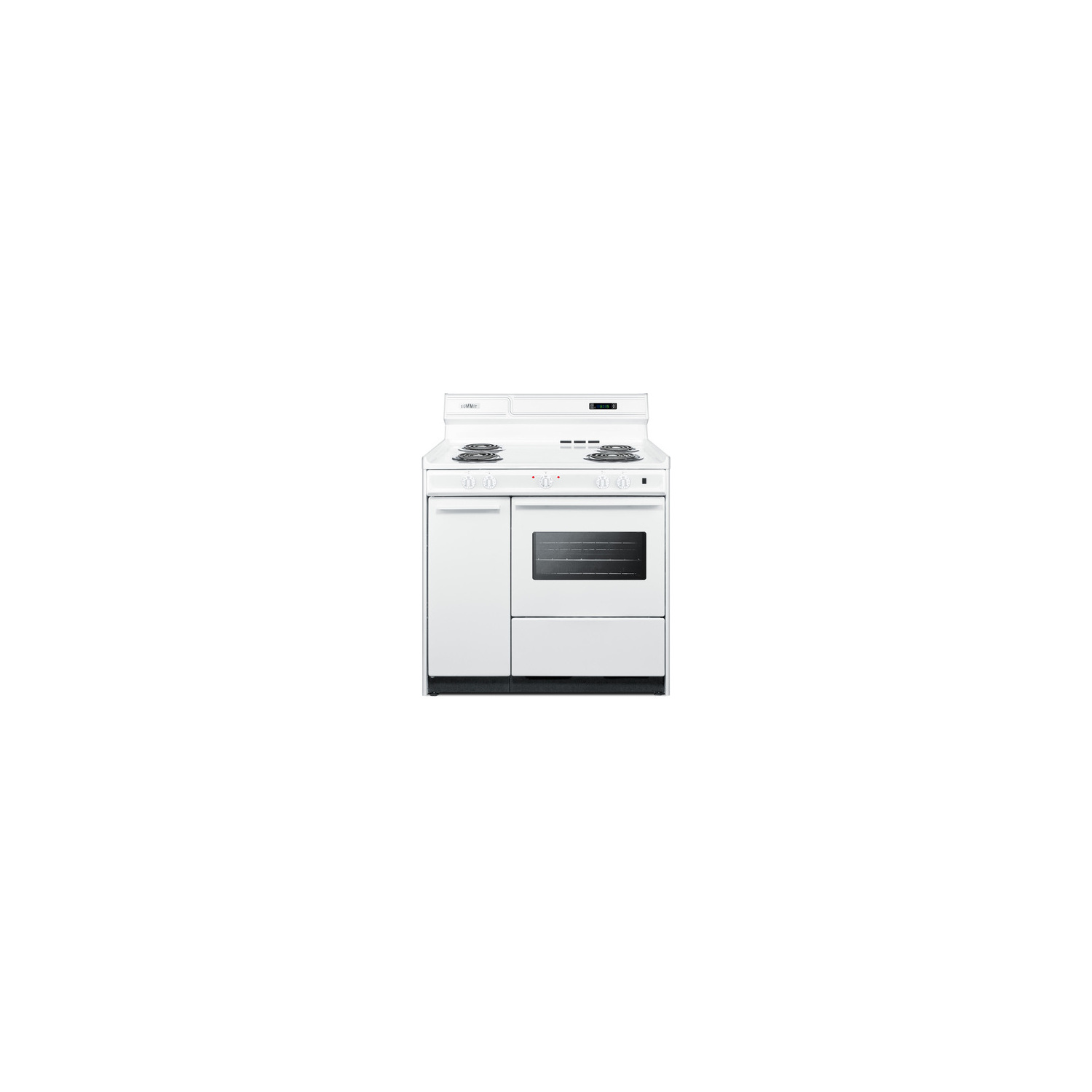

Summit 36 inch wide electric coil top range in white with storage compartment, oven window, and high backguard, 7.61101e+011, WEM430KW
$1,364.83
Retail Price: $2,060.00
Shipping: $250
$ 1,364.83
Description
Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens.
The WEM430KW is a 220V electric range uniquely sized at 36" wide, with a 2.46 cu.ft oven interior that can accommodate large trays. The oven window and interior light with an on/off switch make it easy to monitor your cooking without opening the door. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. This unit has a side storage compartment with a removable shelf and a lower drop-down section for cookware.
Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines.
The WEM430KW comes in a classic white finish to suit any kitchen. It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every" counts. Porcelain and steel construction help the unit hold up to years of daily use. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 40 amp 3 or 4-prong cord can be installed by your electrician).
With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 24", and 30" wide fits.
Nominal Height: 44
Height of Cabinet: 44
Height to Hinge Cap: 0
Nominal Width: 36
Width: 36
Width with Door Open: 0
Nominal Depth: 24
Depth: 24
Depth with Handle: 0
Depth with door at 90°: 0
Capacity: 0
Bottles: 0Defrost Type: N/ADoor: WhiteCabinet: WhiteUS Electrical Safety: CSACanadian Electrical Safety: N/ASanitation: N/AVoltage/Frequency: 220 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: N/A
SPECIFICATIONS
Overview
Nominal Height 44.0" (112 cm)
Height of Cabinet 44.0" (112 cm)
Nominal Width 36.0" (91 cm)
Width 36.0" (91 cm)
Nominal Depth 24.0" (61 cm)
Depth 24.0" (61 cm)
Door White
Cabinet White
US Electrical Safety CSA
Amps 23.2
Voltage/Frequency 220 V AC/60 Hz
Weight 200.0 lbs. (91 kg)
Parts & Labor Warranty 1 Year
UPC 761101003733
Electric Range
Oven Capacity 2.9 cu.ft. (82 L)
Cooktop Surface Porcelain
Element Type Coils
Number of Elements 4
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 675.0
Element #2 Size 6.0" (15 cm)
Element #2 Wattage 675.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 675.0
Element #4 Size 8.0" (20 cm)
Element #4 Wattage 950.0
Burner Controls Dial
Oven Controls Dial
Oven Light Yes
Cooking Timer Yes
Backguard Yes
Backguard Display Yes
Cleaning Type Manual
Oven Window Yes
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 19.0" (48 cm)
Oven Interior Depth 19.0" (48 cm)
Storage Compartment Yes
Broiler Location Inside Oven
Oven Door White/Window
FEATURES
36 inch wide range Uniquely sized to fit many older kitchen spaces
Made in the USA Designed and constructed domestically

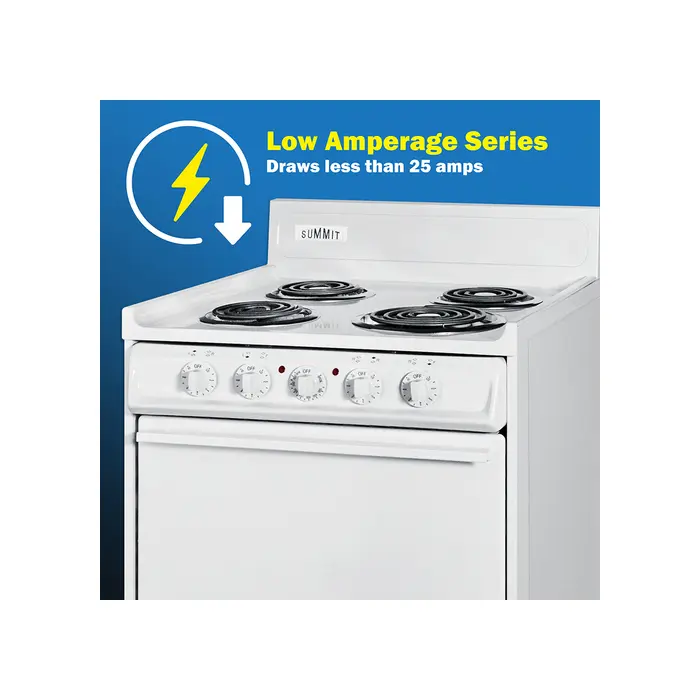

Low amperage 23.2 amp performance allows use with 25 or 30 amp breakers, ensuring full cooking performance in kitchens with limited power resources
24 inch depth Shallower fit is ideal for L-shaped and galley kitchens

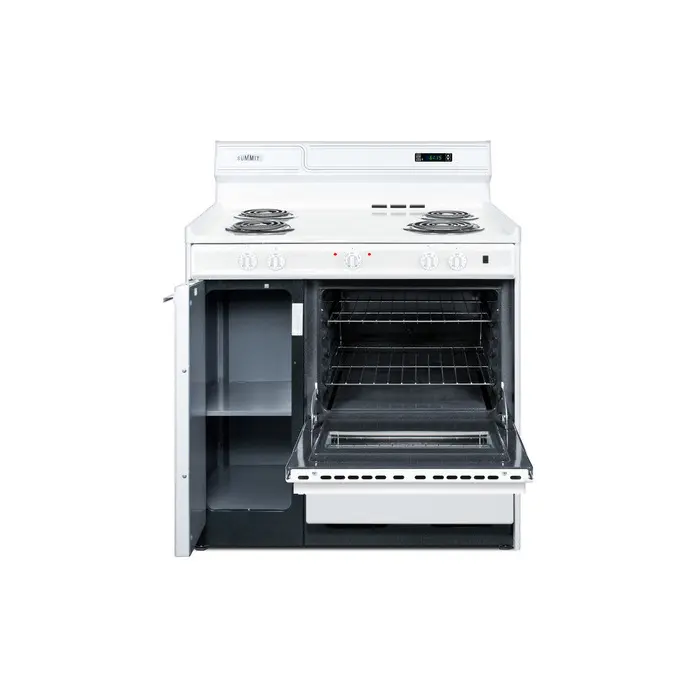

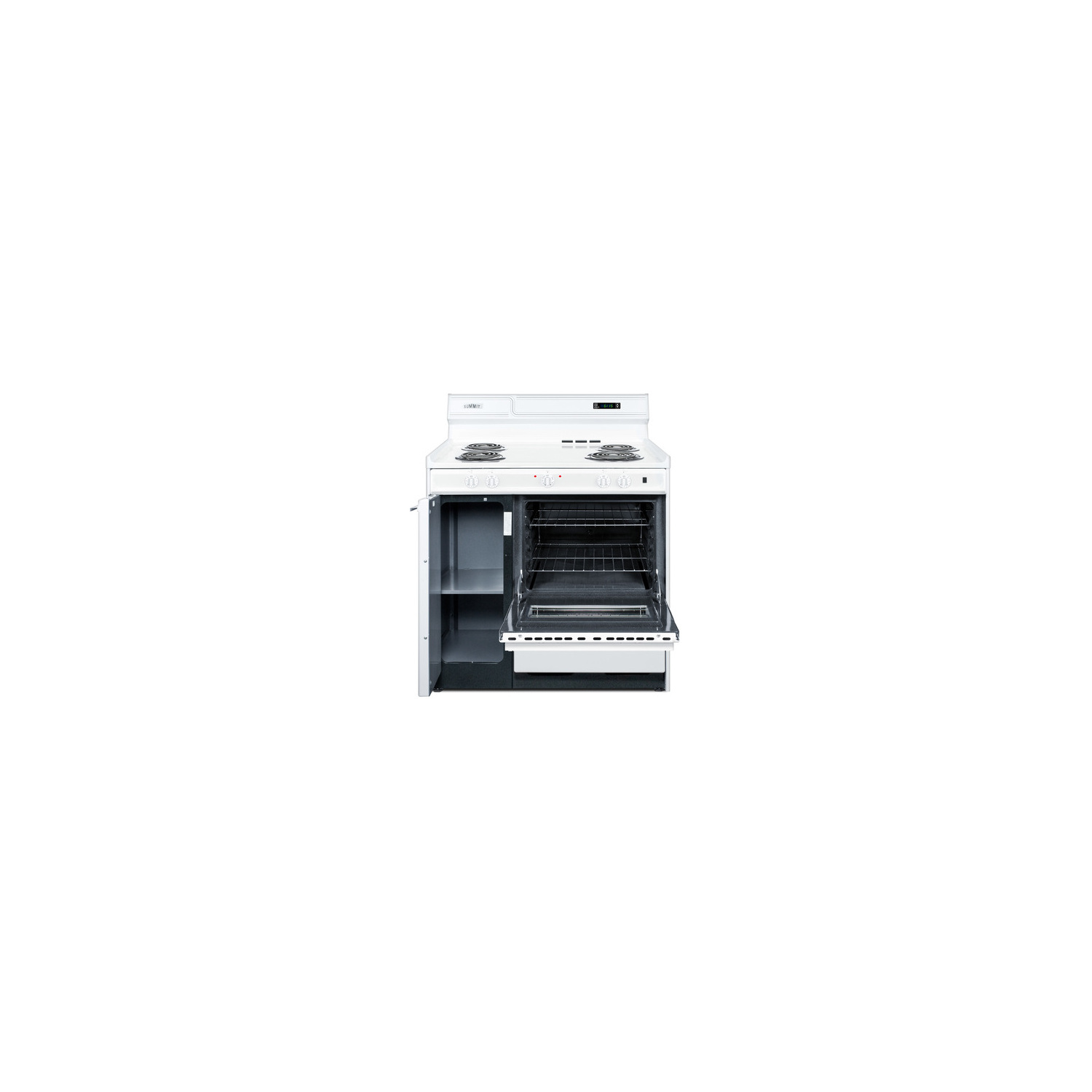

Storage compartments 12" wide storage cabinet included in body, with a removable shelf to help store cookware, smaller appliances, non-perishable food, and other items, with a lower drop-down compartment also included

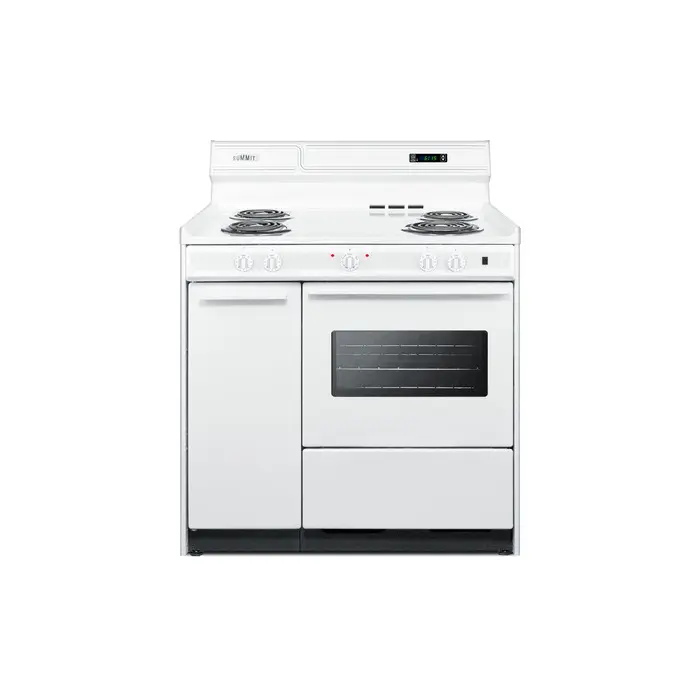

Four coil elements Includes one 8" and three 6" coil elements
Safety burners with low wattage outputs Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
Chrome drip pans Each coil element includes a removable chrome pan for easier cleaning
Oven window and light Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
Waist-high broiler Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
Adjustable oven racks Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Porcelain and steel construction Solid construction built to hold up to everyday use
Deluxe backguard 8" high backguard helps to protect your walls from spills and splashes
Digital clock and timer Backguard includes time readout
Recessed oven door Smart design limits the depth and protects adjacent cabinetry
Upfront controls All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners
Push-to-turn knobs Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
Indicator lights Control panel includes an 'on' light for the oven and burners for added safety when using the range
Broiler pan included Two-piece porcelain broiler tray with grease well
Anti-tip bracket Included for user installation to help prevent tipping
Cord not included Compatible with standard 25 or 30 amp 3 or 4-wire range cords
