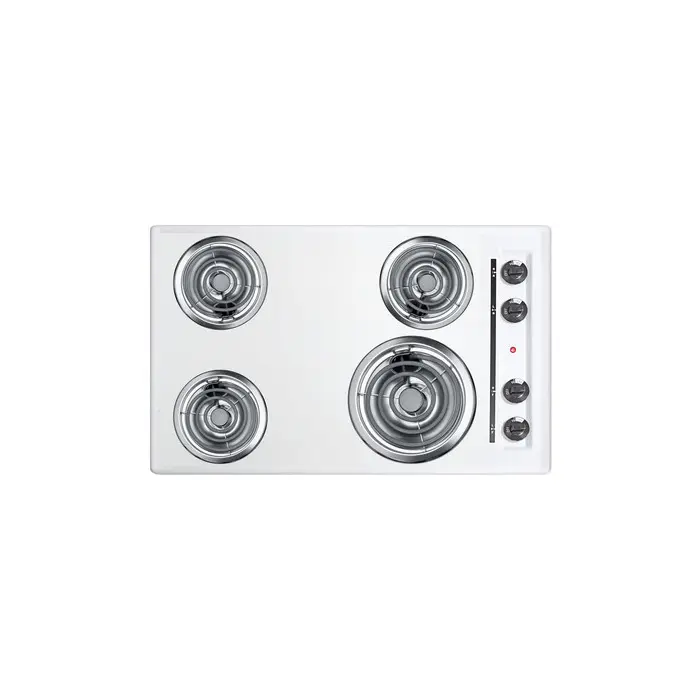

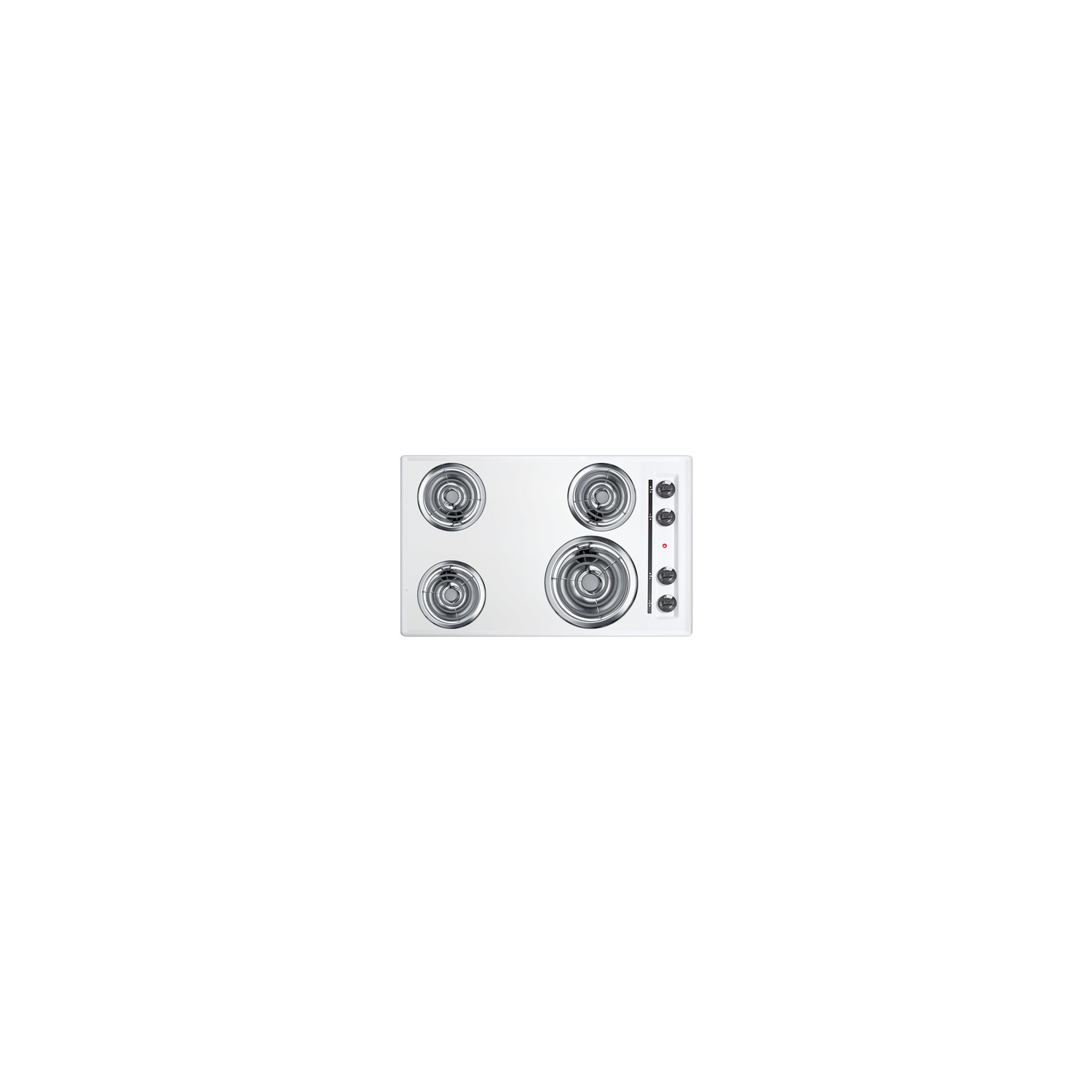

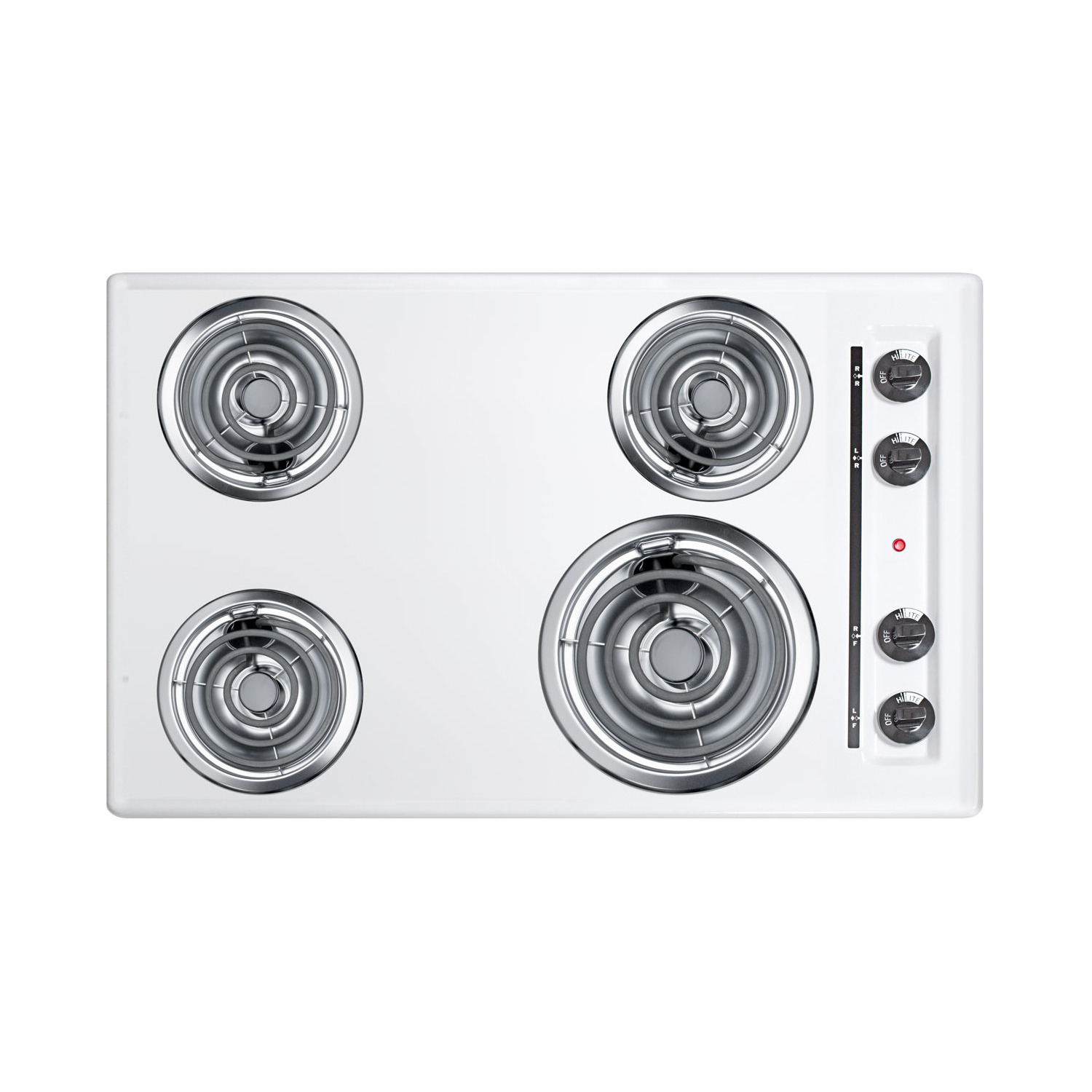

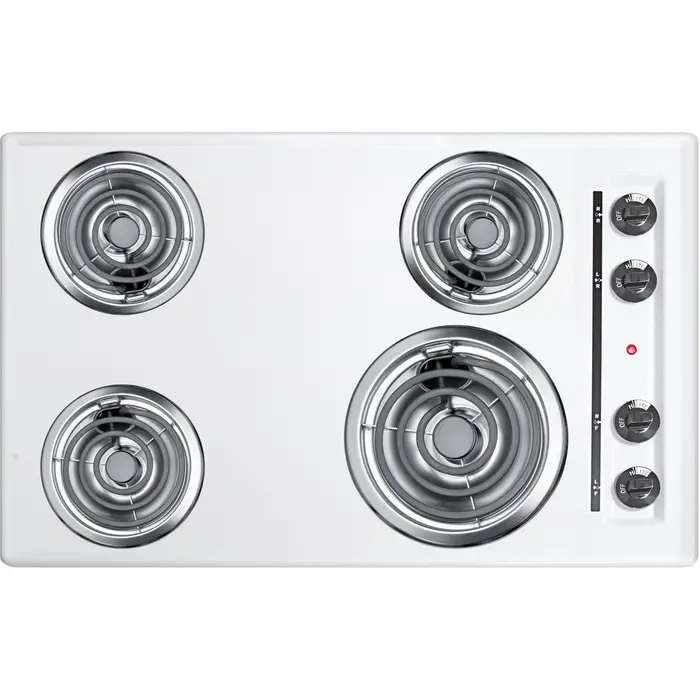

Summit 30 inch wide 220V electric coil top cooktop in white porcelain finish, 7.61101e+011, WEL05
$468.15
Retail Price: $585.00
Shipping: $250
$ 468.15
Description
Summit Appliance offers a wide selection of American-made household cooktops built for long-lasting durability in space-challenged kitchens.
The WEL05 is a 24" wide 220-240V electric cooktop designed to fit 22 5/8" wide x 18 5/8" deep cutouts. It features a porcelain surface in a white finish for a classic look, with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use, with an indicator lights to show when the cooktop is on.

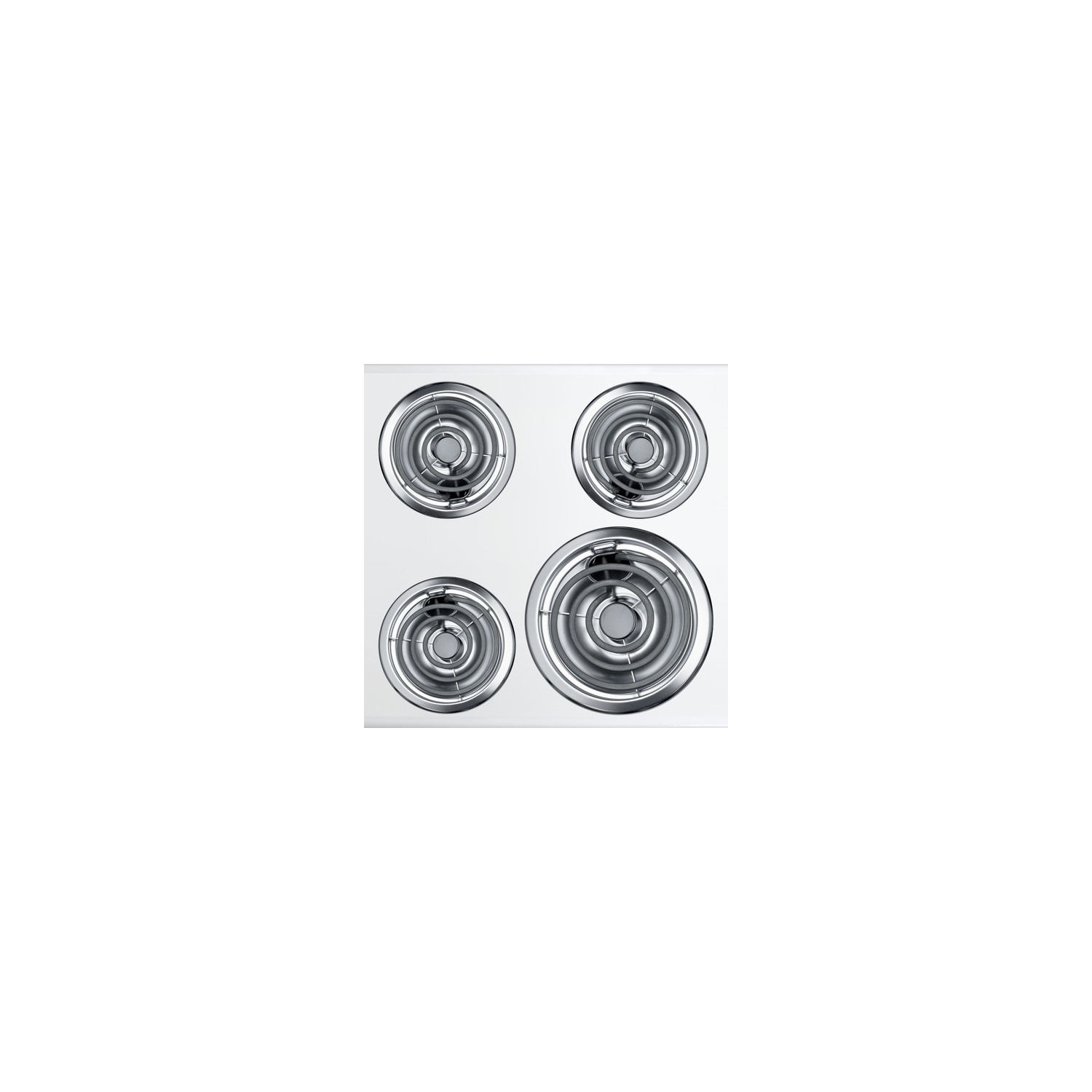

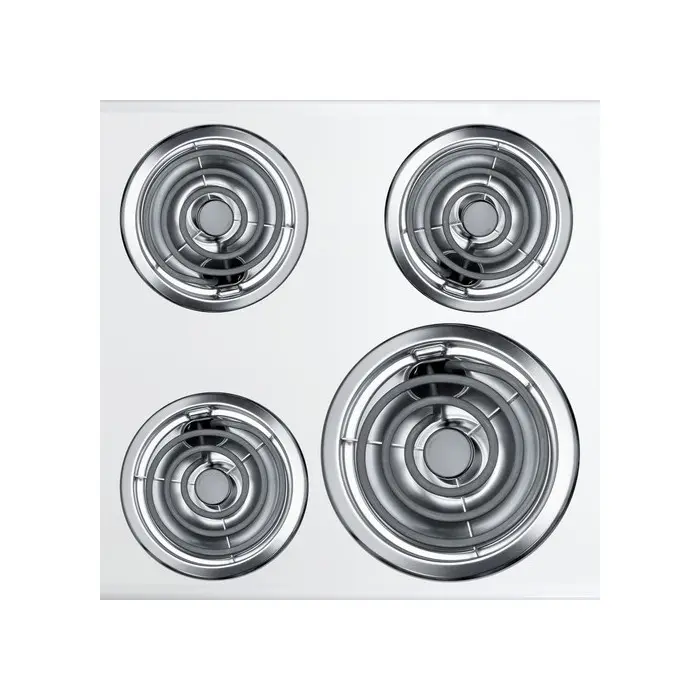

Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric cooktops, allowing for a slow but steady heating process that will not cycle off. Each element includes a removable chrome drip pan for easier cleanup. This is a 220V cooktop and requires professional installation. It is compatible with a standard 40 amp 3 or 4-wire range cord.
The WEL05 is designed and constructed in the USA. Additional finishes are available, as well as 24" sizes for larger kitchen spaces and matching wall ovens. Browse our website to explore our complete selection.
Nominal Height: 4
Height of Cabinet: 3.75
Height to Hinge Cap: 0
Nominal Width: 30
Width: 29.75
Width with Door Open: 0
Nominal Depth: 20
Depth: 20
Depth with Handle: 0
Depth with door at 90°: 0
Capacity: 0
Bottles: 0Defrost Type: N/ADoor: N/ACabinet: WhiteUS Electrical Safety: ULCanadian Electrical Safety: ULCSanitation: N/AVoltage/Frequency: 230 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: N/A
SPECIFICATIONS
Overview
Nominal Height 4.0" (10 cm)
Height of Cabinet 3.75" (10 cm)
Nominal Width 30.0" (76 cm)
Width 29.75" (76 cm)
Nominal Depth 20.0" (51 cm)
Depth 20.0" (51 cm)
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 30.0
Voltage/Frequency 230 V AC/60 Hz
Weight 28.0 lbs. (13 kg)
Parts & Labor Warranty 1 Year
UPC 761101000770
Electric Cooktop
Heating Type Radiant
Surface Painted
Element Type Coils
Number of Elements 4
Controls Dial
Countertop Cutout Width 28.38" (72 cm)
Countertop Cutout Depth 18.63" (47 cm)
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 675.0
Element #2 Size 8.0" (20 cm)
Element #2 Wattage 950.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 675.0
Element #4 Size 6.0" (15 cm)
Element #4 Wattage 675.0
Power Cord Included No
FEATURES
Made in the USA Designed and constructed domestically
Classic fit Fits common 28 3/8" W x 18 5/8" D counter cutouts
Porcelain cooking surface Scratch-resistant top in a clean white finish
Coil elements Traditional design offers reliable heating and strong durability for everyday use
Safety burners with low wattage outputs Complies with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
8" burner Larger element is ideal for heating wider pots and pans
Three 6" burners Standard burners accommodate most heating needs

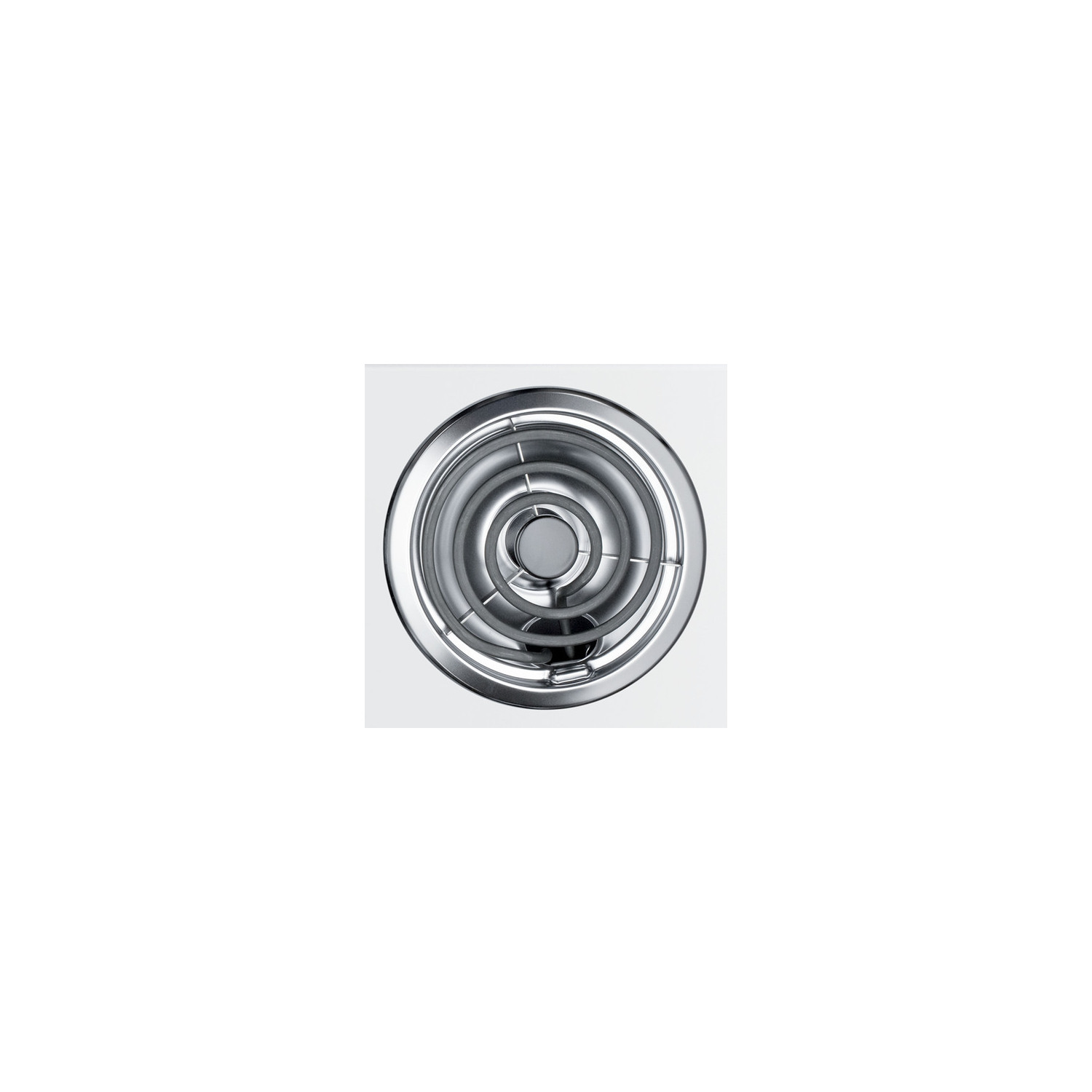

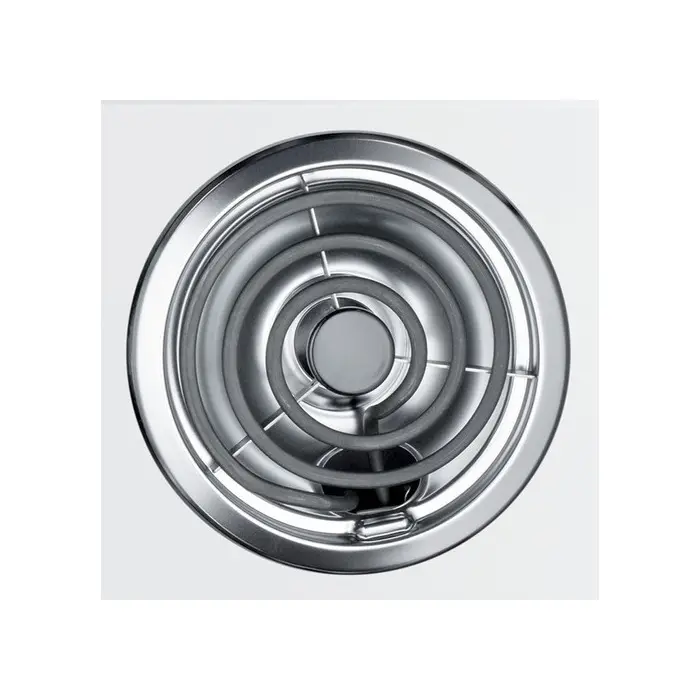

Chrome drip bowls Each coil element includes a removable chrome pan to catch spills for easier cleanup
Recessed top Curved design helps to contain spills on the surface

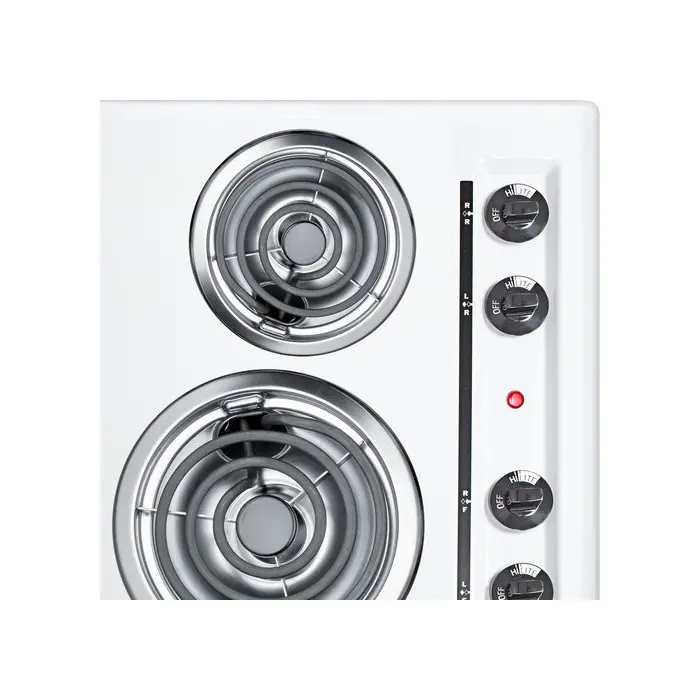

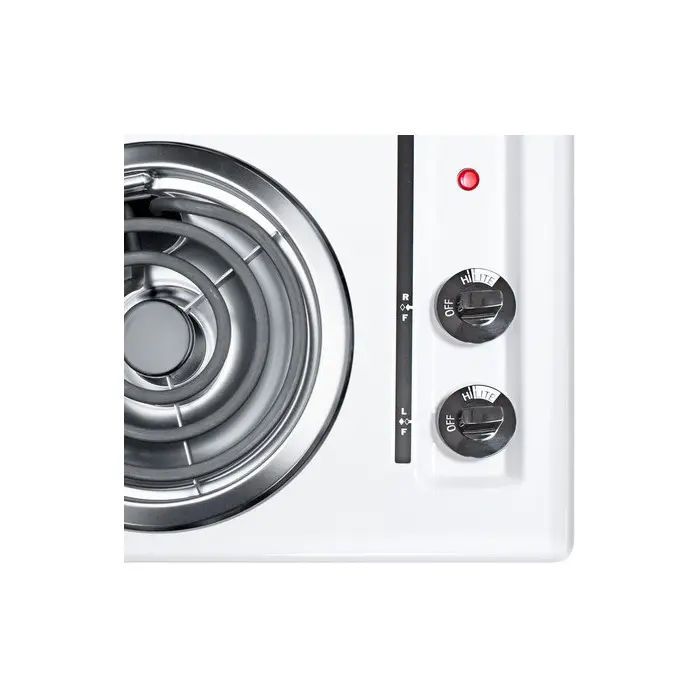

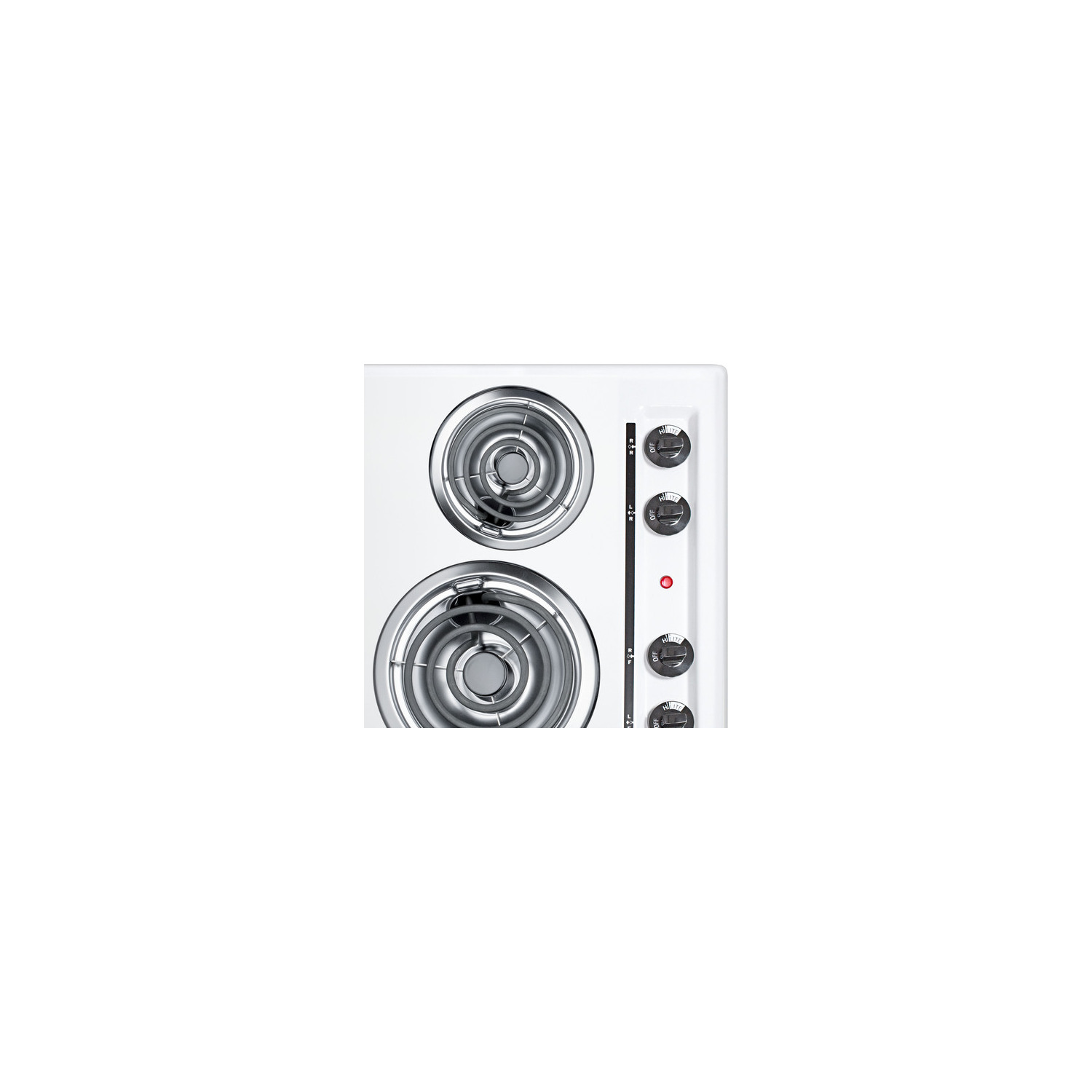

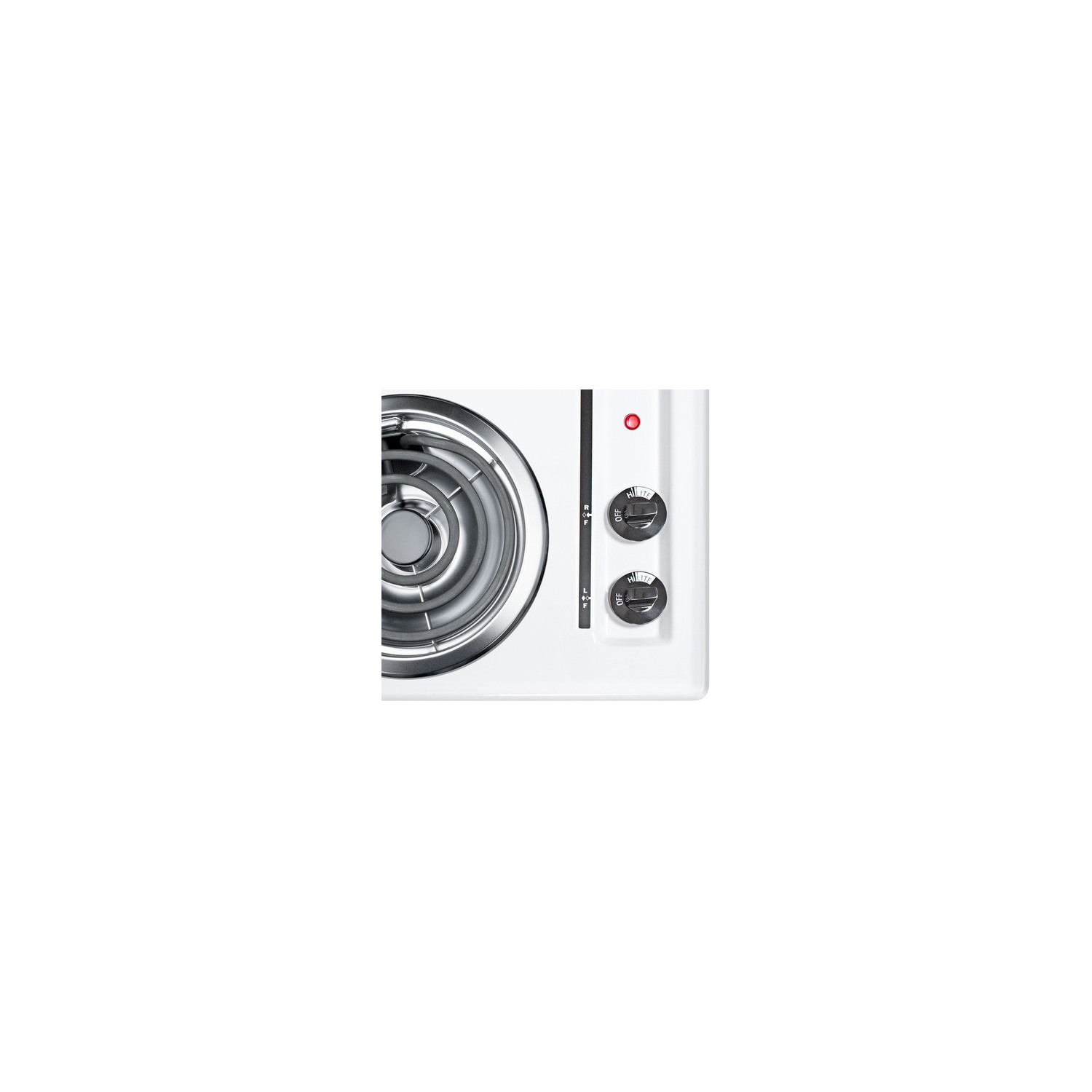

Side controls Cooktop knobs are located on the right side of the cooktop, reducing the risk of accidentally adjusting the heating in busy kitchens
Push-to-turn controls Knobs require a small amount of force for added safety
220-240V operation Professional installation required
Cord not included Compatible with standard 40 amp 3 or 4-wire range cords
