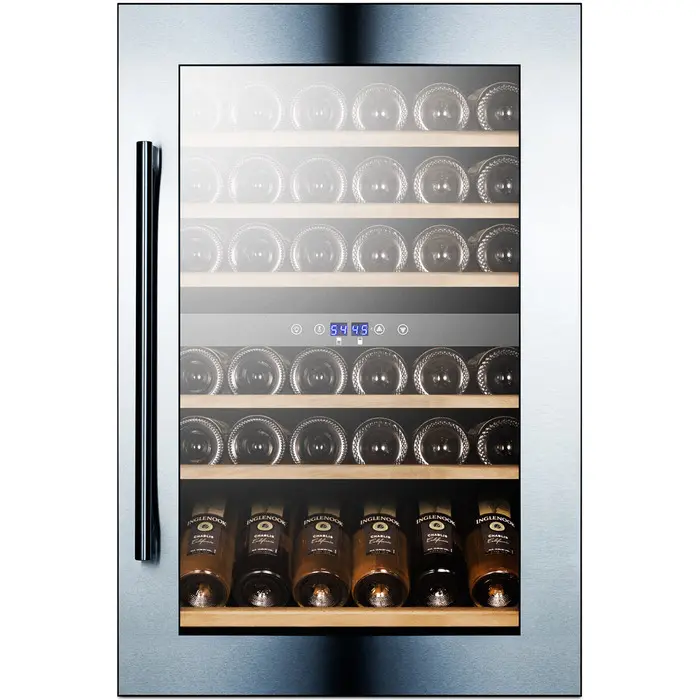

Summit 51 bottle fully integrated dual zone wine cellar with digital controls and LED lighting, 7.61101e+011, VC60D

SUMMIT introduces fully integrated wine cellars for optimum storage and professional elegance.

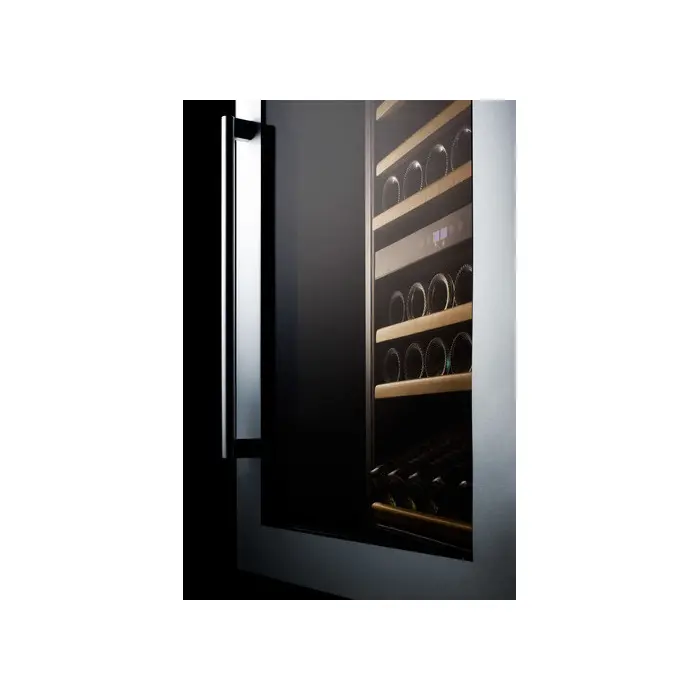

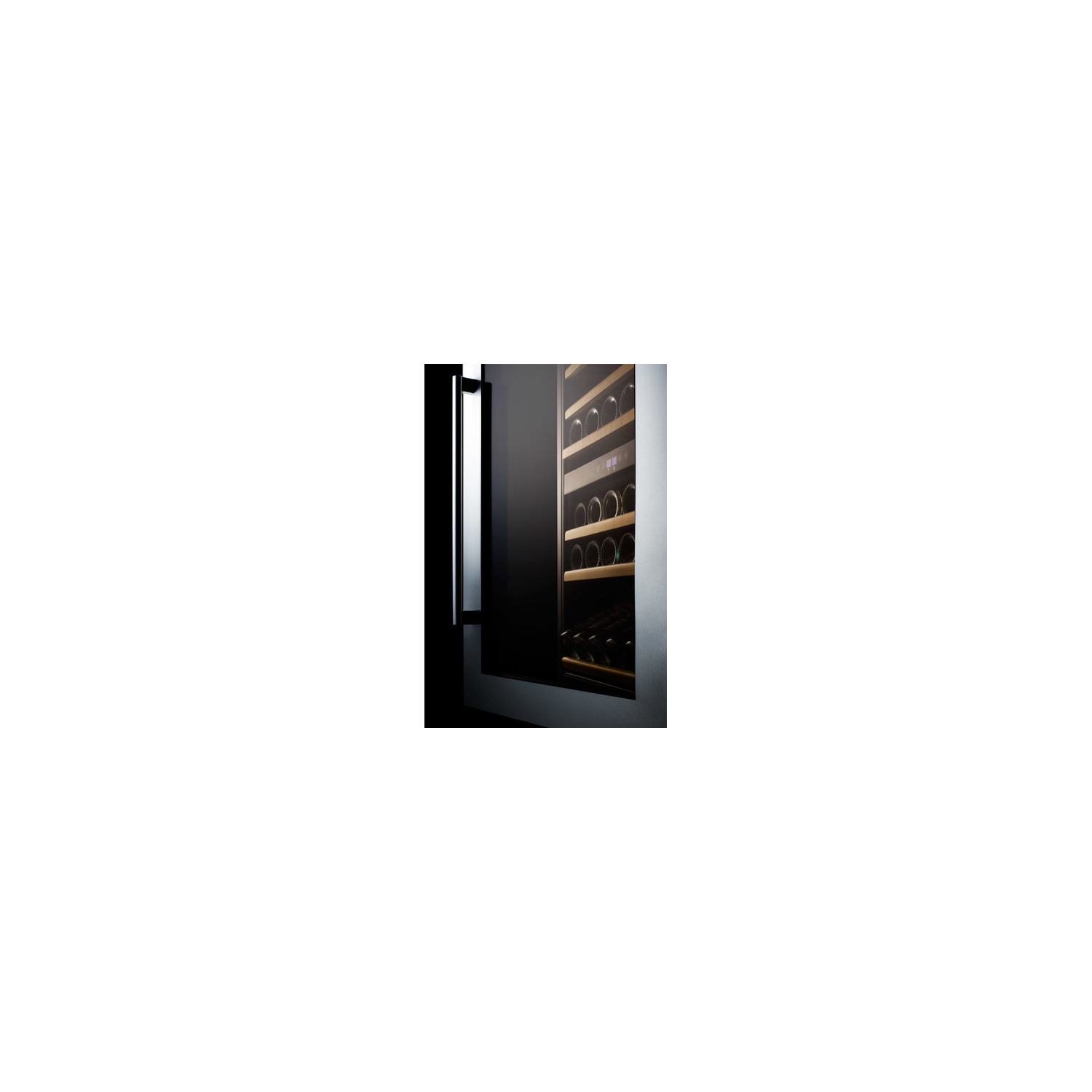

The VC60D is a dual zone wine cellar designed to store bottles under the ideal conditions. The door features a slightly tinted double pane tempered glass construction to protect your collection from UV light, with seamless stainless steel trim for a sleek, professional look. This unit includes a stylish stainless steel handle. The door swing is user reversible, offering more flexibility when positioning the unit.

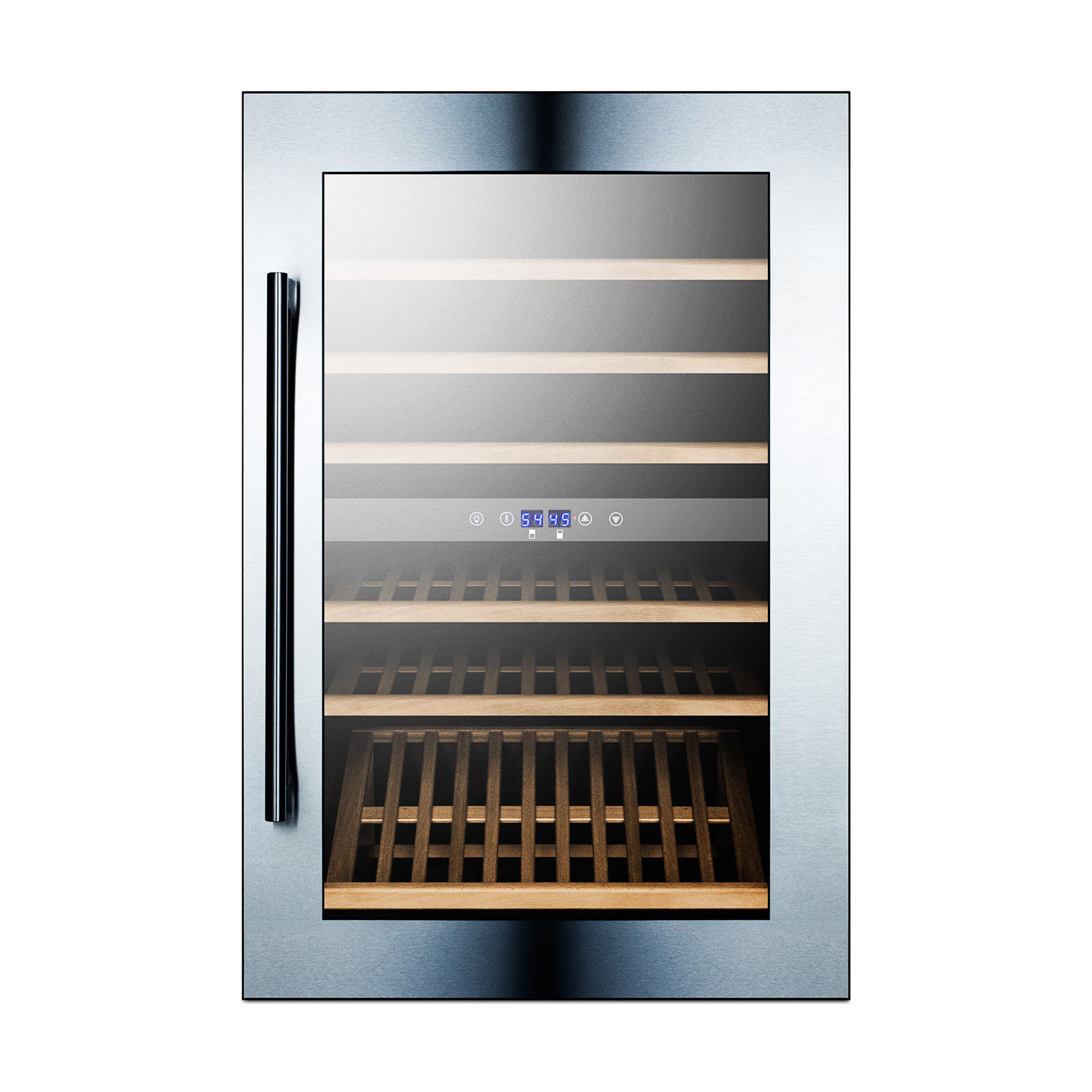

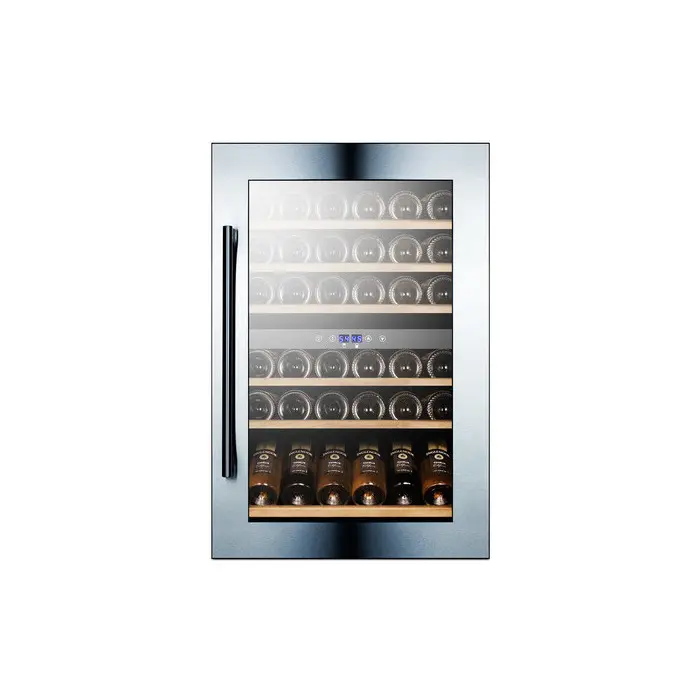

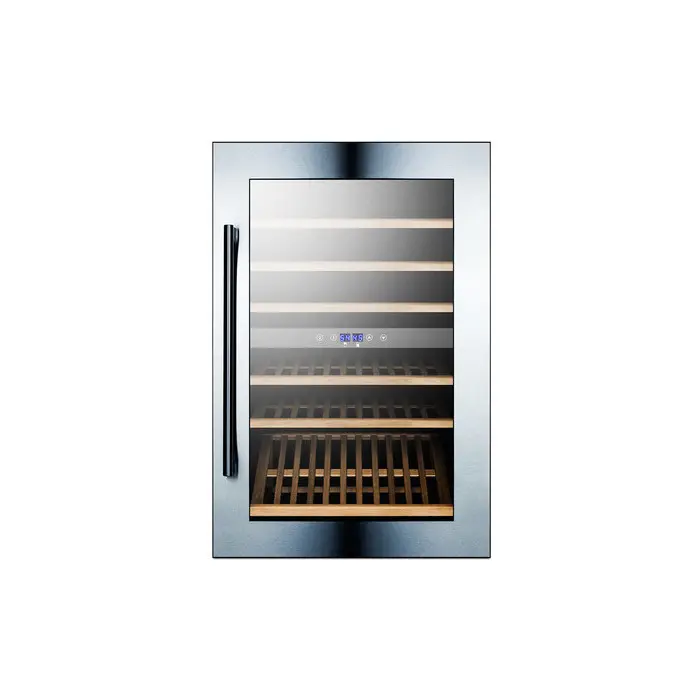

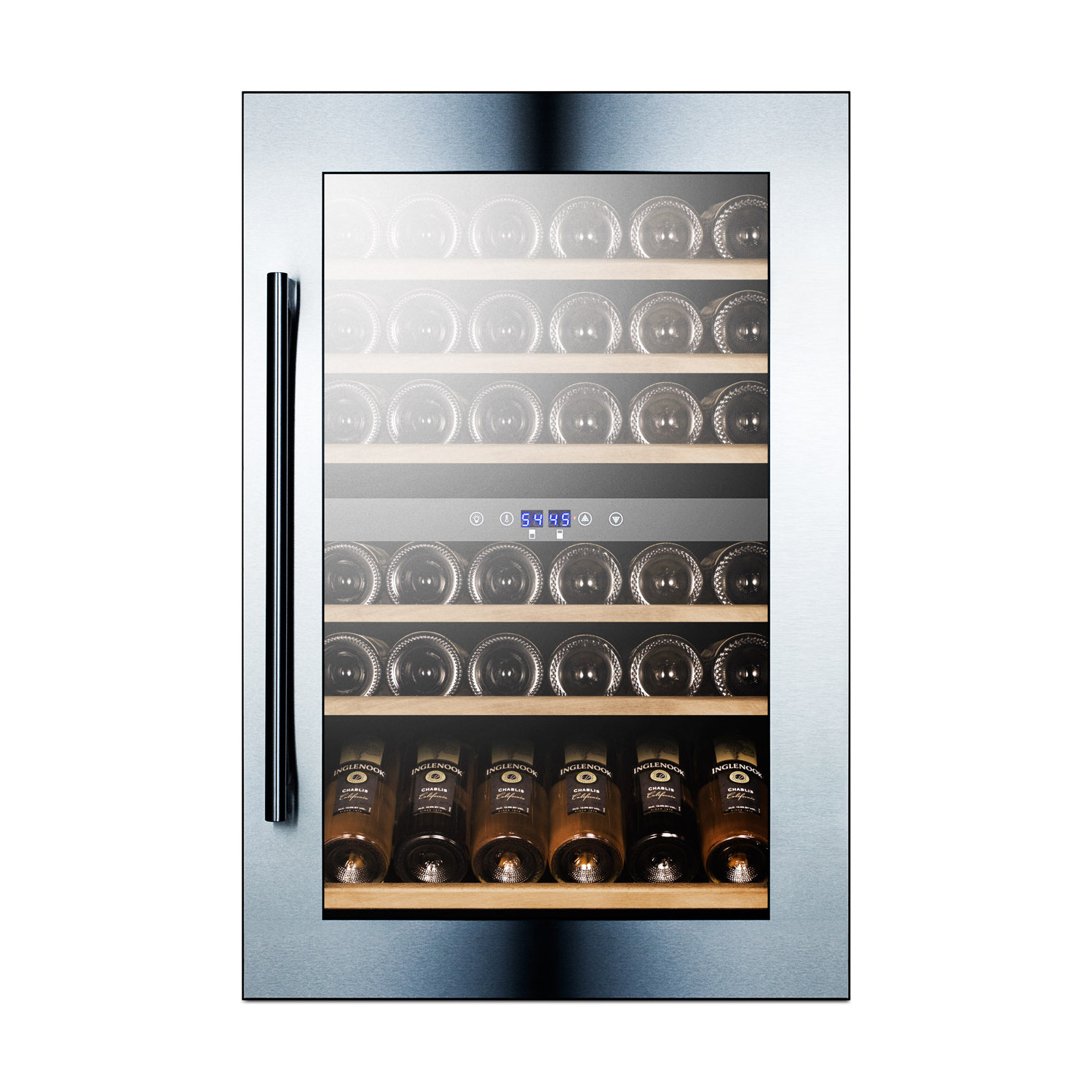

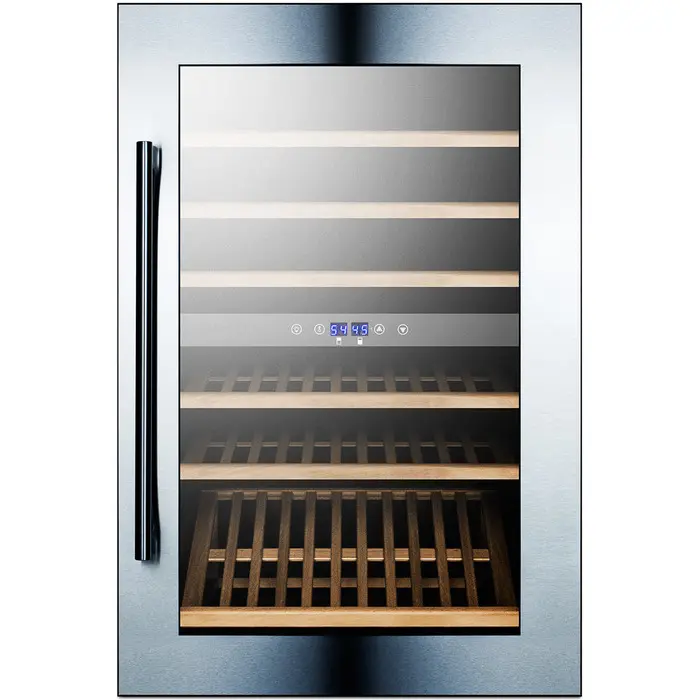

Inside, the VC60D features two distinct zones for storing reds and whites at the proper temperature. A digital thermostat offers easy temperature management, with an alarm that sounds when either interior temperature has drifted out of range. Five standard wooden shelves hold bottles in classic style, while the bottom shelf comes in a unique tilt design that lets you best display the labels for maximum effect. This unit can store up to 51 Bordeaux or 36 Burgundy style bottles, depending on exact bottle size and storage configuration. Recessed LED lighting provides an elegant view of the interior, with an optional setting of display or functional mode. Additional features include an open door alarm and Sabbath Mode setting for religious observance. The VC60D is auto defrost, with fan-forced cooling that ensures the interior temperature is evenly distributed and a condensation collection system that helps to maintain the correct level of humidity inside.

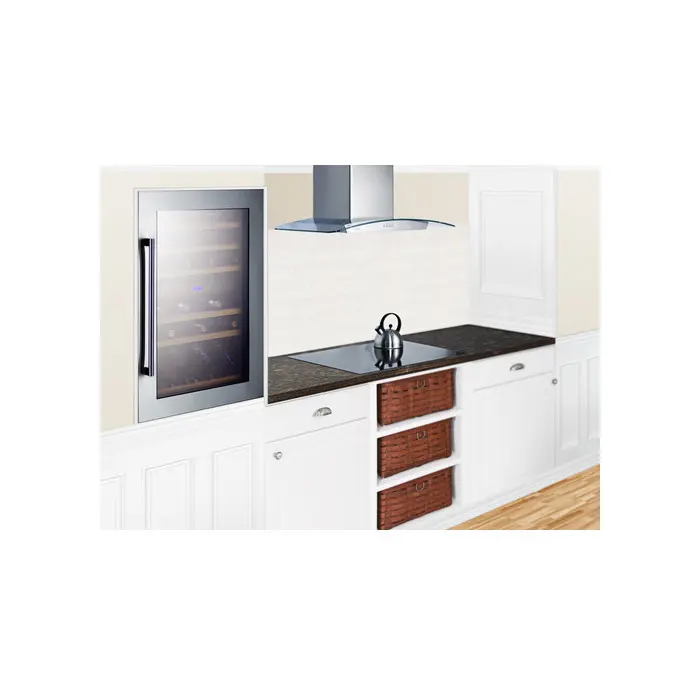

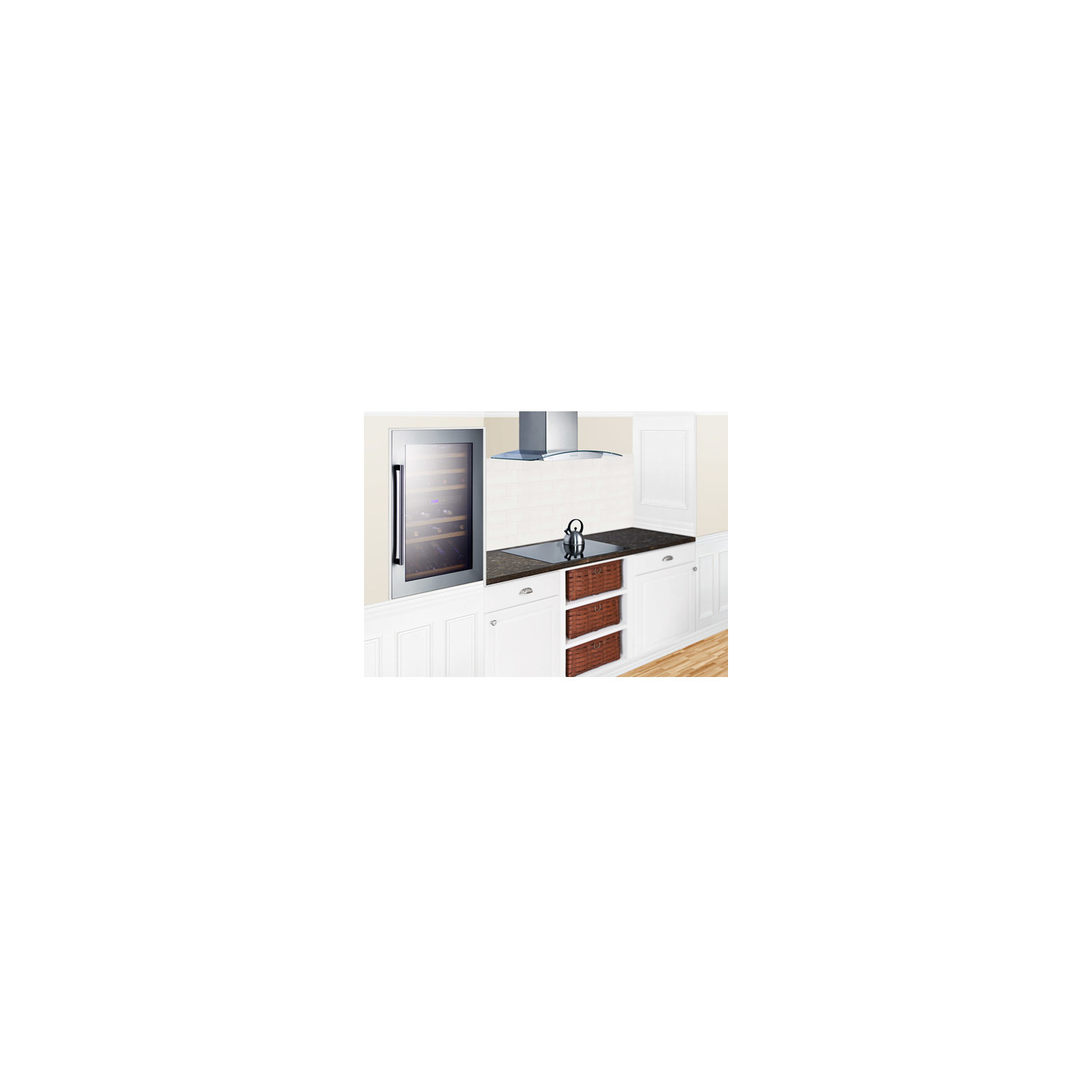

With a stunning look and versatile design, the VC60D adds a great touch to any room. This unit is designed for fully integrated installation (cutout dimensions: 34 3/8" to 34 5/8 H x 21 5/8" W x 21 5/8" D).

Nominal Height: 35
Height of Cabinet: 34.88
Height to Hinge Cap: 0
Nominal Width: 24
Width: 23.25
Width with Door Open: 0
Nominal Depth: 23
Depth: 22.38
Depth with Handle: 25.13
Depth with door at 90°: 45
Capacity: 0
Bottles: 51Defrost Type: AutomaticDoor: GlassCabinet: UnfinishedUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: N/AVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 35.0" (89 cm)

Height of Cabinet 34.88" (89 cm)

Nominal Width 24.0" (61 cm)

Width 23.25" (59 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.38" (57 cm)

Depth with Handle 25.13" (64 cm)

Depth with door at 90° 45.0" (114 cm)

Bottles 51 bottles

Defrost Type Automatic

Door Glass

Cabinet Unfinished

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 2.0

Voltage/Frequency 115 V AC/60 Hz

Weight 110.0 lbs. (50 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101031262

Wine Cellar

Number of Zones 2

Door Swing RHD

Reversible Yes

Shelf Type Wood

Shelf Qty 6

Thermostat Type Digital

Interior Light Yes

Fan Type Interior

Refrigerant Type R134a

Refrigerant Amount 2.05 oz.

High Side PSI 270.0

Low Side PSI 105.0

Interior Height 1 10.0" (25 cm)

Interior Width 1 18.25" (46 cm)

Interior Depth 1 16.75" (43 cm)

Compressor Step Height 7.5" (19 cm)

Compressor Step Width 18.25" (46 cm)

Compressor Step Depth 4.5" (11 cm)

Interior Height 2 19.0" (48 cm)

Interior Width 2 18.25" (46 cm)

Interior Depth 2 15.0" (38 cm)

Sabbath Mode Yes

FEATURES

Dual zone design Lower zone is ideal for storing red and blush wine between 55 and 72ºF, while the upper compartment is better suited for cooler blushes and whites at 41 to 55ºF

Commercial design Meets UL-471 commercial standards

Digital thermostat Electronic controls ensure easy and intuitive temperature management, with a readout in Celsius or Fahrenheit

Dynamic compressor cooling Ensures evenly cooled interior for proper storage

Reversible door User-reversible door swing in double pane tempered glass for best protection from UV light

Slide-out wooden shelves Store bottles safely in classic style

Tilted wine rack Unique design lets you stand bottles at an angle to display the label

Open door alarm Sounds after door is left open for over a minute to best prevent accidents

Interior light Can be set for showcase mode, remaining on until manually turned off, or functional model (turning on when the door is opened and off when it is closed)

Temperature alarm Alarm sounds off when unit's interior rises or falls out of the set range

Sabbath Mode Optional setting lets you disable the lighting and alarms for 48 hours

Built-in installation Designed for fully integrated installation (cutout dimensions: 34 3/8" to 34 5/8 H x 21 5/8" W x 21 5/8" D; see user manual for additional information about providing proper ventilation and spacing for this unit))

Humidity improvement Proper humidity levels are maintained inside due to a specially designed condensation collection system

100% CFC free Environmentally friendly design without ozone-damaging chemicals

DOWNLOADS

BROCHURE w/ DRAWINGS (VC60D.pdf)

TECHNICAL DRAWING (.dwg) (VC60D_WINE_CELLAR__A-C_2010_.dwg)

USE & CARE (VC60D-User-Manual.pdf)

SUPPORT (VC60D_Shelving_Guide.pdf)
