Summit 28 bottle fully integrated wine cellar with digital controls and LED lighting, 7.61101e+011, VC28S

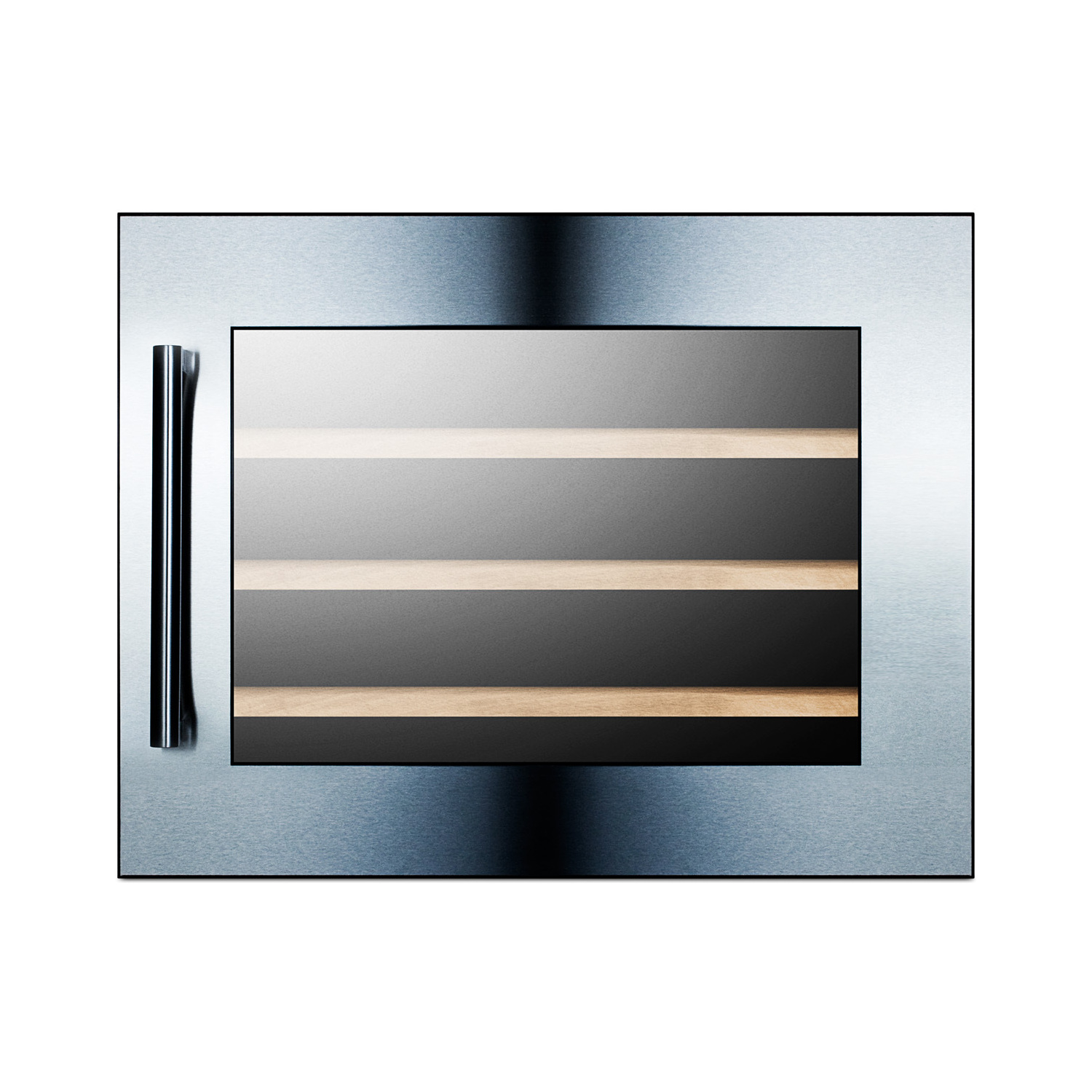

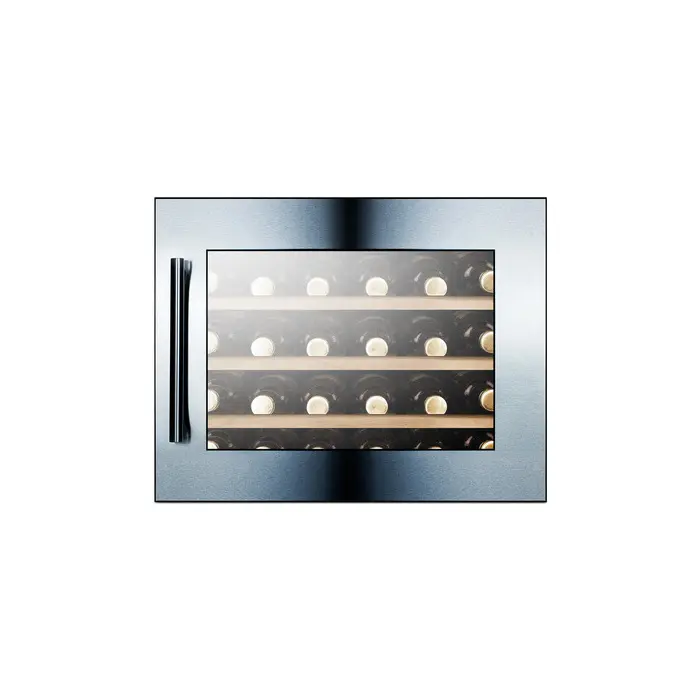

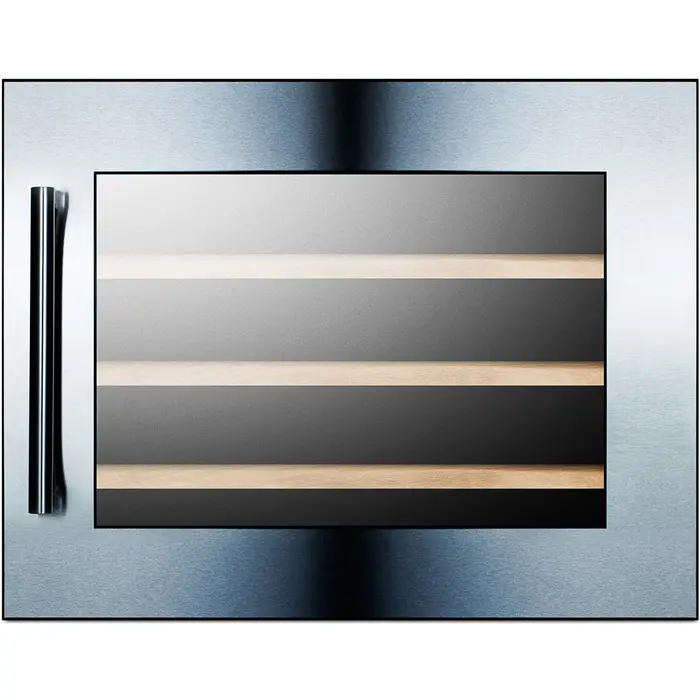

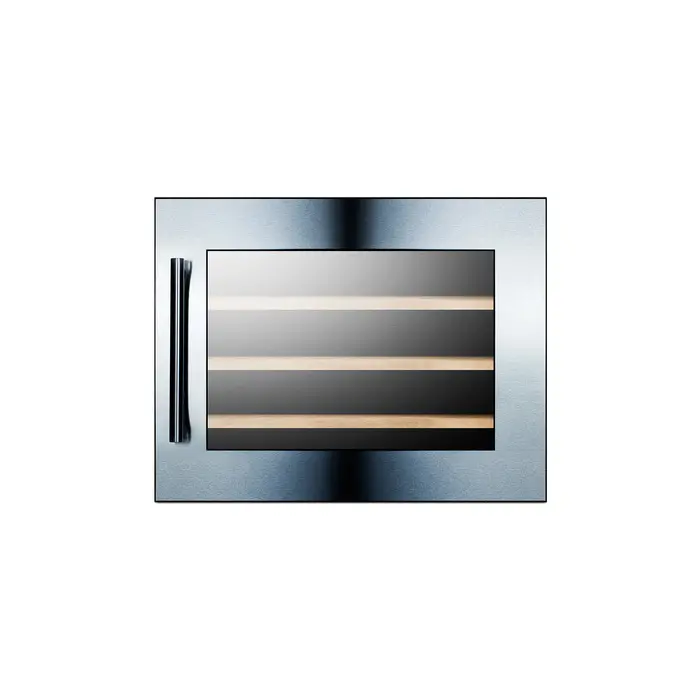

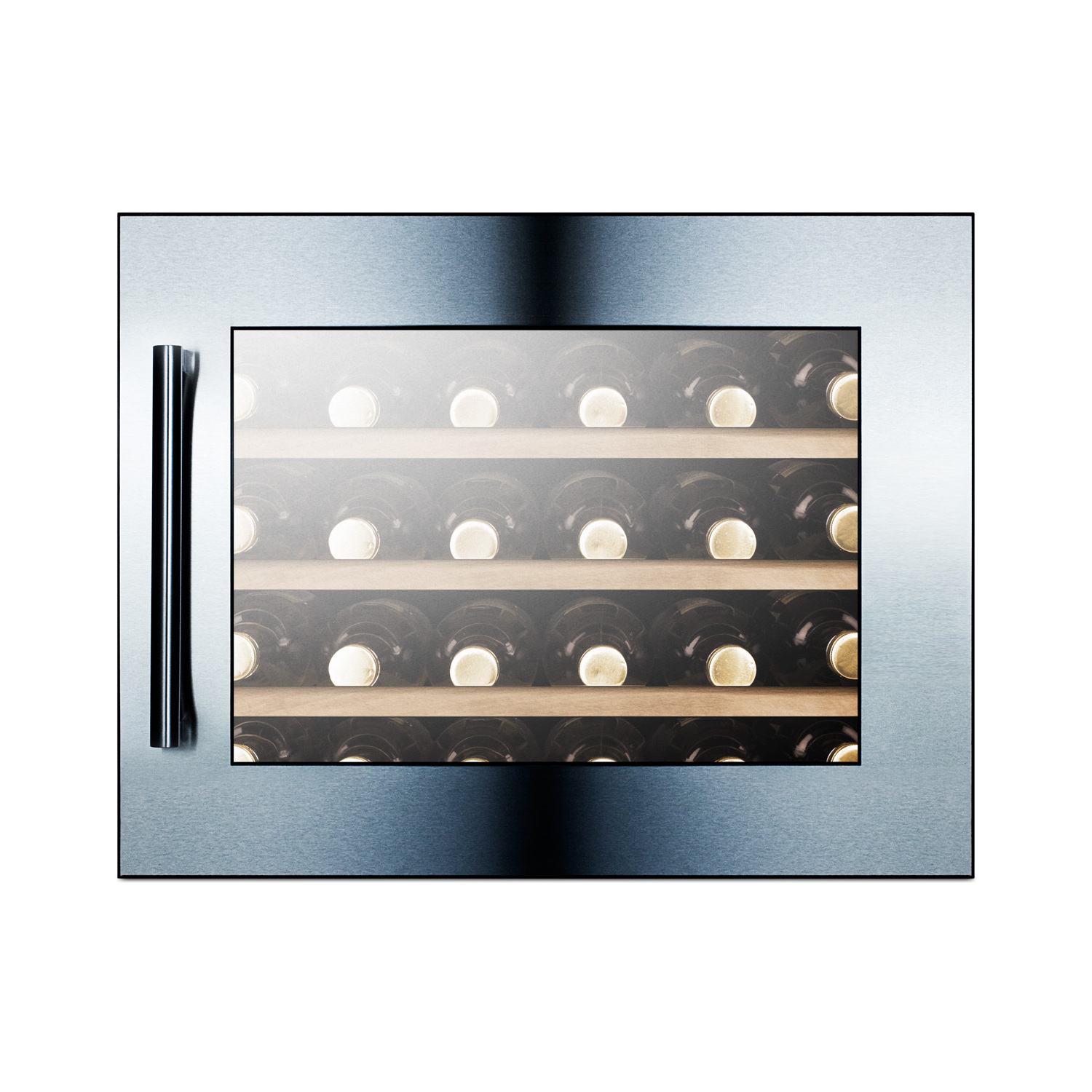

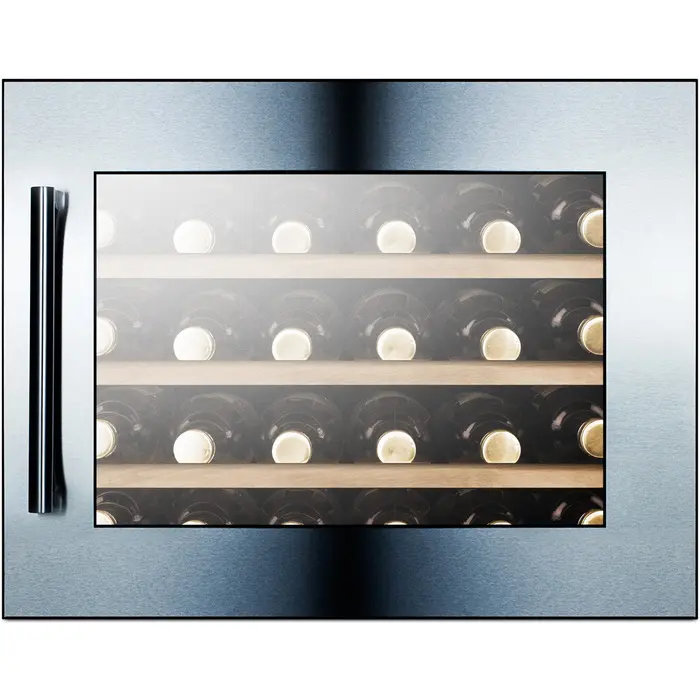

SUMMIT introduces fully integrated wine cellars for optimum storage and professional elegance.The VC28S is designed to store up to 28 bottles under the ideal conditions. The double pane tempered glass door ensures your collection is safely protected from UV light while offering a luxurious look with a seamless stainless steel frame. A professional handle adds a modern touch. The door swing is user reversible, offering more flexibility when positioning the unit.

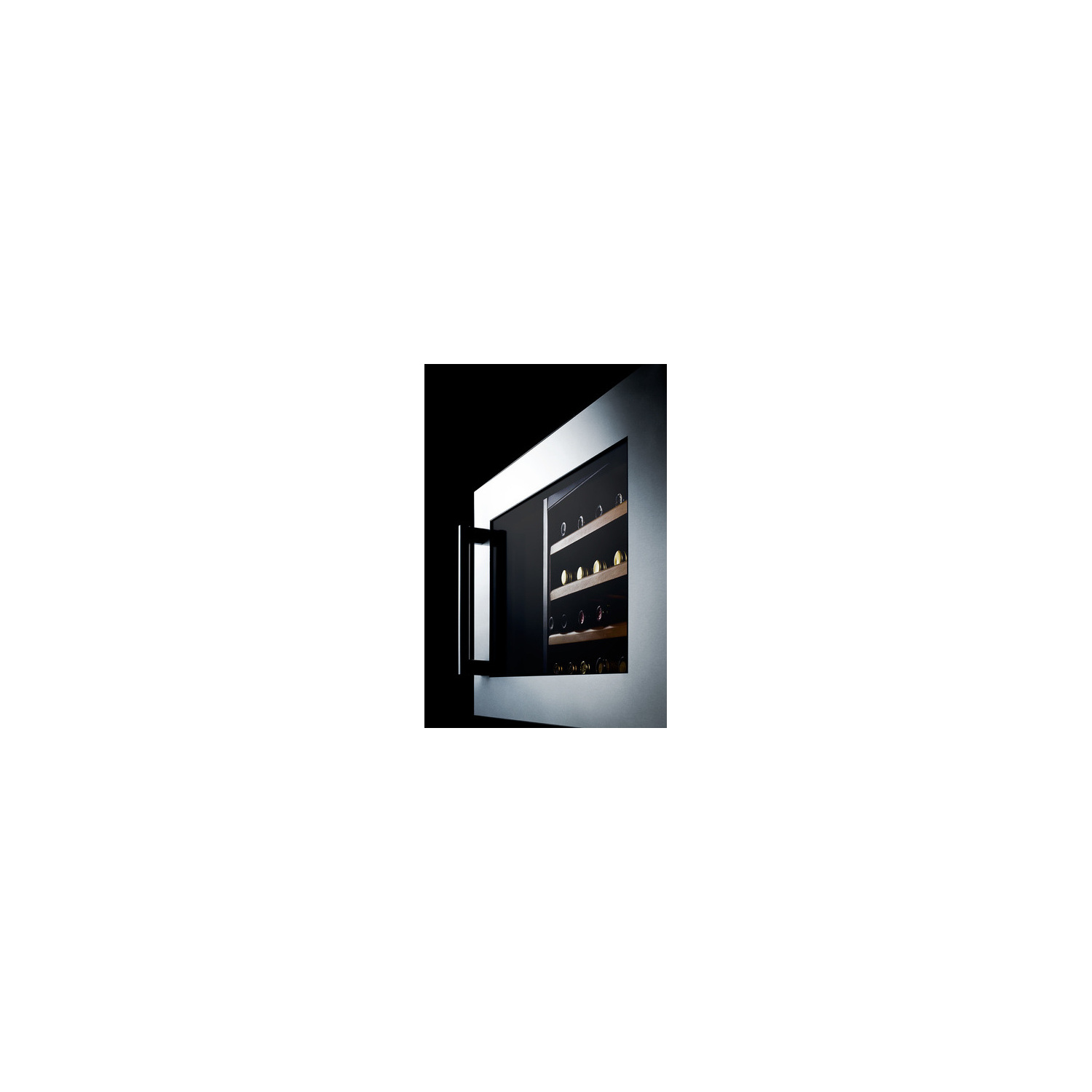

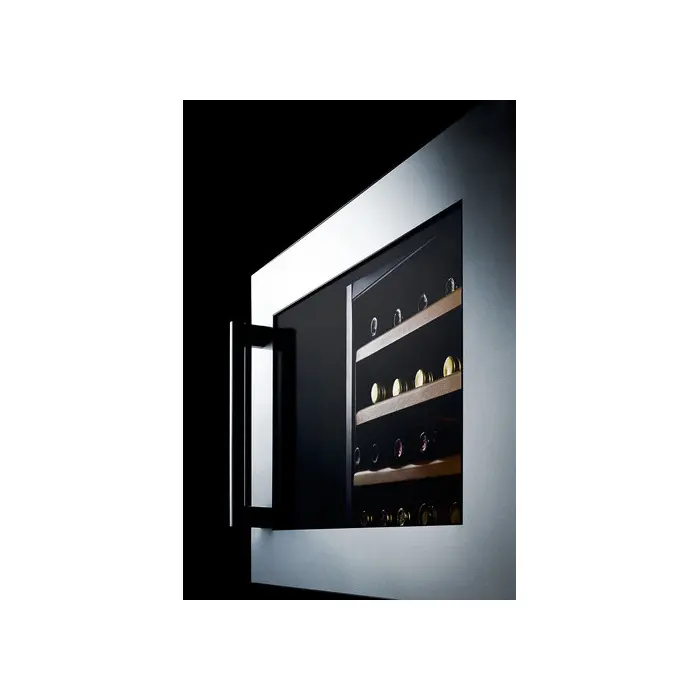

Inside, the VC28S includes a digital thermostat for easy temperature management. Three wooden shelves hold bottles in classic style, with a floor specially slotted to store additional wine. The recessed LED lighting provides an elegant view of the interior, with an optional setting of display or functional mode. Additional features include an open door alarm, high/low temperature alarm and optional Sabbath Mode setting. The VC28S is auto defrost, with fan-forced cooling that ensures the interior temperature is evenly distributed and a condensation collection system that helps to maintain the correct level of humidity inside.

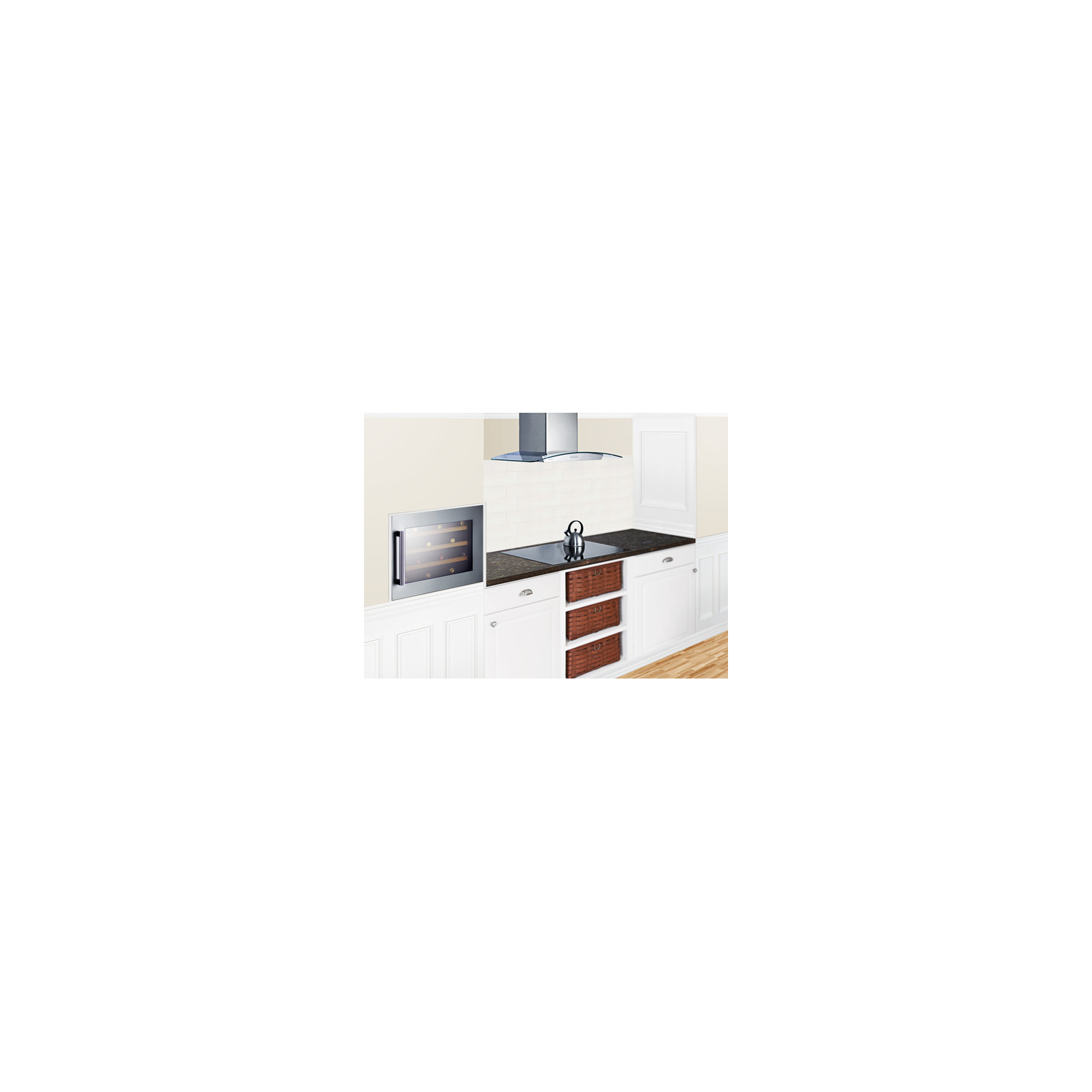

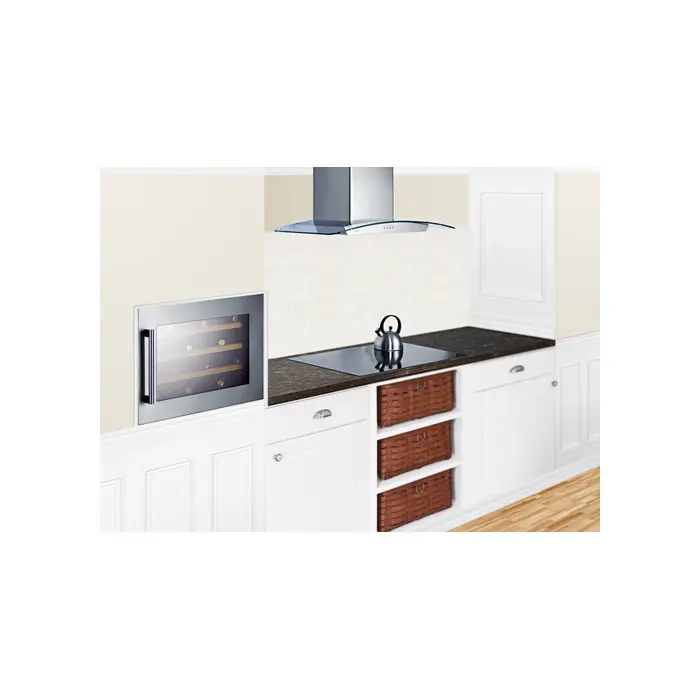

With a stunning look and quality design, the VC28S adds a great touch to any room. For our fully integrated dual zone wine cellar, see the VC60D. This unit is designed for fully integrated installation (cutout dimensions: 16 7/8" H x 21 1/2" W x 22 1/8" D; see user manual for additional information about providing proper ventilation and spacing for this unit).

Nominal Height: 19
Height of Cabinet: 18.13
Height to Hinge Cap: 0
Nominal Width: 24
Width: 23.25
Width with Door Open: 0
Nominal Depth: 23
Depth: 22.13
Depth with Handle: 23.88
Depth with door at 90°: 44.75
Capacity: 0
Bottles: 28Defrost Type: AutomaticDoor: GlassCabinet: UnfinishedUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: N/AVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 19.0" (48 cm)

Height of Cabinet 18.13" (46 cm)

Nominal Width 24.0" (61 cm)

Width 23.25" (59 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.13" (56 cm)

Depth with Handle 23.88" (61 cm)

Depth with door at 90° 44.75" (114 cm)

Bottles 28 bottles

Defrost Type Automatic

Door Glass

Cabinet Unfinished

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 1.4

Voltage/Frequency 115 V AC/60 Hz

Weight 71.0 lbs. (32 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101031255

Wine Cellar

Number of Zones 1

Door Swing RHD

Reversible Yes

Shelf Type Wood

Shelf Qty 3

Thermostat Type Digital

Interior Light Yes

Fan Type Interior

Refrigerant Type R134a

Refrigerant Amount 1.27 oz.

High Side PSI 270.0

Low Side PSI 105.0

Interior Height 1 13.75" (35 cm)

Interior Width 1 18.88" (48 cm)

Interior Depth 1 14.88" (38 cm)

Temperature Range 42º to 72ºF

Sabbath Mode Yes

FEATURES

Built-in installation Designed for fully integrated installation (cutout dimensions: 16 7/8" H x 21 1/2" W x 22 1/8" D; see user manual for additional information about providing proper ventilation and spacing for this unit)

Commercial design Meets UL-471 commercial standards

Digital thermostat Electronic controls ensure easy and intuitive temperature management, with a readout in Celsius or Fahrenheit (temperature range: 40ºF to 72ºF)

Dynamic compressor cooling Ensures evenly cooled interior for proper storage

Reversible glass door User-reversible door swing in double pane tempered glass for best protection from UV light

Slide-out wooden shelves Store bottles safely in classic style

Open door alarm Sounds after door is left open for over a minute to best prevent accidents

Interior light Can be set for showcase mode, remaining on until manually turned off, or functional model (turning on when the door is opened and off when it is closed)

Temperature alarm Alarm sounds off when unit's interior rises or falls out of the set range

Sabbath Mode Optional setting lets you disable the lighting and alarm for 48 hours

Humidity improvement Proper humidity levels are maintained inside due to a specially designed condensation collection system

100% CFC free Environmentally friendly design without ozone-damaging chemicals

DOWNLOADS

BROCHURE w/ DRAWINGS (VC28S.pdf)

TECHNICAL DRAWING (.dwg) (VC28SWINECELLARA-C2000.dwg)

USE & CARE (VC28S-User-Manual.pdf)
