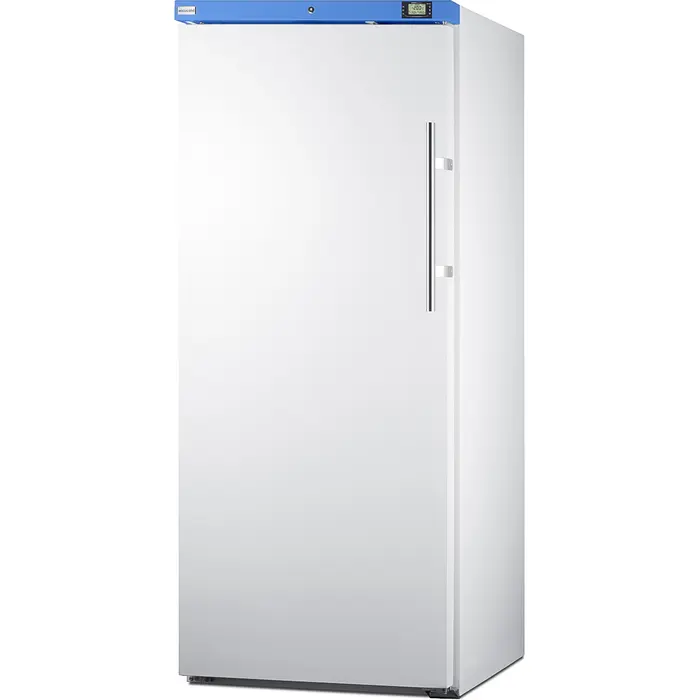

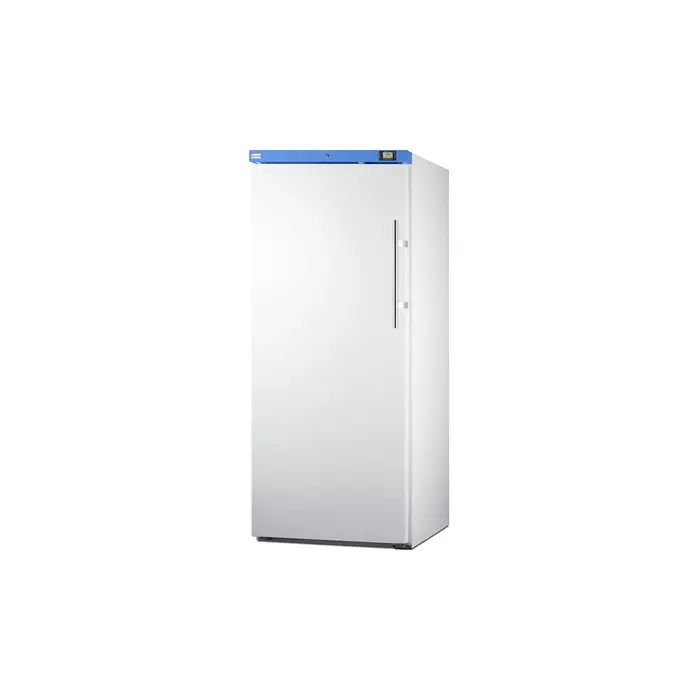

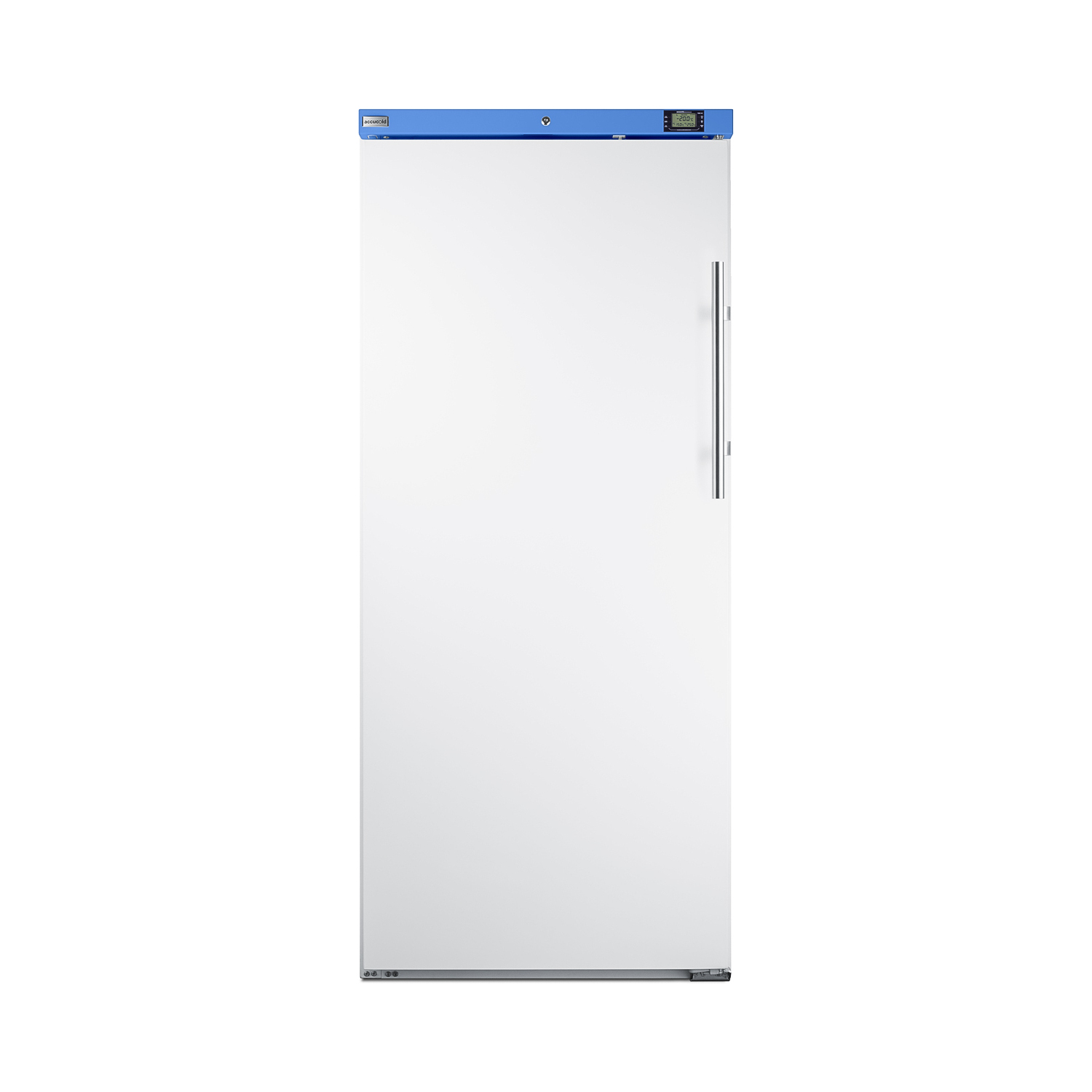

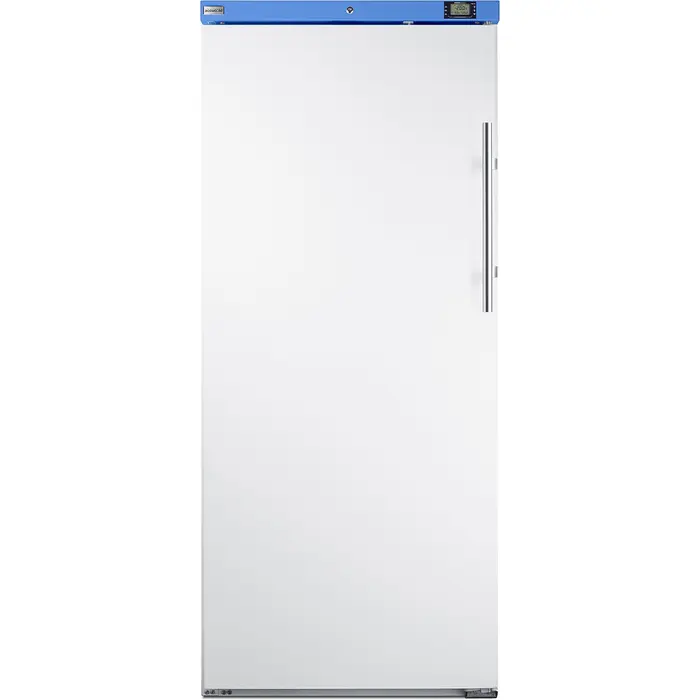

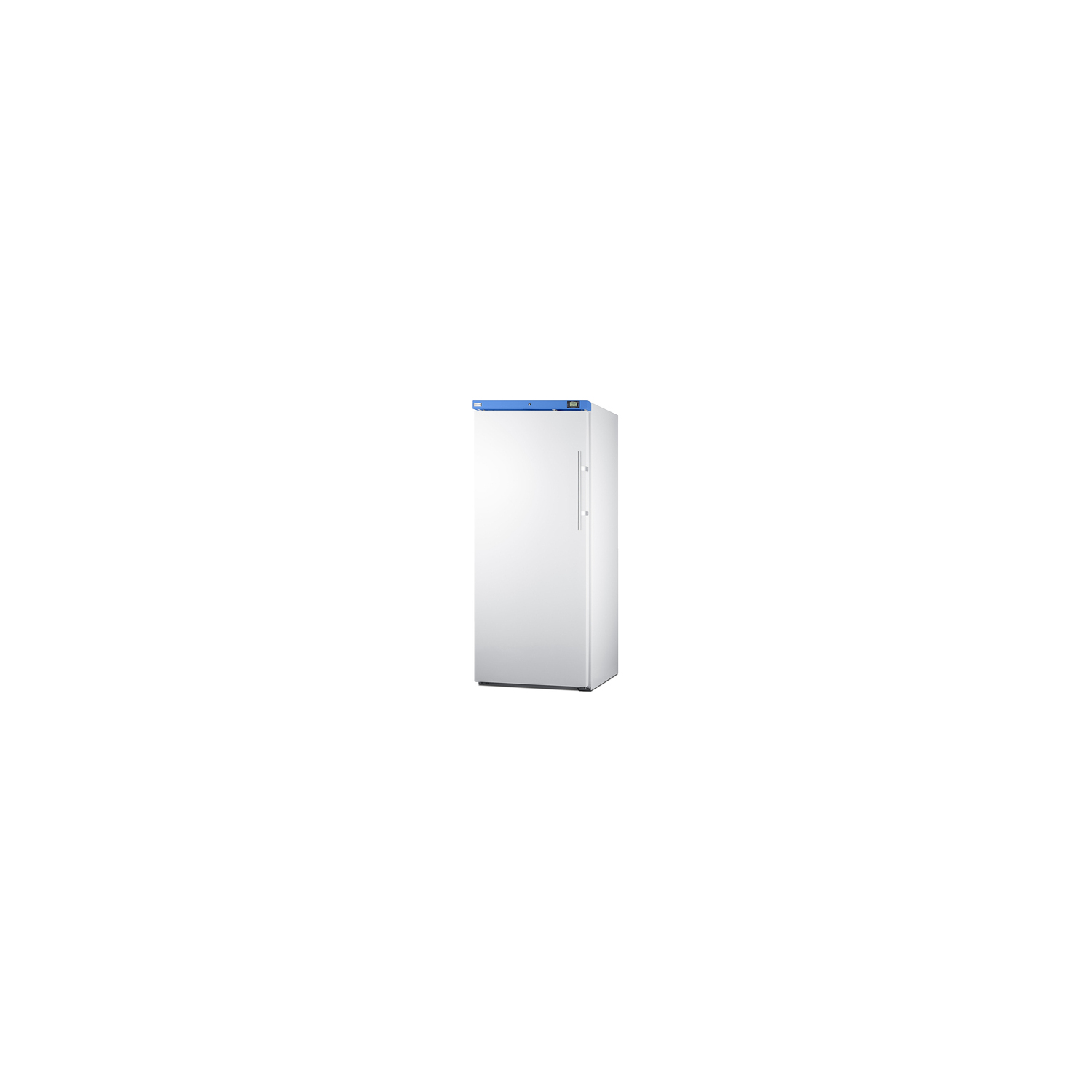

Summit Upright 18 cu.ft. manual defrost all-freezer with lock, 7.61101e+011, UFM19WLHD
$2,153.40
Retail Price: $3,100.00
Free shipping
$ 2,153.40
Description
Accucold's general purpose storage line includes upright manual defrost freezers designed for the storage of certain enzymes, reagents, samples, and other materials used in laboratory and clinical settings that require -20ºC temperatures with more stability than traditional no-frost equipment.

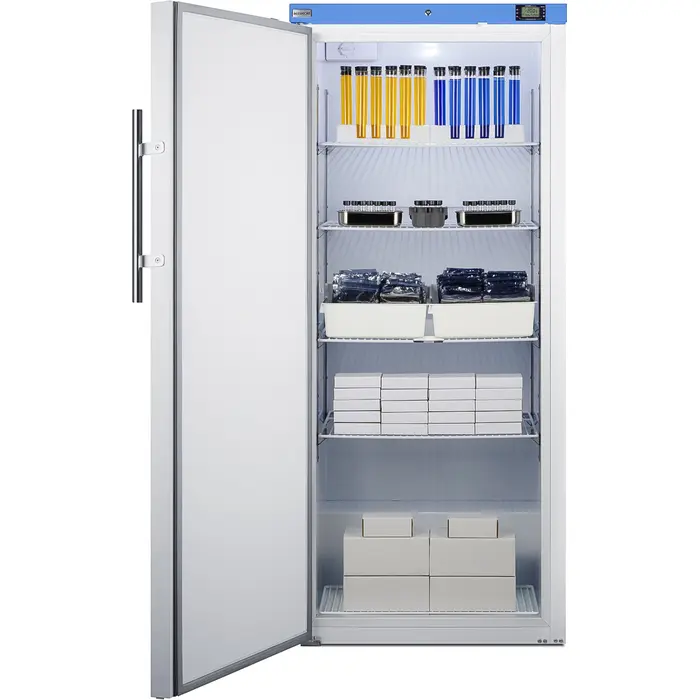

Model UFM19WLHD is a front-opening freezer with an 18.3 cu.ft. interior storage capacity. Manual defrost operation ensures a more stable interior with none of the warming cycles that can compromise temperature in traditional frost-free cooling systems. The dial thermostat is located inside to prevent accidental temperature adjustments, with a thermometer/alarm mounted externally to ensure a readout of the current and high/low interior temperature is visible without opening the door. The temperature probe is encased in glass beads and positioned in a fixed shelf in the center of the unit to best simulate the temperature of stored items. We include an additional probe hole to accommodate additional monitoring equipment. Cantilevered shelving provides more flexibility in storage, with tight spacing between the pilasters so you can adjust as needed. This unit has a flat door liner to accommodate deeper trays. An automatic LED light makes it easy to see the full interior.

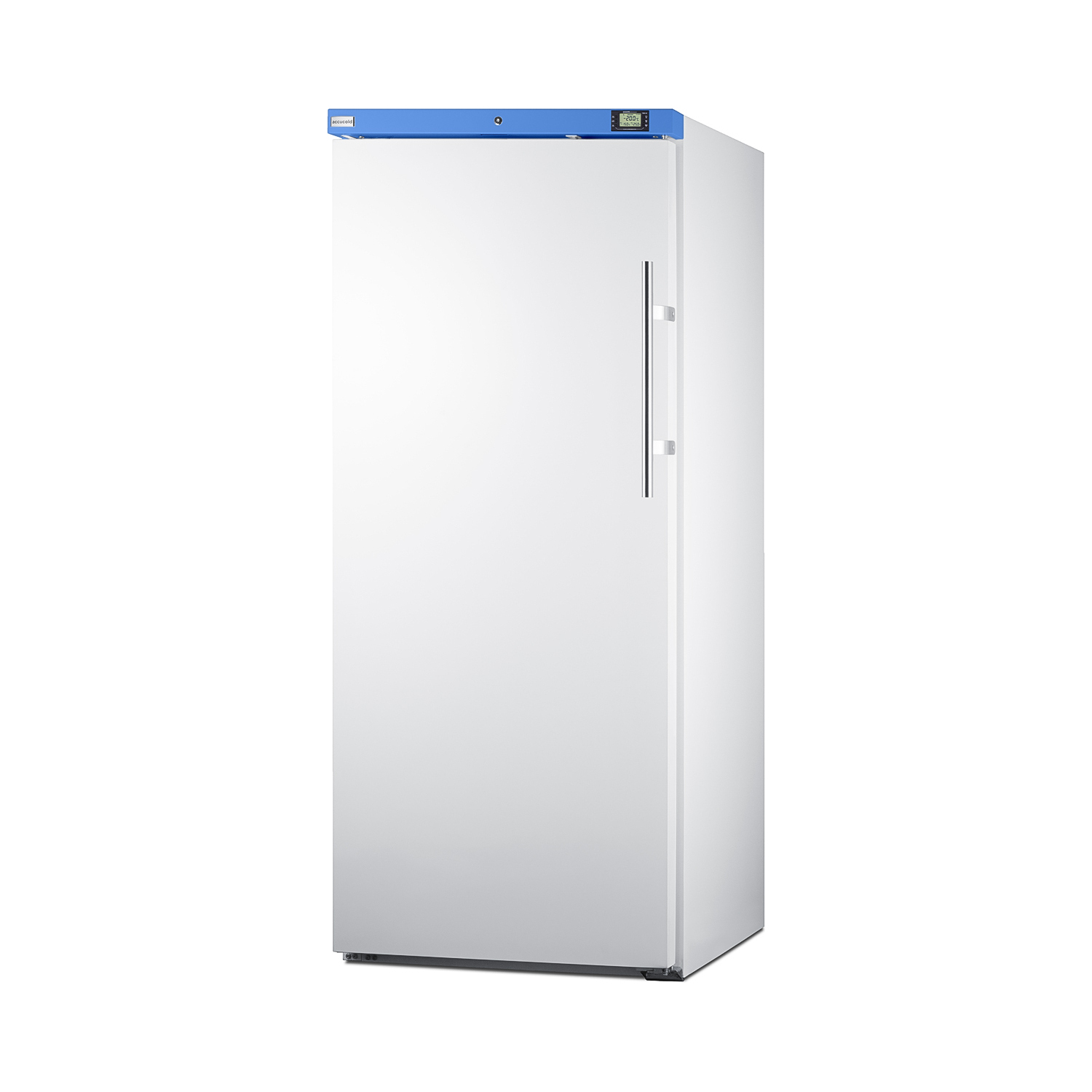

This freezer comes in a white exterior finish with a blue accent on the front. The keyed lock is conveniently located towards the top of the unit for easier user access. The door includes an easy-grip handle in a brushed aluminum finish and comes with a left hand swing. This unit includes a 9'5" long power cord with a hospital grade 'green dot' plug for a more secure connection, ideal for high traffic environments. The cooling system utilizes hydrocarbon refrigerant for a greener footprint. For advanced insulation, the door features a vacuum seal that keeps all cold air inside.
The UFM19WLHD meets NSF-7 commercial standards and is ETL listed for the U.S. and Canada. It matches refrigerator model URM19W. It can be customized with additional features to best meet your storage needs, including digital data loggers (DDLs). For more information, contact our product specialists at 718-893-3900.
In addition to this freezer, Accucold manufactures frost-free choices for vaccine and laboratory storage, as well as purpose-built refrigeration lines approved to the NSF/ANSI 456 Vaccine Storage Standard. Nominal Height: 71

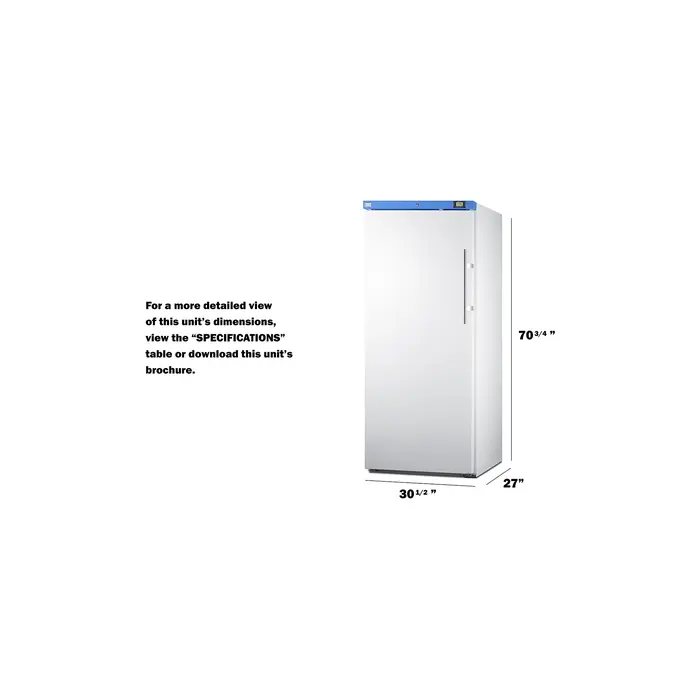

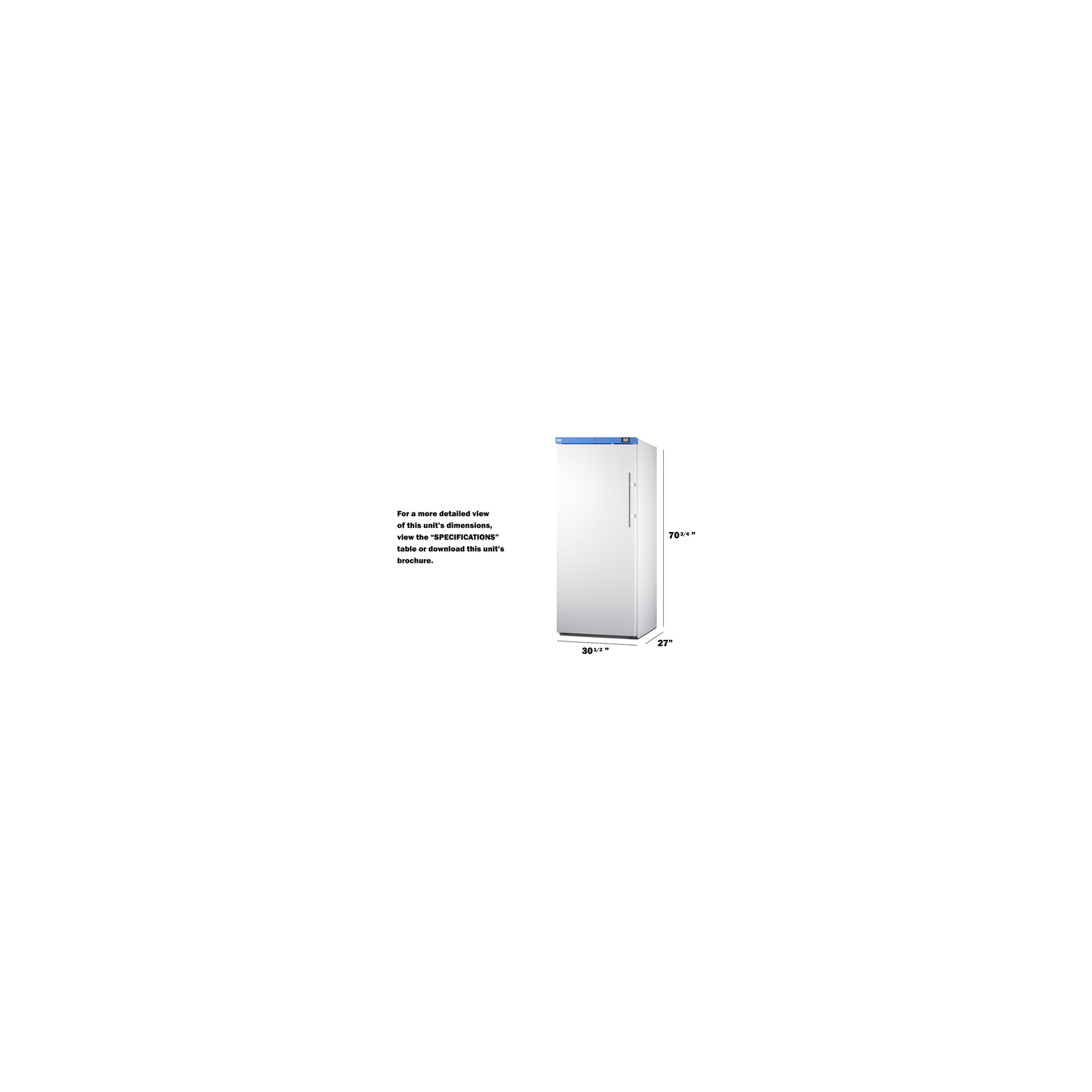

Height of Cabinet: 70.75
Height to Hinge Cap: 0
Nominal Width: 31
Width: 30.5
Width with Door Open: 0
Nominal Depth: 27
Depth: 27
Depth with Handle: 29.75
Depth with door at 90°: 54.13
Capacity: 18.3
Bottles: 0Defrost Type: ManualDoor: WhiteCabinet: WhiteUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years
SPECIFICATIONS
Overview
Height of Cabinet 72.0" (183 cm)
Width 30.5" (77 cm)
Depth 26.63" (68 cm)
Depth with Handle 30.25" (77 cm)
Depth with door at 90° 55.38" (141 cm)
Capacity 18.3 cu.ft. (518 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 2.7
Voltage/Frequency 115 V AC/60 Hz
Weight 215.0 lbs. (98 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101145020
Freezer
Door Swing LHD
Reversible No
Interior Height 64.0" (163 cm)
Interior Width 25.0" (64 cm)
Interior Depth 20.88" (53 cm)
Shelf Type Wire
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Dial
Interior Light Yes
Refrigerant Type R290
Refrigerant Amount 3.88 oz.
High Side PSI 280.0
Low Side PSI 145.0
Level Legs 2
Compressor Step Height 9.38" (24 cm)
Compressor Step Width 25.0" (64 cm)
Compressor Step Depth 7.25" (18 cm)
Temperature Range -18 to -24ºC (Preset to -20ºC)
FEATURES
Upright manual defrost all-freezer General purpose freezer designed for the storage of samples, enzymes, reagents, and other laboratory and clinical materials that require a more stable interior than traditional automatic defrost
Large capacity Over 18 cu.ft. of storage inside
Manual defrost operation Static cooling system with no fans or warming cycles
Dial thermostat Intuitive and reliable mechanical thermostat located inside the unit to prevent unnecessary adjustments
-20ºC operation Preset to -20ºC with a temperature range of -18 to -24ºC
High/low temperature alarm Audible alarm sounds if the interior temperature rises or falls out of set range
External temperature readout Includes continuous display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
Buffered temperature probe Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents
Access port 3/8" probe hole with cover is pre-installed in unit's side to allow easy installation of user-provided monitoring equipment

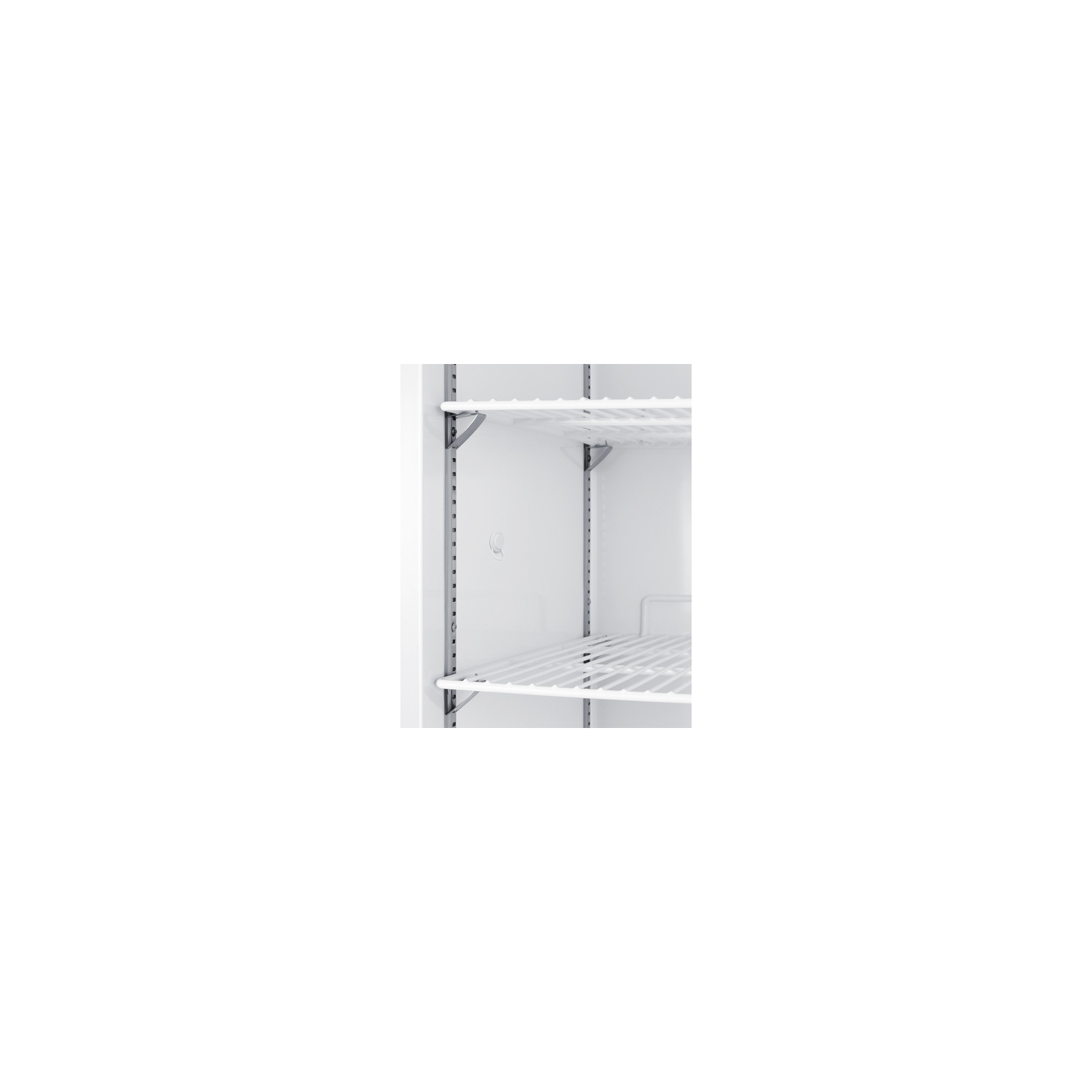

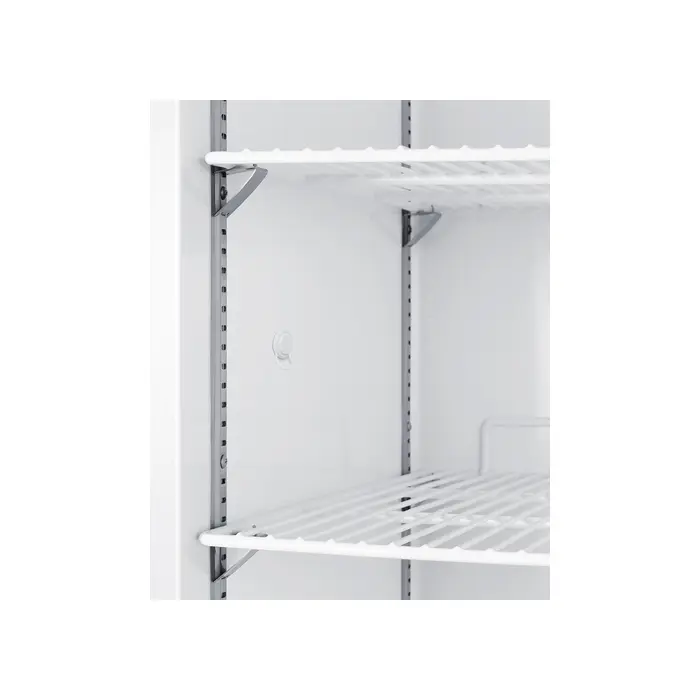

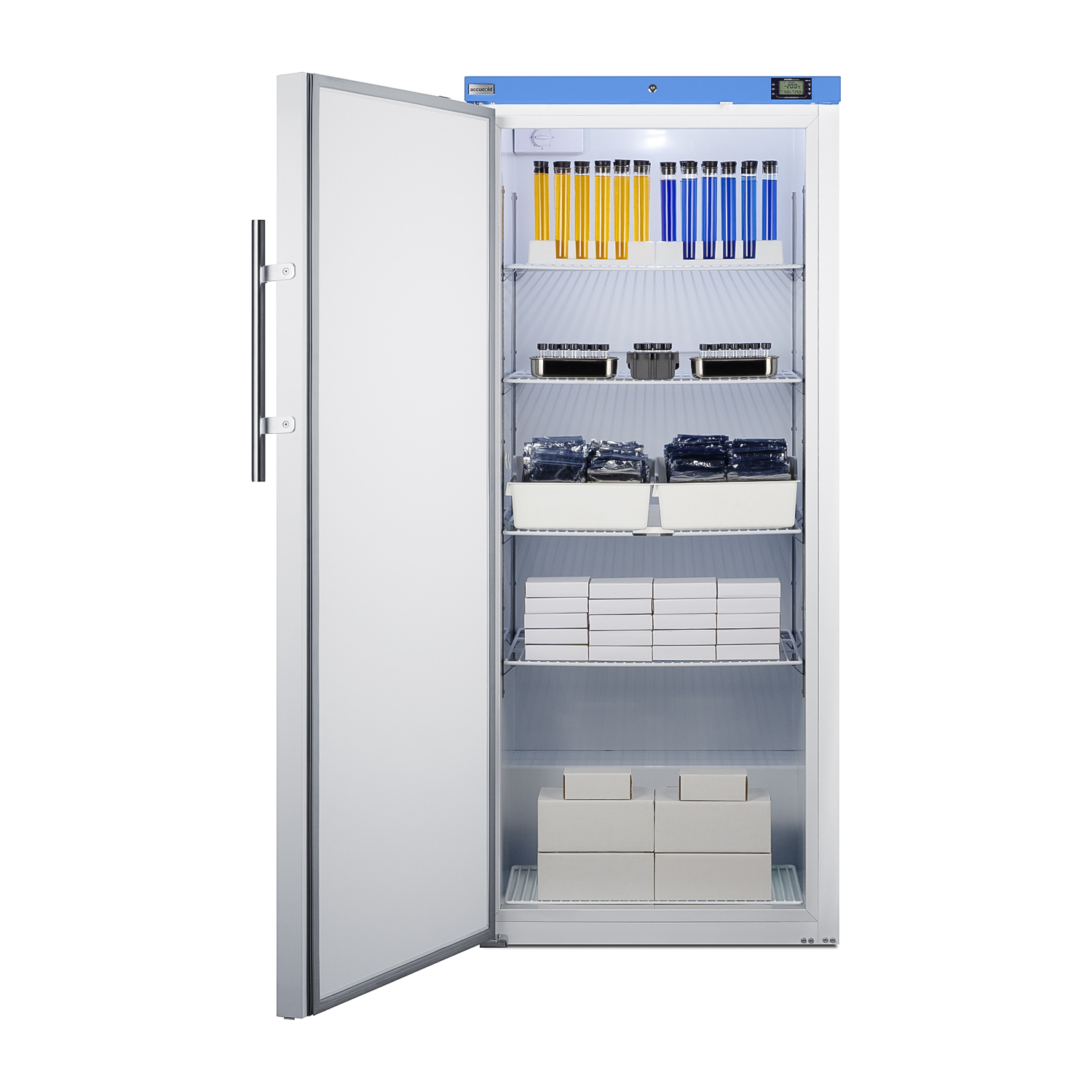

Cantilevered shelving Tight pilaster spacing throughout the interior allows you to adjust the shelf positions to meet your exact storage needs
Fixed center shelf Center shelf is fixed in place in order to provide the optimum position for the TMD to provide the most accurate temperature readings
Epoxy-coated wire shelves Four heavy duty shelves included
Factory-installed lock Conveniently located towards the top of the door for easier user access (2 keys included)
Flat door liner No door storage to allow for the interior to accommodate deeper trays
Left hand door swing This unit ships with a left hand door swing. For the doors to open in the other direction, see model UFM19W
LED lighting Automatic interior lighting for an efficient presentation
9' long cord with hospital grade plug Extra long power cord with hospital grade 'green dot' plug for a more secure connection
External handle Easy-grip handle in brushed aluminum
Leveling legs Adjustable front legs allow you to ensure a straight fit, even on uneven surfaces
Advanced vacuum seal insulation Vacuum seal gasket design ensures no cold air escapes (NOTE: seal activates when door is closed, so you must allow a few minutes to pass before re-opening)
100% CFC free Environmentally friendly design does not contain ozone-damaging chemicals
CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
