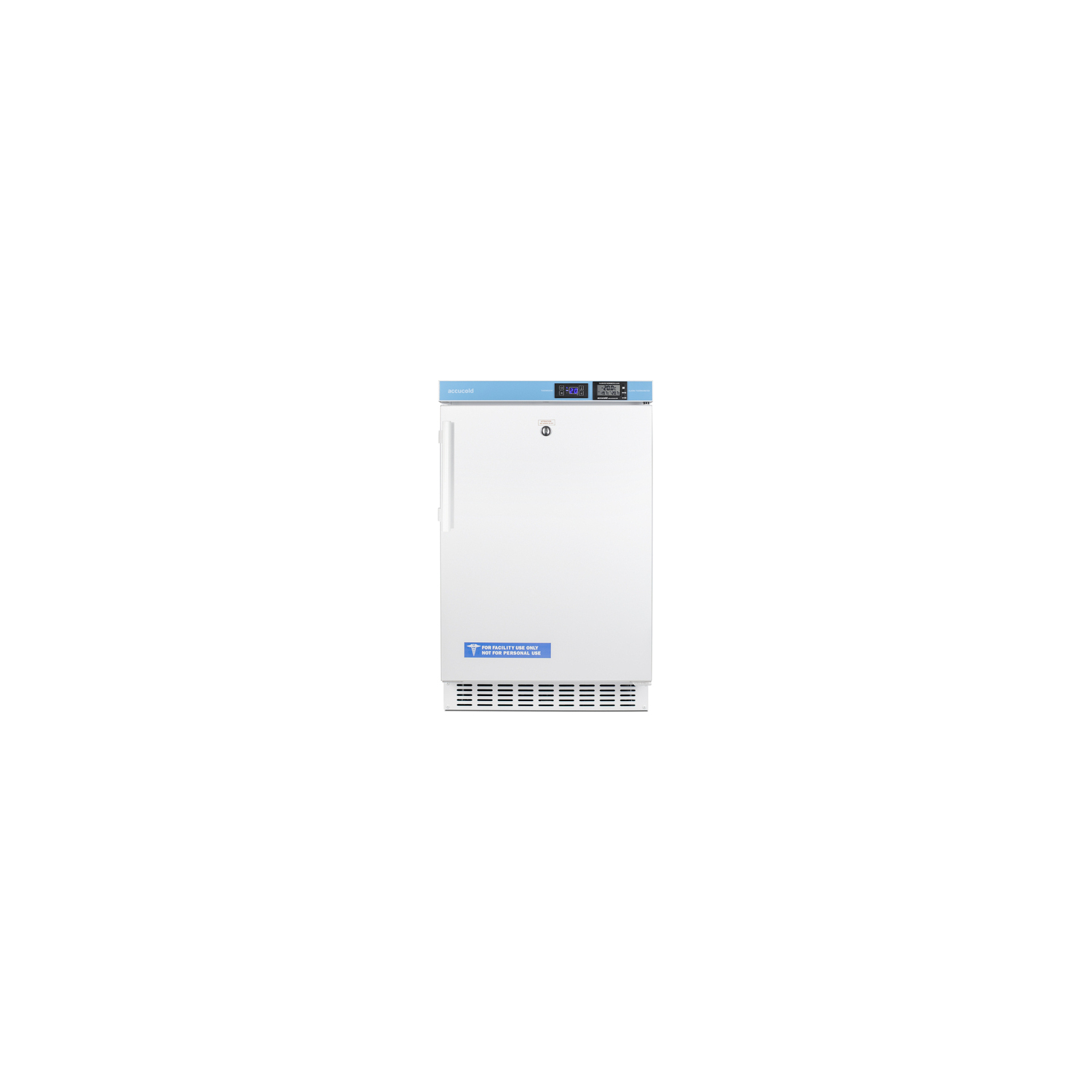

Summit Built-in ADA compliant frost-free vaccine all-freezer in white with lock, 7.61101e+011, ACF33L

Accucold’s Pharmaceutical Series features refrigeration specially designed to meet current CDC, VFC and VFA guidelines for vaccine storage, with built-in choices sized to fit under ADA compliant counters.

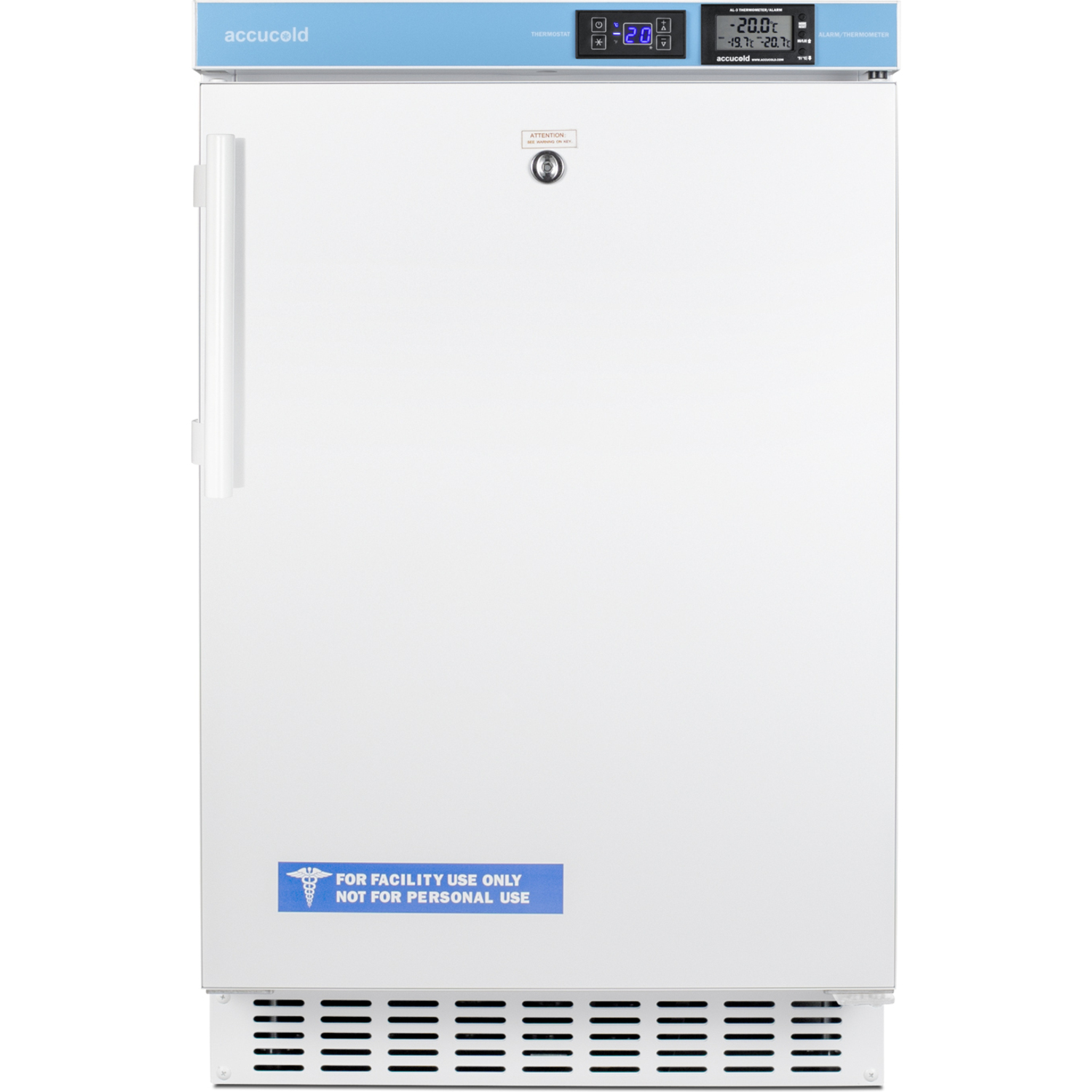

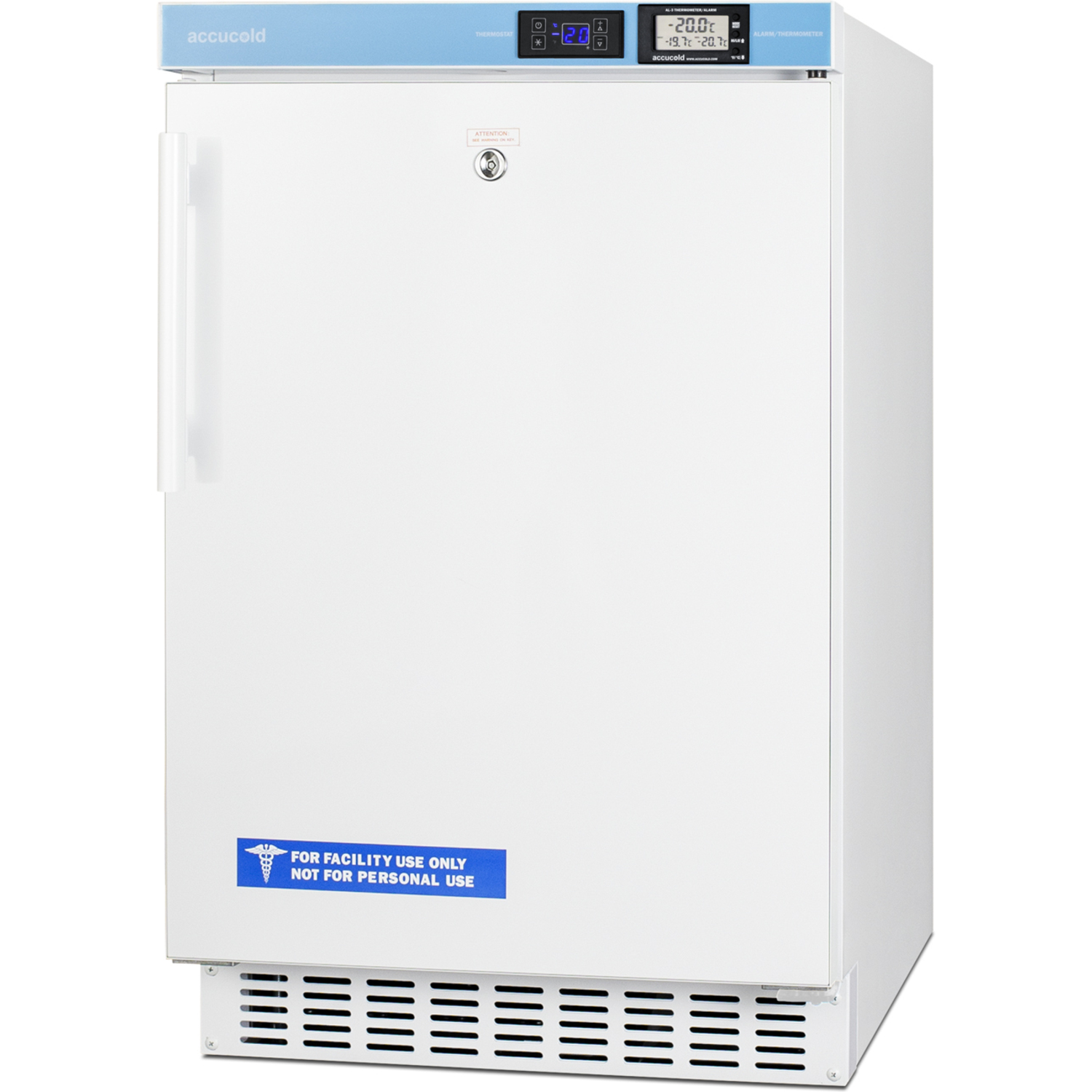

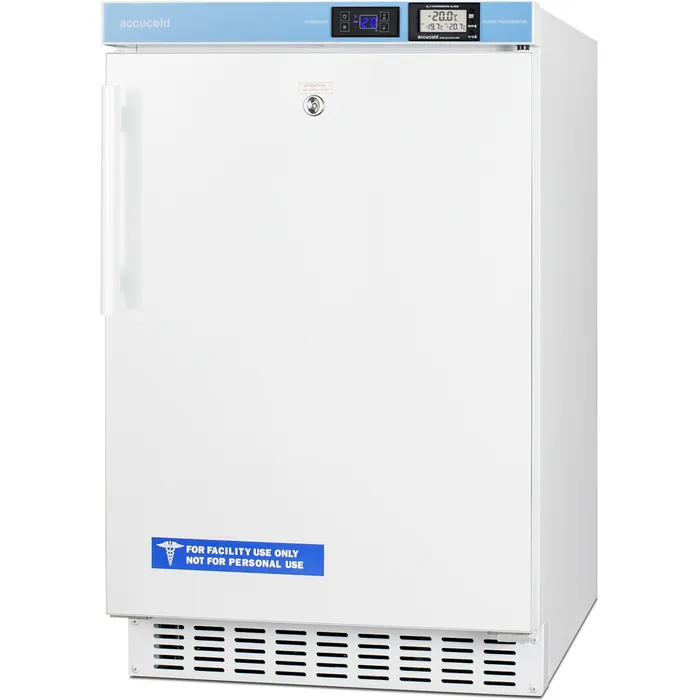

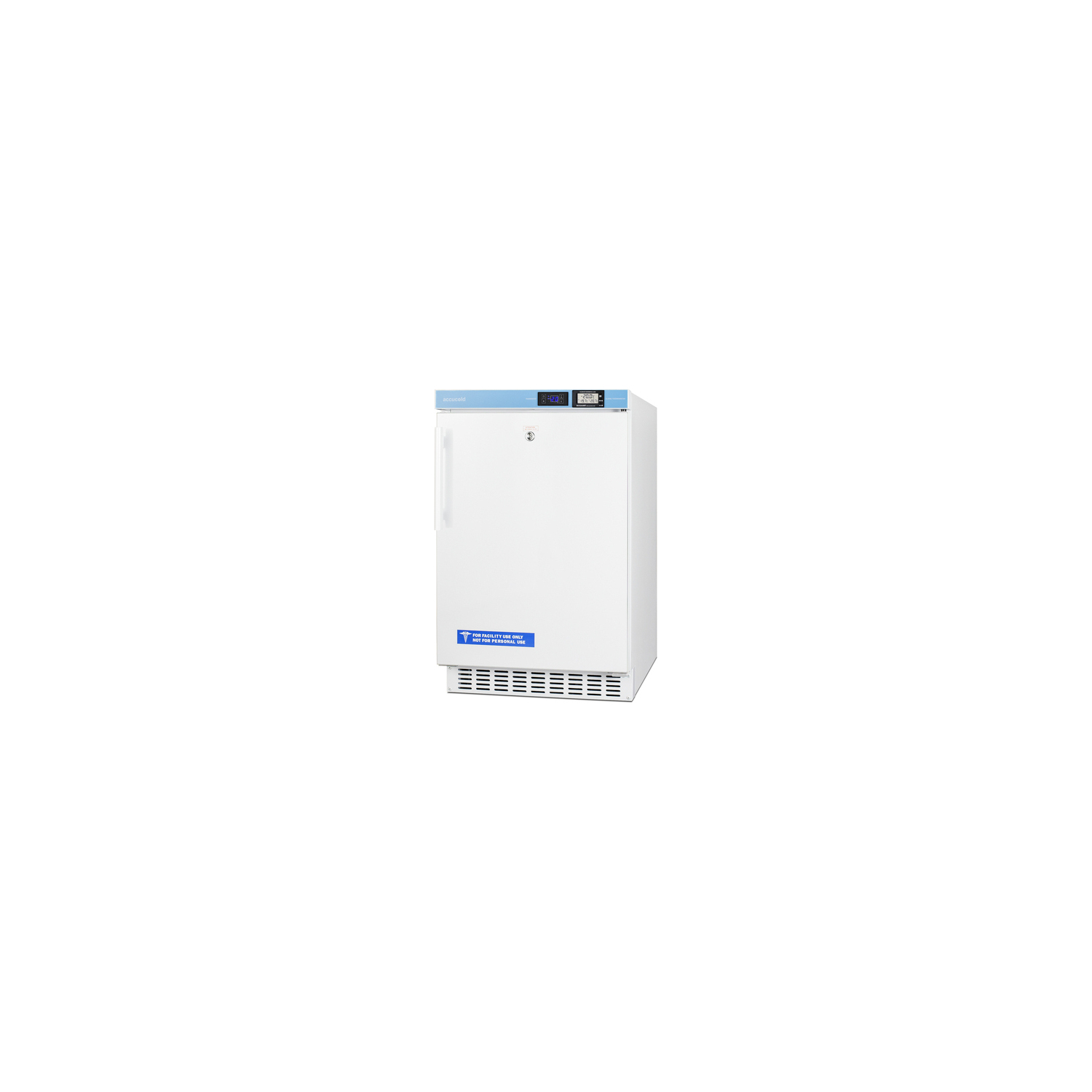

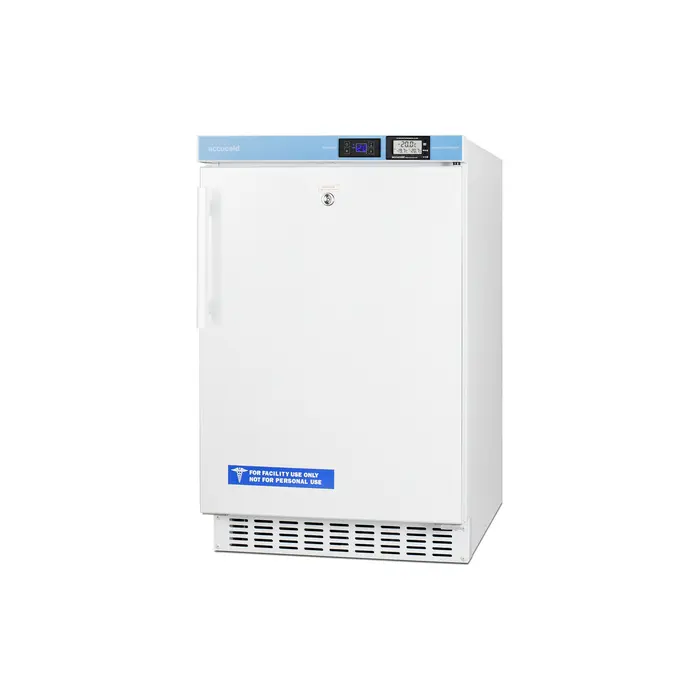

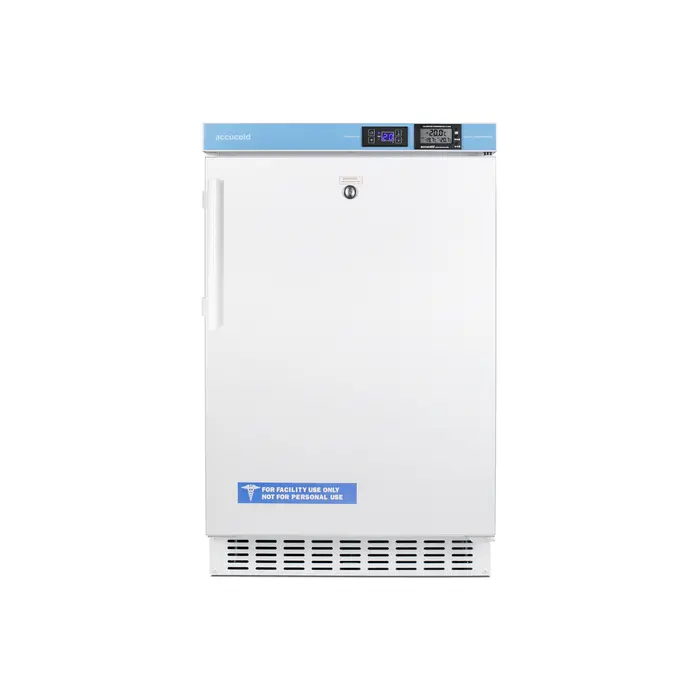

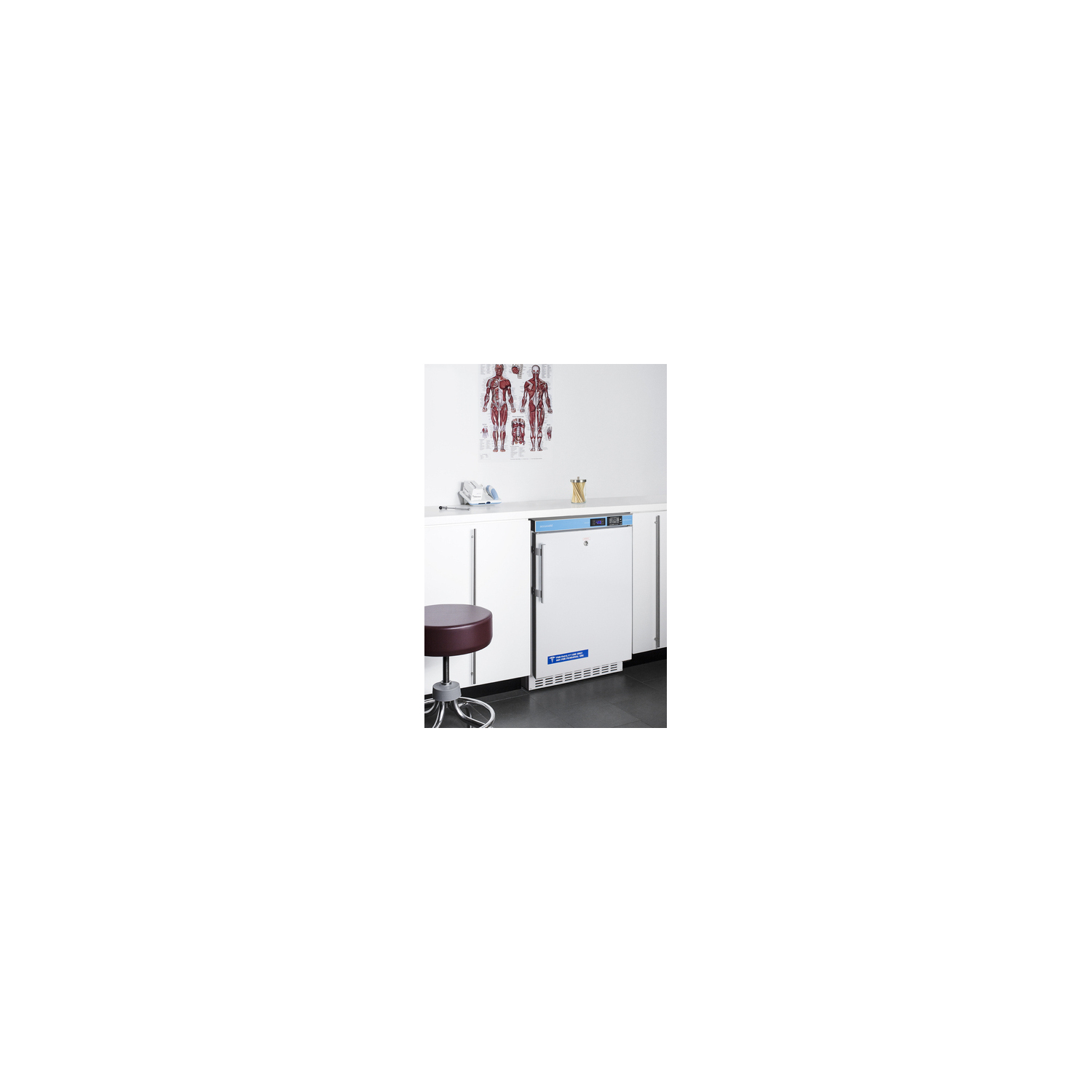

The ACF33L all-freezer is sized at just under 32" high, with a front-breathing design for built-in installation under lower ADA compliant counters and fully finished cabinet that also allows freestanding use. Its sealed back allows for a better fit and easier cleanability. A hospital grade cord with a 'green dot' plug provides added safety in high traffic areas and a factory-installed keyed lock is located towards the top of the unit for convenient security. The user-reversible door includes a side-mounted handle for added convenience, with a self-closing mechanism to ensure items aren't accidentally exposed to warm air. Four adjustable leveling legs allow you to raise the height for a better fit under standard countertops.

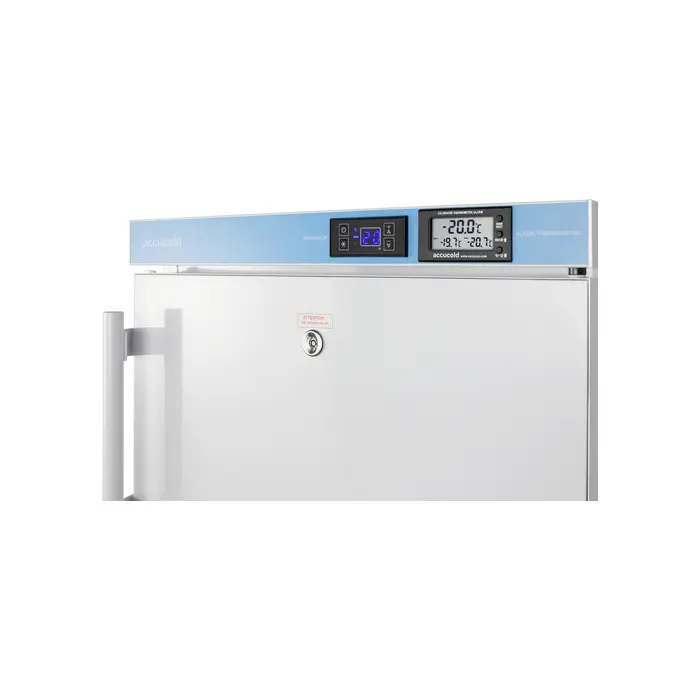

For optimum temperature management, the ACF33L features an external control panel, allowing users to adjust and monitor the temperature without opening the door. Additionally, it is equipped with a thermometer that displays the current, minimum, and maximum temperatures to the nearest tenth of a degree with a readout viewable in Celsius or Fahrenheit (as recommended by the CDC, VFC and VFA). The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a bottle filled with glass beads and secured inside the center shelf to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment as needed. (Note: for this unit with a NIST calibrated thermometer, see the ACF33LCAL.)

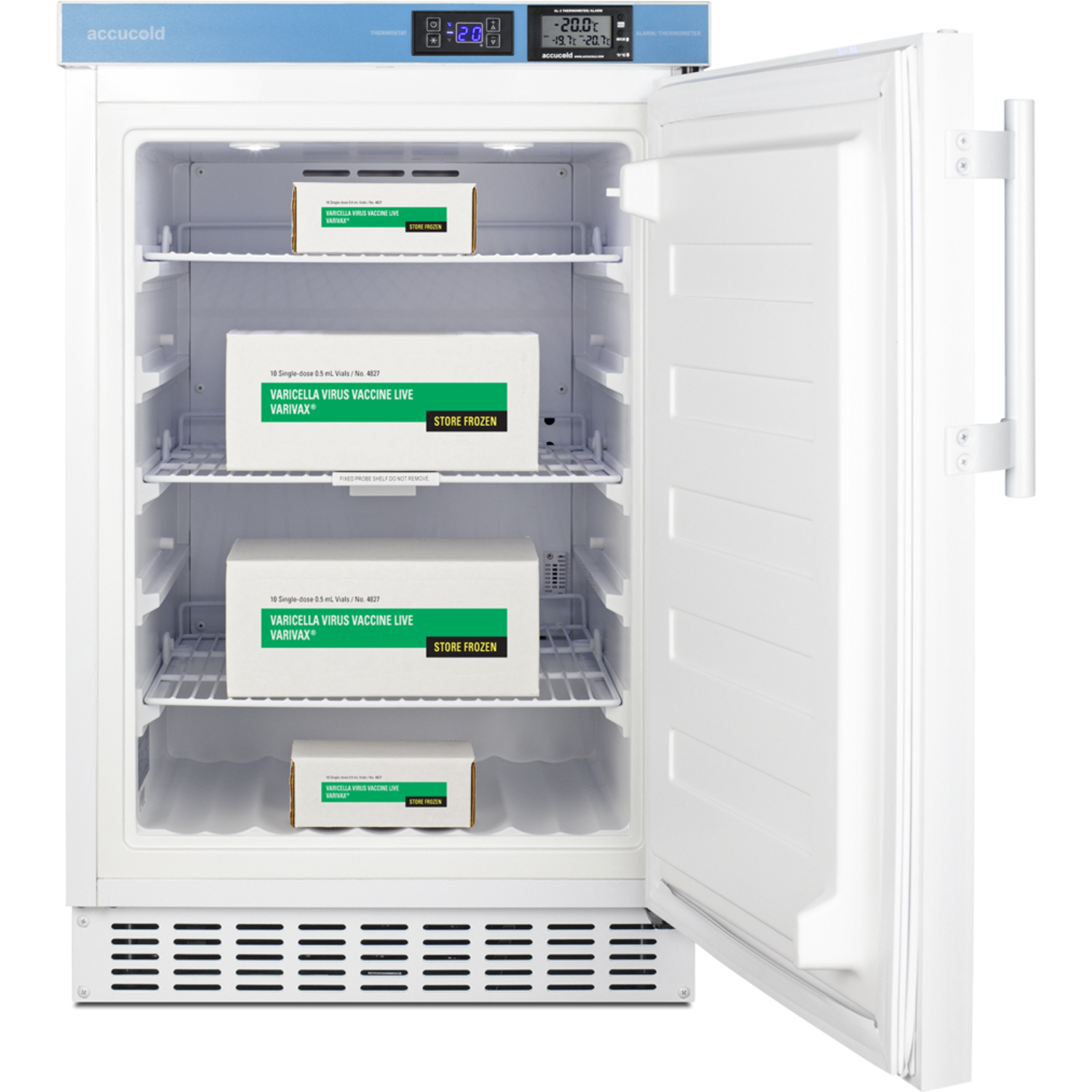

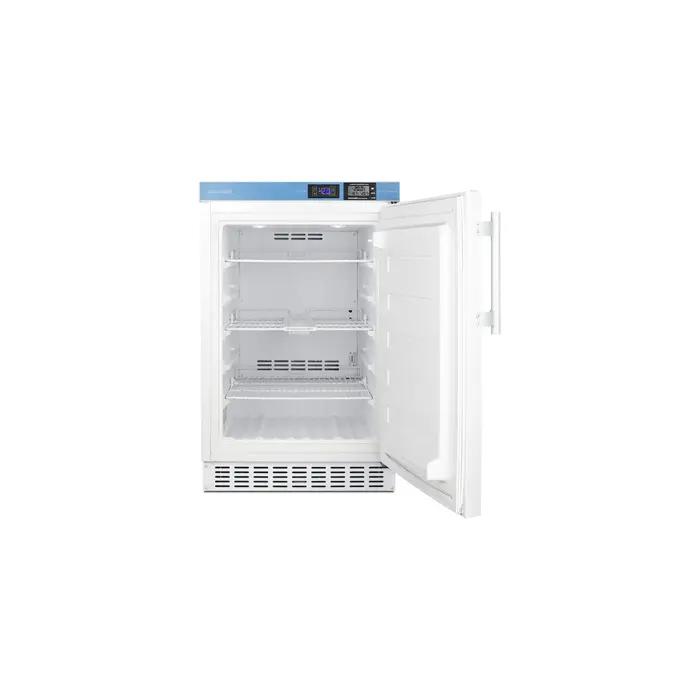

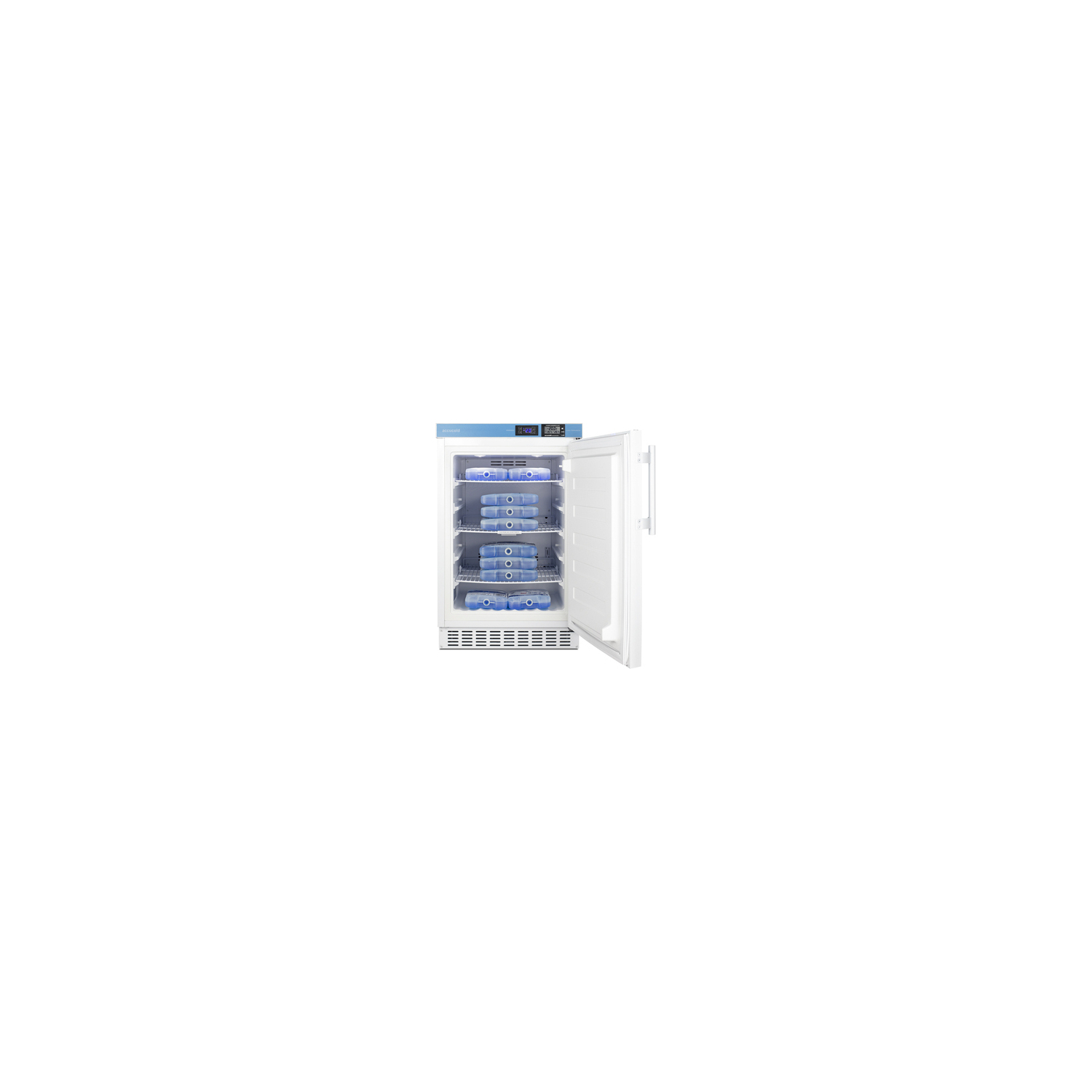

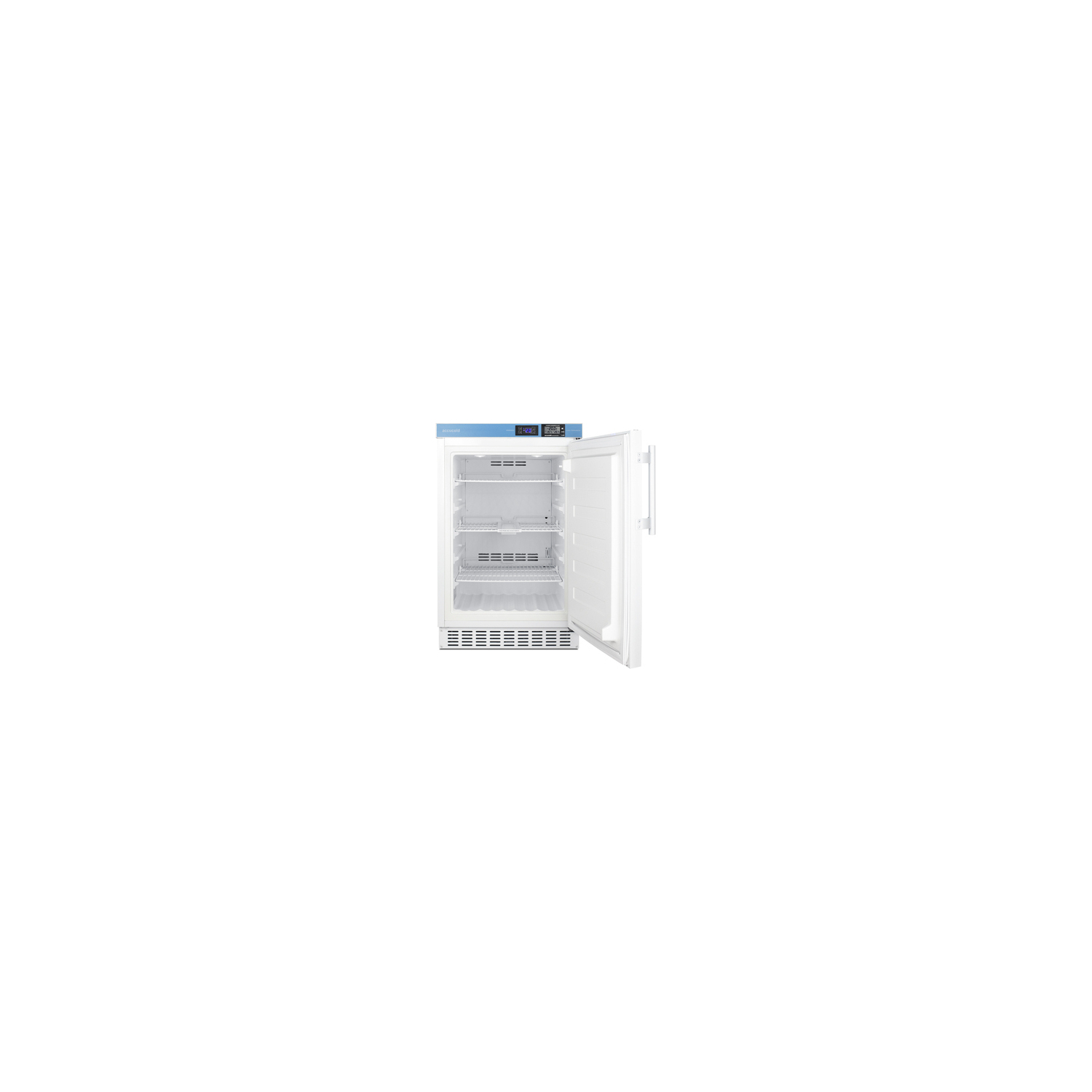

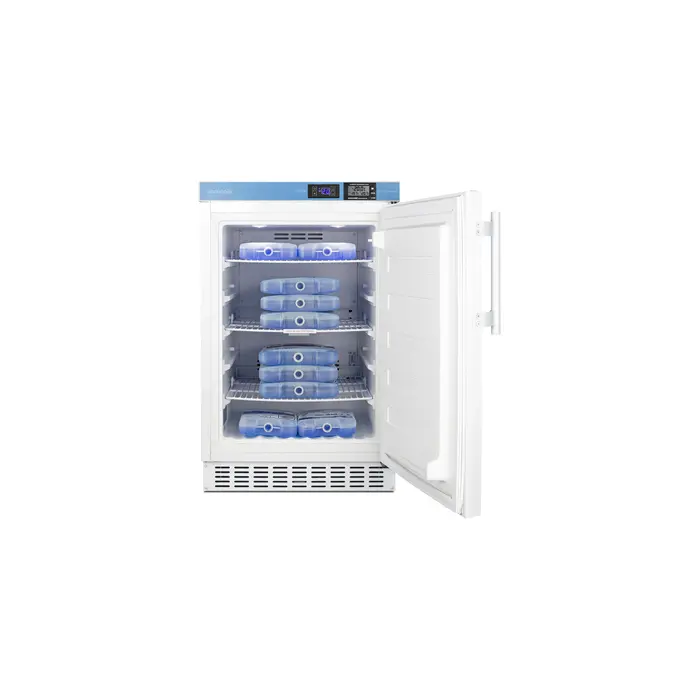

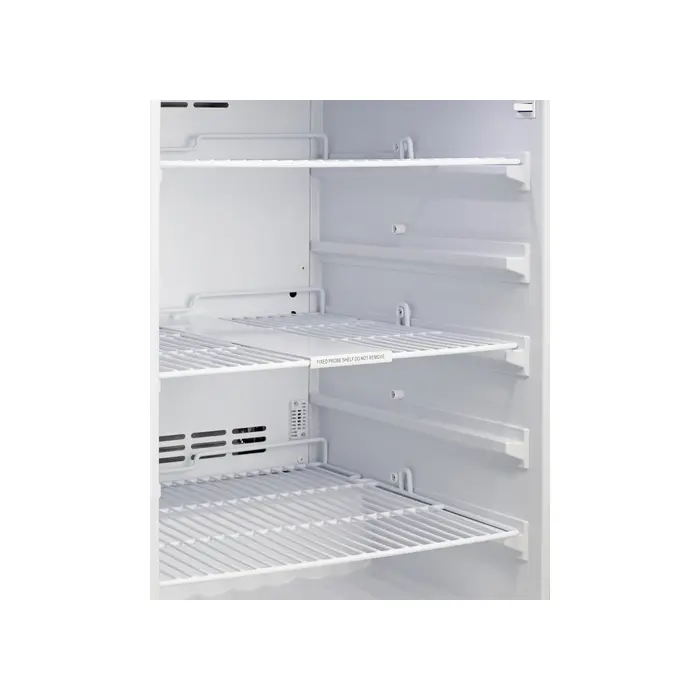

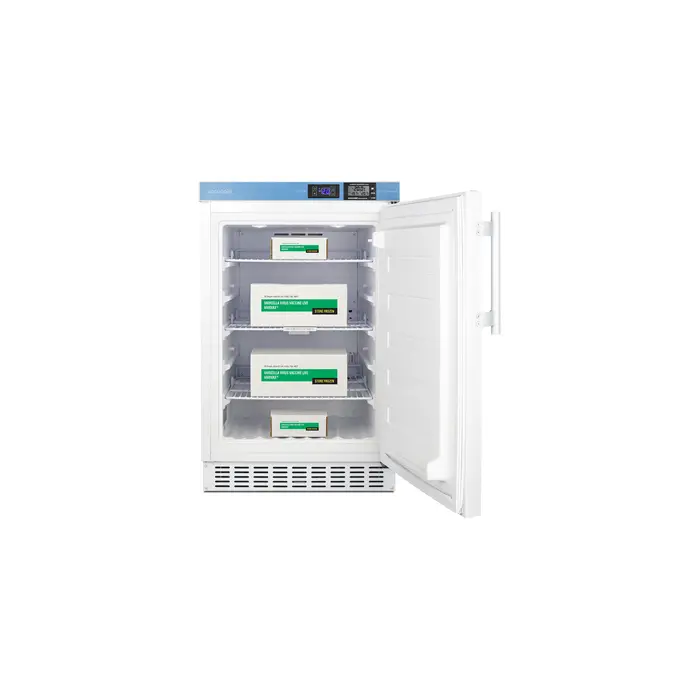

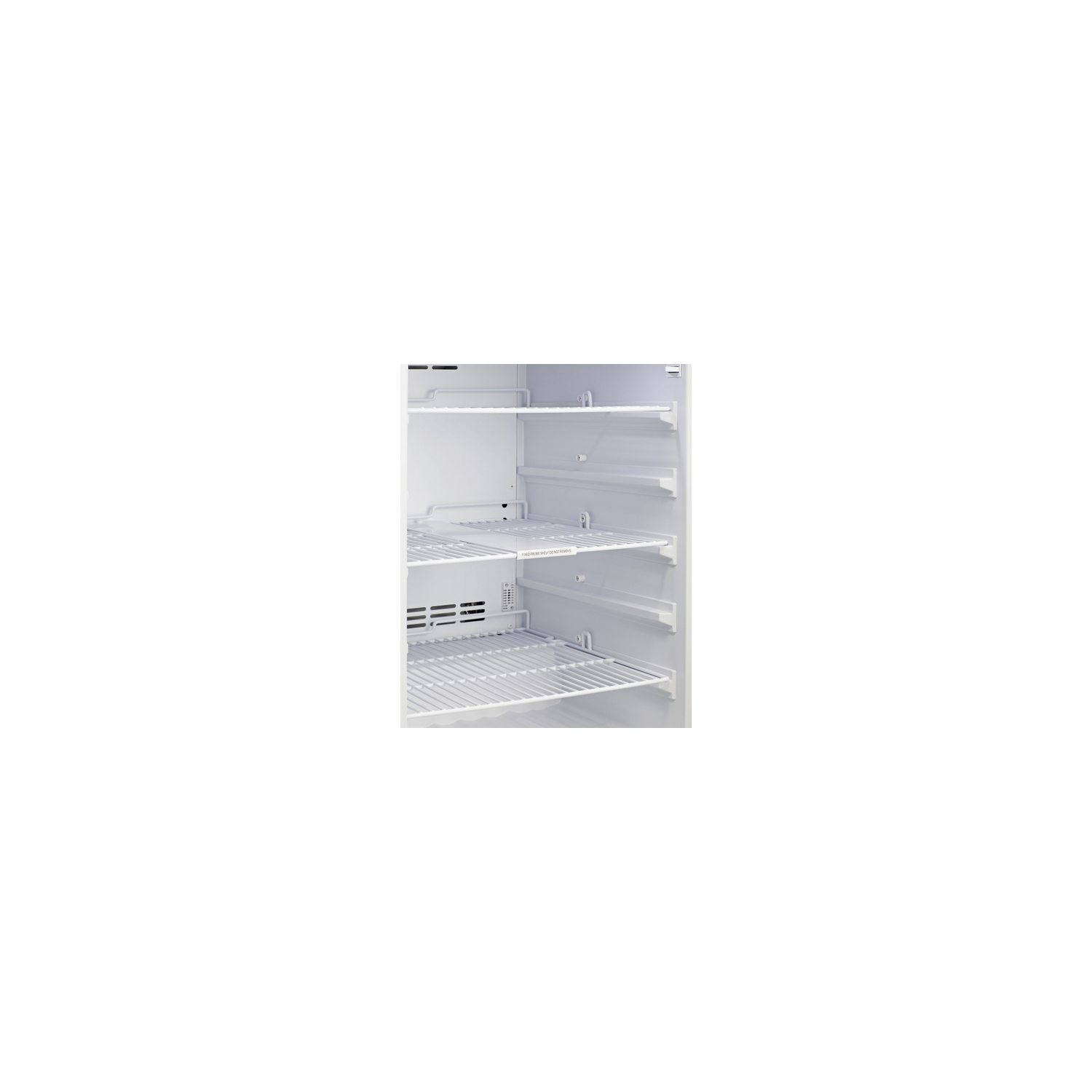

Inside, the 2.65 cu.ft. interior includes two adjustable wire shelves for optimum circulation, with one center fixed shelf to keep the temperature probe in place. The foamed-in-place cabinet and door liner affords added insulation of the interior for improved temperature stability, while an internal fan helps to evenly cool the interior from top to bottom. This model utilizes frost-free operation to minimize user maintenance. LED lighting helps to provide a clean, energy efficient view.

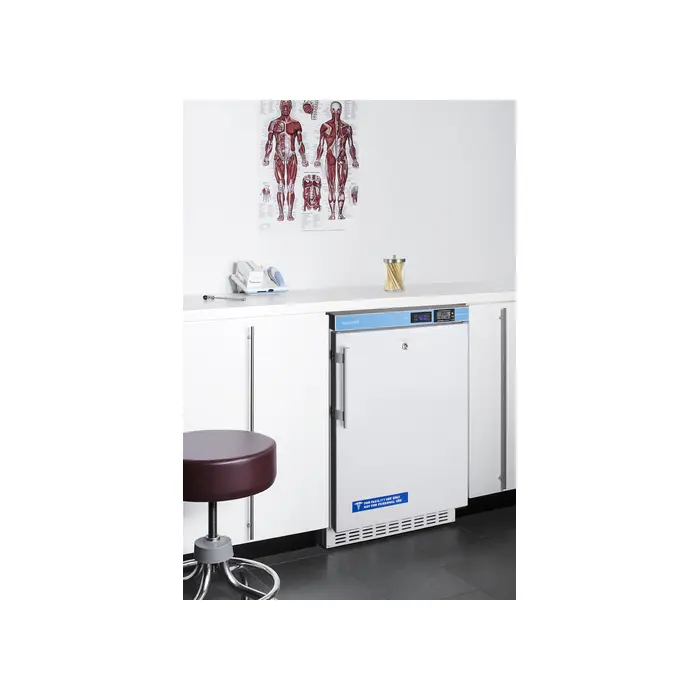

At just under 20" wide, the ACF33L is the perfect storage solution for doctors' offices, veterinary clinics, pharmacies, and similar healthcare environments. For a matching refrigerator, see the ACR45L (solid door) or ACR46GL (glass door). Additional purpose-built choices for vaccine storage are available in a variety of sizes. Browse the Accucold website to explore the full product line.

NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.

SPECIFICATIONS

Overview

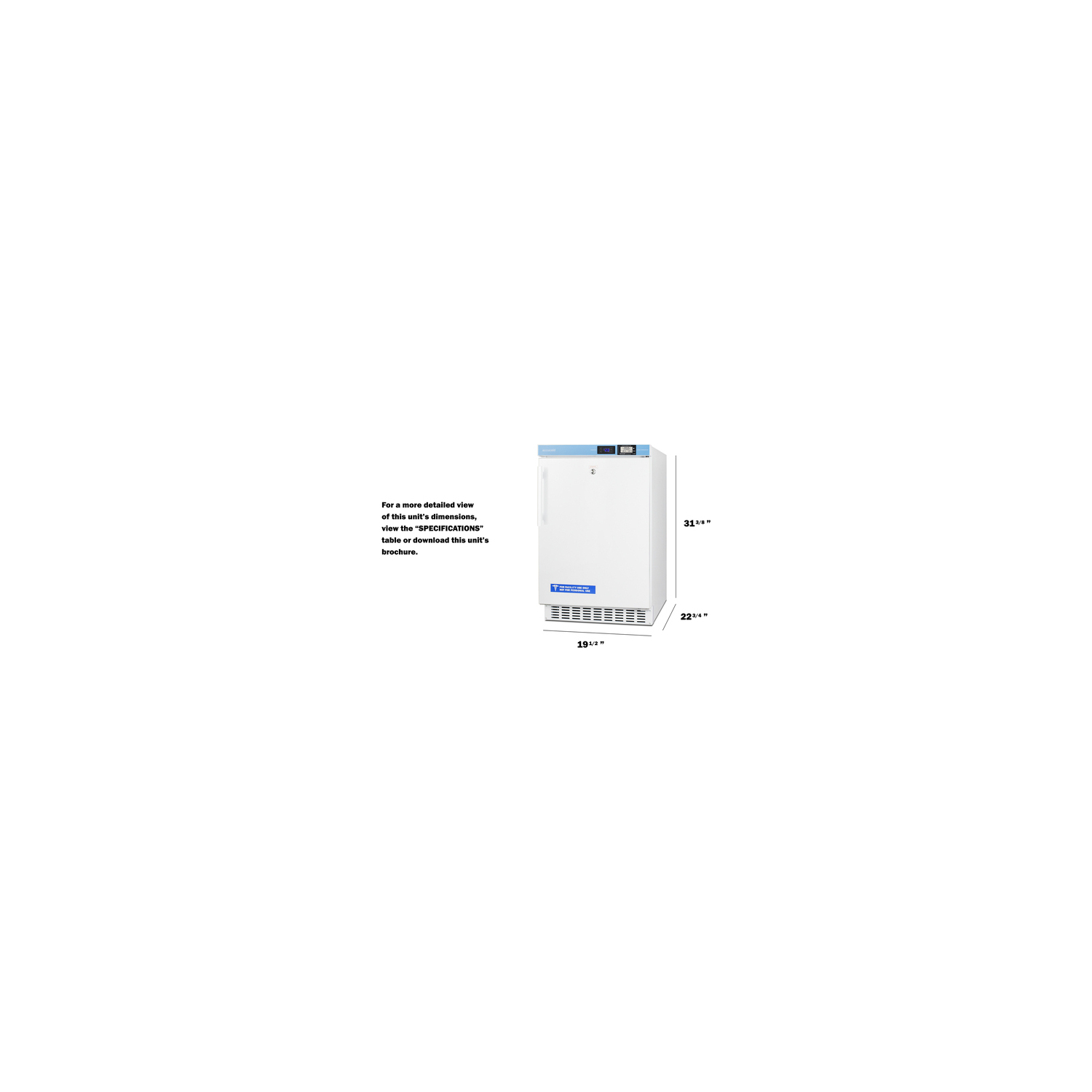

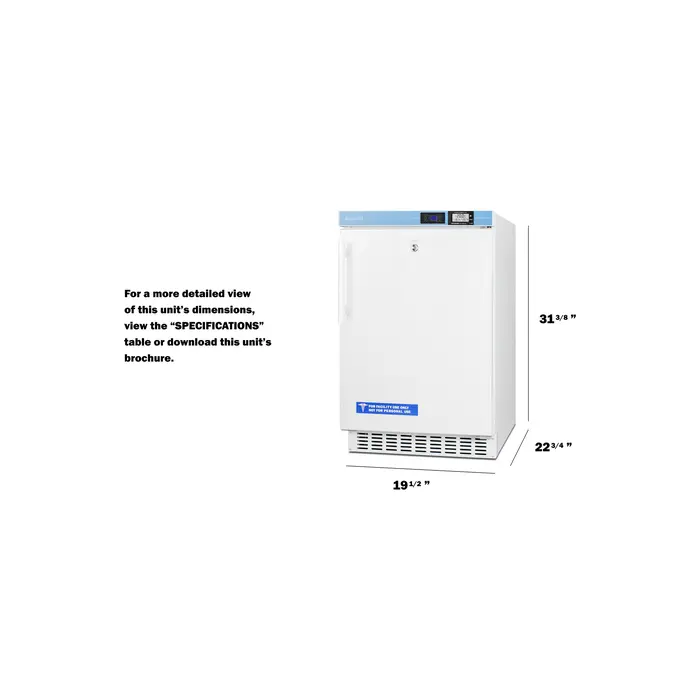

Nominal Height 32.0" (81 cm)

Height of Cabinet 31.38" (80 cm)

Nominal Width 20.0" (51 cm)

Width 19.5" (50 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.75" (58 cm)

Depth with Handle 23.63" (60 cm)

Depth with door at 90° 41.0" (104 cm)

Capacity 2.65 cu.ft. (75 L)

Defrost Type Frost-Free

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 2.0

Voltage/Frequency 115 V AC/60 Hz

Weight 81.0 lbs. (37 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101050751

Freezer

Door Swing RHD

Reversible Yes

Interior Height 21.25" (54 cm)

Interior Width 15.0" (38 cm)

Interior Depth 16.0" (41 cm)

Shelf Type Wire

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Digital

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.23 oz.

High Side PSI 270.0

Low Side PSI 105.0

Compressor Step Height 3.5" (9 cm)

Compressor Step Width 15.0" (38 cm)

Compressor Step Depth 4.75" (12 cm)

Temperature Range -30 to -11.6ºC /-22 to +11ºF

Sound Level 38.1 dB

FEATURES

Vaccine freezer Purpose-built to meet the recommendations of the CDC, VFC and VFA for reliable vaccine storage

ADA compliant Sized just under 32" high to allow installation under lower ADA compliant counters

Built-in capable Front-breathing system allows the unit to be installed under cabinets with minimum clearance

Slim 20" width Full 2.65 cu.ft. capacity inside conveniently slim footprint

External temperature readout Includes continuous display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button

Digital thermostat Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience

High/low temperature alarm Audible alarm sounds if the interior temperature rises or falls out of set range

Buffered temperature probe Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC, VFC and VFA's guidelines

Factory installed lock Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Frost-free No-frost operation for minimum user maintenance

Internal fan Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Hospital grade cord with 'green dot' plug Secure three-pronged cord for added unit safety in high traffic areas

Adjustable wire shelves Rearrange freezer space to accommodate all sizes or remove shelves for simple cleanup

Flat door liner Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

LED lighting Attractively illuminates the interior in a gentle white hue for easy viewing

3/8" access port Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

Reversible door User-reversible door swing makes it easy to adjust to your setting as needed

Foamed-in-place cabinet Quality design ensures efficiently insulated interior

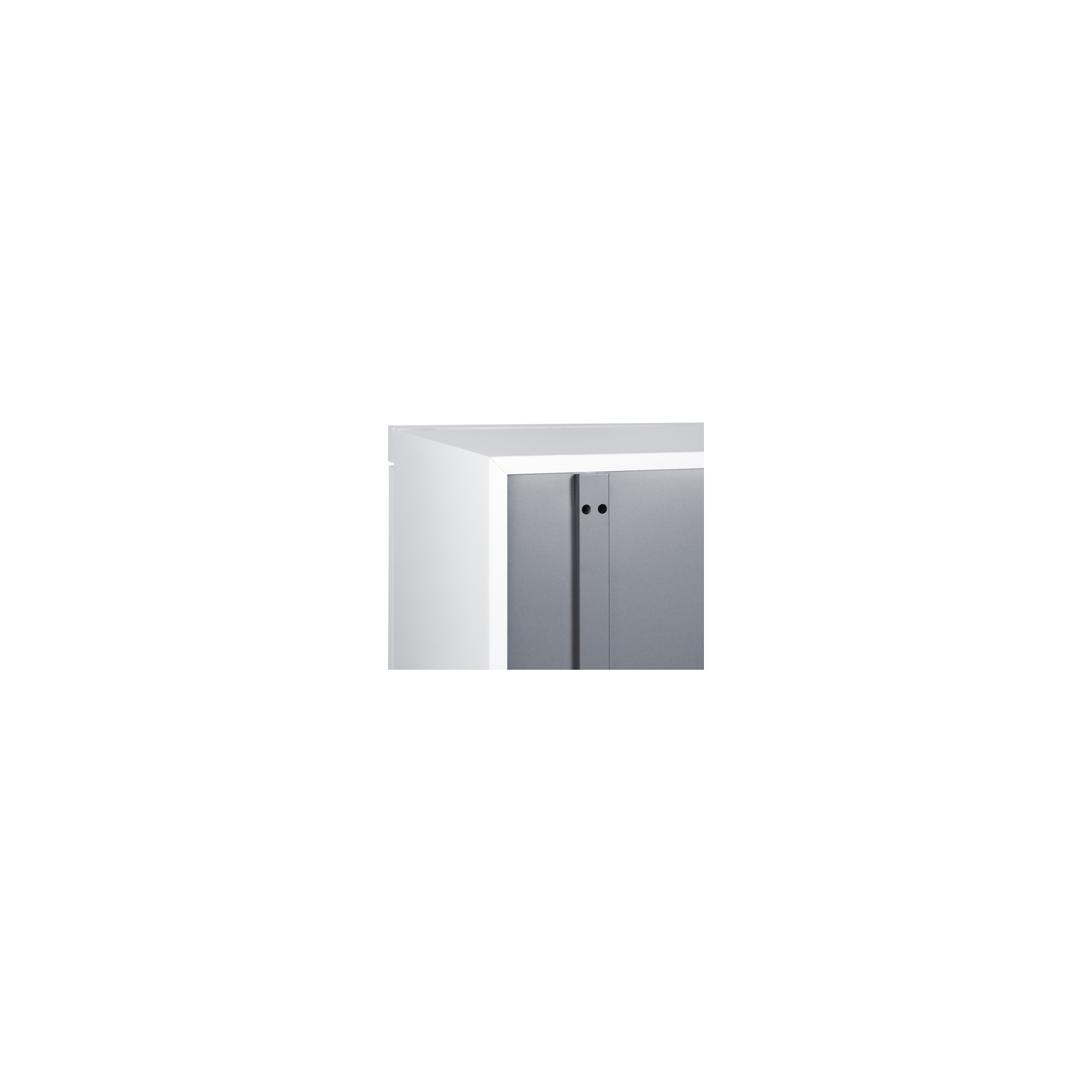

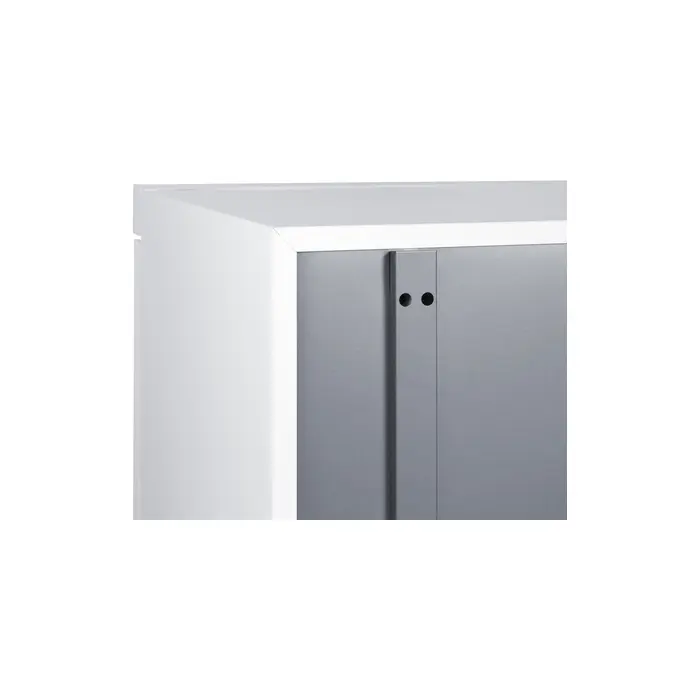

Sealed back Space-saving design with no exposed coils for easier cleanability

Temperature memory function Unit will retain its last settings when power is restored in the event of power loss

Self-closing door Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures

Magnetic door gasket Quality door gaskets ensure a tight seal for energy savings and improved performance

Handle included Side-mounted handle for user convenience (not required to operate the unit)

Fully finished white cabinet Allows the unit to be used freestanding

Matching refrigerator Pair with Accucold ACR45L (solid door) or ACR46GL (glass door) all-refrigerators to create a matching side-by-side or stackable set

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
