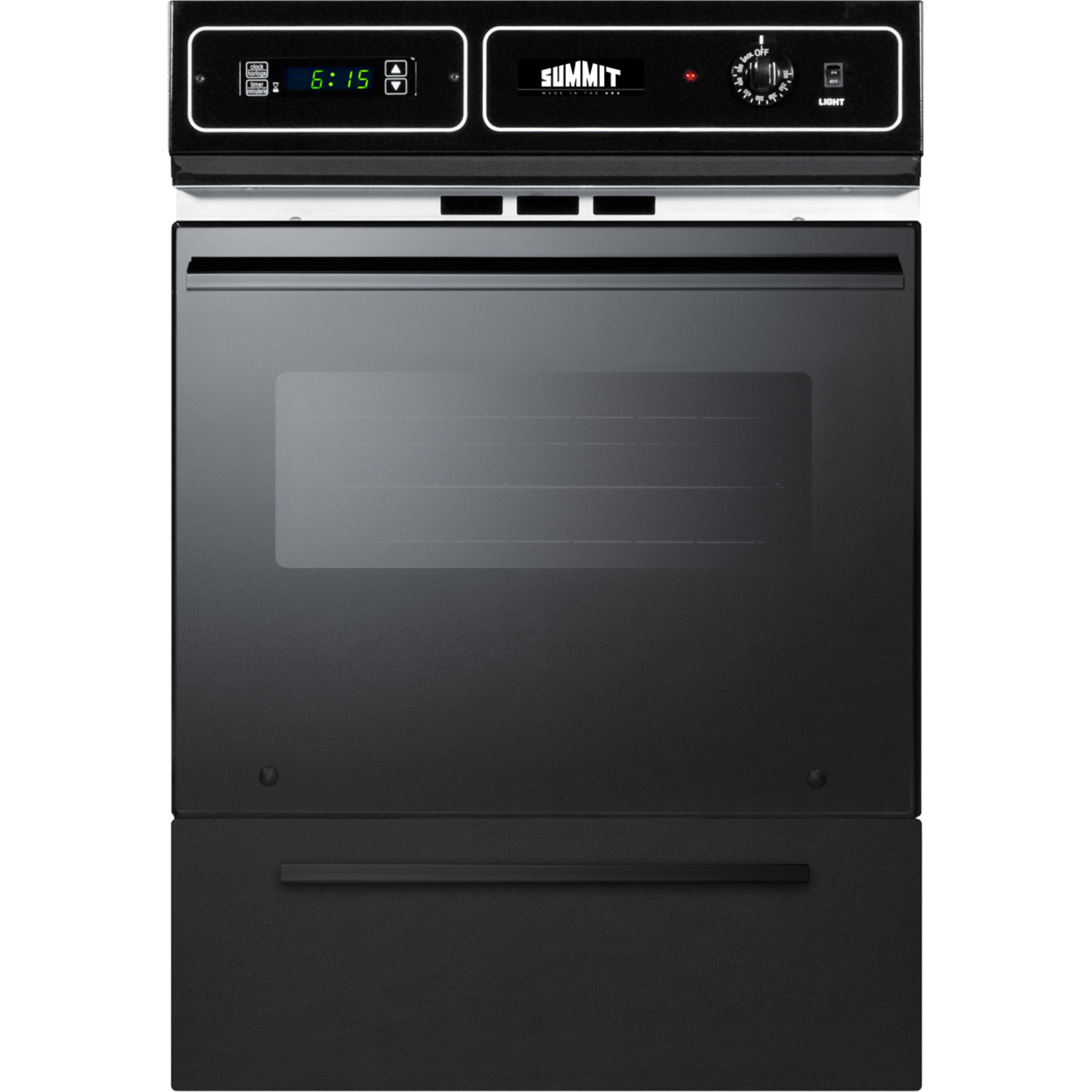

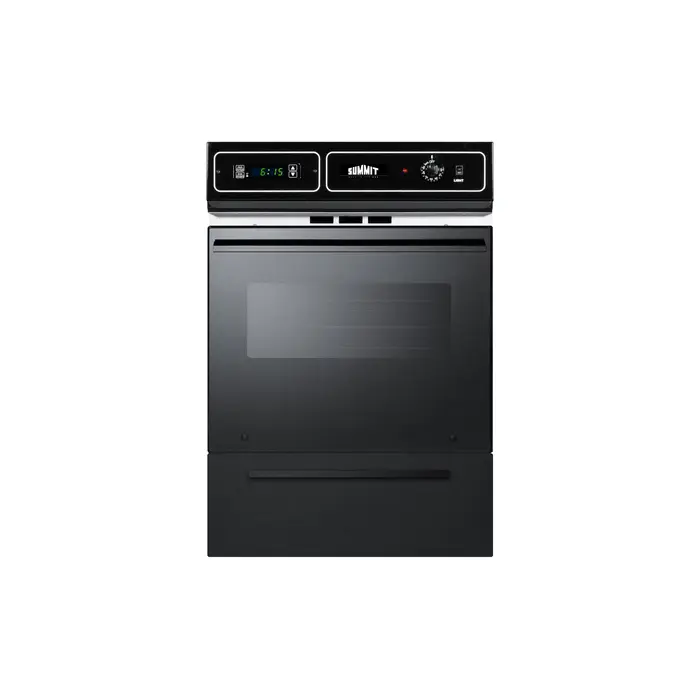

Summit Black glass gas wall oven with electronic ignition, digital clock/timer, and oven window for cutouts 22 3/8 inch wide by 34 1/8 inch high, 7.61101e+011, TTM7212DK
$975.82
Retail Price: $1,515.00
Shipping: $150
$ 975.82
Description
Summit's classic series of 24" wide wall ovens are made in the USA and specially sized to fit common 34 1/8" H x 22 3/8" W cutouts.
The TTM7212DK is a single gas wall oven with a black glass exterior for attractive style and long-lasting durability. The oven door includes a window and exterior light switch to illuminate the interior, making it easy to monitor your cooking without opening the door. The manifold includes a digital clock with a timer function for added convenience.

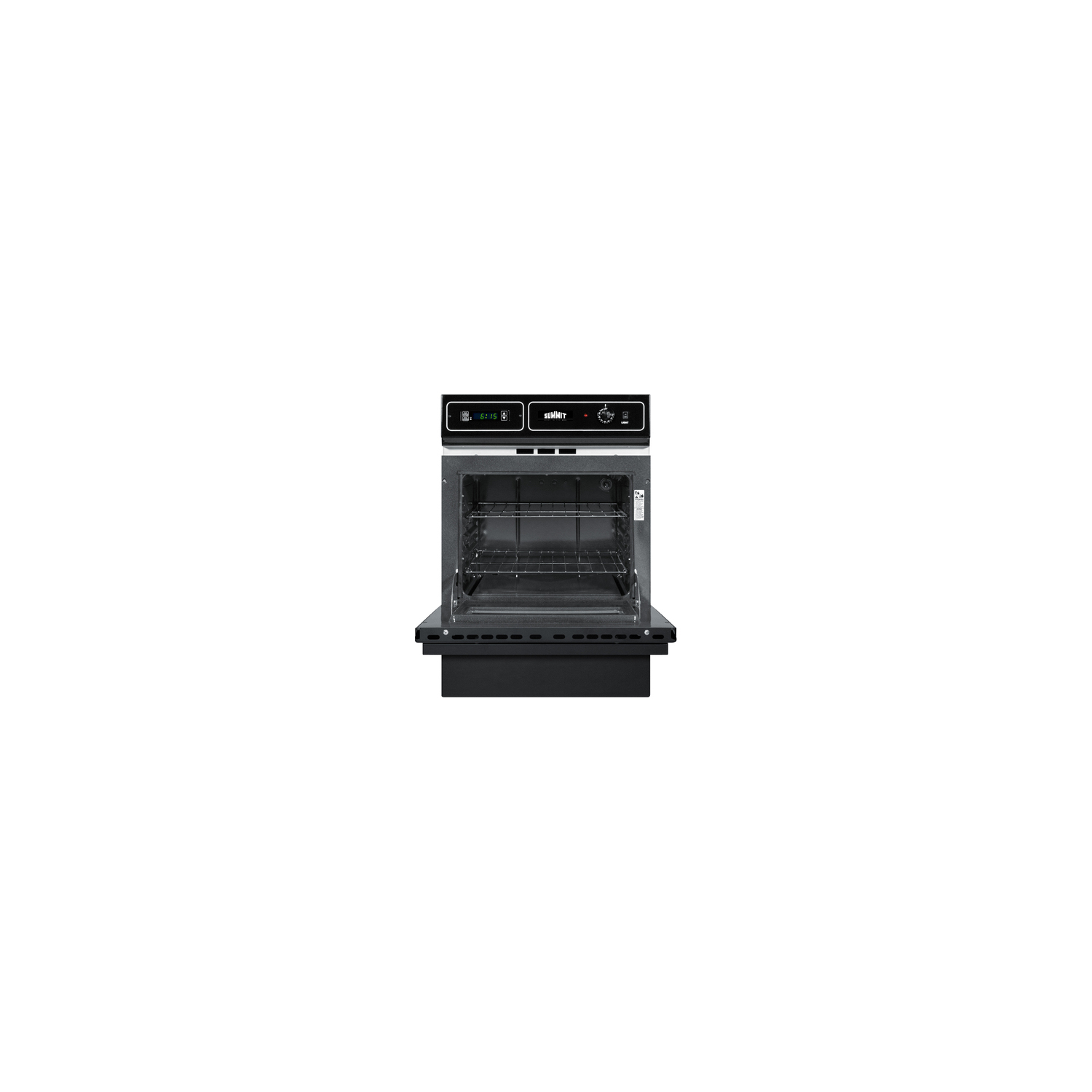

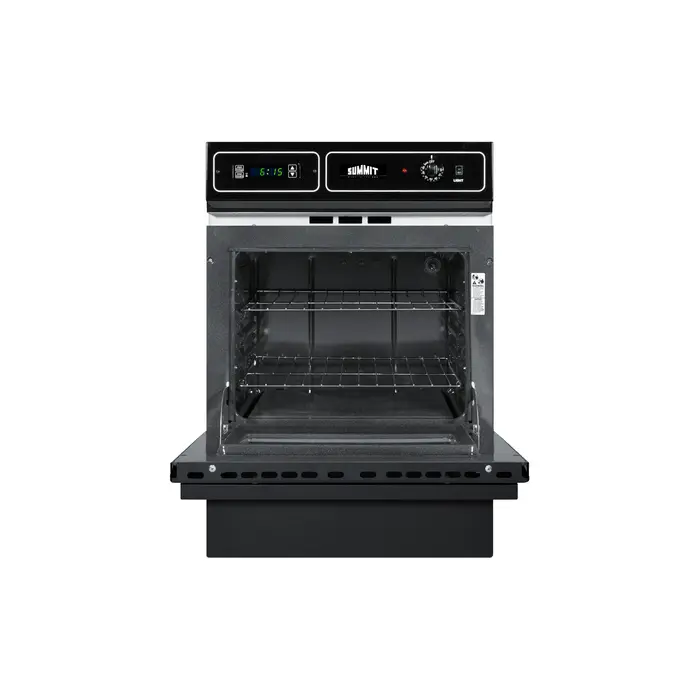

Inside, this wall oven features solid porcelain construction to hold up to everyday use. Two adjustable racks with safety brakes allow you to accommodate a variety of sizes when baking. The drop-down broiler includes a two-piece tray with grease well.
The TTM7212DK is powered by glow bar ignition and ships with a pre-installed 115V 3-prong cord. It is set for natural gas but can be converted to propane without additional equipment.
Summit's domestically manufactured wall ovens have an industry exclusive height of 34 1/2". These units fit many discontinued cutouts such as Caloric, Slattery, and older makes, including Magic Chef. To fit other cutouts up to 39" high, add the TKW700 trim kit accessory.
Nominal Height: 35
Height of Cabinet: 34.5
Height to Hinge Cap: 0
Nominal Width: 24
Width: 24
Width with Door Open: 0
Nominal Depth: 24
Depth: 24
Depth with Handle: 0
Depth with door at 90°: 0
Capacity: 2.92
Bottles: 0Defrost Type: N/ADoor: BlackCabinet: BlackUS Electrical Safety: N/ACanadian Electrical Safety: N/ASanitation: N/AVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: N/A
SPECIFICATIONS
Overview
Nominal Height 35.0" (89 cm)
Height of Cabinet 34.5" (88 cm)
Nominal Width 24.0" (61 cm)
Width 24.0" (61 cm)
Nominal Depth 24.0" (61 cm)
Depth 24.0" (61 cm)
Capacity 2.92 cu.ft. (83 L)
Door Black
Cabinet Black
Amps 3.6
Voltage/Frequency 115 V AC/60 Hz
Weight 140.0 lbs. (64 kg)
Parts & Labor Warranty 1 Year
UPC 761101000961
Gas Walloven
Ignition Glowbar
LP Convertible Yes
Controls Dial
Oven Light Yes
Cleaning Type Manual
Oven Rack Qty 2
Oven Window Yes
Interior Height 14.0" (36 cm)
Interior Width 19.0" (48 cm)
Interior Depth 18.0" (46 cm)
Cutout Height 34.13" (87 cm)
Cutout Width 22.38" (57 cm)
Cutout Depth 23.0" (58 cm)
FEATURES
Made in the USA Designed and constructed domestically
Classic fit Sized to fit 34 1/8" H x 22 3/8" W cabinet cutouts, a popular replacement size rarely offered by other manufacturers
Black glass door Durable construction in an attractive jet black glass finish
Large capacity 2.92 cu.ft. interior to fit large dishes
Oven window and light Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
Adjustable oven racks Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Broiler compartment Lower drop-down compartment for separate broiling with even heat distribution
Electronic glow bar ignition Includes a pre-installed 115V 3-prong cord for ignition
Dial controls Basic knob controls for simple and intuitive cooking
Removable oven door Allows for easier cleaning as needed
Digital clock and timer Added convenience for easier cooking
Natural or LP gas Unit comes set for natural gas connections but can be converted to propane in the field without any additional equipment
Porcelain construction Interior oven is constructed from porcelain for lasting durability that holds up to daily cooking
Broiler pan included Two-piece porcelain broiler tray with grease well
Optional trim kit Add TKW700 accessory to raise the exterior height to fit 39" high openings
DOWNLOADS
REVIT MODEL (QF_Summit_TTM7212DK_Oven.rfa)
