Summit Stainless steel gas wall oven with electronic ignition and digital clock/timer; for cutouts 22 3/8 inch wide by 34 1/8 inch high, 7.61101e+011, TTM7212BKW

Summit's classic series of 24" wide wall ovens are made in the USA and specially sized to fit common 34 1/8" H x 22 3/8" W cutouts.

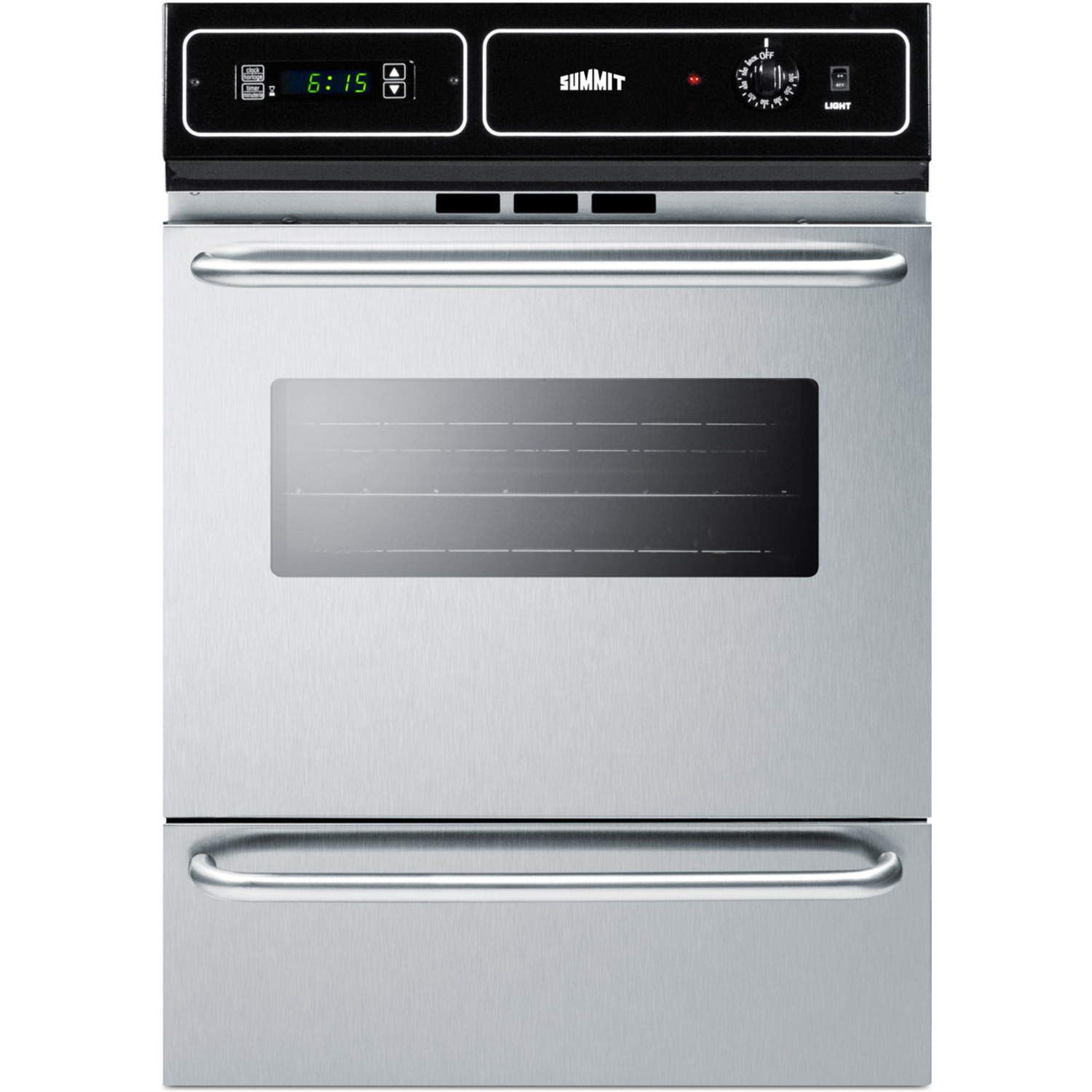

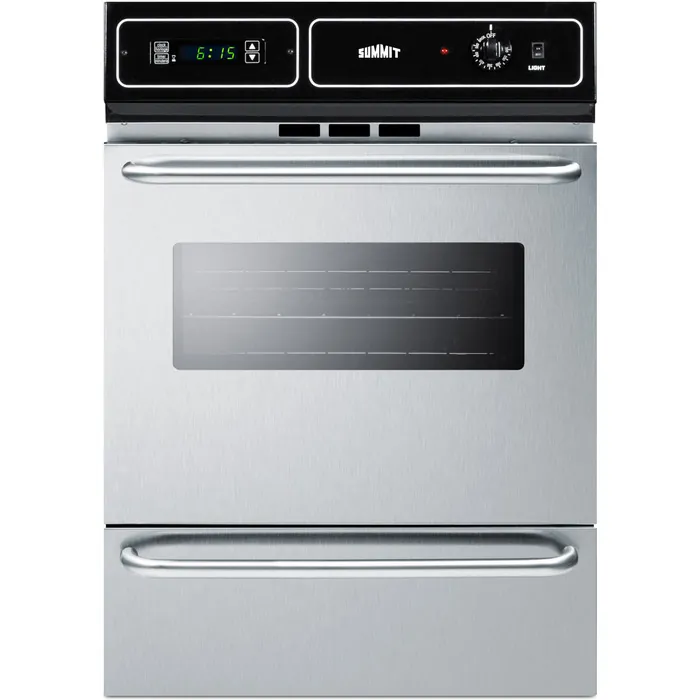

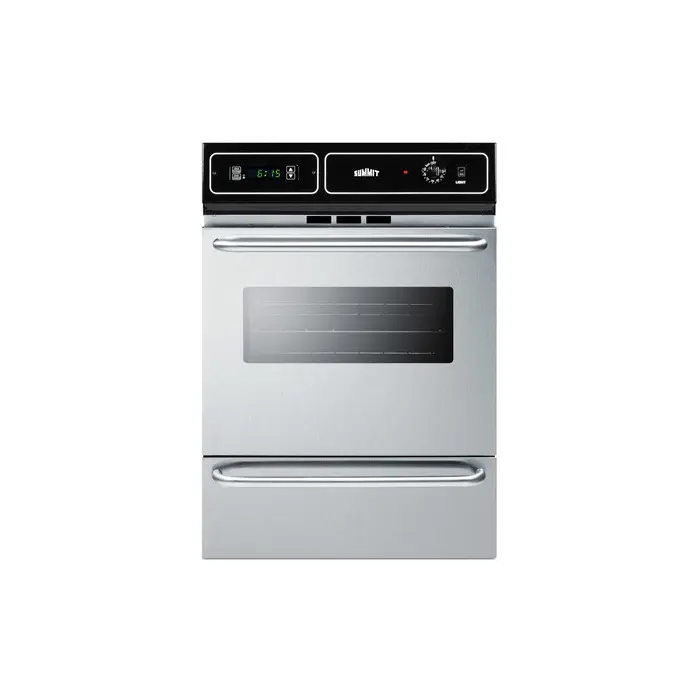

The TTM7212BKW is a single gas wall oven. The exterior doors come in a brushed stainless steel finish, with full-width curved towel bar handles to complete the look. The oven door includes a window and exterior light switch to illuminate the interior, making it easy to monitor your cooking without opening the door. A digital clock with a timer function offers added convenience.

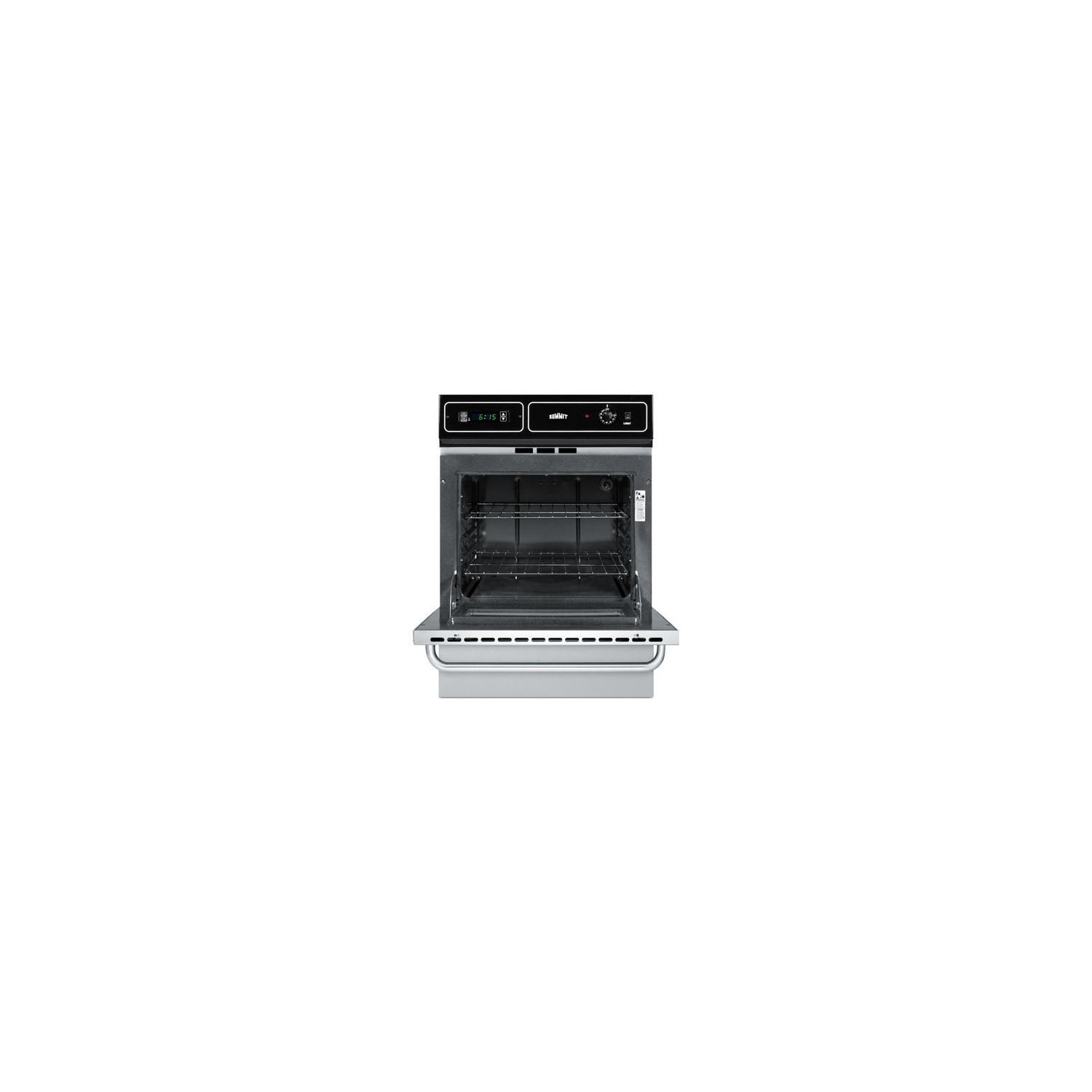

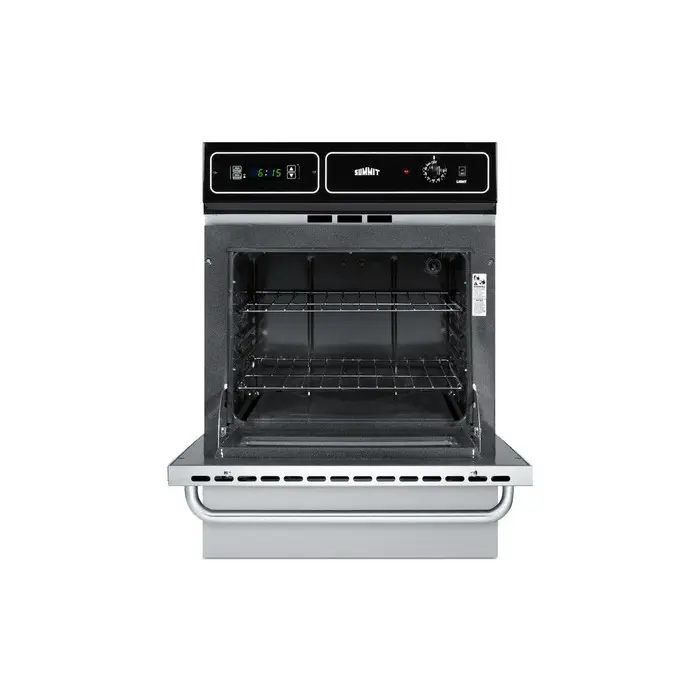

Inside, this wall oven features solid porcelain construction for lasting durability to hold up to everyday use. Two adjustable racks with safety brakes allow you to accommodate a variety of sizes when baking. The drop-down broiler includes a two-piece tray with grease well.

The TTM7212BKW is powered by glow bar ignition and ships with a pre-installed 115V 3-prong cord. It is set for natural gas but can be converted to propane without additional equipment.

Summit's domestically manufactured wall ovens have an industry exclusive height of 34 1/2". These units fit many discontinued cutouts such as Caloric, Slattery, and older makes, including Magic Chef. To fit other cutouts up to 39" high, add the TKW700SS or TKW700 trim kit accessory.

Nominal Height: 35
Height of Cabinet: 34.5
Height to Hinge Cap: 0
Nominal Width: 24
Width: 24
Width with Door Open: 0
Nominal Depth: 25
Depth: 24.75
Depth with Handle: 27.13
Depth with door at 90°: 42.75
Capacity: 2.92
Bottles: 0Defrost Type: N/ADoor: Stainless SteelCabinet: Stainless SteelUS Electrical Safety: N/ACanadian Electrical Safety: N/ASanitation: N/AVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: N/A

SPECIFICATIONS

Overview

Nominal Height 35.0" (89 cm)

Height of Cabinet 34.5" (88 cm)

Nominal Width 24.0" (61 cm)

Width 24.0" (61 cm)

Nominal Depth 25.0" (64 cm)

Depth 24.75" (63 cm)

Depth with Handle 27.13" (69 cm)

Depth with door at 90° 42.75" (109 cm)

Capacity 2.92 cu.ft. (83 L)

Door Stainless Steel

Cabinet Stainless Steel

Amps 3.6

Voltage/Frequency 115 V AC/60 Hz

Weight 140.0 lbs. (64 kg)

Parts & Labor Warranty 1 Year

UPC 761101051451

Gas Walloven

Ignition Glowbar

LP Convertible Yes

Oven Capacity 2.92

Controls Dial

Oven Light Yes

Cooking Timer Yes

Cleaning Type Manual

Oven Rack Qty 2

Oven Window Yes

Interior Height 14.0" (36 cm)

Interior Width 19.0" (48 cm)

Interior Depth 18.0" (46 cm)

Cutout Height 34.13" (87 cm)

Cutout Width 22.38" (57 cm)

Cutout Depth 23.0" (58 cm)

FEATURES

Made in the USA Designed and constructed domestically

Classic fit Sized to fit 34 1/8" H x 22 3/8" W cabinet cutouts, a popular replacement size rarely offered by other manufacturers

Stainless steel front Doors are constructed from brushed stainless steel for modern luxury built to last

Professional towel bar handles Curved handles in brushed stainless steel offer an easier grip in attractive style

Large capacity 2.92 cu.ft. interior to fit large dishes

Oven window and light Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door

Adjustable oven racks Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Broiler compartment Lower drop-down compartment for separate broiling with even heat distribution

Dial controls Basic knob controls for simple and intuitive cooking

Electronic glow bar ignition Includes a pre-installed 115V 3-prong cord for ignition

Removable oven door Allows for easier cleaning as needed

Digital clock and timer Added convenience for easier cooking

Natural or LP gas Unit comes set for natural gas connections but can be converted to propane in the field without any additional equipment

Porcelain construction Interior oven is constructed from porcelain for lasting durability that holds up to daily cooking

Broiler pan included Two-piece porcelain broiler tray with grease well

Optional trim kit Add TKW700SS or TKW700 accessory to raise the exterior height to fit 39" high openings

DOWNLOADS

BROCHURE w/ DRAWINGS (TTM7212BKW.pdf)

TECHNICAL DRAWING (.dwg) (TTM7212BKW_GAS_WALLOVEN__A-C_2000__2.dwg)

REVIT MODEL (QF_Summit_TTM7212BKW_Oven.rfa)

OTHER (Wall_Ovens_Install_Insert.pdf)

USE & CARE (TTM7212BKW-User-Manual.pdf)
