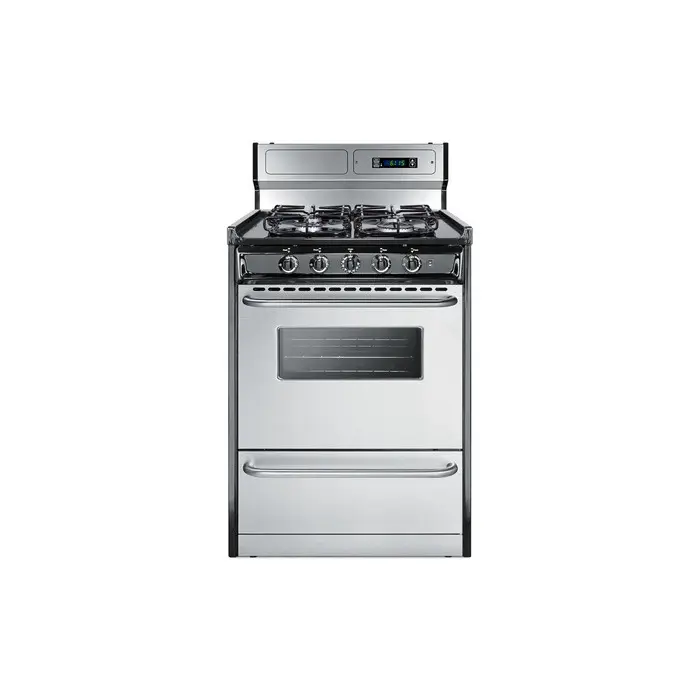

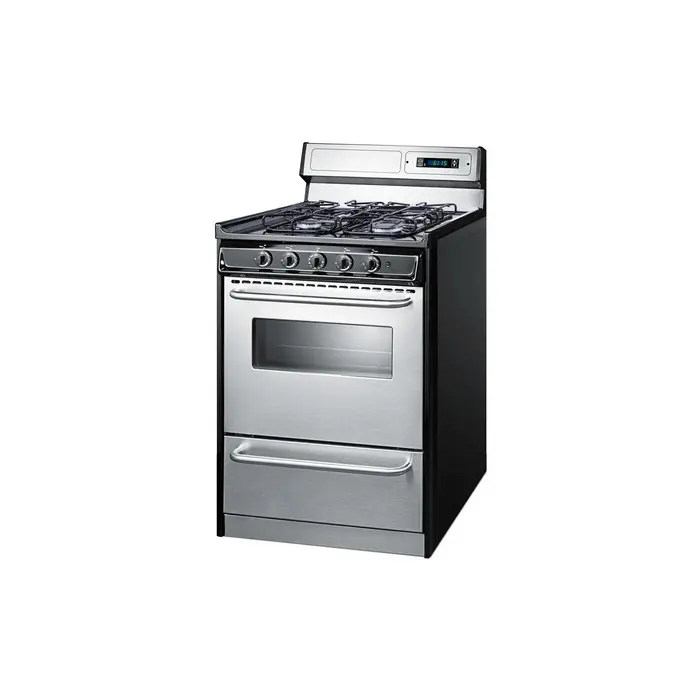

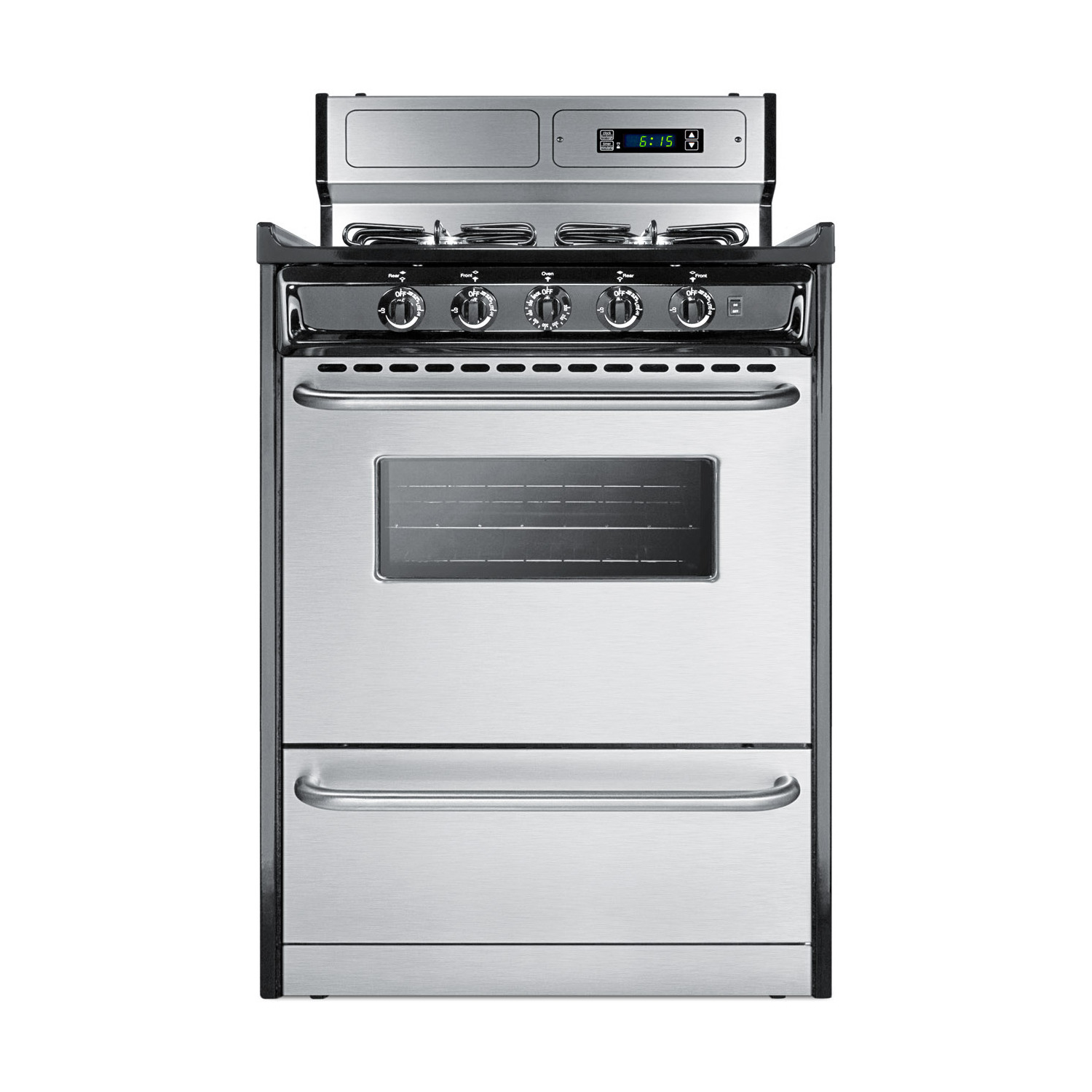

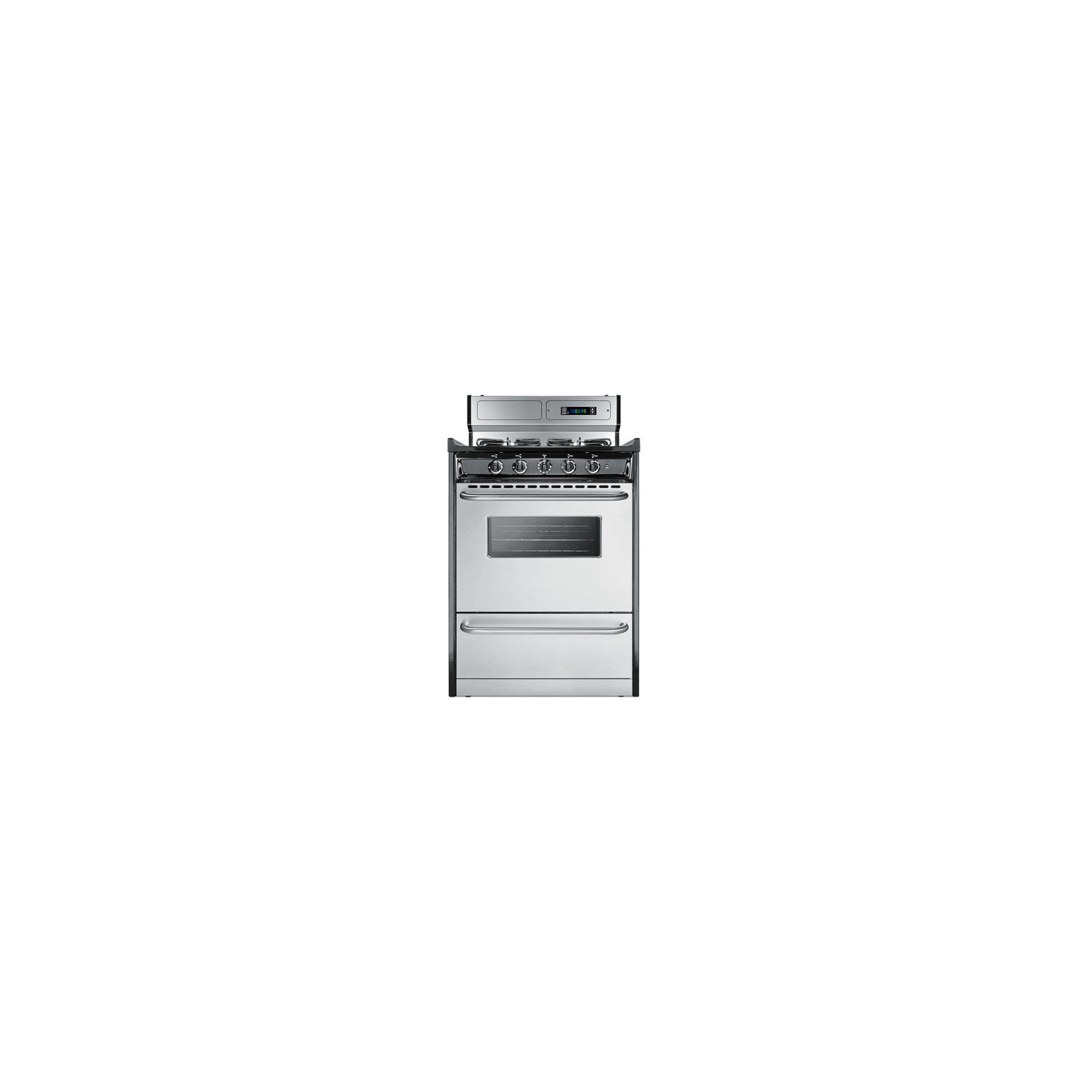

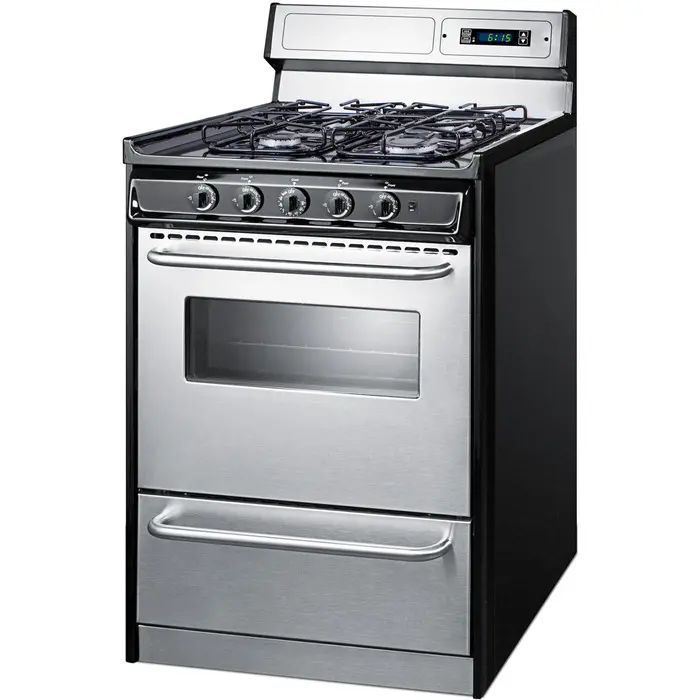

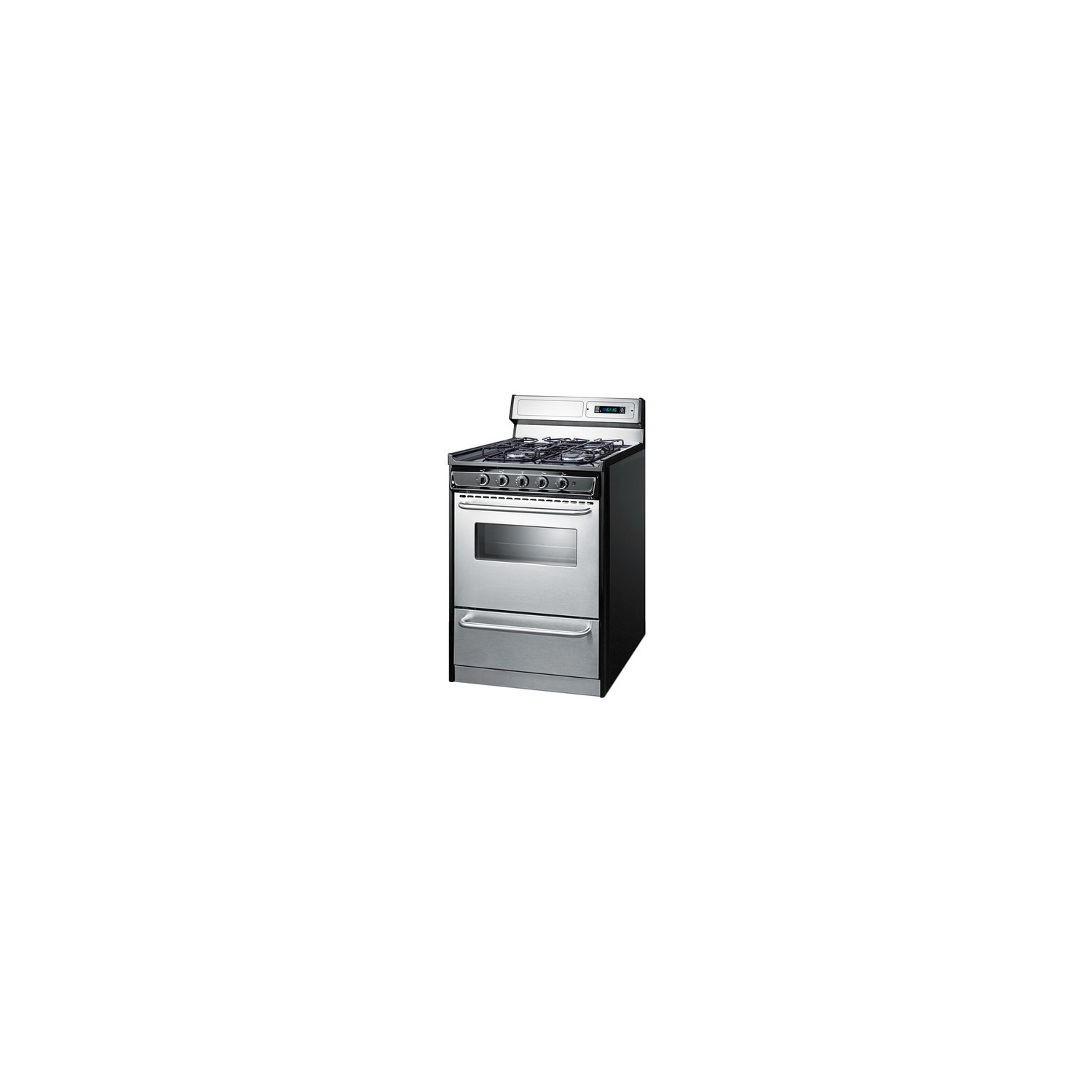

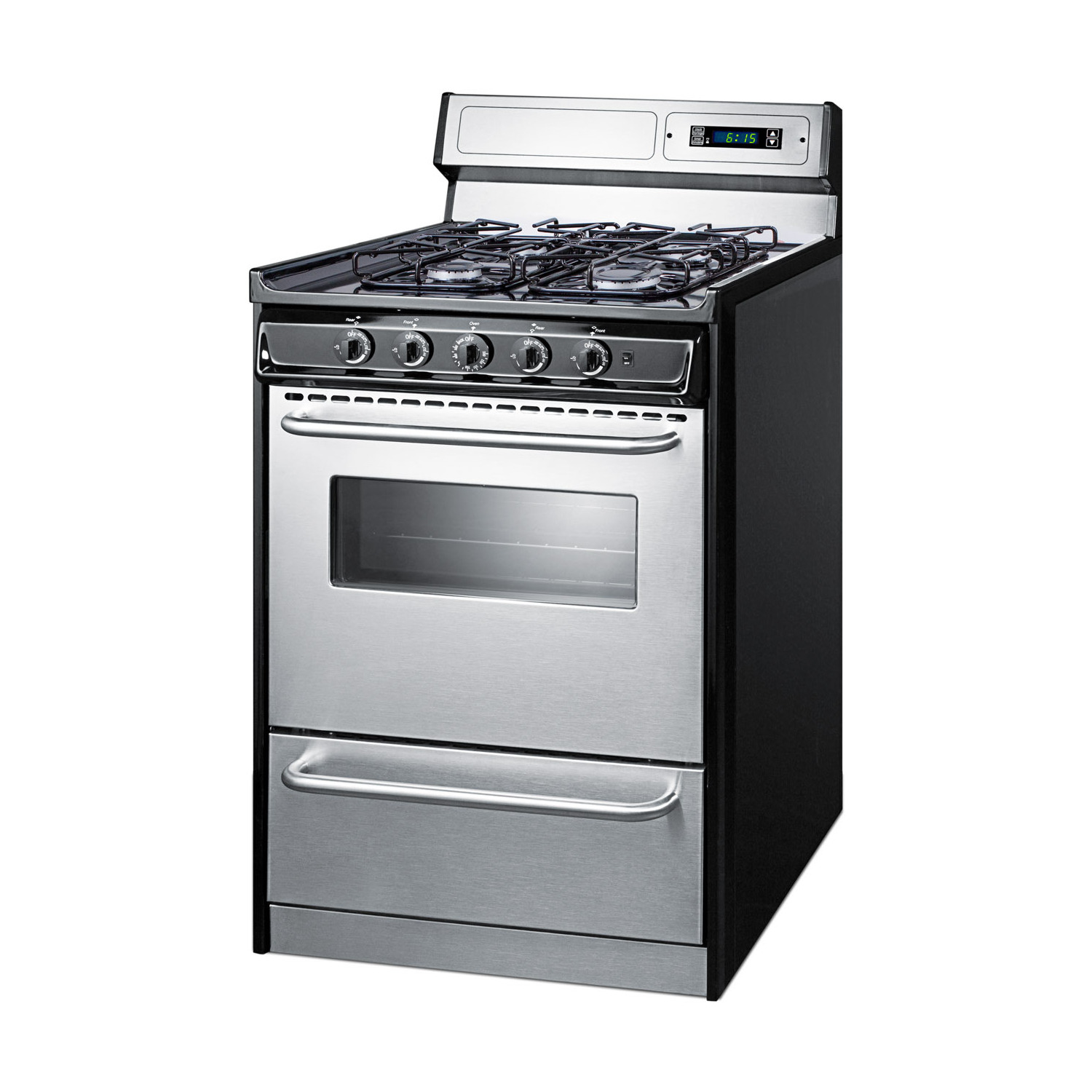

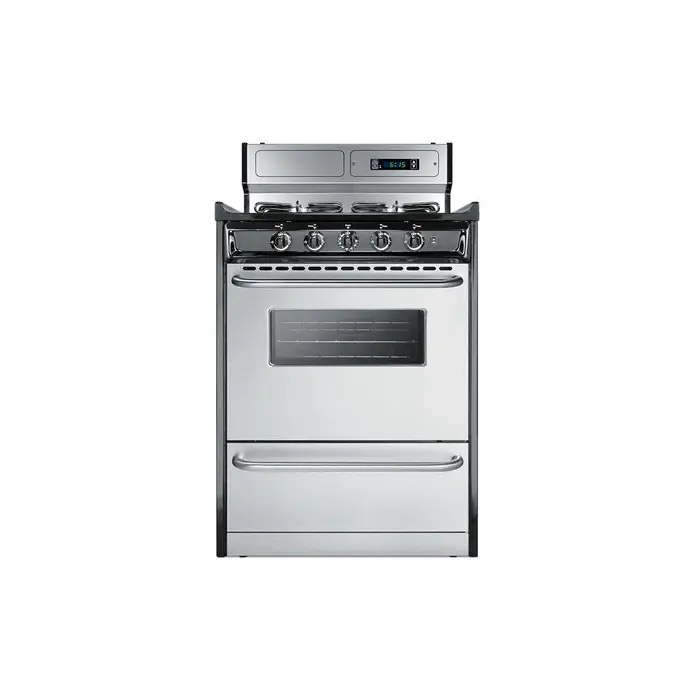

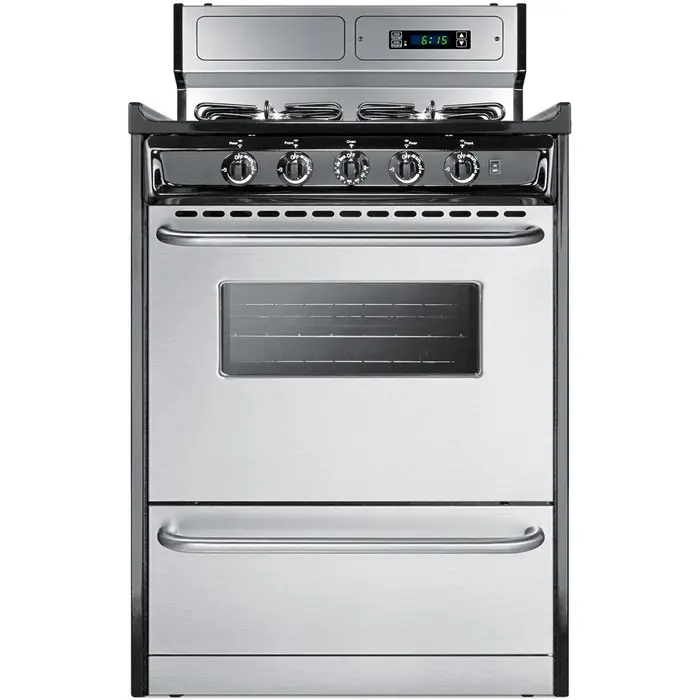

Summit 24 inch wide sealed burner gas range in stainless steel with high backguard, 7.61101e+011, TTM6307BKSW

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens.

The TTM6307BKSW is 24" wide apartment-sized gas range with a generous 2.92 cu.ft porcelain oven interior that can fit large trays. Two adjustable oven racks are included. An oven window and on/off interior light allow you to easily keep watch over your cooking. The broiler is located below the oven in a drop-down compartment. Four sealed gas burners offer safer and cleaner cooking, with a high output 12000 BTU burner for powerful heating conveniently located in the front right corner for easy access. This unit also includes a 5000 BTU burner in the rear, an ideal design for simmering at lower power or keeping food warm without overcooking. Upfront push-to-turn knobs let you adjust your cooking without reaching over hot burners. This unit utilizes an electronic ignition system for added safety.

Stainless steel doors feature professional style towel bar handles, bringing classic elegance to smaller kitchen spaces. The deluxe 8" high backguard includes a digital clock and timer for added convenience when cooking. This unit has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every" counts.

With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 30", and 36" wide fits. This unit ships ready for natural gas connections. To use with propane, add the Kit LP S2.

Nominal Height: 44
Height of Cabinet: 44
Height to Hinge Cap: 0
Nominal Width: 24
Width: 24
Width with Door Open: 0
Nominal Depth: 24
Depth: 24
Depth with Handle: 0
Depth with door at 90°: 0
Capacity: 0
Bottles: 0Defrost Type: N/ADoor: Stainless SteelCabinet: BlackUS Electrical Safety: CSACanadian Electrical Safety: N/ASanitation: N/AVoltage/Frequency: N/AParts & Labor Warranty: 1 YearCompressor Warranty: N/A

SPECIFICATIONS

Overview

Nominal Height 44.0" (112 cm)

Height of Cabinet 44.0" (112 cm)

Nominal Width 24.0" (61 cm)

Width 24.0" (61 cm)

Nominal Depth 24.0" (61 cm)

Depth 24.0" (61 cm)

Door Stainless Steel

Cabinet Black

US Electrical Safety CSA

Weight 135.0 lbs. (61 kg)

Parts & Labor Warranty 1 Year

UPC 761101086163

Gas Range

Ignition Spark

LP Convertible With Kit LP S2 Accessory

Oven Capacity 2.92 cu.ft

Cooktop Surface Porcelain

Burner Type Sealed

Number of Burners 4

Burner #1 BTU 12000.0

Burner #2 BTU 9100.0

Burner #3 BTU 9100.0

Burner #4 BTU 5000.0

Burner Controls Dial

Oven Controls Dial

Oven Light Yes

Cooking Timer Yes

Backguard Yes

Backguard Display Yes

Cleaning Type Manual

Oven Window Yes

Oven Interior Height 14.0" (36 cm)

Oven Interior Width 19.0" (48 cm)

Oven Interior Depth 19.0" (48 cm)

Broiler Location Below Oven

FEATURES

Made in the USA Designed and constructed domestically

Slim 24 inch width Apartment-sized width offers all the functionality you need in a smaller footprint

24 inch depth Shallower fit is ideal for L-shaped and galley kitchens

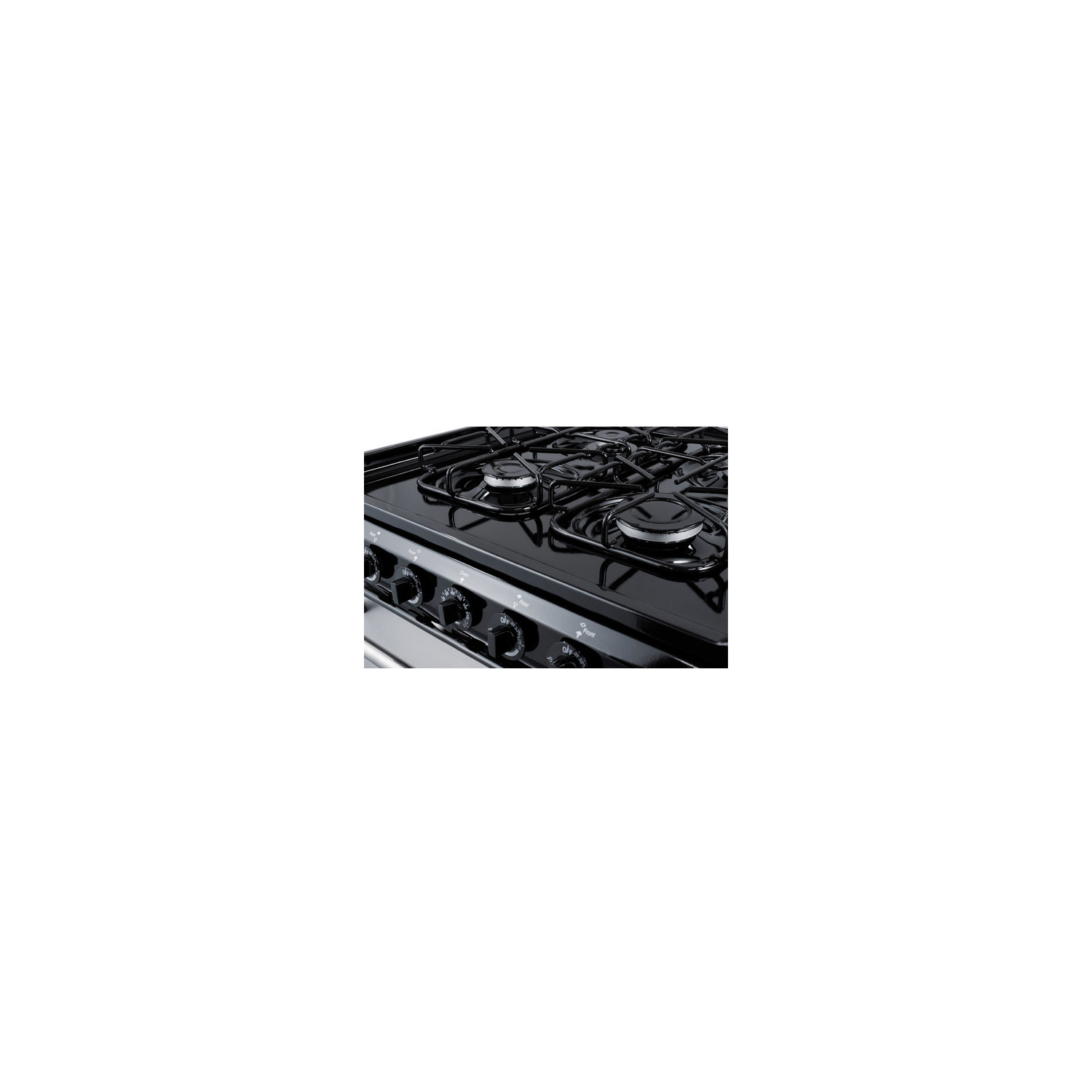

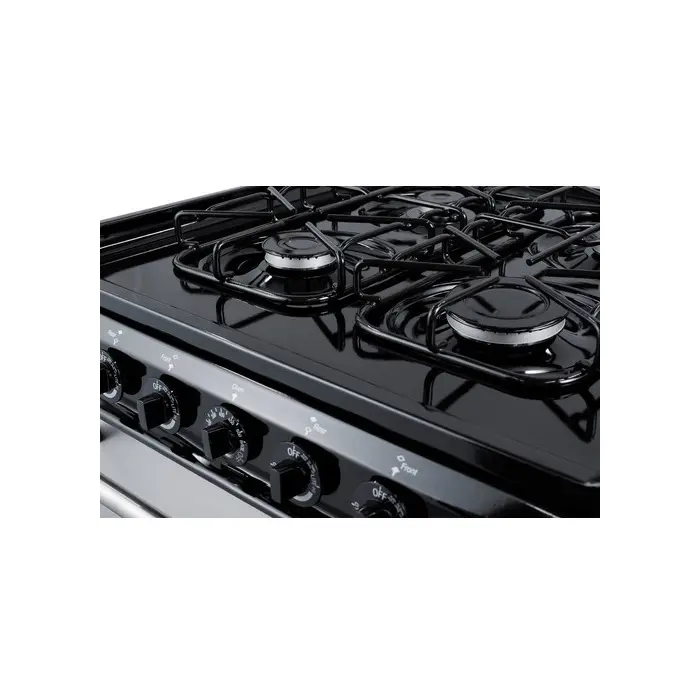

Four sealed burners Easy cleanup on boil-overs and accidental spills

High output burner Right front burner features 12,000 BTU output for powerful cooking

Low output simmer burner Rear left burner reaches a maximum of 5000 BTUs, ideal for simmering sensitive items or keeping dishes warm without overheating

Stainless steel finish Doors and backguard are constructed from brushed stainless steel for modern luxury built to last

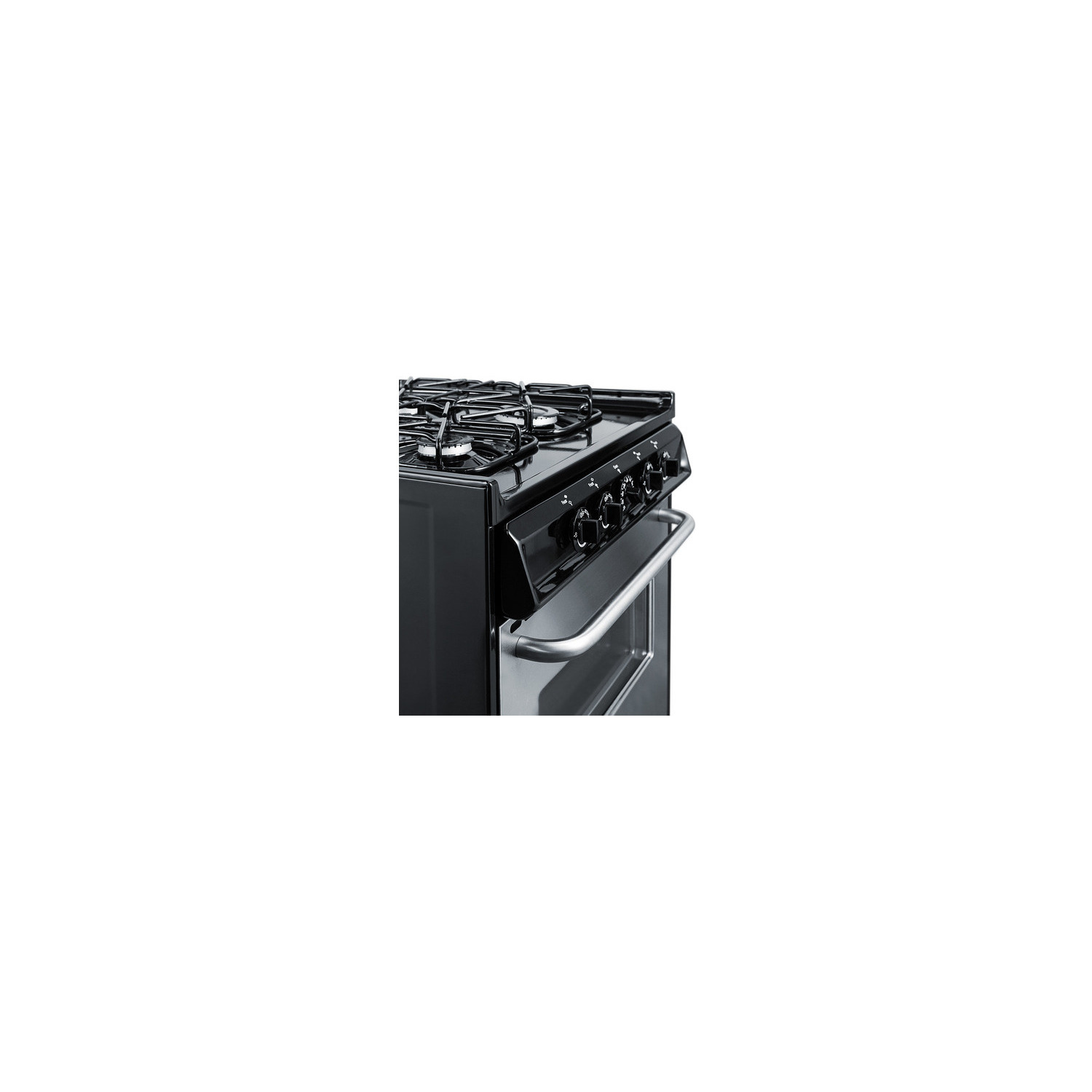

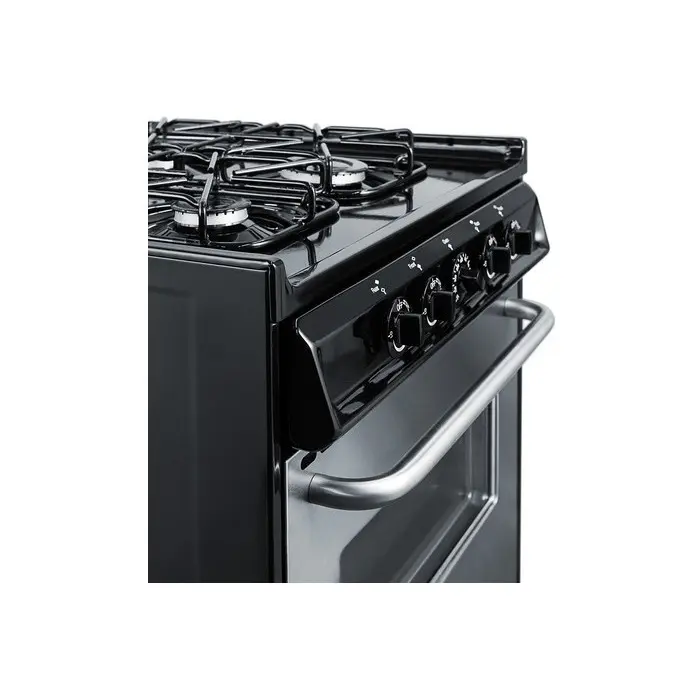

Professional towel bar handles Curved handles in brushed stainless steel offer an easier grip in attractive style

Designed for natural gas Set for use with natural gas connection. To convert for propane use, add Kit LP S2

Electronic ignition Spark ignition system with a pre-installed 115V 3-prong cord

Oven window and interior lighting Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door

Deluxe backguard 8" high backguard helps to protect your walls from spills and splashes

Digital clock and timer Backguard includes clock and timer for added convenience

Upfront oven/burner controls Push-to-turn knobs offer easier, safer access, preventing users from reaching over hot burners to adjust

Recessed oven door Smart design limits the depth and protects adjacent cabinets

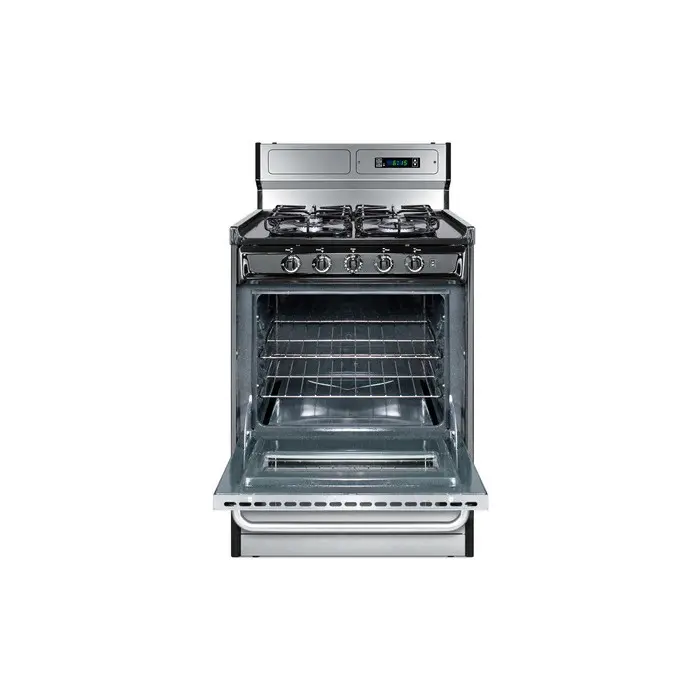

Adjustable oven racks Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Broiler compartment Lower drop-down compartment for separate broiling with even heat distribution

Porcelain construction Oven interior features high quality porcelain construction for long-lasting durability, while the cooking surface is made from scratch resistant porcelain enamel

Removable burner caps Burners include a removable cap for easy cleaning

Recessed surface Smart design helps to contain spills

Removable oven door and range top Allows for easier cleaning as needed

Broiler pan Two-piece broiler pan included

Anti-tip bracket Included for user installation to help prevent tipping

DOWNLOADS

BROCHURE w/ DRAWINGS (TTM6307BKSW.pdf)

OTHER (Summit_Anti-Tip_Bracket.pdf)

USE & CARE (TTM6307BKSW-User-Manual.pdf)
