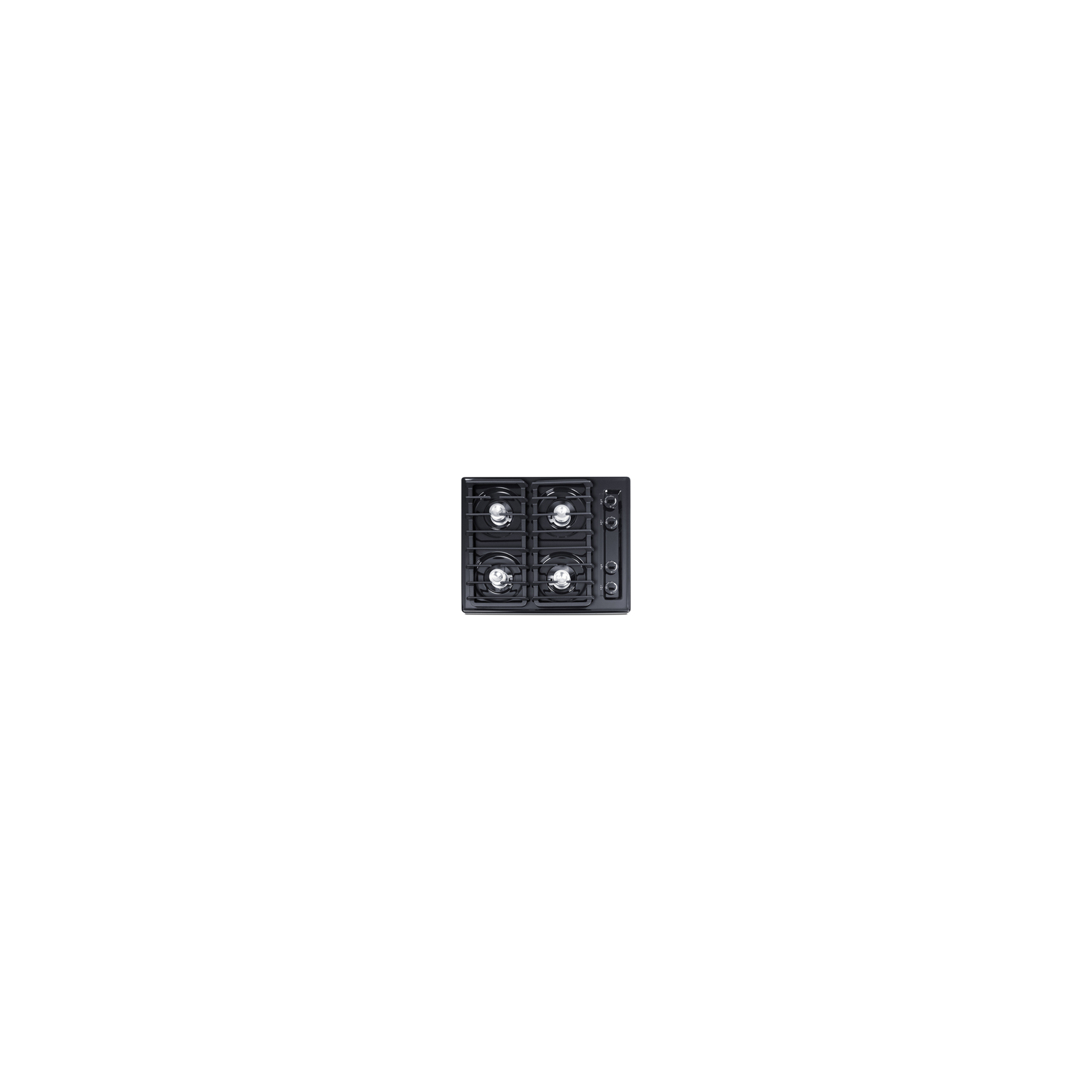

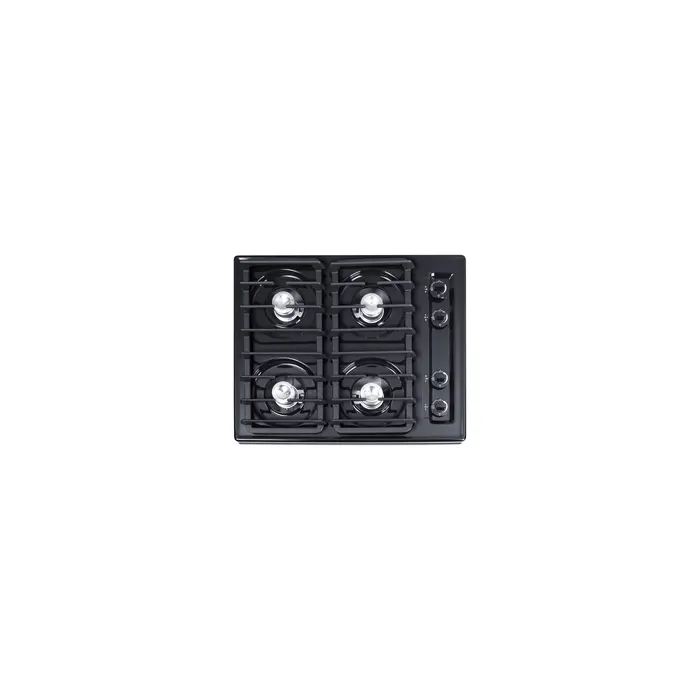

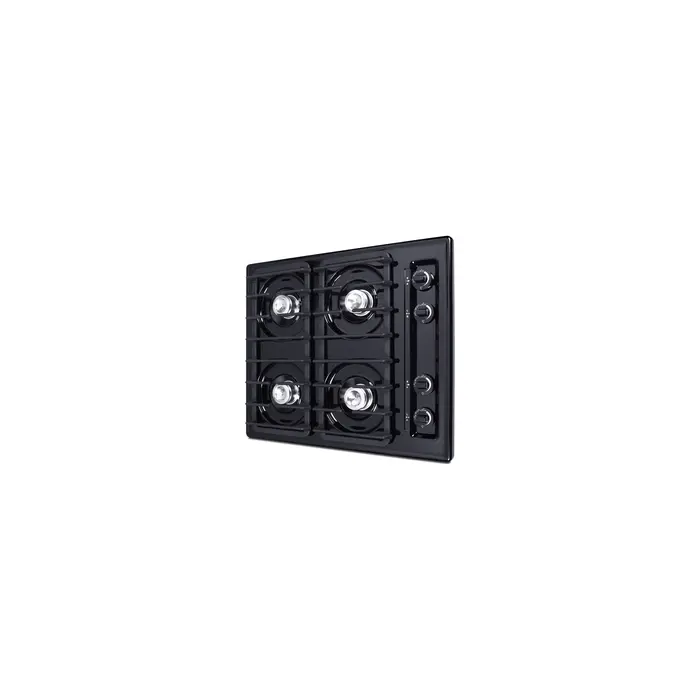

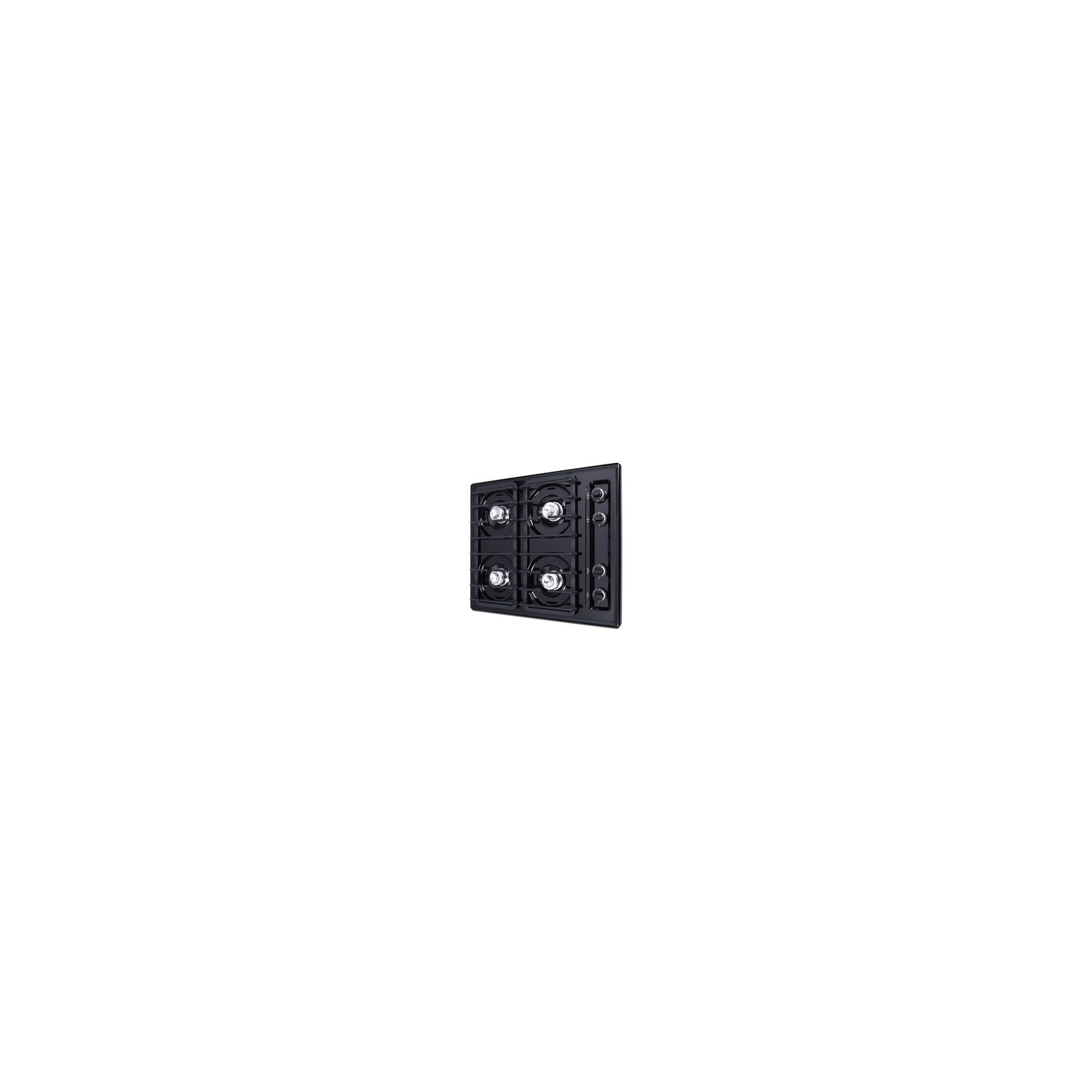

Summit 24 inch wide open burner gas cooktop in black with spark ignition and continuous cast iron grates, TNL033I
$521.60
Retail Price: $660.00
Free shipping
$ 521.60
Description
Summit Appliance offers a wide selection of American-made household cooktops built for long-lasting durability in space-challenged kitchens.
The TNL033I is a 24" wide gas cooktop designed to fit common 22 5/8" wide x 18 5/8" deep cutouts. It features a scratch-resistant porcelain surface in a jet black finish, with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use.
Four open 9000 BTU burners meet most cooking needs. We include two sets of continuous cast iron grates to protect your cooktop. This unit comes set for natural gas but can be converted to propane with the purchase of the Kit LP accessory. It utilizes electronic spark ignition and includes a pre-installed 115V cord with a standard 3-prong NEMA 5-15P plug.
The TNL033I is designed and constructed in the USA. Additional finishes are available, as well as 30" sizes for larger kitchen spaces and matching wall ovens. Browse our website to explore our complete selection.
SPECIFICATIONS
Overview
Nominal Height 4.0" (10 cm)
Height of Cabinet 3.75" (10 cm)
Nominal Width 24.0" (61 cm)
Width 24.0" (61 cm)
Nominal Depth 20.0" (51 cm)
Depth 20.0" (51 cm)
Cabinet Black
US Electrical Safety CSA
Voltage/Frequency 115 V AC/60 Hz
Weight 27.0 lbs. (12 kg)
Parts & Labor Warranty 1 Year
UPC 761101158167
Gas Cooktop
Ignition Spark
LP Convertible With Kit LP Accessory
Number of Burners 4
Controls Dial
Surface Painted
Grate Material Cast Iron
Cutout Width 22.63" (57 cm)
Cutout Depth 18.63" (47 cm)
Burner #1 BTU 9000.0
Burner #2 BTU 9000.0
Burner #3 BTU 9000.0
Burner #4 BTU 9000.0
Power Cord Included Yes
FEATURES
24" Wide Gas Cooktop Built-in natural gas cooktop with four open burners
Made in the USA Designed and constructed domestically
Cast iron grates Two sets of continuous grates in heavy duty cast iron hold up to large cookware
Classic 24" size Fits common 22 5/8" W x 18 5/8" D counter cutouts
Four open burners 9000 BTU burners meet most cooking needs
Black exterior Classic design in a jet black finish to match any kitchen
Porcelain finish Scratch-resistant design for lasting durability
Recessed top Curved design helps to contain spills on the surface
Electronic/gas spark ignition Spark ignition system with a pre-installed 115V cord and standard NEMA 5-15P plug
Designed for natural gas Set for use with natural gas connection. To convert for propane use, add Kit LP
Side controls Cooktop knobs are located on the right side of the cooktop, clearing up space in the front for easier cooking
Push-to-turn knobs Knobs require a small amount of force to ensure burners are not accidentally turned on
DOWNLOADS
TECHNICAL DRAWING (.dwg) (WNL033I_2.dwg)
