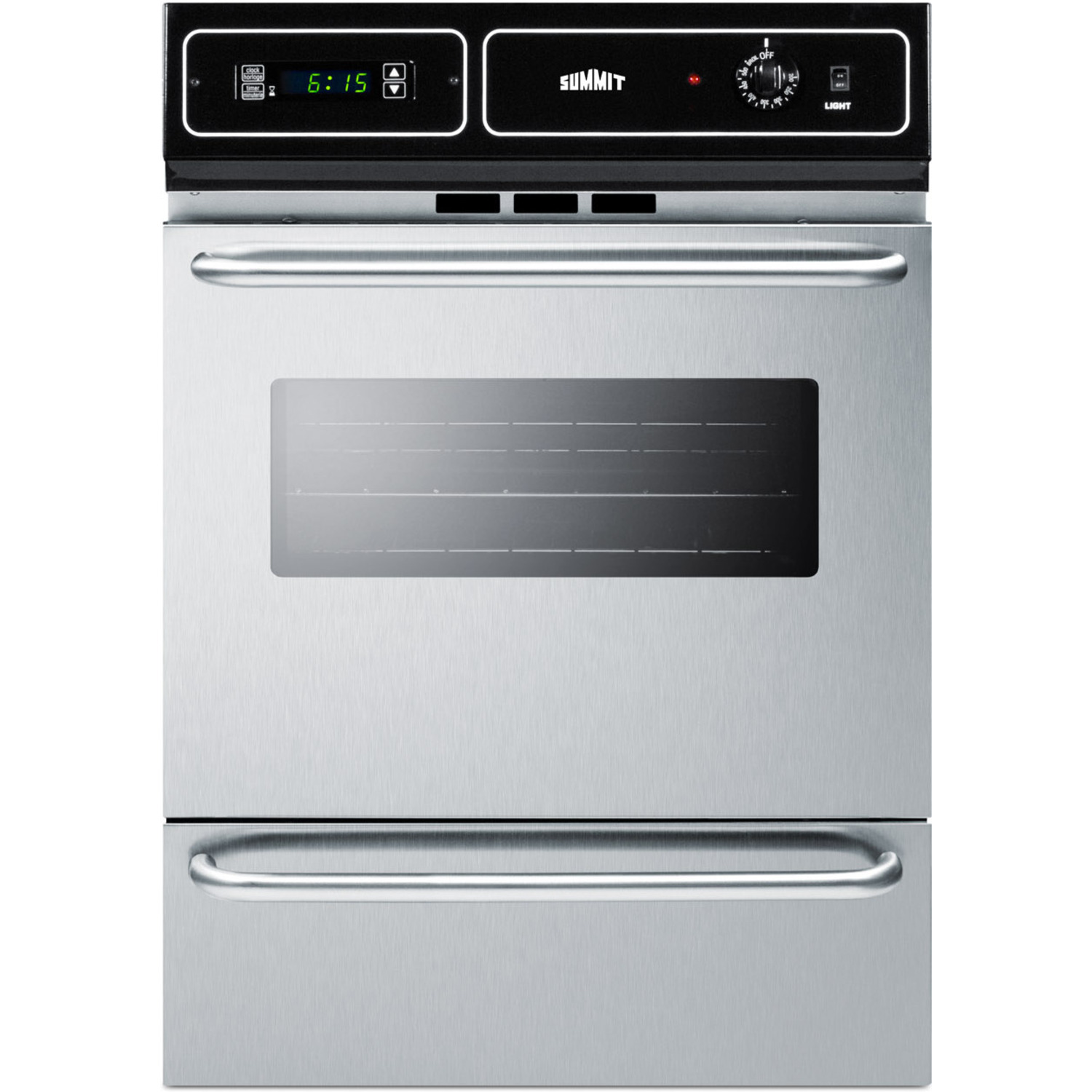

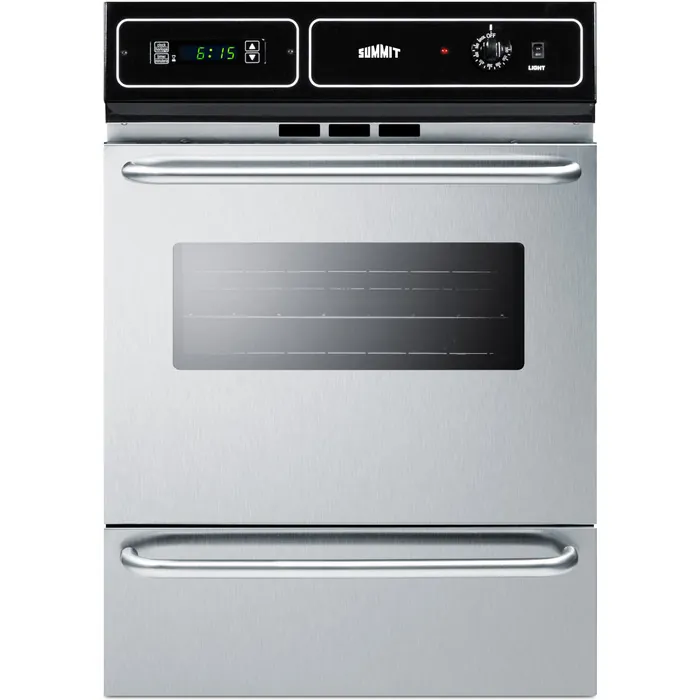

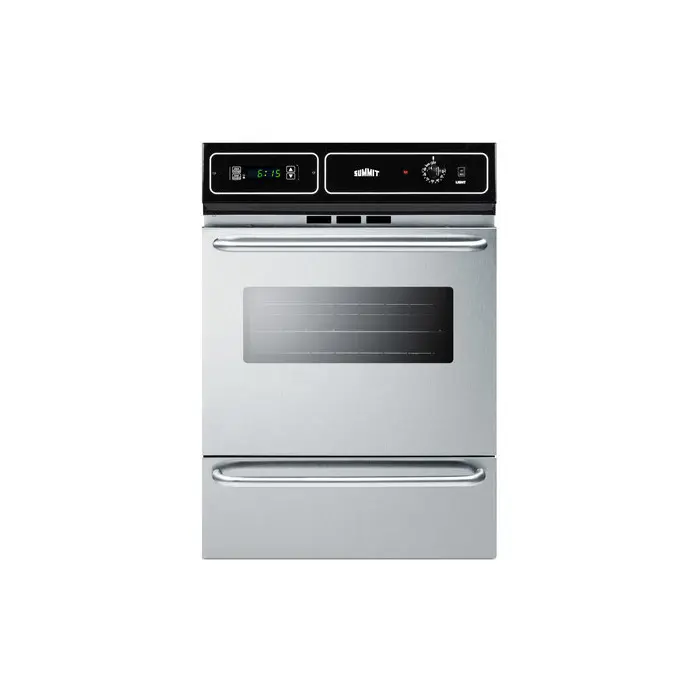

Summit Stainless steel 220V electric wall oven with digital clock/timer and oven window; for cutouts 22 3/8 inch wide by 34 1/8 inch high, 7.61101e+011, TEM721BKW

Summit's classic series of 24" wide wall ovens are made in the USA and specially sized to fit common 34 1/8" H x 22 3/8" W cutouts.

The TEM721BKW is a single 220V electric wall oven with a drop-down storage compartment. The exterior doors come in a brushed stainless steel finish, with full-width curved towel bar handles to complete the look. The oven door includes a window and exterior light switch to illuminate the interior, making it easy to monitor your cooking without opening the door. A digital clock with a timer function offers added convenience and dial controls ensure simple, intuitive cooking. This unit is designed for professional installation and is compatible with a standard 40 amp 3 or 4-wire range cord (not included).

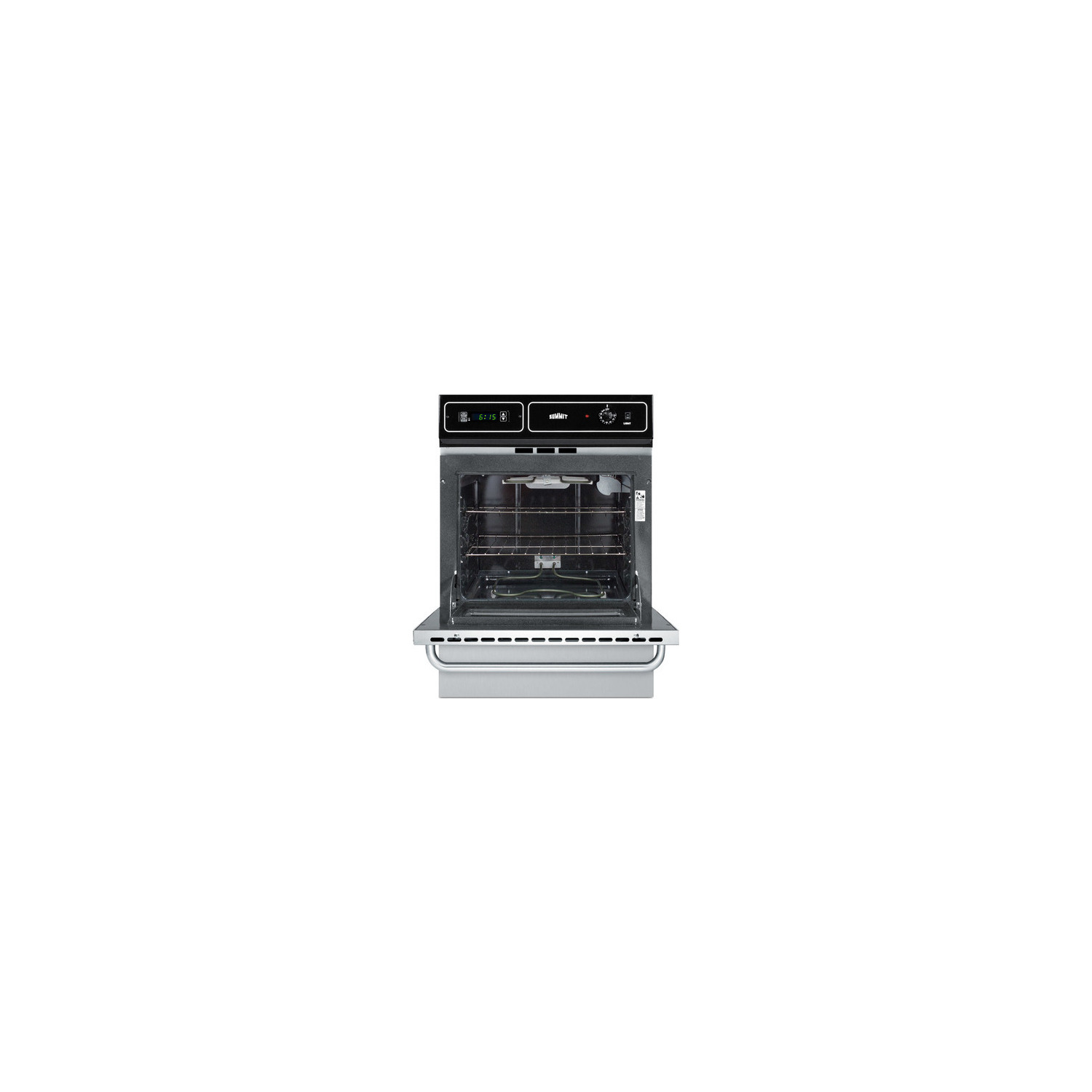

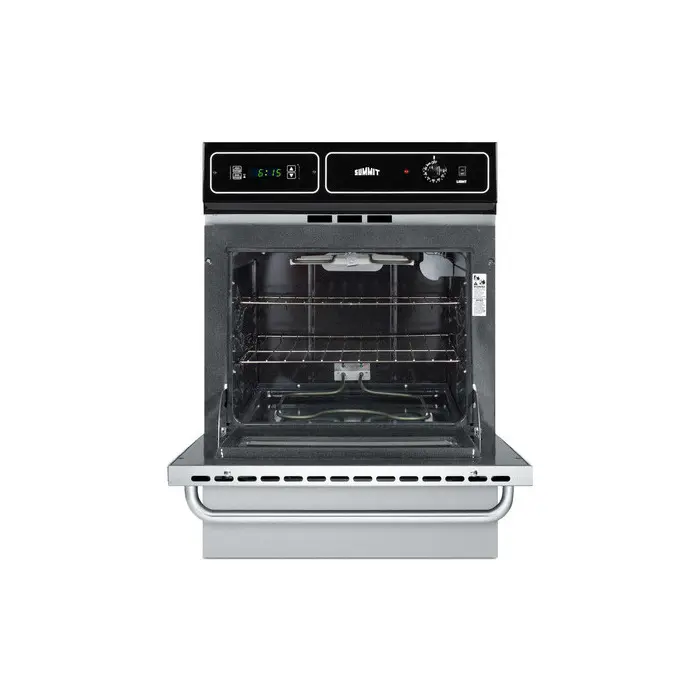

Inside, the wall oven features solid porcelain construction for lasting durability to hold up to everyday use. Two adjustable racks with safety brakes allow you to accommodate a variety of sizes when baking. The oven can be used to bake or broil. We include a two-piece broiler tray with grease well.

Summit's domestically manufactured wall ovens have an industry exclusive height of 34 1/2". These units fit many discontinued cutouts such as Caloric, Slattery, and older makes, including Magic Chef. To fit other cutouts up to 39" high, add the TKW700 or TKW700SS trim kit accessory. Nominal Height: 35
Height of Cabinet: 34.5
Height to Hinge Cap: 0
Nominal Width: 24
Width: 24
Width with Door Open: 0
Nominal Depth: 24
Depth: 24
Depth with Handle: 25.38
Depth with door at 90°: 42.75
Capacity: 2.92
Bottles: 0Defrost Type: N/ADoor: Stainless SteelCabinet: -US Electrical Safety: CSACanadian Electrical Safety: N/ASanitation: N/AVoltage/Frequency: 220 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: N/A

SPECIFICATIONS

Overview

Nominal Height 35.0" (89 cm)

Height of Cabinet 34.5" (88 cm)

Nominal Width 24.0" (61 cm)

Width 24.0" (61 cm)

Nominal Depth 24.0" (61 cm)

Depth 24.0" (61 cm)

Depth with Handle 25.38" (64 cm)

Depth with door at 90° 42.75" (109 cm)

Capacity 2.92 cu.ft. (83 L)

Door Stainless Steel

Cabinet -

US Electrical Safety CSA

Amps 40.0

Voltage/Frequency 220 V AC/60 Hz

Weight 170.0 lbs. (77 kg)

Parts & Labor Warranty 1 Year

UPC 761101051468

Electric Walloven

Controls Dial

Oven Light Yes

Cooking Timer Yes

Digital Clock Yes

Cleaning Type Manual

Oven Rack Qty 2

Oven Window Yes

Interior Height 14.0" (36 cm)

Interior Width 19.0" (48 cm)

Interior Depth 18.0" (46 cm)

Cutout Height 34.13" (87 cm)

Cutout Width 22.38" (57 cm)

Cutout Depth 23.0" (58 cm)

FEATURES

Made in the USA Designed and constructed domestically

Classic fit Sized to fit 34 1/8" H x 22 3/8" W cabinet cutouts, a popular replacement size rarely offered by other manufacturers

Large capacity 2.92 cu.ft. interior to fit large dishes

Stainless steel front Doors are constructed from brushed stainless steel for modern luxury built to last

Professional towel bar handles Curved handles in brushed stainless steel offer an easier grip in attractive style

Oven window and light Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door

Storage compartment Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen

Broiler function Upper heating element is located inside the oven so there is no need to transfer dishes to another compartment for broiling

Adjustable oven racks Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Removable oven door Allows for easier cleaning as needed

Porcelain and steel construction Interior oven is constructed from porcelain for lasting durability that holds up to daily cooking

Digital clock and timer Added convenience for easier cooking

Dial controls Basic knob controls for simple and intuitive cooking

Broiler pan included Two-piece porcelain broiler tray with grease well

Cord not included Compatible with standard 40 amp 3 or 4-wire range cords

Optional trim kit Add TKW700 or TKW700SS accessory to raise the exterior height to fit 39" high openings

DOWNLOADS

BROCHURE (TEM721BKW.pdf)

REVIT MODEL (QF_Summit_TEM721BKW_Oven.rfa)

OTHER (Wall_Ovens_Install_Insert.pdf)

USE & CARE (TEM721BKW-User-Manual.pdf)
