Summit Commercially approved dual zone wine cellar for built-in or freestanding use with seamless stainless steel door and full-extension shelving, 7.61101e+011, SWCP2163
$2,292.60
Retail Price: $3,395.00
Free shipping
$ 2,292.60
Description
Summit offers a unique selection of built-in capable full-sized wine cellars with a versatile luxury design ideal for residential or commercial use

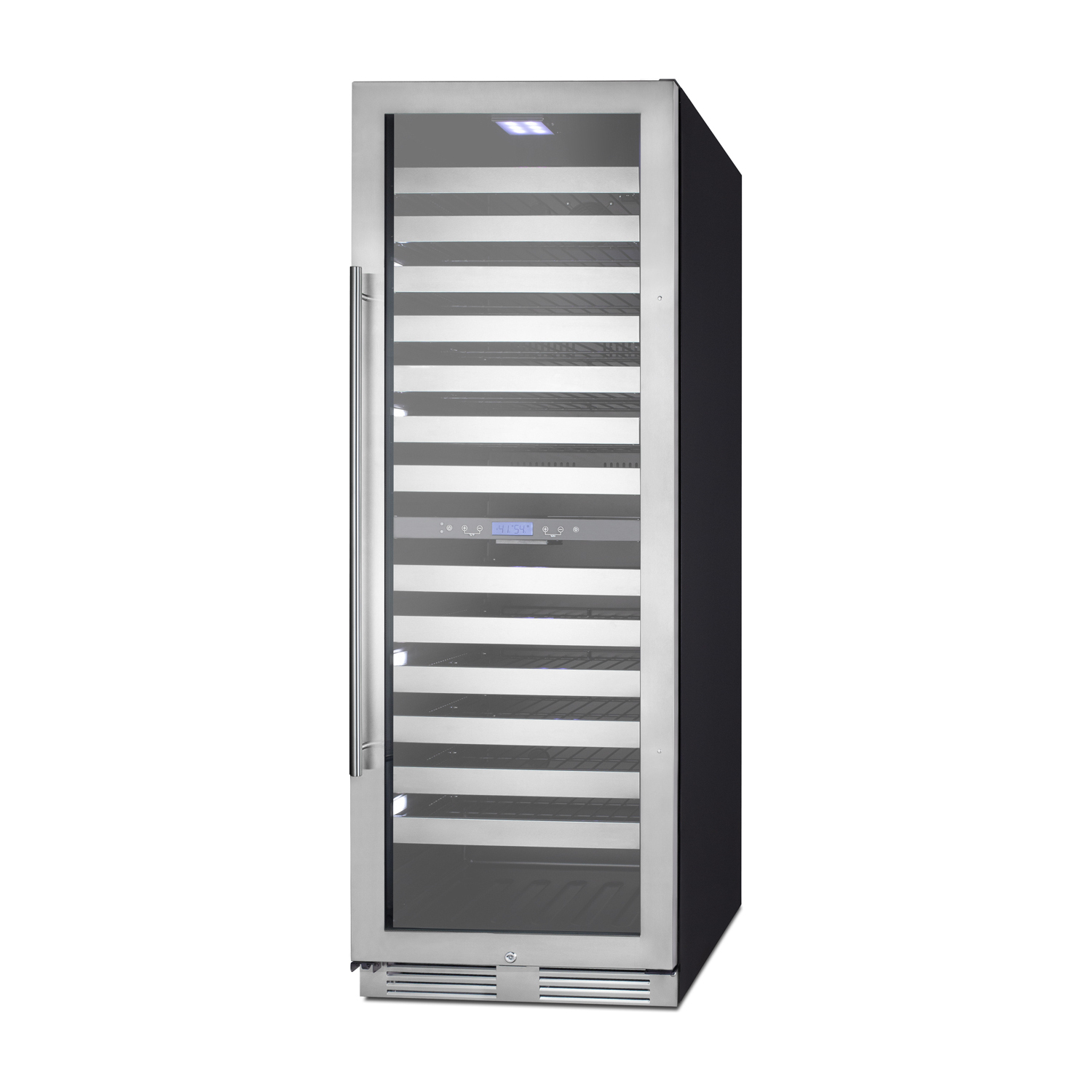

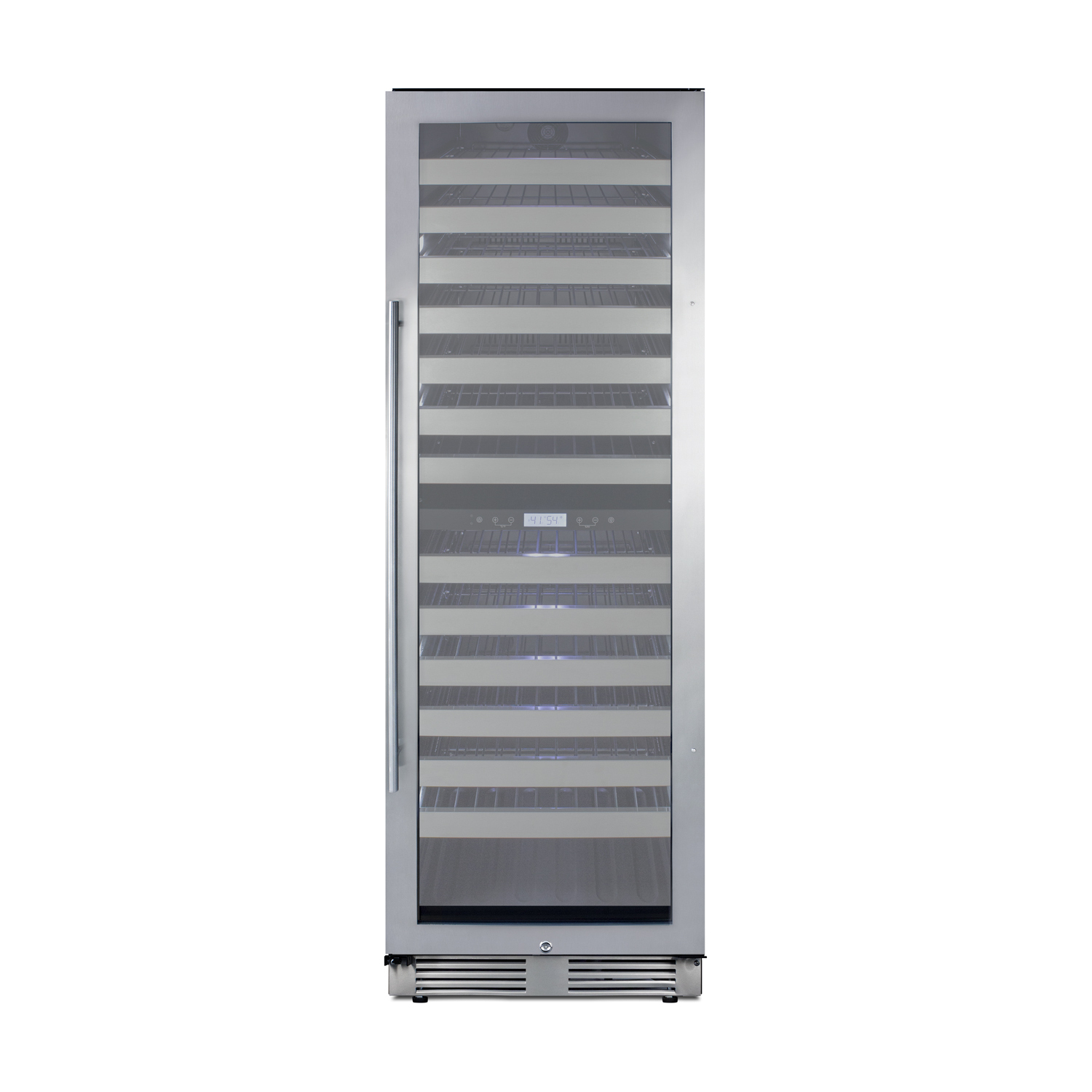

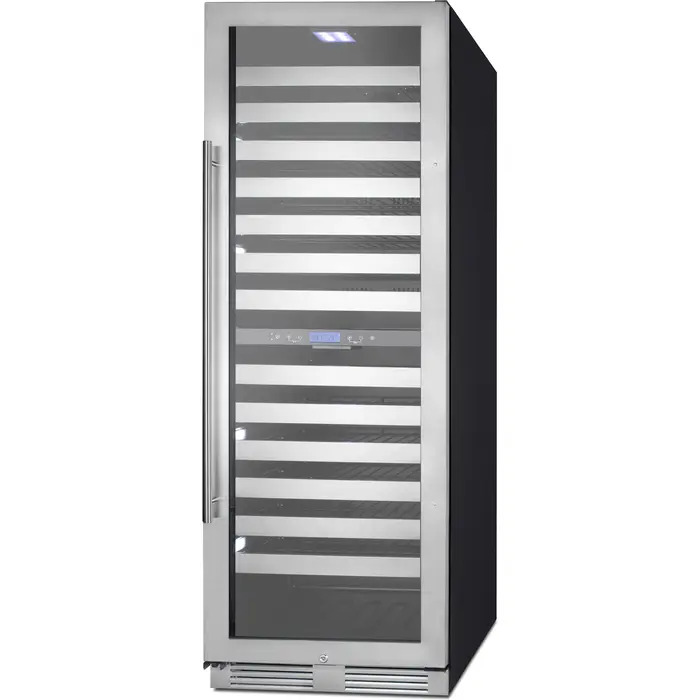

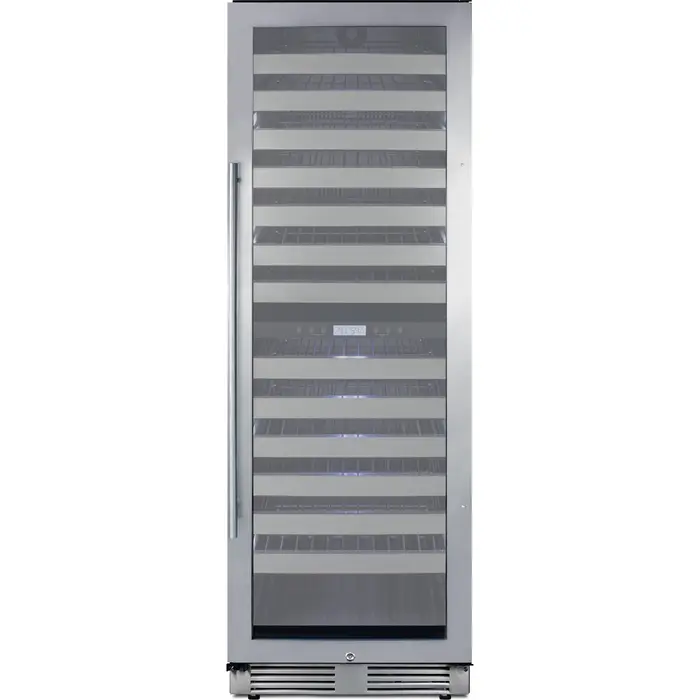

The SWCP2163 is a 24" wide dual zone wine cellar that is ETL-S listed to NSF-7 commercial standards. The upper zone is reserved for white and sparkling wine, while the lower zone features a warmer temperature range to best preserve reds. It features a front-breathing design for built-in installation, with a fully finished black cabinet that also allows freestanding use. Sized just under 27" deep, this unit has a sealed back and right angle plug for added depth savings. The luxury exterior features a double pane tempered glass door with a seamless stainless steel trim. A stainless steel kickplate provides added elegance, while the pro-style handle completes the look. This unit includes a factory-installed keyed lock for added security and powerful magnetic gaskets to ensure a proper seal in high-traffic commercial settings.

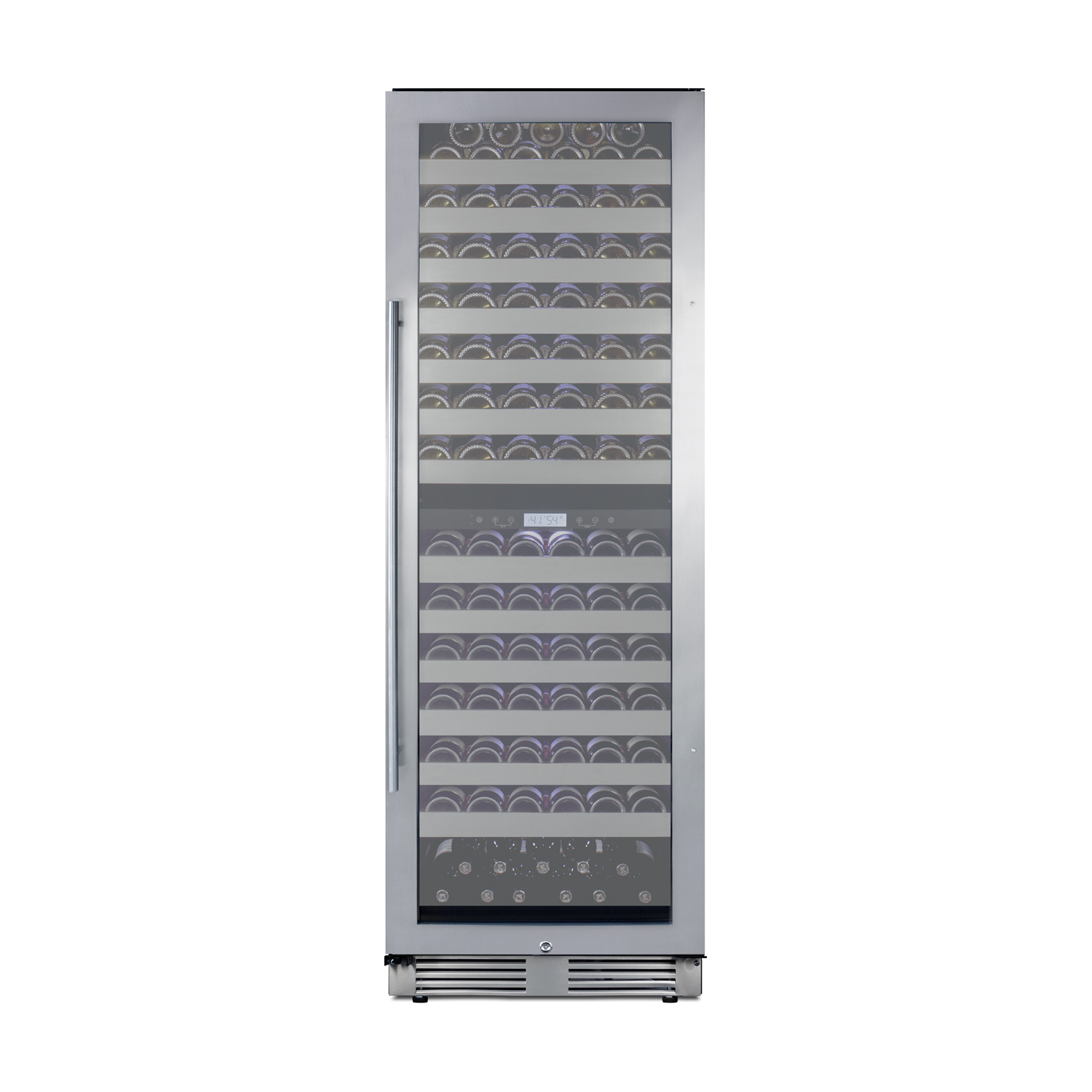

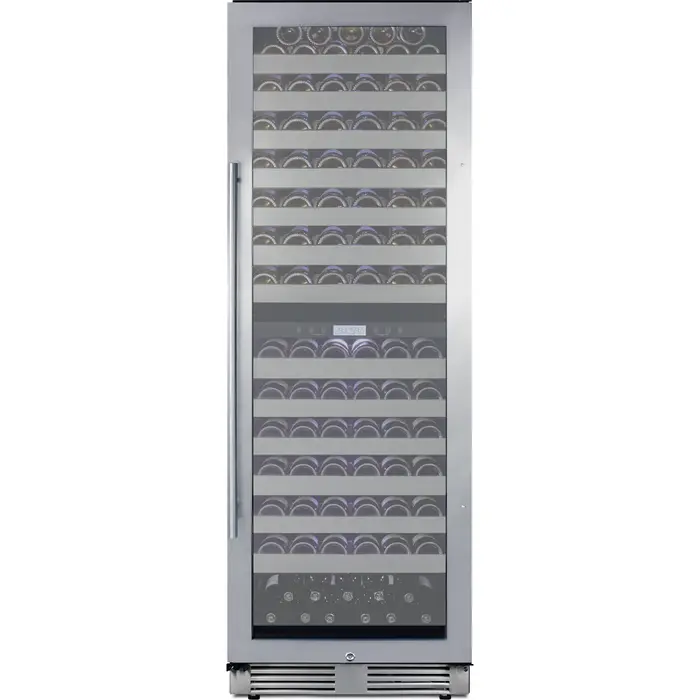

Inside, the SWCP2163 includes 13 full-extension black wire shelves positioned on ball bearing glides for smooth loading. Stainless steel fronts offer a modern touch. Optimal storage capacity accommodates up to 163 standard 750ml Bordeaux bottles (note: your capacity may vary depending on the bottle style). For wider Burgundy style bottles (typically used for Pinot Noir and Chardonnay), the SWCP2163 can hold up to 110 bottles. Nine white LED lights positioned on the sides and top of the unit attractively illuminate your collection for a stylish display. An internal fan ensures both zones are properly chilled, while a charcoal filtration system keeps the interior odor-free. Additional features include an open door alarm and high/low temperature alarm that sound if the unit temperature goes out of range.
With its convenient size, advanced features, and luxury design, the SWCP2163 is perfect for restaurants, bars, wineries, and homes seeking full capacity wine storage with a modern presentation.
Nominal Height: 70
Height of Cabinet: 69.5
Height to Hinge Cap: 0
Nominal Width: 24
Width: 23.63
Width with Door Open: 0
Nominal Depth: 27
Depth: 26.5
Depth with Handle: 28.25
Depth with door at 90°: 48.75
Capacity: 0
Bottles: 163Defrost Type: AutomaticDoor: GlassCabinet: BlackUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years
SPECIFICATIONS
Overview
Nominal Height 70.0" (178 cm)
Height of Cabinet 69.5" (177 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 27.0" (69 cm)
Depth 26.5" (67 cm)
Depth with Handle 28.25" (72 cm)
Depth with door at 90° 48.75" (124 cm)
Bottles 163 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 269.0 lbs. (122 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101066356
Wine Cellar
Number of Zones 2
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 13
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.76 oz.
High Side PSI 320.0
Low Side PSI 120.0
Interior Height 1 31.0" (79 cm)
Interior Width 1 20.38" (52 cm)
Interior Depth 1 21.0" (53 cm)
Level Legs 2
Temperature Range 41-54°F (upper zone); 54-65°F (lower zone)
Interior Height 2 29.75" (76 cm)
Interior Width 2 20.38" (52 cm)
Interior Depth 2 21.0" (53 cm)
Sound Level 34 dB
FEATURES
Commercially approved ETL-S listed to NSF-7 standards for use in restaurants, bars, and other foodservice settings
Built-in capable Front-breathing design allows the unit to be integrated with minimum clearance for a flush look (fits in spaces sized at 70.75" H x 23.88"W x 28" D)
Double pane tempered glass door Provides a full display of the interior, with two levels of glass for added protection
Seamless stainless steel door frame Single-piece door trim offers a more deluxe look
Two temperature zones Chill white wine in the upper zone while preserving your reds at a warmer temperature below
Digital thermostat Located inside the unit, the electronic thermostat allows easy temperature adjustment with a display in Celsius or Fahrenheit
Full-extension wire shelving 13 shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity
Stainless steel trimmed shelving Fronts feature a stainless steel accent to elevate your presentation
Versatile storage Interior can hold up to 163 standard 750ml Bordeaux style bottles (20 bottles stacked on the upper shelf, 11 bottles per middle 12 shelves, and 11 on the slotted floor). If storing wider Burgundy style bottles (typically used for Pinot Noir or Chardonnay), you can accommodate up to 110 bottles (8 per shelf with 6 stacked on the slotted floor)
Professional handle 37" long handle in a brushed stainless look offers the perfect finish to your wine cellar
LED lighting Nine LED lights provide an attractive and energy-efficient illumination of your collection with a gentle white hue
Factory-installed lock Keyed lock secures both zones (2 keys included)
Temperature range Upper zone: 41-54°F ideal for chilling white and sparkling wine; Lower zone: 54-65°F for holding reds at a warmer temperature
Stainless steel kickplate Allows for front ventilation in an elegant design
Charcoal filtration system Helps to purify air for an odor-free interior
High/low temperature alarms Audibly sounds if the interior rises or falls out of recommended range
Open door alarm Alerts if unit door is ajar for more than 5 minutes
Magnetic door gasket Ensures a tight seal for energy savings and improved performance
Sealed back Flush back allows for a better fit and easier cleanability
Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Fully finished black cabinet Allows the unit to be used freestanding
100% CFC free Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DOWNLOADS
BROCHURE w/ DRAWINGS (SWCP2163.pdf)
TECHNICAL DRAWING (.dwg) (SWCP2163_WINE_CELLAR__A-C_2018__3.dwg)
3D DRAWING (SWCP2163_Assembly.dwg)
