Summit 36 inch wide panel-ready undercounter dual zone wine cellar and drawer refrigerator, SWCDAR36UCPNR

Summit 36" wide panel-ready undercounter dual zone wine cellar and drawer refrigerator, 7.61101e+011, SWCDAR36UCPNR
MPN:SWCDAR36UCPNR
Category:
UPC:761101000000
Brand:Summit
Color/Finish:

SPECIFICATIONS

Overview

Height of Cabinet 34.13" (87 cm)

Width 35.5" (90 cm)

Depth 23.63" (60 cm)

Depth with Panel 24.13" (61 cm)

Depth with door at 90° 44.25" (112 cm)

Defrost Type Frost-Free

Door Stainless Steel/Panel-Ready

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.3

Voltage/Frequency 115 V AC/60 Hz

Weight 159.0 lbs. (72 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101160665

Wine Cellar

Number of Zones 2

Adjustable Shelves Yes

Shelf Type Wood

Shelf Qty 5

Thermostat Type Digital

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.23 oz.

Interior Height 1 23.75" (60 cm)

Interior Width 1 14.25" (36 cm)

Interior Depth 1 17.75" (45 cm)

Interior Height - Drawer 1 8.75" (22 cm)

Interior Width - Drawer 1 12.75" (32 cm)

Interior Depth - Drawer 1 17.25" (44 cm)

Interior Height - Drawer 2 10.5" (27 cm)

Interior Width - Drawer 2 12.75" (32 cm)

Interior Depth - Drawer 2 10.5" (27 cm)

Compressor Step Height 6.0" (15 cm)

Compressor Step Width 12.75" (32 cm)

Compressor Step Depth 4.75" (12 cm)

Temperature Range 40° to 72°F

Sabbath Mode Yes

Sound Level 34.3 dB

FEATURES

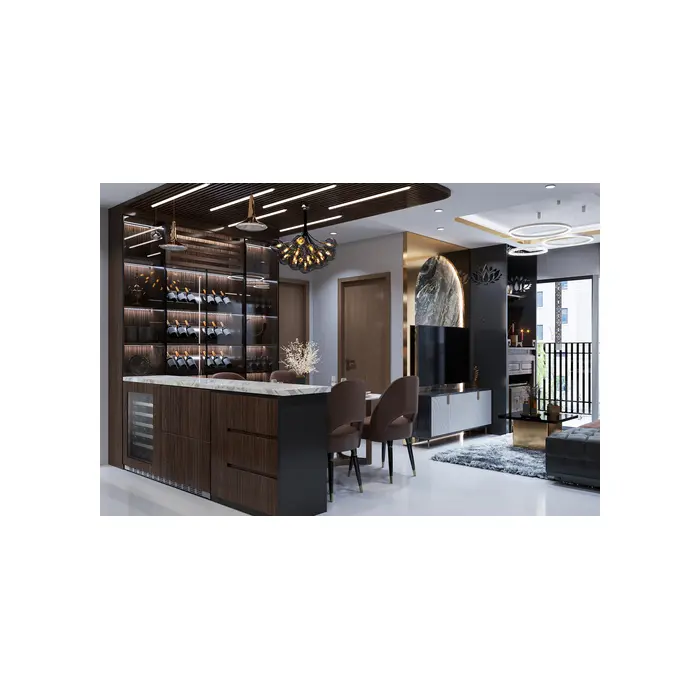

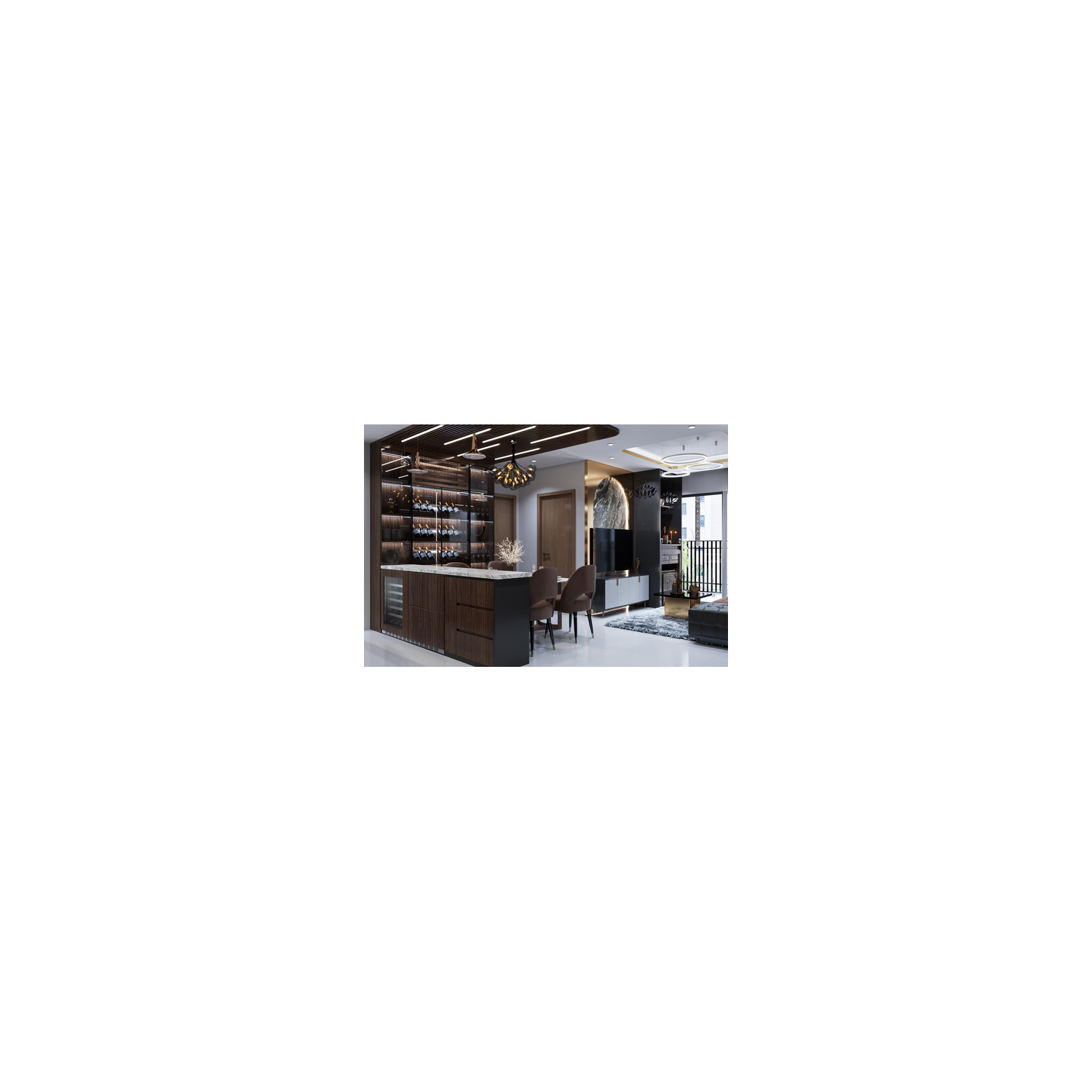

36" Wide Combination Wine Cellar & 2-Drawer Refrigerator Complete refrigeration storage solution with the 34-bottle capacity wine cellar and two-drawer all-refrigerator, perfect for home bars, kitchens, and similar entertainment spaces

Built-in undercounter design Front-breathing design allows the unit to be built-in under counters

Commercially approved ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

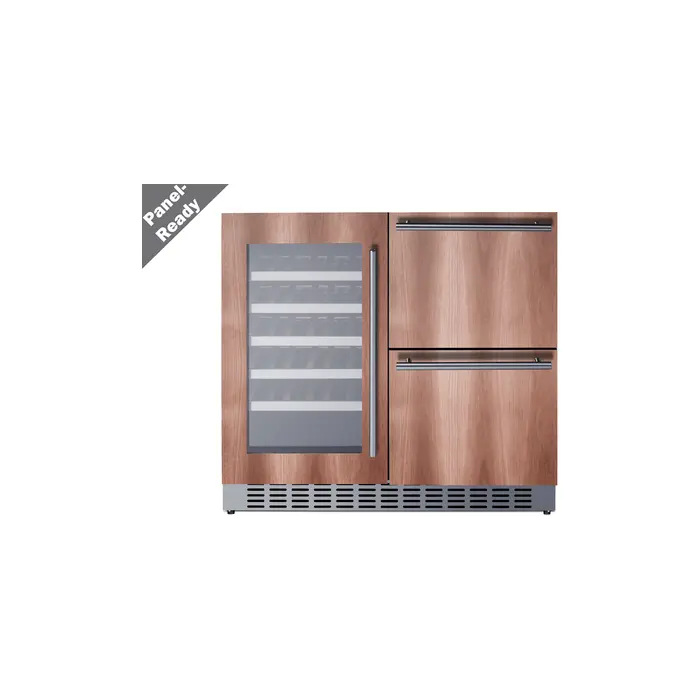

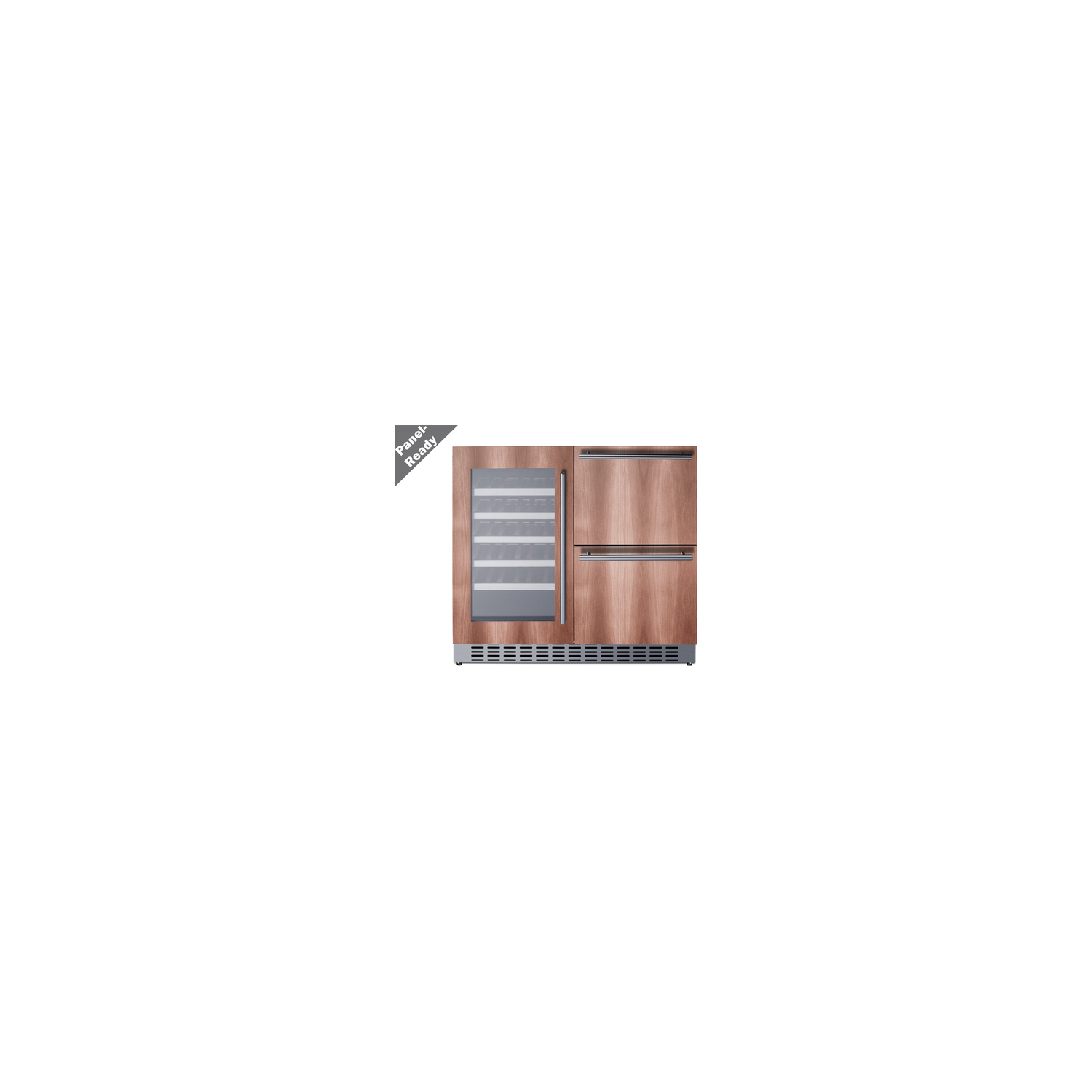

Panel-ready front Door trim and drawers accept custom overlay panels to let you seamlessly blend the unit into an existing cabinetry; Wine cellar panel dimensions: 29 1/8" H x 17 3/8" W at 3/4" thick, minimum 2 3/4" W side trim and 3 3/8" H; Drawer panels: 14 1/2" H x 17 5/8" W at 3/4" thick

Two independent temperature zones Two separate zones, wine cellar and all-refrigerator, allows you to chill wine and refrigerate perishables

Fully articulating style hinge (wine cellar) European style door hinge design ensures a flush fit and allows for a smoother opening and cleaner panel installation to ensure zero clearance

Generous bottle capacity Wine cellar can store up to 34 standard 750ml Bordeaux style or wider Burgundy style bottles

Digital thermostat Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit

Temperature ranges Wine cellar: 40º to 72ºF. All-refrigerator: 35º to 47ºF

High/low temperature alarm Audible alarm sounds if the interior temperature rises or drops out of set range

Open door alarm Audible alarm sounds if the drawers or door is left open for over 5 minutes

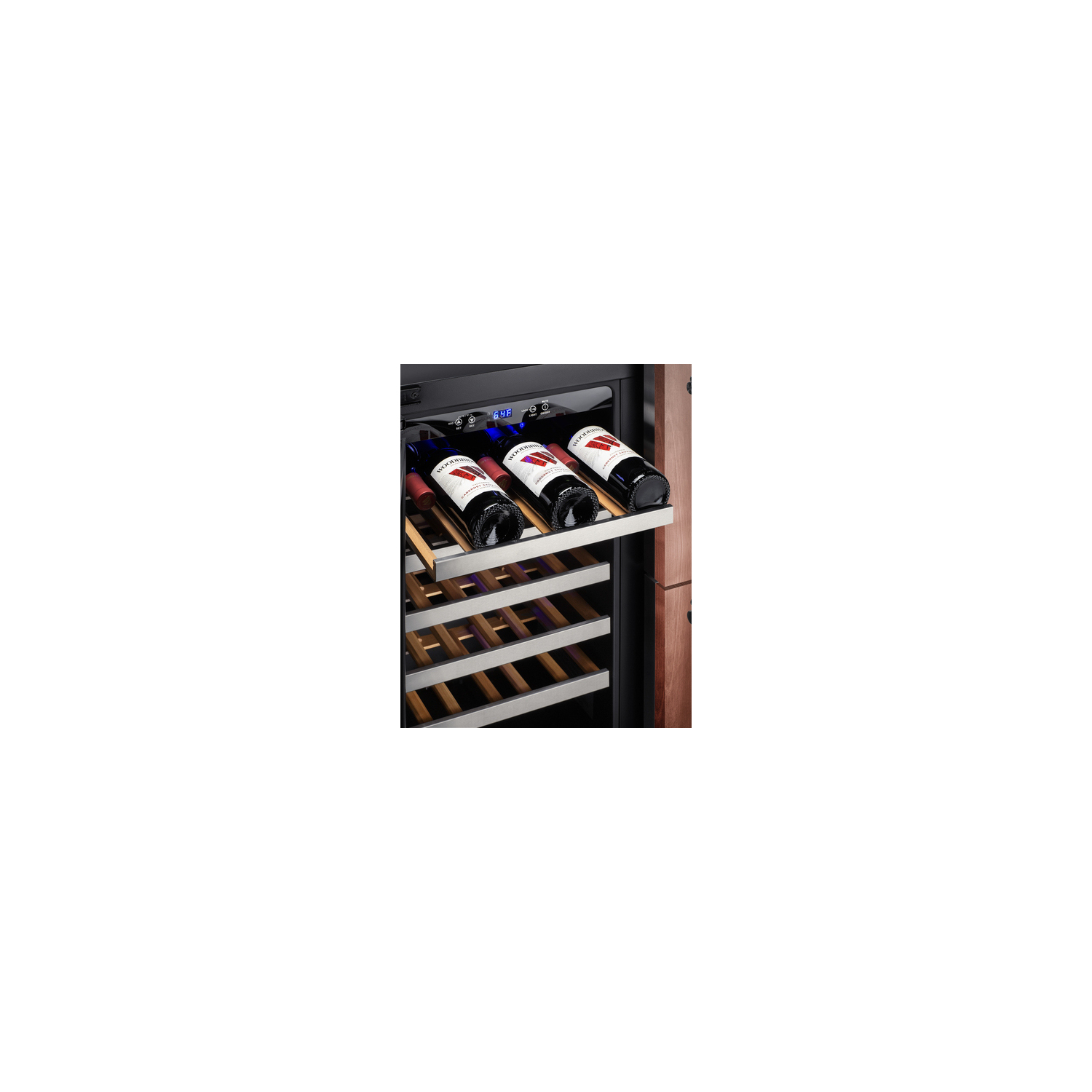

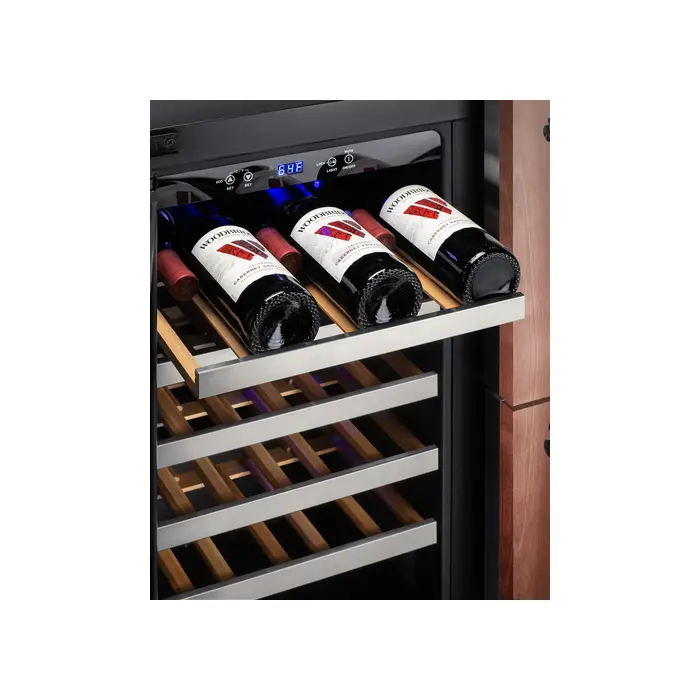

Wine shelving 5 shelves offer the perfect storage for wine bottles in a classic wooden finish with a stainless steel trim

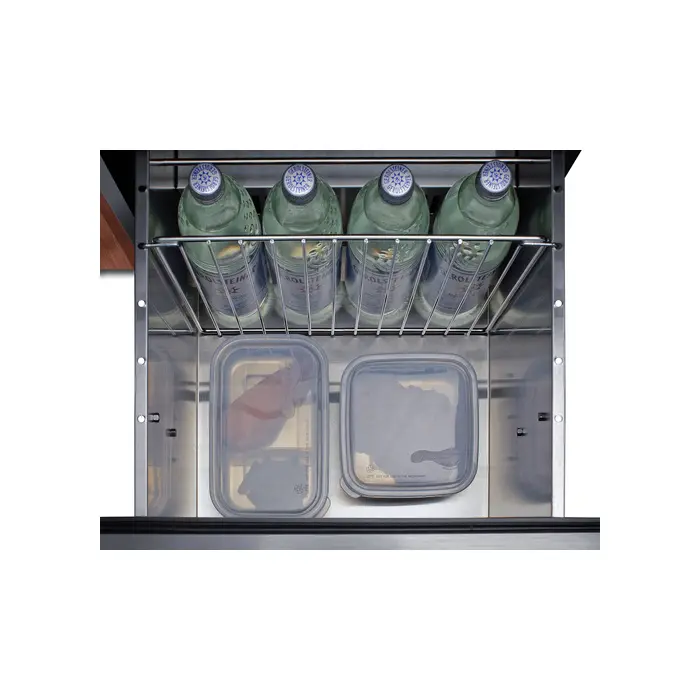

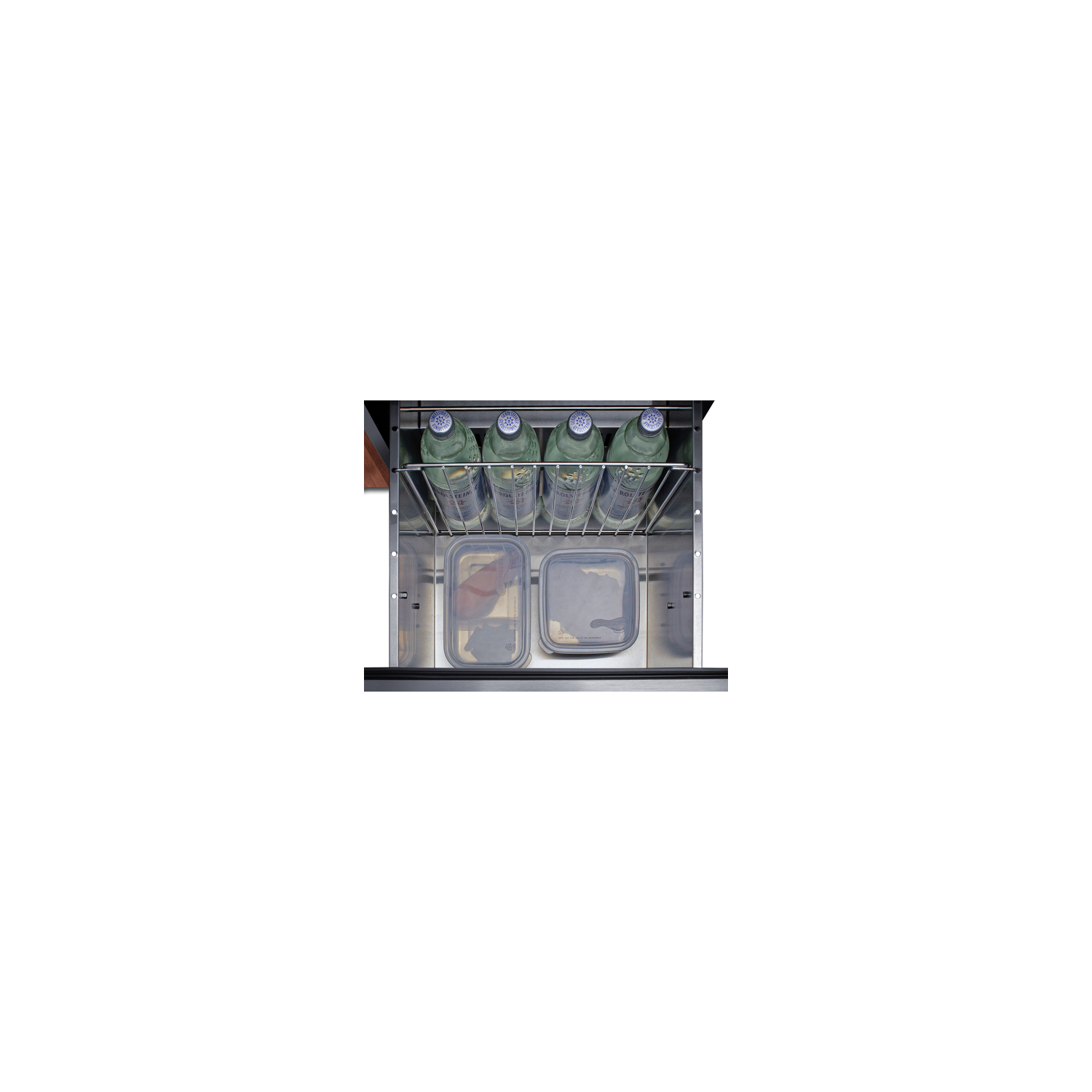

Drawer dividers Adjustable wire dividers for each drawer makes it easy to organize the interior and separate your storage

LED lighting Attractive and efficient illumination for both sections

Sabbath mode Optional setting lets you disable the lighting and alarm for up to 96 hours

Professional handles Sleek stainless steel handles add an elegant touch to any setting

Reversible door (wine cellar) User-reversible door swing for added flexibility to best accommodate your setting

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Anti-tip bracket Included bracket recommended for installation to help prevent tipping for added safety

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
