Summit 36 inch wide undercounter dual zone wine cellar and drawer refrigerator, SWCDAR36UC
$2,702.48
Retail Price: $3,810.00
Free shipping
$ 2,702.48
UPC: 761101000000
MPN: SWCDAR36UC
Application: Residential
Description
Summit 36" wide undercounter dual zone wine cellar and drawer refrigerator, 7.61101e+011, SWCDAR36UC
MPN:SWCDAR36UC
Category:
UPC:761101000000
Brand:Summit
Color/Finish:
SPECIFICATIONS
Overview
Height of Cabinet 34.13" (87 cm)
Width 35.5" (90 cm)
Depth 23.63" (60 cm)
Depth with Panel 24.13" (61 cm)
Depth with door at 90° 44.25" (112 cm)
Defrost Type Frost-Free
Door Glass/SS
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 159.0 lbs. (72 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101152042
Wine Cellar
Number of Zones 2
Adjustable Shelves Yes
Shelf Type Wood
Shelf Qty 5
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23 oz.
Interior Height 1 23.75" (60 cm)
Interior Width 1 14.25" (36 cm)
Interior Depth 1 17.75" (45 cm)
Interior Height - Drawer 1 8.75" (22 cm)
Interior Width - Drawer 1 12.75" (32 cm)
Interior Depth - Drawer 1 17.25" (44 cm)
Interior Height - Drawer 2 10.5" (27 cm)
Interior Width - Drawer 2 12.75" (32 cm)
Interior Depth - Drawer 2 10.5" (27 cm)
Compressor Step Height 6.0" (15 cm)
Compressor Step Width 12.75" (32 cm)
Compressor Step Depth 4.75" (12 cm)
Temperature Range 40° to 72°F
Sabbath Mode Yes
Sound Level 34.3 dB
FEATURES

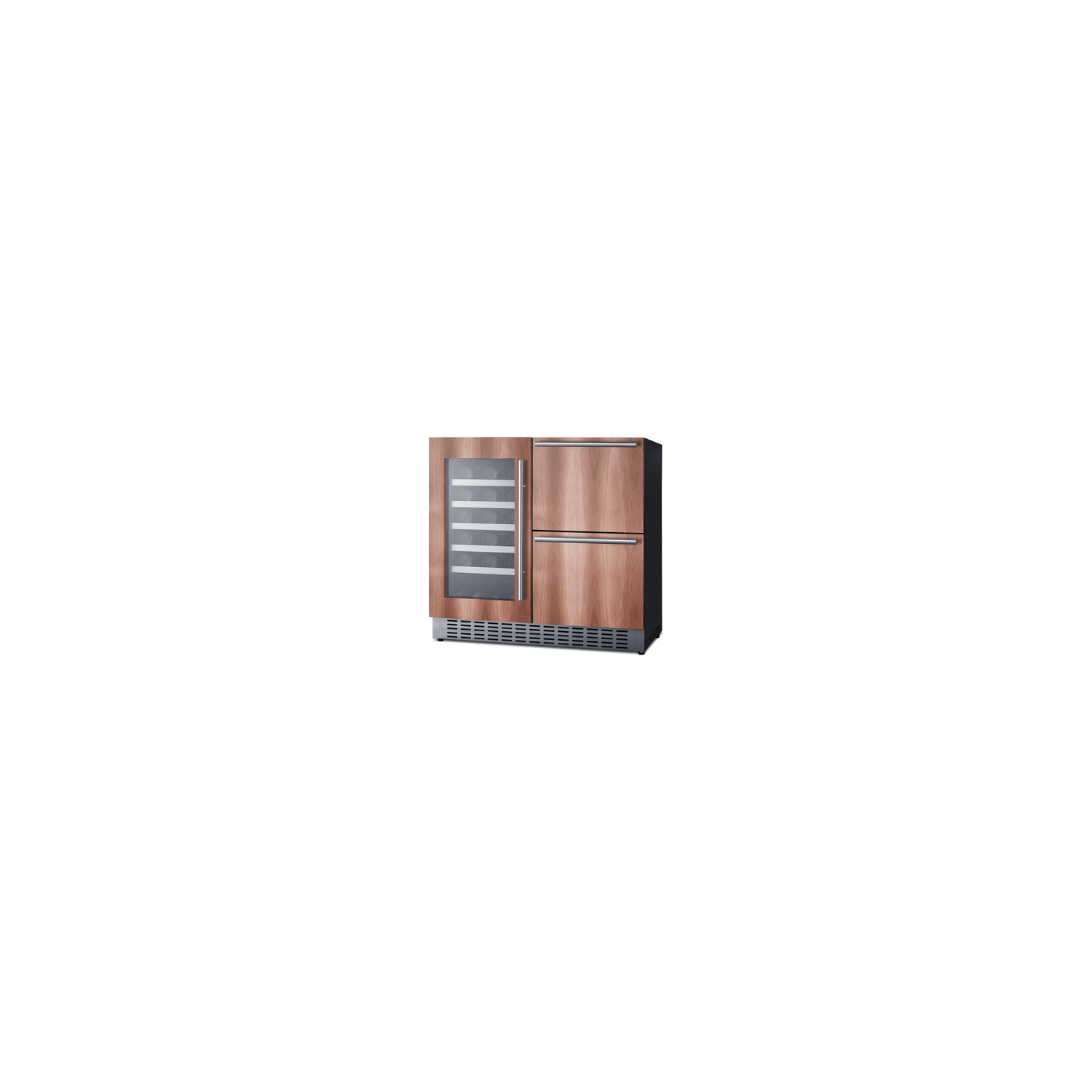

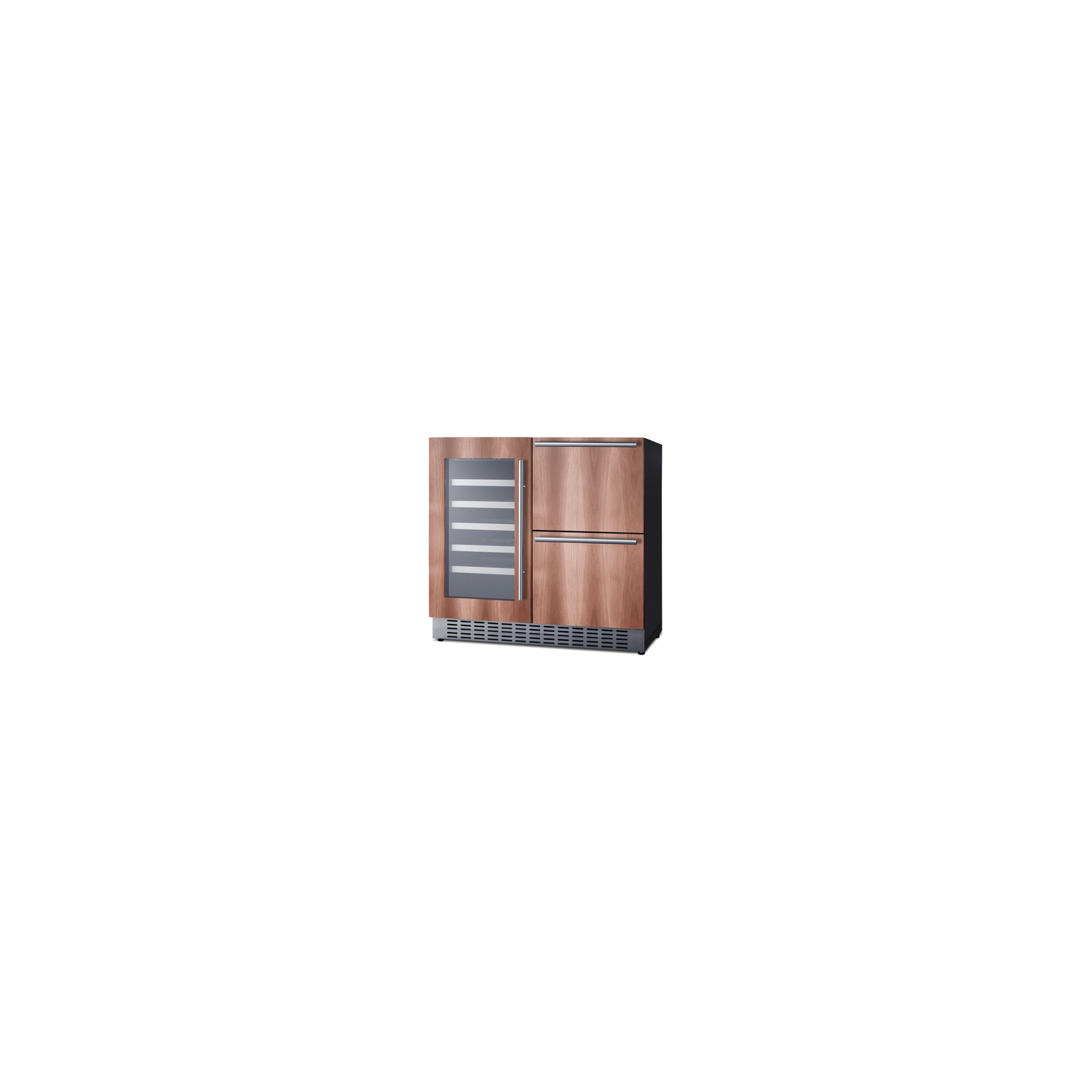

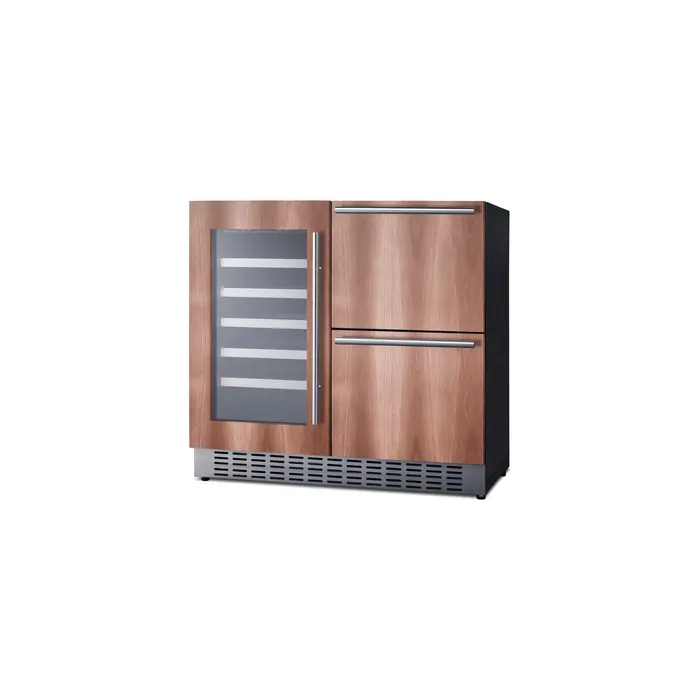

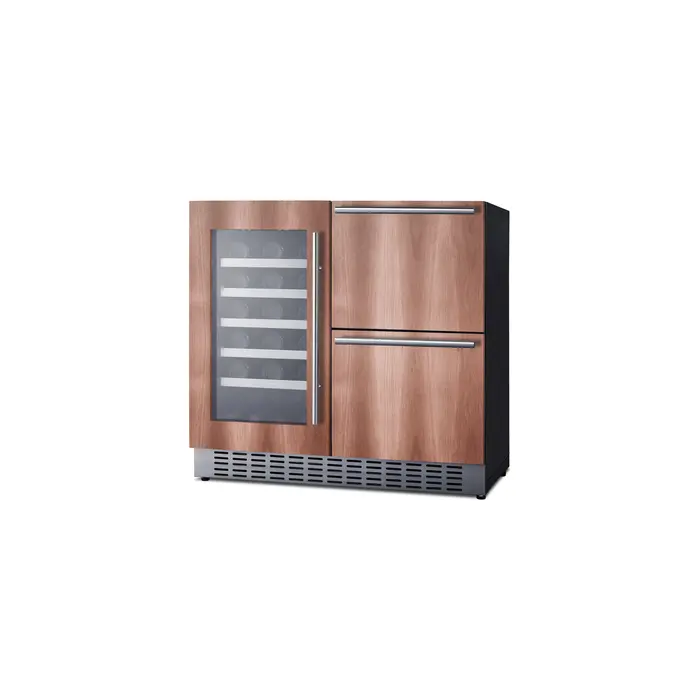

36" Wide Combination Wine Cellar & 2-Drawer Refrigerator Complete refrigeration storage solution with the 34-bottle capacity wine cellar and two-drawer all-refrigerator, perfect for home bars, kitchens, and similar entertainment spaces

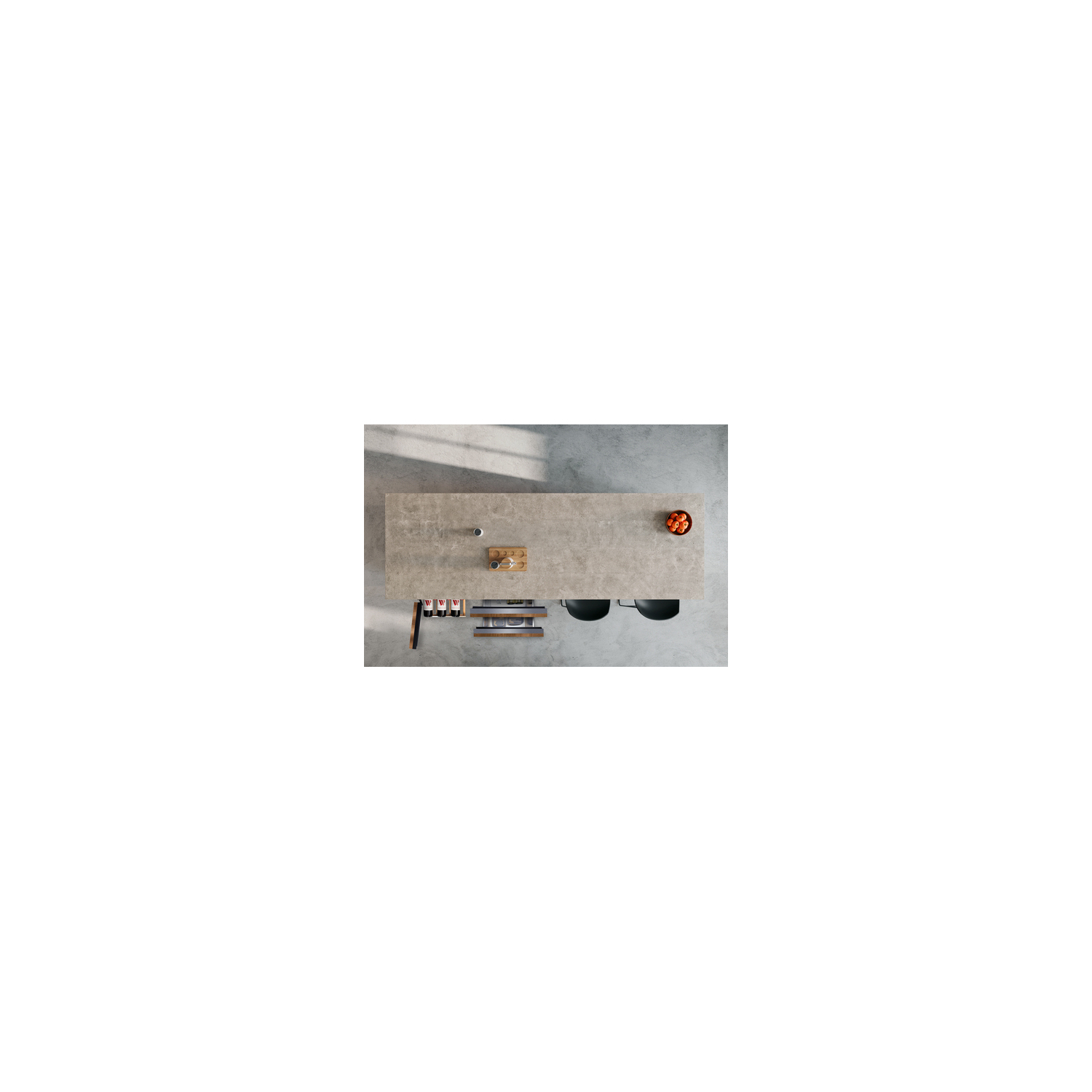

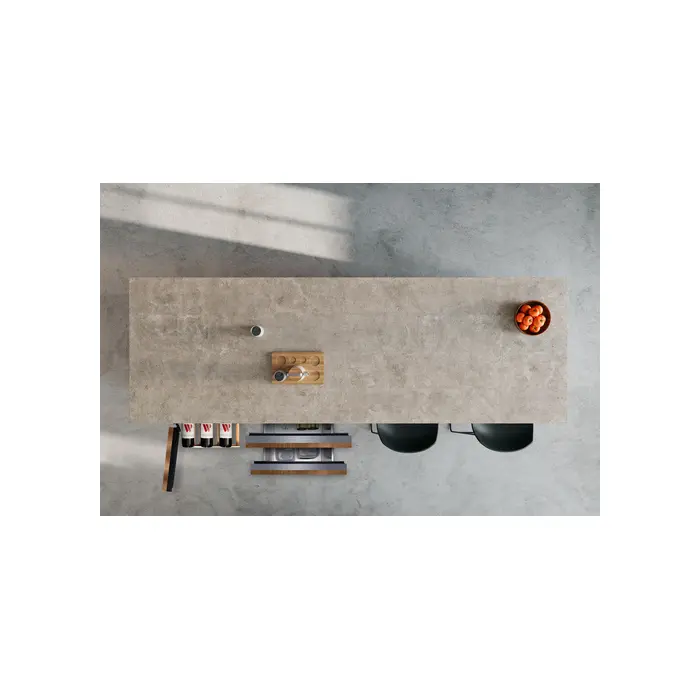

Built-in undercounter design Front-breathing design allows the unit to be built-in under counters
Commercially approved ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
Stainless steel front Drawers, wine cellar door trim, and kickplate are constructed from stainless steel for a modern and luxurious look ideal for any setting
Fully articulating style hinge (wine cellar) European style door hinge design ensures a flush fit and allows for a smoother opening
Two independent temperature zones Two separate zones, wine cellar and all-refrigerator, allows you to chill wine and refrigerate perishables
Generous bottle capacity Wine cellar can store up to 34 standard 750ml Bordeaux style or wider Burgundy style bottles
Digital thermostat Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit
Temperature ranges Wine cellar: 40º to 72ºF. All-refrigerator: 35º to 47ºF
High/low temperature alarm Audible alarm sounds if the interior temperature rises or drops out of set range
Open door alarm Audible alarm sounds if the drawers or door is left open for over 5 minutes
Wine shelving 5 shelves offer the perfect storage for wine bottles in a classic wooden finish with a stainless steel trim

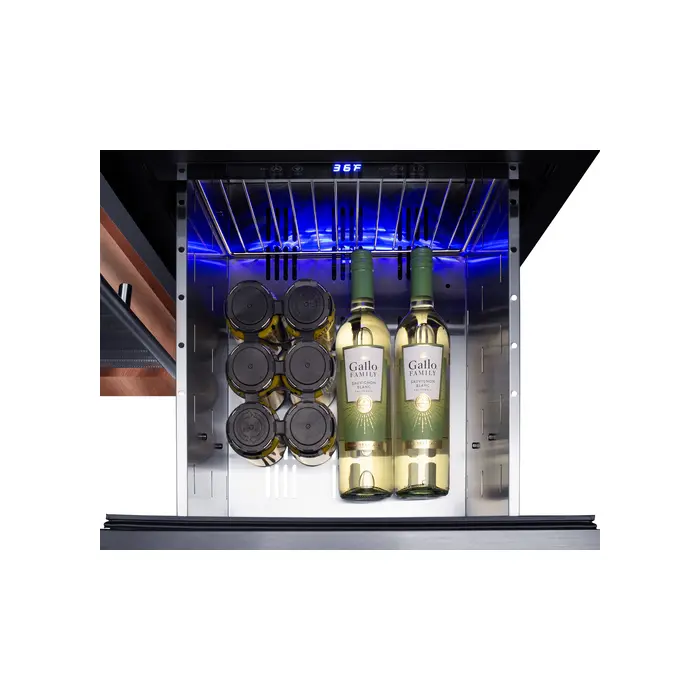

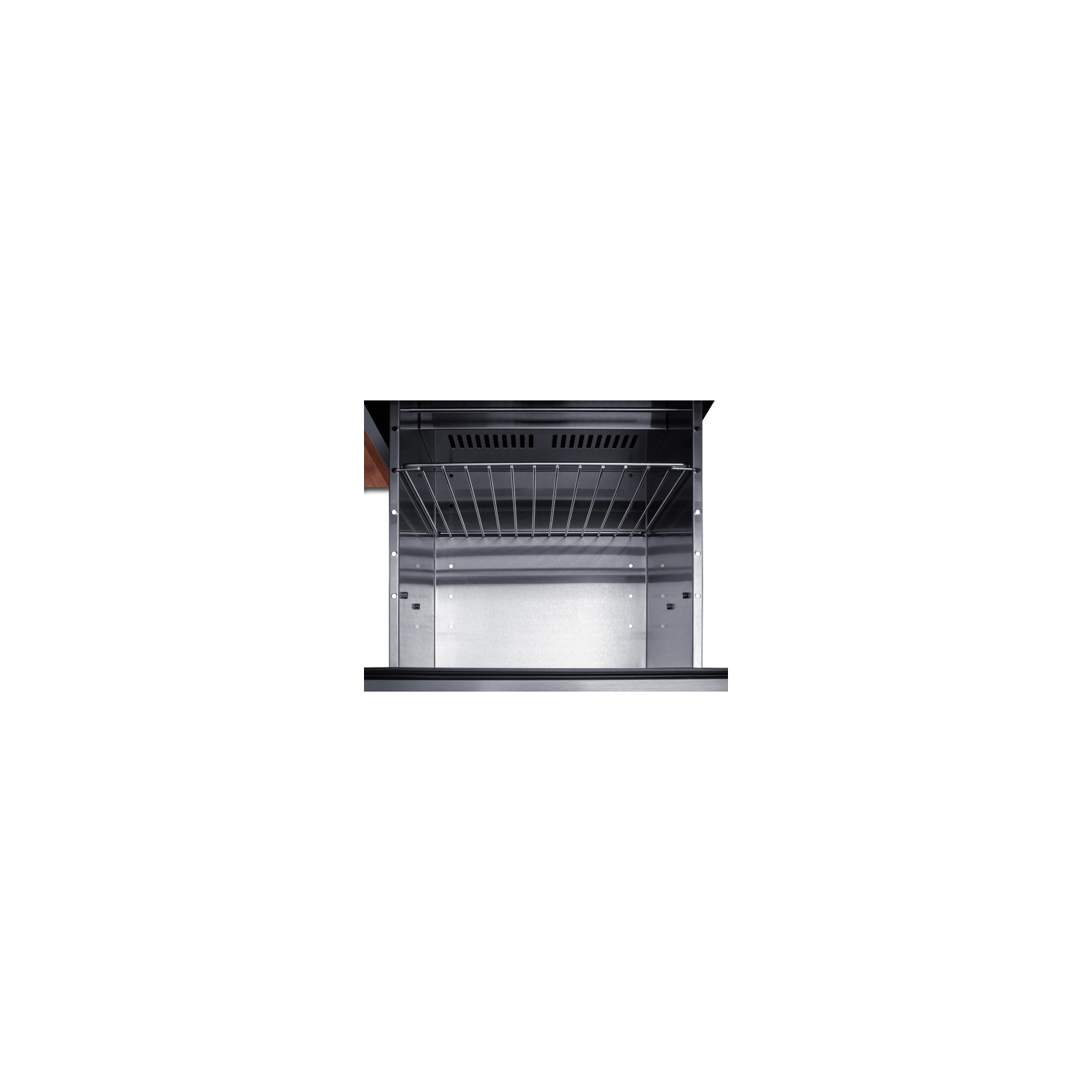

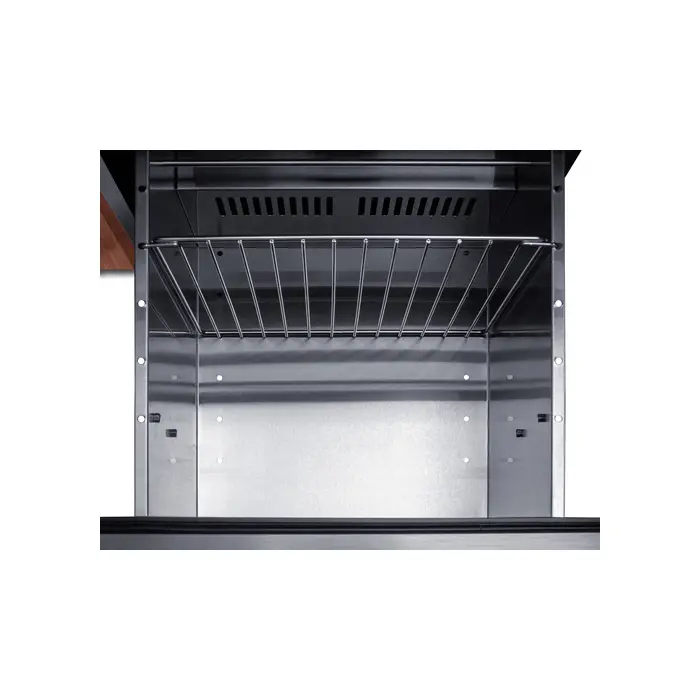

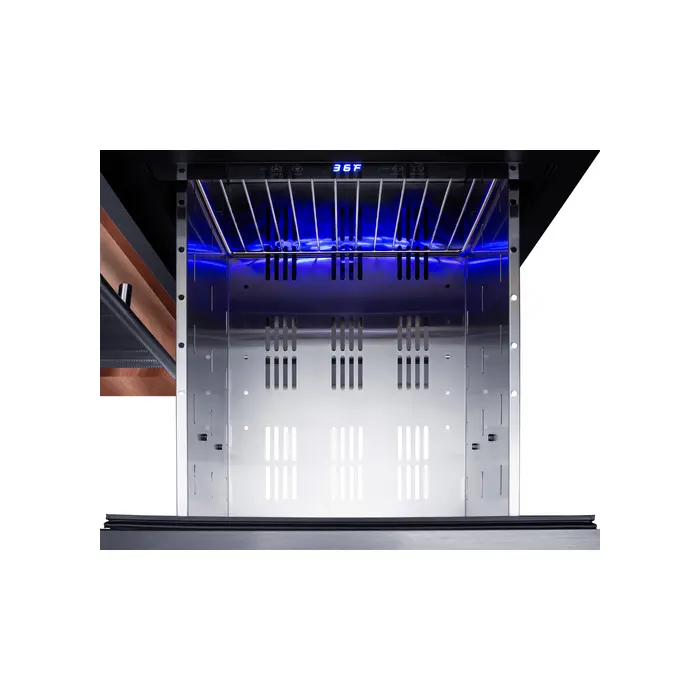

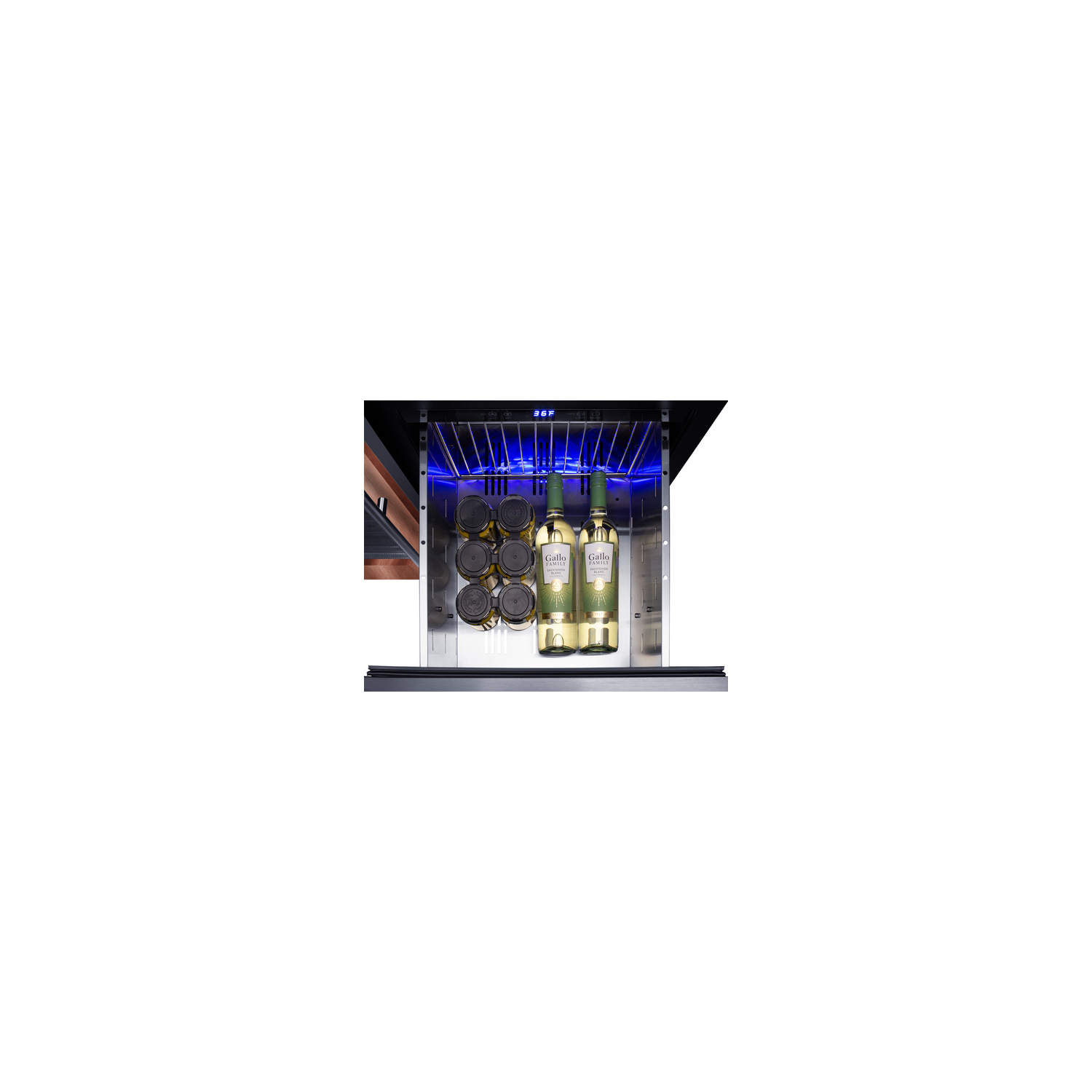

Drawer dividers Adjustable wire dividers for each drawer makes it easy to organize the interior and separate your storage

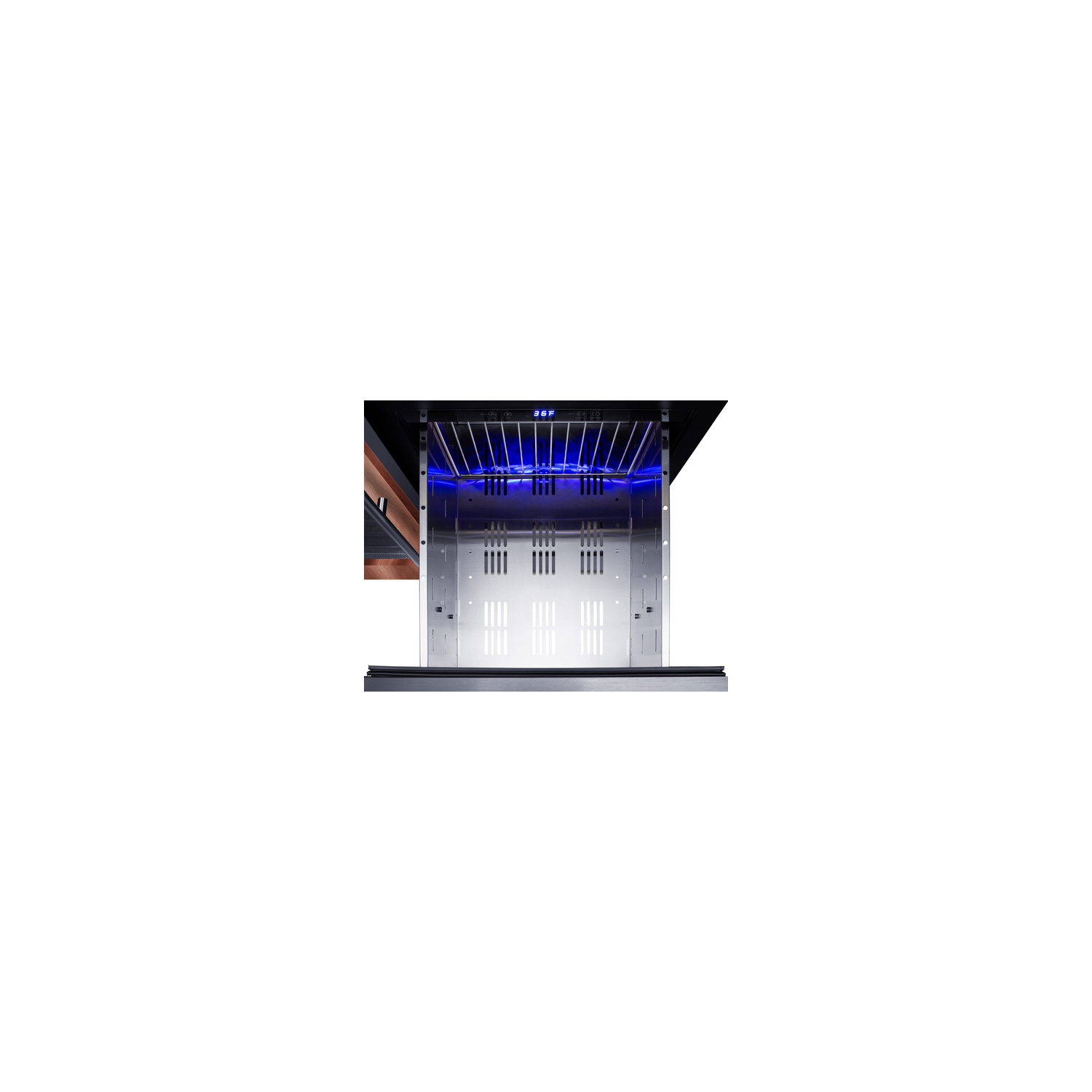

LED lighting Efficient lighting for both zones with a convenient on/off switch on the control panel
Sabbath mode Optional setting lets you disable the lighting and alarm for up to 96 hours
Professional handles Sleek stainless steel handles add an elegant touch to any setting
Reversible door (wine cellar) User-reversible door swing for added flexibility to best accommodate your setting
Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Anti-tip bracket Included bracket recommended for installation to help prevent tipping for added safety
100% CFC Free Environmentally friendly design with no ozone-damaging chemicals
CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DOWNLOADS
TECHNICAL DRAWING (.dwg) (SWCDAR36UC.dwg)
