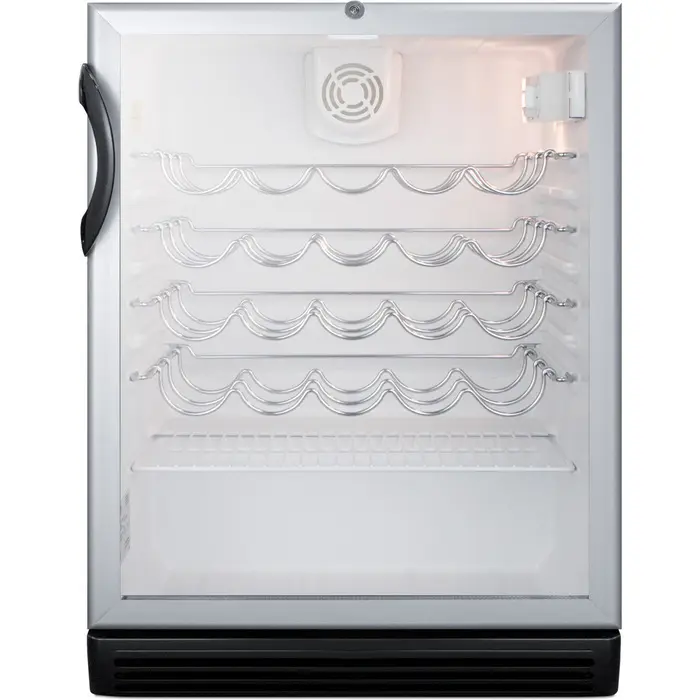

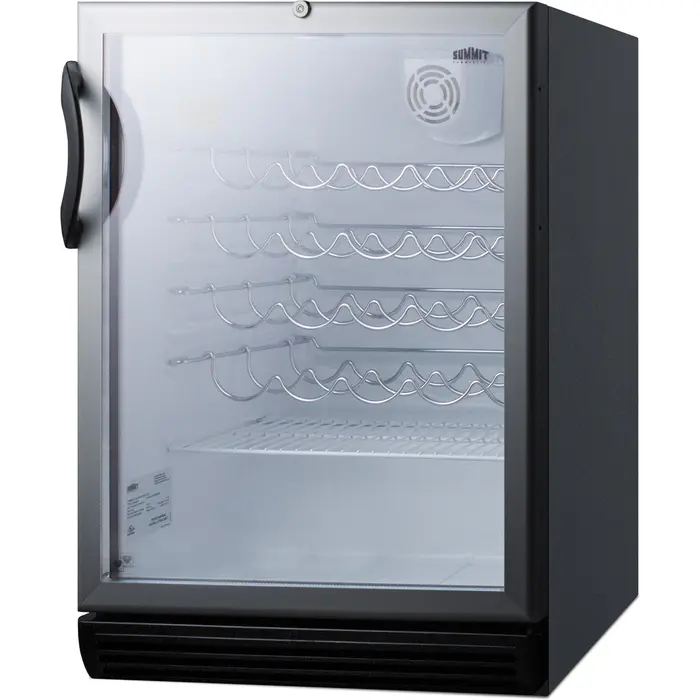

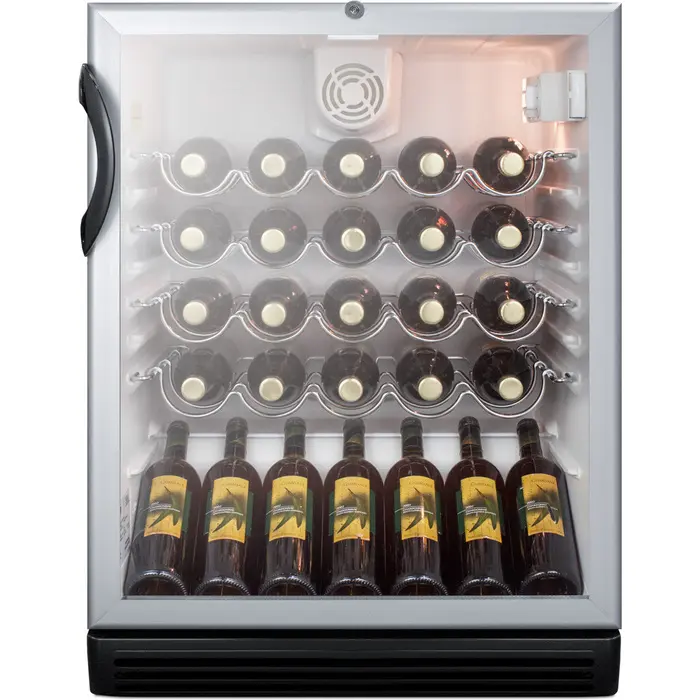

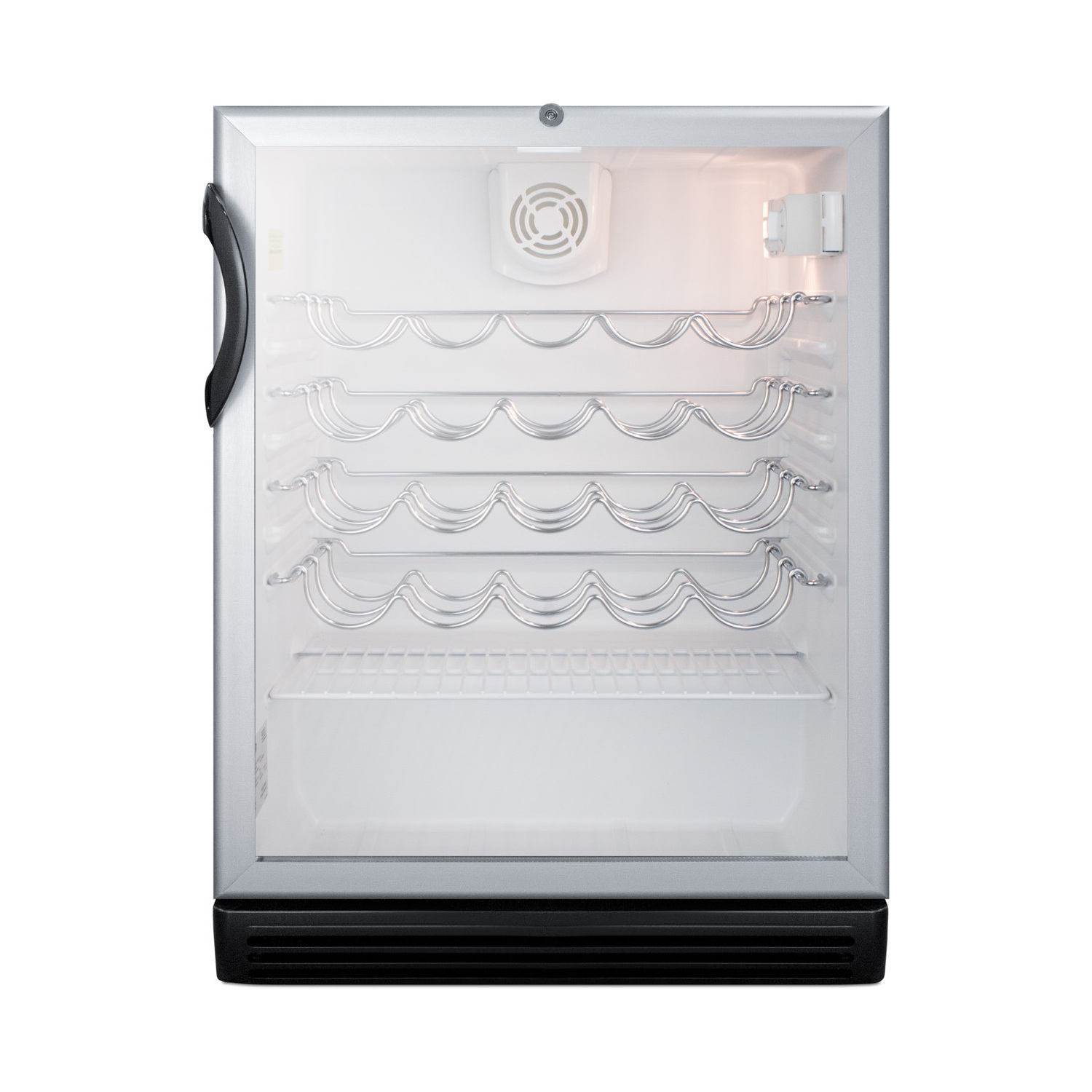

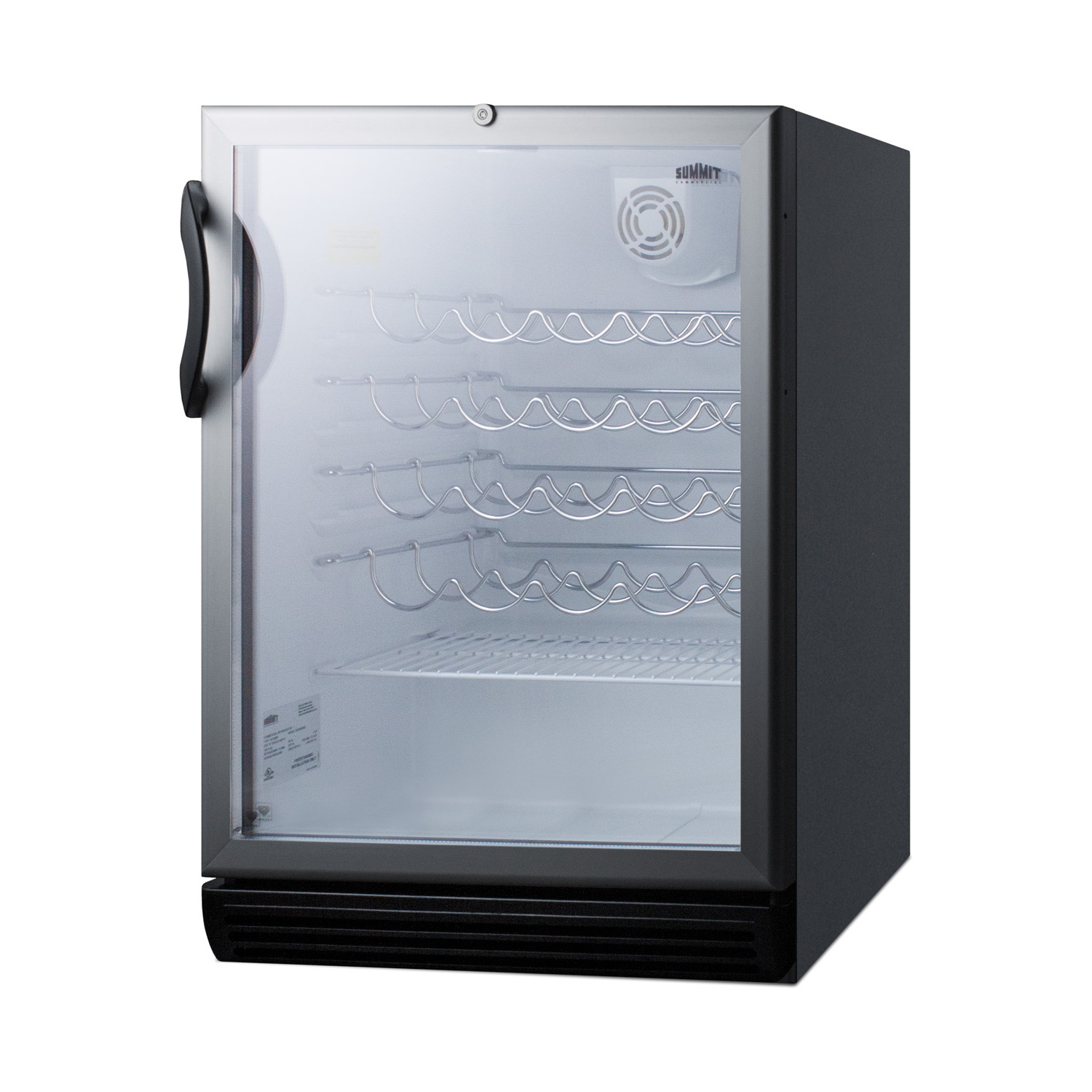

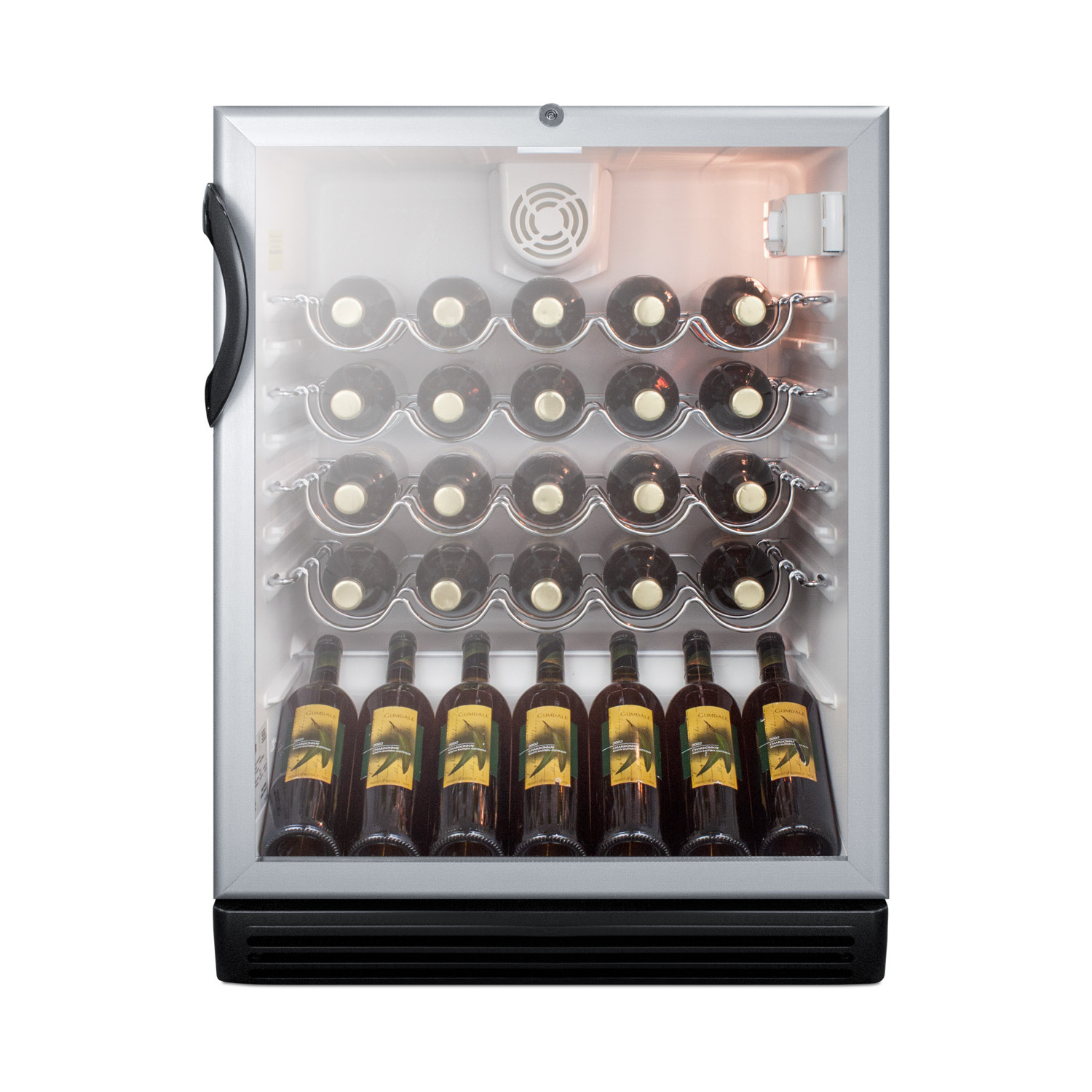

Summit ADA compliant, commercially approved wine cellar, SWC6GBLADA

Summit ADA compliant, commercially approved wine cellar, 7.61101e+011, SWC6GBLADA
MPN:SWC6GBLADA
Category:
UPC:761101000000
Brand:Summit
Color/Finish:

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Height to Hinge Cap 32.38" (82 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Capacity 5.5 cu.ft. (156 L)

Bottles 36 bottles

Defrost Type Automatic

Door Glass

Cabinet Black

US Electrical Safety UL

Canadian Electrical Safety ULC

Sanitation ETL-S

Amps 1.3

Voltage/Frequency 115 V AC/60 Hz

Weight 115.0 lbs. (52 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101022543

Wine Cellar

Number of Zones 1

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Shelf Type Scalloped

Shelf Qty 4

Thermostat Type Dial

Interior Light Yes

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 0.67 oz.

High Side PSI 124.0

Low Side PSI 30.0

Interior Height 1 26.0" (66 cm)

Interior Width 1 20.75" (53 cm)

Interior Depth 1 17.5" (44 cm)

Compressor Step Height 6.0" (15 cm)

Compressor Step Width 20.75" (53 cm)

Compressor Step Depth 5.0" (13 cm)

FEATURES

ADA compliant 32" high for use in ADA compliant settings

Commercially approved ETL-S listed to NSF-7 for use in foodservice establishments

Double pane tempered glass door Display your collection behind a solid glass door trimmed in elegant brushed aluminum for a refined touch

Factory installed lock Keyed lock for secure interior, conveniently located at the top of the door

Automatic defrost Reduced maintenance with auto defrost system

Internal fan Fan-forced cooling helps to maintain a more evenly cooled interior

Scalloped steel shelving Curved shelves designed for the ideal storage of wine bottles

Half-sized wire shelf Sits on top of the compressor and features wire slots ideal for holding bottles on their sides

Interior light Illuminate your collection with an interior light controlled by a rocker on/off switch

Hidden evaporator SUMMIT's original "hidden" evaporator is concealed in the wall so it never touches your fingers or food

Adjustable thermostat Dial thermostat accommodates white wine temperature. If using this model for red wine storage, add a DT digital thermostat upon ordering

100% CFC Free Environmentally friendly design

Fully finished black cabinet Allows the unit to be used freestanding

Temperature range 5ºC to 10ºC/41ºF to 50ºF; To reach warmer temperatures, order with our red wine thermostat option (10ºC to 18ºC/50ºF to 64ºF range)

DOWNLOADS

BROCHURE (SWC6GBLADA.pdf)

USE & CARE (SWC6GBLADA-User-Manual.pdf)
