Summit Dual zone built-in wine cellar with seamless SS trimmed glass door, full extension shelves, digital thermostat, and black cabinet, 7.61101e+011, SWC532BLBIST

Summit offers an extensive selection of wine cellars with versatile designs for residential or commercial use.

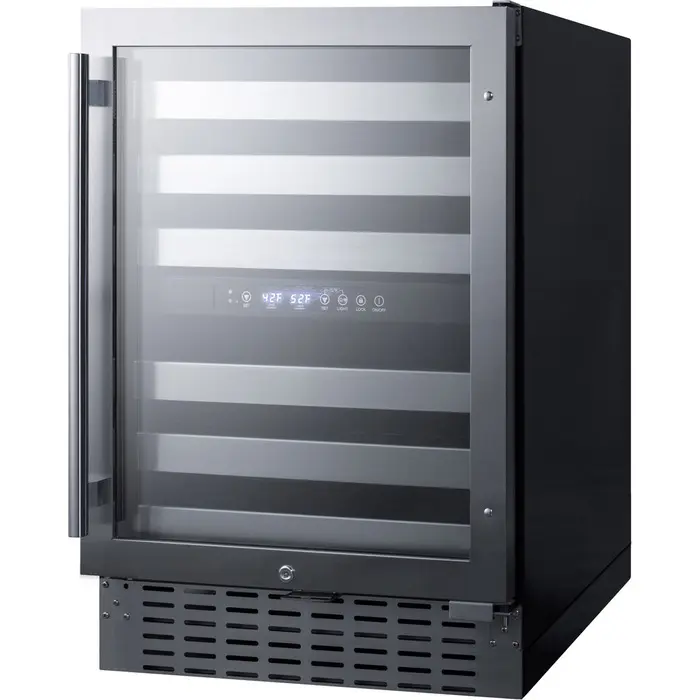

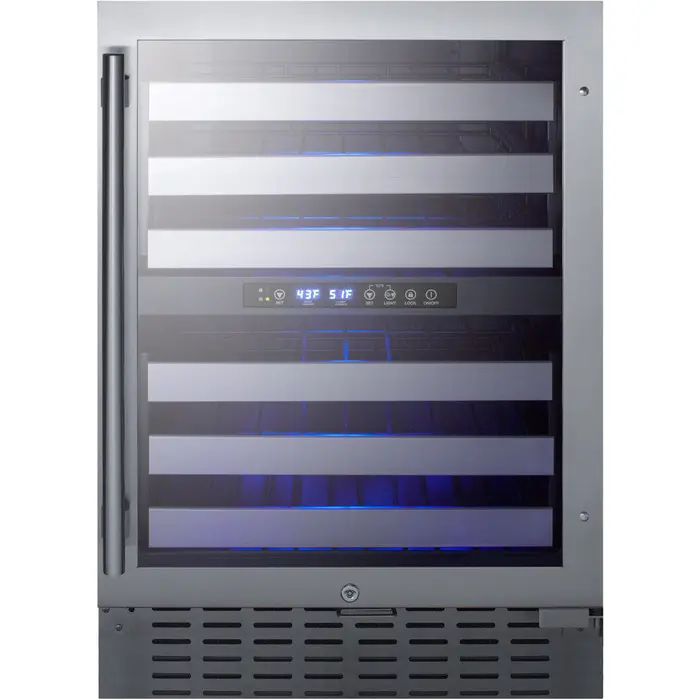

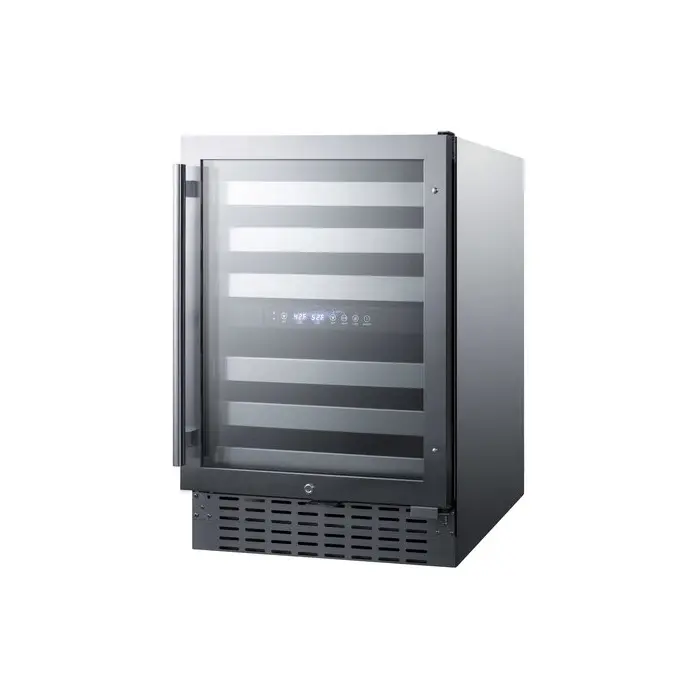

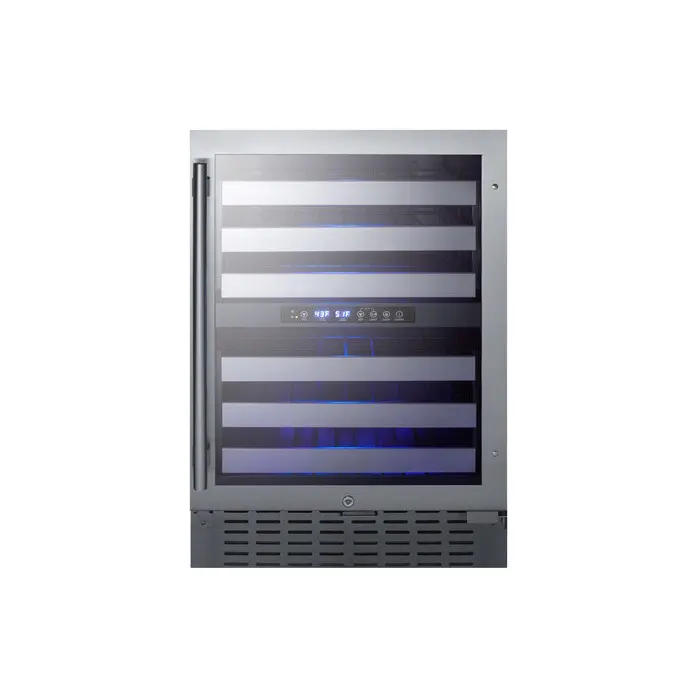

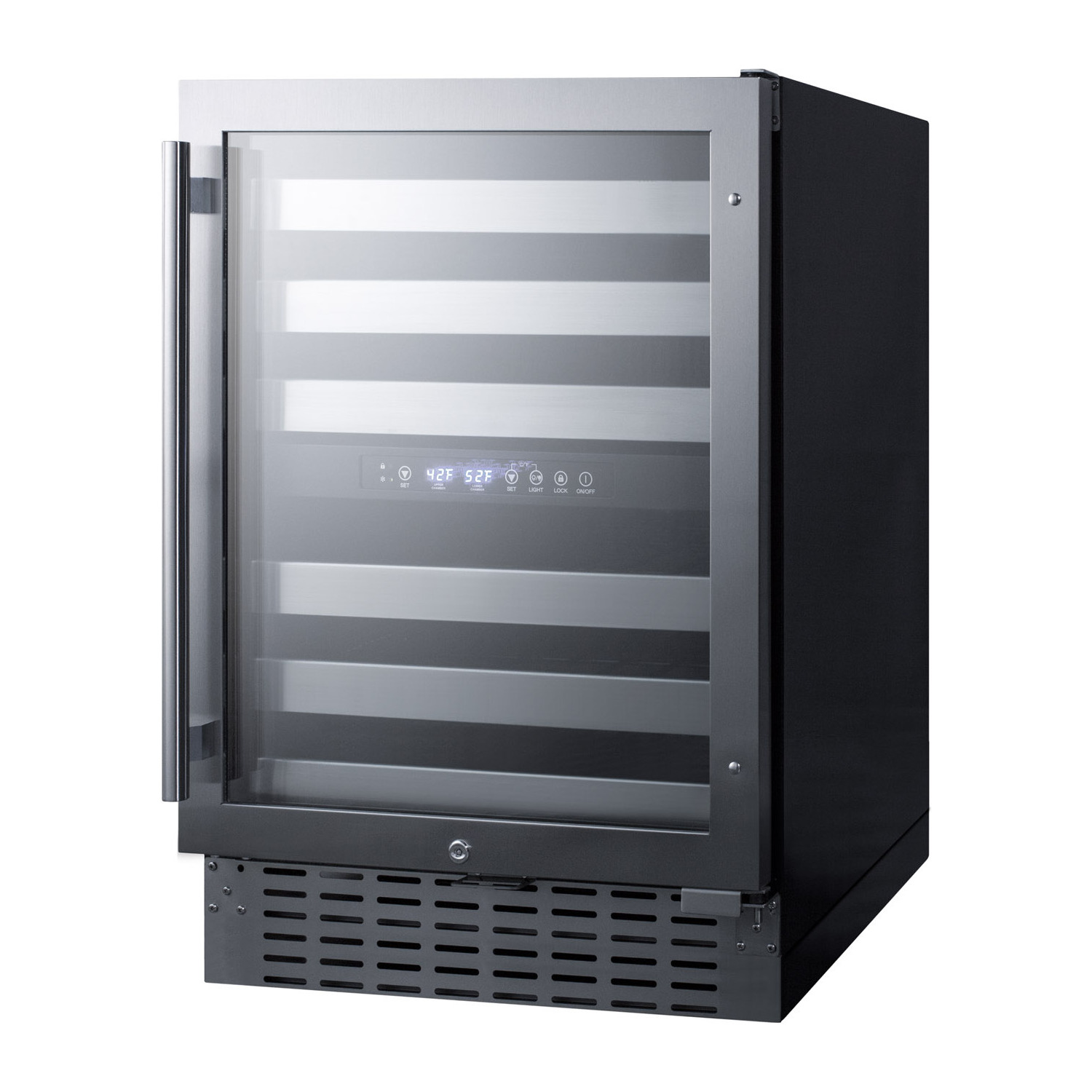

The SWC532BLBIST is a dual zone wine cellar that is ETL-S listed to NSF-7 commercial standards. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. The user-reversible double pane tempered glass door features a seamless stainless steel door trim and pro style handle in stainless steel. A factory-installed lock offers added security and a stainless steel kickplate completes the look.

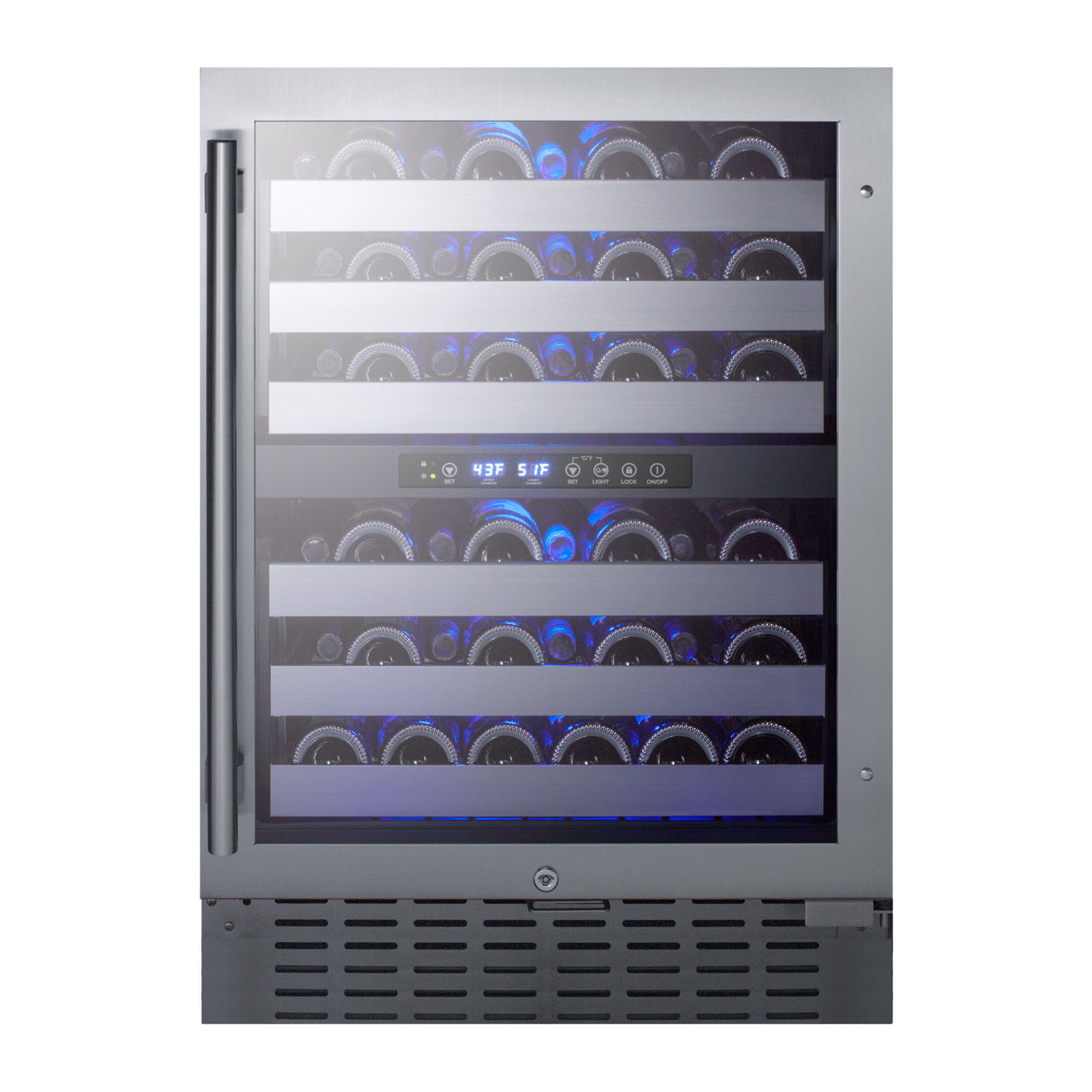

Inside, the SWC532BLBIST is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper temperature chamber between 41 and 50ºF for white wine, while the lower zone is designed to store red wine between 50 and 64ºF. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for easy loading. Both compartments include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation.

With its advanced user features and versatile design, the SWC532BLBIST makes a great addition to any setting looking to store wine in modern style. This unit can be paired with the SCR2466B beverage cooler for a matching set. Nominal Height: 35
Height of Cabinet: 34.25
Height to Hinge Cap: 0
Nominal Width: 24
Width: 23.5
Width with Door Open: 0
Nominal Depth: 24
Depth: 23.38
Depth with Handle: 25.38
Depth with door at 90°: 45.75
Capacity: 0
Bottles: 46Defrost Type: AutomaticDoor: GlassCabinet: BlackUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 35.0" (89 cm)

Height of Cabinet 34.25" (87 cm)

Nominal Width 24.0" (61 cm)

Width 23.5" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.38" (59 cm)

Depth with Handle 25.38" (64 cm)

Depth with door at 90° 45.75" (116 cm)

Bottles 46 bottles

Defrost Type Automatic

Door Glass

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.25

Voltage/Frequency 115 V AC/60 Hz

Weight 113.0 lbs. (51 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101063126

Wine Cellar

Number of Zones 2

Door Swing RHD

Reversible Yes

Shelf Type Wire

Shelf Qty 6

Thermostat Type Digital

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.23 oz.

High Side PSI 150.0

Low Side PSI 50.0

Interior Height 1 11.63" (30 cm)

Interior Width 1 20.5" (52 cm)

Interior Depth 1 18.0" (46 cm)

Compressor Step Depth 6.0" (15 cm)

Level Legs 2

Temperature Range 41 to 64ºF

Interior Height 2 11.88" (30 cm)

Interior Width 2 20.5" (52 cm)

Interior Depth 2 18.0" (46 cm)

FEATURES

Commercially approved ETL-S listed to NSF-7 standards for use in commercial applications

Built-in capable Front-breathing design allows this unit to be installed under counters

Commercial shelving design Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving

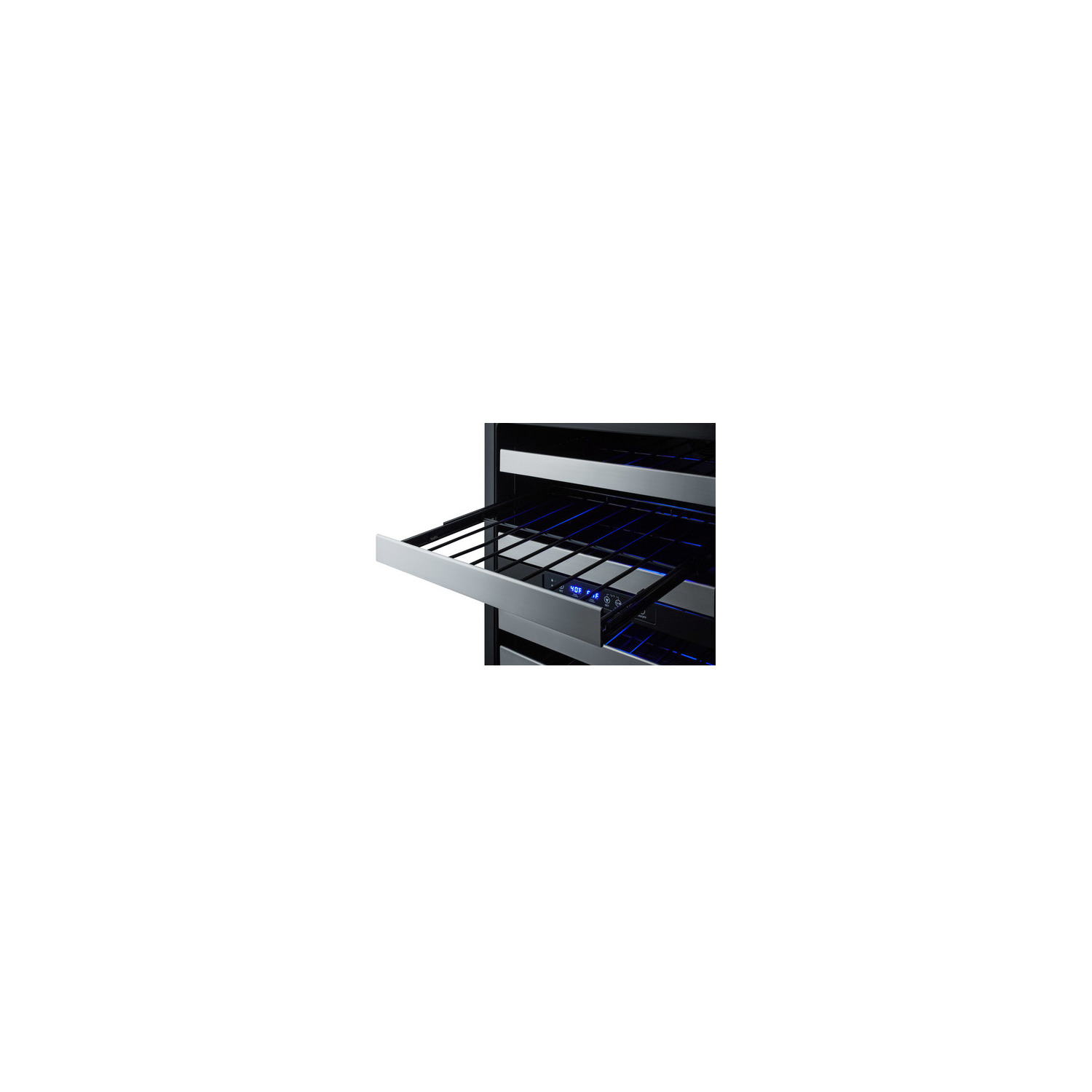

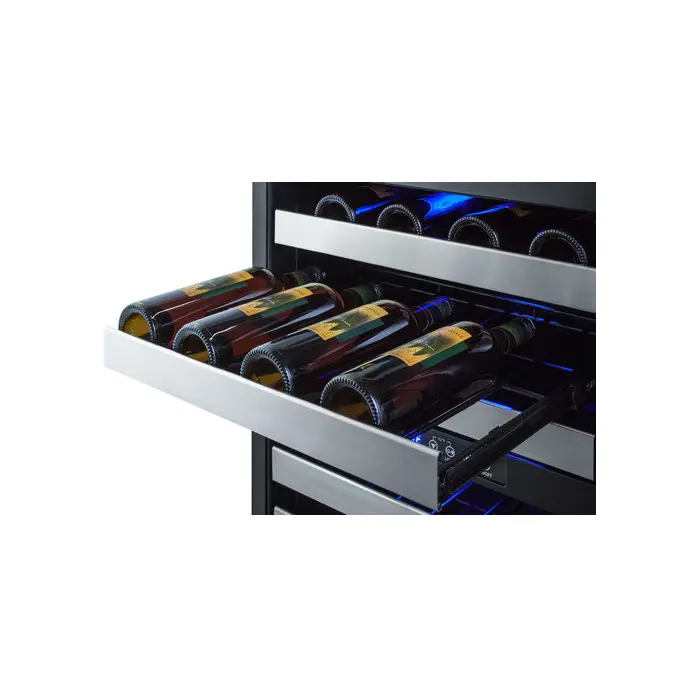

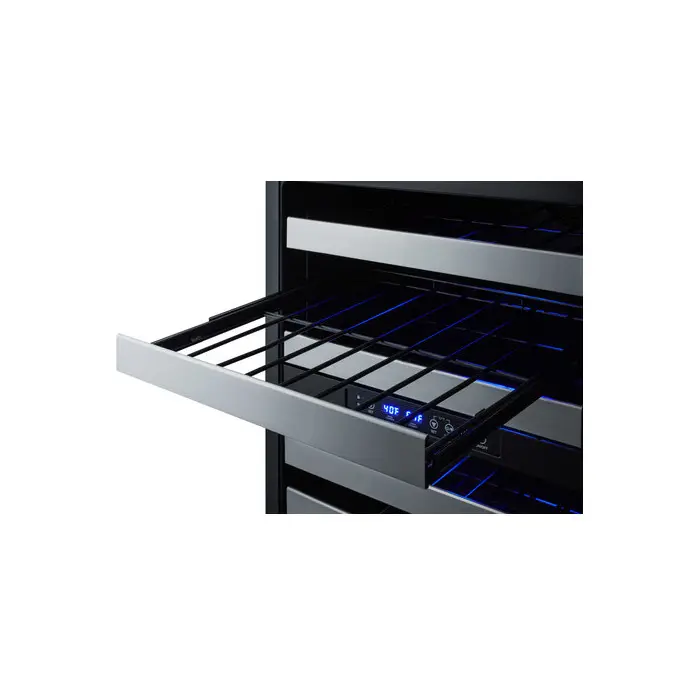

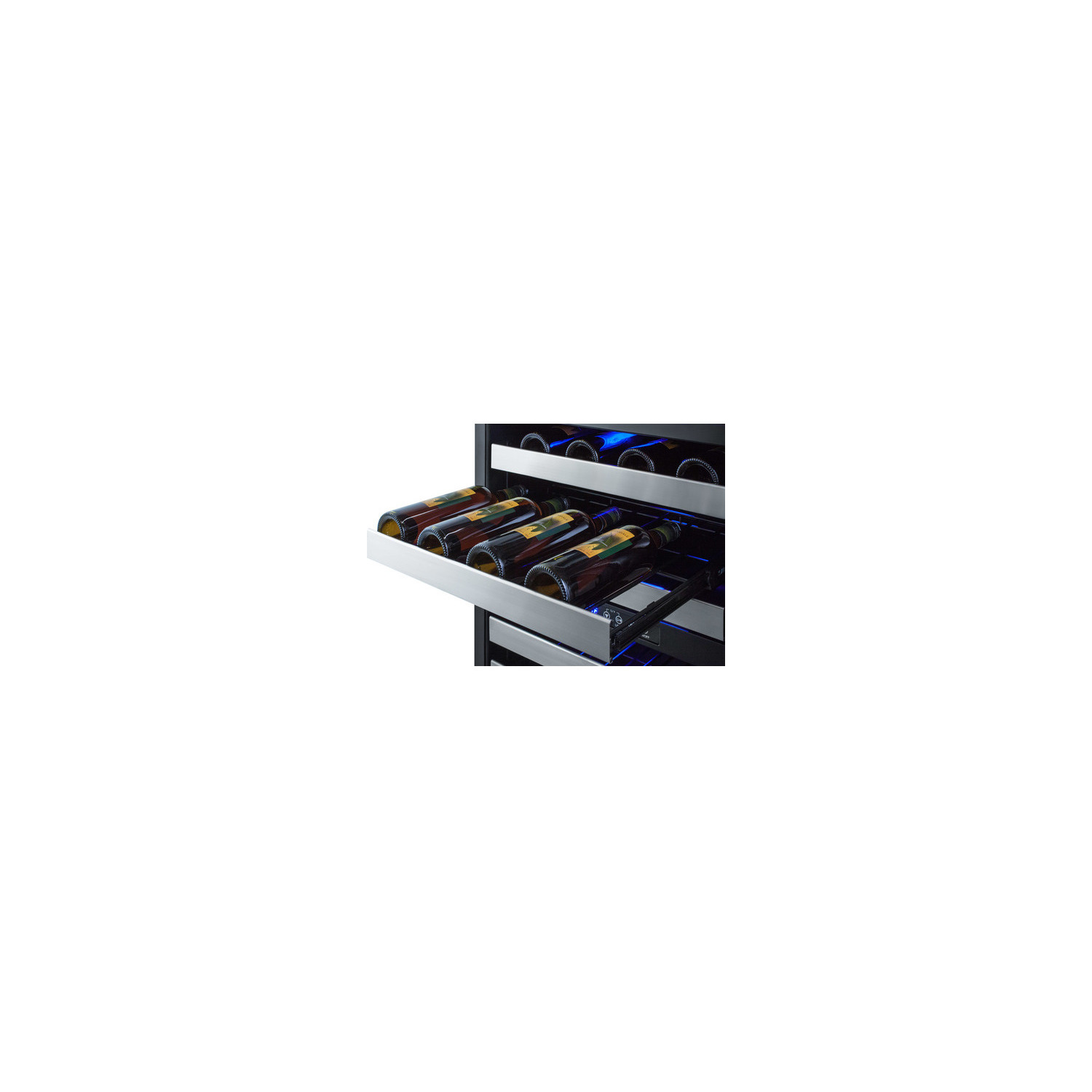

Full-extension shelving Shelves move smoothly on ball-bearing glides for easier loading and unloading

Two temperature zones Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F

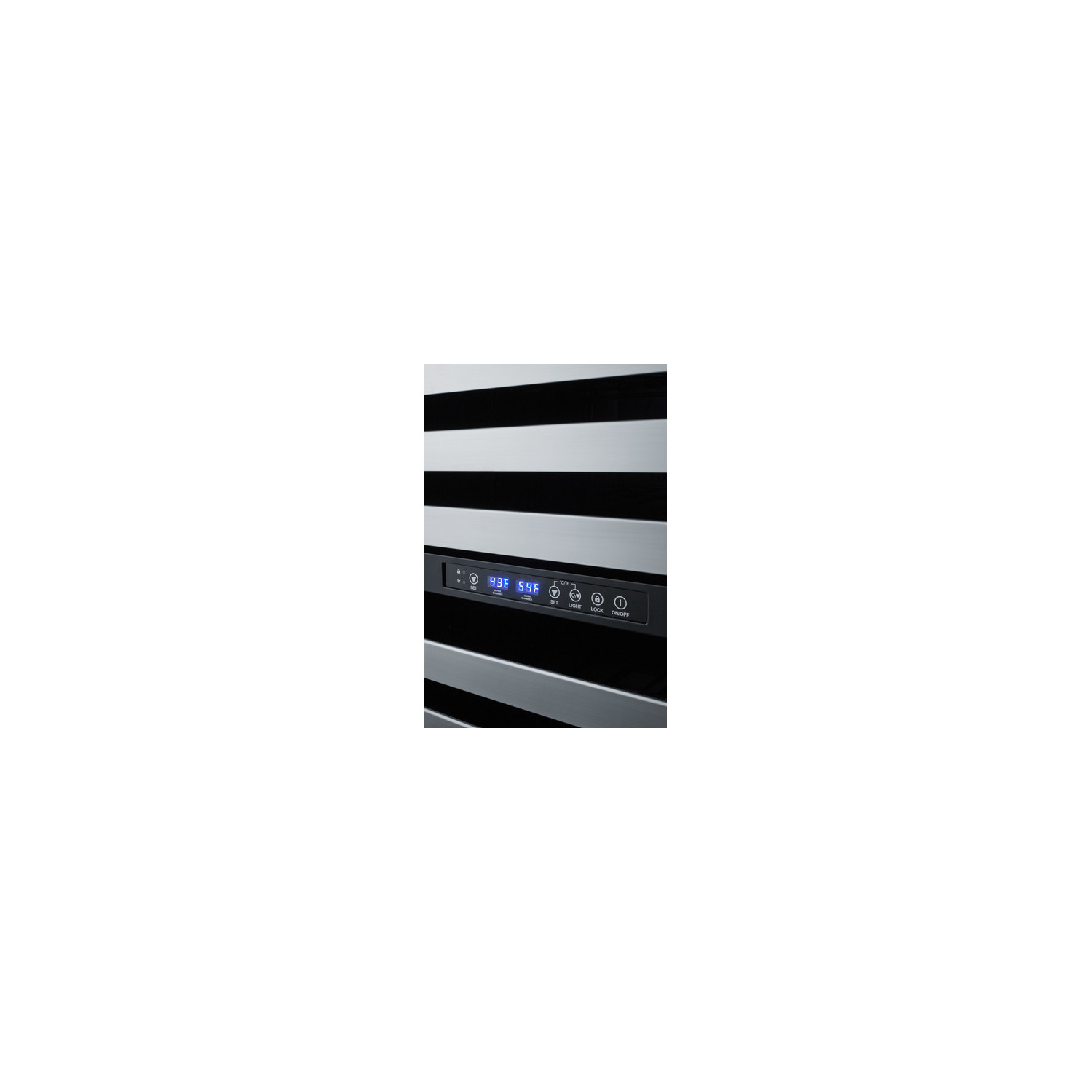

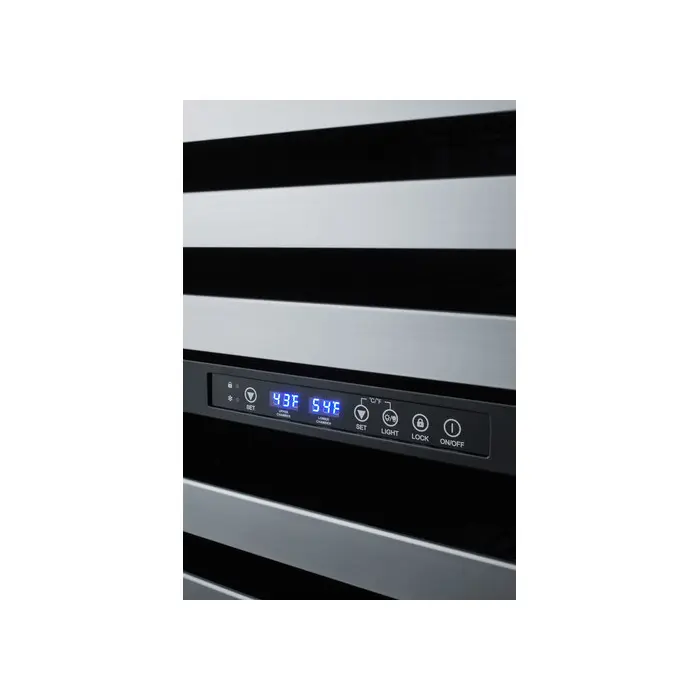

Digital control panel Easy temperature management with electronic controls located inside

Versatile readout Temperature viewable in Celsius or Fahrenheit

Automatic defrost Reduced maintenance with auto defrost system

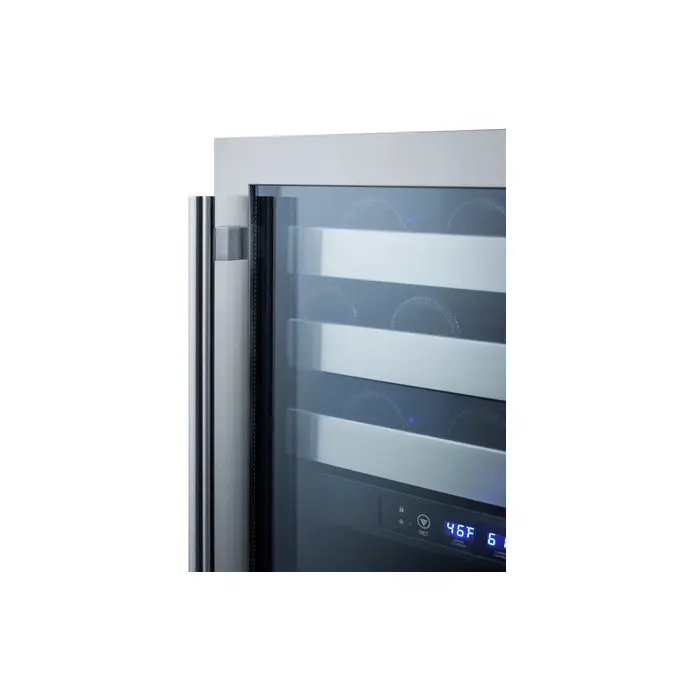

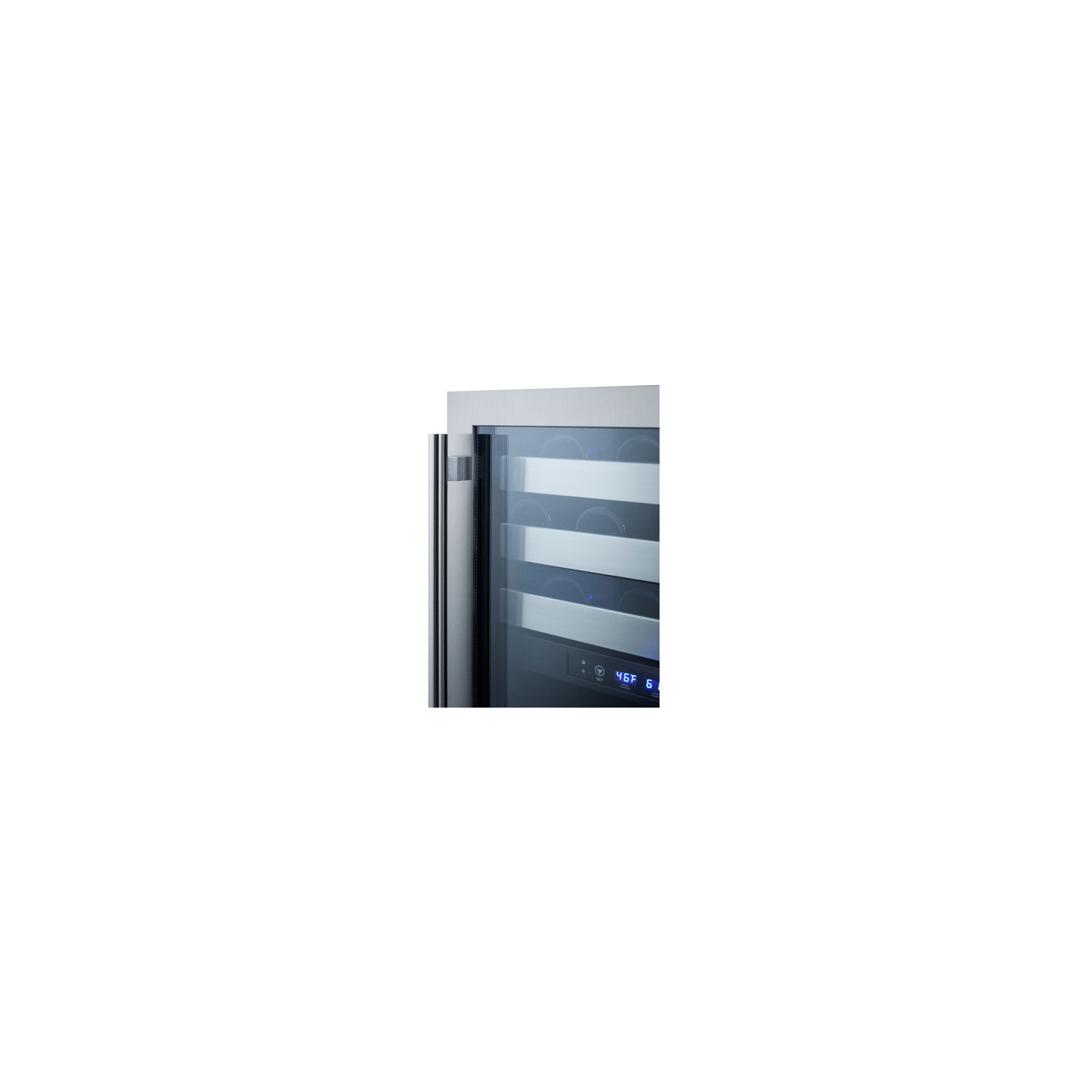

Stainless steel door frame Single-piece door trim offers a more deluxe look

Professional handle Stainless steel handle with solid 1" diameter for added style

Double pane tempered glass door Provides a full display of the interior, with two levels of glass for added protection

Interior lighting Recessed LED lighting in both compartments brings striking blue illumination to your collection

Factory installed lock Keyed lock for secure interior, with two keys included

Reversible door User-reversible door swing makes it easy to best accommodate your setting

Fully finished black cabinet Allows the unit to be used freestanding

Matching beverage center available Pairs perfectly with the SCR2466B

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

HTS CODE: 8418.50.0080 Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door

DOWNLOADS

BROCHURE w/ DRAWINGS (SWC532BLBIST.pdf)

TECHNICAL DRAWING (.dwg) (SWC532BLBIST_WINE_CELLAR__A-C_2018_.dwg)

REVIT MODEL (Qf_Summit_SWC532BLBIST_24_inches_Wide_Built-In_Wine_Cellar.rfa)

USE & CARE (SWC532BLBIST-User-Manual.pdf)

SUPPORT (ALWC532_Shelving_Guide.pdf)
