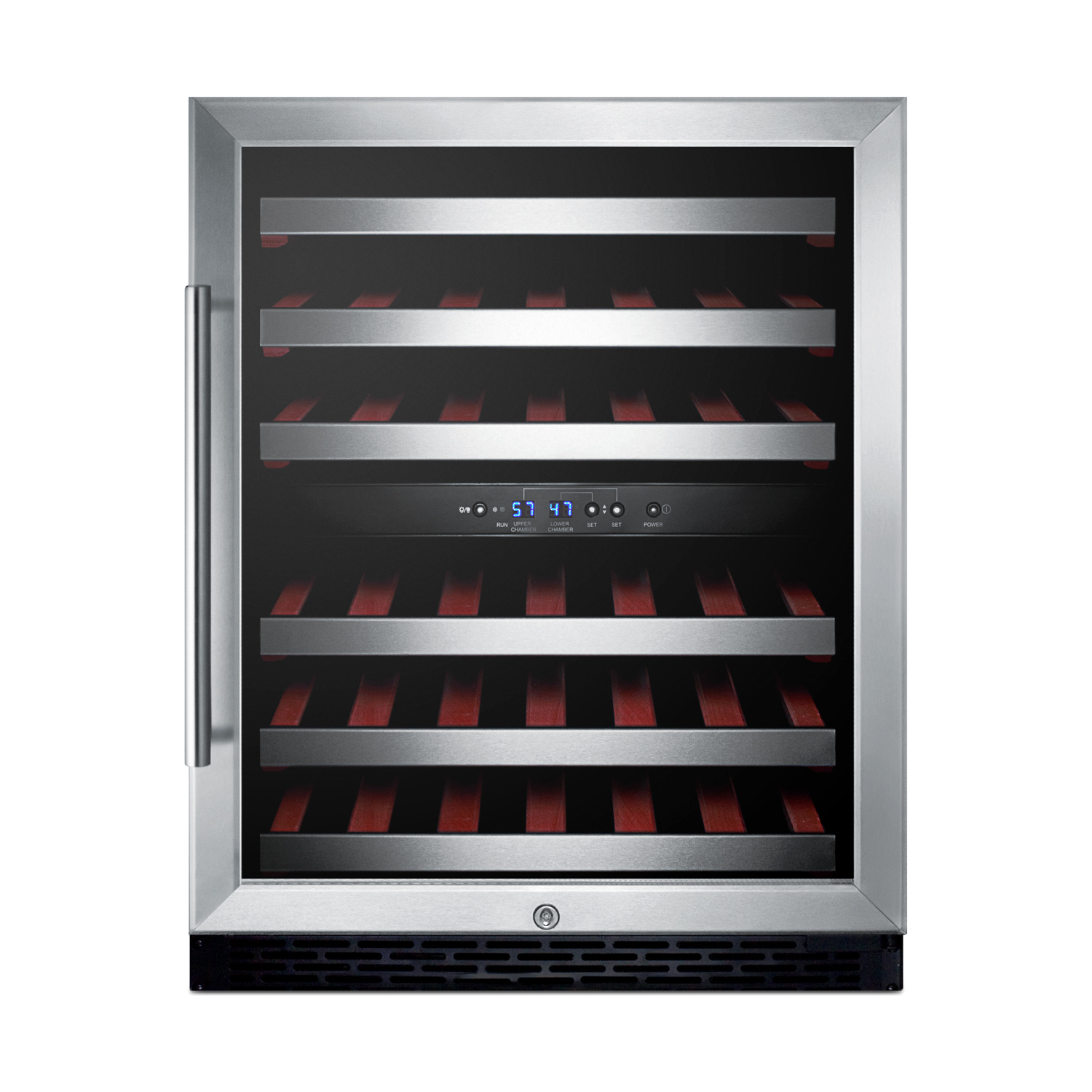

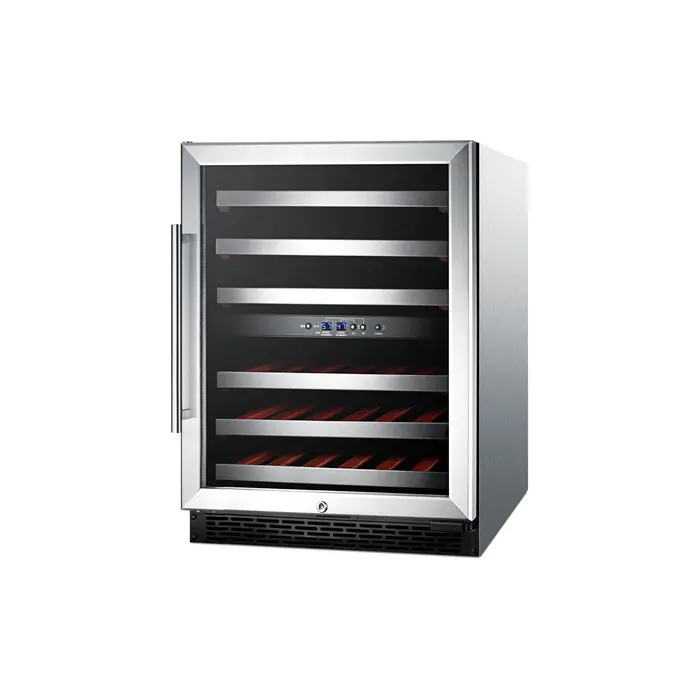

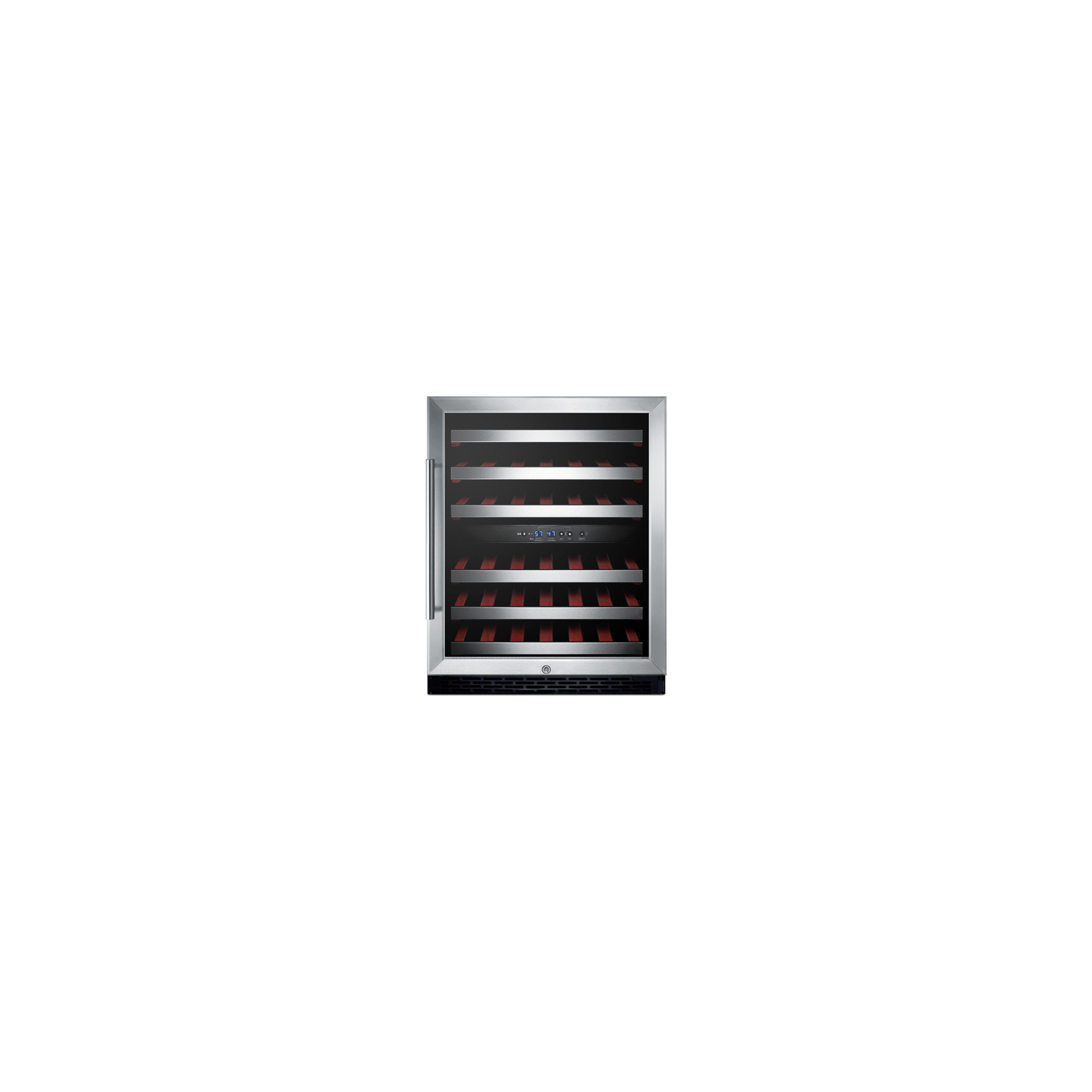

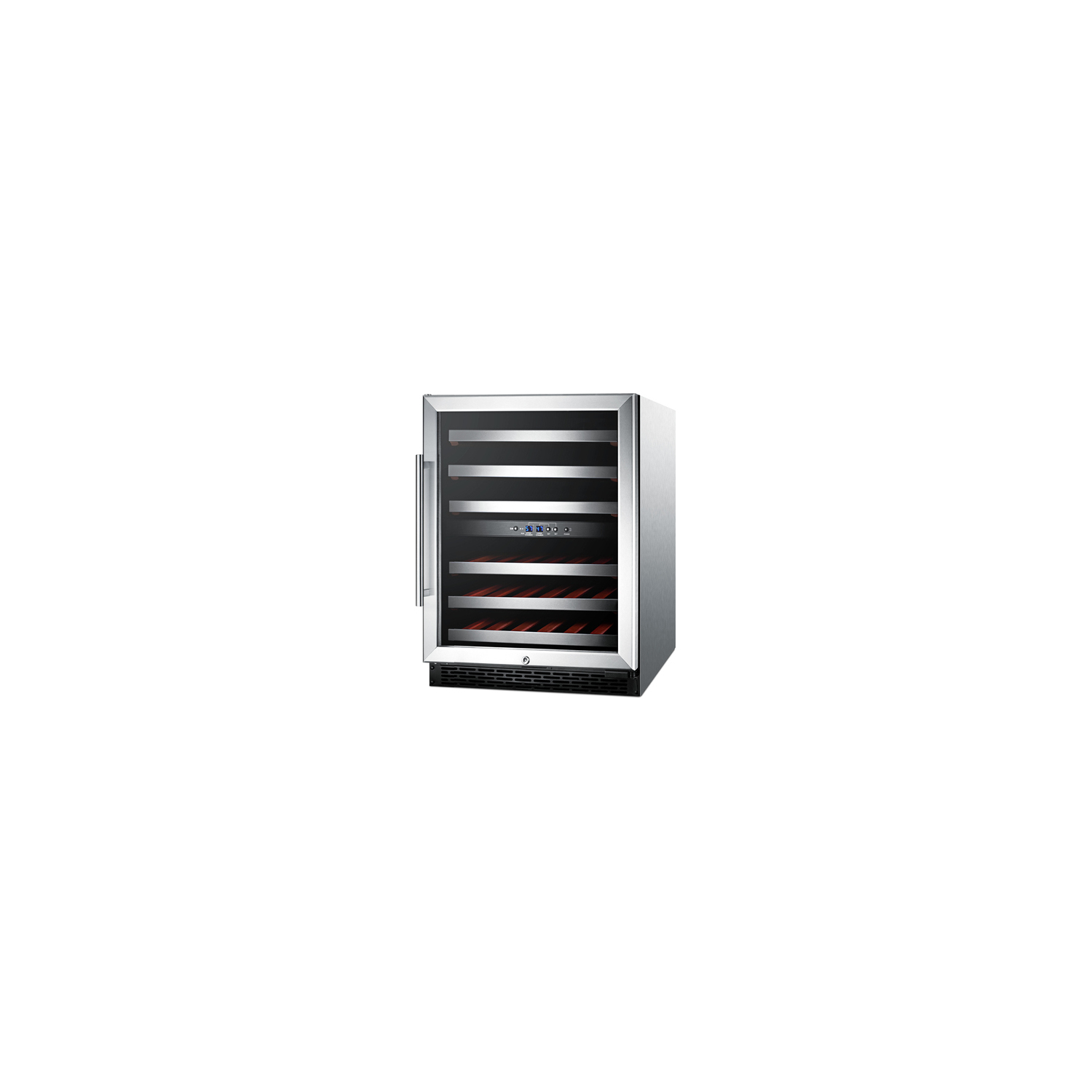

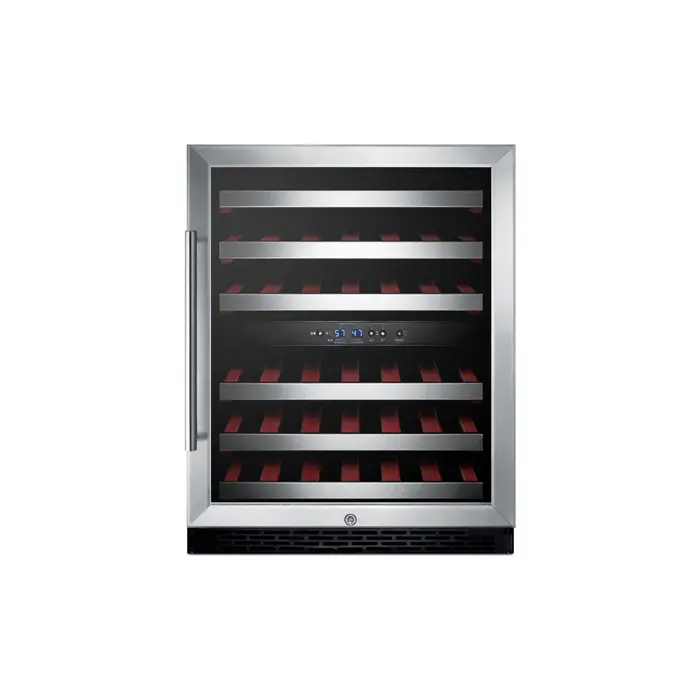

Summit ADA compliant dual zone built-in wine cellar with digital thermostat, stainless steel trimmed shelves, and stainless steel wrapped cabinet, 7.61101e+011, SWC530BLBISTCSSADA

Store your finest collection in the SWC530BLBISTCSSADA, an ADA compliant built-in wine cellar with advanced features and stunning design.

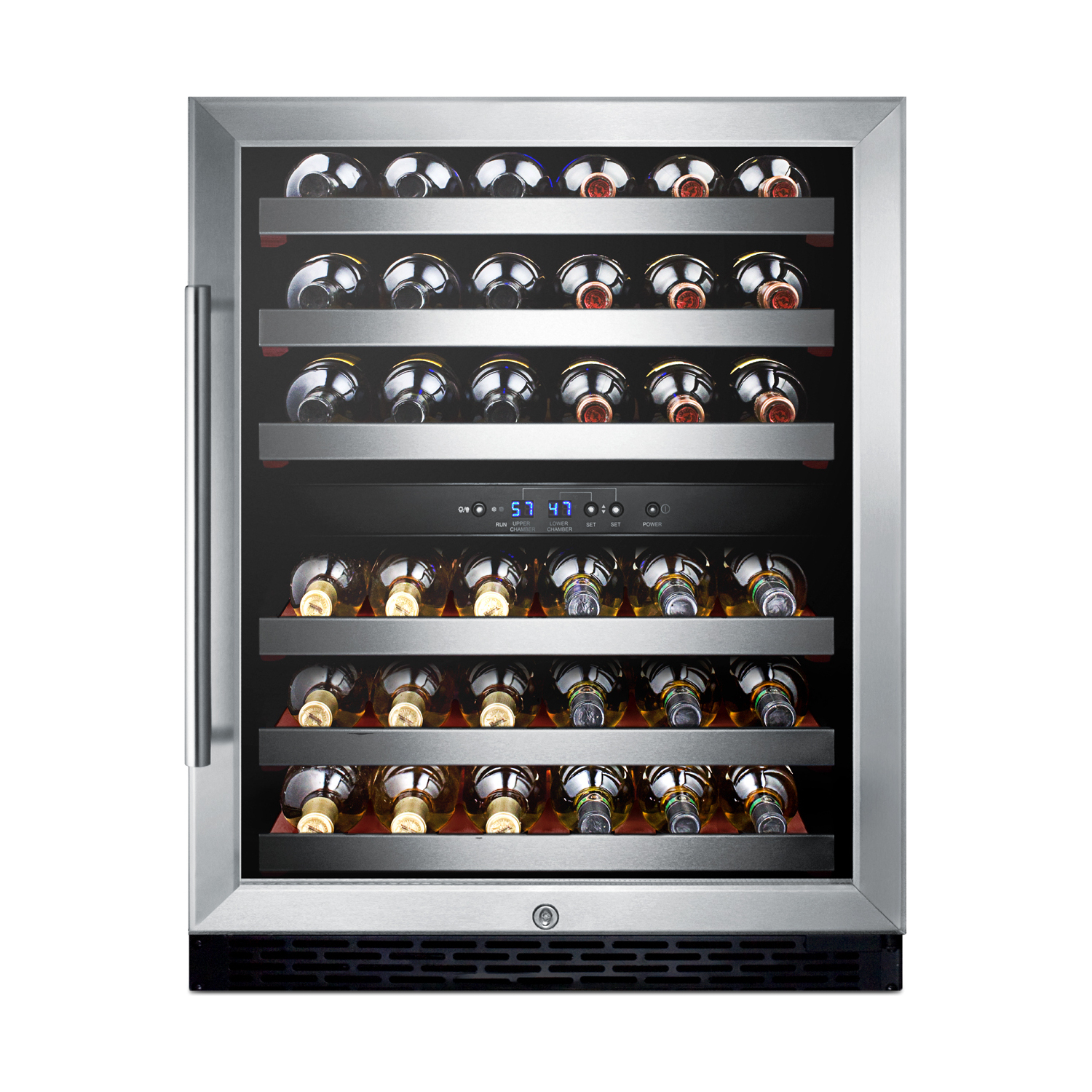

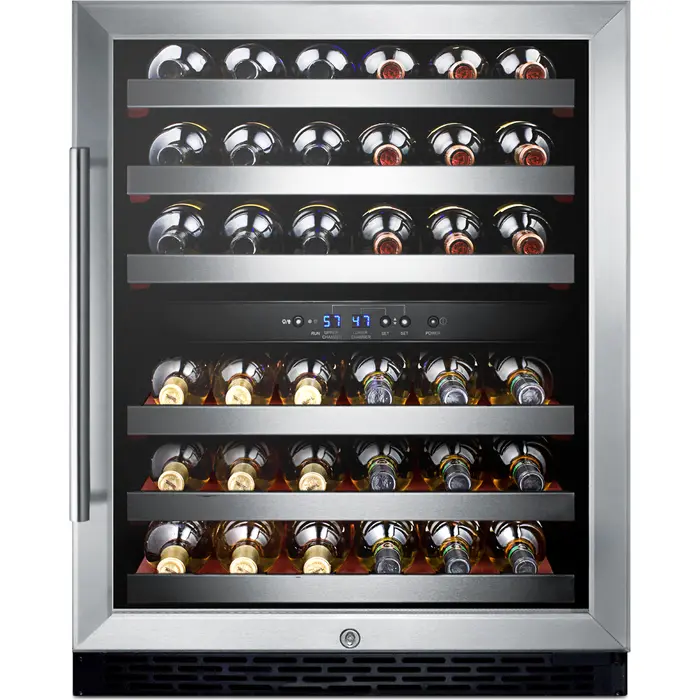

Two digital thermostats allow you to chill your white wine while separately preserving red at a warmer temperature. Slide-out wooden shelves with stainless steel trim let you store up to 46 standard 750ml sized Bordeaux bottles. Alternatively, you can store up to 40 bottles of the wider Pinot Noir or Chardonnay bottles, while still fitting an additional six Bordeaux bottles. Full automatic defrost, interior lighting, and SUMMIT's own "hidden" evaporator help to keep use and maintenance simple.

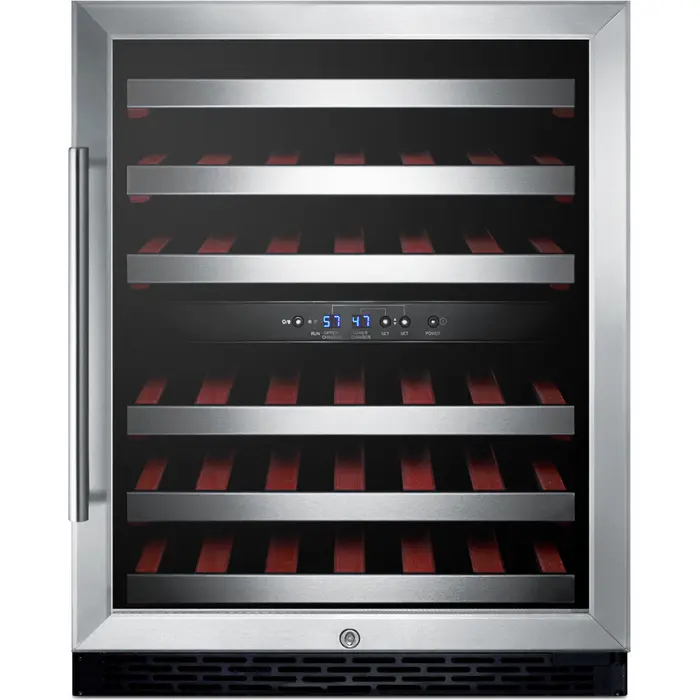

At 32" high, the SWC530BLBISTCSSADA can be used built-in or freestanding under lower ADA compliant counters. The cabinet is fully wrapped in stainless steel, with a reversible glass door to best display your collection. A professional stainless steel door handle completes the look. Nominal Height: 32
Height of Cabinet: 32
Height to Hinge Cap: 0
Nominal Width: 24
Width: 23.63
Width with Door Open: 0
Nominal Depth: 24
Depth: 23.38
Depth with Handle: 25
Depth with door at 90°: 45.5
Capacity: 0
Bottles: 46Defrost Type: AutomaticDoor: GlassCabinet: Stainless SteelUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: N/AVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.38" (59 cm)

Depth with Handle 25.0" (64 cm)

Depth with door at 90° 45.5" (116 cm)

Bottles 46 bottles

Defrost Type Automatic

Door Glass

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 2.0

Voltage/Frequency 115 V AC/60 Hz

Weight 112.0 lbs. (51 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101056425

Wine Cellar

Number of Zones 2

Door Swing RHD

Reversible Yes

Shelf Type Wood

Shelf Qty 6

Thermostat Type Digital

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.23 oz.

High Side PSI 150.0

Low Side PSI 50.0

Level Legs 2

Sound Level 34.3 dB

FEATURES

ADA Compliant 32" height fits under lower ADA compliant counters

Built-in capable Make the best use of space by installing your appliance under the counter

Stainless steel cabinet Fully wrapped in 304 grade stainless steel

Digital thermostats Set and adjust two temperature zones separately with easy-to-use digital controls and digital displays

Two temperature zones Lower zone for reds has a temperature range of 10º C/50º F to 18º C/64º F; Upper zone stores whites and sparkling wine between 5º C/41º F to 10º C/50º F

Automatic defrost Reduced maintenance with auto defrost system

Slide-out wooden shelving Ideal for holding your bottles, with an elegant touch of stainless steel trim

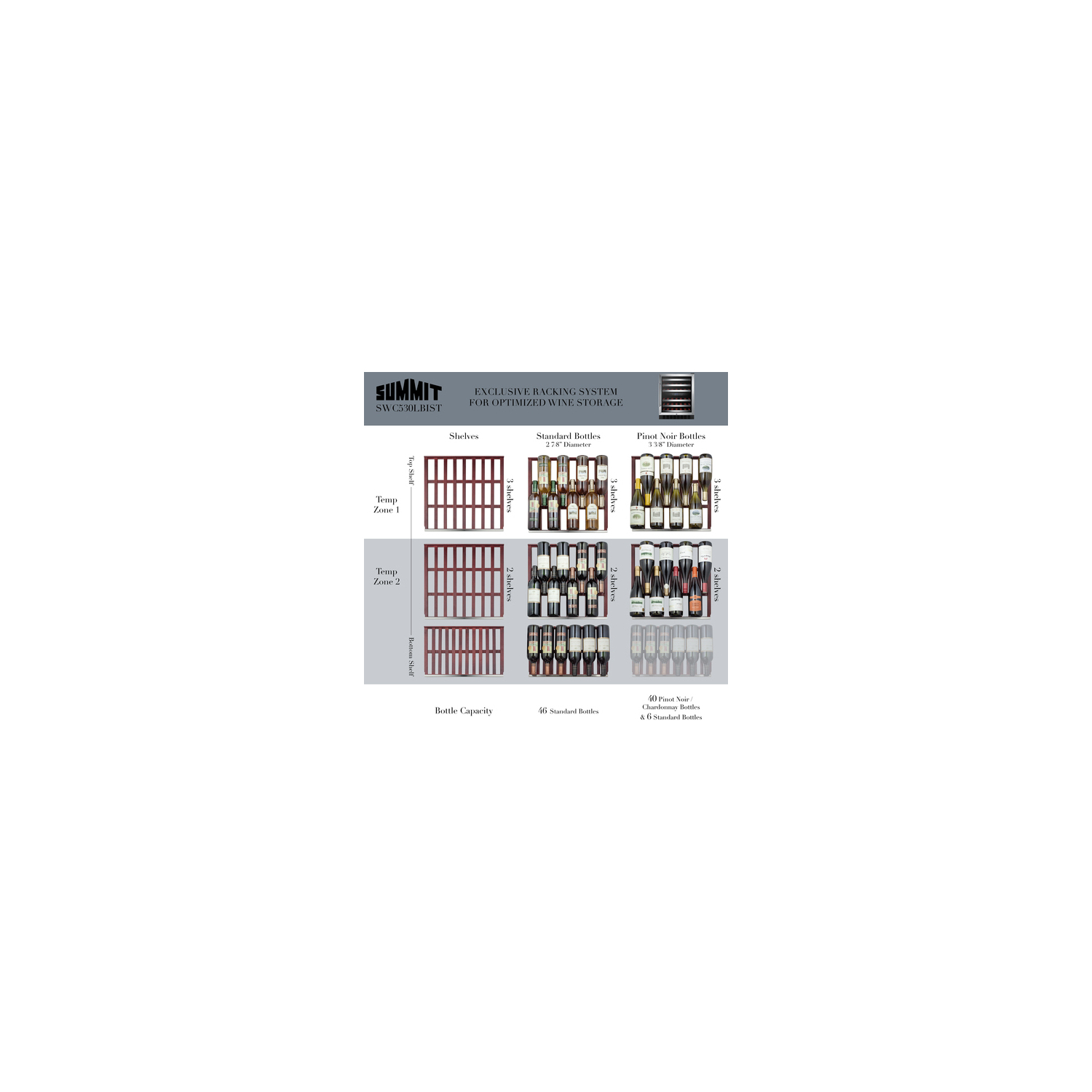

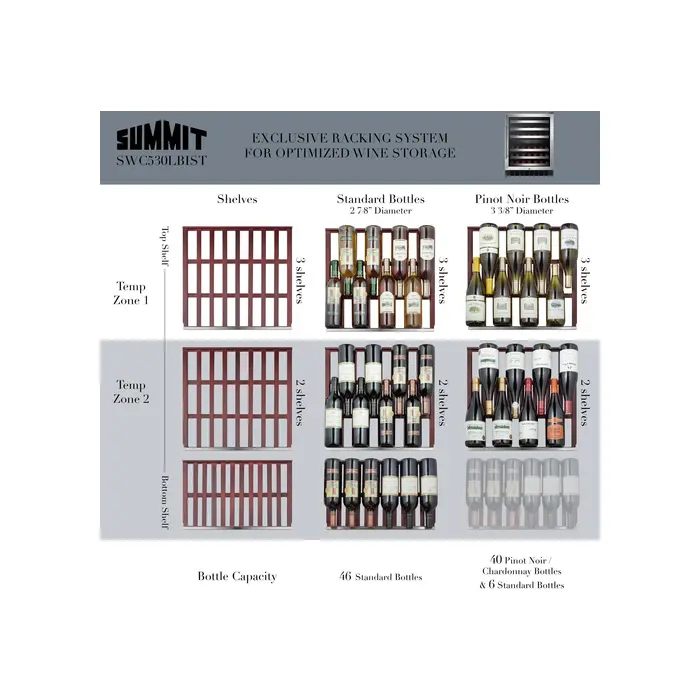

Versatile shelving Interior can store both standard Bordeaux bottles and wider Burgundy type for Pinot Noir and Chardonnay; see your Shelving Guide for details

Stainless steel door frame Classic trim for a refined look

Glass door Provides a full display of your collection

Interior light Illuminate your collection in style

Factory installed lock Keyed lock for secure interior

Reversible door User reversible door swing

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

DOWNLOADS

BROCHURE (SWC530BLBISTCSSADA.pdf)

REVIT MODEL (QF_Summit_SWC530BLBISTADA_ADA_Compliant_Wine_Cellar_2.rfa)

SUPPORT (SWC530LBIST_Shelving_Guide.pdf)

USE & CARE (SWC530BLBISTCSSADA-User-Manual.pdf)
